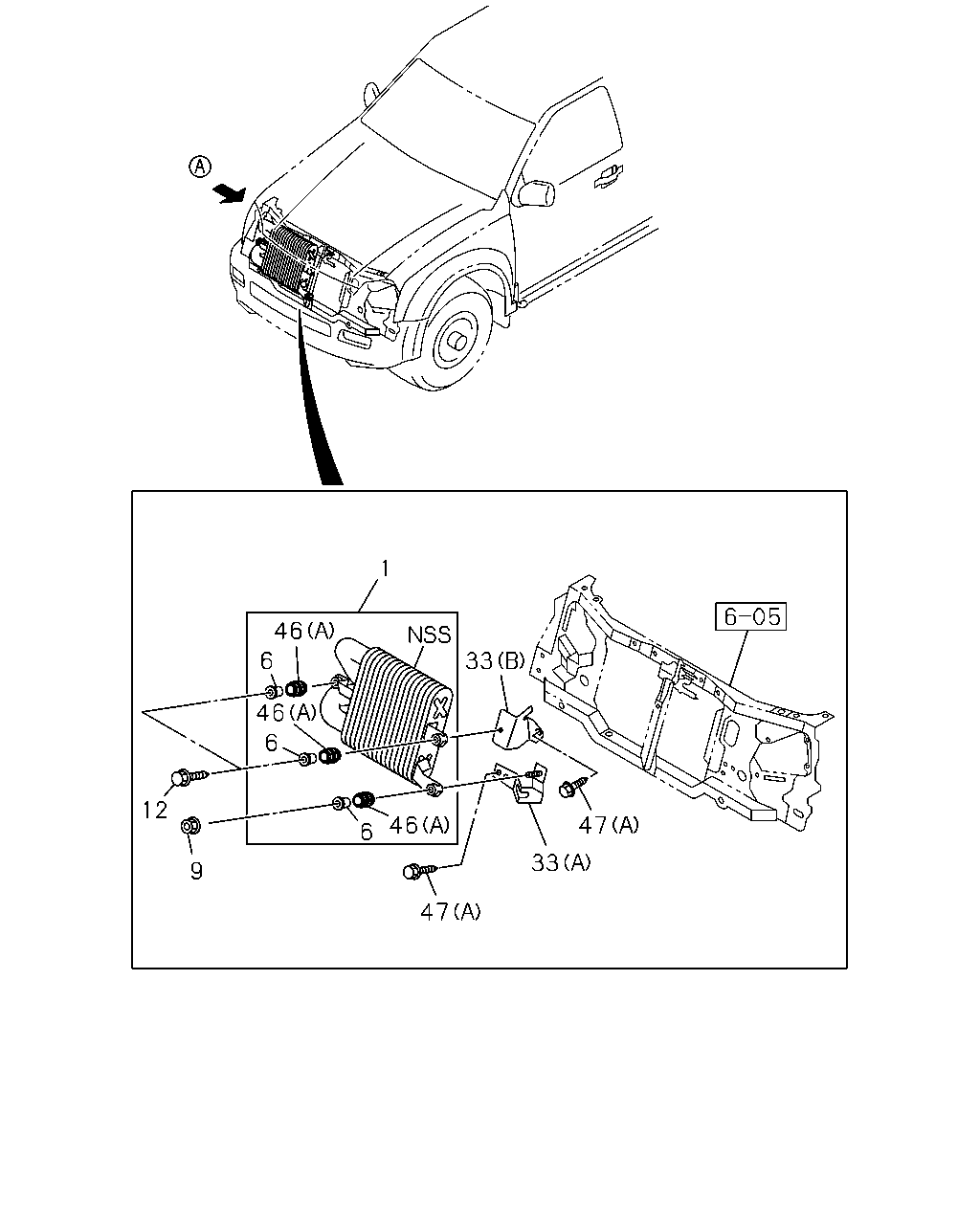

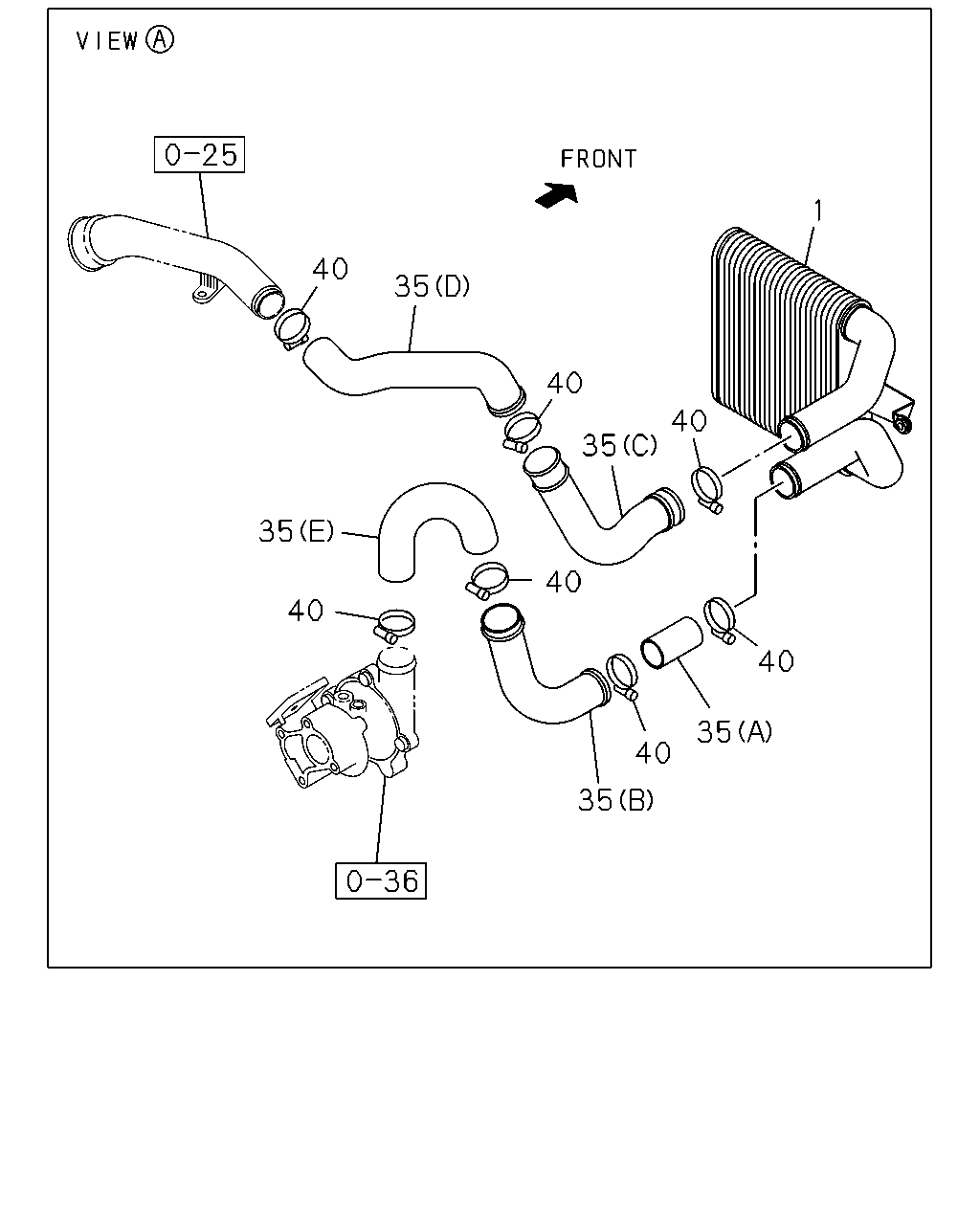

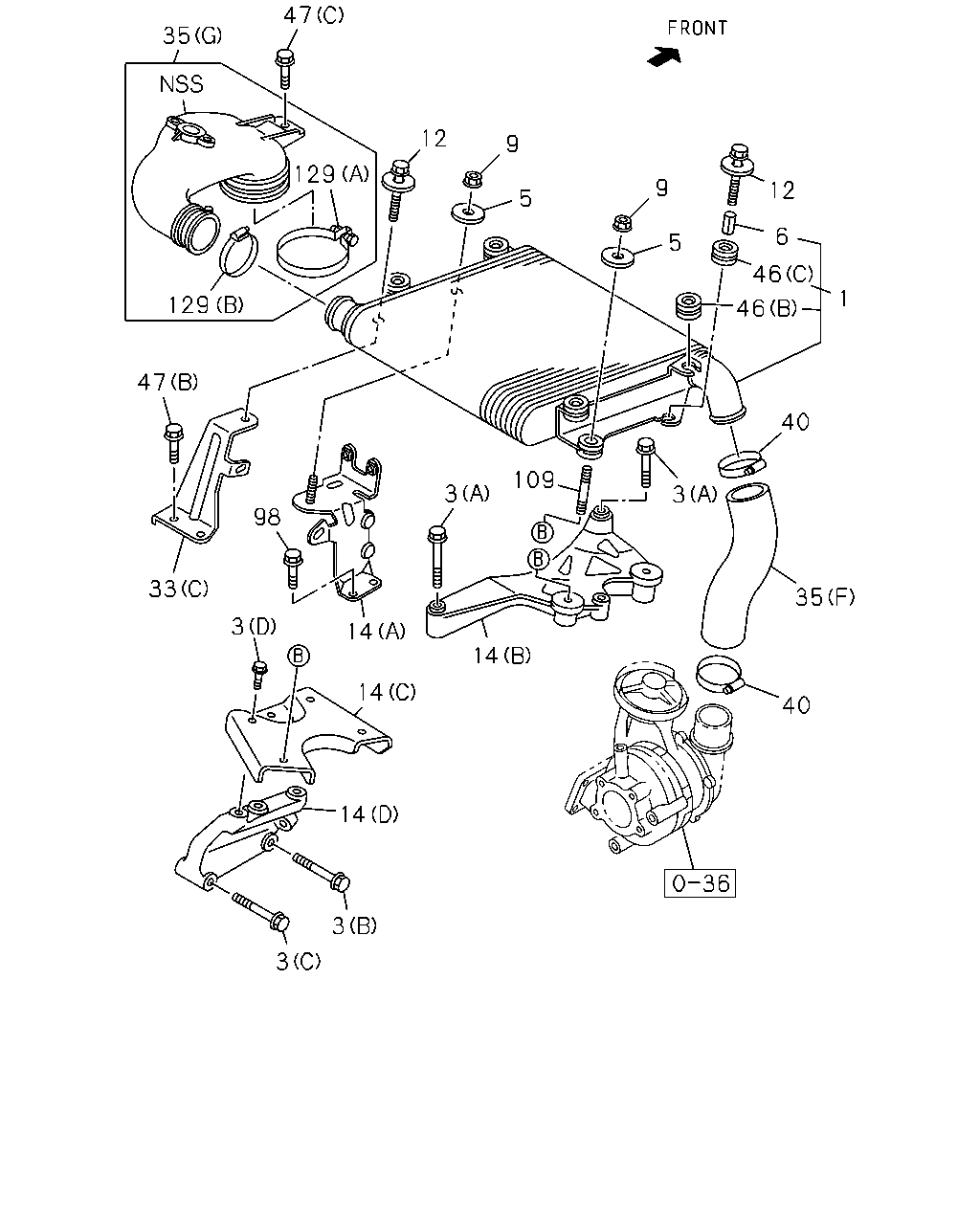

1-35 — CHARGE AIR COOLER (#73574) — 162 parça

1 40 35 40 40 35 35 40 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.374 COOLER; CHARGE AIR	8-97376-148-1	01	1	0410-0412	●
1	03.374 COOLER; CHARGE AIR THA	8-98000-193-0	01	1	0501-0501	●
1	03.374 COOLER; CHARGE AIR THA	8-98000-193-0	01	1	0502-1107	●	●
1	03.374 COOLER; CHARGE AIR THA	8-98088-684-0	01	1	1108-	●	●
1	03.374 COOLER; CHARGE AIR THA	8-97389-185-4	01	1	0610-0802			●
1	03.374 COOLER; CHARGE AIR THA	8-98114-815-0	01	1	0803-			●
35	01.540 HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0502-0707	●	●
35	01.540 HOSE; CONNECTING (B) THA	8-98092-322-0	01	1	0708-	●	●
35	01.540 HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (E) THA	8-97370-564-2	01	1	0410-0410	●
35	01.540 HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0411-0501	●
35	01.540 HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (F) THA	8-98003-588-2	01	1	0610-0807			●
35	01.540 HOSE; CONNECTING (F) THA	8-98099-947-0	01	1	0808-1007			●
35	01.540 HOSE; CONNECTING (F) THA	8-98160-197-0	01	1	1008-			●
35	01.540 HOSE; CONNECTING (G) THA	8-98031-469-0	01	1	0610-0706			●
35	01.540 HOSE; CONNECTING (G) THA	8-98076-084-0	01	1	0707-			●
40	03.162 CLIP; RUBBER HOSE ID=55-75 THA	8-98141-459-0	01	1	0903-0911	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	04	1	0912-1007	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	02	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=60-65	8-98096-418-0	02	1	0804-			●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=50-69	1-09707-135-0	02	1	0410-0501	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0502-0502	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0502-0609	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0610-0809	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0810-0902	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	01	1	0903-0910	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	05	1	0911-0911	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	02	1	0912-1007	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	04	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=50-69	1-09707-135-0	05	1	0410-0501	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0502-0502	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0502-0609	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0610-0803	●	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0804-0809	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0810-0902	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	05	1	0903-0910	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	01	1	0911-	●	●

1 46 33 6 46 6 12 47 46 6 33 9 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.374 COOLER; CHARGE AIR	8-97376-148-1	01	1	0410-0412	●
1	03.374 COOLER; CHARGE AIR THA	8-98000-193-0	01	1	0501-0501	●
1	03.374 COOLER; CHARGE AIR THA	8-98000-193-0	01	1	0502-1107	●	●
1	03.374 COOLER; CHARGE AIR THA	8-98088-684-0	01	1	1108-	●	●
1	03.374 COOLER; CHARGE AIR THA	8-97389-185-4	01	1	0610-0802			●
1	03.374 COOLER; CHARGE AIR THA	8-98114-815-0	01	1	0803-			●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER THA	8-97386-100-0	03	1	0410-0412	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405 THA	8-97942-932-0	03	1	0501-0501	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405 THA	8-97942-932-0	03	1	0502-	●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER THA	8-97107-898-0	04	1	0610-			●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-208-0	01	1	0410-0501	●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-208-0	01	1	0502-0609	●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0610-	●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0610-			●
12	01.540 BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0410-0501	●
12	01.540 BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0502-0812	●	●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER THA	8-98136-077-0	02	1	0901-	●	●
12	01.540 BOLT; CHARGE AIR COOLER THA	8-98044-006-0	02	1	0610-			●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A) THA	8-97326-994-0	01	1	0410-0501	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A) THA	8-97326-994-0	01	1	0502-	●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (B) THA	8-97374-407-1	01	1	0410-0501	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (B) THA	8-97374-407-1	01	1	0502-1107	●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (C) THA	8-97389-214-2	01	1	0610-			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A) THA	8-97942-930-0	03	1	0410-0501	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A) THA	8-97942-930-0	03	1	0502-	●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B) THA	8-97181-886-0	04	1	0610-			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C) THA	8-97232-774-0	04	1	0610-			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0502-1107	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0410-0501	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0502-	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-			●

47 35 12 9 129 9 12 5 6 5 46 1 129 46 47 40 109 3 3 98 33 35 3 14 14 14 40 14 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.374 COOLER; CHARGE AIR	8-97376-148-1	01	1	0410-0412	●
1	03.374 COOLER; CHARGE AIR THA	8-98000-193-0	01	1	0501-0501	●
1	03.374 COOLER; CHARGE AIR THA	8-98000-193-0	01	1	0502-1107	●	●
1	03.374 COOLER; CHARGE AIR THA	8-98088-684-0	01	1	1108-	●	●
1	03.374 COOLER; CHARGE AIR THA	8-97389-185-4	01	1	0610-0802			●
1	03.374 COOLER; CHARGE AIR THA	8-98114-815-0	01	1	0803-			●
3	01.540 BOLT; CHARGE AIR COOLER 09.181 (B) M10X45 FLANGE THA	0-28151-045-0	01	1	1008-			●
3	01.540 BOLT; CHARGE AIR COOLER 00.386 (A) M8X50 FLANGE THA	0-28050-850-0	01	1	0610-1007			●
3	01.540 BOLT; CHARGE AIR COOLER 01.652 (C) M6X45 FLANGE THA	0-28050-645-0	01	1	1008-			●
3	01.540 BOLT; CHARGE AIR COOLER 04.686 (A) M8X60 FLANGE THA	0-28050-860-0	01	1	0610-1007			●
3	01.540 BOLT; CHARGE AIR COOLER 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	03	1	1008-			●
5	01.540 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	0610-			●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER THA	8-97386-100-0	03	1	0410-0412	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405 THA	8-97942-932-0	03	1	0501-0501	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405 THA	8-97942-932-0	03	1	0502-	●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER THA	8-97107-898-0	04	1	0610-			●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-208-0	01	1	0410-0501	●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE THA	0-91180-208-0	01	1	0502-0609	●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0610-	●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0610-			●
12	01.540 BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0410-0501	●
12	01.540 BOLT; CHARGE AIR COOLER THA	8-97943-079-0	02	1	0502-0812	●	●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER THA	8-98136-077-0	02	1	0901-	●	●
12	01.540 BOLT; CHARGE AIR COOLER THA	8-98044-006-0	02	1	0610-			●
14	01.540 BRACKET; CHARGE AIR COOLER (D) THA	8-98156-391-1	01	1	1008-			●
14	01.540 BRACKET; CHARGE AIR COOLER (A) THA	8-98012-016-3	01	1	0610-			●
14	01.540 BRACKET; CHARGE AIR COOLER (B) THA	8-98039-405-0	01	1	0610-1007			●
14	01.540 BRACKET; CHARGE AIR COOLER (C) THA	8-98156-390-1	01	1	1008-			●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A) THA	8-97326-994-0	01	1	0410-0501	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A) THA	8-97326-994-0	01	1	0502-	●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (B) THA	8-97374-407-1	01	1	0410-0501	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (B) THA	8-97374-407-1	01	1	0502-1107	●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (C) THA	8-97389-214-2	01	1	0610-			●
35	01.540 HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (A) THA	8-97320-881-2	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (B) THA	8-97370-538-1	01	1	0502-0707	●	●
35	01.540 HOSE; CONNECTING (B) THA	8-98092-322-0	01	1	0708-	●	●
35	01.540 HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (D) THA	8-97370-563-1	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (E) THA	8-97370-564-2	01	1	0410-0410	●
35	01.540 HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0411-0501	●
35	01.540 HOSE; CONNECTING (E) THA	8-98002-516-0	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0410-0501	●
35	01.540 HOSE; CONNECTING (C) THA	8-97385-978-0	01	1	0502-	●	●
35	01.540 HOSE; CONNECTING (F) THA	8-98003-588-2	01	1	0610-0807			●
35	01.540 HOSE; CONNECTING (F) THA	8-98099-947-0	01	1	0808-1007			●
35	01.540 HOSE; CONNECTING (F) THA	8-98160-197-0	01	1	1008-			●
35	01.540 HOSE; CONNECTING (G) THA	8-98031-469-0	01	1	0610-0706			●
35	01.540 HOSE; CONNECTING (G) THA	8-98076-084-0	01	1	0707-			●
40	03.162 CLIP; RUBBER HOSE ID=55-75 THA	8-98141-459-0	01	1	0903-0911	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	04	1	0912-1007	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	02	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=60-65	8-98096-418-0	02	1	0804-			●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=50-69	1-09707-135-0	02	1	0410-0501	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0502-0502	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0502-0609	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0610-0809	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0810-0902	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	01	1	0903-0910	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	05	1	0911-0911	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	02	1	0912-1007	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-70 THA	8-98141-460-0	04	1	1008-	●	●
40	03.162 CLIP; RUBBER HOSE 03.407 ID=50-69	1-09707-135-0	05	1	0410-0501	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0502-0502	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0502-0609	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0610-0803	●	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	02	1	0804-0809	●	●
40	03.162 CLIP; RUBBER HOSE ID=50-65 THA	8-98000-117-0	05	1	0810-0902	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	05	1	0903-0910	●	●
40	03.162 CLIP; RUBBER HOSE ID=45-65 THA	8-98133-396-0	01	1	0911-	●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A) THA	8-97942-930-0	03	1	0410-0501	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A) THA	8-97942-930-0	03	1	0502-	●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B) THA	8-97181-886-0	04	1	0610-			●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C) THA	8-97232-774-0	04	1	0610-			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0502-1107	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0410-0501	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0502-	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-			●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-			●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0610-			●
109	01.540 STUD; BRKT M8X40 L=52 THA	0-41010-840-0	01	1	0610-			●
129	01.159 CLAMP; HOSE (A) THA	8-98080-783-0	01	1	0707-			●
129	01.159 CLAMP; HOSE (B) THA	8-98080-785-0	01	1	0707-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
