◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#73573) — 126 parça

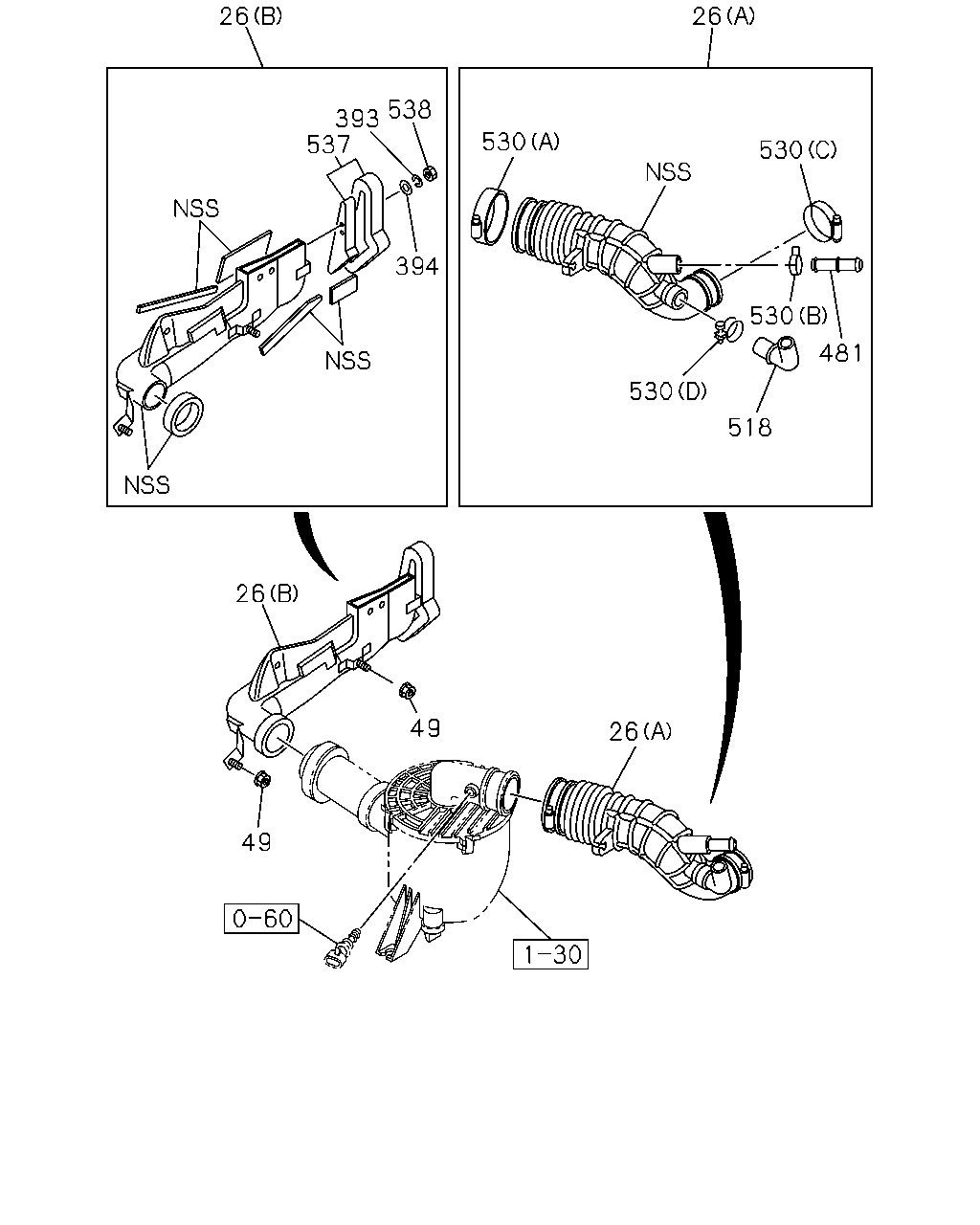

çizim 118007
26 26 538 393 537 530 530 394 530 481 530 518 26 49 26 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
26 03.417 DUCT; AIR INT
(B) THA 		8-97379-288-0 01 1 0404-0409 ● ●
26 03.417 DUCT; AIR INT
(B) THA 		8-97379-288-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0404-0409 ● ●
26 03.417 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(E) THA 		8-98000-986-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(F) THA 		8-98029-373-1 01 1 0610- ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0404-0409 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0410-0501 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0502-0609 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ● ●
393 03.417 WASHER; LK,AIR DUCT
THA 		8-97943-214-0 02 1 0404-0409 ● ●
393 03.417 WASHER; LK,AIR DUCT
THA 		8-97943-214-0 02 1 0410-0501 ●
394 03.417 WASHER; PL,AIR DUCT
THA 		8-97943-213-0 02 1 0404-0409 ● ●
394 03.417 WASHER; PL,AIR DUCT
THA 		8-97943-213-0 02 1 0410-0501 ●
481 03.417 PIPE; PCV
THA 		8-97943-204-0 01 1 0404-0409 ● ●
481 03.417 PIPE; PCV
THA 		8-97943-204-0 01 1 0410-0501 ●
518 03.417 RESONATOR; AIR INT
THA 		8-97943-199-0 01 1 0404-0409 ● ●
518 03.417 RESONATOR; AIR INT
THA 		8-97943-199-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(D) THA 		8-97943-200-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(D) THA 		8-97943-200-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(A) THA 		8-97943-202-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(A) THA 		8-97943-202-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(C) THA 		8-97943-558-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(C) THA 		8-97943-558-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0502- ● ●
530 03.407 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0502- ● ●
530 03.407 CLAMP; AIR DUCT
(G) THA 		8-98052-417-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(H) THA 		8-98052-418-0 01 1 0610- ●
537 03.417 PLATE; AIR DUCT
THA 		8-97367-575-1 01 1 0404-0409 ● ●
537 03.417 PLATE; AIR DUCT
THA 		8-97367-575-1 01 1 0410-0501 ●
538 03.417 NUT; PLATE,AIR DUCT
THA 		8-97943-215-0 02 1 0404-0409 ● ●
538 03.417 NUT; PLATE,AIR DUCT
THA 		8-97943-215-0 02 1 0410-0501 ●

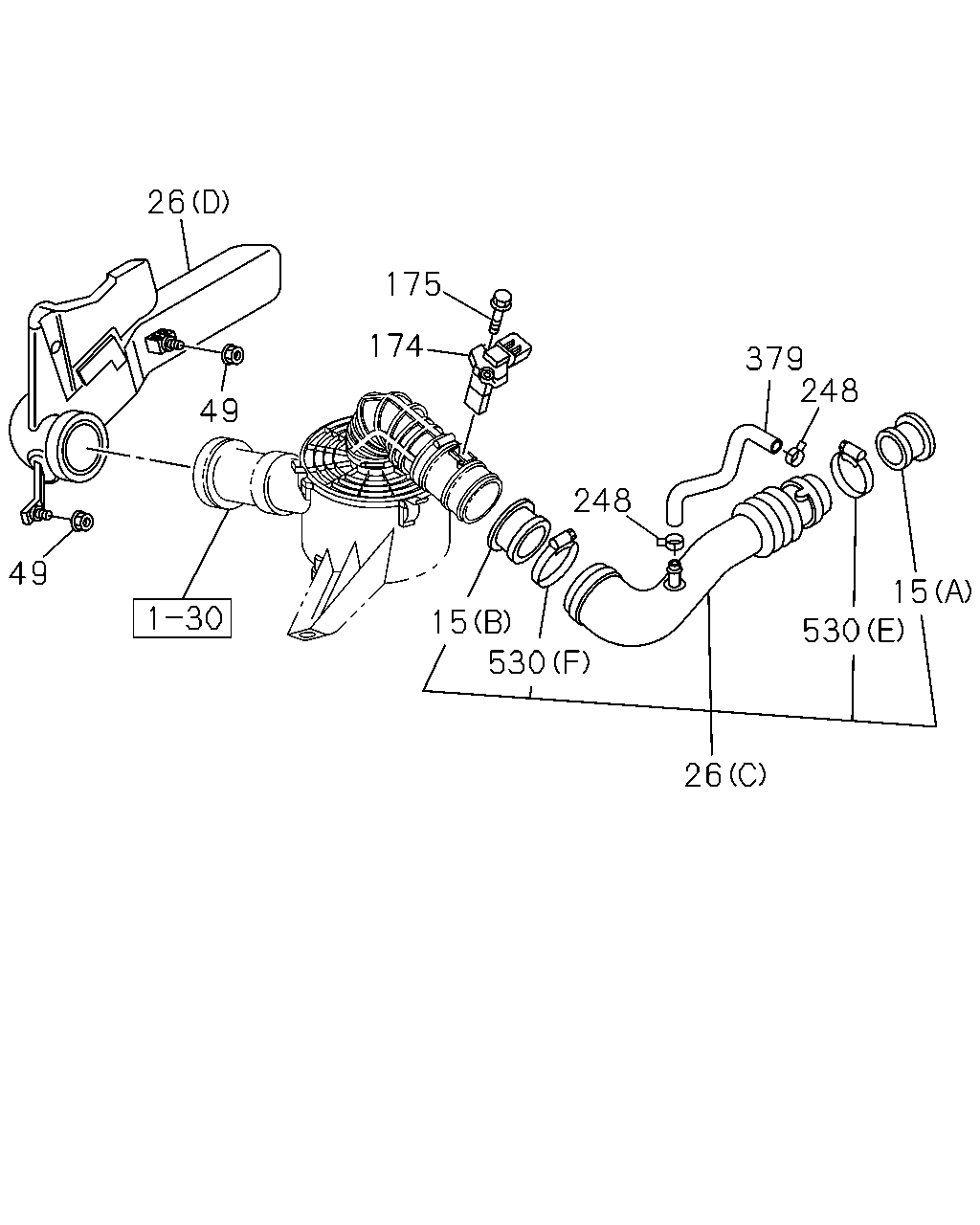

çizim 118008
26 175 174 379 248 49 248 49 15 530 15 530 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 03.417 INSULATOR
(A) THA 		8-98000-142-0 01 1 0410-0501 ●
15 03.417 INSULATOR
(A) THA 		8-98000-142-0 01 1 0502- ● ●
15 03.417 INSULATOR
(B) THA 		8-98000-143-0 01 1 0410-0501 ●
15 03.417 INSULATOR
(B) THA 		8-98000-143-0 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(B) THA 		8-97379-288-0 01 1 0404-0409 ● ●
26 03.417 DUCT; AIR INT
(B) THA 		8-97379-288-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0404-0409 ● ●
26 03.417 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(E) THA 		8-98000-986-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(F) THA 		8-98029-373-1 01 1 0610- ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0404-0409 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0410-0501 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0502-0609 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0410-0501 ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0502-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610- ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 0410-0501 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 0502-0606 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0607-0609 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0610- ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0410-0501 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0502-0609 ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0610- ● ● ●
379 03.675 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0410-0501 ●
379 03.675 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0502- ● ●
379 03.675 HOSE; RUBBER
THA 		8-98008-134-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(D) THA 		8-97943-200-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(D) THA 		8-97943-200-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(A) THA 		8-97943-202-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(A) THA 		8-97943-202-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(C) THA 		8-97943-558-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(C) THA 		8-97943-558-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0502- ● ●
530 03.407 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0502- ● ●
530 03.407 CLAMP; AIR DUCT
(G) THA 		8-98052-417-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(H) THA 		8-98052-418-0 01 1 0610- ●

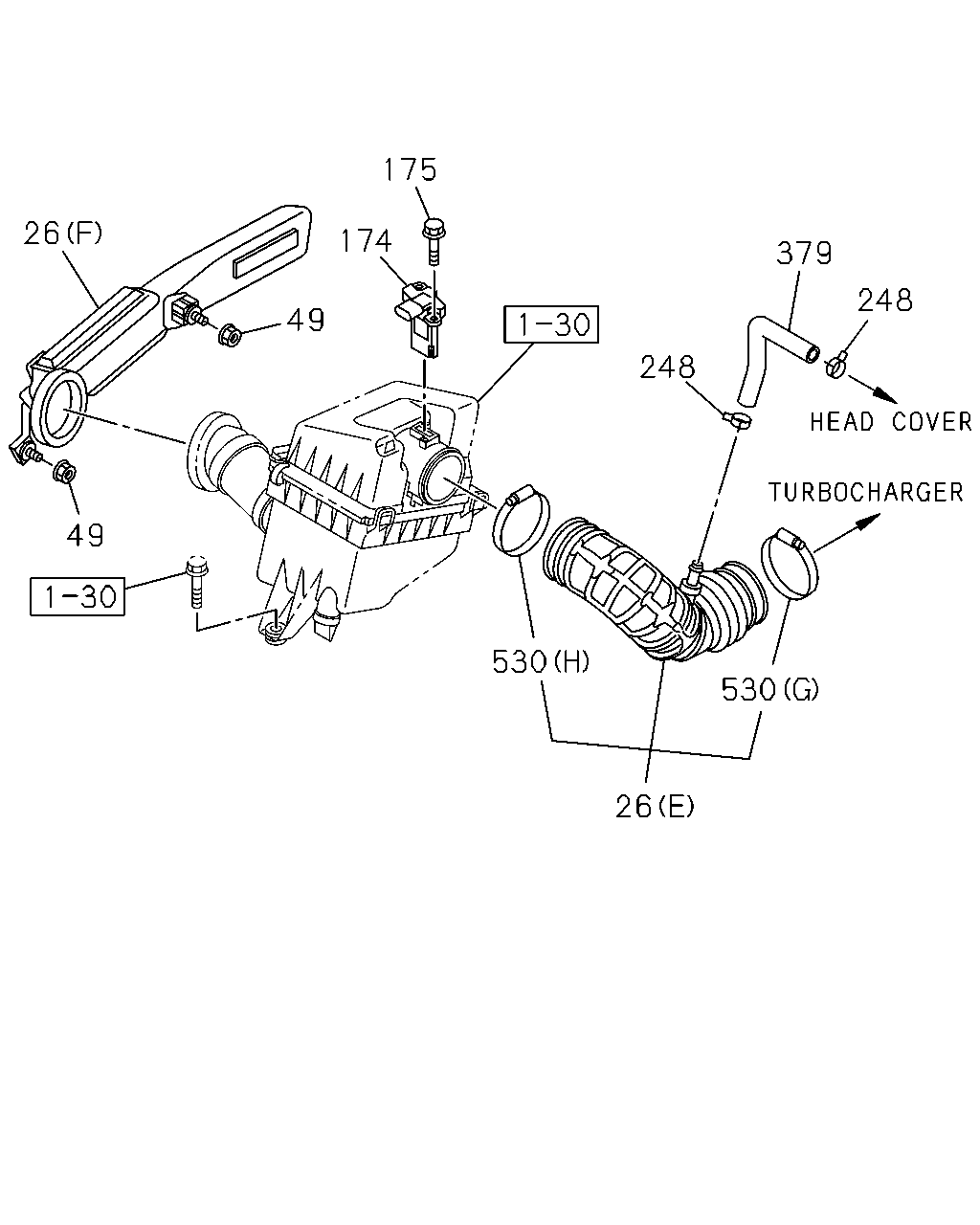

çizim 118012
175 26 174 379 248 49 248 49 530 530 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
26 03.417 DUCT; AIR INT
(B) THA 		8-97379-288-0 01 1 0404-0409 ● ●
26 03.417 DUCT; AIR INT
(B) THA 		8-97379-288-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0404-0409 ● ●
26 03.417 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0410-0501 ●
26 03.417 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0502- ● ●
26 03.417 DUCT; AIR INT
(E) THA 		8-98000-986-0 01 1 0610- ●
26 03.417 DUCT; AIR INT
(F) THA 		8-98029-373-1 01 1 0610- ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0404-0409 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0410-0501 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0502-0609 ● ●
49 03.417 NUT; AIR DUCT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0410-0501 ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0502-0609 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0610- ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 0410-0501 ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 0502-0606 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0607-0609 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0610- ● ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0410-0501 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0502-0609 ● ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 0610- ● ● ●
379 03.675 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0410-0501 ●
379 03.675 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0502- ● ●
379 03.675 HOSE; RUBBER
THA 		8-98008-134-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(D) THA 		8-97943-200-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(D) THA 		8-97943-200-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(A) THA 		8-97943-202-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(A) THA 		8-97943-202-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(C) THA 		8-97943-558-0 01 1 0404-0409 ● ●
530 03.407 CLAMP; AIR DUCT
(C) THA 		8-97943-558-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0502- ● ●
530 03.407 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0410-0501 ●
530 03.407 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0502- ● ●
530 03.407 CLAMP; AIR DUCT
(G) THA 		8-98052-417-0 01 1 0610- ●
530 03.407 CLAMP; AIR DUCT
(H) THA 		8-98052-418-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
