◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#73572) — 246 parça

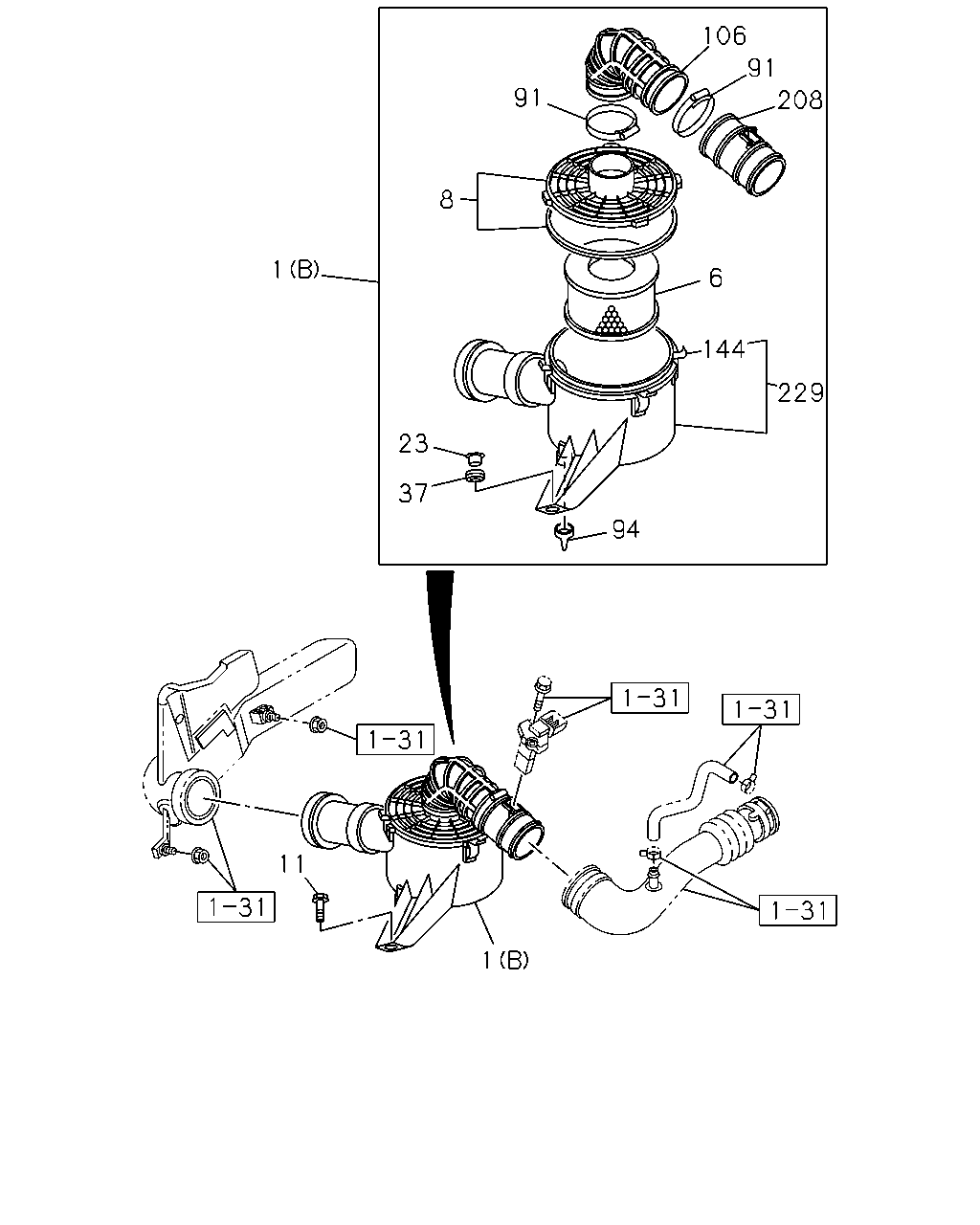

çizim 118002
106 1 91 208 8 1 6 144 229 23 37 94 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-410-3 01 1 0404-0501 ●
1 03.402 CLEANER ASM; AIR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
4X4<TFS***> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0410-0501 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0502-0609 ● ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (B) THA 		8-97368-828-4 01 1 0610- ● ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (C) THA 		8-98027-483-0 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (E) THA 		8-98008-888-2 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) THA 		8-98008-889-2 01 1 0610- ●
6 03.410 FILTER; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0404-0409 ● ●
6 03.410 FILTER; ACL
4X4<TFS***> THA 		8-97944-570-0 01 1 0404-0409 ●
6 03.410 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0502- ● ●
6 03.410 FILTER; ACL
THA 		8-98027-480-0 01 1 0610- ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-927-0 01 1 0404-0501 ●
8 03.410 COVER ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
4X4<TFS***> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0410-0501 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0502- ● ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-124-1 01 1 0610- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98053-566-0 01 1 0610- ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0404-0409 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0410-0501 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0502-0609 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0610- ● ● ●
23 03.405 COLLAR; ACL STAY
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0404-0409 ● ●
23 03.405 COLLAR; ACL STAY
4X4<TFS***> THA 		8-97942-932-0 03 1 0404-0409 ●
23 03.405 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0502- ● ●
23 03.405 COLLAR; ACL STAY
THA 		8-98036-127-0 03 1 0610- ●
37 03.406 RUBBER; MTG,ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0404-0409 ● ●
37 03.406 RUBBER; MTG,ACL
4X4<TFS***> THA 		8-97942-930-0 03 1 0404-0409 ●
37 03.406 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0502- ● ●
37 03.406 RUBBER; MTG,ACL
THA 		8-98036-126-0 03 1 0610- ●
91 03.403 CLAMP
THA 		8-97357-105-0 02 1 0410-0501 ●
91 03.403 CLAMP
THA 		8-97357-105-0 02 1 0502- ● ●
94 03.415 VALVE; VACUATOR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0404-0409 ● ●
94 03.415 VALVE; VACUATOR
4X4<TFS***> THA 		8-94447-157-0 01 1 0404-0409 ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0502-0609 ● ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0610- ● ● ●
94 03.415 VALVE; VACUATOR
4X4 CREW CAB<TFS*W*> HEAVY DUTY AIR CLEANER<K46> THA 		8-94447-157-0 02 1 0610- ● ●
106 03.417 HOSE; CONN,ACL
THA 		8-97377-905-0 01 1 0410-0501 ●
106 03.417 HOSE; CONN,ACL
THA 		8-97377-905-0 01 1 0502- ● ●
144 03.403 CLIP; ACL
THA 		8-97324-624-0 04 1 1008- ● ●
144 03.403 CLIP; ACL
THA 		8-97324-624-0 02 1 1008- ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 04 1 0410-0501 ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 04 1 0502-1007 ● ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 02 1 0610-1007 ●
208 03.407 DUCT; ACL
THA 		8-97377-904-0 01 1 0410-0501 ●
208 03.407 DUCT; ACL
THA 		8-97377-904-0 01 1 0502- ● ●
229 03.406 BODY ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0404-0409 ● ●
229 03.406 BODY ASM; ACL
4X4<TFS***> THA 		8-97942-929-0 01 1 0404-0409 ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0502-0609 ● ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97377-903-0 01 1 0610- ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98038-104-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-125-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98037-310-0 01 1 0610- ●

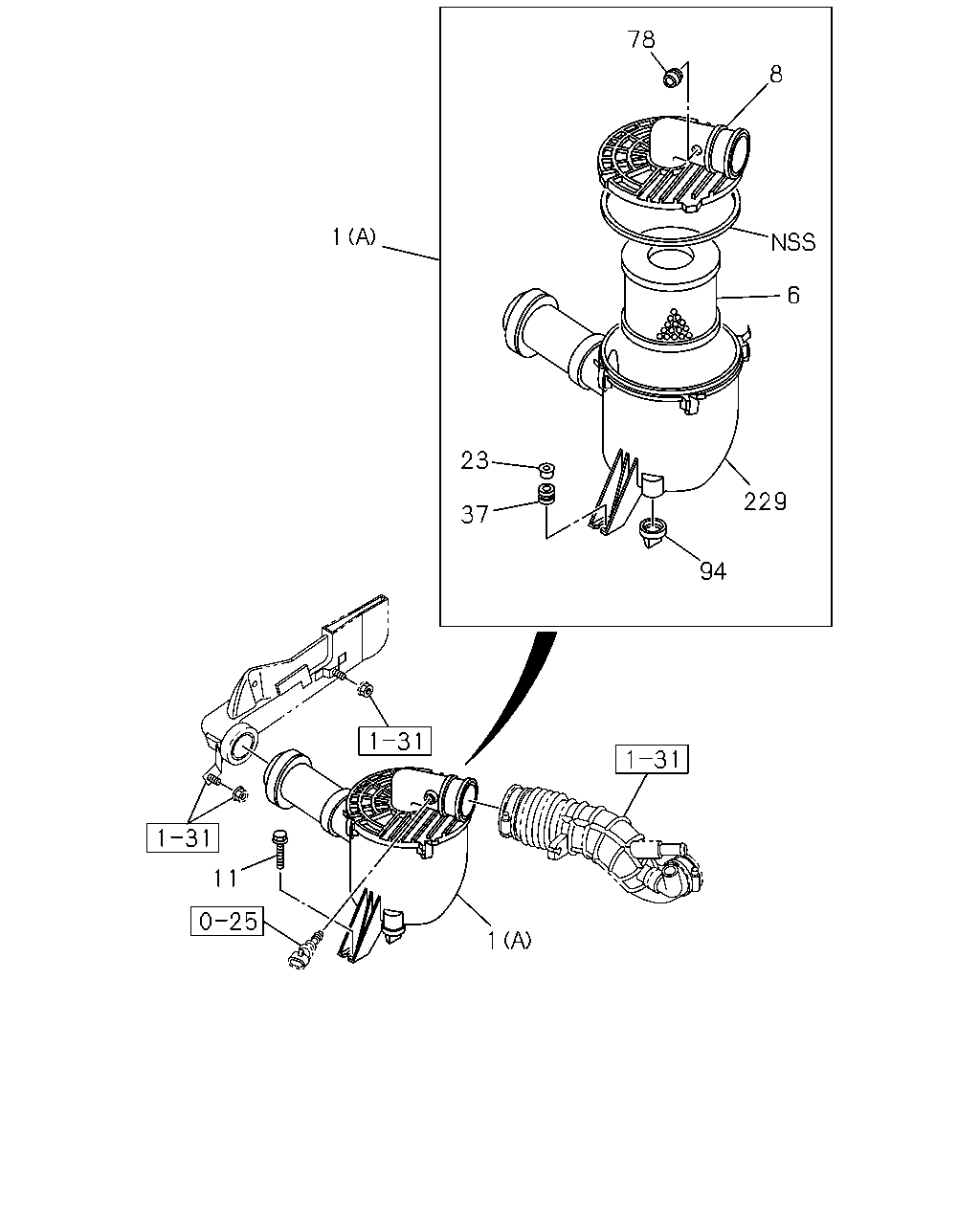

çizim 118004
78 8 1 6 23 229 37 94 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-410-3 01 1 0404-0501 ●
1 03.402 CLEANER ASM; AIR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
4X4<TFS***> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0410-0501 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0502-0609 ● ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (B) THA 		8-97368-828-4 01 1 0610- ● ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (C) THA 		8-98027-483-0 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (E) THA 		8-98008-888-2 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) THA 		8-98008-889-2 01 1 0610- ●
6 03.410 FILTER; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0404-0409 ● ●
6 03.410 FILTER; ACL
4X4<TFS***> THA 		8-97944-570-0 01 1 0404-0409 ●
6 03.410 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0502- ● ●
6 03.410 FILTER; ACL
THA 		8-98027-480-0 01 1 0610- ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-927-0 01 1 0404-0501 ●
8 03.410 COVER ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
4X4<TFS***> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0410-0501 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0502- ● ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-124-1 01 1 0610- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98053-566-0 01 1 0610- ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0404-0409 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0410-0501 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0502-0609 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0610- ● ● ●
23 03.405 COLLAR; ACL STAY
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0404-0409 ● ●
23 03.405 COLLAR; ACL STAY
4X4<TFS***> THA 		8-97942-932-0 03 1 0404-0409 ●
23 03.405 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0502- ● ●
23 03.405 COLLAR; ACL STAY
THA 		8-98036-127-0 03 1 0610- ●
37 03.406 RUBBER; MTG,ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0404-0409 ● ●
37 03.406 RUBBER; MTG,ACL
4X4<TFS***> THA 		8-97942-930-0 03 1 0404-0409 ●
37 03.406 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0502- ● ●
37 03.406 RUBBER; MTG,ACL
THA 		8-98036-126-0 03 1 0610- ●
78 03.403 GROMMET; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97213-787-0 01 1 0404-0409 ● ●
78 03.403 GROMMET; ACL
4X4<TFS***> THA 		8-97213-787-0 01 1 0404-0409 ●
78 03.403 GROMMET; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97213-787-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0404-0409 ● ●
94 03.415 VALVE; VACUATOR
4X4<TFS***> THA 		8-94447-157-0 01 1 0404-0409 ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0502-0609 ● ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0610- ● ● ●
94 03.415 VALVE; VACUATOR
4X4 CREW CAB<TFS*W*> HEAVY DUTY AIR CLEANER<K46> THA 		8-94447-157-0 02 1 0610- ● ●
229 03.406 BODY ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0404-0409 ● ●
229 03.406 BODY ASM; ACL
4X4<TFS***> THA 		8-97942-929-0 01 1 0404-0409 ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0502-0609 ● ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97377-903-0 01 1 0610- ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98038-104-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-125-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98037-310-0 01 1 0610- ●

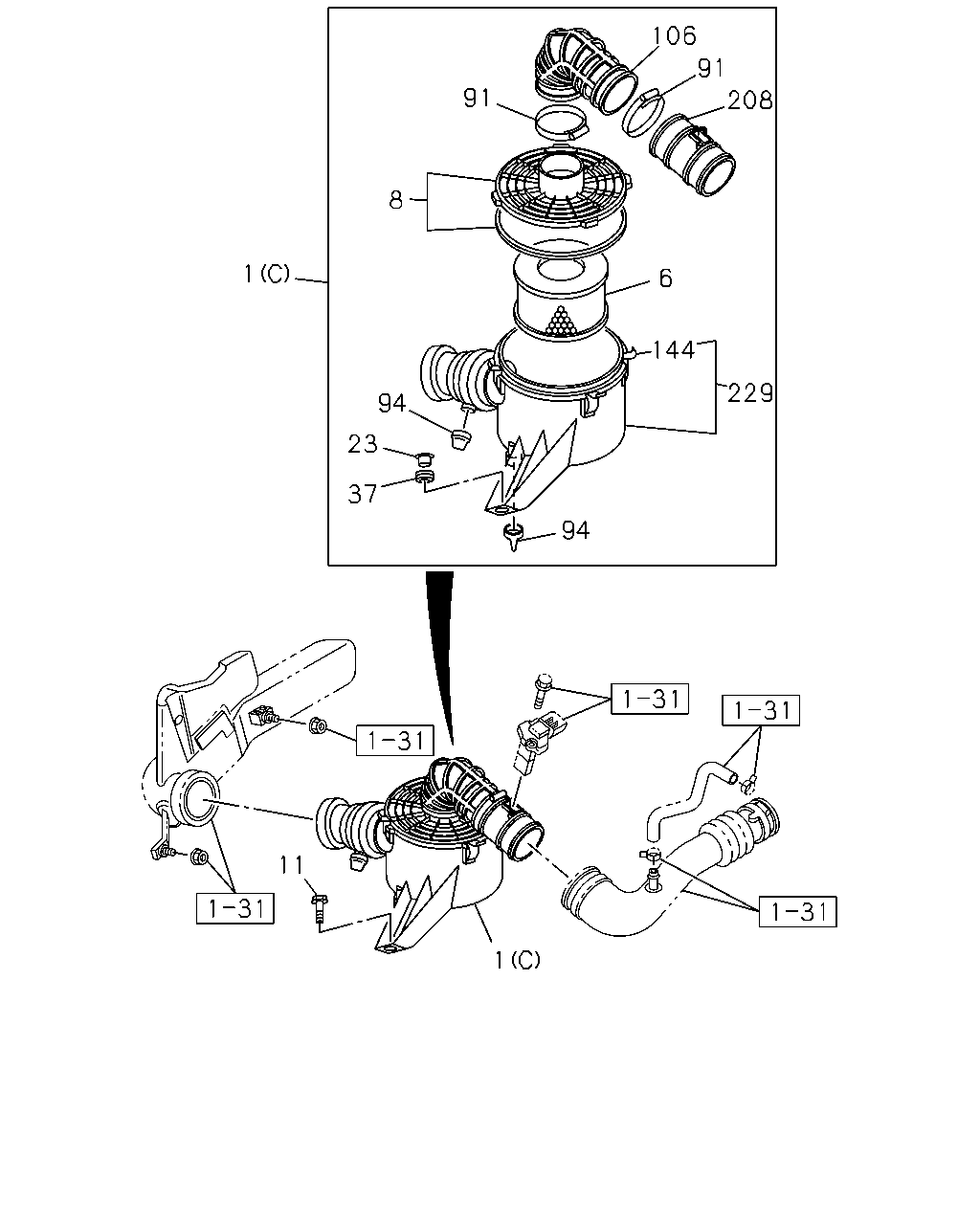

çizim 118009
106 91 91 208 8 1 6 144 229 94 23 37 94 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-410-3 01 1 0404-0501 ●
1 03.402 CLEANER ASM; AIR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
4X4<TFS***> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0410-0501 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0502-0609 ● ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (B) THA 		8-97368-828-4 01 1 0610- ● ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (C) THA 		8-98027-483-0 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (E) THA 		8-98008-888-2 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) THA 		8-98008-889-2 01 1 0610- ●
6 03.410 FILTER; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0404-0409 ● ●
6 03.410 FILTER; ACL
4X4<TFS***> THA 		8-97944-570-0 01 1 0404-0409 ●
6 03.410 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0502- ● ●
6 03.410 FILTER; ACL
THA 		8-98027-480-0 01 1 0610- ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-927-0 01 1 0404-0501 ●
8 03.410 COVER ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
4X4<TFS***> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0410-0501 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0502- ● ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-124-1 01 1 0610- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98053-566-0 01 1 0610- ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0404-0409 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0410-0501 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0502-0609 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0610- ● ● ●
23 03.405 COLLAR; ACL STAY
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0404-0409 ● ●
23 03.405 COLLAR; ACL STAY
4X4<TFS***> THA 		8-97942-932-0 03 1 0404-0409 ●
23 03.405 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0502- ● ●
23 03.405 COLLAR; ACL STAY
THA 		8-98036-127-0 03 1 0610- ●
37 03.406 RUBBER; MTG,ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0404-0409 ● ●
37 03.406 RUBBER; MTG,ACL
4X4<TFS***> THA 		8-97942-930-0 03 1 0404-0409 ●
37 03.406 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0502- ● ●
37 03.406 RUBBER; MTG,ACL
THA 		8-98036-126-0 03 1 0610- ●
91 03.403 CLAMP
THA 		8-97357-105-0 02 1 0410-0501 ●
91 03.403 CLAMP
THA 		8-97357-105-0 02 1 0502- ● ●
94 03.415 VALVE; VACUATOR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0404-0409 ● ●
94 03.415 VALVE; VACUATOR
4X4<TFS***> THA 		8-94447-157-0 01 1 0404-0409 ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0502-0609 ● ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0610- ● ● ●
94 03.415 VALVE; VACUATOR
4X4 CREW CAB<TFS*W*> HEAVY DUTY AIR CLEANER<K46> THA 		8-94447-157-0 02 1 0610- ● ●
106 03.417 HOSE; CONN,ACL
THA 		8-97377-905-0 01 1 0410-0501 ●
106 03.417 HOSE; CONN,ACL
THA 		8-97377-905-0 01 1 0502- ● ●
144 03.403 CLIP; ACL
THA 		8-97324-624-0 04 1 1008- ● ●
144 03.403 CLIP; ACL
THA 		8-97324-624-0 02 1 1008- ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 04 1 0410-0501 ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 04 1 0502-1007 ● ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 02 1 0610-1007 ●
208 03.407 DUCT; ACL
THA 		8-97377-904-0 01 1 0410-0501 ●
208 03.407 DUCT; ACL
THA 		8-97377-904-0 01 1 0502- ● ●
229 03.406 BODY ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0404-0409 ● ●
229 03.406 BODY ASM; ACL
4X4<TFS***> THA 		8-97942-929-0 01 1 0404-0409 ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0502-0609 ● ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97377-903-0 01 1 0610- ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98038-104-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-125-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98037-310-0 01 1 0610- ●

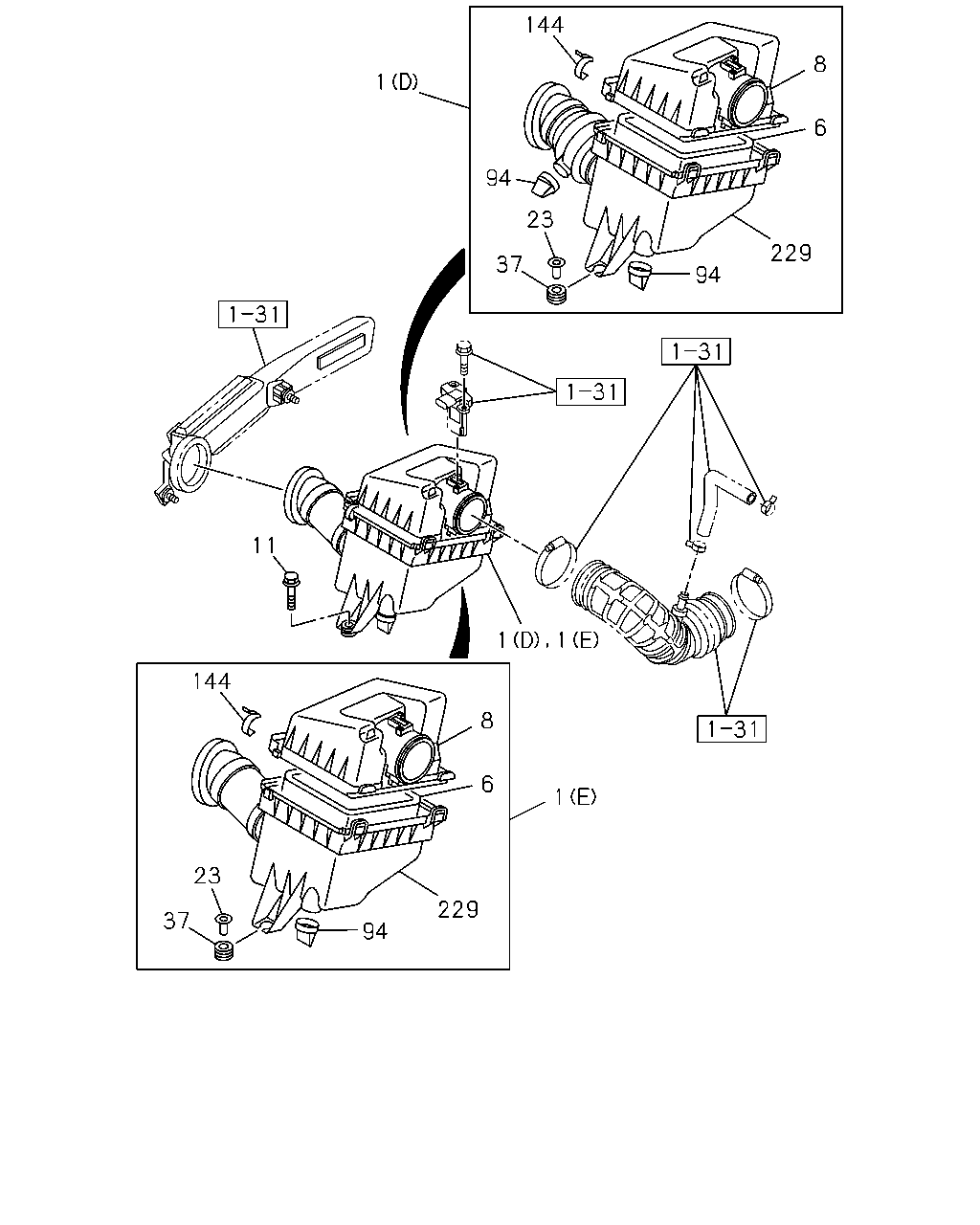

çizim 118010
144 8 1 6 94 23 229 37 94 11 1 1 144 8 6 1 23 229 37 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-410-3 01 1 0404-0501 ●
1 03.402 CLEANER ASM; AIR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
4X4<TFS***> (A) THA 		8-97942-409-3 01 1 0404-0409 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0410-0501 ●
1 03.402 CLEANER ASM; AIR
(B) THA 		8-97368-828-4 01 1 0502-0609 ● ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (B) THA 		8-97368-828-4 01 1 0610- ● ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (C) THA 		8-98027-483-0 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (E) THA 		8-98008-888-2 01 1 0610- ●
1 03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (D) THA 		8-98008-889-2 01 1 0610- ●
6 03.410 FILTER; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0404-0409 ● ●
6 03.410 FILTER; ACL
4X4<TFS***> THA 		8-97944-570-0 01 1 0404-0409 ●
6 03.410 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0410-0501 ●
6 03.410 FILTER; ACL
THA 		8-97944-570-0 01 1 0502- ● ●
6 03.410 FILTER; ACL
THA 		8-98027-480-0 01 1 0610- ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-927-0 01 1 0404-0501 ●
8 03.410 COVER ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
4X4<TFS***> THA 		8-97942-928-0 01 1 0404-0409 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0410-0501 ●
8 03.410 COVER ASM; ACL
THA 		8-97377-902-1 01 1 0502- ● ●
8 03.410 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-124-1 01 1 0610- ●
8 03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98053-566-0 01 1 0610- ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0404-0409 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0410-0501 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0502-0609 ● ●
11 03.403 BOLT; ACL
M8X30 FLANGE THA 		0-28650-830-0 03 1 0610- ● ● ●
23 03.405 COLLAR; ACL STAY
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0404-0409 ● ●
23 03.405 COLLAR; ACL STAY
4X4<TFS***> THA 		8-97942-932-0 03 1 0404-0409 ●
23 03.405 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-932-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0410-0501 ●
23 03.405 COLLAR; ACL STAY
THA 		8-97376-920-0 03 1 0502- ● ●
23 03.405 COLLAR; ACL STAY
THA 		8-98036-127-0 03 1 0610- ●
37 03.406 RUBBER; MTG,ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0404-0409 ● ●
37 03.406 RUBBER; MTG,ACL
4X4<TFS***> THA 		8-97942-930-0 03 1 0404-0409 ●
37 03.406 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-930-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0410-0501 ●
37 03.406 RUBBER; MTG,ACL
THA 		8-97376-919-0 03 1 0502- ● ●
37 03.406 RUBBER; MTG,ACL
THA 		8-98036-126-0 03 1 0610- ●
94 03.415 VALVE; VACUATOR
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0404-0409 ● ●
94 03.415 VALVE; VACUATOR
4X4<TFS***> THA 		8-94447-157-0 01 1 0404-0409 ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0410-0501 ●
94 03.415 VALVE; VACUATOR
THA 		8-94447-157-0 01 1 0502-0609 ● ●
94 03.415 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> THA 		8-94447-157-0 01 1 0610- ● ● ●
94 03.415 VALVE; VACUATOR
4X4 CREW CAB<TFS*W*> HEAVY DUTY AIR CLEANER<K46> THA 		8-94447-157-0 02 1 0610- ● ●
144 03.403 CLIP; ACL
THA 		8-97324-624-0 04 1 1008- ● ●
144 03.403 CLIP; ACL
THA 		8-97324-624-0 02 1 1008- ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 04 1 0410-0501 ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 04 1 0502-1007 ● ●
144 03.403 CLIP; ACL
THA 		8-97354-199-0 02 1 0610-1007 ●
229 03.406 BODY ASM; ACL
4X2<TFB***> AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0404-0409 ● ●
229 03.406 BODY ASM; ACL
4X4<TFS***> THA 		8-97942-929-0 01 1 0404-0409 ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97942-929-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0410-0501 ●
229 03.406 BODY ASM; ACL
THA 		8-97377-903-0 01 1 0502-0609 ● ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-97377-903-0 01 1 0610- ● ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98038-104-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> THA 		8-98036-125-0 01 1 0610- ●
229 03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46> THA 		8-98037-310-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
