1-11 — RADIATOR HOSE AND SUB TANK (#73571) — 86 parça

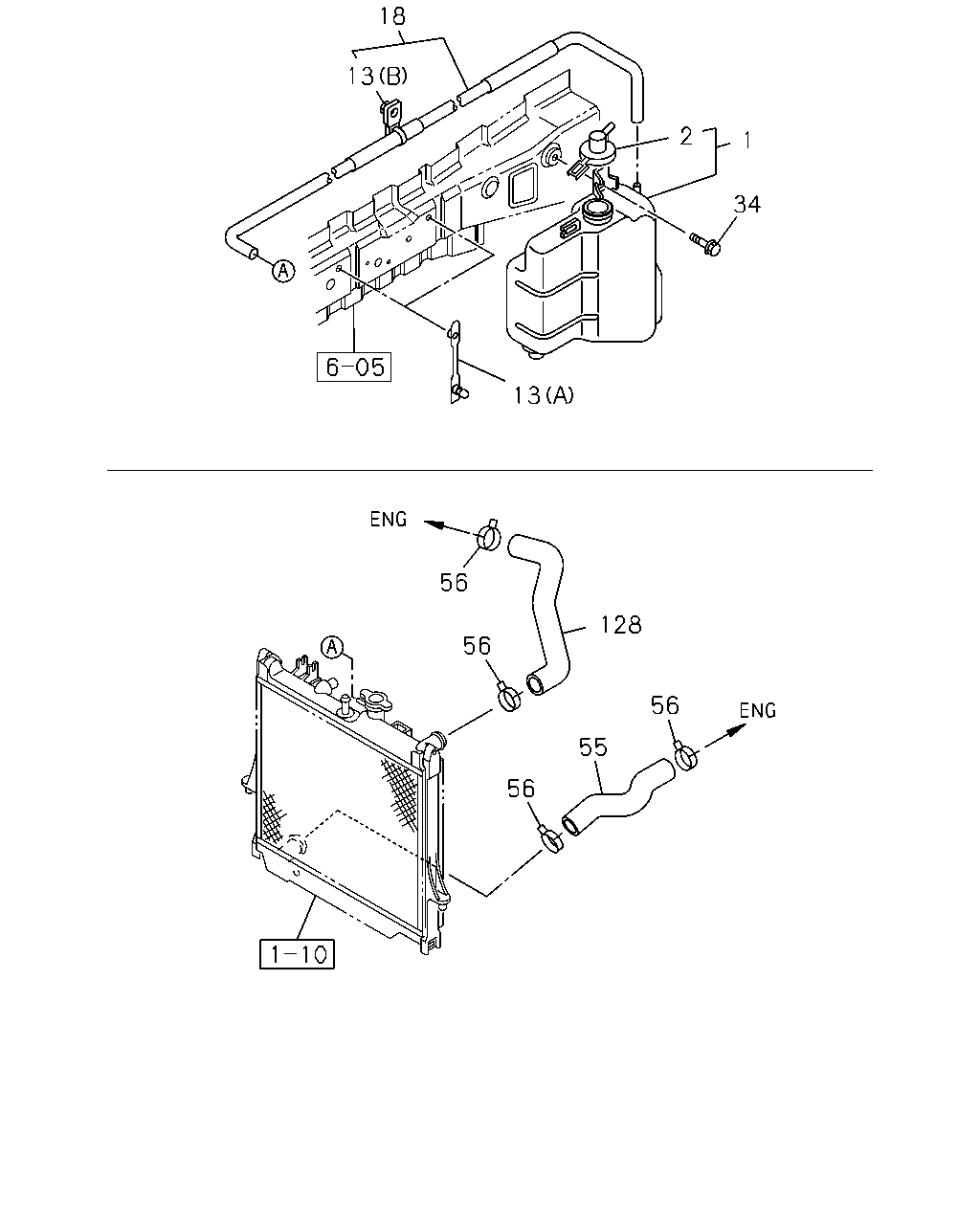

çizim 117996
18 13 2 1 34 13 56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0404-0508 ● ● ● ●
1 01.219 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0509-0609 ● ●
1 01.219 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0610- ● ● ●
2 01.203 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0404-0508 ● ● ● ●
2 01.203 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0509-0609 ● ●
2 01.203 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0610- ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0404-0409 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0410-0501 ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 THA 		8-94239-338-0 02 1 0404-0508 ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 THA 		8-94239-338-0 02 1 0509-0609 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 THA 		8-94239-338-0 02 1 0610- ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0410-0501 ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0502-0609 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0610- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97362-955-0 01 1 0404-0409 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97362-955-0 01 1 0410-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97373-405-0 01 1 0410-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97373-405-0 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97373-405-0 01 1 0610- ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 01 1 0404-0508 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 01 1 0509-0609 ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 01 1 0610-0611 ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER THA 		8-98056-282-0 01 1 0612- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97248-432-2 01 1 0404-0409 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97248-432-2 01 1 0410-0412 ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-98003-995-0 01 1 0501-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97363-605-0 01 1 0410-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97363-605-0 01 1 0502-0609 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97363-605-1 01 1 0610- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0404-0409 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0404-0409 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0410-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0410-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0610- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0610- ● ● ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97941-505-2 01 1 0404-0412 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-98003-996-0 01 1 0501-0501 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97248-429-2 01 1 0404-0409 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97363-604-0 01 1 0410-0501 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97363-604-0 01 1 0502-0609 ● ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97363-604-1 01 1 0610- ● ● ●

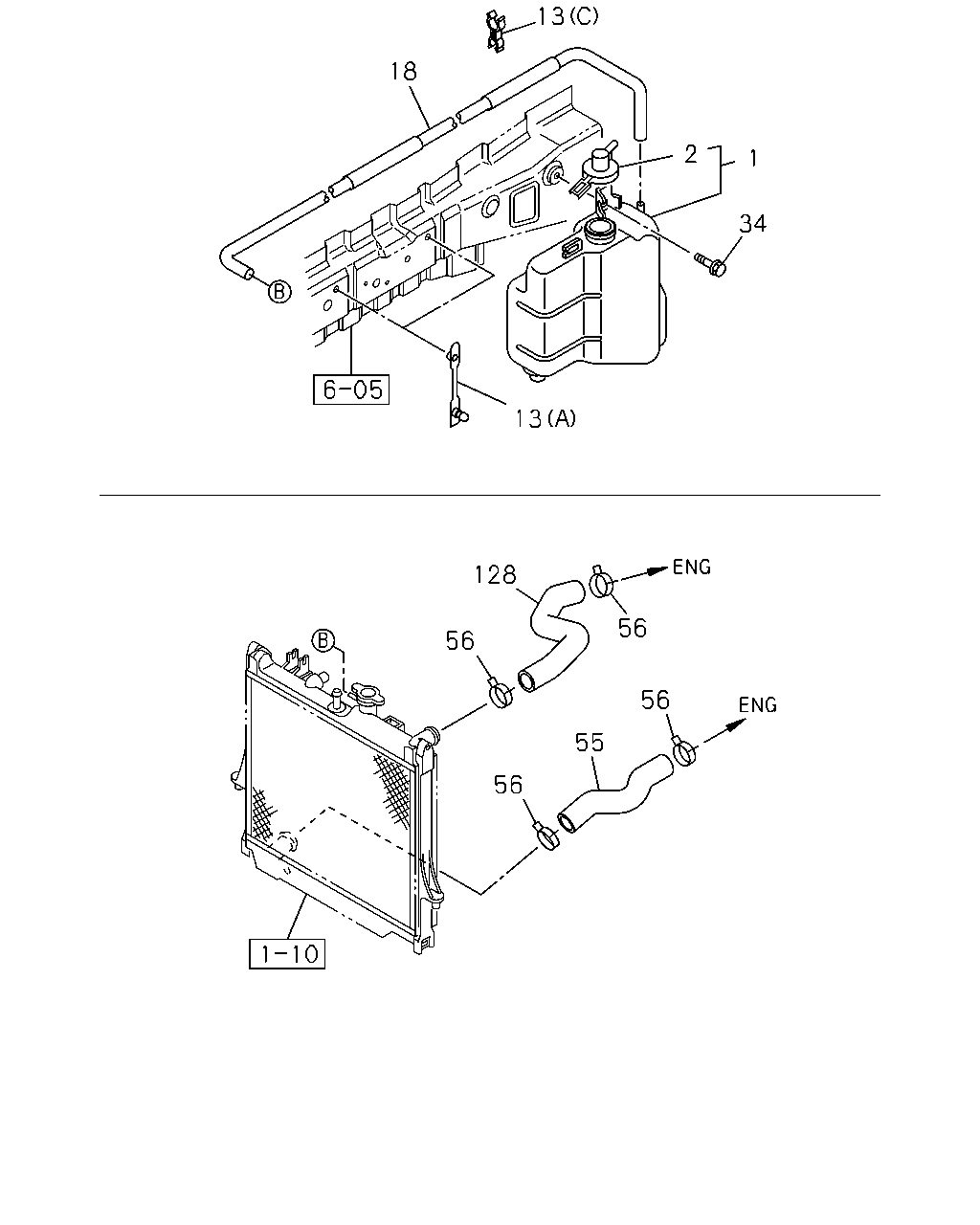

çizim 118005
13 18 2 1 34 13 128 56 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0404-0508 ● ● ● ●
1 01.219 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0509-0609 ● ●
1 01.219 TANK; SURGE,RAD
THA 		8-97941-501-3 01 1 0610- ● ● ●
2 01.203 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0404-0508 ● ● ● ●
2 01.203 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0509-0609 ● ●
2 01.203 CAP; SURGE TANK
THA 		8-97333-354-0 01 1 0610- ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0404-0409 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) THA 		8-94373-241-0 01 1 0410-0501 ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 THA 		8-94239-338-0 02 1 0404-0508 ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 THA 		8-94239-338-0 02 1 0509-0609 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 THA 		8-94239-338-0 02 1 0610- ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0410-0501 ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0502-0609 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0610- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97362-955-0 01 1 0404-0409 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97362-955-0 01 1 0410-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97373-405-0 01 1 0410-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97373-405-0 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
THA 		8-97373-405-0 01 1 0610- ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 01 1 0404-0508 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 01 1 0509-0609 ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 01 1 0610-0611 ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER THA 		8-98056-282-0 01 1 0612- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97248-432-2 01 1 0404-0409 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97248-432-2 01 1 0410-0412 ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-98003-995-0 01 1 0501-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97363-605-0 01 1 0410-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97363-605-0 01 1 0502-0609 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
THA 		8-97363-605-1 01 1 0610- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0404-0409 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0404-0409 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0410-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0410-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0610- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 0610- ● ● ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97941-505-2 01 1 0404-0412 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-98003-996-0 01 1 0501-0501 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97248-429-2 01 1 0404-0409 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97363-604-0 01 1 0410-0501 ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97363-604-0 01 1 0502-0609 ● ●
128 01.159 HOSE; WATER,RAD INL
THA 		8-97363-604-1 01 1 0610- ● ● ●
