◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#73570) — 43 parça

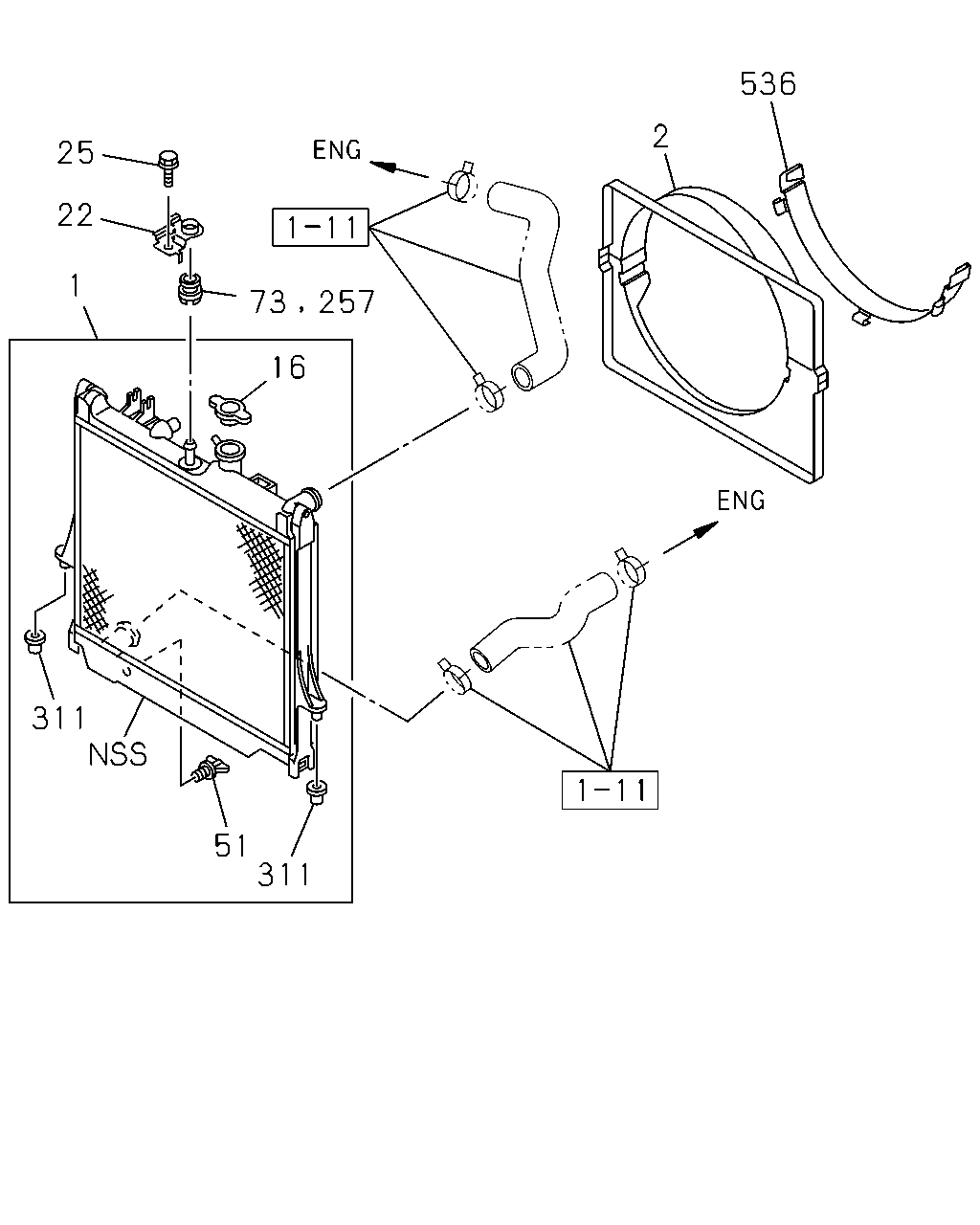

çizim 118003
536 2 25 22 1 16 311 51 311 73 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 RADIATOR ASM
THA 		8-97374-523-0 01 1 0404-0409 ●
1 01.219 RADIATOR ASM
M/T MSG 5 SPEED<M75> THA 		8-97374-523-0 01 1 0410-0501 ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97374-524-0 01 1 0404-0409 ●
1 01.219 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-98000-354-0 01 1 0410-0609 ●
1 01.219 RADIATOR ASM
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98000-354-0 01 1 0610-1002 ● ●
1 01.219 RADIATOR ASM
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98164-743-0 01 1 1003- ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G<RSP> THA 		8-97374-525-0 01 1 0404-0409 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5G<RSP> THA 		8-98000-355-0 01 1 0410-0501 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-98000-355-0 01 1 0502-0609 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98000-355-0 01 1 0610-1002 ● ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98164-744-0 01 1 1003- ● ● ●
2 01.277 GUIDE; FAN
THA 		8-97333-348-0 01 1 0404-0409 ● ●
2 01.277 GUIDE; FAN
M/T MSG 5 SPEED<M75> THA 		8-97333-348-0 01 1 0410-0501 ●
2 01.277 GUIDE; FAN
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> THA 		8-97371-447-2 01 1 0410-0501 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97371-447-2 01 1 0502-0609 ● ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97371-447-2 01 1 0610- ● ● ●
16 01.203 CAP; RAD
THA 		8-97942-268-1 01 1 0404-0409 ● ●
16 01.203 CAP; RAD
THA 		8-97942-268-1 01 1 0410-0501 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-268-1 01 1 0502-0609 ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97942-268-1 01 1 0610- ● ● ●
22 01.270 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0404-0508 ● ● ● ●
22 01.270 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0509-0609 ● ●
22 01.270 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0610- ● ● ●
25 01.271 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0404-0508 ● ● ● ●
25 01.271 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0509-0601 ● ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE THA 		0-28050-812-0 01 1 0602-0609 ● ●
25 01.271 BOLT; BRKT
02.343 M8X12 FLANGE THA 		0-28050-812-0 01 1 0610- ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0404-0409 ● ●
51 08.951 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0410-0501 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> W/GASKET THA 		8-97171-437-0 01 1 0502-0609 ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> W/GASKET THA 		8-97171-437-0 01 1 0610- ● ● ●
73 01.270 RUBBER; CUSHION,RAD MTG
THA 		8-97249-541-1 01 1 0404-0504 ● ● ● ●
257 01.270 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0505-0609 ● ●
257 01.270 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0610- ● ● ●
311 01.270 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0404-0409 ● ●
311 01.270 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0410-0501 ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97942-297-0 02 1 0502-0609 ● ●
311 01.270 RUBBER; MTG,RAD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97942-297-0 02 1 0610- ● ● ●
536 01.020 SHROUD; FAN
THA 		8-97941-533-0 01 1 0404-0409 ● ●
536 01.020 SHROUD; FAN
THA 		8-97941-533-0 01 1 0410-0501 ●
536 01.020 SHROUD; FAN
THA 		8-97372-866-1 01 1 0410-0501 ●
536 01.020 SHROUD; FAN
THA 		8-97372-866-1 01 1 0502-0609 ● ●
536 01.020 SHROUD; FAN
THA 		8-97372-866-1 01 1 0610- ● ● ●
