0-80B — INJECTION PUMP (#73564) — 11 parça

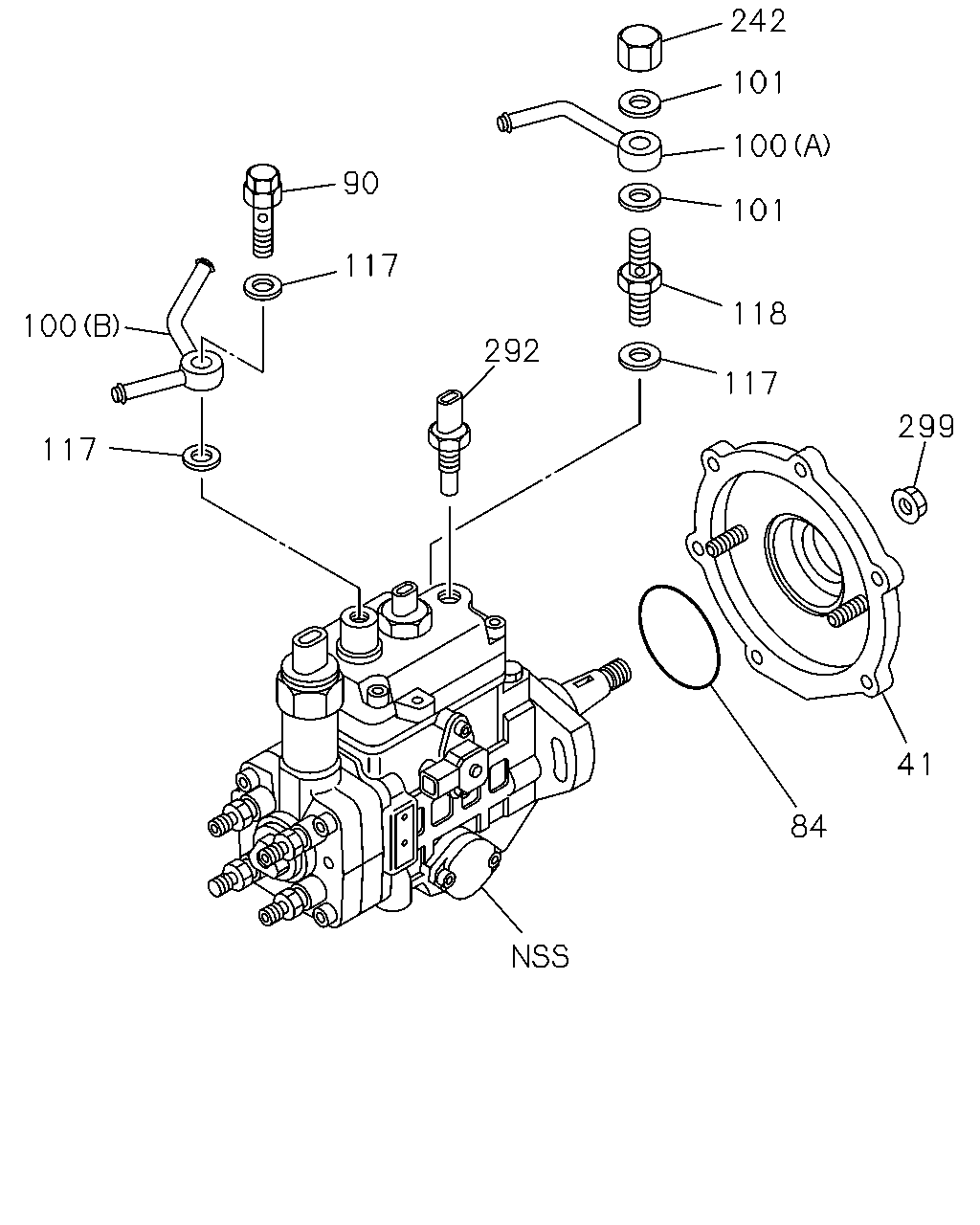

çizim 117987
242 101 100 90 101 117 118 100 292 117 299 117 41 84
BalonParca AdiParca NoAdetTipApplied Date
41 03.306 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97214-093-5, 97214093 		8-97357-818-0 01 1 -
84 03.306 GASKET; BRKT TO HSG
ASM PART: A = 8-97214-093-5, 97214093 		8-97141-471-0 01 1 -
90 03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97214-093-5, 97214093 		8-97238-595-0 01 1 -
100 03.330 PIPE; FUEL INJ PUMP
(A) ASM PART: A = 8-97214-093-5, 97214093 		8-97238-593-0 01 1 -
100 03.330 PIPE; FUEL INJ PUMP
(B) ASM PART: A = 8-97214-093-5, 97214093 		8-97238-594-0 01 1 -
101 03.162 GASKET; OVERFLOW VLV,INJ PUMP
ID=12.2 ASM PART: A = 8-97214-093-5, 97214093 		8-97141-182-0 02 1 -
117 03.162 GASKET; EYE BOLT,INJ PUMP
ID=12.2 ASM PART: A = 8-97214-093-5, 97214093 		8-97141-182-0 03 1 -
118 03.162 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97214-093-5, 97214093 		8-97261-353-0 01 1 -
242 03.308 NUT; CAP
ASM PART: A = 8-97214-093-5, 97214093 		8-97141-252-0 01 1 -
292 03.162 SENSOR; FUEL TEMPERATURE
ASM PART: A = 8-97214-093-5, 97214093 		8-97238-596-0 01 1 -
299 03.320 NUT; LOCK
03.616 ASM PART: A = 8-97214-093-5, 97214093 		8-97141-469-0 01 1 -
