Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#73562) — 255 parça

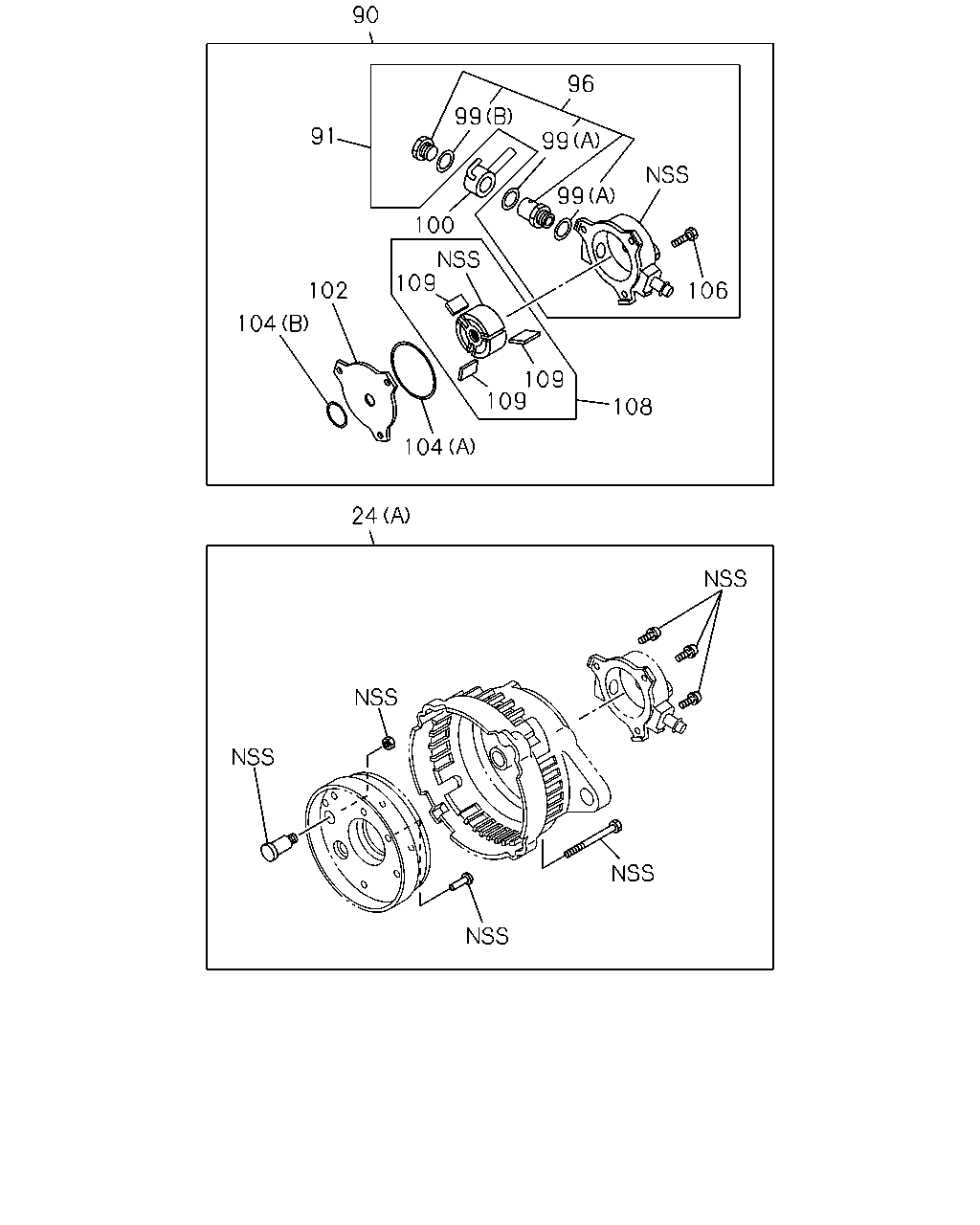

90 96 99 91 99 99 100 109 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97369-716-1, 97369716, D = 8-97942-628-2, 97942628, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97120-257-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-392-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-613-0	01	1	-
91	03.280 BODY; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-937-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), THA ASM PART: D = 8-97942-628-2, 97942628	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-615-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C), THA ASM PART: D = 8-97942-628-2, 97942628	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP 02.291, THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-605-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
108	03.280 ROTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-398-0	01	1	-
109	03.280 VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-
109	03.280 VANE; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-393-0	04	1	-

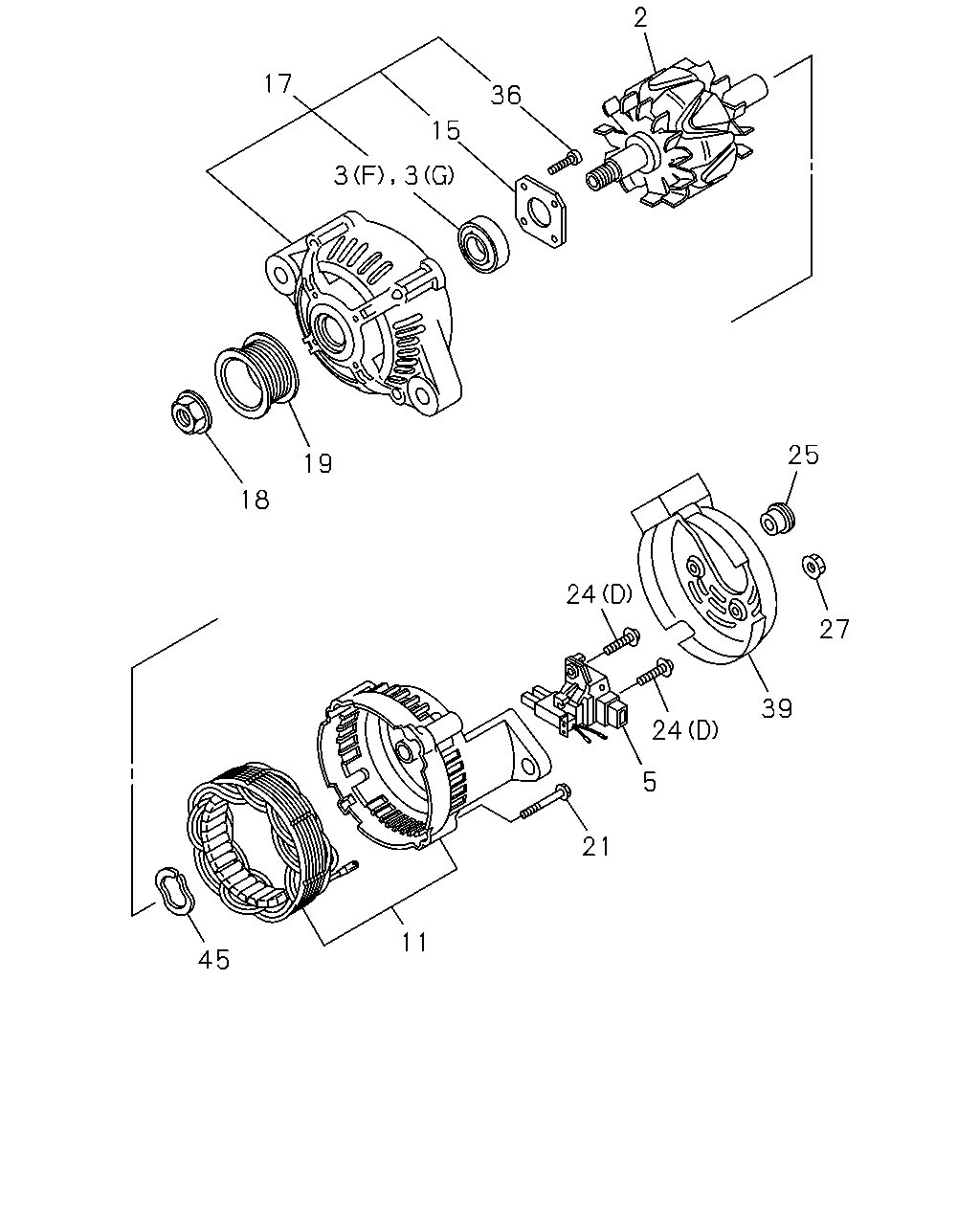

27 25 24 24 39 5 21 11 45 18 19 3 3 17 15 36 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-390-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97361-871-0, 97361871	8-94462-859-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97248-128-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1, 97369716	8-97379-796-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850, E = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-926-0	01	1	-
11	02.305 COVER; RR,GEN THA ASM PART: C = 8-97369-716-1, 97369716	8-97378-925-0	01	1	-
11	02.305 COVER; RR,GEN THA ASM PART: H = 8-98229-071-1, 98229071	8-98159-086-0	01	1	-1302
11	02.305 COVER; RR,GEN THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-086-0	01	1	-
11	02.305 COVER; RR,GEN THA ASM PART: H = 8-98229-071-1, 98229071	8-98242-367-0	01	1	1303-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-229-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-960-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1, 97369716	8-97378-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97074-927-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-957-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	1-81229-031-0	03	1	-0406
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97182-960-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
21	02.316 BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97942-840-0	03	1	0407-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97369-716-1, 97369716, D = 8-97942-628-2, 97942628, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97120-257-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004	8-97378-930-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL THA ASM PART: G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-98196-584-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, THA ASM PART: D = 8-97942-628-2, 97942628	8-94206-188-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97319-772-0	03	1	-
36	02.277 SCREW; FRT COVER THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-227-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-928-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-97142-570-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: H = 8-98229-071-1, 98229071	8-97142-570-0	01	1	-1302

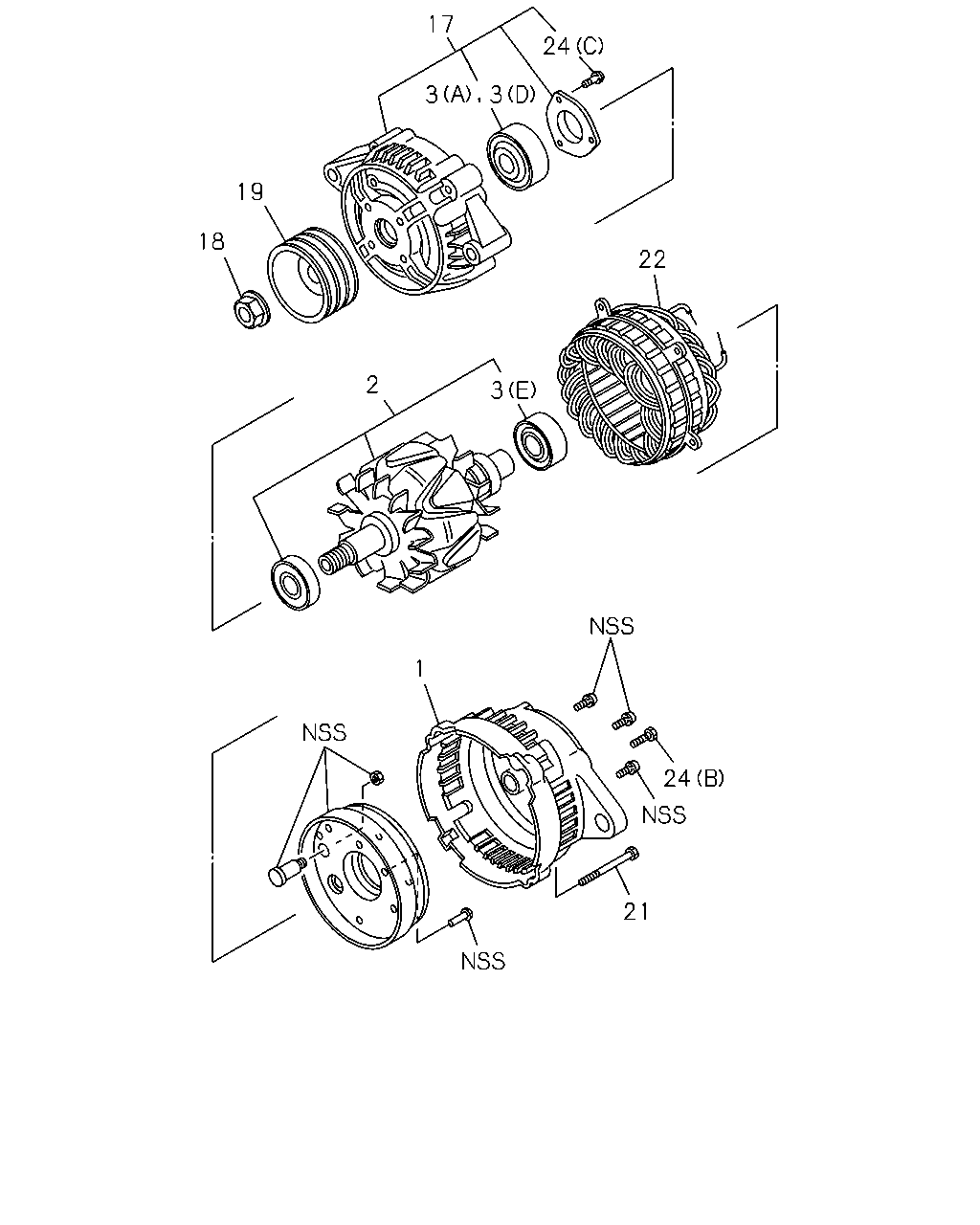

17 3 3 24 19 18 2 3 22 1 24 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-962-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98014-274-0	01	1	-1209
1	02.297 COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0, 97361871	8-98014-277-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: E = 8-98006-084-0, 98006084	8-98036-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98232-047-0	01	1	1210-
2	02.279 ROTOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-390-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97361-871-0, 97361871	8-94462-859-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97248-128-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1, 97369716	8-97379-796-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850, E = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-960-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1, 97369716	8-97378-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97074-927-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-957-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	1-81229-031-0	03	1	-0406
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97182-960-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
21	02.316 BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97942-840-0	03	1	0407-
22	02.310 STATOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97205-067-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-969-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97369-716-1, 97369716, D = 8-97942-628-2, 97942628, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97120-257-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-

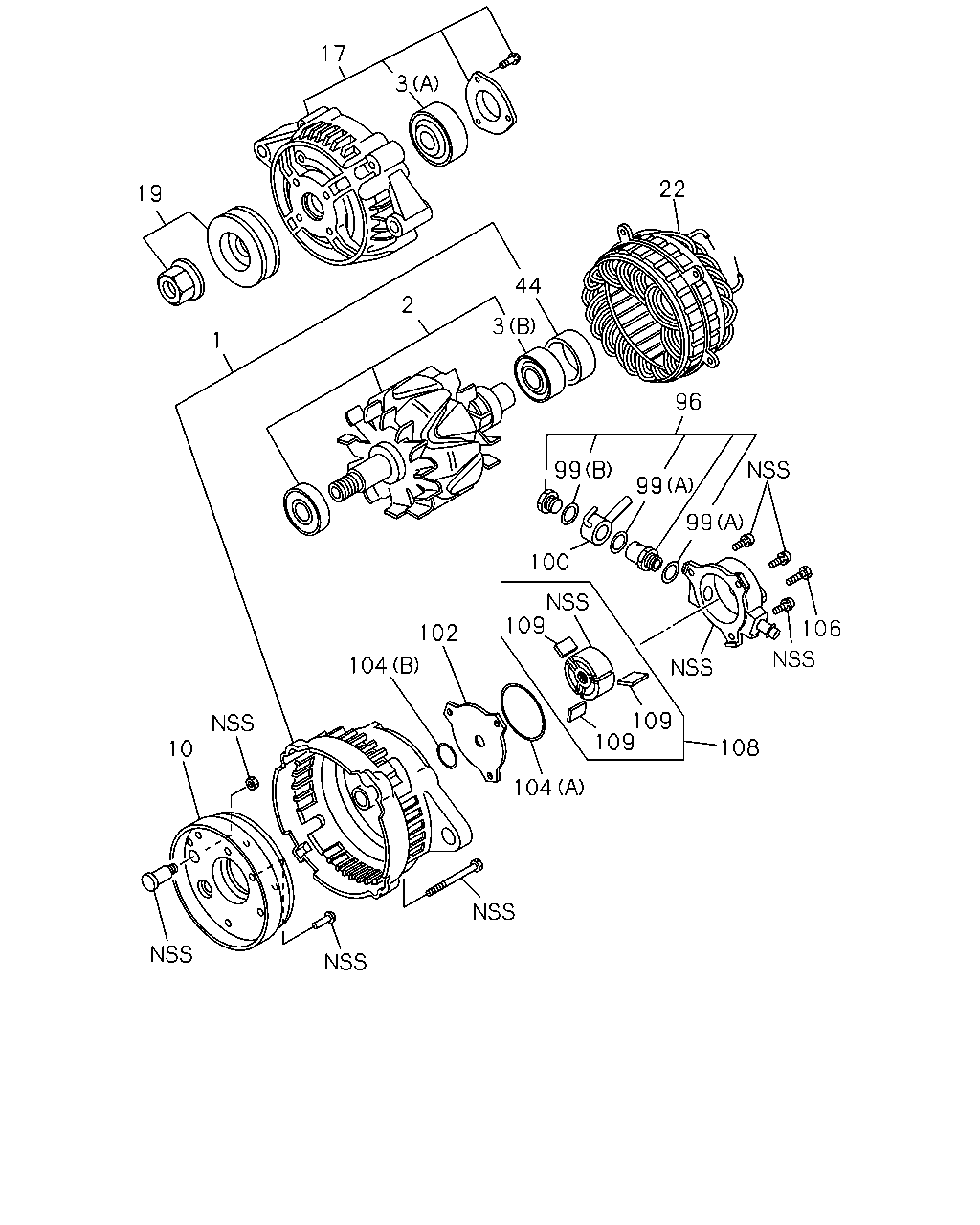

17 3 22 19 44 2 3 1 96 99 99 99 100 109 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-962-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98014-274-0	01	1	-1209
1	02.297 COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0, 97361871	8-98014-277-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: E = 8-98006-084-0, 98006084	8-98036-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98232-047-0	01	1	1210-
2	02.279 ROTOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-390-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97361-871-0, 97361871	8-94462-859-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97248-128-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1, 97369716	8-97379-796-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850, E = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
10	02.319 RECTIFIER; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-965-0	01	1	-
10	02.319 RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98014-279-0	01	1	-1209
10	02.319 RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98232-051-0	01	1	1210-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-960-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1, 97369716	8-97378-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-957-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97205-067-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-969-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
44	02.298 SEAL; RR COVER,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-674-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), THA ASM PART: D = 8-97942-628-2, 97942628	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-615-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C), THA ASM PART: D = 8-97942-628-2, 97942628	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP 02.291, THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-605-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
108	03.280 ROTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-398-0	01	1	-
109	03.280 VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-
109	03.280 VANE; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-393-0	04	1	-

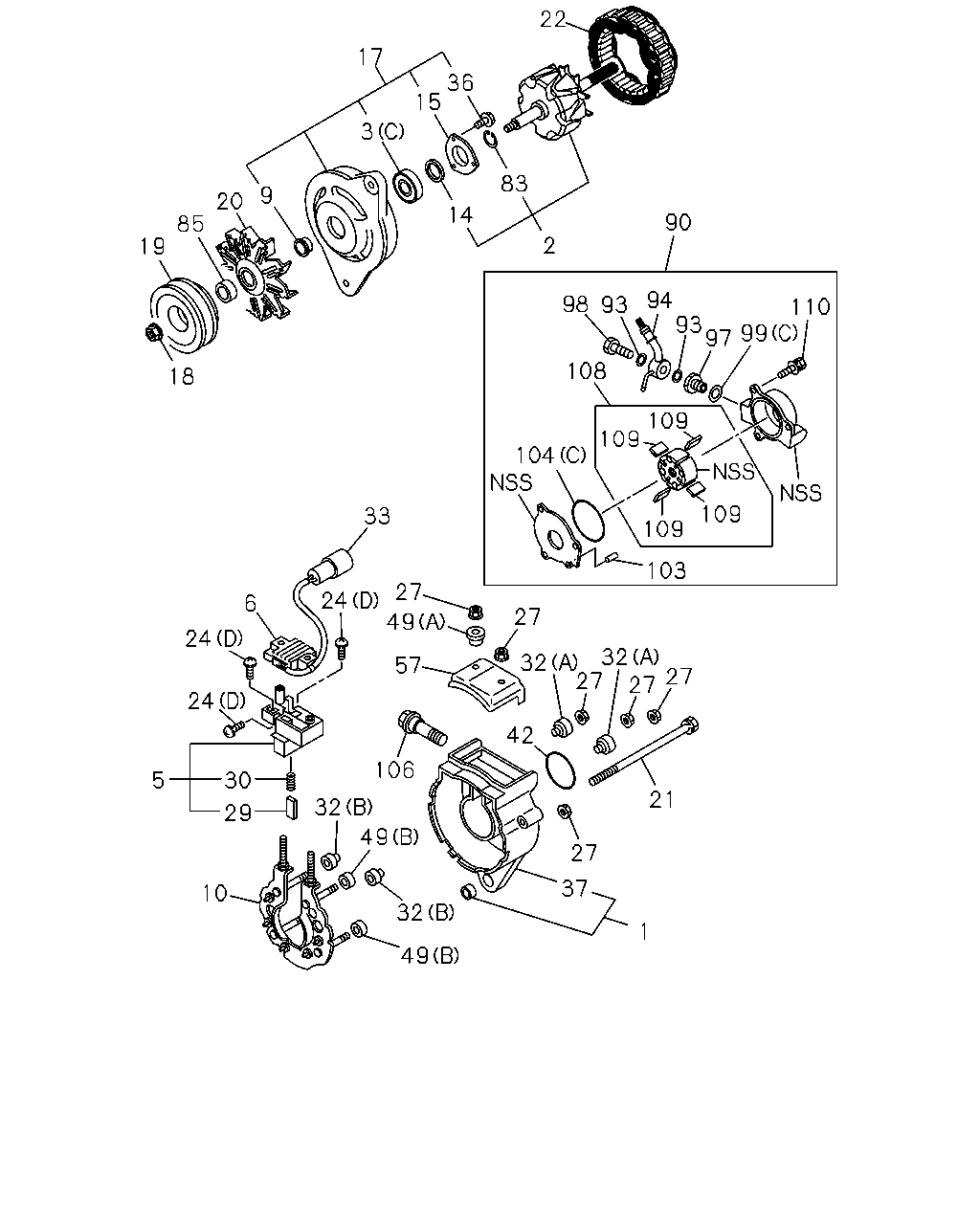

22 17 36 15 3 83 9 20 14 90 85 2 19 94 110 93 99 97 98 93 108 18 109 109 104 109 33 109 103 27 24 49 6 27 24 32 27 27 27 32 57 24 42 106 5 30 21 32 29 49 27 37 10 32 1 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-962-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98014-274-0	01	1	-1209
1	02.297 COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0, 97361871	8-98014-277-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: E = 8-98006-084-0, 98006084	8-98036-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98232-047-0	01	1	1210-
2	02.279 ROTOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-390-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97361-871-0, 97361871	8-94462-859-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97103-807-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97248-128-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1, 97369716	8-97379-796-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850, E = 8-98006-084-0, 98006084	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97378-926-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-978-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-231-0	01	1	-
10	02.319 RECTIFIER; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-965-0	01	1	-
10	02.319 RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98014-279-0	01	1	-1209
10	02.319 RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-98232-051-0	01	1	1210-
14	02.307 COLLAR; STEEL THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-225-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-229-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97231-514-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-960-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1, 97369716	8-97378-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97074-927-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-957-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97379-176-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN THA ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
20	02.274 FAN; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-959-0	01	1	-0406
20	02.274 FAN; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97942-841-0	01	1	0407-
21	02.316 BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	1-81229-031-0	03	1	-0406
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97182-960-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
21	02.316 BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97942-840-0	03	1	0407-
22	02.310 STATOR; GEN THA ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97205-067-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-969-0	01	1	-
22	02.310 STATOR; GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97369-716-1, 97369716, D = 8-97942-628-2, 97942628, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-97361-871-0, 97361871, E = 8-98006-084-0, 98006084	8-97120-257-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, THA ASM PART: D = 8-97942-628-2, 97942628	8-94206-188-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97319-772-0	03	1	-
29	02.285 BRUSH; GEN THA ASM PART: D = 8-97942-628-2, 97942628	5-81215-018-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291, THA ASM PART: D = 8-97942-628-2, 97942628	5-81216-002-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (A) ASM PART: D = 8-97942-628-2, 97942628	1-81229-410-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (B) ASM PART: D = 8-97942-628-2, 97942628	1-81229-411-0	02	1	-
33	02.500 WIRE; LEAD,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-391-0	01	1	-
36	02.277 SCREW; FRT COVER THA ASM PART: D = 8-97942-628-2, 97942628	8-94453-227-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-97369-716-1, 97369716, F = 8-98153-004-0, 98153004, G = 8-98196-585-0, 98196585, H = 8-98229-071-1, 98229071	8-97142-562-0	04	1	-
37	02.291 BUSHING; RR COVER,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-599-0	01	1	-
42	02.307 GASKET; RR COVER,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-608-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A), THA ASM PART: D = 8-97942-628-2, 97942628	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B), THA ASM PART: D = 8-97942-628-2, 97942628	5-81229-105-0	02	1	-
57	02.277 COVER; BRUSH,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-94342-674-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN THA ASM PART: D = 8-97942-628-2, 97942628	5-81229-109-0	01	1	-
85	02.277 SPACER; PULLEY,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97288-958-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-392-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-613-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	9-88130-081-0	02	1	-
94	03.280 CONNECTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-397-0	01	1	-
97	03.280 VALVE; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), THA ASM PART: D = 8-97942-628-2, 97942628	9-88130-126-0	01	1	-
103	03.286 PIN; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C), THA ASM PART: D = 8-97942-628-2, 97942628	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP 02.291, THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-605-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
108	03.280 ROTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-398-0	01	1	-
109	03.280 VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-
109	03.280 VANE; VAC PUMP THA ASM PART: D = 8-97942-628-2, 97942628	8-97333-393-0	04	1	-
110	03.280 BOLT; THROUGH THA ASM PART: D = 8-97942-628-2, 97942628	8-94456-611-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
