0-65 — STARTER (#73561) — 97 parça

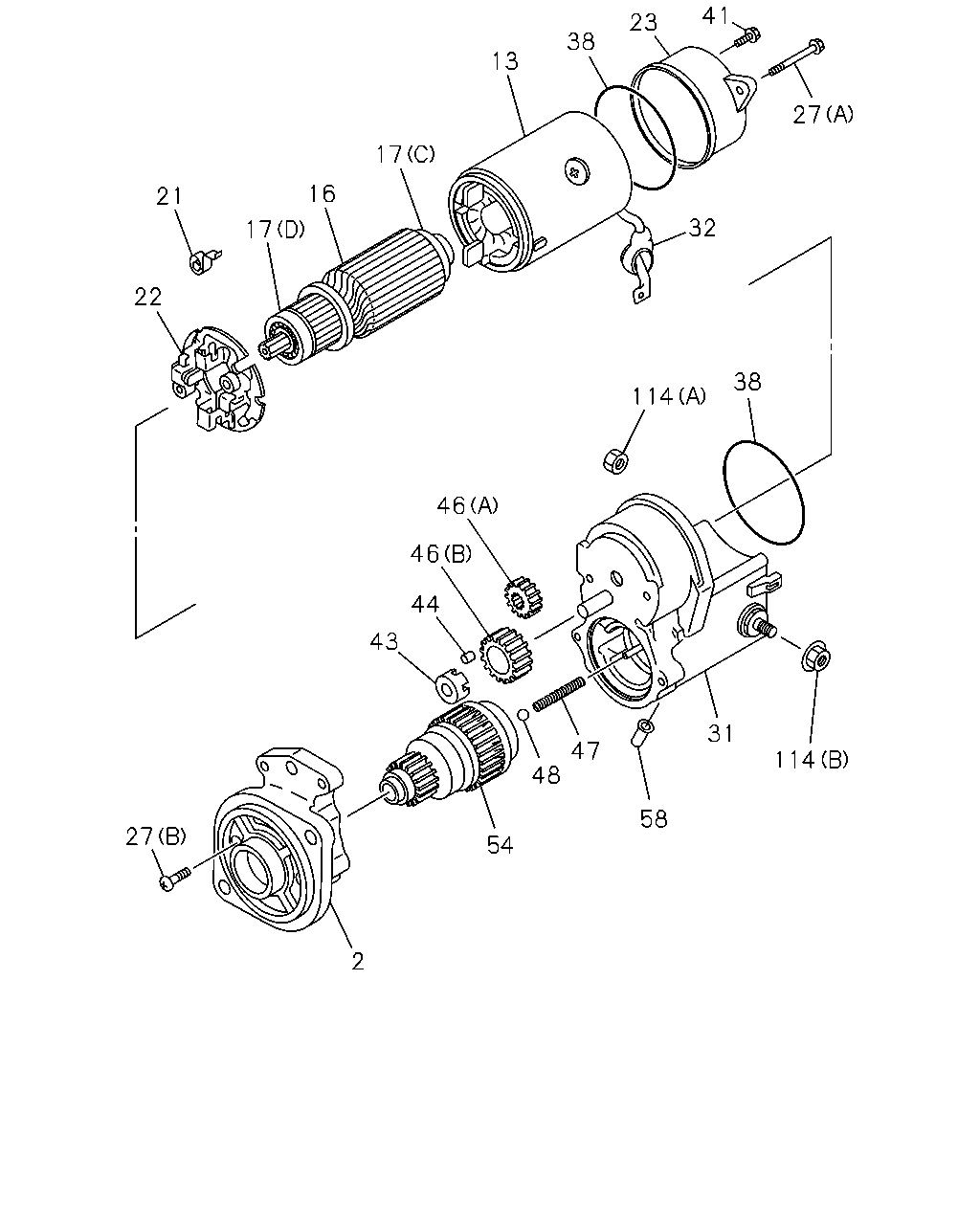

41 23 38 13 27 17 16 21 32 17 22 38 114 46 46 44 43 31 47 48 114 58 27 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-668-0	01	1	-
13	02.049 YOKE; STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-97941-438-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C), THA ASM PART: C = 8-97941-023-0, 97941023	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97941-023-0, 97941023	8-97112-954-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A), THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-658-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97357-756-1, 97357756, B = 8-97941-018-2, 97941018, D = 8-98028-199-0, 98028199	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-97941-023-0, 97941023	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97941-023-0, 97941023	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C), THA ASM PART: B = 8-97941-018-2, 97941018	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97319-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-667-0	01	1	-
32	02.115 COVER; RUBBER,STARTER THA ASM PART: C = 8-97941-023-0, 97941023	5-81119-029-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049, THA ASM PART: C = 8-97941-023-0, 97941023	8-94170-214-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-669-0	01	1	-
44	02.086 ROLLER; PINION STARTER THA ASM PART: C = 8-97941-023-0, 97941023	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-97941-023-0, 97941023	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A), THA ASM PART: C = 8-97941-023-0, 97941023	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: C = 8-97941-023-0, 97941023	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-665-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067, THA ASM PART: C = 8-97941-023-0, 97941023	8-97041-421-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (B) ASM PART: C = 8-97941-023-0, 97941023	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (A), THA ASM PART: C = 8-97941-023-0, 97941023	8-94377-238-0	01	1	-

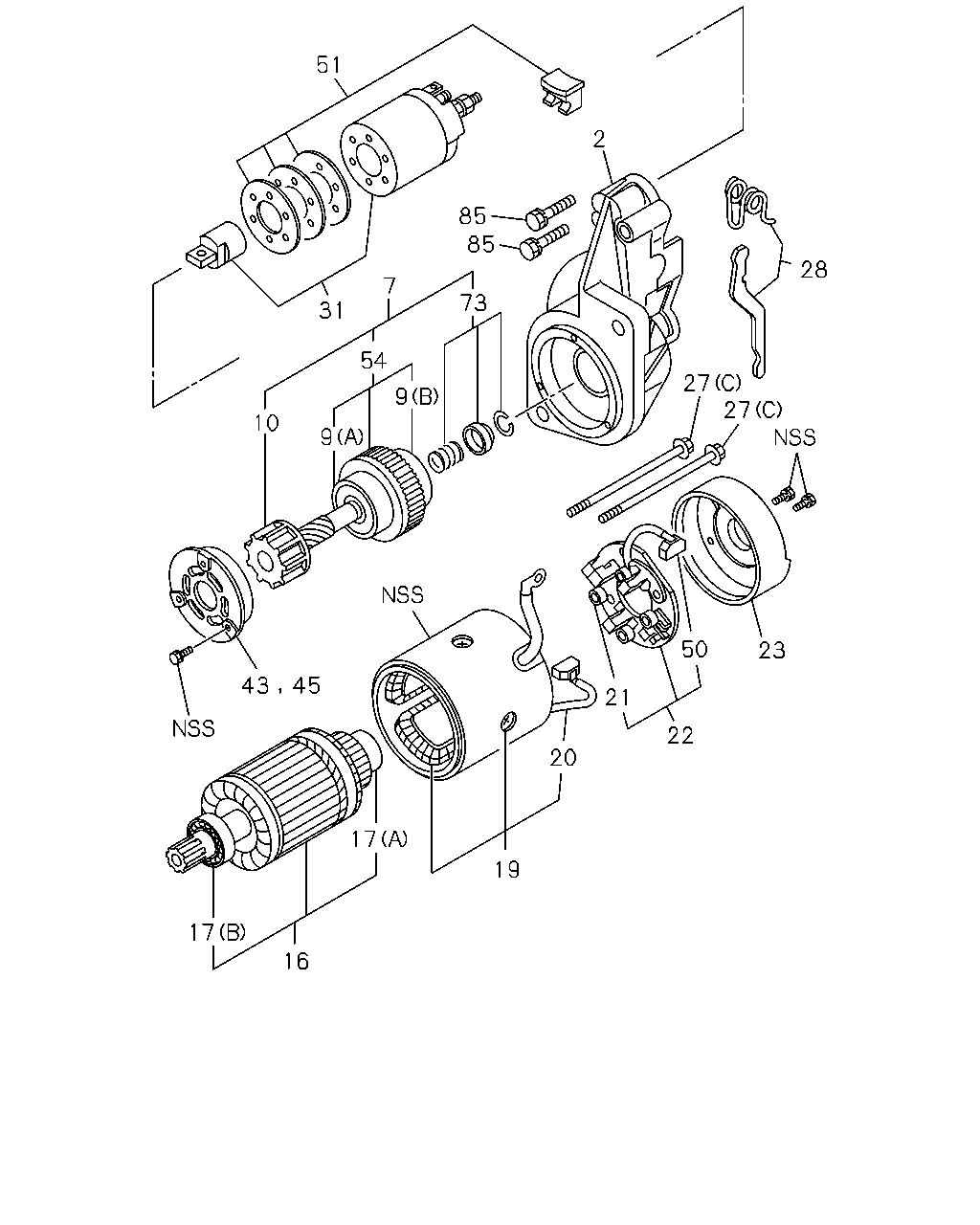

51 31 7 10 54 9 9 43 45 17 16 17 19 20 21 22 50 23 73 85 85 2 28 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-668-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97229-910-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-664-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A), THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-659-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B), THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-660-0	01	1	-
10	02.086 SHAFT; GEAR STARTER THA ASM PART: A = 8-97357-756-1, 97357756, B = 8-97941-018-2, 97941018, D = 8-98028-199-0, 98028199	8-97130-189-1	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C), THA ASM PART: C = 8-97941-023-0, 97941023	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97941-023-0, 97941023	8-97112-954-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A), THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-658-0	01	1	-
19	02.049 COIL; FIELD,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97376-957-1	01	1	-
19	02.049 COIL; FIELD,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97942-825-0	01	1	-
20	02.051 BRUSH; (+),STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97357-756-1, 97357756, B = 8-97941-018-2, 97941018, D = 8-98028-199-0, 98028199	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-97941-023-0, 97941023	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97941-023-0, 97941023	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C), THA ASM PART: B = 8-97941-018-2, 97941018	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C), THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97351-967-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-670-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-667-0	01	1	-
43	02.086 RETAINER; PINION STARTER THA ASM PART: C = 8-97941-023-0, 97941023	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-669-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER 02.086, THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-94435-570-0	01	1	-
50	02.051 BRUSH; (-),STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97112-557-0	02	1	-
50	02.051 BRUSH; (-),STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97368-563-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-671-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97941-023-0, 97941023	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-665-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: A = 8-97357-756-1, 97357756, B = 8-97941-018-2, 97941018, D = 8-98028-199-0, 98028199	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-97357-756-1, 97357756, D = 8-98028-199-0, 98028199	8-94408-500-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER THA ASM PART: B = 8-97941-018-2, 97941018	8-97941-672-0	02	1	-
