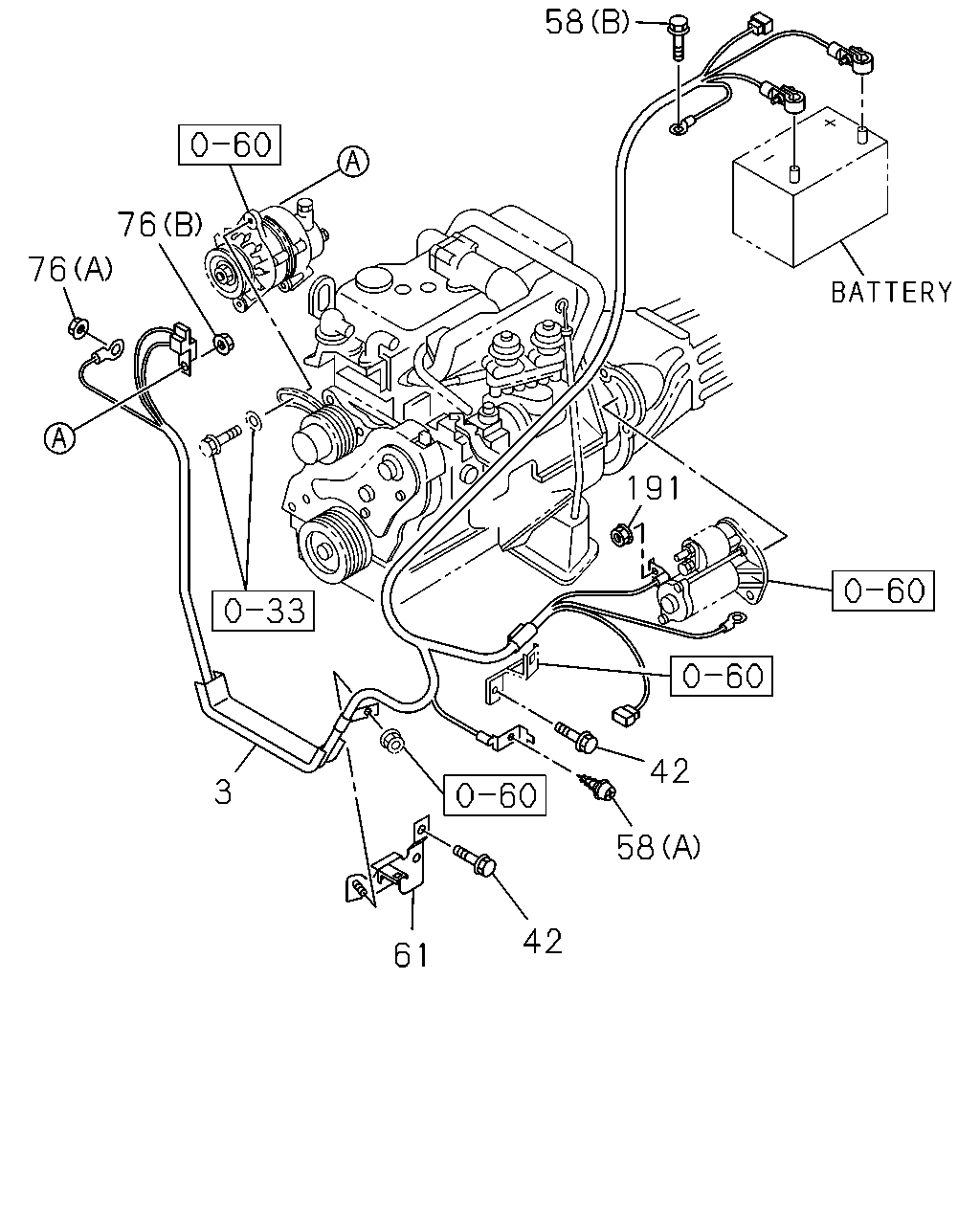

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#73560) — 34 parça

58 76 76 191 3 58 42 61 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 65D31L<TQ4> THA	8-97374-454-0	01	1	0404-0501	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 65D31L<TQ4> THA	8-98005-198-0	01	1	0502-0502	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 65D31L<TQ4> THA	8-97307-437-2	01	1	0404-0405	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 65D31L<TQ4> THA	8-97380-855-0	01	1	0406-0501	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 65D31L<TQ4> THA	8-98005-201-0	01	1	0502-0502	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X2<TFB***> A/T 4 SPEED-JATCO<RMK> BATTERY 65D31L<TQ4> THA	8-97374-457-0	01	1	0404-0409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> BATTERY 65D31L<TQ4> THA	8-97374-455-0	01	1	0404-0409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X2<TFB***> THA	8-97371-019-4	01	1	0410-0501			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X2<TFB***> THA	8-97371-019-4	01	1	0502-0609			●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE THA	8-98007-622-1	01	1	0610-			●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X4<TFS***> A/T 4 SPEED-JATCO<RMK> BATTERY 65D31L<TQ4> THA	8-97374-458-0	01	1	0404-0409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X4<TFS***> M/T MUA 5 SPEED 5G<RSP> BATTERY 65D31L<TQ4> THA	8-97374-456-0	01	1	0404-0409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE 4X4<TFS***> THA	8-97371-020-4	01	1	0410-0609			●
42	02.343 BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	02	1	0404-0409	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501	●
42	02.343 BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0501			●
42	02.343 BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0502-0609			●	●
42	02.343 BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0610-			●	●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0404-0409	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0410-0501	●		●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0502-0609			●	●
58	02.343 BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0610-			●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0404-0409	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0502-0609			●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0610-			●	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0410-0501	●		●
61	02.333 BRACKET; BATTERY CABLE THA	8-97260-935-2	01	1	0404-0409	●	●
61	02.333 BRACKET; BATTERY CABLE THA	8-97260-935-2	01	1	0410-0501	●
76	02.343 NUT; BATTERY CABLE 02.559 (A) M5 W/LK WASHER THA	8-94424-178-0	01	1	0404-0501	●
76	02.343 NUT; BATTERY CABLE 01.062 (B) M8 FLANGE THA	0-91180-108-0	01	1	0404-0409		●
191	08.155 NUT; STARTER 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0404-0409	●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0410-0501	●		●
191	08.155 NUT; STARTER 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0502-0609			●	●
191	08.155 NUT; STARTER 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0610-			●	●	●
