0-60 — ENGINE ELECTRICAL CONTROL PARTS (#73559) — 274 parça

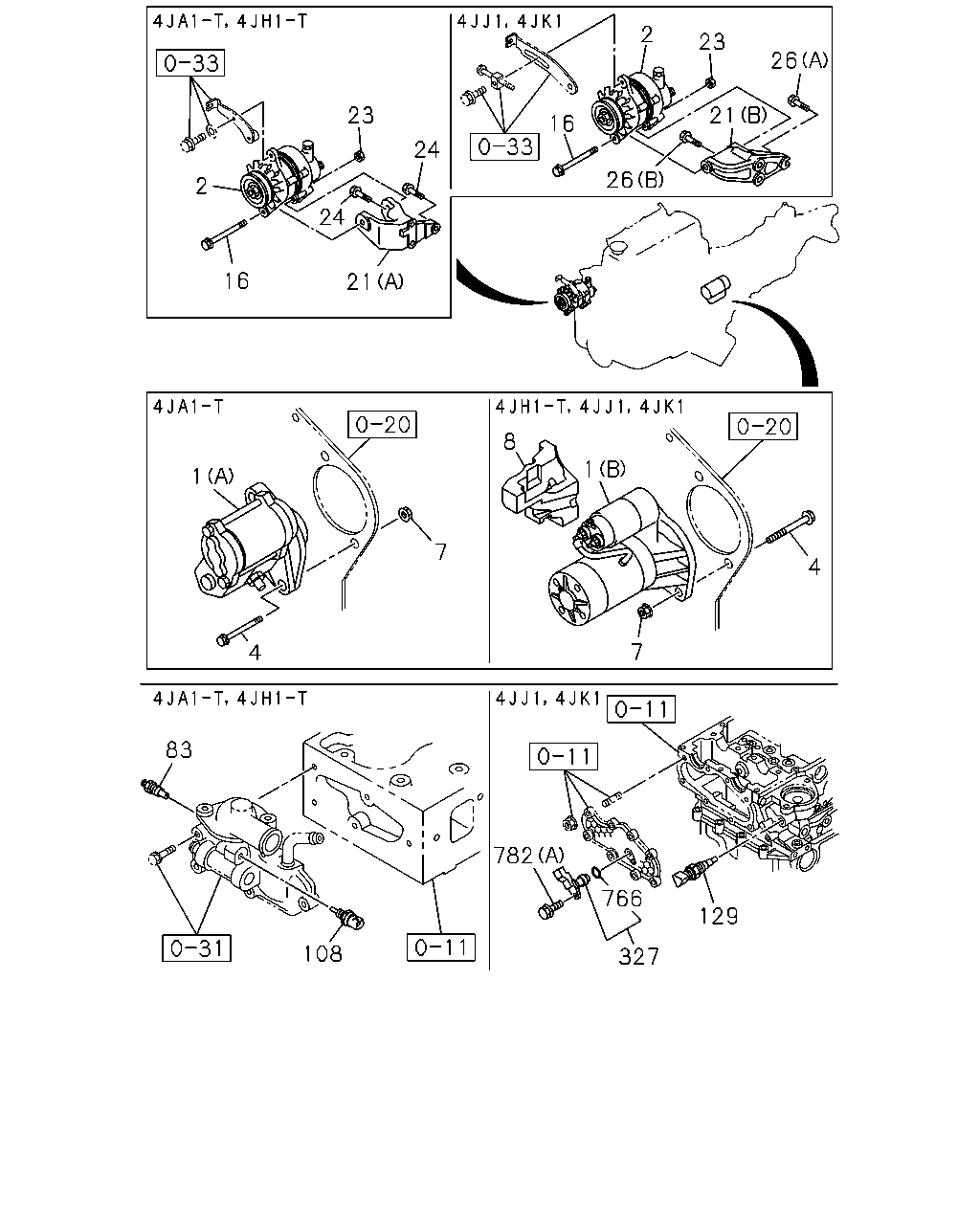

çizim 117972
2 23 26 23 21 16 24 26 2 24 16 21 8 1 1 7 4 7 4 83 782 766 129 108 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0404-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.0KW HITACHI THA 		8-97941-018-2 01 1 0404-0409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-97357-756-1 01 1 0410-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-97357-756-1 01 1 0502-0511 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-98028-199-0 01 1 0512-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-98028-199-0 01 1 0610- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A THA 		8-97942-628-2 01 1 0404-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-97369-716-1 01 1 0502-1004 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98153-004-0 01 1 1005-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98153-004-0 01 1 1101-1106 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98196-585-0 01 1 1107-1211 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98229-071-1 01 1 1212- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A THA 		8-97245-850-2 01 1 0404-0409 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-97361-871-0 01 1 0410-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98006-084-0 01 1 0610-1012 ● ●
4 02.042 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0404-0409 ● ●
4 02.042 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0410-0501 ● ●
4 02.042 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0502-0609 ● ●
4 02.042 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0610- ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0404-0409 ● ●
7 02.042 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0410-0501 ● ●
7 02.042 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0502-0609 ● ●
7 02.042 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0610- ● ● ●
8 02.042 SPACER; STARTER
THA 		8-97943-635-0 01 1 0404-0409 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0404-0409 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0410-0501 ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-0 01 1 0410-0501 ●
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-0 01 1 0502-0609 ● ●
16 02.277 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0610- ● ● ●
21 02.277 BRACKET; GEN
(A) THA 		8-97912-659-0 01 1 0404-0409 ● ●
21 02.277 BRACKET; GEN
(A) THA 		8-97912-659-0 01 1 0410-0501 ●
21 02.277 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0410-0501 ●
21 02.277 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0502-0609 ● ●
21 02.277 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0610- ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE THA 		0-91180-210-0 01 1 0404-0409 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE THA 		0-91180-210-0 01 1 0410-0501 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE THA 		0-91180-210-0 01 1 0502-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE THA 		0-91180-210-0 01 1 0610- ● ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER THA 		0-50041-070-0 02 1 0404-0409 ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER THA 		0-50041-070-0 02 1 0410-0501 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0404-0409 ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0410-0501 ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0410-0501 ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0502-0609 ● ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0610- ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0410-0501 ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0502-0609 ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0610- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0404-0409 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0410-0501 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0404-0409 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0410-0501 ●
108 01.150 SWITCH; THERMO 8-15326-386-0 01 1 0404-0409 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0410-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0502-0609 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0610- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0410-0501 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0502-0609 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610- ● ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0410-0501 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0502-0609 ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610- ● ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0404-0409 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0410-0501 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0502-0609 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0610- ● ● ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0610- ●
çizim 117975
10 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 0810- ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
4X4<TFS***> 12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0410-0501 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0502-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0610-0809 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
4X4<TFS***> 02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> 02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0410-0501 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0502-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0610-0709 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 02 1 0710- ● ● ●
çizim 117977
46 46 424 10 10 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 0810- ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
4X4<TFS***> 12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA 		8-97309-295-0 01 1 0404-0409 ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0410-0501 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0502-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0610-0809 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI THA 		8-98146-837-0 01 1 0810- ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI THA 		8-97309-295-0 01 1 0410-0501 ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI THA 		8-97309-295-0 01 1 0502-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI THA 		8-97309-295-0 01 1 0610-0809 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
4X4<TFS***> 02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> 02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0404-0409 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0410-0501 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0502-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 01 1 0610-0709 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI THA 		8-97309-292-0 02 1 0710- ● ● ●

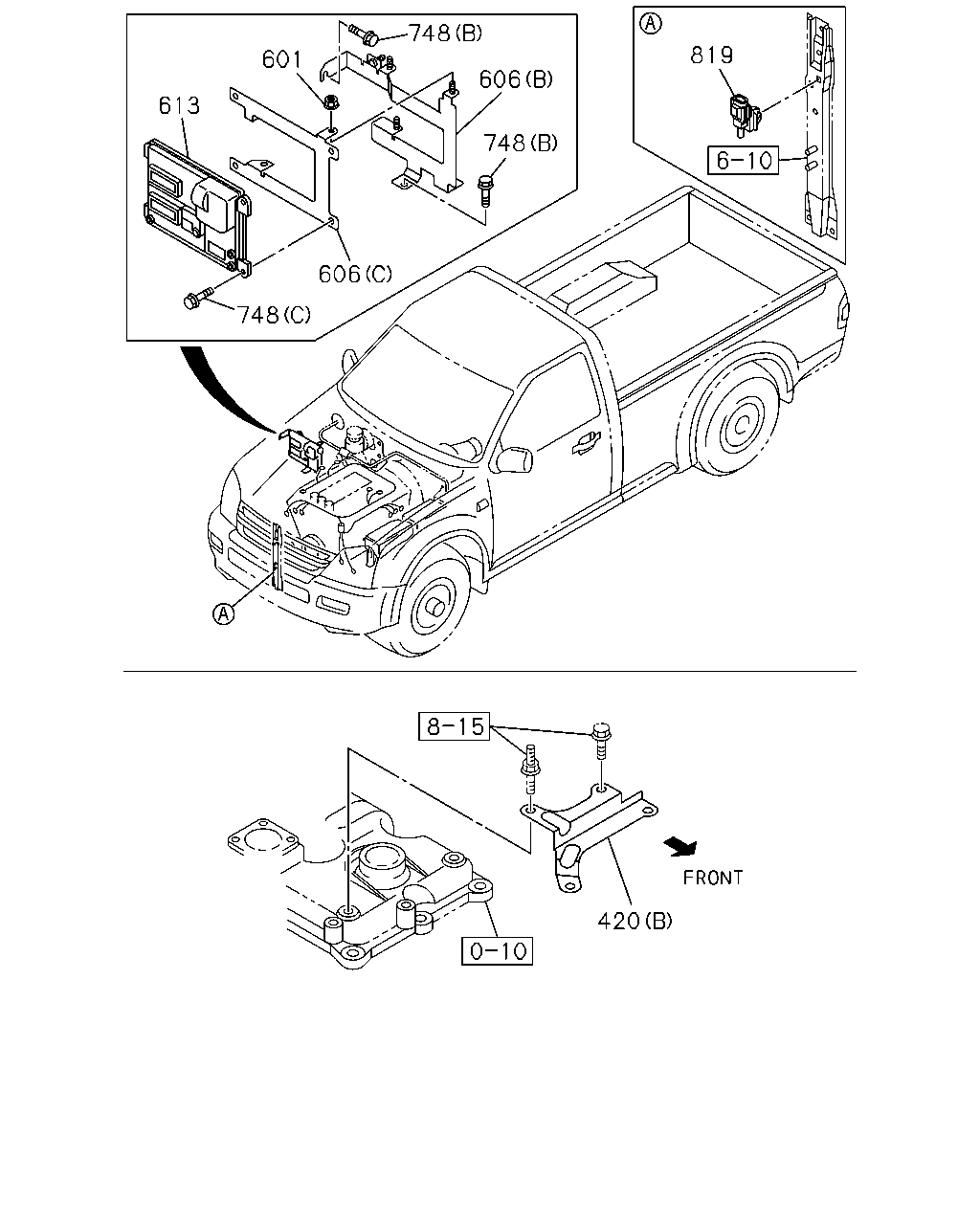

çizim 117978
748 819 601 606 613 748 606 748 420
BalonParca AdiParca NoAdetTipApplied Date A B C D E
420 02.183 BRACKET; HARNESS
(A) THA 		8-97920-750-3 01 1 0404-0409 ●
420 02.183 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0410-0501 ●
420 02.183 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0502-0609 ● ●
420 02.183 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0610- ● ● ●
601 03.670 NUT; UNIT
01.062 M6 FLANGE THA 		0-91180-106-0 03 1 0410-0501 ●
601 03.670 NUT; UNIT
01.062 M6 FLANGE THA 		0-91180-106-0 03 1 0502-0609 ● ●
601 03.670 NUT; UNIT
01.062 M6 FLANGE THA 		0-91180-106-0 03 1 0610- ● ● ●
606 03.680 BRACKET; CONT UNIT
(A) THA 		8-97921-240-0 01 1 0404-0409 ●
606 03.680 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0410-0501 ●
606 03.680 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0502-0609 ● ●
606 03.680 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0610- ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) THA 		8-97380-199-0 01 1 0410-0501 ●
606 03.680 BRACKET; CONT UNIT
(B) THA 		8-97380-199-0 01 1 0502-0609 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97380-199-0 01 1 0610- ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97364-731-2 01 1 0610- ● ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> THA 		8-98002-452-0 01 1 0410-0502 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> THA 		8-98006-349-0 01 1 0503-0508 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98006-349-0 01 1 0509-0603 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98029-981-0 01 1 0604-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98051-189-0 01 1 0610-0610 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98017-338-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98079-708-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98099-163-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98135-381-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> THA 		8-98006-353-0 01 1 0509-0603 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> THA 		8-98029-983-0 01 1 0604-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> 		8-98051-191-0 01 1 0610-0610 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98017-335-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. AUTO CRUISE CONT<K30> THA 		8-98017-335-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98079-705-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. AUTO CRUISE CONT<K30> THA 		8-98079-705-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98099-160-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. AUTO CRUISE CONT<K30> THA 		8-98099-160-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98135-378-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. AUTO CRUISE CONT<K30> THA 		8-98135-378-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> THA 		8-98002-451-0 01 1 0410-0412 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> THA 		8-98006-345-0 01 1 0501-0508 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98006-345-0 01 1 0509-0603 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98029-980-0 01 1 0604-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98051-188-0 01 1 0610-0610 ●
613 03.670 CONTROL UNIT; ENG
EXTEND CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98017-336-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98017-336-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
EXTEND CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98079-706-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98079-706-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
EXTEND CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98099-161-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98099-161-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
EXTEND CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98135-379-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98135-379-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> IMMOBILIZER SYSTEM<7KC> THA 		8-98006-351-0 01 1 0509-0603 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> IMMOBILIZER SYSTEM<7KC> THA 		8-98029-982-0 01 1 0604-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> IMMOBILIZER SYSTEM<7KC> 		8-98051-190-0 01 1 0610-0610 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> THA 		8-98017-337-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> EXC. AUTO CRUISE CONT<K30> THA 		8-98017-337-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> THA 		8-98079-707-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> EXC. AUTO CRUISE CONT<K30> THA 		8-98079-707-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> THA 		8-98099-162-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> EXC. AUTO CRUISE CONT<K30> THA 		8-98099-162-0 01 1 0807-1109 ●
613 03.670 CONTROL UNIT; ENG
4X2 CREW CAB<TFB*W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> THA 		8-98135-380-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
4X4 CREW CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> EXC. AUTO CRUISE CONT<K30> THA 		8-98135-380-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
THA 		8-98006-354-0 01 1 0502-0508 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98006-354-0 01 1 0509-0603 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98029-984-0 01 1 0604-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98051-192-0 01 1 0610-0610 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98017-341-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98079-711-0 01 1 0705-0803 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98097-097-0 01 1 0804-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98135-387-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98006-355-0 01 1 0509-0603 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98029-986-0 01 1 0604-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> 		8-98051-193-0 01 1 0610-0610 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98017-342-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98079-712-0 01 1 0705-0803 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98097-098-0 01 1 0804-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> THA 		8-98135-391-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> AUTO CRUISE CONT<K30> THA 		8-98028-993-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> AUTO CRUISE CONT<K30> THA 		8-98079-723-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> AUTO CRUISE CONT<K30> THA 		8-98099-173-0 01 1 0807-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> AUTO CRUISE CONT<K30> THA 		8-98160-159-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> EXC. AUTO CRUISE CONT<K30> THA 		8-98017-340-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> EXC. AUTO CRUISE CONT<K30> THA 		8-98079-710-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> EXC. AUTO CRUISE CONT<K30> THA 		8-98099-165-0 01 1 0807-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN<RMD> EXC. AUTO CRUISE CONT<K30> THA 		8-98160-157-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> AUTO CRUISE CONT<K30> THA 		8-98028-992-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> AUTO CRUISE CONT<K30> THA 		8-98079-722-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> AUTO CRUISE CONT<K30> THA 		8-98099-172-0 01 1 0807-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> AUTO CRUISE CONT<K30> THA 		8-98160-158-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. AUTO CRUISE CONT<K30> THA 		8-98017-339-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. AUTO CRUISE CONT<K30> THA 		8-98079-709-0 01 1 0705-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. AUTO CRUISE CONT<K30> THA 		8-98099-164-0 01 1 0807-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. AUTO CRUISE CONT<K30> THA 		8-98160-156-0 01 1 1008- ●
748 02.500 BOLT; CONT UNIT
00.413 (A) M6X20 HEX SOCKET 		9-05820-620-0 04 1 0404-0409 ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0410-0501 ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0502-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0610- ● ● ●
748 02.500 BOLT; CONT UNIT
01.780 (C) M6X25 HEX SOCKET 		0-58310-625-0 04 1 0410-0501 ●
748 02.500 BOLT; CONT UNIT
01.780 (C) M6X25 HEX SOCKET 		0-58310-625-0 04 1 0502-0601 ● ●
748 02.500 BOLT; CONT UNIT
01.428 (C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
01.428 (C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0610- ● ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0610- ● ● ●

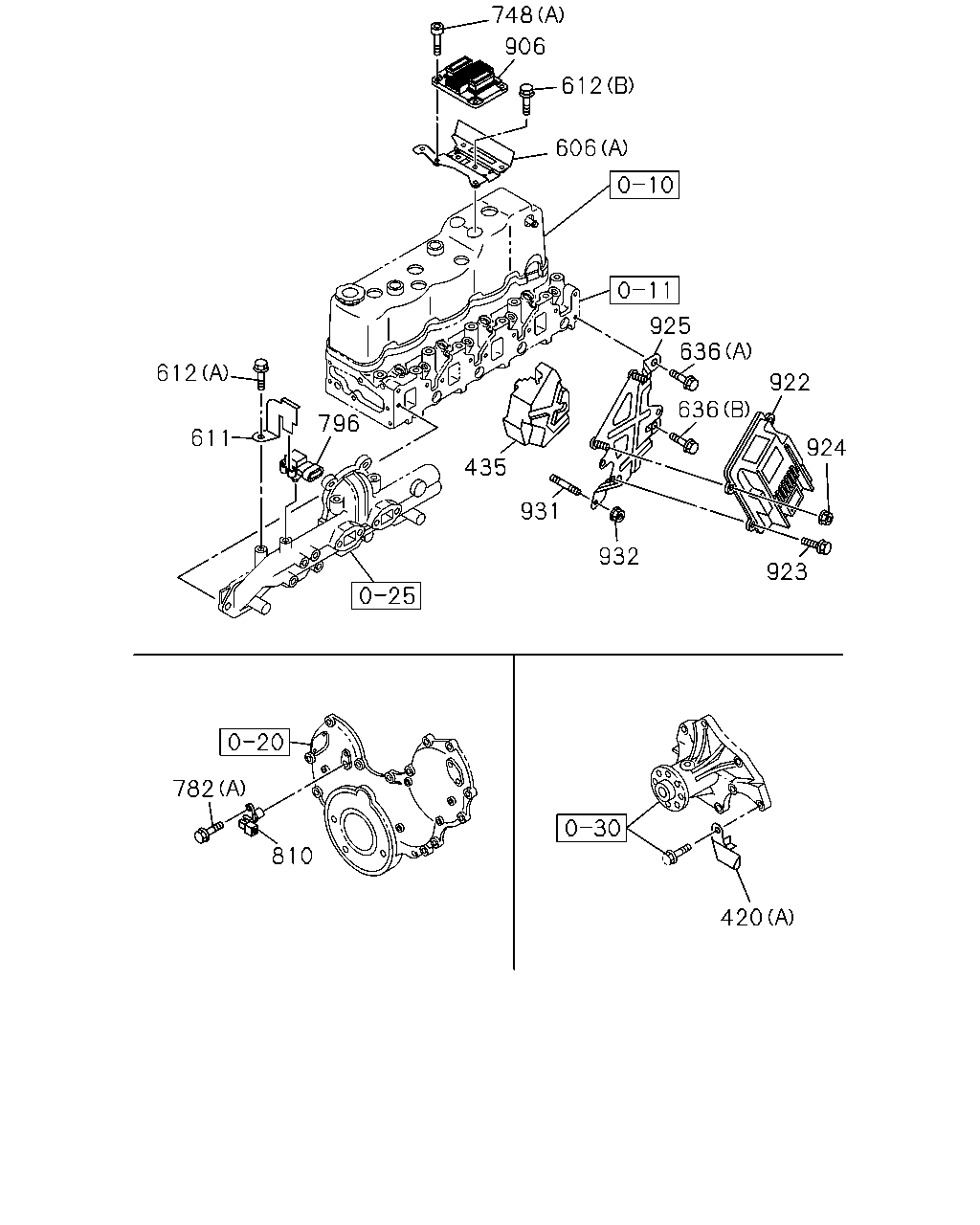

çizim 117981
748 906 612 606 796 925 636 612 922 636 611 924 435 931 932 923 782 810 420
BalonParca AdiParca NoAdetTipApplied Date A B C D E
420 02.183 BRACKET; HARNESS
(A) THA 		8-97920-750-3 01 1 0404-0409 ●
420 02.183 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0410-0501 ●
420 02.183 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0502-0609 ● ●
420 02.183 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0610- ● ● ●
435 02.363 RUBBER; CUSHION
THA 		8-97943-636-0 01 1 0404-0409 ●
606 03.680 BRACKET; CONT UNIT
(A) THA 		8-97921-240-0 01 1 0404-0409 ●
606 03.680 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0410-0501 ●
606 03.680 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0502-0609 ● ●
606 03.680 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0610- ● ● ●
606 03.680 BRACKET; CONT UNIT
(B) THA 		8-97380-199-0 01 1 0410-0501 ●
606 03.680 BRACKET; CONT UNIT
(B) THA 		8-97380-199-0 01 1 0502-0609 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97380-199-0 01 1 0610- ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97364-731-2 01 1 0610- ● ●
611 01.150 BRACKET; SENSOR
THA 		8-97943-116-0 01 1 0404-0409 ●
612 02.510 BOLT; BRKT
03.671 (A) M6X10 FLANGE THA 		0-28050-610-0 01 1 0404-0409 ●
612 02.510 BOLT; BRKT
02.343 (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0404-0409 ●
636 02.510 BOLT; BRKT
02.343 (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0404-0409 ●
636 02.510 BOLT; BRKT
(B) M14X25 FLANGE 		0-28651-425-0 01 1 0404-0409 ●
748 02.500 BOLT; CONT UNIT
00.413 (A) M6X20 HEX SOCKET 		9-05820-620-0 04 1 0404-0409 ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0410-0501 ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0502-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0610- ● ● ●
748 02.500 BOLT; CONT UNIT
01.780 (C) M6X25 HEX SOCKET 		0-58310-625-0 04 1 0410-0501 ●
748 02.500 BOLT; CONT UNIT
01.780 (C) M6X25 HEX SOCKET 		0-58310-625-0 04 1 0502-0601 ● ●
748 02.500 BOLT; CONT UNIT
01.428 (C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
01.428 (C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0610- ● ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0404-0409 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0410-0501 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0502-0609 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0610- ● ● ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0610- ●
796 01.150 SENSOR; MAP
03.682 		8-97180-655-0 01 1 0404-0409 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0610- ●
810 01.150 SENSOR; CRANK ANGLE 8-97180-388-0 01 1 0404-0409 ●
906 02.510 CONTROL UNIT; FUEL INJ
A/T 4 SPEED-JATCO<RMK> 		8-97352-569-3 01 1 0404-0409 ●
906 02.510 CONTROL UNIT; FUEL INJ
M/T MUA 5 SPEED 5G<RSP> 		8-97352-568-3 01 1 0404-0409 ●
922 02.510 DRIVE UNIT; INJ PUMP 8-97189-136-3 01 1 0404-0409 ●
923 03.671 BOLT; DRIVE UNIT
00.685 M6X25 FLANGE THA 		0-28650-625-0 02 1 0404-0409 ●
924 02.510 NUT; DRIVE UNIT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0404-0409 ●
925 03.670 BRACKET; DRIVE UNIT
THA 		8-97943-777-0 01 1 0404-0409 ●
931 02.510 STUD; BRKT,EDU
M8X20 L=32 THA 		0-41010-820-0 01 1 0404-0409 ●
932 02.510 NUT; BRKT,EDU
01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0404-0409 ●

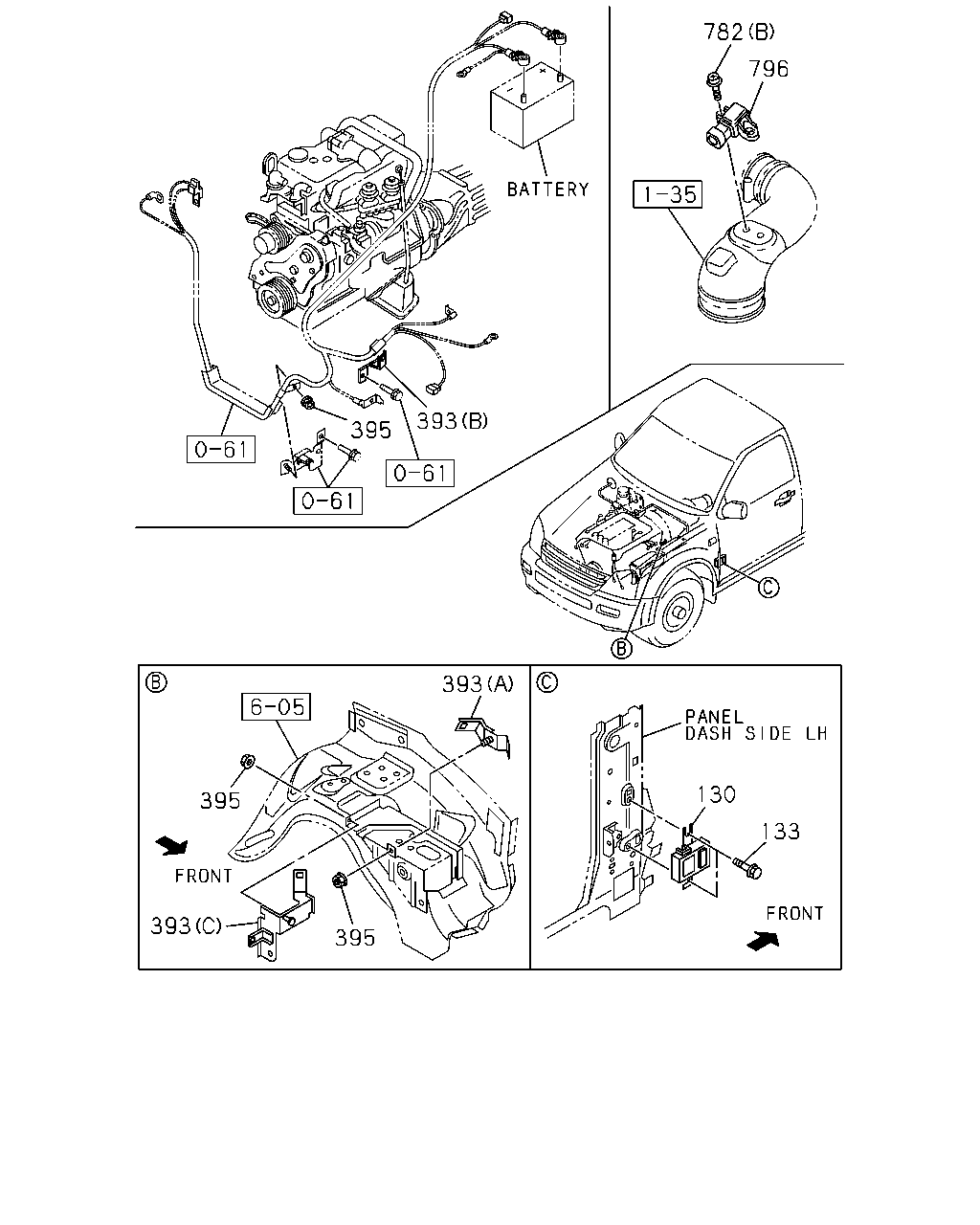

çizim 117984
782 796 393 395 393 130 395 133 393 395
BalonParca AdiParca NoAdetTipApplied Date A B C D E
130 02.510 CONTROLLER; EGR 8-97359-225-0 01 1 0404-0405 ●
130 02.510 CONTROLLER; EGR 8-97381-425-0 01 1 0406-0501 ●
133 02.500 BOLT; EGR CONTROLLER
09.171 M6X16 FLANGE THA 		0-28450-616-0 02 1 0404-0501 ●
393 02.343 BRACKET; HARNESS TO BODY
(A) THA 		8-97236-163-1 01 1 0404-0409 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) THA 		8-97236-163-1 01 1 0410-0501 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) THA 		8-97241-143-1 01 1 0404-0409 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) THA 		8-97241-143-1 01 1 0410-0501 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0410-0501 ●
393 02.343 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0502-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0610- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) THA 		8-97378-730-0 01 1 0410-0501 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) THA 		8-97378-730-0 01 1 0502-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0610- ● ● ●
395 02.343 NUT; BRKT FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0404-0409 ● ●
395 02.343 NUT; BRKT FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0404-0409 ● ●
395 02.343 NUT; BRKT FIX
4X2<TFB***> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0410-0501 ●
395 02.343 NUT; BRKT FIX
4X2<TFB***> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0410-0501 ●
395 02.343 NUT; BRKT FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0410-0501 ●
395 02.343 NUT; BRKT FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0603 ● ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE THA 		0-91180-106-0 01 1 0604-0609 ● ●
395 02.343 NUT; BRKT FIX
01.062 M6 FLANGE THA 		0-91180-106-0 01 1 0610- ● ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0404-0409 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0410-0501 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0502-0609 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0610- ● ● ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0610- ●
796 01.150 SENSOR; MAP
03.682 		8-97180-655-0 01 1 0404-0409 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
