Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#73558) — 392 parça

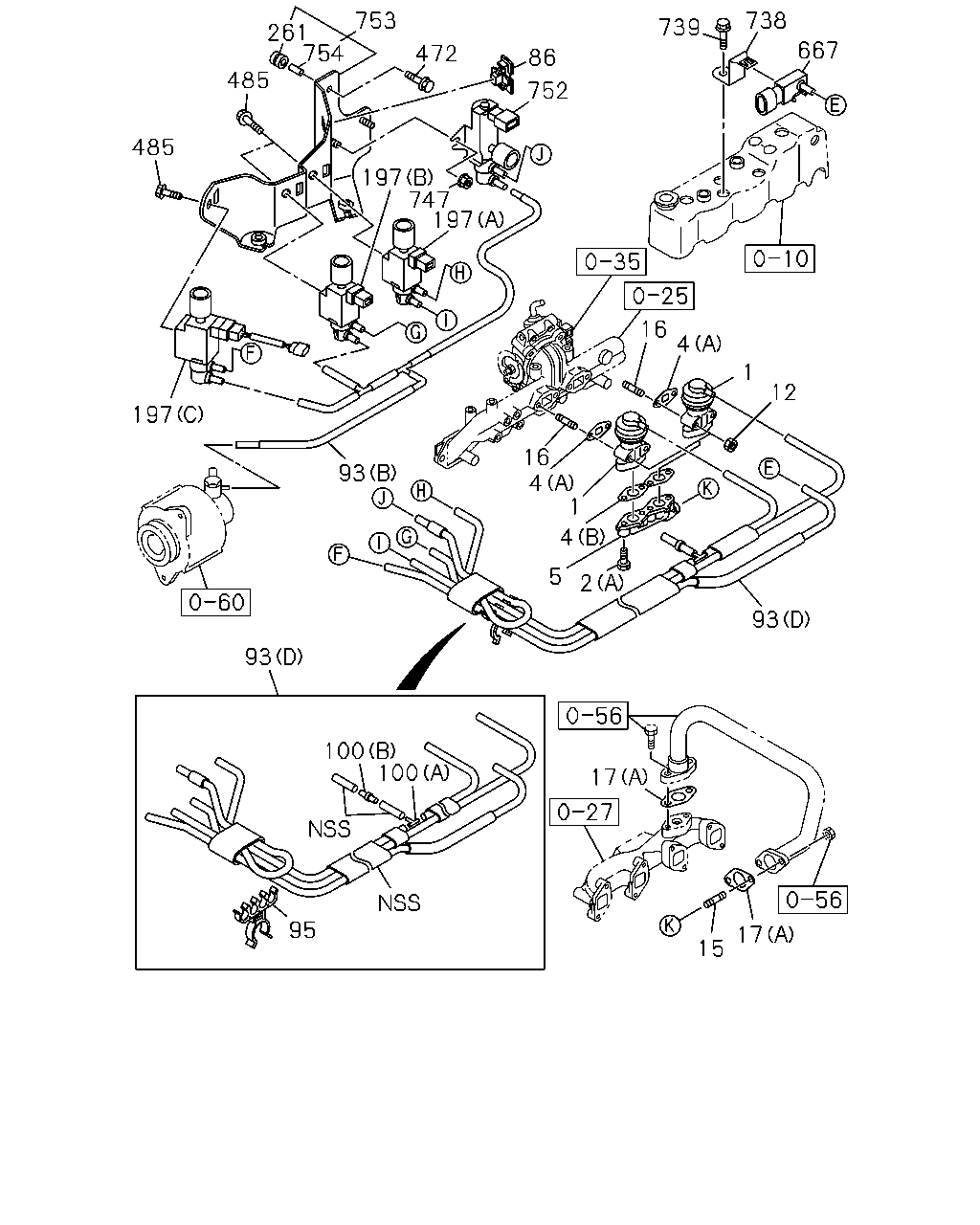

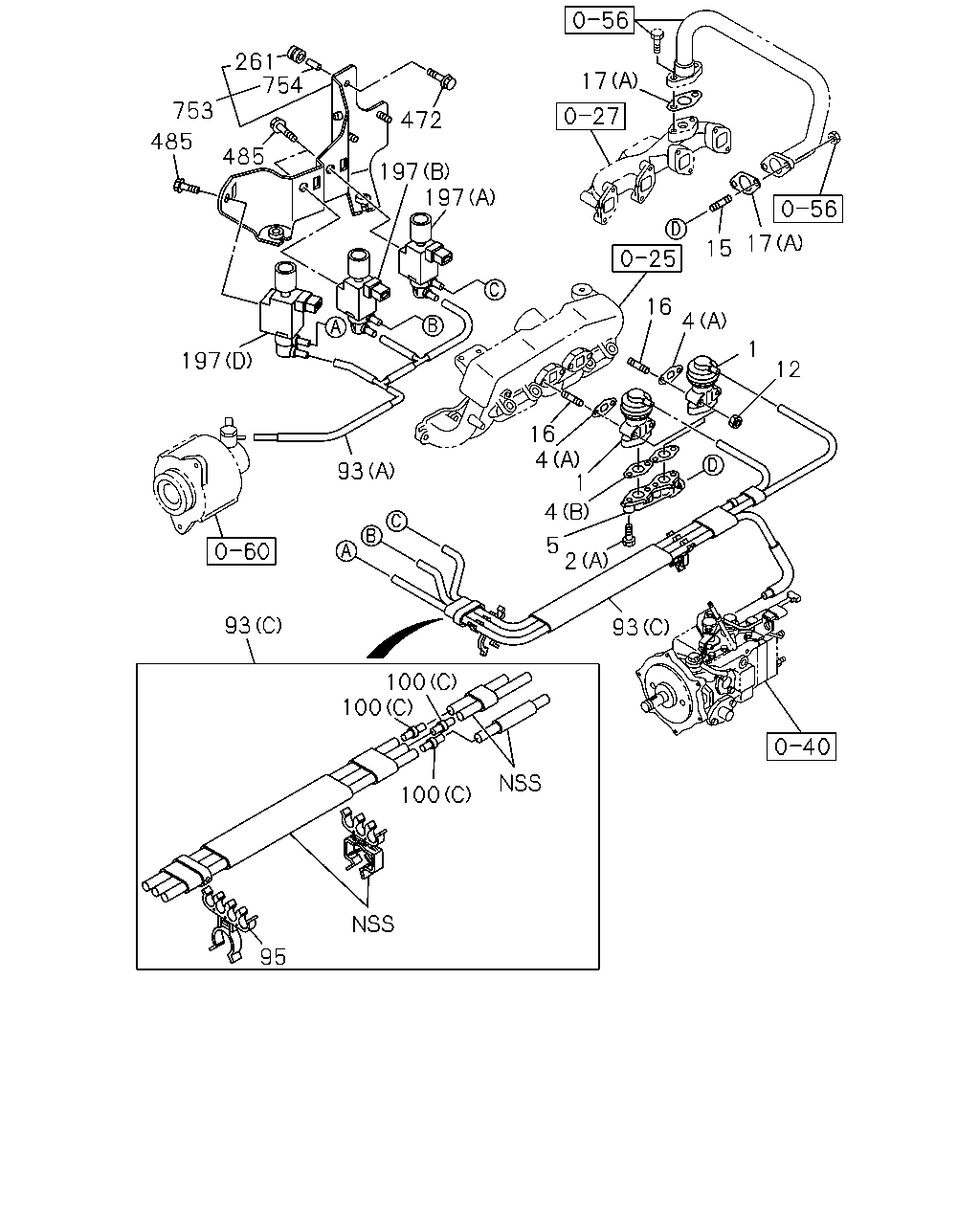

261 754 17 753 472 485 485 197 197 17 15 16 4 1 197 12 16 4 1 93 4 5 2 93 93 100 100 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0404-0409	●	●
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0410-0501		●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0410-0501			●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0502-0503			●	●
1	03.670 VALVE; EGR	8-98012-302-0	01	1	0504-0505			●	●
1	03.670 VALVE; EGR THA	8-98013-702-0	01	1	0506-0609			●	●
1	03.670 VALVE; EGR THA	8-98013-911-1	01	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0404-0409	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0410-0501		●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0508-0609			●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE THA	0-28151-045-0	01	1	0610-1007					●
2	03.670 BOLT; EGR VLV 03.417 (F) M8X23 FLANGE	8-97378-077-0	03	1	0610-1007					●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0410-0501		●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0410-0501		●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0410-0501			●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0502-0609			●	●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-3	01	1	0610-			●	●	●
5	03.670 ADAPTER ASM	8-97306-490-0	01	1	0404-0501		●
5	03.670 ADAPTER ASM	8-97943-013-0	01	1	0404-0409	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0404-0409	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0410-0501		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0502-0507			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0508-0609			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0710-1007			●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-			●	●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0710-1007					●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0404-0409	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0410-0410		●
16	03.275 STUD; EGR VLV 03.342 M8X49 L=63	8-97019-478-0	04	1	0411-0501		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0410-0501			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0502-0507			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0508-0609			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0610-			●	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0404-0409	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0410-0501		●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0410-0501			●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0502-0609			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-3	02	1	1008-			●	●	●
17	03.665 GASKET; EGR PIPE (C) THA	8-98017-551-0	01	1	0610-1007					●
93	03.675 HOSE ASM 03.163 (A) THA	8-97260-309-4	01	1	0404-0501		●
93	03.675 HOSE ASM 03.163 (C) THA	8-97260-312-4	01	1	0404-0501		●
93	03.675 HOSE ASM 03.163 (B) THA	8-97235-562-4	01	1	0404-0409	●
93	03.675 HOSE ASM 03.163 (D) THA	8-97943-811-0	01	1	0404-0409	●
93	03.675 HOSE ASM (D) THA	8-97944-330-0	01	1	0410-0410	●
95	03.680 CLIP; HOSE ID=14.5 & 7X4	8-94368-499-0	01	1	0404-0409	●	●
95	03.680 CLIP; HOSE ID=14.5 & 7X4	8-94368-499-0	01	1	0410-0501		●
100	03.680 JOINT; HOSE (C) 2WAY	8-97165-694-0	03	1	0404-0501		●
100	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0404-0409	●
100	03.680 JOINT; HOSE (B) 2WAY	8-94426-435-0	01	1	0404-0409	●
197	03.670 VALVE; VAC SWITCHING 03.130 (D)	8-94384-336-0	01	1	0404-0501		●
197	03.670 VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	0404-0409	●	●
197	03.670 VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	0410-0501		●
197	03.670 VALVE; VAC SWITCHING 03.675 (B)	8-97171-030-0	01	1	0404-0409	●	●
197	03.670 VALVE; VAC SWITCHING 03.675 (B)	8-97171-030-0	01	1	0410-0501		●
197	03.670 VALVE; VAC SWITCHING (C)	8-97070-554-0	01	1	0404-0409	●
261	03.671 GROMMET 00.206 THA	5-19389-002-0	03	1	0404-0409	●	●
261	03.671 GROMMET 00.206 THA	5-19389-002-0	03	1	0410-0501		●
472	03.671 BOLT; BRKT 02.343 M6X16 FLANGE THA	0-28650-616-0	03	1	0404-0409	●	●
472	03.671 BOLT; BRKT 02.343 M6X16 FLANGE THA	0-28650-616-0	03	1	0410-0501		●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0404-0409	●	●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0410-0501		●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0404-0409	●	●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0410-0501		●
753	03.670 BRACKET; VALVE THA	8-97943-948-0	01	1	0404-0409	●	●
753	03.670 BRACKET; VALVE THA	8-97943-948-0	01	1	0410-0501		●
754	03.647 BUSHING; RUBBER 00.206 THA	5-19389-009-0	03	1	0404-0409	●	●
754	03.647 BUSHING; RUBBER 00.206 THA	5-19389-009-0	03	1	0410-0501		●

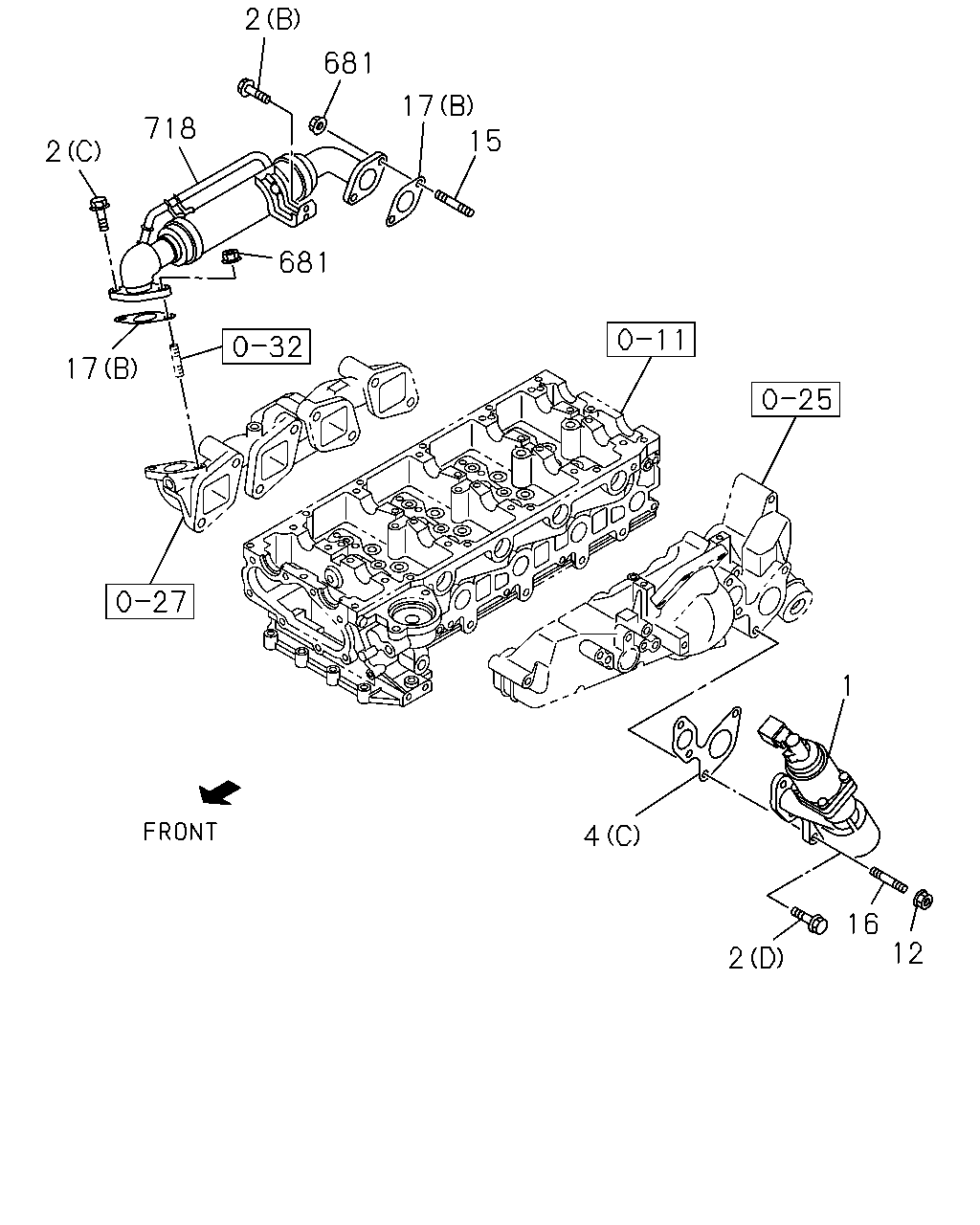

2 681 17 15 718 2 681 17 1 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0404-0409	●	●
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0410-0501		●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0410-0501			●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0502-0503			●	●
1	03.670 VALVE; EGR	8-98012-302-0	01	1	0504-0505			●	●
1	03.670 VALVE; EGR THA	8-98013-702-0	01	1	0506-0609			●	●
1	03.670 VALVE; EGR THA	8-98013-911-1	01	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0404-0409	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0410-0501		●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0508-0609			●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE THA	0-28151-045-0	01	1	0610-1007					●
2	03.670 BOLT; EGR VLV 03.417 (F) M8X23 FLANGE	8-97378-077-0	03	1	0610-1007					●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0410-0501		●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0410-0501		●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0410-0501			●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0502-0609			●	●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-3	01	1	0610-			●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0404-0409	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0410-0501		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0502-0507			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0508-0609			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0710-1007			●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-			●	●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0710-1007					●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0404-0409	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0410-0410		●
16	03.275 STUD; EGR VLV 03.342 M8X49 L=63	8-97019-478-0	04	1	0411-0501		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0410-0501			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0502-0507			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0508-0609			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0610-			●	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0404-0409	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0410-0501		●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0410-0501			●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0502-0609			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-3	02	1	1008-			●	●	●
17	03.665 GASKET; EGR PIPE (C) THA	8-98017-551-0	01	1	0610-1007					●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0410-0501			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0502-1007			●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	1008-			●	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-1007					●
718	03.337 COOLER; EGR	8-97312-095-2	01	1	0410-0501			●
718	03.337 COOLER; EGR	8-97312-095-2	01	1	0502-0510			●	●
718	03.337 COOLER; EGR	8-98031-836-0	01	1	0511-0907			●	●
718	03.337 COOLER; EGR 09.003 THA	8-98150-750-2	01	1	0908-			●	●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0610-0907					●
718	03.337 COOLER; EGR THA	8-98150-749-1	01	1	0908-1007					●
718	03.337 COOLER; EGR THA	8-98132-052-3	01	1	1008-					●

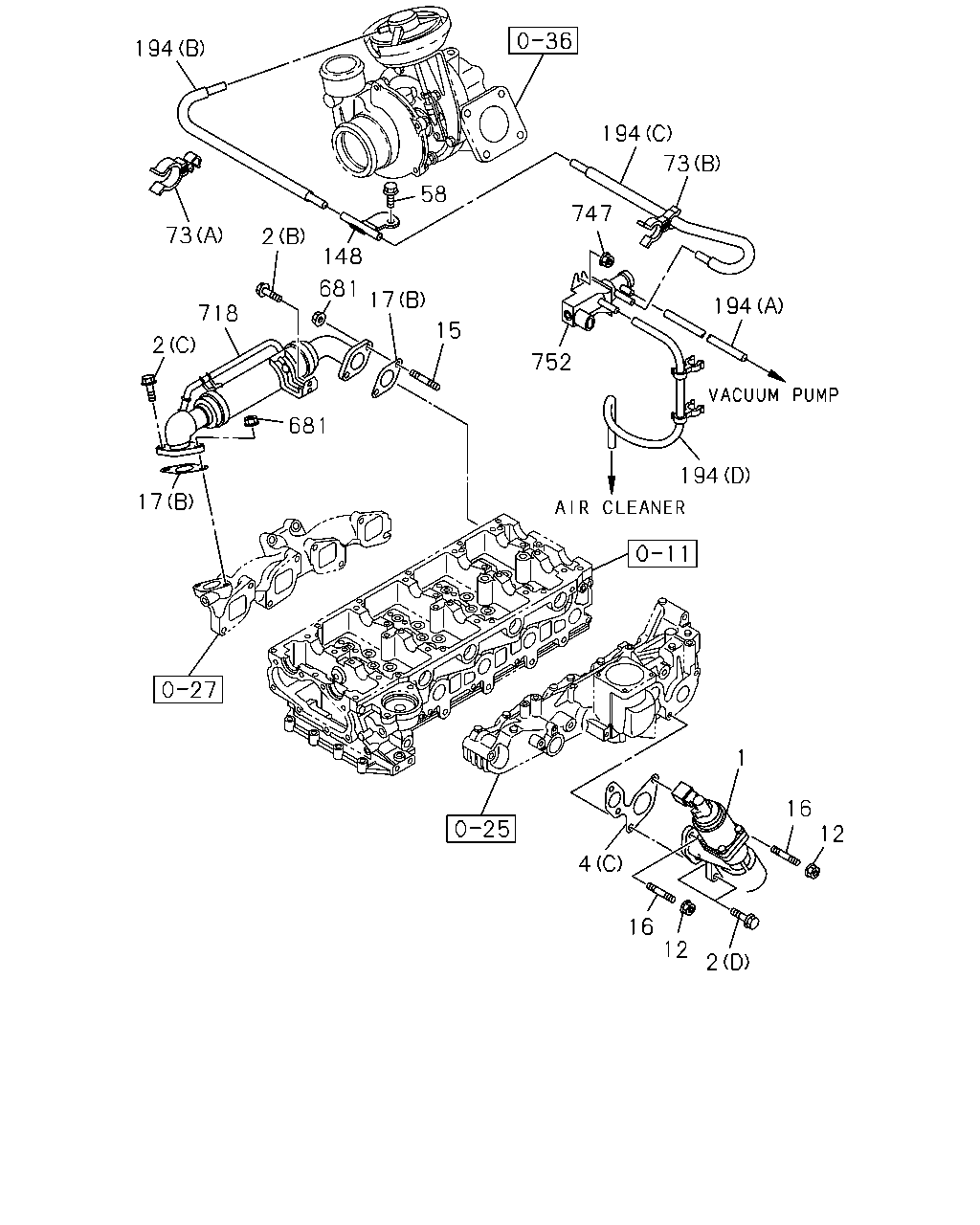

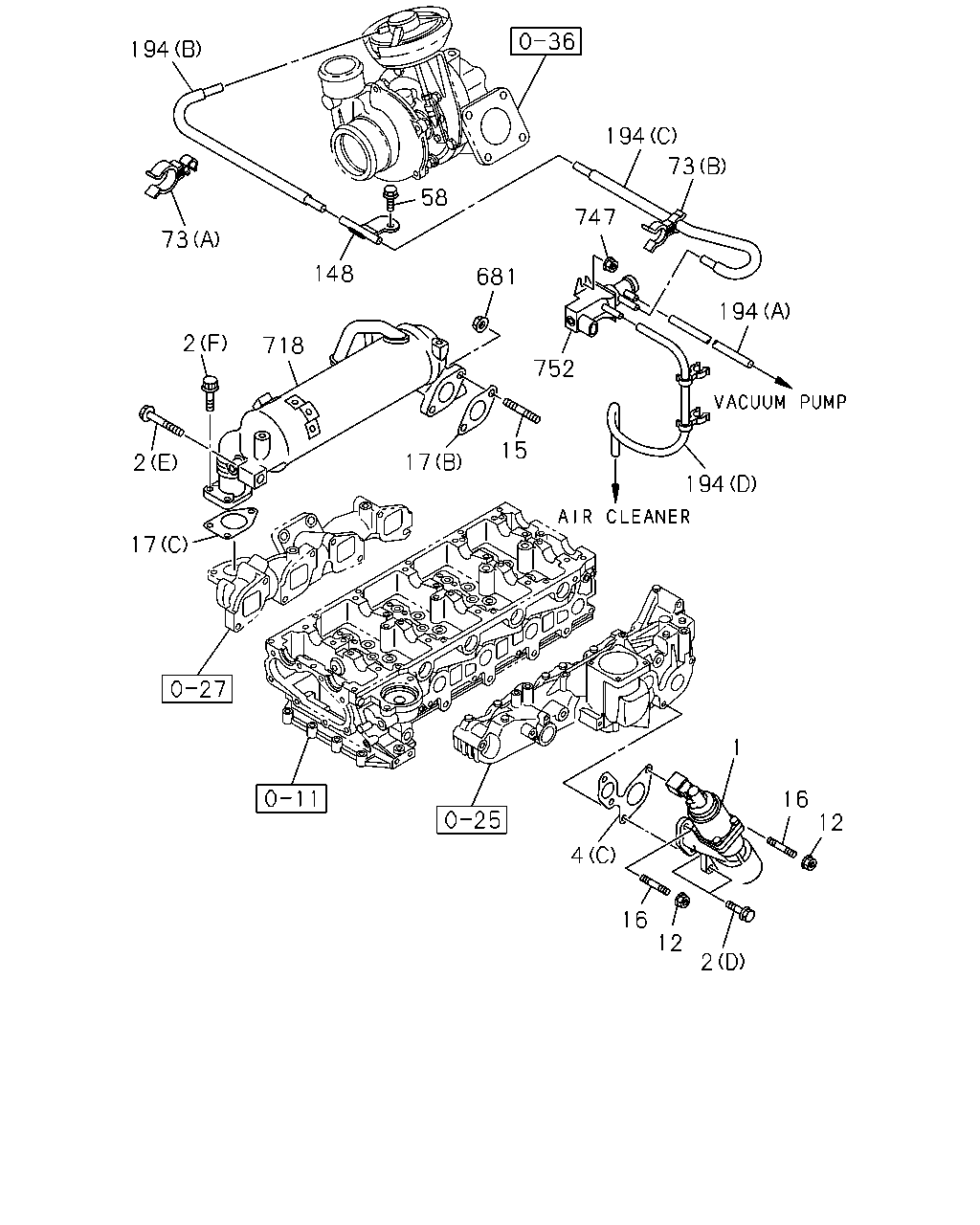

194 194 73 58 747 73 2 148 681 17 194 718 15 2 752 681 194 17 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0404-0409	●	●
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0410-0501		●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0410-0501			●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0502-0503			●	●
1	03.670 VALVE; EGR	8-98012-302-0	01	1	0504-0505			●	●
1	03.670 VALVE; EGR THA	8-98013-702-0	01	1	0506-0609			●	●
1	03.670 VALVE; EGR THA	8-98013-911-1	01	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0404-0409	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0410-0501		●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0508-0609			●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE THA	0-28151-045-0	01	1	0610-1007					●
2	03.670 BOLT; EGR VLV 03.417 (F) M8X23 FLANGE	8-97378-077-0	03	1	0610-1007					●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0410-0501		●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0410-0501		●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0410-0501			●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0502-0609			●	●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-3	01	1	0610-			●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0404-0409	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0410-0501		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0502-0507			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0508-0609			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0710-1007			●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-			●	●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0710-1007					●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0404-0409	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0410-0410		●
16	03.275 STUD; EGR VLV 03.342 M8X49 L=63	8-97019-478-0	04	1	0411-0501		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0410-0501			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0502-0507			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0508-0609			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0610-			●	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0404-0409	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0410-0501		●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0410-0501			●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0502-0609			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-3	02	1	1008-			●	●	●
17	03.665 GASKET; EGR PIPE (C) THA	8-98017-551-0	01	1	0610-1007					●
58	03.417 BOLT; PIPE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-					●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	0610-					●
73	03.680 CLIP; VAC HOSE 03.483 (B) ID=21 & 7.5	8-97309-946-0	01	1	0610-					●
148	03.675 PIPE; VAC THA	8-98011-533-0	01	1	0610-					●
194	03.675 HOSE; VAC (A)	0-04420-430-0	01	1	0610-					●
194	03.675 HOSE; VAC (B) THA	8-98011-635-1	01	1	0610-					●
194	03.675 HOSE; VAC (C) THA	8-98011-637-1	01	1	0610-					●
194	03.675 HOSE; VAC (D) THA	8-98037-352-1	01	1	0610-					●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0410-0501			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0502-1007			●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	1008-			●	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-1007					●
718	03.337 COOLER; EGR	8-97312-095-2	01	1	0410-0501			●
718	03.337 COOLER; EGR	8-97312-095-2	01	1	0502-0510			●	●
718	03.337 COOLER; EGR	8-98031-836-0	01	1	0511-0907			●	●
718	03.337 COOLER; EGR 09.003 THA	8-98150-750-2	01	1	0908-			●	●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0610-0907					●
718	03.337 COOLER; EGR THA	8-98150-749-1	01	1	0908-1007					●
718	03.337 COOLER; EGR THA	8-98132-052-3	01	1	1008-					●
747	03.671 NUT; VAC REG VALVE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0404-0409	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0610-					●
752	03.670 VALVE; EVRV	8-97137-812-0	01	1	0404-0409	●
752	03.670 VALVE; EVRV	8-98033-927-0	01	1	0610-0803					●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0804-					●

738 753 739 261 754 667 472 86 485 752 485 197 747 197 16 4 1 12 197 16 4 93 1 4 5 2 93 93 100 100 17 95 17 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0404-0409	●	●
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0410-0501		●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0410-0501			●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0502-0503			●	●
1	03.670 VALVE; EGR	8-98012-302-0	01	1	0504-0505			●	●
1	03.670 VALVE; EGR THA	8-98013-702-0	01	1	0506-0609			●	●
1	03.670 VALVE; EGR THA	8-98013-911-1	01	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0404-0409	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0410-0501		●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0508-0609			●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE THA	0-28151-045-0	01	1	0610-1007					●
2	03.670 BOLT; EGR VLV 03.417 (F) M8X23 FLANGE	8-97378-077-0	03	1	0610-1007					●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0410-0501		●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0410-0501		●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0410-0501			●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0502-0609			●	●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-3	01	1	0610-			●	●	●
5	03.670 ADAPTER ASM	8-97306-490-0	01	1	0404-0501		●
5	03.670 ADAPTER ASM	8-97943-013-0	01	1	0404-0409	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0404-0409	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0410-0501		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0502-0507			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0508-0609			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0710-1007			●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-			●	●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0710-1007					●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0404-0409	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0410-0410		●
16	03.275 STUD; EGR VLV 03.342 M8X49 L=63	8-97019-478-0	04	1	0411-0501		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0410-0501			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0502-0507			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0508-0609			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0610-			●	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0404-0409	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0410-0501		●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0410-0501			●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0502-0609			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-3	02	1	1008-			●	●	●
17	03.665 GASKET; EGR PIPE (C) THA	8-98017-551-0	01	1	0610-1007					●
86	03.675 CLIP 02.559 L=15	8-94315-436-1	01	1	0404-0409	●
93	03.675 HOSE ASM 03.163 (A) THA	8-97260-309-4	01	1	0404-0501		●
93	03.675 HOSE ASM 03.163 (C) THA	8-97260-312-4	01	1	0404-0501		●
93	03.675 HOSE ASM 03.163 (B) THA	8-97235-562-4	01	1	0404-0409	●
93	03.675 HOSE ASM 03.163 (D) THA	8-97943-811-0	01	1	0404-0409	●
93	03.675 HOSE ASM (D) THA	8-97944-330-0	01	1	0410-0410	●
95	03.680 CLIP; HOSE ID=14.5 & 7X4	8-94368-499-0	01	1	0404-0409	●	●
95	03.680 CLIP; HOSE ID=14.5 & 7X4	8-94368-499-0	01	1	0410-0501		●
100	03.680 JOINT; HOSE (C) 2WAY	8-97165-694-0	03	1	0404-0501		●
100	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0404-0409	●
100	03.680 JOINT; HOSE (B) 2WAY	8-94426-435-0	01	1	0404-0409	●
197	03.670 VALVE; VAC SWITCHING 03.130 (D)	8-94384-336-0	01	1	0404-0501		●
197	03.670 VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	0404-0409	●	●
197	03.670 VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	0410-0501		●
197	03.670 VALVE; VAC SWITCHING 03.675 (B)	8-97171-030-0	01	1	0404-0409	●	●
197	03.670 VALVE; VAC SWITCHING 03.675 (B)	8-97171-030-0	01	1	0410-0501		●
197	03.670 VALVE; VAC SWITCHING (C)	8-97070-554-0	01	1	0404-0409	●
261	03.671 GROMMET 00.206 THA	5-19389-002-0	03	1	0404-0409	●	●
261	03.671 GROMMET 00.206 THA	5-19389-002-0	03	1	0410-0501		●
472	03.671 BOLT; BRKT 02.343 M6X16 FLANGE THA	0-28650-616-0	03	1	0404-0409	●	●
472	03.671 BOLT; BRKT 02.343 M6X16 FLANGE THA	0-28650-616-0	03	1	0410-0501		●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0404-0409	●	●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0410-0501		●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0404-0409	●	●
485	03.671 BOLT; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0410-0501		●
667	03.670 SENSOR; VAC 01.800	8-16258-659-0	01	1	0404-0409	●
738	03.675 BRACKET; SENSOR,VAC THA	8-97322-263-1	01	1	0404-0409	●
739	03.675 BOLT; BRKT,SENSOR 02.343 M8X12 FLANGE THA	0-28050-812-0	01	1	0404-0409	●
747	03.671 NUT; VAC REG VALVE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0404-0409	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0610-					●
752	03.670 VALVE; EVRV	8-97137-812-0	01	1	0404-0409	●
752	03.670 VALVE; EVRV	8-98033-927-0	01	1	0610-0803					●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0804-					●
753	03.670 BRACKET; VALVE THA	8-97943-948-0	01	1	0404-0409	●	●
753	03.670 BRACKET; VALVE THA	8-97943-948-0	01	1	0410-0501		●
754	03.647 BUSHING; RUBBER 00.206 THA	5-19389-009-0	03	1	0404-0409	●	●
754	03.647 BUSHING; RUBBER 00.206 THA	5-19389-009-0	03	1	0410-0501		●

194 194 73 58 747 73 148 681 194 2 718 752 15 17 2 194 17 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0404-0409	●	●
1	03.670 VALVE; EGR	8-97124-164-6	02	1	0410-0501		●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0410-0501			●
1	03.670 VALVE; EGR	8-97312-282-4	01	1	0502-0503			●	●
1	03.670 VALVE; EGR	8-98012-302-0	01	1	0504-0505			●	●
1	03.670 VALVE; EGR THA	8-98013-702-0	01	1	0506-0609			●	●
1	03.670 VALVE; EGR THA	8-98013-911-1	01	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0404-0409	●	●
2	03.670 BOLT; EGR VLV 02.277 (A) M8X40 FLANGE THA	0-28050-840-0	04	1	0410-0501		●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 02.343 (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0410-0501			●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	0502-1007			●	●
2	03.670 BOLT; EGR VLV 03.417 (C) M8X23 FLANGE	8-97378-077-0	01	1	1008-			●	●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0508-0609			●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0610-			●	●	●
2	03.670 BOLT; EGR VLV 09.181 (E) M10X45 FLANGE THA	0-28151-045-0	01	1	0610-1007					●
2	03.670 BOLT; EGR VLV 03.417 (F) M8X23 FLANGE	8-97378-077-0	03	1	0610-1007					●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (A) THA	8-97910-300-0	02	1	0410-0501		●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0404-0409	●	●
4	03.671 GASKET; EGR VLV (B) THA	8-97943-117-0	01	1	0410-0501		●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0410-0501			●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-2	01	1	0502-0609			●	●
4	03.671 GASKET; EGR VLV (C) THA	8-97356-711-3	01	1	0610-			●	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0404-0409	●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0410-0501		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	04	1	0502-0507			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0508-0609			●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0710-1007			●	●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	1008-			●	●	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0710-1007					●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0404-0409	●	●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0410-0410		●
16	03.275 STUD; EGR VLV 03.342 M8X49 L=63	8-97019-478-0	04	1	0411-0501		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0410-0501			●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	04	1	0502-0507			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0508-0609			●	●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40 THA	0-49140-822-0	02	1	0610-			●	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0404-0409	●	●
17	03.665 GASKET; EGR PIPE (A) THA	8-97942-749-0	02	1	0410-0501		●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0410-0501			●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	02	1	0502-0609			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-2	01	1	0610-1007			●	●
17	03.665 GASKET; EGR PIPE (B) THA	8-97357-684-3	02	1	1008-			●	●	●
17	03.665 GASKET; EGR PIPE (C) THA	8-98017-551-0	01	1	0610-1007					●
58	03.417 BOLT; PIPE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-					●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	0610-					●
73	03.680 CLIP; VAC HOSE 03.483 (B) ID=21 & 7.5	8-97309-946-0	01	1	0610-					●
148	03.675 PIPE; VAC THA	8-98011-533-0	01	1	0610-					●
194	03.675 HOSE; VAC (A)	0-04420-430-0	01	1	0610-					●
194	03.675 HOSE; VAC (B) THA	8-98011-635-1	01	1	0610-					●
194	03.675 HOSE; VAC (C) THA	8-98011-637-1	01	1	0610-					●
194	03.675 HOSE; VAC (D) THA	8-98037-352-1	01	1	0610-					●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0410-0501			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0502-1007			●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	03	1	1008-			●	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-1007					●
718	03.337 COOLER; EGR	8-97312-095-2	01	1	0410-0501			●
718	03.337 COOLER; EGR	8-97312-095-2	01	1	0502-0510			●	●
718	03.337 COOLER; EGR	8-98031-836-0	01	1	0511-0907			●	●
718	03.337 COOLER; EGR 09.003 THA	8-98150-750-2	01	1	0908-			●	●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0610-0907					●
718	03.337 COOLER; EGR THA	8-98150-749-1	01	1	0908-1007					●
718	03.337 COOLER; EGR THA	8-98132-052-3	01	1	1008-					●
747	03.671 NUT; VAC REG VALVE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0404-0409	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0610-					●
752	03.670 VALVE; EVRV	8-97137-812-0	01	1	0404-0409	●
752	03.670 VALVE; EVRV	8-98033-927-0	01	1	0610-0803					●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	0804-					●

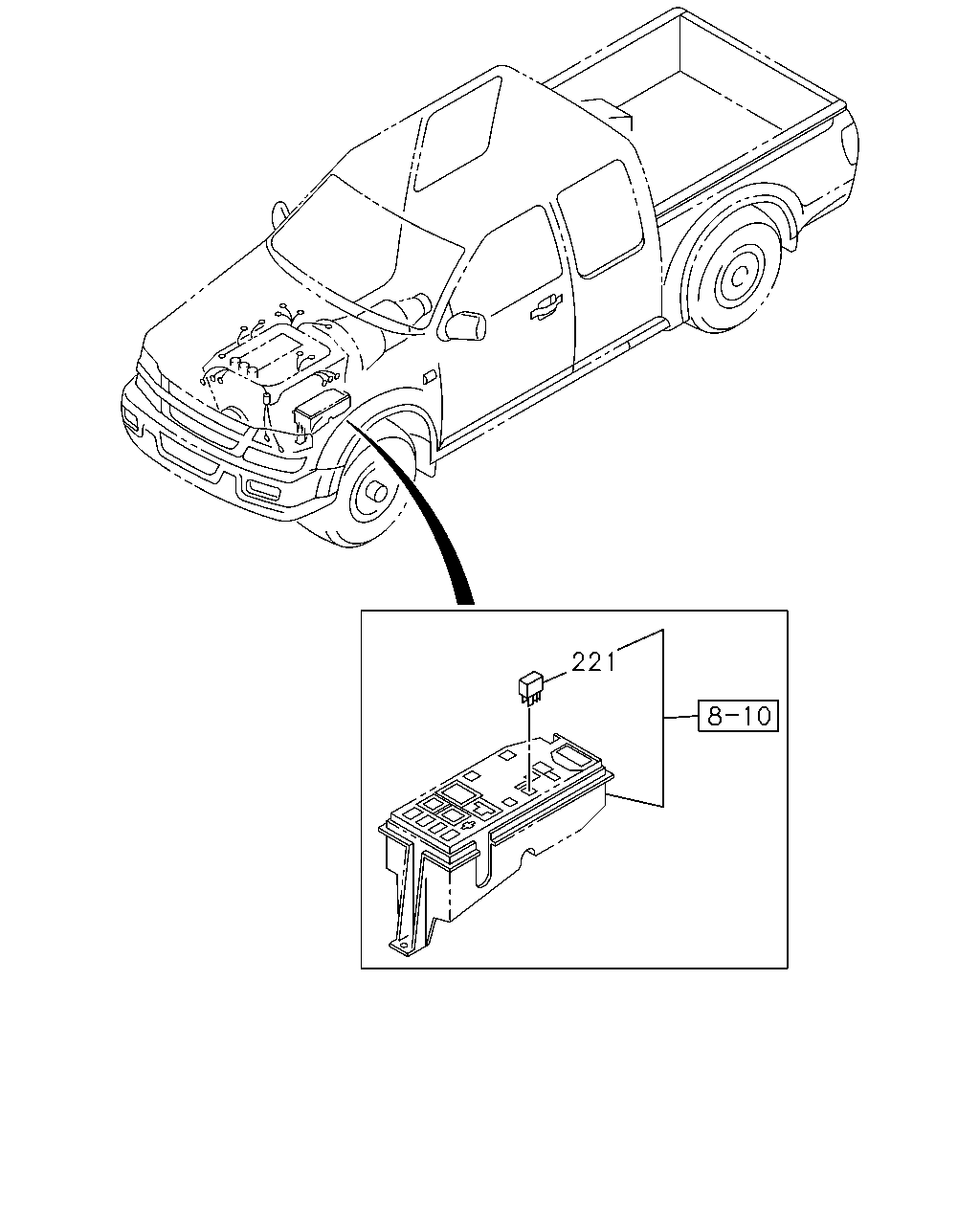

221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E
221	03.670 RELAY; MAIN 12V YAZAKI THA	8-98146-834-0	01	1	0810-		●	●	●
221	03.670 RELAY; MAIN 4X2<TFB***> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409	●
221	03.670 RELAY; MAIN 4X4<TFS***> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409	●
221	03.670 RELAY; MAIN 4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409	●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0410-0501		●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0502-0609		●	●
221	03.670 RELAY; MAIN 02.510 12V OMRON	8-97125-441-0	01	1	0509-0609		●	●
221	03.670 RELAY; MAIN 02.510 12V OMRON THA	8-97125-441-1	01	1	0610-0809		●	●	●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0710-0809		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
