Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#73556) — 467 parça

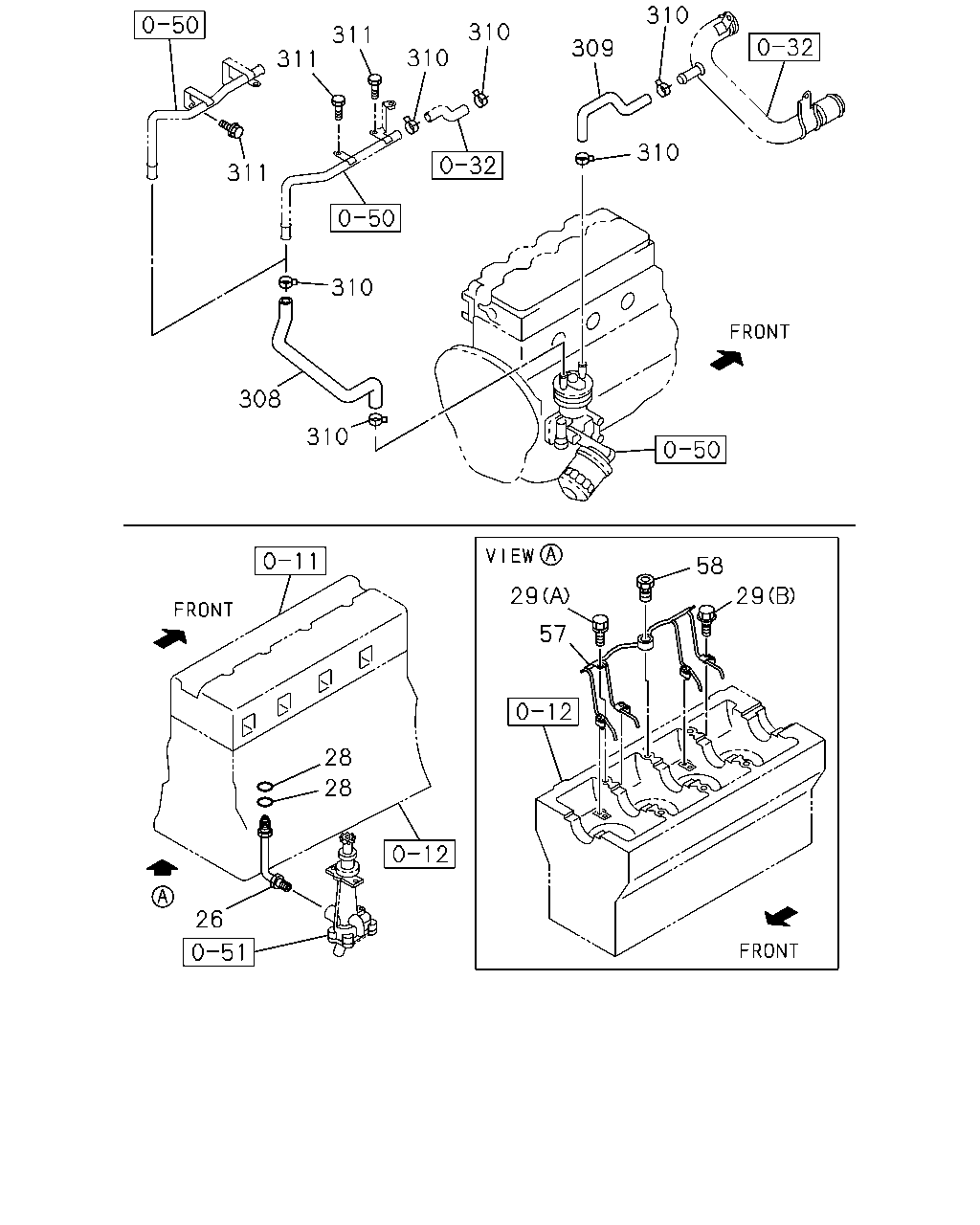

310 310 311 309 310 311 310 311 310 308 310 58 29 29 57 28 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	01.519 PIPE; OIL,PUMP TO C/BL THA	8-97920-470-0	01	1	0404-0409	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL THA	8-97920-470-0	01	1	0410-0501		●
28	01.531 GASKET; OIL PIPE THA	8-97912-535-0	02	1	0404-0409	●	●
28	01.531 GASKET; OIL PIPE THA	8-97912-535-0	02	1	0410-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0404-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0404-0409	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0410-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0404-0409	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0410-0501			●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0502-0609			●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0610-			●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0410-0501			●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0502-0609			●	●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-1	04	1	0610-			●	●	●
57	01.519 PIPE; OIL,OIL JET THA	8-97912-536-2	01	1	0404-0501		●
57	01.519 PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0404-0409	●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0410-0501			●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0502-0609			●	●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0610-			●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97912-540-0	01	1	0404-0501		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97920-423-0	01	1	0404-0409	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0410-0501			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0502-0609			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0610-			●	●	●
308	01.540 HOSE; OIL COOLER FEED THA	8-97943-163-0	01	1	0404-0409	●	●
308	01.540 HOSE; OIL COOLER FEED THA	8-97943-163-1	01	1	0410-0501		●
309	01.540 HOSE; OIL COOLER RETURN THA	8-97920-080-1	01	1	0404-0409	●	●
309	01.540 HOSE; OIL COOLER RETURN THA	8-97920-080-2	01	1	0410-0501		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	0404-0409	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	0410-0501		●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0410-0501			●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0502-0609			●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	01	1	0610-			●	●	●

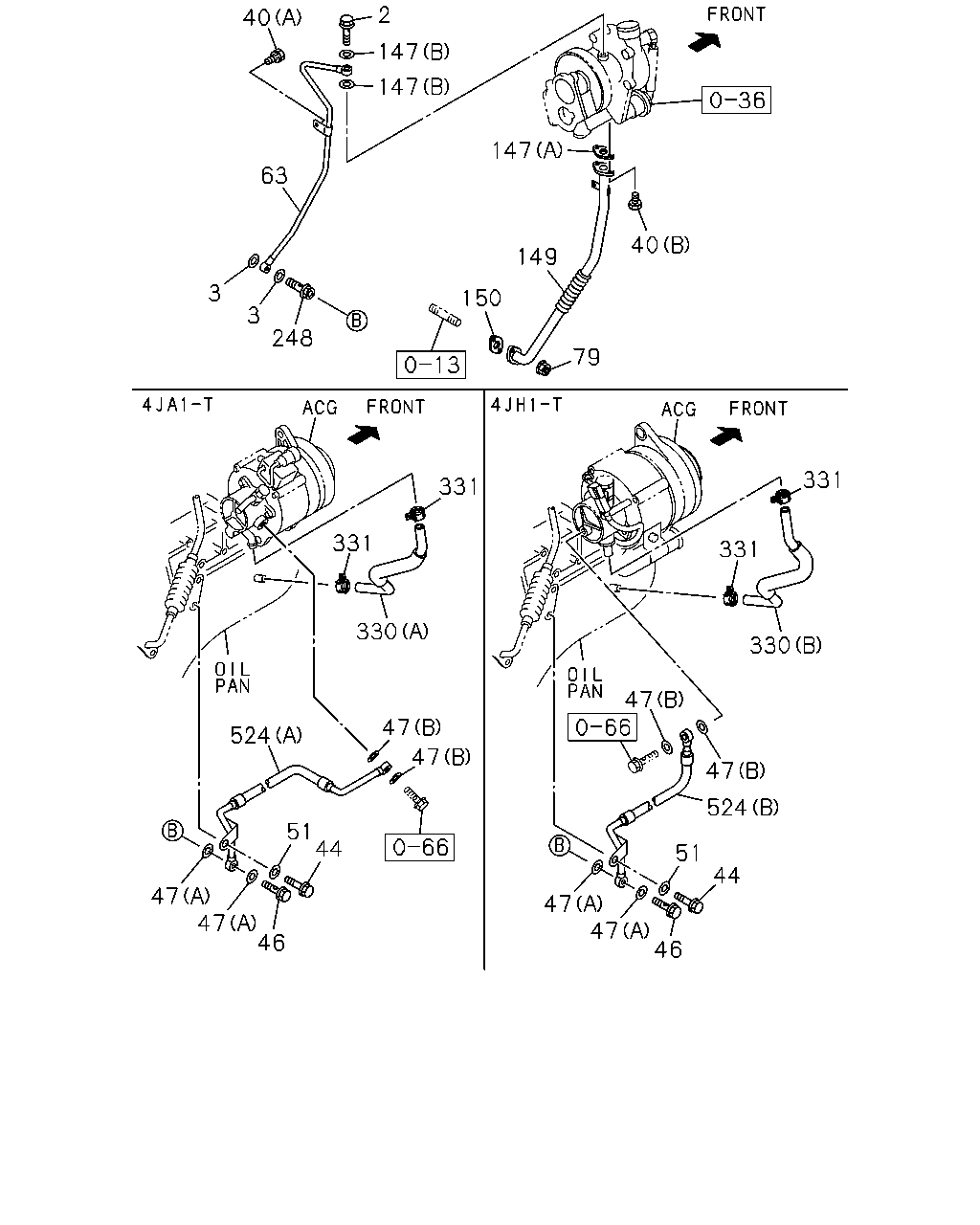

2 40 147 147 147 63 40 149 3 150 3 248 79 331 331 331 331 330 330 47 47 524 47 47 524 51 44 51 44 47 47 47 47 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE M10X25 FLANGE THA	8-98151-063-1	01	1	1008-					●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0404-0409	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0410-0501		●
2	01.531 BOLT; EYE,OIL PIPE 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0609			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0610-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0404-0409	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0410-0501		●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-0609			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-			●	●	●
40	01.531 BOLT; OIL PIPE 03.604 (A) M8X16 FLANGE	0-28450-816-0	01	1	0404-0409	●	●
40	01.531 BOLT; OIL PIPE 03.604 (A) M8X16 FLANGE	0-28450-816-0	01	1	0410-0501		●
40	01.531 BOLT; OIL PIPE (B) M6X20 W/LK&PL WASHER THA	0-50640-620-0	02	1	0404-0409	●	●
40	01.531 BOLT; OIL PIPE (B) M6X20 W/LK&PL WASHER THA	0-50640-620-0	02	1	0410-0501		●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0404-0409	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0410-0501		●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0410-0501			●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0502-0601			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0609			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0610-			●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT THA	8-97910-296-0	01	1	0404-0409	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT THA	8-97910-296-0	01	1	0410-0501		●
47	01.531 GASKET; OIL PIPE 05.398 (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	02	1	0404-0409	●	●
47	01.531 GASKET; OIL PIPE 05.398 (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	02	1	0410-0501		●
47	01.531 GASKET; OIL PIPE 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0404-0409	●	●
47	01.531 GASKET; OIL PIPE 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501		●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0404-0409	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0410-0501		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0404-0501		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	0404-0409	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0410-0501			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0502-0609			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0610-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-1007					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1008-					●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0404-0409	●	●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0410-0501		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97910-642-0	01	1	0404-0501		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0404-0409	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1008-			●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) ID=14 THA	8-97910-643-0	01	1	0404-0409	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0410-0501			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0502-			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-1007					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1008-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-98156-381-0	01	1	1008-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-0	01	1	0404-0501		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97245-772-2	01	1	0404-0409	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0410-0501			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0502-0609			●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0610-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0404-0409	●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0410-0501		●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0502-0609			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-1007			●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1008-			●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0404-0409	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0410-0501		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24 THA	8-97944-505-1	01	1	0507-			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0610-					●
330	03.278 HOSE; VAC PUMP,RETURN (A) THA	8-97306-434-1	01	1	0404-0501		●
330	03.278 HOSE; VAC PUMP,RETURN (B) THA	8-97322-311-2	01	1	0404-0409	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0404-0409	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0410-0501		●
524	01.519 PIPE; OIL,VAC PUMP FEED (A) THA	8-97942-809-0	01	1	0404-0501		●
524	01.519 PIPE; OIL,VAC PUMP FEED (B) THA	8-97942-810-0	01	1	0404-0409	●

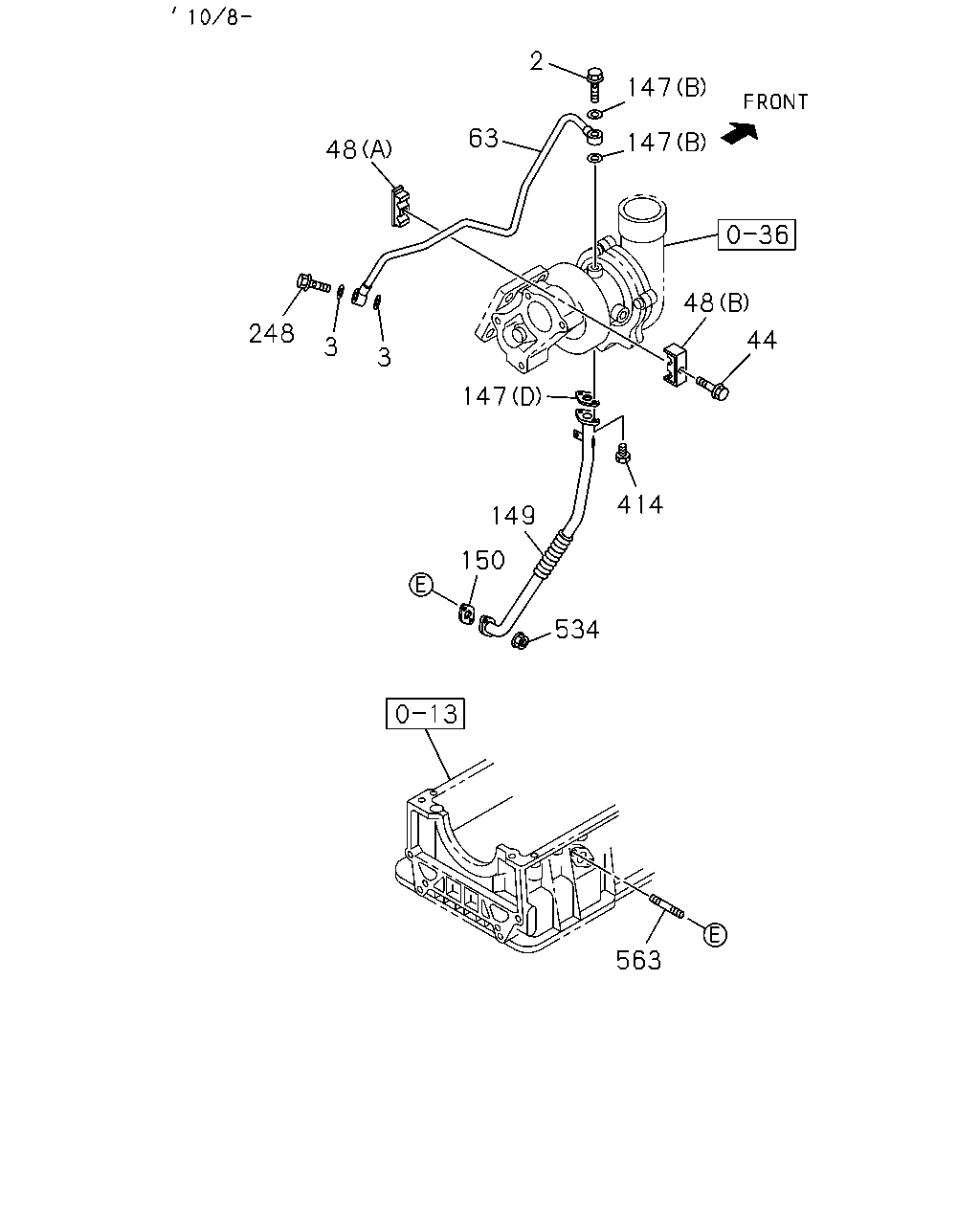

2 147 63 147 48 48 248 44 3 3 147 414 149 563 150 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE M10X25 FLANGE THA	8-98151-063-1	01	1	1008-					●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0404-0409	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0410-0501		●
2	01.531 BOLT; EYE,OIL PIPE 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0609			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0610-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0404-0409	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0410-0501		●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-0609			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-			●	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0404-0409	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0410-0501		●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0410-0501			●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0502-0601			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0609			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0610-			●	●	●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0810-1007			●	●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	1008-			●	●	●
48	01.531 CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0810-1007					●
48	01.531 CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0810-1007					●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0710-0809			●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	01	1	0410-0411			●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-0	01	1	0412-0501			●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0502-0709			●	●
48	01.531 CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	01	1	0410-0411			●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0412-0501			●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0502-1007			●	●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	1008-			●	●	●
48	01.531 CLIP; OIL PIPE (C) ID=8 & 9 L=25	8-97603-522-0	01	1	0610-0707					●
48	01.531 CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0708-0809					●
48	01.531 CLIP; OIL PIPE (D) ID=8 & 9 L=25	8-97603-523-0	01	1	0610-0707					●
48	01.531 CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0708-0809					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0404-0501		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	0404-0409	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0410-0501			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0502-0609			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0610-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-1007					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1008-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97910-642-0	01	1	0404-0501		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0404-0409	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1008-			●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) ID=14 THA	8-97910-643-0	01	1	0404-0409	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0410-0501			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0502-			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-1007					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1008-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-98156-381-0	01	1	1008-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-0	01	1	0404-0501		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97245-772-2	01	1	0404-0409	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0410-0501			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0502-0609			●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0610-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0404-0409	●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0410-0501		●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0502-0609			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-1007			●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1008-			●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0404-0409	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0410-0501		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24 THA	8-97944-505-1	01	1	0507-			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0610-					●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE THA	0-28050-616-0	02	1	1202-					●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0410-0501			●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0502-0609			●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0610-1201			●	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	1202-			●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0410-0501			●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0502-0609			●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0610-			●	●	●

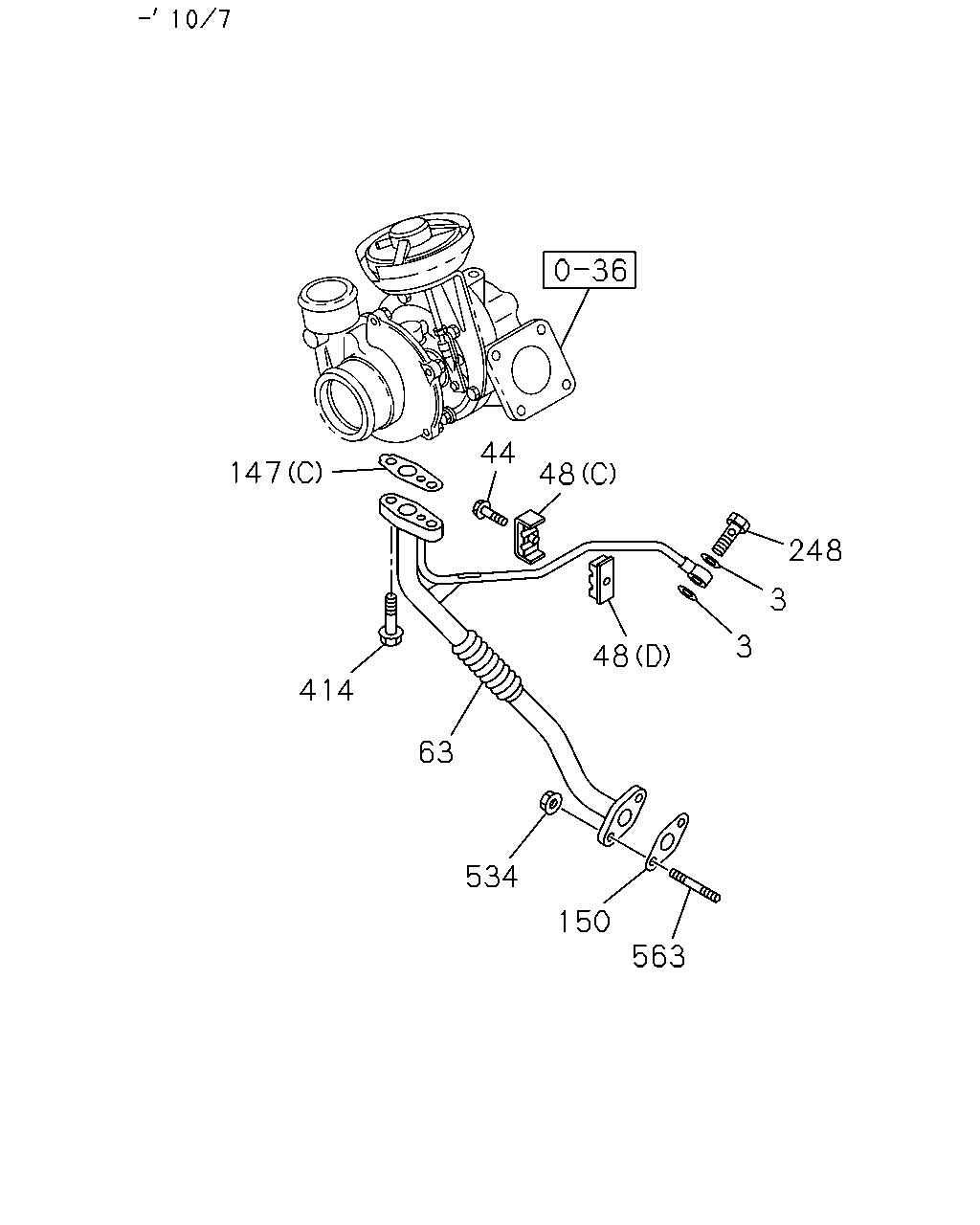

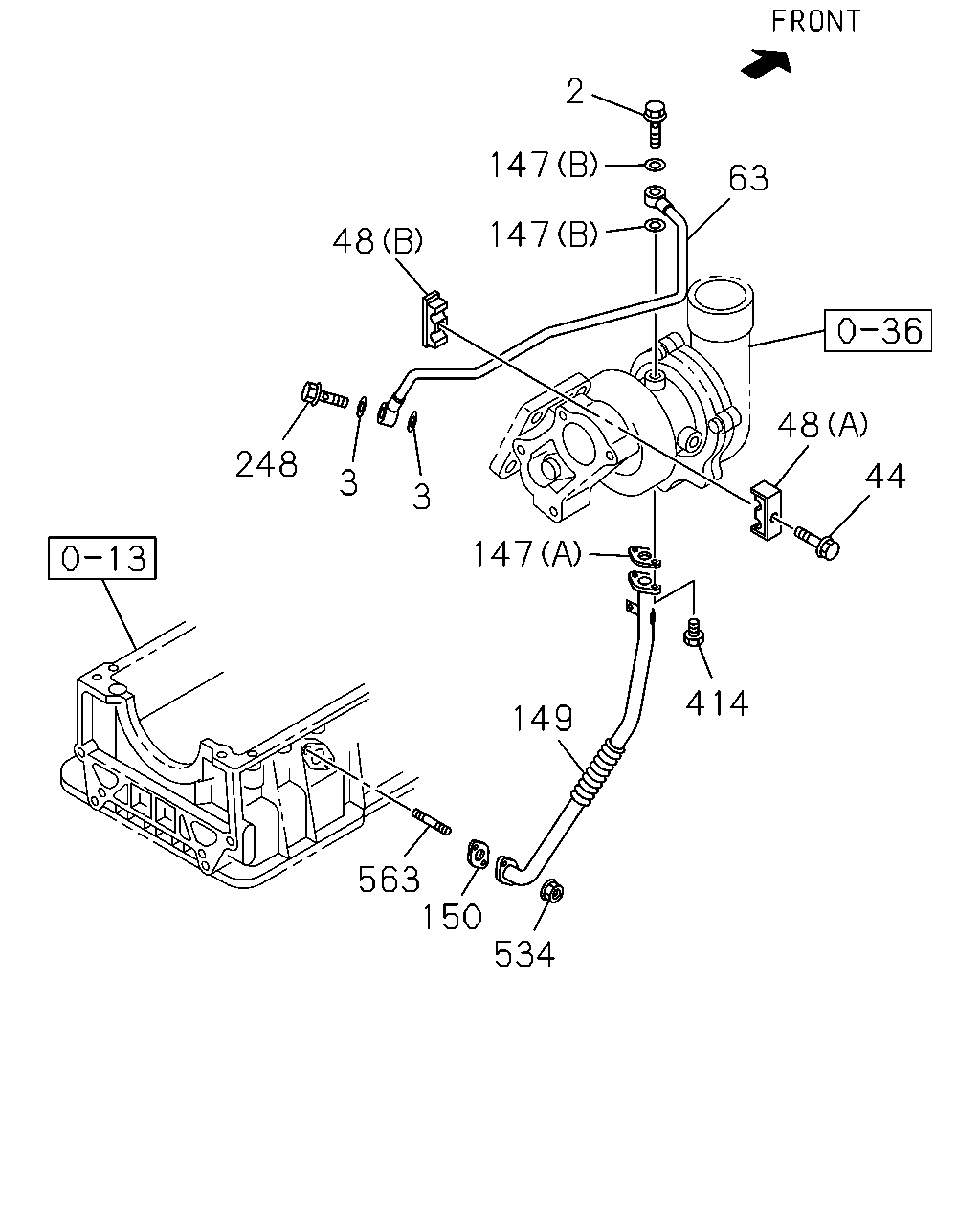

44 147 48 248 3 3 48 414 63 534 150 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0404-0409	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0410-0501		●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-0609			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-			●	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0404-0409	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0410-0501		●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0410-0501			●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0502-0601			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0609			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0610-			●	●	●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0810-1007			●	●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	1008-			●	●	●
48	01.531 CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0810-1007					●
48	01.531 CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0810-1007					●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0710-0809			●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	01	1	0410-0411			●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-0	01	1	0412-0501			●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0502-0709			●	●
48	01.531 CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	01	1	0410-0411			●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0412-0501			●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0502-1007			●	●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	1008-			●	●	●
48	01.531 CLIP; OIL PIPE (C) ID=8 & 9 L=25	8-97603-522-0	01	1	0610-0707					●
48	01.531 CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0708-0809					●
48	01.531 CLIP; OIL PIPE (D) ID=8 & 9 L=25	8-97603-523-0	01	1	0610-0707					●
48	01.531 CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0708-0809					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0404-0501		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	0404-0409	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0410-0501			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0502-0609			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0610-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-1007					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1008-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97910-642-0	01	1	0404-0501		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0404-0409	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1008-			●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) ID=14 THA	8-97910-643-0	01	1	0404-0409	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0410-0501			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0502-			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-1007					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1008-					●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0404-0409	●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0410-0501		●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0502-0609			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-1007			●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1008-			●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0404-0409	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0410-0501		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24 THA	8-97944-505-1	01	1	0507-			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0610-					●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE THA	0-28050-616-0	02	1	1202-					●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0410-0501			●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0502-0609			●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0610-1201			●	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	1202-			●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0410-0501			●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0502-0609			●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0610-			●	●	●

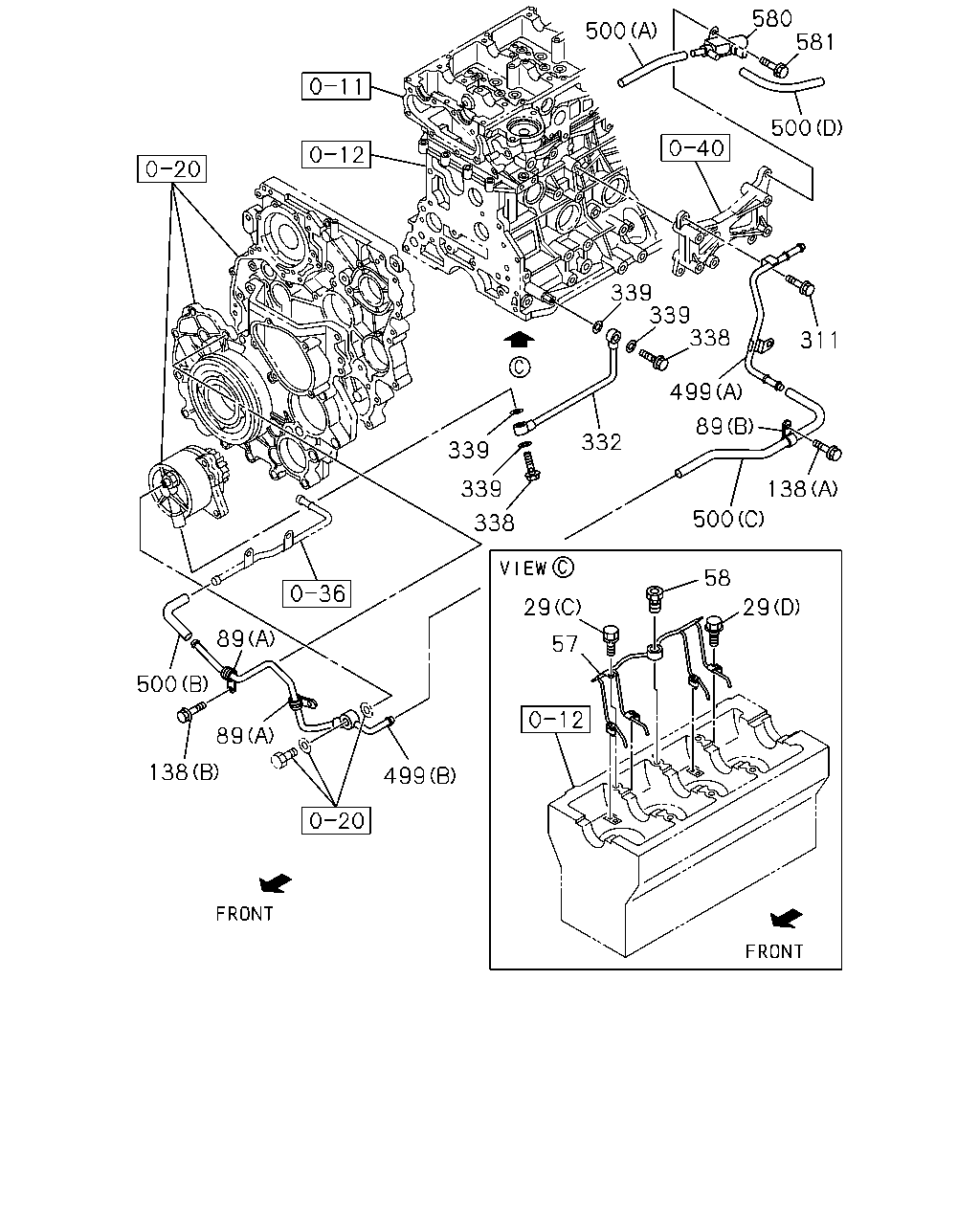

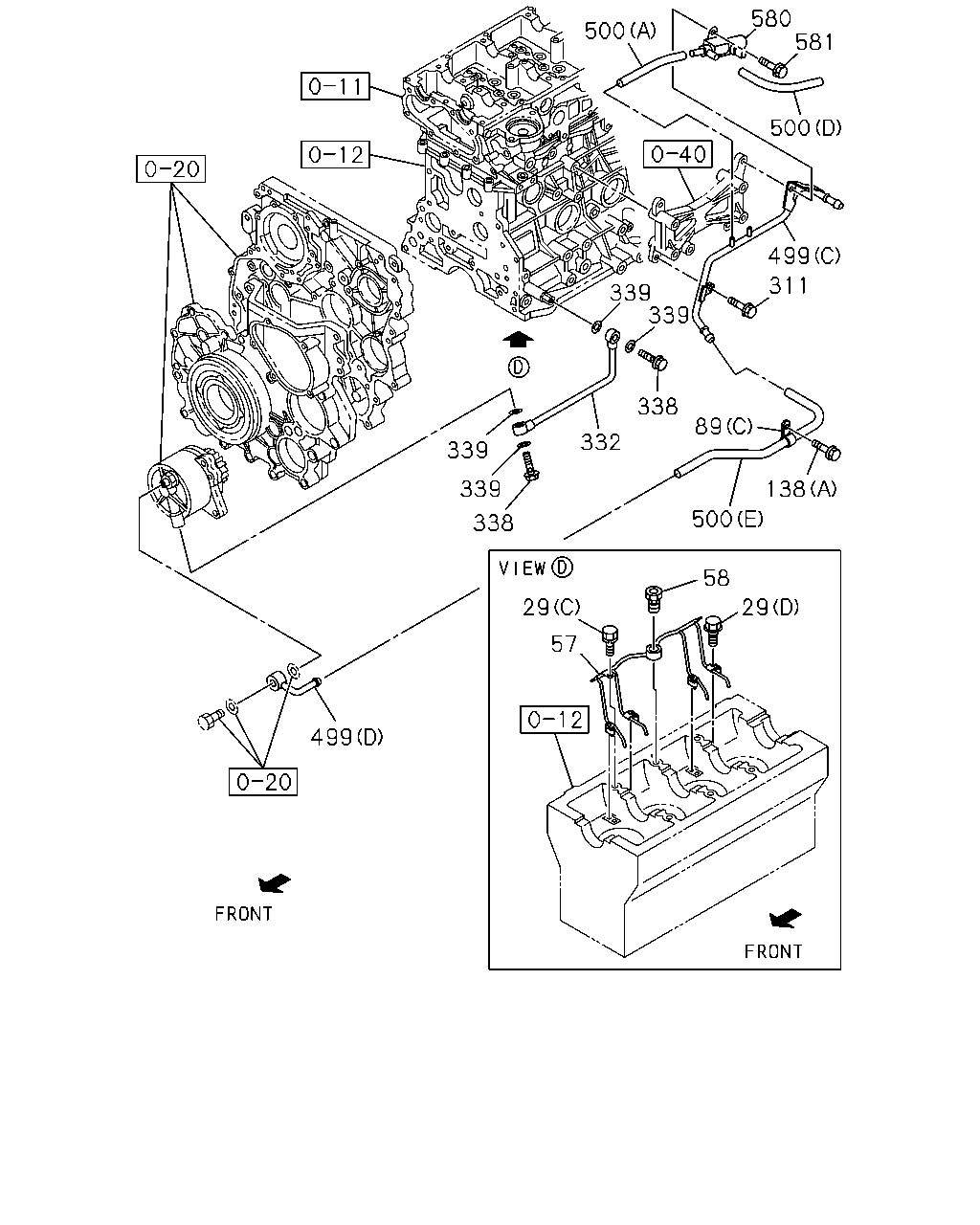

499 57 29 58 29 500 138 89 338 332 339 338 339 500 580 500 499 339 339 311 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0404-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0404-0409	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0410-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0404-0409	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0410-0501			●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0502-0609			●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0610-			●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0410-0501			●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0502-0609			●	●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-1	04	1	0610-			●	●	●
57	01.519 PIPE; OIL,OIL JET THA	8-97912-536-2	01	1	0404-0501		●
57	01.519 PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0404-0409	●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0410-0501			●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0502-0609			●	●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0610-			●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97912-540-0	01	1	0404-0501		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97920-423-0	01	1	0404-0409	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0410-0501			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0502-0609			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0610-			●	●	●
89	04.681 CLIP; VAC HOSE 04.047 (A) ID=12 L=20	1-09700-911-1	02	1	0410-0501			●
89	04.681 CLIP; VAC HOSE 04.047 (A) ID=12 L=20	1-09700-911-1	02	1	0502-0609			●	●
89	04.681 CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0610-			●	●	●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	0410-0501			●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	0502-0609			●	●
138	01.531 BOLT; CLIP FIX 02.343 (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
138	01.531 BOLT; CLIP FIX 02.343 (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
138	01.531 BOLT; CLIP FIX 02.343 (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
138	01.531 BOLT; CLIP FIX 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501			●
138	01.531 BOLT; CLIP FIX 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0502-0609			●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0410-0501			●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0502-0609			●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	01	1	0610-			●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0410-0501			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0502-0609			●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0610-			●	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0410-0501			●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0502-0609			●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0610-			●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0410-0501			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0502-0609			●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0610-			●	●	●
499	04.681 PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0410-0501			●
499	04.681 PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0502-0609			●	●
499	04.681 PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0610-			●	●	●
499	04.681 PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0410-0501			●
499	04.681 PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0502-0609			●	●
499	04.681 PIPE; VACUUM (C) THA	8-98013-802-1	01	1	0610-			●	●
499	04.681 PIPE; VACUUM (C) THA	8-98011-526-1	01	1	0610-					●
500	04.681 HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0410-0501			●
500	04.681 HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM (A)	0-04420-110-0	01	1	0610-			●	●	●
500	04.681 HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0410-0501			●
500	04.681 HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0610-			●	●	●
500	04.681 HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0410-0501			●
500	04.681 HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM 03.675 (D) THA	8-97369-589-0	01	1	0410-0501			●
500	04.681 HOSE; VACUUM 03.675 (D) THA	8-97369-589-0	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM 03.675 (D) THA	8-97369-589-0	01	1	0610-			●	●	●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0410-0501			●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0502-0609			●	●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0610-			●	●	●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●

580 500 500 311 339 339 499 138 89 500 332 339 339 338 29 57 499 89 138 500 89 581 338 58 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0404-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0404-0409	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0410-0501		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 THA	8-97920-485-0	04	1	0404-0409	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0410-0501			●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0502-0609			●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (C) M8X10 FLANGE THA	0-28050-810-0	01	1	0610-			●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0410-0501			●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-0	04	1	0502-0609			●	●
29	01.531 BOLT; OIL PIPE,OIL JET (D) M6X20 FLANGE THA	8-97380-673-1	04	1	0610-			●	●	●
57	01.519 PIPE; OIL,OIL JET THA	8-97912-536-2	01	1	0404-0501		●
57	01.519 PIPE; OIL,OIL JET THA	8-97920-033-3	01	1	0404-0409	●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0410-0501			●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0502-0609			●	●
57	01.519 PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0610-			●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97912-540-0	01	1	0404-0501		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97920-423-0	01	1	0404-0409	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0410-0501			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0502-0609			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO THA	8-97379-464-0	01	1	0610-			●	●	●
89	04.681 CLIP; VAC HOSE 04.047 (A) ID=12 L=20	1-09700-911-1	02	1	0410-0501			●
89	04.681 CLIP; VAC HOSE 04.047 (A) ID=12 L=20	1-09700-911-1	02	1	0502-0609			●	●
89	04.681 CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0610-			●	●	●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	0410-0501			●
89	04.681 CLIP; VAC HOSE (B)	9-09520-835-0	01	1	0502-0609			●	●
138	01.531 BOLT; CLIP FIX 02.343 (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
138	01.531 BOLT; CLIP FIX 02.343 (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
138	01.531 BOLT; CLIP FIX 02.343 (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
138	01.531 BOLT; CLIP FIX 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501			●
138	01.531 BOLT; CLIP FIX 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	02	1	0502-0609			●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0410-0501			●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0502-0609			●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	01	1	0610-			●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0410-0501			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0502-0609			●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0610-			●	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0410-0501			●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0502-0609			●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0610-			●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0410-0501			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0502-0609			●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0610-			●	●	●
499	04.681 PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0410-0501			●
499	04.681 PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0502-0609			●	●
499	04.681 PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0610-			●	●	●
499	04.681 PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0410-0501			●
499	04.681 PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0502-0609			●	●
499	04.681 PIPE; VACUUM (C) THA	8-98013-802-1	01	1	0610-			●	●
499	04.681 PIPE; VACUUM (C) THA	8-98011-526-1	01	1	0610-					●
500	04.681 HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0410-0501			●
500	04.681 HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM (A)	0-04420-110-0	01	1	0610-			●	●	●
500	04.681 HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0410-0501			●
500	04.681 HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0610-			●	●	●
500	04.681 HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0410-0501			●
500	04.681 HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM 03.675 (D) THA	8-97369-589-0	01	1	0410-0501			●
500	04.681 HOSE; VACUUM 03.675 (D) THA	8-97369-589-0	01	1	0502-0609			●	●
500	04.681 HOSE; VACUUM 03.675 (D) THA	8-97369-589-0	01	1	0610-			●	●	●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0410-0501			●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0502-0609			●	●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0610-			●	●	●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE M10X25 FLANGE THA	8-98151-063-1	01	1	1008-					●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0404-0409	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0410-0501		●
2	01.531 BOLT; EYE,OIL PIPE 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0609			●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0610-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0404-0409	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0410-0501		●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-0609			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-			●	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0404-0409	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0410-0501		●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0410-0501			●
44	01.531 BOLT; CLIP,OIL PIPE 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0502-0601			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0609			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE THA	0-28650-630-0	01	1	0610-			●	●	●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0810-1007			●	●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	1008-			●	●	●
48	01.531 CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0810-1007					●
48	01.531 CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0810-1007					●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0710-0809			●	●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	01	1	0410-0411			●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-0	01	1	0412-0501			●
48	01.531 CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0502-0709			●	●
48	01.531 CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	01	1	0410-0411			●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0412-0501			●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0502-1007			●	●
48	01.531 CLIP; OIL PIPE (B)	8-97389-844-0	01	1	1008-			●	●	●
48	01.531 CLIP; OIL PIPE (C) ID=8 & 9 L=25	8-97603-522-0	01	1	0610-0707					●
48	01.531 CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0708-0809					●
48	01.531 CLIP; OIL PIPE (D) ID=8 & 9 L=25	8-97603-523-0	01	1	0610-0707					●
48	01.531 CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0708-0809					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0404-0501		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	0404-0409	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0410-0501			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0502-0609			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0610-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-1007					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1008-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97910-642-0	01	1	0404-0501		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0404-0409	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0410-0501		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0502-1007			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER 08.955 (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1008-			●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) ID=14 THA	8-97910-643-0	01	1	0404-0409	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0410-0501			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0502-			●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-1007					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1008-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-98156-381-0	01	1	1008-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-0	01	1	0404-0501		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97245-772-2	01	1	0404-0409	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0410-0501			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0502-0609			●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0610-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0404-0409	●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0410-0501		●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0502-0609			●	●
150	01.531 GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-1007			●	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1008-			●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0404-0409	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0410-0501		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0410-0501			●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.280 M10X24 THA	9-09906-205-1	01	1	0502-0506			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24 THA	8-97944-505-1	01	1	0507-			●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X22	1-09675-028-0	01	1	0610-					●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE THA	0-28050-616-0	02	1	1202-					●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0410-0501			●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0502-0609			●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0610-1201			●	●	●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	1202-			●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0410-0501			●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0502-0609			●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
