0-51 — OIL PUMP AND OIL STRAINER (#73555) — 81 parça

21 1 21 29 1 45 2 5 121 19 35 49 42 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.652 PUMP ASM; OIL THA	8-97942-466-3	01	1	0404-0409	●
1	01.652 PUMP ASM; OIL 4X2<TFB***> THA	8-97942-466-3	01	1	0404-0409		●
1	01.652 PUMP ASM; OIL THA	8-97942-466-3	01	1	0410-0501	●
1	01.652 PUMP ASM; OIL 4X4<TFS***> THA	8-97941-852-2	01	1	0404-0409		●
1	01.652 PUMP ASM; OIL THA	8-97376-687-1	01	1	0410-0501			●
1	01.652 PUMP ASM; OIL THA	8-97376-687-2	01	1	0502-0506			●	●
1	01.652 PUMP ASM; OIL THA	8-98013-966-1	01	1	0507-0609			●	●
1	01.652 PUMP ASM; OIL THA	8-98011-503-3	01	1	0610-0905			●	●	●
1	01.652 PUMP ASM; OIL THA	8-98128-134-0	01	1	0906-1303			●	●	●
1	01.652 PUMP ASM; OIL THA	8-98232-624-1	01	1	1304-			●	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0404-0409	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0410-0501	●
5	01.609 SPRING; COIL THA	8-97036-834-0	01	1	0404-0409	●	●
5	01.609 SPRING; COIL THA	8-97036-834-0	01	1	0410-0501	●
19	01.639 GEAR SET; OIL PUMP THA	8-94384-778-1	01	1	0404-0409	●	●
19	01.639 GEAR SET; OIL PUMP THA	8-94384-778-1	01	1	0410-0501	●
21	01.655 GASKET; OIL PUMP 01.531 (A) ID=27.7	1-09623-170-0	01	1	0404-0409	●	●
21	01.655 GASKET; OIL PUMP 01.531 (A) ID=27.7	1-09623-170-0	01	1	0410-0501	●
21	01.655 GASKET; OIL PUMP 01.531 (B) ID=31.2	1-09623-220-0	01	1	0404-0409	●	●
21	01.655 GASKET; OIL PUMP 01.531 (B) ID=31.2	1-09623-220-0	01	1	0410-0501	●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE THA	0-28050-825-0	02	1	0404-0409	●	●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE THA	0-28050-825-0	02	1	0410-0501	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE THA	0-28050-830-0	04	1	0410-0501			●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE THA	0-28050-830-0	04	1	0502-0609			●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE THA	0-28050-830-0	04	1	0610-			●	●	●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE THA	0-28050-845-0	02	1	0410-0501			●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE THA	0-28050-845-0	02	1	0502-0609			●	●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-			●	●	●
35	01.657 COVER; OIL PUMP THA	8-97203-876-0	01	1	0404-0409	●	●
35	01.657 COVER; OIL PUMP THA	8-97203-876-0	01	1	0410-0501	●
42	01.656 STRAINER; OIL,OIL PUMP THA	8-97942-829-0	01	1	0404-0409	●
42	01.656 STRAINER; OIL,OIL PUMP 4X2<TFB***> THA	8-97942-829-0	01	1	0404-0409		●
42	01.656 STRAINER; OIL,OIL PUMP THA	8-97942-829-0	01	1	0410-0501	●
42	01.656 STRAINER; OIL,OIL PUMP 4X4<TFS***> 01.657 THA	8-97036-839-0	01	1	0404-0409		●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0404-0409	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0410-0501	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	0404-0409	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	0410-0501	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	0404-0409	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	0410-0501	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501			●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE THA	0-28050-812-0	02	1	0502-0609			●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE THA	0-28050-812-0	02	1	0610-1405			●	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1406-			●	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 THA	8-94235-567-1	01	1	0404-0409	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 THA	8-94235-567-1	01	1	0410-0501	●

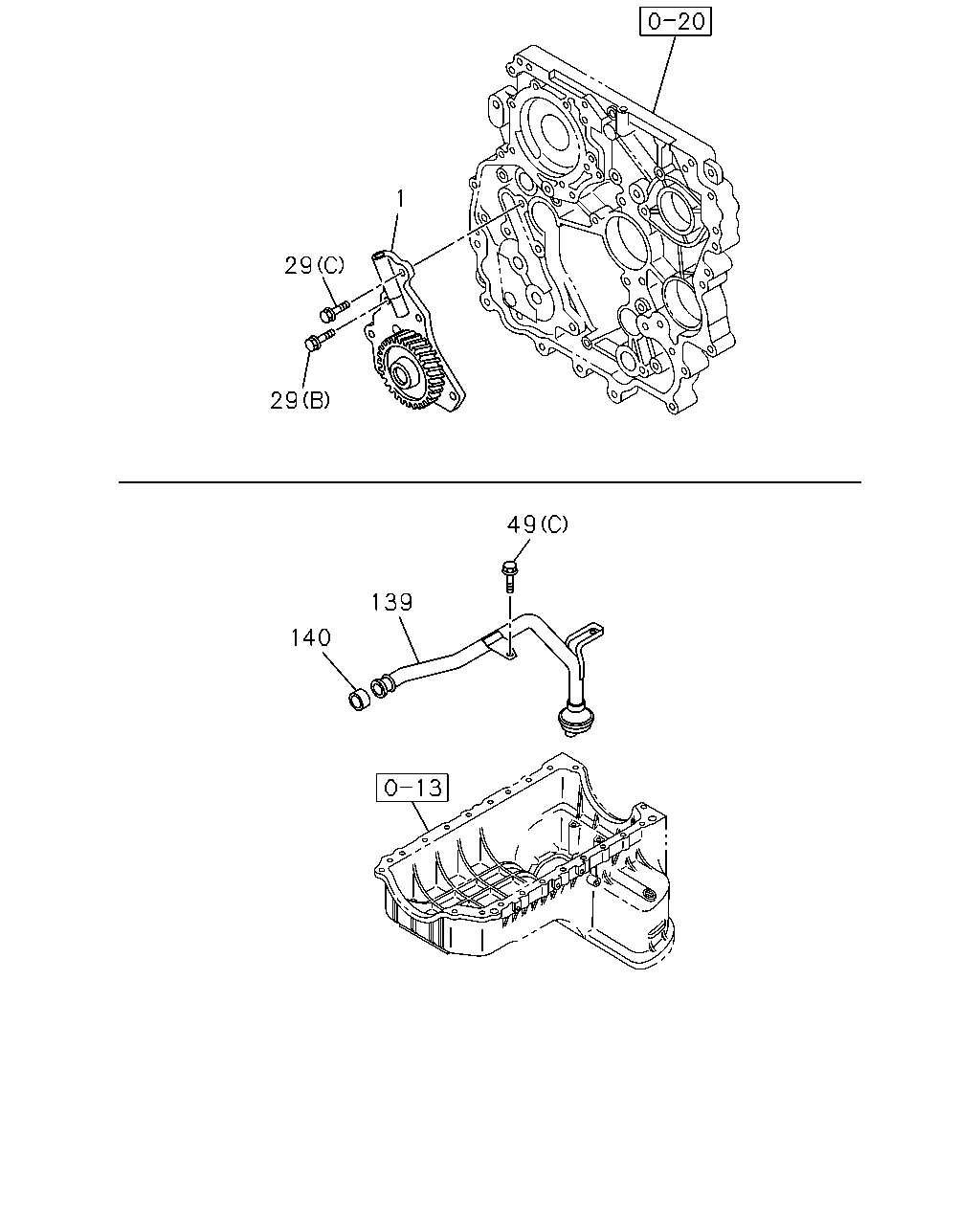

1 29 29 49 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.652 PUMP ASM; OIL THA	8-97942-466-3	01	1	0404-0409	●
1	01.652 PUMP ASM; OIL 4X2<TFB***> THA	8-97942-466-3	01	1	0404-0409		●
1	01.652 PUMP ASM; OIL THA	8-97942-466-3	01	1	0410-0501	●
1	01.652 PUMP ASM; OIL 4X4<TFS***> THA	8-97941-852-2	01	1	0404-0409		●
1	01.652 PUMP ASM; OIL THA	8-97376-687-1	01	1	0410-0501			●
1	01.652 PUMP ASM; OIL THA	8-97376-687-2	01	1	0502-0506			●	●
1	01.652 PUMP ASM; OIL THA	8-98013-966-1	01	1	0507-0609			●	●
1	01.652 PUMP ASM; OIL THA	8-98011-503-3	01	1	0610-0905			●	●	●
1	01.652 PUMP ASM; OIL THA	8-98128-134-0	01	1	0906-1303			●	●	●
1	01.652 PUMP ASM; OIL THA	8-98232-624-1	01	1	1304-			●	●	●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE THA	0-28050-825-0	02	1	0404-0409	●	●
29	01.652 BOLT; OIL PUMP 03.275 (A) M8X25 FLANGE THA	0-28050-825-0	02	1	0410-0501	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE THA	0-28050-830-0	04	1	0410-0501			●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE THA	0-28050-830-0	04	1	0502-0609			●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE THA	0-28050-830-0	04	1	0610-			●	●	●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE THA	0-28050-845-0	02	1	0410-0501			●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE THA	0-28050-845-0	02	1	0502-0609			●	●
29	01.652 BOLT; OIL PUMP 09.173 (C) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-			●	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	0404-0409	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	0410-0501	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	0404-0409	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	0410-0501	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501			●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE THA	0-28050-812-0	02	1	0502-0609			●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE THA	0-28050-812-0	02	1	0610-1405			●	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1406-			●	●	●
139	01.639 PIPE; OIL STRAINER 4X2<TFB***> THA	8-97312-134-3	01	1	0410-0501			●
139	01.639 PIPE; OIL STRAINER 4X2<TFB***> THA	8-97312-134-3	01	1	0502-0809			●	●
139	01.639 PIPE; OIL STRAINER 4X2<TFB***> THA	8-98127-247-0	01	1	0810-			●	●
139	01.639 PIPE; OIL STRAINER 4X4<TFS***> THA	8-97354-753-3	01	1	0410-0609			●
139	01.639 PIPE; OIL STRAINER 4X4<TFS***> THA	8-97354-753-3	01	1	0610-0809			●	●	●
139	01.639 PIPE; OIL STRAINER 4X4<TFS***> THA	8-98127-248-0	01	1	0810-			●	●	●
140	01.639 GASKET; OIL STRAINER THA	8-97356-150-0	01	1	0410-0501			●
140	01.639 GASKET; OIL STRAINER THA	8-97356-150-0	01	1	0502-0609			●	●
140	01.639 GASKET; OIL STRAINER THA	8-97356-150-0	01	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
