0-50 — OIL COOLER AND OIL FILTER (#73554) — 81 parça

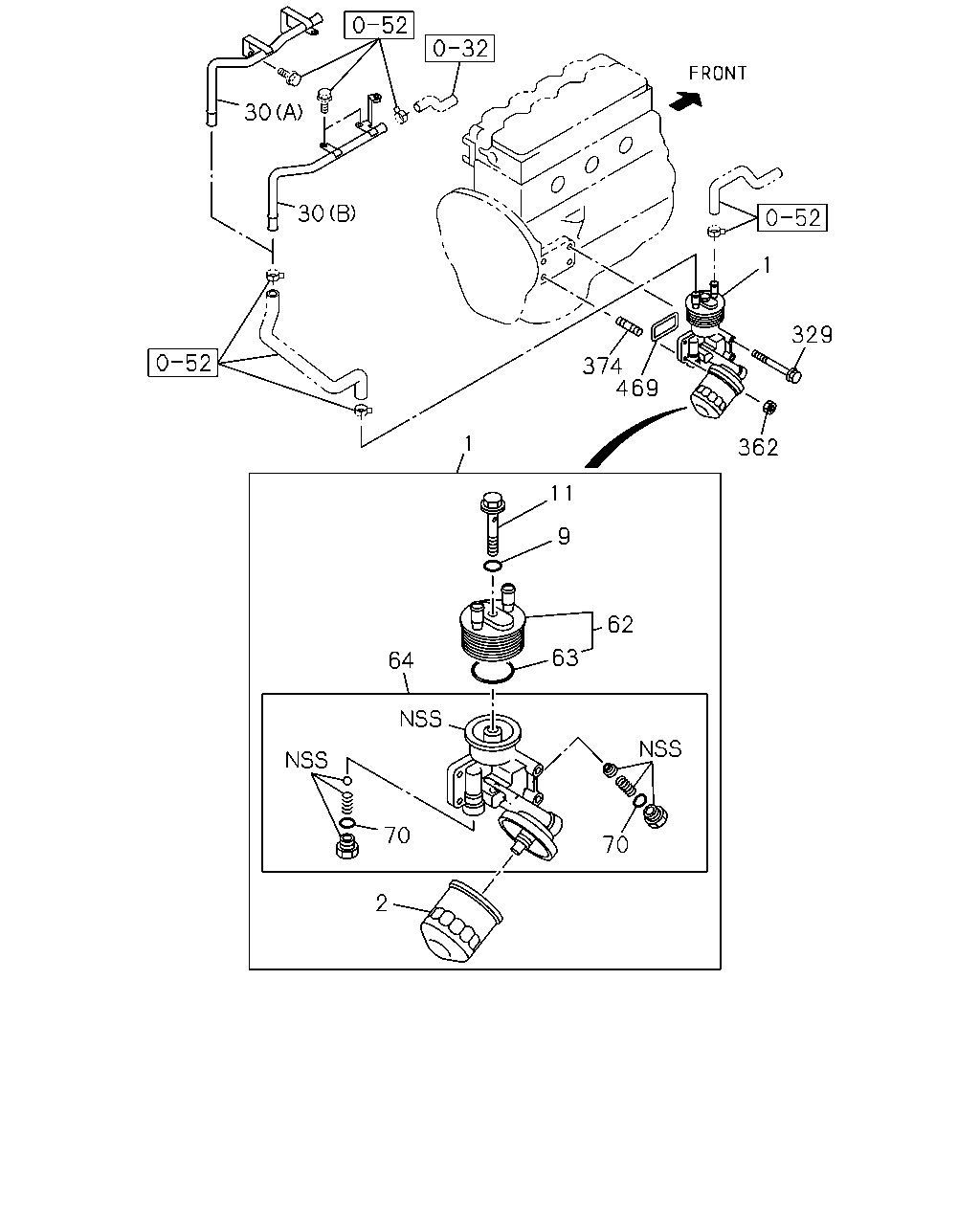

30 30 1 329 374 469 1 362 11 9 62 63 64 70 70 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.540 FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0404-0409	●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0410-0501		●
1	01.540 FILTER & COOLER ASM; OIL THA	8-97355-454-2	01	1	0410-0501			●
1	01.540 FILTER & COOLER ASM; OIL THA	8-97355-454-3	01	1	0502-0508			●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98011-680-1	01	1	0509-0609			●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	0610-1007			●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	1008-			●	●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98011-506-4	01	1	0610-1007					●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0404-0409	●	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0410-0501		●
2	01.836 ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0410-0501			●
2	01.836 ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0502-0609			●	●
2	01.836 ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0610-			●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97288-938-0	01	1	0404-0409	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97288-938-0	01	1	0410-0501		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 THA	9-09566-226-0	02	1	0410-0501			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 THA	9-09566-226-0	02	1	0502-0609			●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 THA	9-09566-226-0	02	1	0610-			●	●	●
11	01.840 BOLT; CENTER THA	8-97288-935-0	01	1	0404-0409	●	●
11	01.840 BOLT; CENTER THA	8-97288-935-0	01	1	0410-0501		●
30	01.540 PIPE ASM; OIL COOLER (A) THA	8-97328-475-0	01	1	0404-0501		●
30	01.540 PIPE ASM; OIL COOLER (B) THA	8-97920-059-2	01	1	0404-0409	●
62	01.540 COOLER ASM; OIL THA	8-97943-622-0	01	1	0404-0409	●	●
62	01.540 COOLER ASM; OIL THA	8-97943-622-0	01	1	0410-0501		●
63	01.550 GASKET; COOLER TO BRKT THA	8-94450-917-0	01	1	0404-0409	●	●
63	01.550 GASKET; COOLER TO BRKT THA	8-94450-917-0	01	1	0410-0501		●
64	01.540 BODY; OIL FILTER & OIL COOLER THA	8-97942-933-0	01	1	0404-0409	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER THA	8-97942-933-0	01	1	0410-0501		●
70	01.844 GASKET; PLUG,OIL FILTER THA	8-97914-706-0	02	1	0404-0409	●	●
70	01.844 GASKET; PLUG,OIL FILTER THA	8-97914-706-0	02	1	0410-0501		●
329	01.840 BOLT; OIL FILTER M8X95 FLANGE THA	8-97920-201-0	02	1	0404-0409	●	●
329	01.840 BOLT; OIL FILTER M8X95 FLANGE THA	8-97920-201-0	02	1	0410-0501		●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0404-0409	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0410-0501		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0410-0501			●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0502-0609			●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0610-			●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL THA	8-97912-548-0	01	1	0404-0409	●	●
469	01.550 GASKET; OIL COOLER TO C/BL THA	8-97912-548-0	01	1	0410-0501		●

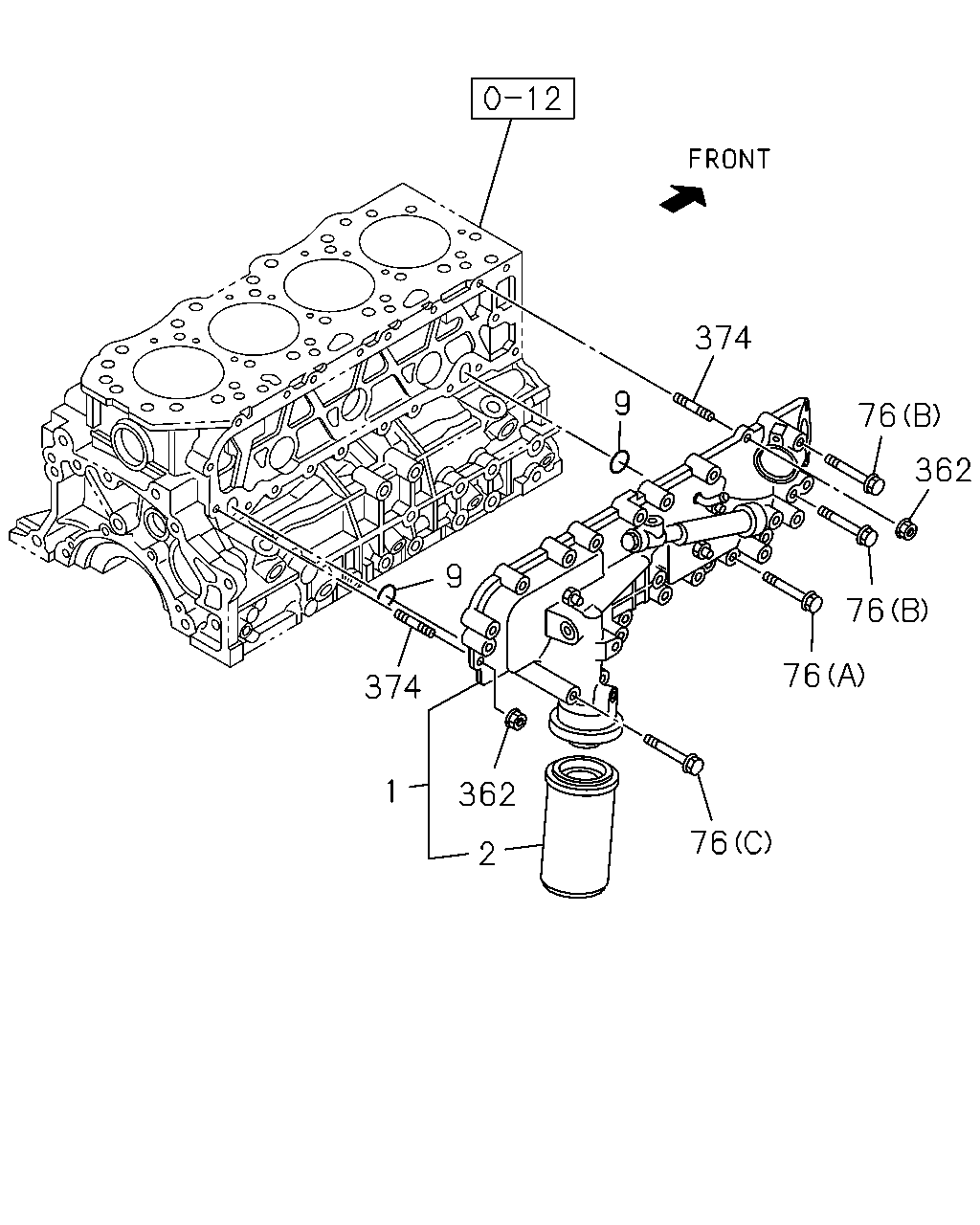

374 9 76 362 1 9 76 76 374 1 362 76 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.540 FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0404-0409	●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0410-0501		●
1	01.540 FILTER & COOLER ASM; OIL THA	8-97355-454-2	01	1	0410-0501			●
1	01.540 FILTER & COOLER ASM; OIL THA	8-97355-454-3	01	1	0502-0508			●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98011-680-1	01	1	0509-0609			●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	0610-1007			●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	1008-			●	●	●
1	01.540 FILTER & COOLER ASM; OIL THA	8-98011-506-4	01	1	0610-1007					●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0404-0409	●	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0410-0501		●
2	01.836 ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0410-0501			●
2	01.836 ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0502-0609			●	●
2	01.836 ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0610-			●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97288-938-0	01	1	0404-0409	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97288-938-0	01	1	0410-0501		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 THA	9-09566-226-0	02	1	0410-0501			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 THA	9-09566-226-0	02	1	0502-0609			●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2 THA	9-09566-226-0	02	1	0610-			●	●	●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0410-0501			●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0502-0609			●	●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0610-			●	●	●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0410-0501			●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0502-0609			●	●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0610-			●	●	●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0410-0501			●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0502-0609			●	●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0610-			●	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0404-0409	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0410-0501		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501		●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0410-0501			●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0502-0609			●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32 THA	0-41010-820-0	02	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
