0-41 — FUEL FILTER AND BRACKET (#73553) — 105 parça

5 1 119 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL THA	8-97287-517-2	01	1	0404-0501	●
1	03.890 FILTER ASM; FUEL THA	8-97287-518-1	01	1	0404-0409		●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0410-0501			●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0502-0609			●	●
1	03.890 FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0907			●	●	●
1	03.890 FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-			●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0404-0409	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0410-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0410-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0502-0609			●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0610-0907			●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-			●	●	●
3	03.890 SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0410-0501			●
3	03.890 SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0502-0609			●	●
3	03.890 SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0610-			●	●	●
5	03.890 BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0404-0409	●	●
5	03.890 BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0410-0501	●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0410-0501			●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0502-0609			●	●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0610-			●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0410-0501			●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0502-0609			●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0610-			●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0610-			●	●	●

1 1 5 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL THA	8-97287-517-2	01	1	0404-0501	●
1	03.890 FILTER ASM; FUEL THA	8-97287-518-1	01	1	0404-0409		●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0410-0501			●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0502-0609			●	●
1	03.890 FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0907			●	●	●
1	03.890 FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-			●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0404-0409	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0410-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0410-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0502-0609			●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0610-0907			●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-			●	●	●
5	03.890 BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0404-0409	●	●
5	03.890 BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0410-0501	●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0410-0501			●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0502-0609			●	●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0610-			●	●	●
6	03.890 GASKET; FUEL FILTER	8-97942-938-0	01	1	0404-0409	●	●
6	03.890 GASKET; FUEL FILTER	8-97942-938-0	01	1	0410-0501	●

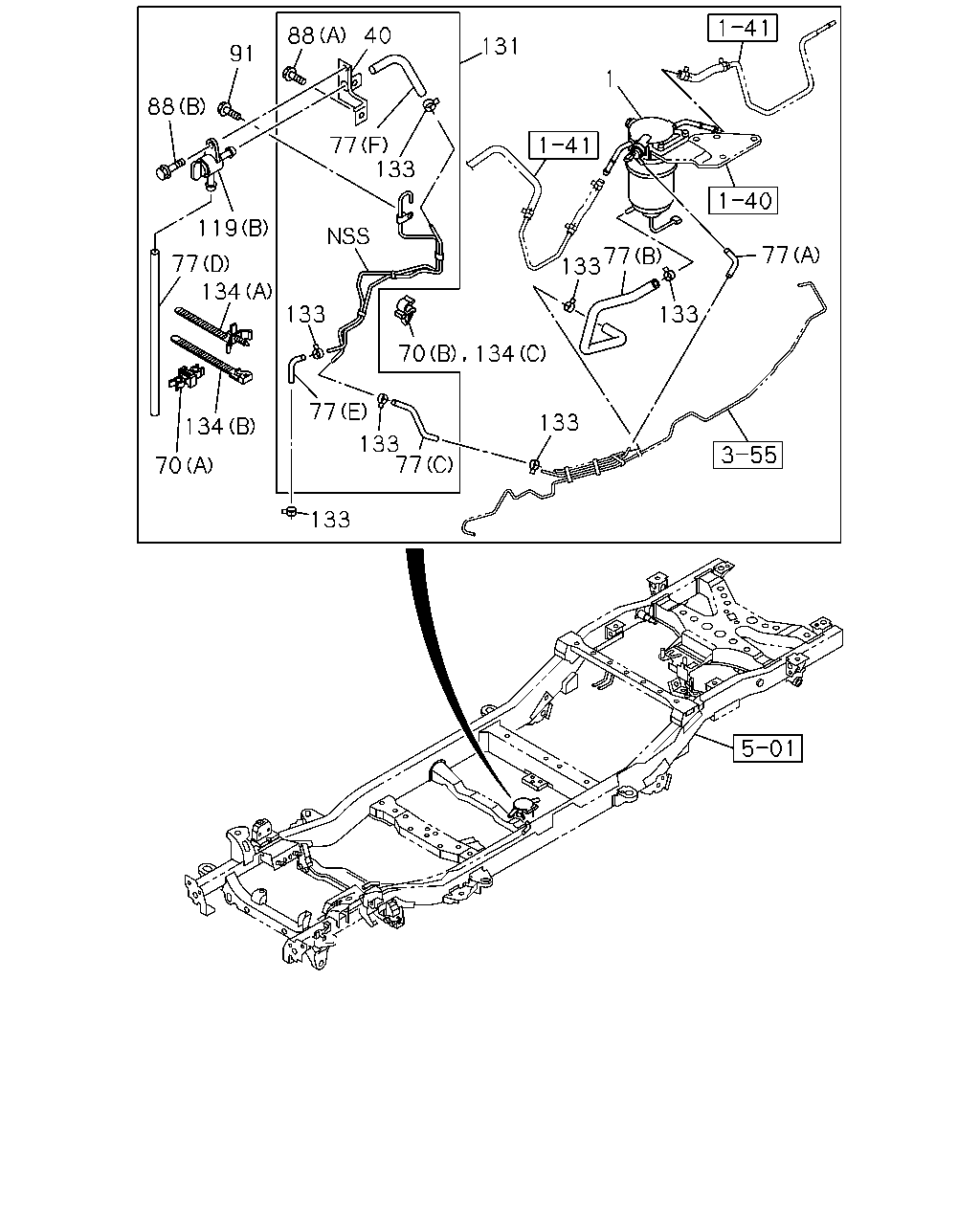

88 40 131 91 1 88 77 133 119 77 133 77 77 134 133 133 70 134 77 133 134 133 77 70 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL THA	8-97287-517-2	01	1	0404-0501	●
1	03.890 FILTER ASM; FUEL THA	8-97287-518-1	01	1	0404-0409		●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0410-0501			●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0502-0609			●	●
1	03.890 FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0907			●	●	●
1	03.890 FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-			●	●	●
40	03.890 BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0610-			●	●	●
70	03.330 CLIP; FUEL PIPE 03.680 (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0610-			●	●	●
70	03.330 CLIP; FUEL PIPE 02.559 (B) ID=6.8 THA	8-97134-154-0	01	1	0610-			●	●	●
77	03.890 HOSE; FUEL FILTER 03.163 (F) L=120 SERVICED BY L=3000	0-01755-300-0	01	1	0610-1007			●	●	●
77	03.890 HOSE; FUEL FILTER (B) L=249 THA	8-98165-271-0	01	1	1008-			●	●	●
77	03.890 HOSE; FUEL FILTER 03.163 (E) L=220 SERVICED BY L=3000	0-01755-300-0	01	1	0610-1007			●	●	●
77	03.890 HOSE; FUEL FILTER (F) L=120 THA	8-98165-853-0	01	1	1008-			●	●	●
77	03.890 HOSE; FUEL FILTER 08.962 (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0610-			●	●	●
77	03.890 HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0610-			●	●	●
77	03.890 HOSE; FUEL FILTER (B) L=249 THA	8-98048-455-0	01	1	0610-1007			●	●	●
77	03.890 HOSE; FUEL FILTER (E) L=220 THA	8-98165-854-0	01	1	1008-			●	●	●
77	03.890 HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0610-			●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-			●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0610-			●	●	●
91	03.890 BOLT; FUEL FILTER 4X2<TFB***> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0610-			●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0410-0501			●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0502-0609			●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0610-			●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0610-			●	●	●
131	03.890 PIPE; FILTER THA	8-98049-527-0	01	1	0610-1007			●	●	●
131	03.890 PIPE; FILTER THA	8-98165-820-0	01	1	1008-			●	●	●
133	03.330 CLAMP; HOSE 03.162 ID=11.5 THA	8-98008-096-0	02	1	0610-1007			●	●	●
133	03.330 CLAMP; HOSE ID=11.5 THA	8-98051-892-0	05	1	1008-			●	●	●
133	03.330 CLAMP; HOSE 03.162 ID=11.5 THA	8-98008-096-0	04	1	0610-1007			●	●	●
133	03.330 CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0610-1007			●	●	●
133	03.330 CLAMP; HOSE ID=11.5 THA	8-98051-892-0	02	1	1008-			●	●	●
134	03.330 CLIP; FUEL HOSE 02.559 (A) L=135	8-94473-399-0	01	1	0610-			●	●	●
134	03.330 CLIP; FUEL HOSE 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) L=158.7 THA	8-97922-209-0	01	1	0610-			●	●	●
134	03.330 CLIP; FUEL HOSE 4X4<TFS***> 02.559 (B) L=158.7 THA	8-97922-209-0	01	1	0610-			●	●	●
134	03.330 CLIP; FUEL HOSE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (C) ID=6.8 THA	8-97134-154-0	01	1	0610-			●	●	●

5 1 124 119 2 105 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL THA	8-97287-517-2	01	1	0404-0501	●
1	03.890 FILTER ASM; FUEL THA	8-97287-518-1	01	1	0404-0409		●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0410-0501			●
1	03.890 FILTER ASM; FUEL THA	8-98150-028-0	01	1	0502-0609			●	●
1	03.890 FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0907			●	●	●
1	03.890 FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-			●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0404-0409	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0410-0501	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0410-0501			●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0502-0609			●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0610-0907			●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-			●	●	●
3	03.890 SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0410-0501			●
3	03.890 SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0502-0609			●	●
3	03.890 SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0610-			●	●	●
5	03.890 BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0404-0409	●	●
5	03.890 BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0410-0501	●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0410-0501			●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0502-0609			●	●
5	03.890 BOLT; FUEL FILTER 03.403 M8X30 FLANGE THA	0-28650-830-0	02	1	0610-			●	●	●
105	03.890 CASE; FUEL FILTER THA	8-98048-537-0	01	1	0610-			●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0410-0501			●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0502-0609			●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0610-			●	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0610-			●	●	●
124	03.890 SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0610-			●	●	●
