Sayfa 0-40 - Isuzu EPC

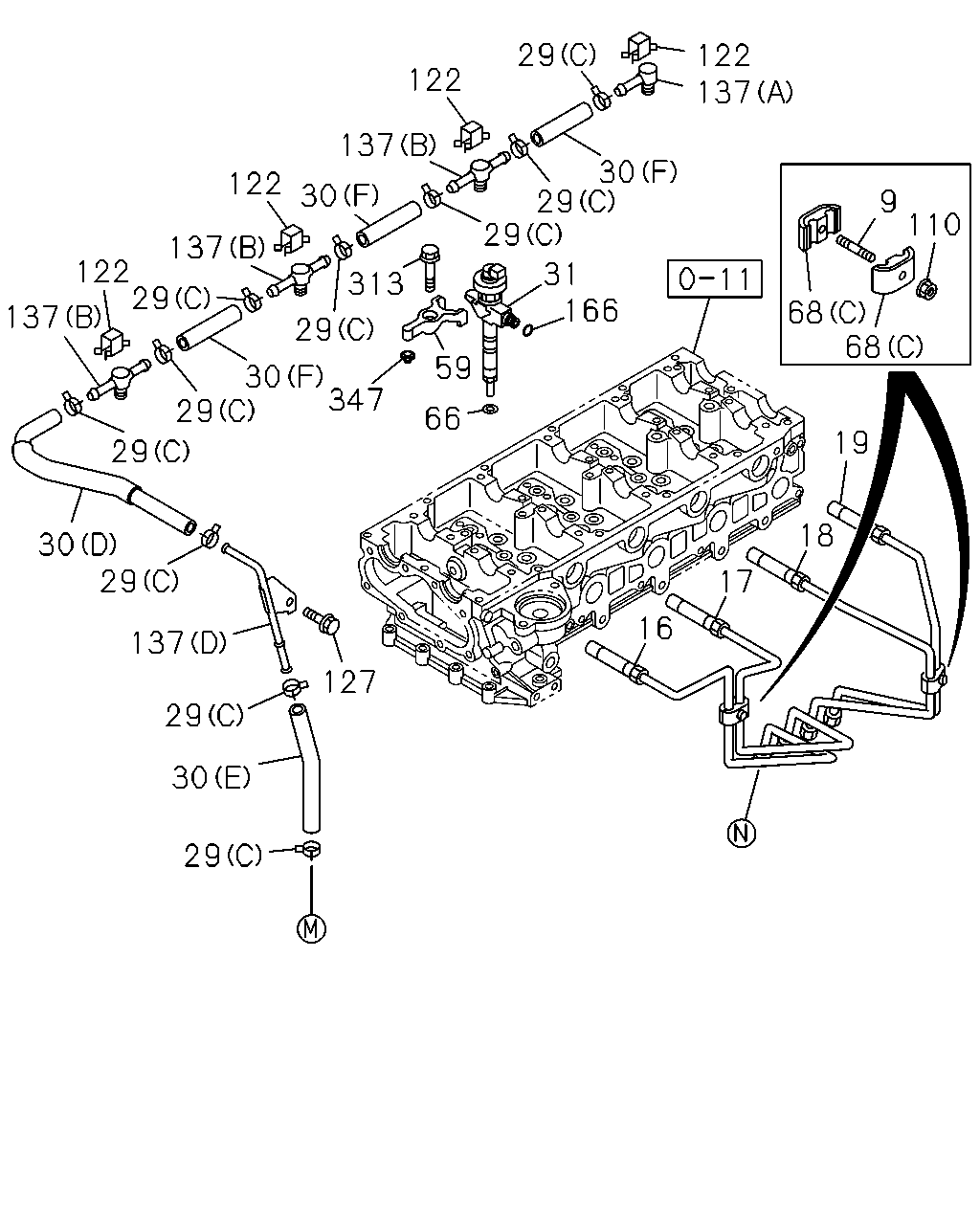

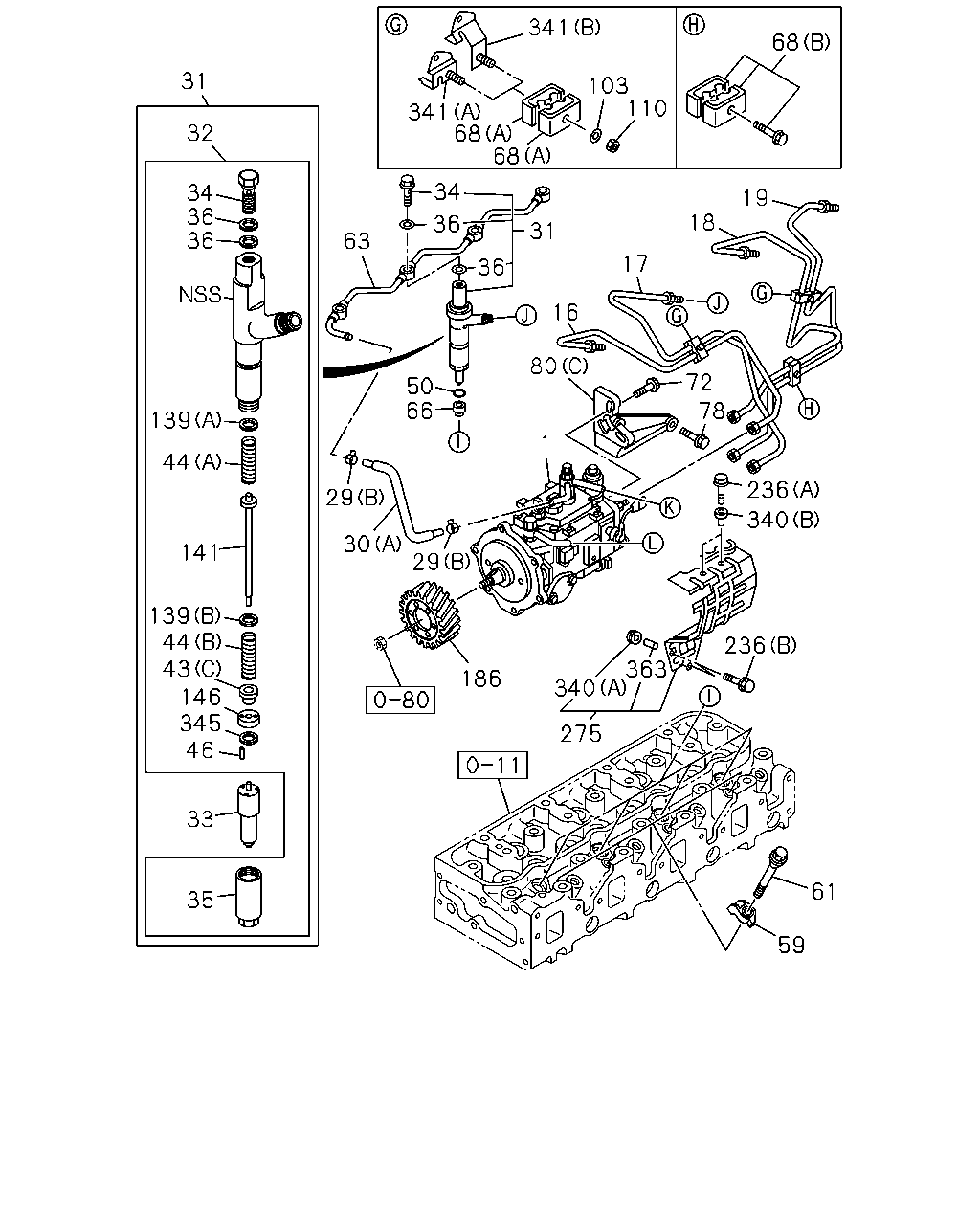

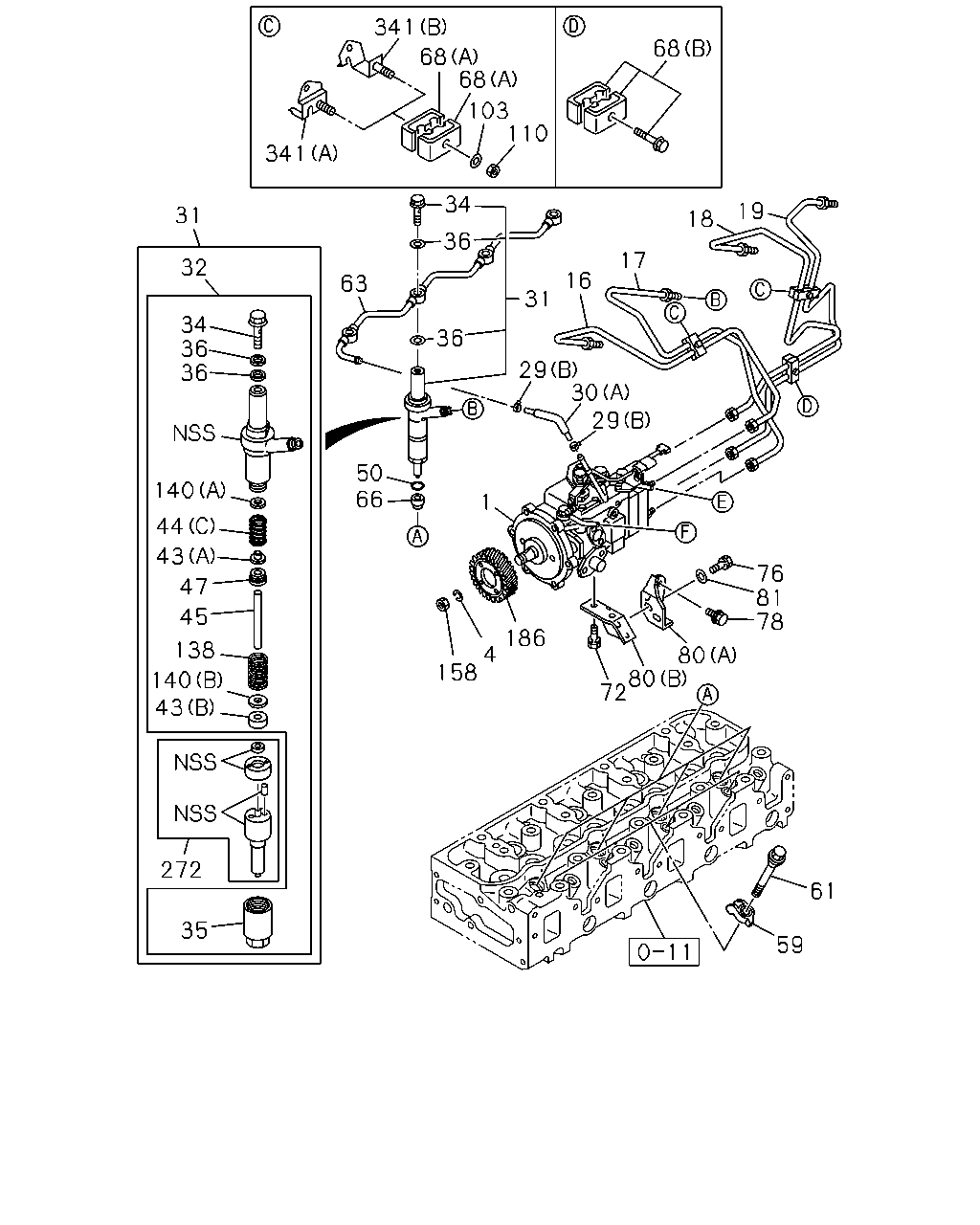

0-40 — FUEL INJECTION SYSTEM (#73552) — 753 parça

341 68 31 103 110 341 68 68 32 34 34 36 36 19 18 36 31 63 17 36 16 80 72 50 66 78 139 1 44 236 29 340 30 141 29 139 44 43 146 345 46 236 363 186 340 275 33 61 35 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97288-268-4	01	1	0404-0501	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97214-093-5	01	1	0404-0409		●
16	03.330 PIPE; INJ NO.1 THA	8-97287-521-0	01	1	0404-0501	●
16	03.330 PIPE; INJ NO.1 THA	8-97920-022-2	01	1	0404-0409		●
16	03.330 PIPE; INJ NO.1 THA	8-97312-099-2	01	1	0410-0501			●
16	03.330 PIPE; INJ NO.1 THA	8-97312-099-2	01	1	0502-0609			●	●
16	03.330 PIPE; INJ NO.1 THA	8-98011-606-0	01	1	0610-			●	●	●
17	03.330 PIPE; INJ NO.2 THA	8-97287-522-0	01	1	0404-0501	●
17	03.330 PIPE; INJ NO.2 THA	8-97920-023-2	01	1	0404-0409		●
17	03.330 PIPE; INJ NO.2 THA	8-97312-100-2	01	1	0410-0501			●
17	03.330 PIPE; INJ NO.2 THA	8-97312-100-2	01	1	0502-0609			●	●
17	03.330 PIPE; INJ NO.2 THA	8-98043-684-0	01	1	0610-			●	●	●
18	03.330 PIPE; INJ NO.3 THA	8-97287-523-0	01	1	0404-0501	●
18	03.330 PIPE; INJ NO.3 THA	8-97920-024-2	01	1	0404-0409		●
18	03.330 PIPE; INJ NO.3 THA	8-97312-101-2	01	1	0410-0501			●
18	03.330 PIPE; INJ NO.3 THA	8-97312-101-2	01	1	0502-0609			●	●
18	03.330 PIPE; INJ NO.3 THA	8-98011-608-0	01	1	0610-			●	●	●
19	03.330 PIPE; INJ NO.4 THA	8-97287-524-0	01	1	0404-0501	●
19	03.330 PIPE; INJ NO.4 THA	8-97920-025-2	01	1	0404-0409		●
19	03.330 PIPE; INJ NO.4 THA	8-97312-102-2	01	1	0410-0501			●
19	03.330 PIPE; INJ NO.4 THA	8-97312-102-2	01	1	0502-0609			●	●
19	03.330 PIPE; INJ NO.4 THA	8-98011-609-0	01	1	0610-			●	●	●
29	03.162 CLIP; HOSE (B) ID=13.8	8-97306-552-0	02	1	0404-0501	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0404-0409	●	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0410-0501	●
29	03.162 CLIP; HOSE 03.280 (B) ID=17.1	8-94122-679-0	02	1	0404-0409		●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0410-0501			●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0502-0609			●	●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0610-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-97328-162-1	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130 THA	8-98053-692-0	01	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=270 SERVICED BY L=3000	0-01262-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96 THA	8-98053-693-0	03	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0610-0810			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) THA	8-98112-034-0	01	1	0811-			●	●	●
31	03.332 NOZZLE ASM; INJ THA	8-98055-862-3	04	1	0810-1306			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98011-604-5	04	1	1307-			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98055-863-3	04	1	0810-1306				●
31	03.332 NOZZLE ASM; INJ THA	8-98011-605-5	04	1	1307-				●
31	03.332 NOZZLE ASM; INJ	8-97217-642-0	04	1	0404-0501	●
31	03.332 NOZZLE ASM; INJ THA	8-97354-811-1	04	1	0502-0609				●
31	03.332 NOZZLE ASM; INJ THA	8-98011-605-0	04	1	0610-0704				●
31	03.332 NOZZLE ASM; INJ THA	8-98055-863-0	04	1	0705-0809				●
31	03.332 NOZZLE ASM; INJ	8-97226-335-2	04	1	0404-0409		●
31	03.332 NOZZLE ASM; INJ THA	8-97311-372-4	04	1	0410-0609			●
31	03.332 NOZZLE ASM; INJ	8-98011-604-0	04	1	0610-0704			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98055-862-0	04	1	0705-0809			●		●
32	03.332 HOLDER ASM; NOZZLE	8-97217-835-0	04	1	0404-0501	●
32	03.332 HOLDER ASM; NOZZLE	8-97289-581-0	04	1	0404-0409		●
33	03.332 NOZZLE; INJ	8-97228-407-0	04	1	0404-0409		●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0404-0501	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	8-97238-601-0	04	1	0404-0409		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0404-0501	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-97300-529-0	04	1	0404-0409		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0404-0501	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97238-599-0	08	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97361-697-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.66	8-97288-027-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.67	8-97288-028-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.68	8-97288-029-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.69	8-97288-031-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.70	8-97288-032-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.71	8-97288-033-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.72	8-97288-034-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.73	8-97288-035-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.74	8-97288-036-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.75	8-97288-037-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.76	8-97288-038-0	04	1	0404-0409		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER (C)	1-15343-003-0	04	1	0404-0501	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER (B)	8-97300-503-0	04	1	0404-0409		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER (A)	8-97300-504-0	04	1	0404-0409		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-97300-651-0	08	1	0404-0409		●
50	03.332 GASKET; NOZZLE HOLDER THA	8-97912-615-0	04	1	0404-0409	●	●
50	03.332 GASKET; NOZZLE HOLDER THA	8-97912-615-0	04	1	0410-0501	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0404-0409	●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0410-0501	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97374-468-0	04	1	0410-0501			●
59	03.332 CLAMP; NOZZLE HOLDER	8-97374-468-0	04	1	0502-0609			●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-98011-528-2	04	1	0610-0710			●	●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-98092-539-0	04	1	0711-			●	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER THA	8-97920-028-0	04	1	0404-0409	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER THA	8-97920-028-0	04	1	0410-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF THA	8-97920-247-0	01	1	0404-0409	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF THA	8-97920-247-0	01	1	0410-0501	●
66	03.332 GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0404-0409	●	●
66	03.332 GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0410-0501	●
66	03.332 GASKET; INJ NOZZLE	8-97251-334-0	04	1	0410-0501			●
66	03.332 GASKET; INJ NOZZLE	8-97251-334-0	04	1	0502-0608			●	●
66	03.332 GASKET; INJ NOZZLE	8-98057-731-0	04	1	0609-0609			●	●
66	03.332 GASKET; INJ NOZZLE	8-98057-731-0	04	1	0610-0701			●	●	●
66	03.332 GASKET; INJ NOZZLE	8-98077-165-0	04	1	0702-1012			●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1101-			●	●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0404-0409	●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0410-0501	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0404-0409	●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0410-0501	●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0410-0501			●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0502-0609			●	●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0610-			●	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0404-0501	●
72	03.330 BOLT; BRKT TO INJ PUMP 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0404-0409		●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE THA	0-28650-820-0	02	1	0404-0501	●
78	03.330 BOLT; BRKT TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0404-0409		●
80	03.306 BRACKET; PUMP (B) THA	8-97942-899-0	01	1	0404-0501	●
80	03.306 BRACKET; PUMP (A) THA	8-97942-900-0	01	1	0404-0501	●
80	03.306 BRACKET; PUMP (C) THA	8-97920-065-0	01	1	0404-0409		●
103	03.330 WASHER; LK,CLIP,INJ PIPE 00.206 ID=6.1	9-09150-506-0	02	1	0404-0406	●	●
110	03.330 NUT; CLIP M6 THA	0-91110-506-0	02	1	0404-0406	●	●
110	03.330 NUT; CLIP 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0407-0409	●	●
110	03.330 NUT; CLIP 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0410-0501	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0410-0501			●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0605			●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0606-0609			●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0610-			●	●	●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=0.85	8-97288-049-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=0.90	8-97288-050-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=0.95	8-97288-051-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.00	8-97288-052-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.05	8-97288-053-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.10	8-97288-054-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.15	8-97288-055-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.20	8-97288-056-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.25	8-97288-057-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.30	8-97288-058-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.35	8-97288-059-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.40	8-97288-060-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.45	8-97288-061-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.50	8-97288-062-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.55	8-97288-063-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.60	8-97288-064-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.65	8-97288-065-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.70	8-97288-066-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.75	8-97288-067-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.80	8-97288-068-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.85	8-97288-069-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.90	8-97288-070-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=1.95	8-97288-071-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=2.00	8-97288-072-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=2.05	8-97288-073-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=2.10	8-97288-074-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=2.15	8-97288-075-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (A) T=2.20	8-97288-076-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.00	8-97288-077-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.05	8-97288-078-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.10	8-97288-079-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.15	8-97288-080-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.20	8-97288-081-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.25	8-97288-082-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.30	8-97288-083-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.35	8-97288-084-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.40	8-97288-085-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.45	8-97288-086-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.50	8-97288-087-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.55	8-97288-088-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.60	8-97288-089-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.65	8-97288-090-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.70	8-97288-091-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.75	8-97288-092-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.80	8-97288-093-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.85	8-97288-094-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.90	8-97288-095-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=1.95	8-97288-096-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=2.00	8-97288-097-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=2.05	8-97288-098-0	04	1	0404-0409		●
139	03.330 WASHER; NOZZLE SPRING,NOZZLE HOL (B) T=2.10	8-97288-099-0	04	1	0404-0409		●
141	03.330 ROD; PUSH,UPR,NOZZLE HOLDER	8-97300-502-0	04	1	0404-0409		●
146	03.332 SPACER; NOZZLE	8-97300-650-0	04	1	0404-0409		●
186	03.340 GEAR; INJ PUMP THA	8-97322-652-0	01	1	0404-0501	●
186	03.340 GEAR; INJ PUMP THA	8-97322-651-0	01	1	0404-0409		●
236	03.335 BOLT; COVER 03.680 (A) M6X30 FLANGE THA	0-28650-630-0	02	1	0404-0409		●
236	03.335 BOLT; COVER 00.029 (B) M10X30 FLANGE THA	0-28651-030-0	02	1	0404-0409		●
275	03.335 COVER; INJ PUMP THA	8-97287-510-3	01	1	0404-0409		●
340	03.340 RUBBER; MTG 00.034 (A) OD=22 THA	8-94140-428-1	02	1	0404-0409		●
340	03.340 RUBBER; MTG 00.206 (B)	8-97168-200-1	02	1	0404-0409		●
341	03.330 BRACKET; CLIP,INJ PIPE (B) INJ PIPE NO.1,2 THA	8-97287-511-2	01	1	0404-0501	●
341	03.330 BRACKET; CLIP,INJ PIPE (A) INJ PIPE NO.3,4 THA	8-97920-070-0	01	1	0404-0409	●	●
341	03.330 BRACKET; CLIP,INJ PIPE (A) INJ PIPE NO.3,4 THA	8-97920-070-0	01	1	0410-0501	●
341	03.330 BRACKET; CLIP,INJ PIPE (B) INJ PIPE NO.1,2 THA	8-97920-071-1	01	1	0404-0409		●
345	03.332 WASHER; NOZZLE HOLDER T=2.400	8-97288-041-0	04	1	0404-0409		●
345	03.332 WASHER; NOZZLE HOLDER T=2.425	8-97288-043-0	04	1	0404-0409		●
345	03.332 WASHER; NOZZLE HOLDER T=2.450	8-97288-044-0	04	1	0404-0409		●
345	03.332 WASHER; NOZZLE HOLDER T=2.475	8-97288-045-0	04	1	0404-0409		●
345	03.332 WASHER; NOZZLE HOLDER T=2.500	8-97288-046-0	04	1	0404-0409		●
363	03.222 GUIDE 00.034 OD=13 T=9.5 THA	8-94140-427-1	02	1	0404-0409		●

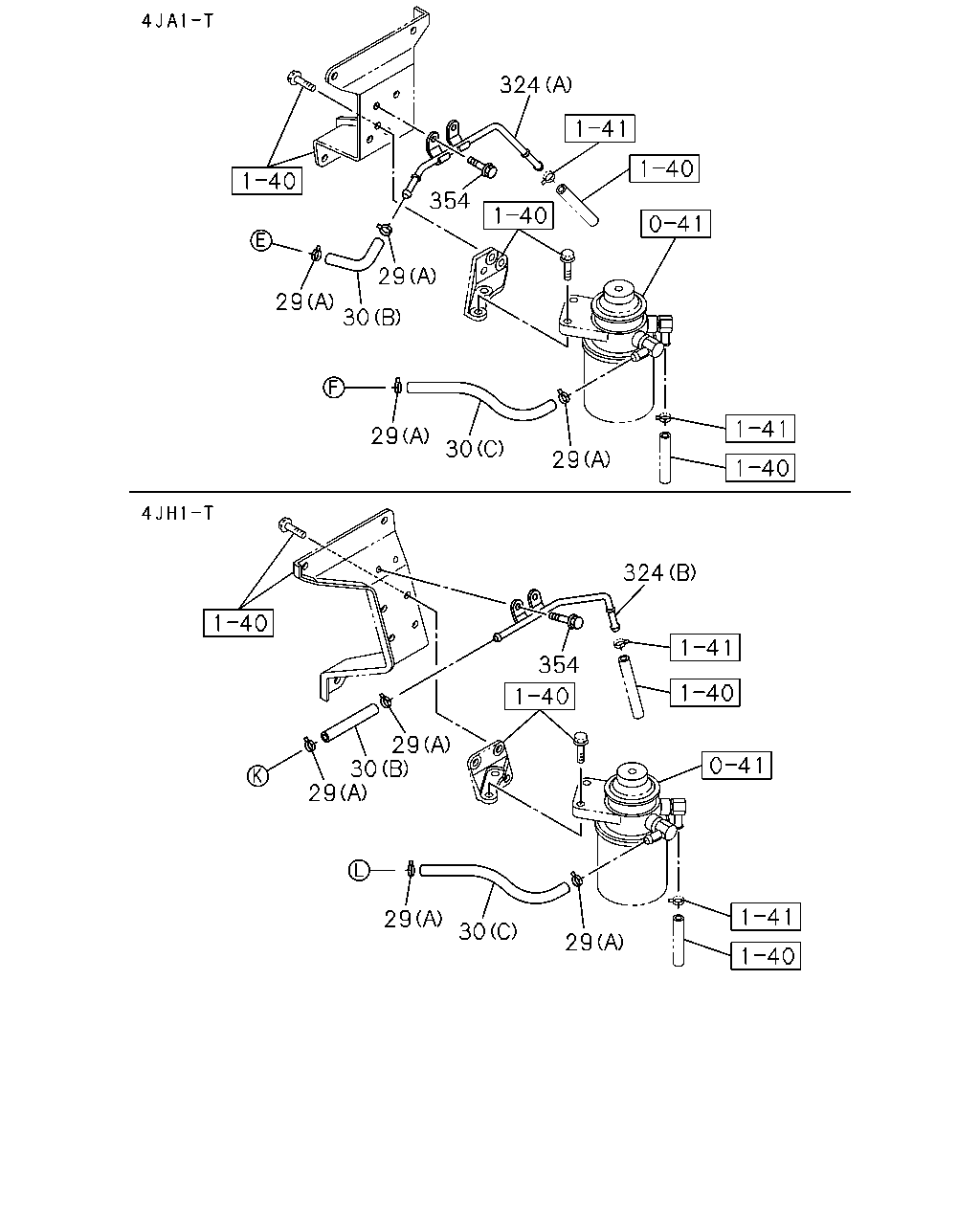

324 354 29 29 30 29 30 29 324 354 29 30 29 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	03.162 CLIP; HOSE (B) ID=13.8	8-97306-552-0	02	1	0404-0501	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0404-0409	●	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0410-0501	●
29	03.162 CLIP; HOSE 03.280 (B) ID=17.1	8-94122-679-0	02	1	0404-0409		●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0410-0501			●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0502-0609			●	●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0610-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-97328-162-1	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130 THA	8-98053-692-0	01	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=270 SERVICED BY L=3000	0-01262-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96 THA	8-98053-693-0	03	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0610-0810			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) THA	8-98112-034-0	01	1	0811-			●	●	●
324	03.330 PIPE; FUEL RETURN (A) THA	8-97287-516-3	01	1	0404-0501	●
324	03.330 PIPE; FUEL RETURN (B) THA	8-97287-515-2	01	1	0404-0409		●
354	03.163 BOLT; FUEL PIPE 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0404-0409	●	●
354	03.163 BOLT; FUEL PIPE 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501	●

341 68 68 68 103 110 341 34 19 31 18 36 17 32 16 63 31 34 36 36 36 29 30 29 50 66 140 1 44 43 76 81 78 47 45 186 138 4 158 80 80 72 140 43 272 61 35 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97288-268-4	01	1	0404-0501	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97214-093-5	01	1	0404-0409		●
4	03.330 WASHER; INJ PUMP 03.340	8-94226-554-0	01	1	0404-0501	●
16	03.330 PIPE; INJ NO.1 THA	8-97287-521-0	01	1	0404-0501	●
16	03.330 PIPE; INJ NO.1 THA	8-97920-022-2	01	1	0404-0409		●
16	03.330 PIPE; INJ NO.1 THA	8-97312-099-2	01	1	0410-0501			●
16	03.330 PIPE; INJ NO.1 THA	8-97312-099-2	01	1	0502-0609			●	●
16	03.330 PIPE; INJ NO.1 THA	8-98011-606-0	01	1	0610-			●	●	●
17	03.330 PIPE; INJ NO.2 THA	8-97287-522-0	01	1	0404-0501	●
17	03.330 PIPE; INJ NO.2 THA	8-97920-023-2	01	1	0404-0409		●
17	03.330 PIPE; INJ NO.2 THA	8-97312-100-2	01	1	0410-0501			●
17	03.330 PIPE; INJ NO.2 THA	8-97312-100-2	01	1	0502-0609			●	●
17	03.330 PIPE; INJ NO.2 THA	8-98043-684-0	01	1	0610-			●	●	●
18	03.330 PIPE; INJ NO.3 THA	8-97287-523-0	01	1	0404-0501	●
18	03.330 PIPE; INJ NO.3 THA	8-97920-024-2	01	1	0404-0409		●
18	03.330 PIPE; INJ NO.3 THA	8-97312-101-2	01	1	0410-0501			●
18	03.330 PIPE; INJ NO.3 THA	8-97312-101-2	01	1	0502-0609			●	●
18	03.330 PIPE; INJ NO.3 THA	8-98011-608-0	01	1	0610-			●	●	●
19	03.330 PIPE; INJ NO.4 THA	8-97287-524-0	01	1	0404-0501	●
19	03.330 PIPE; INJ NO.4 THA	8-97920-025-2	01	1	0404-0409		●
19	03.330 PIPE; INJ NO.4 THA	8-97312-102-2	01	1	0410-0501			●
19	03.330 PIPE; INJ NO.4 THA	8-97312-102-2	01	1	0502-0609			●	●
19	03.330 PIPE; INJ NO.4 THA	8-98011-609-0	01	1	0610-			●	●	●
29	03.162 CLIP; HOSE (B) ID=13.8	8-97306-552-0	02	1	0404-0501	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0404-0409	●	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0410-0501	●
29	03.162 CLIP; HOSE 03.280 (B) ID=17.1	8-94122-679-0	02	1	0404-0409		●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0410-0501			●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0502-0609			●	●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0610-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-97328-162-1	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130 THA	8-98053-692-0	01	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=270 SERVICED BY L=3000	0-01262-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96 THA	8-98053-693-0	03	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0610-0810			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) THA	8-98112-034-0	01	1	0811-			●	●	●
31	03.332 NOZZLE ASM; INJ THA	8-98055-862-3	04	1	0810-1306			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98011-604-5	04	1	1307-			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98055-863-3	04	1	0810-1306				●
31	03.332 NOZZLE ASM; INJ THA	8-98011-605-5	04	1	1307-				●
31	03.332 NOZZLE ASM; INJ	8-97217-642-0	04	1	0404-0501	●
31	03.332 NOZZLE ASM; INJ THA	8-97354-811-1	04	1	0502-0609				●
31	03.332 NOZZLE ASM; INJ THA	8-98011-605-0	04	1	0610-0704				●
31	03.332 NOZZLE ASM; INJ THA	8-98055-863-0	04	1	0705-0809				●
31	03.332 NOZZLE ASM; INJ	8-97226-335-2	04	1	0404-0409		●
31	03.332 NOZZLE ASM; INJ THA	8-97311-372-4	04	1	0410-0609			●
31	03.332 NOZZLE ASM; INJ	8-98011-604-0	04	1	0610-0704			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98055-862-0	04	1	0705-0809			●		●
32	03.332 HOLDER ASM; NOZZLE	8-97217-835-0	04	1	0404-0501	●
32	03.332 HOLDER ASM; NOZZLE	8-97289-581-0	04	1	0404-0409		●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0404-0501	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	8-97238-601-0	04	1	0404-0409		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0404-0501	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-97300-529-0	04	1	0404-0409		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0404-0501	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97238-599-0	08	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97361-697-0	04	1	0404-0501	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.66	8-97288-027-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.67	8-97288-028-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.68	8-97288-029-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.69	8-97288-031-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.70	8-97288-032-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.71	8-97288-033-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.72	8-97288-034-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.73	8-97288-035-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.74	8-97288-036-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.75	8-97288-037-0	04	1	0404-0409		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C) L=2.76	8-97288-038-0	04	1	0404-0409		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER (C)	1-15343-003-0	04	1	0404-0501	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER (B)	8-97300-503-0	04	1	0404-0409		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER (A)	8-97300-504-0	04	1	0404-0409		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	0404-0501	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	0404-0501	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0404-0501	●
50	03.332 GASKET; NOZZLE HOLDER THA	8-97912-615-0	04	1	0404-0409	●	●
50	03.332 GASKET; NOZZLE HOLDER THA	8-97912-615-0	04	1	0410-0501	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0404-0409	●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0410-0501	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97374-468-0	04	1	0410-0501			●
59	03.332 CLAMP; NOZZLE HOLDER	8-97374-468-0	04	1	0502-0609			●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-98011-528-2	04	1	0610-0710			●	●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-98092-539-0	04	1	0711-			●	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER THA	8-97920-028-0	04	1	0404-0409	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER THA	8-97920-028-0	04	1	0410-0501	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF THA	8-97920-247-0	01	1	0404-0409	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF THA	8-97920-247-0	01	1	0410-0501	●
66	03.332 GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0404-0409	●	●
66	03.332 GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0410-0501	●
66	03.332 GASKET; INJ NOZZLE	8-97251-334-0	04	1	0410-0501			●
66	03.332 GASKET; INJ NOZZLE	8-97251-334-0	04	1	0502-0608			●	●
66	03.332 GASKET; INJ NOZZLE	8-98057-731-0	04	1	0609-0609			●	●
66	03.332 GASKET; INJ NOZZLE	8-98057-731-0	04	1	0610-0701			●	●	●
66	03.332 GASKET; INJ NOZZLE	8-98077-165-0	04	1	0702-1012			●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1101-			●	●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0404-0409	●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0410-0501	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0404-0409	●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0410-0501	●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0410-0501			●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0502-0609			●	●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0610-			●	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0404-0501	●
72	03.330 BOLT; BRKT TO INJ PUMP 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0404-0409		●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0404-0501	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE THA	0-28650-820-0	02	1	0404-0501	●
78	03.330 BOLT; BRKT TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0404-0409		●
80	03.306 BRACKET; PUMP (B) THA	8-97942-899-0	01	1	0404-0501	●
80	03.306 BRACKET; PUMP (A) THA	8-97942-900-0	01	1	0404-0501	●
80	03.306 BRACKET; PUMP (C) THA	8-97920-065-0	01	1	0404-0409		●
81	03.330 WASHER; PL,BRKT TO PUMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0404-0501	●
103	03.330 WASHER; LK,CLIP,INJ PIPE 00.206 ID=6.1	9-09150-506-0	02	1	0404-0406	●	●
110	03.330 NUT; CLIP M6 THA	0-91110-506-0	02	1	0404-0406	●	●
110	03.330 NUT; CLIP 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0407-0409	●	●
110	03.330 NUT; CLIP 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0410-0501	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0410-0501			●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0605			●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0606-0609			●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0610-			●	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	0404-0501	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	0404-0501	●
158	03.330 NUT; INJ PUMP 03.340 M14	8-94226-565-0	01	1	0404-0501	●
186	03.340 GEAR; INJ PUMP THA	8-97322-652-0	01	1	0404-0501	●
186	03.340 GEAR; INJ PUMP THA	8-97322-651-0	01	1	0404-0409		●
272	03.332 NOZZLE KIT; INJ	8-97362-572-0	04	1	0404-0501	●
341	03.330 BRACKET; CLIP,INJ PIPE (B) INJ PIPE NO.1,2 THA	8-97287-511-2	01	1	0404-0501	●
341	03.330 BRACKET; CLIP,INJ PIPE (A) INJ PIPE NO.3,4 THA	8-97920-070-0	01	1	0404-0409	●	●
341	03.330 BRACKET; CLIP,INJ PIPE (A) INJ PIPE NO.3,4 THA	8-97920-070-0	01	1	0410-0501	●
341	03.330 BRACKET; CLIP,INJ PIPE (B) INJ PIPE NO.1,2 THA	8-97920-071-1	01	1	0404-0409		●

29 122 137 122 137 30 29 29 122 30 9 110 137 122 29 31 166 313 68 68 137 29 59 30 347 29 66 19 29 18 30 29 17 16 137 127 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-0	02	1	0410-0501			●
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-0	02	1	0502-0609			●	●
9	03.340 STUD; CLIP 03.162 M6X25 L=36 THA	8-97214-234-1	02	1	0610-			●	●	●
16	03.330 PIPE; INJ NO.1 THA	8-97287-521-0	01	1	0404-0501	●
16	03.330 PIPE; INJ NO.1 THA	8-97920-022-2	01	1	0404-0409		●
16	03.330 PIPE; INJ NO.1 THA	8-97312-099-2	01	1	0410-0501			●
16	03.330 PIPE; INJ NO.1 THA	8-97312-099-2	01	1	0502-0609			●	●
16	03.330 PIPE; INJ NO.1 THA	8-98011-606-0	01	1	0610-			●	●	●
17	03.330 PIPE; INJ NO.2 THA	8-97287-522-0	01	1	0404-0501	●
17	03.330 PIPE; INJ NO.2 THA	8-97920-023-2	01	1	0404-0409		●
17	03.330 PIPE; INJ NO.2 THA	8-97312-100-2	01	1	0410-0501			●
17	03.330 PIPE; INJ NO.2 THA	8-97312-100-2	01	1	0502-0609			●	●
17	03.330 PIPE; INJ NO.2 THA	8-98043-684-0	01	1	0610-			●	●	●
18	03.330 PIPE; INJ NO.3 THA	8-97287-523-0	01	1	0404-0501	●
18	03.330 PIPE; INJ NO.3 THA	8-97920-024-2	01	1	0404-0409		●
18	03.330 PIPE; INJ NO.3 THA	8-97312-101-2	01	1	0410-0501			●
18	03.330 PIPE; INJ NO.3 THA	8-97312-101-2	01	1	0502-0609			●	●
18	03.330 PIPE; INJ NO.3 THA	8-98011-608-0	01	1	0610-			●	●	●
19	03.330 PIPE; INJ NO.4 THA	8-97287-524-0	01	1	0404-0501	●
19	03.330 PIPE; INJ NO.4 THA	8-97920-025-2	01	1	0404-0409		●
19	03.330 PIPE; INJ NO.4 THA	8-97312-102-2	01	1	0410-0501			●
19	03.330 PIPE; INJ NO.4 THA	8-97312-102-2	01	1	0502-0609			●	●
19	03.330 PIPE; INJ NO.4 THA	8-98011-609-0	01	1	0610-			●	●	●
29	03.162 CLIP; HOSE (B) ID=13.8	8-97306-552-0	02	1	0404-0501	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0404-0409	●	●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0410-0501	●
29	03.162 CLIP; HOSE 03.280 (B) ID=17.1	8-94122-679-0	02	1	0404-0409		●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0410-0501			●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0502-0609			●	●
29	03.162 CLIP; HOSE (C) ID=10.5 THA	8-97944-126-0	10	1	0610-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-97328-162-1	01	1	0404-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) IRC THA	8-97912-624-0	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0404-0409	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) PCR THA	8-97912-625-1	01	1	0410-0501	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130 THA	8-98053-692-0	01	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=270 SERVICED BY L=3000	0-01262-300-0	01	1	0404-0409		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96 THA	8-98053-693-0	03	1	0612-			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0410-0501			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0502-0609			●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=150	8-97362-306-2	01	1	0610-0810			●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) THA	8-98112-034-0	01	1	0811-			●	●	●
31	03.332 NOZZLE ASM; INJ THA	8-98055-862-3	04	1	0810-1306			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98011-604-5	04	1	1307-			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98055-863-3	04	1	0810-1306				●
31	03.332 NOZZLE ASM; INJ THA	8-98011-605-5	04	1	1307-				●
31	03.332 NOZZLE ASM; INJ	8-97217-642-0	04	1	0404-0501	●
31	03.332 NOZZLE ASM; INJ THA	8-97354-811-1	04	1	0502-0609				●
31	03.332 NOZZLE ASM; INJ THA	8-98011-605-0	04	1	0610-0704				●
31	03.332 NOZZLE ASM; INJ THA	8-98055-863-0	04	1	0705-0809				●
31	03.332 NOZZLE ASM; INJ	8-97226-335-2	04	1	0404-0409		●
31	03.332 NOZZLE ASM; INJ THA	8-97311-372-4	04	1	0410-0609			●
31	03.332 NOZZLE ASM; INJ	8-98011-604-0	04	1	0610-0704			●		●
31	03.332 NOZZLE ASM; INJ THA	8-98055-862-0	04	1	0705-0809			●		●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0404-0409	●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-97920-006-0	04	1	0410-0501	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97374-468-0	04	1	0410-0501			●
59	03.332 CLAMP; NOZZLE HOLDER	8-97374-468-0	04	1	0502-0609			●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-98011-528-2	04	1	0610-0710			●	●	●
59	03.332 CLAMP; NOZZLE HOLDER THA	8-98092-539-0	04	1	0711-			●	●	●
66	03.332 GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0404-0409	●	●
66	03.332 GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0410-0501	●
66	03.332 GASKET; INJ NOZZLE	8-97251-334-0	04	1	0410-0501			●
66	03.332 GASKET; INJ NOZZLE	8-97251-334-0	04	1	0502-0608			●	●
66	03.332 GASKET; INJ NOZZLE	8-98057-731-0	04	1	0609-0609			●	●
66	03.332 GASKET; INJ NOZZLE	8-98057-731-0	04	1	0610-0701			●	●	●
66	03.332 GASKET; INJ NOZZLE	8-98077-165-0	04	1	0702-1012			●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1101-			●	●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0404-0409	●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0410-0501	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0404-0409	●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0410-0501	●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0410-0501			●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0502-0609			●	●
68	03.162 CLIP; INJ PIPE (C) THA	8-97213-481-0	04	1	0610-			●	●	●
110	03.330 NUT; CLIP M6 THA	0-91110-506-0	02	1	0404-0406	●	●
110	03.330 NUT; CLIP 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0407-0409	●	●
110	03.330 NUT; CLIP 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0410-0501	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0410-0501			●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0605			●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0606-0609			●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0610-			●	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0410-0501			●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0502-0609			●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0610-			●	●	●
127	03.162 BOLT; CLIP LEAK OFF PIPE 02.343 M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501			●
127	03.162 BOLT; CLIP LEAK OFF PIPE 02.343 M8X12 FLANGE THA	0-28050-812-0	01	1	0502-0609			●	●
127	03.162 BOLT; CLIP LEAK OFF PIPE 02.343 M8X12 FLANGE THA	0-28050-812-0	01	1	0610-			●	●	●
137	03.163 PIPE ASM; LEAK OFF (A) THA	8-97315-230-1	01	1	0410-0501			●
137	03.163 PIPE ASM; LEAK OFF (A) THA	8-97315-230-1	01	1	0502-0609			●	●
137	03.163 PIPE ASM; LEAK OFF (A) THA	8-97315-230-2	01	1	0610-			●	●	●
137	03.163 PIPE ASM; LEAK OFF (B) THA	8-97315-231-1	03	1	0410-0501			●
137	03.163 PIPE ASM; LEAK OFF (B) THA	8-97315-231-1	03	1	0502-0609			●	●
137	03.163 PIPE ASM; LEAK OFF (B) THA	8-97315-231-2	03	1	0610-			●	●	●
137	03.163 PIPE ASM; LEAK OFF (C) THA	8-97357-916-3	01	1	0410-0501			●
137	03.163 PIPE ASM; LEAK OFF (C) THA	8-97357-916-3	01	1	0502-0609			●	●
137	03.163 PIPE ASM; LEAK OFF (C) THA	8-97357-916-4	01	1	0610-			●	●	●
137	03.163 PIPE ASM; LEAK OFF (D) THA	8-97372-938-2	01	1	0410-0501			●
137	03.163 PIPE ASM; LEAK OFF (D) THA	8-97372-938-2	01	1	0502-0609			●	●
137	03.163 PIPE ASM; LEAK OFF (D) THA	8-97372-938-3	01	1	0610-			●	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 THA	9-09566-111-0	04	1	0410-0501			●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 THA	9-09566-111-0	04	1	0502-0609			●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 THA	9-09566-111-0	04	1	0610-			●	●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER THA	8-97372-144-0	04	1	0410-0501			●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER THA	8-97372-144-0	04	1	0502-0609			●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER THA	8-97372-144-0	04	1	0610-0707			●	●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER THA	8-98095-575-0	04	1	0708-			●	●	●
347	03.332 PIN	8-97383-286-0	04	1	0410-0501			●
347	03.332 PIN	8-97383-286-0	04	1	0502-0609			●	●
347	03.332 PIN	8-97383-286-0	04	1	0610-1012			●	●	●
347	03.332 PIN THA	8-98165-035-0	04	1	1101-			●	●	●

411 290 410 411 410 290 411 409 290 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
290	03.331 SENSOR; PRESS 02.510 (A)	8-09350-899-1	01	1	0410-0501	●
290	03.331 SENSOR; PRESS 02.510 (A)	8-09350-899-1	01	1	0502-0609	●	●
290	03.331 SENSOR; PRESS (B)	8-98020-514-0	01	1	0610-	●	●	●
290	03.331 SENSOR; PRESS (C)	8-97318-684-0	01	1	0610-0708	●	●	●
290	03.331 SENSOR; PRESS (C) THA	8-98014-320-0	01	1	0709-1208	●	●	●
290	03.331 SENSOR; PRESS (C) THA	8-98181-616-0	01	1	1209-	●	●	●
409	03.331 PLATE; SENSOR THA	8-97377-206-0	01	1	0410-0501	●
409	03.331 PLATE; SENSOR THA	8-97377-206-0	01	1	0502-0609	●	●
410	03.331 BRACKET; SENSOR THA	8-97374-929-0	01	1	0410-0501	●
410	03.331 BRACKET; SENSOR THA	8-97374-929-0	01	1	0502-0609	●	●
410	03.331 BRACKET; SENSOR THA	8-98013-801-1	01	1	0610-	●	●
411	03.331 BOLT; SENSOR 03.162 M6X12 FLANGE THA	0-28050-612-0	01	1	0410-0501	●
411	03.331 BOLT; SENSOR 03.162 M6X12 FLANGE THA	0-28050-612-0	01	1	0502-	●	●
411	03.331 BOLT; SENSOR 03.162 M6X20 FLANGE THA	0-28650-620-0	02	1	0610-	●	●	●

211 283 282 290 199 199 289 288 137 283 216 175 175 205 329 408 424 445 219 382 216 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
137	03.163 PIPE ASM; LEAK OFF (A) THA	8-97315-230-1	01	1	0410-0501	●
137	03.163 PIPE ASM; LEAK OFF (A) THA	8-97315-230-1	01	1	0502-0609	●	●
137	03.163 PIPE ASM; LEAK OFF (A) THA	8-97315-230-2	01	1	0610-	●	●	●
137	03.163 PIPE ASM; LEAK OFF (B) THA	8-97315-231-1	03	1	0410-0501	●
137	03.163 PIPE ASM; LEAK OFF (B) THA	8-97315-231-1	03	1	0502-0609	●	●
137	03.163 PIPE ASM; LEAK OFF (B) THA	8-97315-231-2	03	1	0610-	●	●	●
137	03.163 PIPE ASM; LEAK OFF (C) THA	8-97357-916-3	01	1	0410-0501	●
137	03.163 PIPE ASM; LEAK OFF (C) THA	8-97357-916-3	01	1	0502-0609	●	●
137	03.163 PIPE ASM; LEAK OFF (C) THA	8-97357-916-4	01	1	0610-	●	●	●
137	03.163 PIPE ASM; LEAK OFF (D) THA	8-97372-938-2	01	1	0410-0501	●
137	03.163 PIPE ASM; LEAK OFF (D) THA	8-97372-938-2	01	1	0502-0609	●	●
137	03.163 PIPE ASM; LEAK OFF (D) THA	8-97372-938-3	01	1	0610-	●	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0610-	●	●	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	0610-	●	●	●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0509-0609	●	●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0610-0611	●	●	●
205	03.320 SENSOR; FUEL TEMP THA	8-98023-581-0	01	1	0612-	●	●	●
210	03.330 PIPE; INJ,C/R THA	8-97388-902-0	01	1	0410-0501	●
210	03.330 PIPE; INJ,C/R THA	8-97388-902-0	01	1	0502-0609	●	●
210	03.330 PIPE; INJ,C/R THA	8-97388-902-0	01	1	0610-	●	●	●
211	03.331 RAIL ASM; COMMON THA	8-97311-370-1	01	1	0410-0501	●
211	03.331 RAIL ASM; COMMON THA	8-97311-370-2	01	1	0502-0609	●	●
211	03.331 RAIL ASM; COMMON	8-98011-888-0	01	1	0610-0708	●	●	●
211	03.331 RAIL ASM; COMMON THA	8-98052-238-1	01	1	0709-	●	●	●
216	03.162 BOLT; EYE 03.280 (B) THA	9-88130-088-0	01	1	0810-	●	●	●
216	03.162 BOLT; EYE (B)	8-98056-937-0	01	1	0610-0809	●	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0610-	●	●	●
219	03.162 GASKET ID=49.7 THA	1-09623-541-0	01	1	0410-0501	●
219	03.162 GASKET ID=49.7 THA	1-09623-541-0	01	1	0502-0609	●	●
219	03.162 GASKET ID=49.7 THA	1-09623-541-0	01	1	0610-	●	●	●
282	03.163 BRACKET; COMMON RAIL THA	8-97312-104-4	01	1	0410-0501	●
282	03.163 BRACKET; COMMON RAIL THA	8-97312-104-4	01	1	0502-0609	●	●
282	03.163 BRACKET; COMMON RAIL THA	8-98011-890-1	01	1	0610-	●	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE THA	0-28050-870-0	02	1	0410-0501	●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE THA	0-28050-870-0	02	1	0502-0609	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE THA	0-28050-870-0	02	1	0610-	●	●	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE THA	8-97354-584-0	02	1	0410-0501	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE THA	8-97354-584-0	02	1	0502-0609	●	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE THA	8-97354-584-0	02	1	0610-	●	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0610-	●	●	●
289	03.331 LIMITER; FUEL PRESS THA	8-98032-549-0	01	1	0610-	●	●	●
290	03.331 SENSOR; PRESS 02.510 (A)	8-09350-899-1	01	1	0410-0501	●
290	03.331 SENSOR; PRESS 02.510 (A)	8-09350-899-1	01	1	0502-0609	●	●
290	03.331 SENSOR; PRESS (B)	8-98020-514-0	01	1	0610-	●	●	●
290	03.331 SENSOR; PRESS (C)	8-97318-684-0	01	1	0610-0708	●	●	●
290	03.331 SENSOR; PRESS (C) THA	8-98014-320-0	01	1	0709-1208	●	●	●
290	03.331 SENSOR; PRESS (C) THA	8-98181-616-0	01	1	1209-	●	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0710-	●	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1008-	●	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY THA	8-97311-373-4	01	1	0410-0501	●
408	03.306 PUMP ASM; FUEL,SUPPLY THA	8-97311-373-5	01	1	0502-0609	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY THA	8-97311-373-9	01	1	0610-1007	●	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY THA	8-98155-988-1	01	1	1008-	●	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER THA	8-98145-453-0	01	1	0410-0501	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER THA	8-98145-453-0	01	1	0502-0609	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER THA	8-98145-453-0	01	1	0610-0809	●	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP THA	8-98145-455-0	01	1	0810-0905	●	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP THA	8-98145-455-0	01	1	0906-	●	●	●
445	03.330 SCREW; FILTER,INLET THA	8-98209-778-0	01	1	1008-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
