Sayfa 0-36 - Isuzu EPC

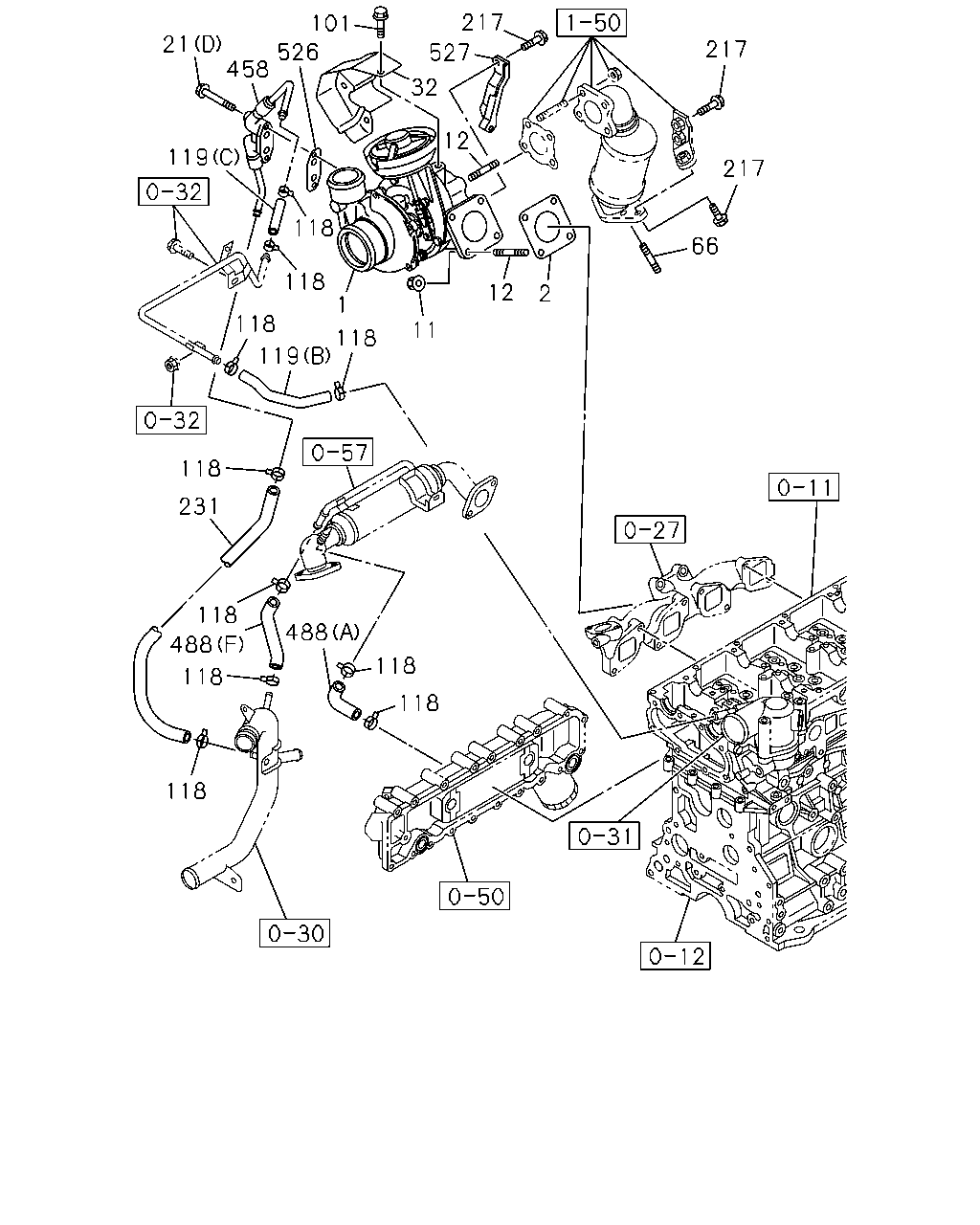

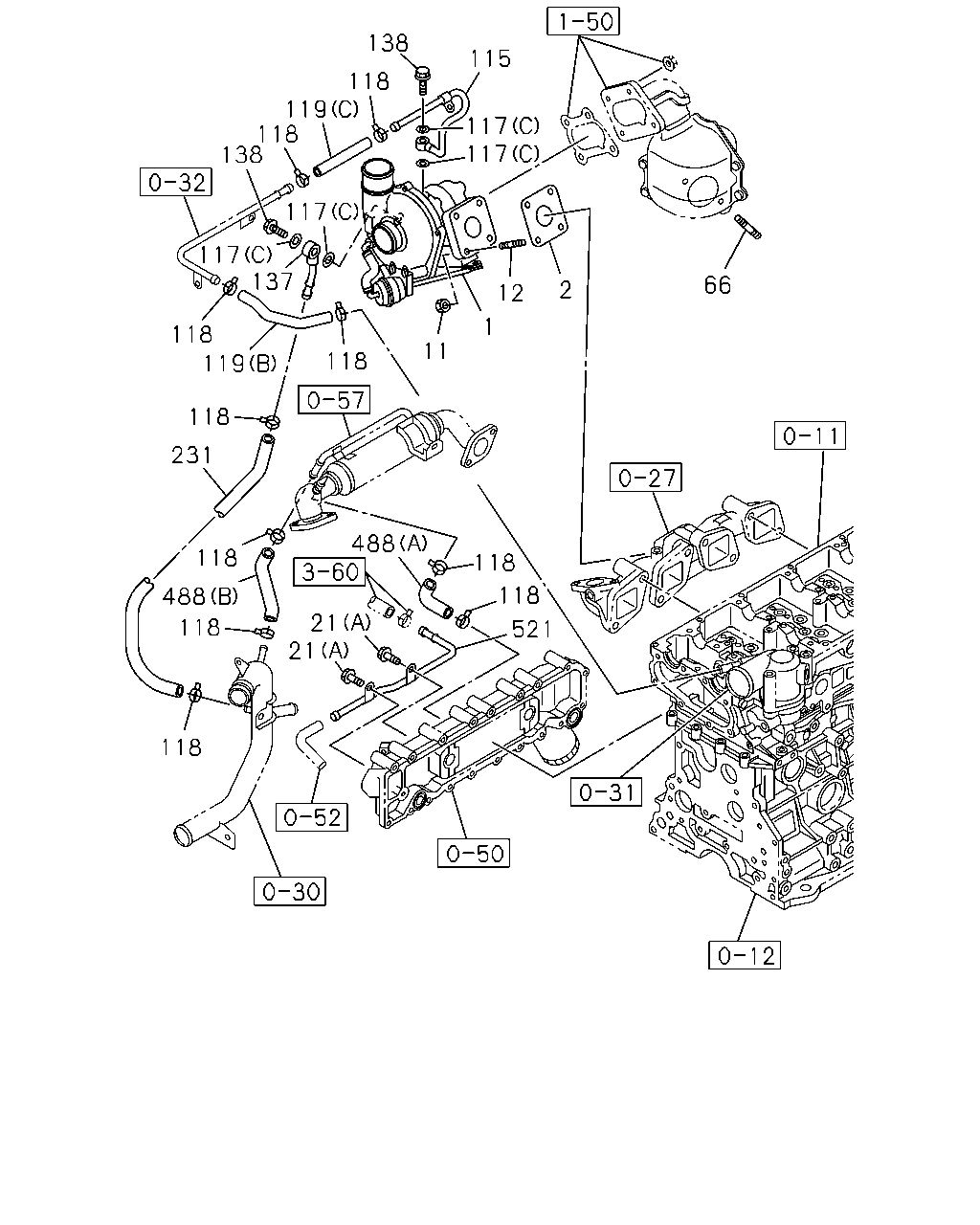

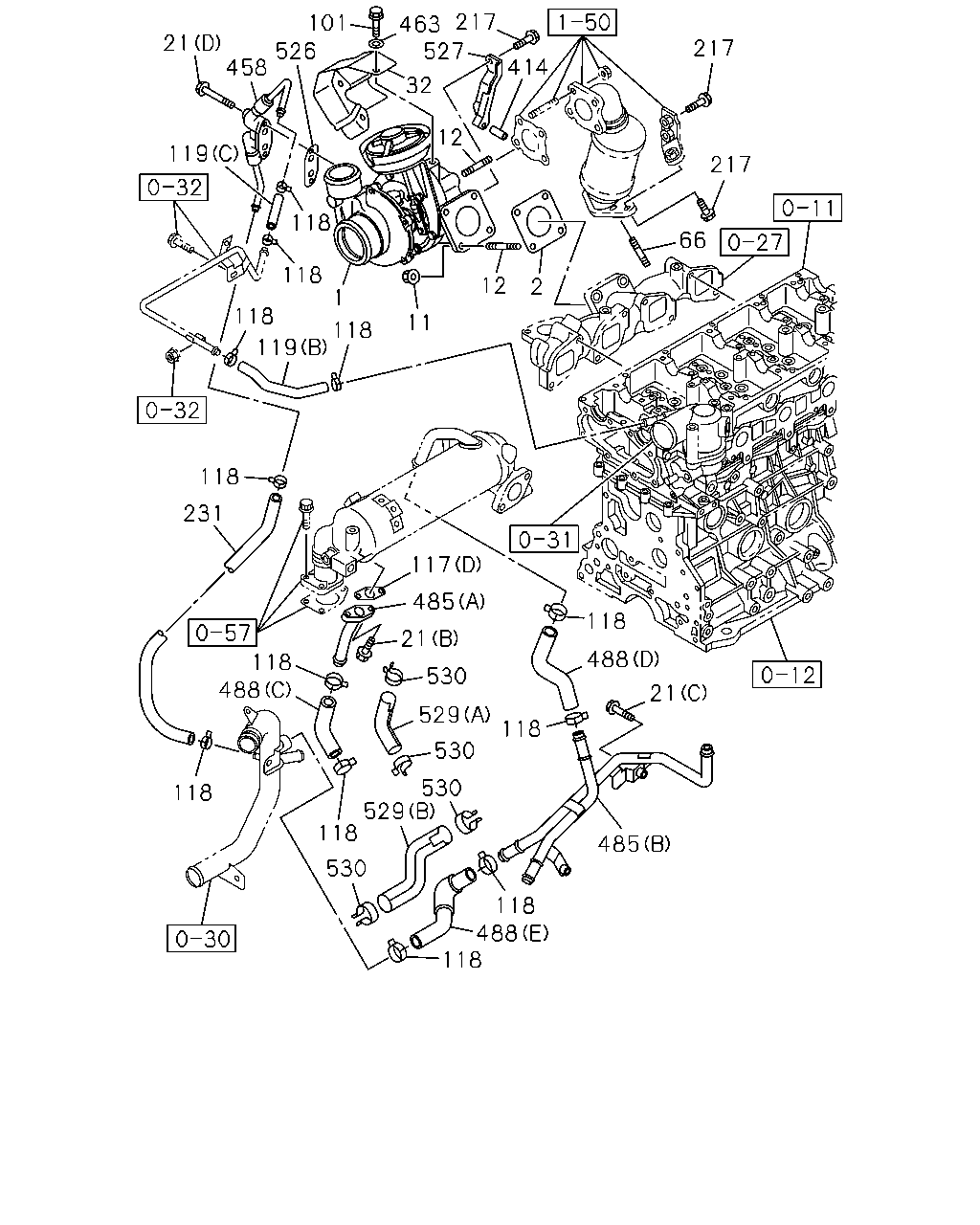

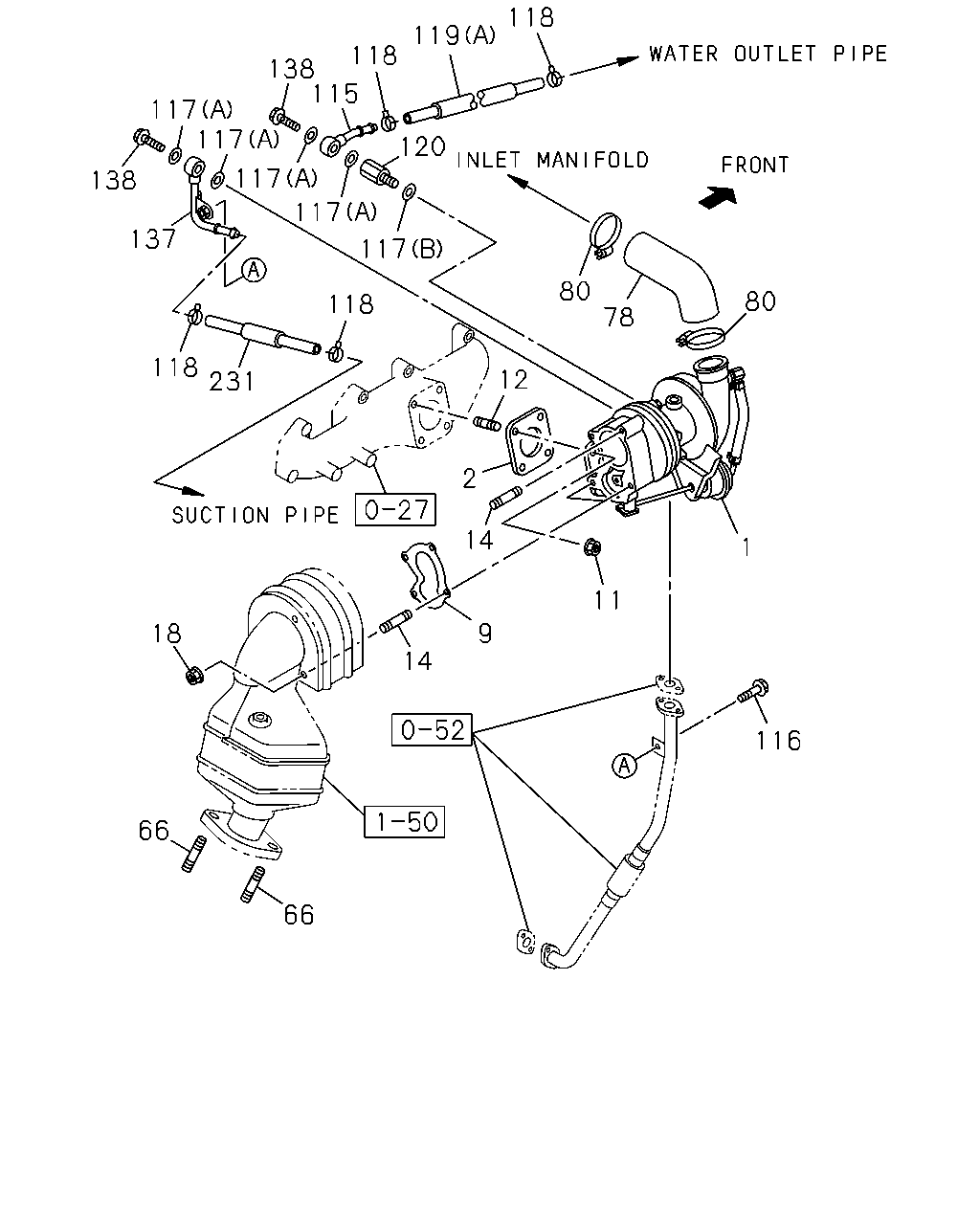

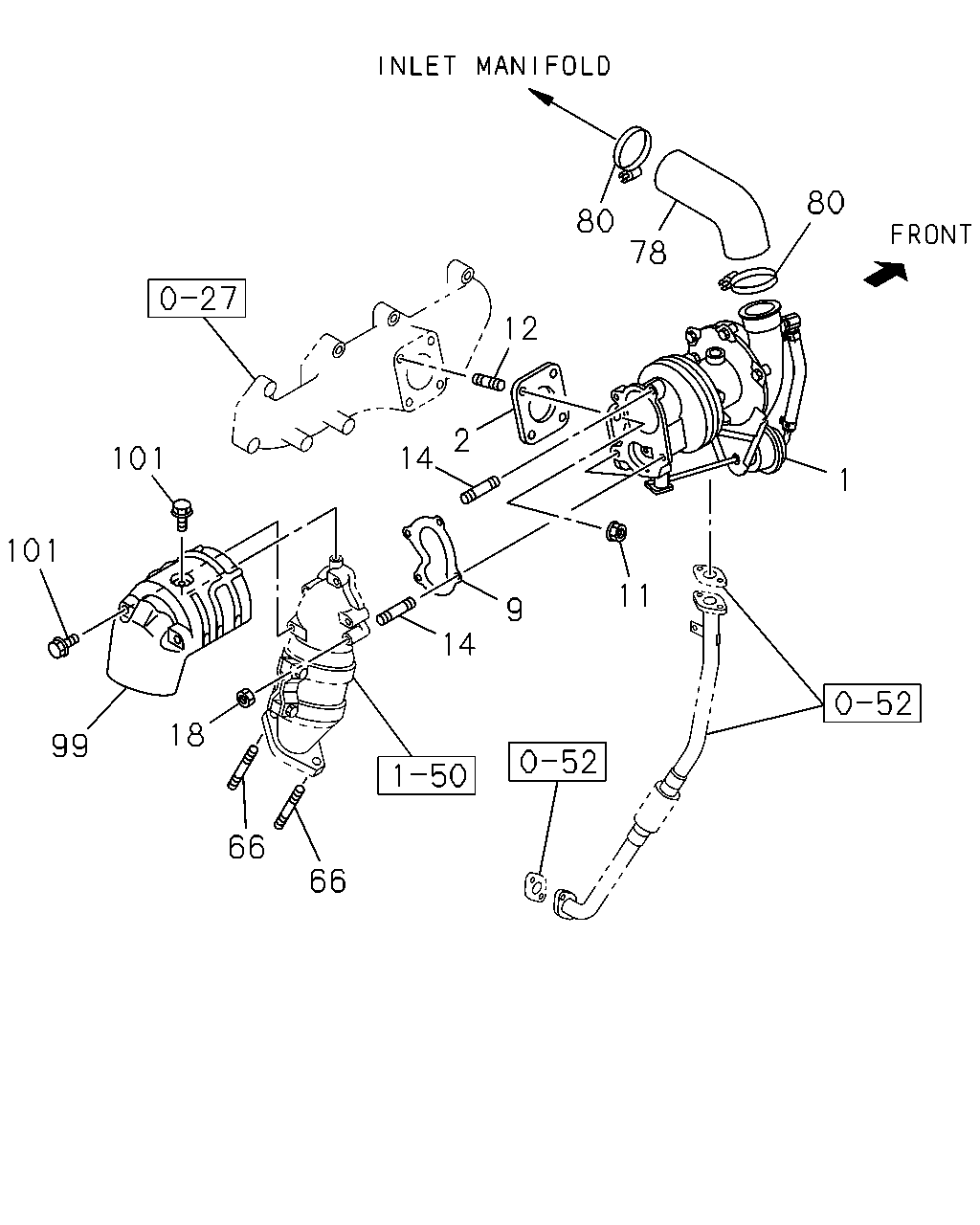

0-36 — TURBOCHARGER SYSTEM (#73550) — 399 parça

80 80 78 12 2 101 14 1 101 11 9 14 18 99 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-3	01	1	0707-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-4	01	1	0707-		●
1	03.342 TURBOCHARGER ASM THA	8-97943-195-1	01	1	0404-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97373-777-1	01	1	0502-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-2	01	1	0610-0706		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97943-196-1	01	1	0404-0409				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97355-408-3	01	1	0410-0609	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-2	01	1	0610-0706	●
1	03.342 TURBOCHARGER ASM THA	8-98011-529-7	01	1	0610-1007					●
1	03.342 TURBOCHARGER ASM THA	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-716-0	01	1	0404-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0404-0409				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0410-0501	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0502-0609	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0610-1007	●	●			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1008-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT THA	8-97912-775-0	01	1	0404-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT THA	8-97912-694-0	01	1	0404-0409				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0410-0501	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0502-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-	●	●			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31 THA	8-97104-508-1	04	1	0404-0409			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0501	●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0610-					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	04	1	0404-0409			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0404-0409			●	●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0410-0501	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0502-0511	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0512-0602	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0512-0602		●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0603-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-	●	●			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	0404-0501			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER THA	8-97942-956-0	01	1	0404-0409				●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER 01.166 ID=44-60	8-94175-940-0	02	1	0404-0409			●	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER 01.166 ID=44-60	8-94175-940-0	02	1	0410-0501			●
99	03.602 PROTECTOR; HEAT	8-97318-472-0	01	1	0404-0501			●
101	03.602 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE THA	0-28050-612-0	03	1	0404-0501			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0610-					●

118 119 118 138 115 117 117 120 117 138 117 137 117 80 80 118 78 118 231 12 2 14 1 11 18 9 14 116 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-3	01	1	0707-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-4	01	1	0707-		●
1	03.342 TURBOCHARGER ASM THA	8-97943-195-1	01	1	0404-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97373-777-1	01	1	0502-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-2	01	1	0610-0706		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97943-196-1	01	1	0404-0409				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97355-408-3	01	1	0410-0609	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-2	01	1	0610-0706	●
1	03.342 TURBOCHARGER ASM THA	8-98011-529-7	01	1	0610-1007					●
1	03.342 TURBOCHARGER ASM THA	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-716-0	01	1	0404-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0404-0409				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0410-0501	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0502-0609	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0610-1007	●	●			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1008-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT THA	8-97912-775-0	01	1	0404-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT THA	8-97912-694-0	01	1	0404-0409				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0410-0501	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0502-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-	●	●			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31 THA	8-97104-508-1	04	1	0404-0409			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0501	●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0610-					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	04	1	0404-0409			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0404-0409			●	●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0410-0501	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0502-0511	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0512-0602	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0512-0602		●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0603-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-	●	●			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	0404-0501			●
78	03.342 HOSE; INL PIPE,TURBOCHARGER THA	8-97942-956-0	01	1	0404-0409				●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER 01.166 ID=44-60	8-94175-940-0	02	1	0404-0409			●	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER 01.166 ID=44-60	8-94175-940-0	02	1	0410-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-97920-034-0	01	1	0404-0409				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-97312-288-1	01	1	0410-0501	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-97312-288-1	01	1	0502-0609	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-98011-902-0	01	1	0610-	●	●
116	03.342 BOLT; WATER PIPE M6X12 W/LK WASHER THA	0-50540-612-0	01	1	0404-0409				●
117	03.342 GASKET; WATER PIPE (B) T=2.5 THA	8-97920-063-0	01	1	0404-0409				●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2	9-09571-412-0	04	1	0404-0409				●
117	03.342 GASKET; WATER PIPE 08.955 (C) ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0410-0501	●
117	03.342 GASKET; WATER PIPE 08.955 (C) ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0502-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (D)	8-97262-117-0	01	1	0610-1007					●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0404-0409				●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0410-0501	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0502-0609	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0610-1007	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1008-	●	●			●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-1007	●	●			●
118	03.342 CLIP; WATER HOSE 08.846 ID=20.8 THA	8-97944-127-0	06	1	0610-1007					●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=250 W/INSULATOR THA	8-97912-688-1	01	1	0404-0409				●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-1007	●	●			●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0610-	●	●			●
120	01.097 ADAPTER; WATER THA	8-97920-062-0	01	1	0404-0409				●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-97920-035-0	01	1	0404-0409				●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-97312-289-2	01	1	0410-0501	●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-97312-289-2	01	1	0502-0609	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-98011-903-0	01	1	0610-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT THA	1-09675-081-0	02	1	0404-0409				●
138	03.342 BOLT; EYE,WATER PIPE 04.866 M14X27 EYE-BOLT	1-09675-193-0	02	1	0410-0501	●
138	03.342 BOLT; EYE,WATER PIPE 04.866 M14X27 EYE-BOLT	1-09675-193-0	02	1	0502-0609	●	●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT THA	8-98037-067-0	02	1	0610-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR THA	8-97912-684-0	01	1	0404-0409				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-	●	●			●

138 115 118 119 118 138 117 117 117 117 137 66 2 12 1 118 11 118 119 118 231 488 118 118 118 488 21 21 118 521 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-3	01	1	0707-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-4	01	1	0707-		●
1	03.342 TURBOCHARGER ASM THA	8-97943-195-1	01	1	0404-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97373-777-1	01	1	0502-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-2	01	1	0610-0706		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97943-196-1	01	1	0404-0409				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97355-408-3	01	1	0410-0609	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-2	01	1	0610-0706	●
1	03.342 TURBOCHARGER ASM THA	8-98011-529-7	01	1	0610-1007					●
1	03.342 TURBOCHARGER ASM THA	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-716-0	01	1	0404-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0404-0409				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0410-0501	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0502-0609	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0610-1007	●	●			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1008-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0410-0501	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0502-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-	●	●			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31 THA	8-97104-508-1	04	1	0404-0409			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0501	●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0610-					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-					●
21	03.358 BOLT; PIPE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501	●
21	03.358 BOLT; PIPE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0502-0609	●	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 01.652 (D) M6X45 FLANGE THA	0-28050-645-0	02	1	1008-					●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0404-0409			●	●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0410-0501	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0502-0511	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0512-0602	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0512-0602		●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0603-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-	●	●			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-97920-034-0	01	1	0404-0409				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-97312-288-1	01	1	0410-0501	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-97312-288-1	01	1	0502-0609	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT THA	8-98011-902-0	01	1	0610-	●	●
117	03.342 GASKET; WATER PIPE (B) T=2.5 THA	8-97920-063-0	01	1	0404-0409				●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2	9-09571-412-0	04	1	0404-0409				●
117	03.342 GASKET; WATER PIPE 08.955 (C) ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0410-0501	●
117	03.342 GASKET; WATER PIPE 08.955 (C) ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0502-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (D)	8-97262-117-0	01	1	0610-1007					●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0404-0409				●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0410-0501	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0502-0609	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0610-1007	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1008-	●	●			●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-1007	●	●			●
118	03.342 CLIP; WATER HOSE 08.846 ID=20.8 THA	8-97944-127-0	06	1	0610-1007					●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=250 W/INSULATOR THA	8-97912-688-1	01	1	0404-0409				●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-1007	●	●			●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0610-	●	●			●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-97920-035-0	01	1	0404-0409				●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-97312-289-2	01	1	0410-0501	●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-97312-289-2	01	1	0502-0609	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN THA	8-98011-903-0	01	1	0610-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT THA	1-09675-081-0	02	1	0404-0409				●
138	03.342 BOLT; EYE,WATER PIPE 04.866 M14X27 EYE-BOLT	1-09675-193-0	02	1	0410-0501	●
138	03.342 BOLT; EYE,WATER PIPE 04.866 M14X27 EYE-BOLT	1-09675-193-0	02	1	0502-0609	●	●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT THA	8-98037-067-0	02	1	0610-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR THA	8-97912-684-0	01	1	0404-0409				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-	●	●			●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-1007	●	●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●			●
488	03.163 HOSE; RUBBER 01.097 (B) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
488	03.163 HOSE; RUBBER 01.097 (B) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-	●	●
488	03.163 HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0610-1007					●
488	03.163 HOSE; RUBBER 01.097 (F) L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
488	03.163 HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0610-1007					●
488	03.163 HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0610-1007					●
521	03.342 PIPE; VAC THA	8-97357-847-3	01	1	0410-0501	●
521	03.342 PIPE; VAC THA	8-97357-847-3	01	1	0502-0609	●	●

217 101 463 527 21 526 458 217 414 32 12 119 217 118 66 118 12 2 1 118 11 118 119 118 231 117 485 118 21 488 118 488 530 21 529 118 530 530 529 118 118 485 530 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-3	01	1	0707-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-4	01	1	0707-		●
1	03.342 TURBOCHARGER ASM THA	8-97943-195-1	01	1	0404-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97373-777-1	01	1	0502-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-2	01	1	0610-0706		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97943-196-1	01	1	0404-0409				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97355-408-3	01	1	0410-0609	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-2	01	1	0610-0706	●
1	03.342 TURBOCHARGER ASM THA	8-98011-529-7	01	1	0610-1007					●
1	03.342 TURBOCHARGER ASM THA	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-716-0	01	1	0404-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0404-0409				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0410-0501	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0502-0609	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0610-1007	●	●			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1008-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0410-0501	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0502-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-	●	●			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31 THA	8-97104-508-1	04	1	0404-0409			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0501	●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0610-					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-					●
21	03.358 BOLT; PIPE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501	●
21	03.358 BOLT; PIPE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0502-0609	●	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 01.652 (D) M6X45 FLANGE THA	0-28050-645-0	02	1	1008-					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0610-1007					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER THA	8-98156-389-0	01	1	1008-					●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0404-0409			●	●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0410-0501	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0502-0511	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0512-0602	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0512-0602		●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0603-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-	●	●			●
101	03.602 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE THA	0-28050-612-0	03	1	0404-0501			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0610-					●
117	03.342 GASKET; WATER PIPE (B) T=2.5 THA	8-97920-063-0	01	1	0404-0409				●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2	9-09571-412-0	04	1	0404-0409				●
117	03.342 GASKET; WATER PIPE 08.955 (C) ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0410-0501	●
117	03.342 GASKET; WATER PIPE 08.955 (C) ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0502-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (D)	8-97262-117-0	01	1	0610-1007					●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0404-0409				●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0410-0501	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0502-0609	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0610-1007	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1008-	●	●			●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-1007	●	●			●
118	03.342 CLIP; WATER HOSE 08.846 ID=20.8 THA	8-97944-127-0	06	1	0610-1007					●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=250 W/INSULATOR THA	8-97912-688-1	01	1	0404-0409				●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-1007	●	●			●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0610-	●	●			●
217	03.417 BOLT; BRKT 04.686 M8X60 FLANGE THA	0-28050-860-0	01	1	0610-1007					●
217	03.417 BOLT; BRKT 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	1008-					●
217	03.417 BOLT; BRKT 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0610-					●
217	03.417 BOLT; BRKT 03.670 M8X18 FLANGE	8-97378-076-0	01	1	0610-					●
217	03.417 BOLT; BRKT M8X28 FLANGE THA	8-98041-363-0	01	1	0610-					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR THA	8-97912-684-0	01	1	0404-0409				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-	●	●			●
414	03.602 SPACER	8-98059-266-0	01	1	0610-1007					●
458	03.373 PIPE; WATER,TURBOCHARGER THA	8-98031-001-0	01	1	0610-1007					●
458	03.373 PIPE; WATER,TURBOCHARGER THA	8-98132-035-2	01	1	1008-					●
463	03.602 WASHER; PL,HEAT PROTECTOR 02.277 ID=8.4 OD=22 THA	0-91614-708-0	01	1	0610-1007					●
485	01.097 PIPE; WATER EGR (A) THA	8-98011-517-0	01	1	0610-1007					●
485	01.097 PIPE; WATER EGR (B) THA	8-98020-208-2	01	1	0610-1007					●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-1007	●	●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●			●
488	03.163 HOSE; RUBBER 01.097 (B) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
488	03.163 HOSE; RUBBER 01.097 (B) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-	●	●
488	03.163 HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0610-1007					●
488	03.163 HOSE; RUBBER 01.097 (F) L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
488	03.163 HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0610-1007					●
488	03.163 HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0610-1007					●
526	03.342 GASKET; PLATE 01.519 THA	8-97352-985-0	01	1	0610-					●
527	03.373 BRACKET; TURBOCHARGER THA	8-98011-536-1	01	1	0610-1007					●
527	03.373 BRACKET; TURBOCHARGER THA	8-98156-388-0	01	1	1008-					●
529	03.374 INSULATOR; HOSE (A) THA	8-98031-883-0	01	1	0610-1007					●
529	03.374 INSULATOR; HOSE (B) THA	8-98031-884-0	01	1	0610-1007					●
530	03.374 CLIP; INSULATOR 01.540	8-97101-337-0	04	1	0610-1007					●

217 101 21 526 458 217 527 32 12 119 217 118 66 118 12 2 1 118 11 118 119 118 231 118 488 488 118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-3	01	1	0707-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-4	01	1	0707-		●
1	03.342 TURBOCHARGER ASM THA	8-97943-195-1	01	1	0404-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97373-777-1	01	1	0502-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-893-2	01	1	0610-0706		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97943-196-1	01	1	0404-0409				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-97355-408-3	01	1	0410-0609	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98011-892-2	01	1	0610-0706	●
1	03.342 TURBOCHARGER ASM THA	8-98011-529-7	01	1	0610-1007					●
1	03.342 TURBOCHARGER ASM THA	8-98132-069-2	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1008-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-716-0	01	1	0404-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0404-0409				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0410-0501	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0502-0609	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI THA	8-97912-697-0	01	1	0610-1007	●	●			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1008-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0404-0409			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0410-0501			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0410-0501	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0502-0609	●	●
11	03.342 NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-	●	●			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31 THA	8-97104-508-1	04	1	0404-0409			●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0410-0501	●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-	●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36 THA	8-97378-062-0	02	1	0610-					●
12	03.342 STUD; TURBOCHARGER 03.604 M8X30 L=41	8-97378-064-0	02	1	0610-					●
21	03.358 BOLT; PIPE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0410-0501	●
21	03.358 BOLT; PIPE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0502-0609	●	●
21	03.358 BOLT; PIPE 04.866 (D) M6X40 FLANGE	0-28050-640-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 03.162 (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 00.685 (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0610-1007					●
21	03.358 BOLT; PIPE 01.652 (D) M6X45 FLANGE THA	0-28050-645-0	02	1	1008-					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98057-857-0	01	1	0610-1007					●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER THA	8-98156-389-0	01	1	1008-					●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0404-0409			●	●
66	03.342 STUD; EXH PIPE M10X30 L=45 THA	0-49241-030-0	02	1	0410-0501			●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0410-0501	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0502-0511	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0512-0602	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0512-0602		●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0603-0609	●	●
66	03.342 STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-	●	●			●
101	03.602 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE THA	0-28050-612-0	03	1	0404-0501			●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0610-					●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0404-0409				●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0410-0501	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0502-0609	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0610-1007	●	●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1008-	●	●			●
118	03.342 CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-1007	●	●			●
118	03.342 CLIP; WATER HOSE 08.846 ID=20.8 THA	8-97944-127-0	06	1	0610-1007					●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=250 W/INSULATOR THA	8-97912-688-1	01	1	0404-0409				●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-1007	●	●			●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0410-0501	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0502-0609	●	●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0610-	●	●			●
217	03.417 BOLT; BRKT 04.686 M8X60 FLANGE THA	0-28050-860-0	01	1	0610-1007					●
217	03.417 BOLT; BRKT 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	1008-					●
217	03.417 BOLT; BRKT 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0610-					●
217	03.417 BOLT; BRKT 03.670 M8X18 FLANGE	8-97378-076-0	01	1	0610-					●
217	03.417 BOLT; BRKT M8X28 FLANGE THA	8-98041-363-0	01	1	0610-					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR THA	8-97912-684-0	01	1	0404-0409				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-0609	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0610-	●	●			●
458	03.373 PIPE; WATER,TURBOCHARGER THA	8-98031-001-0	01	1	0610-1007					●
458	03.373 PIPE; WATER,TURBOCHARGER THA	8-98132-035-2	01	1	1008-					●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-1007	●	●
488	03.163 HOSE; RUBBER 01.097 (A) L=150 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-	●	●			●
488	03.163 HOSE; RUBBER 01.097 (B) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0410-0501	●
488	03.163 HOSE; RUBBER 01.097 (B) L=170 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0502-	●	●
488	03.163 HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0610-1007					●
488	03.163 HOSE; RUBBER 01.097 (F) L=220 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1008-					●
488	03.163 HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0610-1007					●
488	03.163 HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0610-1007					●
526	03.342 GASKET; PLATE 01.519 THA	8-97352-985-0	01	1	0610-					●
527	03.373 BRACKET; TURBOCHARGER THA	8-98011-536-1	01	1	0610-1007					●
527	03.373 BRACKET; TURBOCHARGER THA	8-98156-388-0	01	1	1008-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
