1-41 — FUEL PIPING; CHASSIS (#7355) — 104 parça

101 101 100 100 97 97 102 102 144 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9812-9812	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	9901-0008	●	●	●	●
97	BRACKET; CLIP (D)	1-47478-442-0	01	1	9901-9904	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D)	1-47478-442-0	01	1	9905-	●	●	●	●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	9902-	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9905-0007	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47479-061-0	01	1	0008-	●	●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9812-9812	●
100	CLIP; FUEL PIPE ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9901-	●	●		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	01	1	9812-9812	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> ID=16X2 L=20	9-09535-536-0	04	1	9905-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9812-9812	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9901-	●	●		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9812-9812	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9901-0008	●	●		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0009-	●	●		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9901-9904	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9901-9904	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9905-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	05	1	9905-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	06	1	0009-	●	●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9812-9812	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9901-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9901-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	01	1	9905-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9905-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9905-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0009-	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0009-	●	●		●

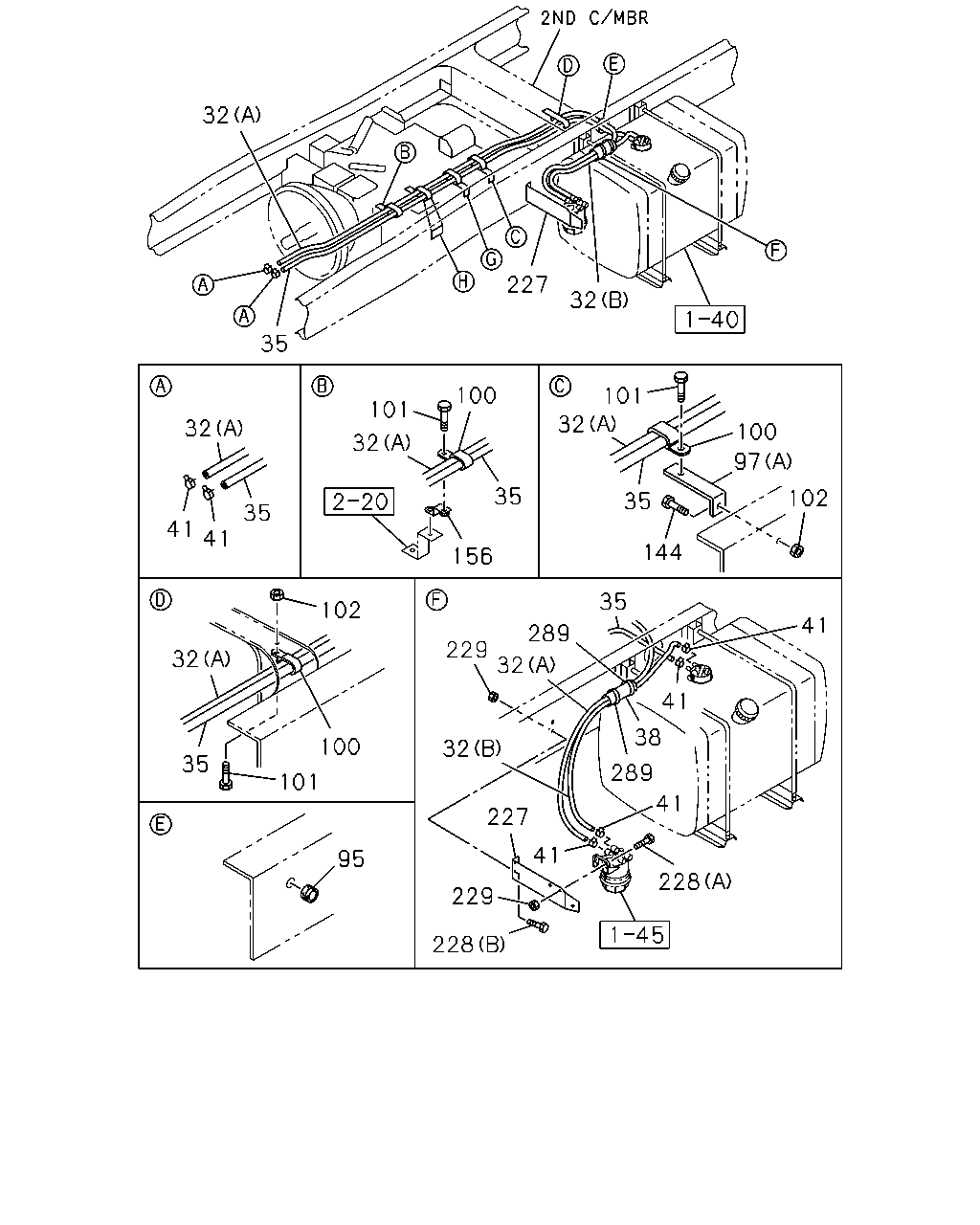

32 227 32 35 100 101 101 32 32 100 32 97 35 102 35 35 41 41 144 156 35 102 41 289 229 32 32 41 38 100 32 35 289 101 41 227 41 95 228 229 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9812-	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9812-	●	●	●	●
35	PIPE; FUEL TANK,RETURN L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	9812-	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9812-9908	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	02	1	9909-0101	●	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	03	1	0102-	●	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9812-	●	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9812-	●	●	●	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9812-9812	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	9901-0008	●	●	●	●
97	BRACKET; CLIP (D)	1-47478-442-0	01	1	9901-9904	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D)	1-47478-442-0	01	1	9905-	●	●	●	●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	9902-	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9905-0007	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47479-061-0	01	1	0008-	●	●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9812-9812	●
100	CLIP; FUEL PIPE ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	05	1	9901-	●	●		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	01	1	9812-9812	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> ID=16X2 L=20	9-09535-536-0	04	1	9905-	●	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9812-9812	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	05	1	9901-	●	●		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9812-9812	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9901-0008	●	●		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0009-	●	●		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9901-9904	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9901-9904	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9905-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	05	1	9905-0008	●	●	●	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	06	1	0009-	●	●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9812-9812	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9901-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9901-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	01	1	9905-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9905-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X35 FLANGE	0-28680-835-0	01	1	9905-0008	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0009-	●	●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0009-	●	●		●
156	BRACKET; FUEL HOSE	1-47478-306-0	02	1	9812-9901	●
156	BRACKET; FUEL HOSE ZF M/T<X9E>	1-47478-306-0	02	1	9902-	●	●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-168-2	01	1	9812-	●	●	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X30 FLANGE	0-28681-030-0	02	1	9812-	●	●	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9812-	●	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9812-	●	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9812-	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9812-9908	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	9909-0101	●	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	06	1	0102-	●	●	●	●

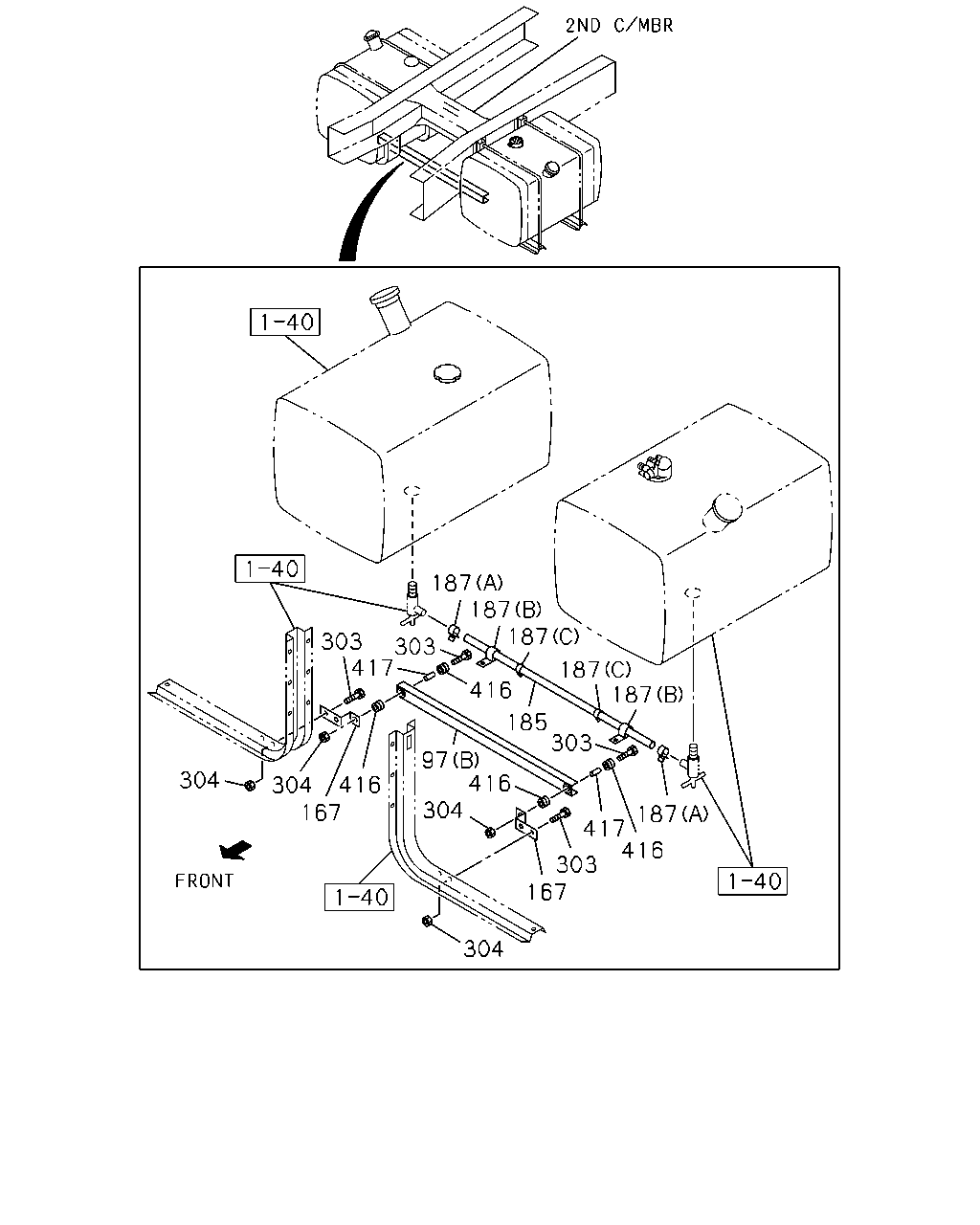

187 187 187 303 303 417 187 187 416 185 303 97 416 304 304 167 187 417 416 303 167 304 304 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	9812-9812	●
97	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	9901-0008	●	●	●	●
97	BRACKET; CLIP (D)	1-47478-442-0	01	1	9901-9904	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D)	1-47478-442-0	01	1	9905-	●	●	●	●
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	9902-	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9905-0007	●	●	●	●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47479-061-0	01	1	0008-	●	●	●	●
167	BRACKET FUEL TANK 400L+400L<NAR>	1-47478-031-0	02	1	9902-	●	●	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 400L+400L<NAR> L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	9902-	●	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (A) ID=19	8-94238-569-0	02	1	9902-	●	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9902-	●	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (C) ID=22 L=52	9-09917-431-0	02	1	9902-	●	●	●	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> M10X50 FLANGE	0-28081-050-0	02	1	9902-	●	●	●	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> M8X25 FLANGE	0-28680-825-0	02	1	9902-9908	●	●	●	●
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> M8X25 FLANGE	0-28680-825-0	04	1	9909-	●	●	●	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> M8 FLANGE	0-91150-108-0	02	1	9902-9908	●	●	●	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> M8 FLANGE	0-91150-108-0	04	1	9909-	●	●	●	●
304	NUT; BRKT FUEL TANK 400L+400L<NAR> M10 FLANGE	0-91150-210-0	02	1	9902-	●	●	●	●
416	RUBBER; SUPPORT FUEL TANK 400L+400L<NAR> OD=40	1-22159-094-0	04	1	9902-	●	●	●	●
417	TUBE; DISTANCE,BRKT FUEL TANK 400L+400L<NAR> L=22	9-22159-024-0	02	1	9902-	●	●	●	●
