0-33 — FAN AND FAN BELT (#73548) — 89 parça

109 1 8 36 15 14 230 80 88 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING THA	8-97318-963-0	01	1	0404-0409	●	●
1	01.064 FAN; COOLING THA	8-97318-963-0	01	1	0410-0501		●
1	01.064 FAN; COOLING THA	8-97944-150-0	01	1	0410-0501			●
1	01.064 FAN; COOLING THA	8-97944-150-0	01	1	0502-0609			●	●
1	01.064 FAN; COOLING THA	8-97944-150-0	01	1	0610-			●	●	●
8	01.064 CLUTCH; COOLING FAN THA	8-97302-291-0	01	1	0404-0409	●	●
8	01.064 CLUTCH; COOLING FAN THA	8-97302-291-0	01	1	0410-0501		●
8	01.064 CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0410-0501			●
8	01.064 CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0502-0609			●	●
8	01.064 CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0610-			●	●	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	0404-0409	●	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	0410-0501		●
15	01.062 WASHER; LK,COOLING FAN 00.206 ID=6.1	9-09150-506-0	04	1	0404-0409	●	●
15	01.062 WASHER; LK,COOLING FAN 00.206 ID=6.1	9-09150-506-0	04	1	0410-0501		●
36	01.066 BELT; COOLING FAN L=1027 THA	8-97910-219-0	01	1	0404-0501		●
36	01.066 BELT; COOLING FAN L=1025 BANDO THA	8-97943-022-0	01	1	0404-0409	●
36	01.066 BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0410-0501			●
36	01.066 BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0502-0609			●	●
36	01.066 BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0610-			●	●	●
36	01.066 BELT; COOLING FAN L=1025 MITSUBOSHI THA	8-97943-173-0	01	1	0404-0409	●
80	02.317 PLATE; ADJ 02.277 (A) THA	8-97921-594-0	01	1	0404-0409	●	●
80	02.317 PLATE; ADJ 02.277 (A) THA	8-97921-594-0	01	1	0410-0501		●
80	02.317 PLATE; ADJ (B) THA	8-97322-592-0	01	1	0410-0501			●
80	02.317 PLATE; ADJ (B) THA	8-97322-592-0	01	1	0502-0609			●	●
80	02.317 PLATE; ADJ (B) THA	8-97322-592-1	01	1	0610-			●	●	●
80	02.317 PLATE; ADJ (C) THA	8-97944-144-0	01	1	0410-0501			●
80	02.317 PLATE; ADJ (C) THA	8-97944-144-0	01	1	0502-0609			●	●
80	02.317 PLATE; ADJ (C) THA	8-97944-144-1	01	1	0610-			●	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	0404-0409	●	●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	0410-0501		●
96	02.317 BOLT; ADJ PLATE 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0404-0409	●	●
96	02.317 BOLT; ADJ PLATE 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0410-0501		●
96	02.317 BOLT; ADJ PLATE 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501			●
96	02.317 BOLT; ADJ PLATE 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0502-0609			●	●
96	02.317 BOLT; ADJ PLATE 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0610-			●	●	●
109	01.062 STUD; FAN CLU M6X18 L=27 THA	0-41010-618-0	04	1	0404-0409	●	●
109	01.062 STUD; FAN CLU M6X18 L=27 THA	0-41010-618-0	04	1	0410-0501		●
109	01.062 STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0410-0501			●
109	01.062 STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0502-0609			●	●
109	01.062 STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0610-1405			●	●	●
109	01.062 STUD; FAN CLU M6X20 L=31 THA	8-98256-636-0	04	1	1406-			●	●	●
230	01.055 FAN; COOLING THA	8-97921-857-0	01	1	0404-0409	●	●
230	01.055 FAN; COOLING THA	8-97921-857-0	01	1	0410-0501		●

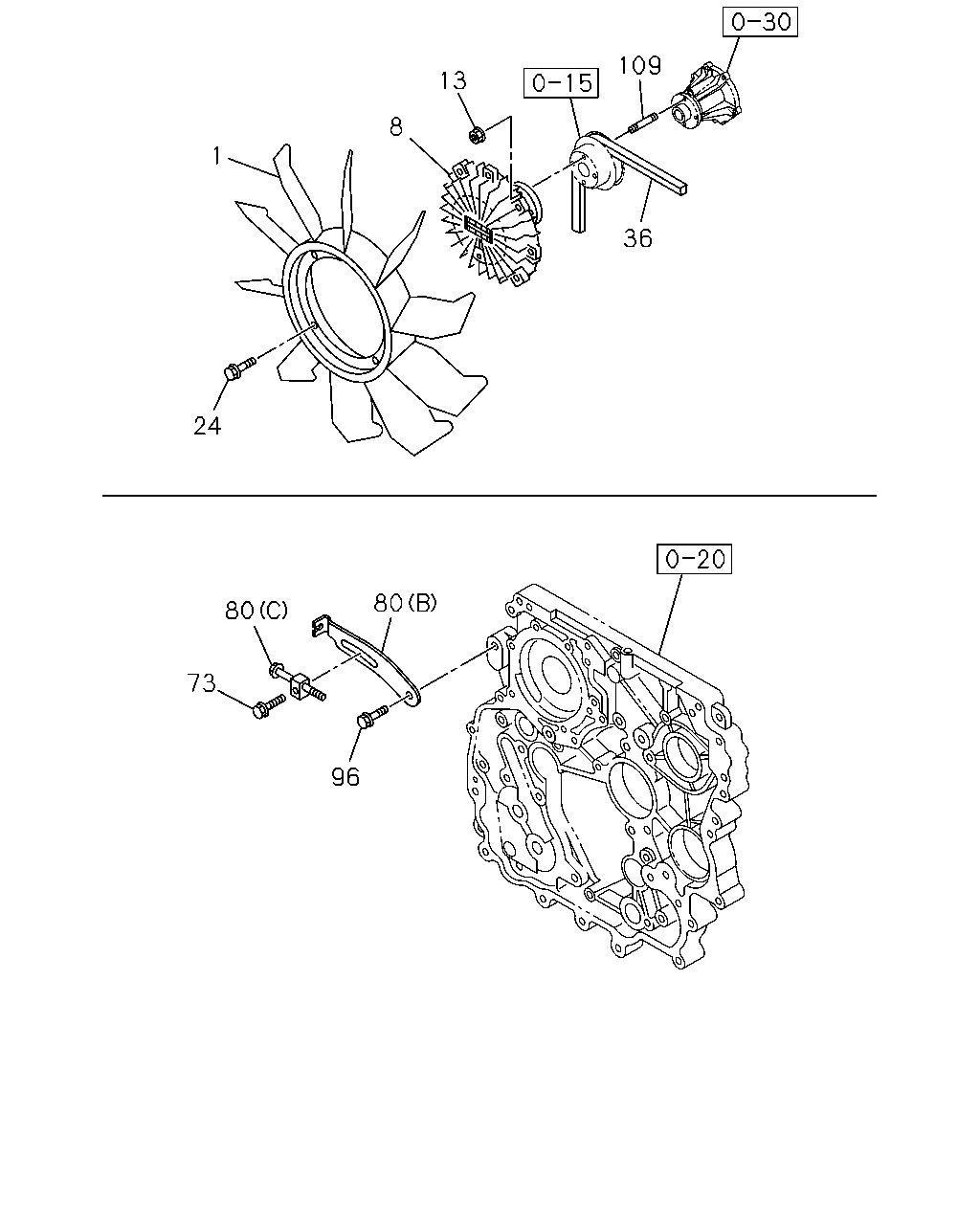

109 13 8 1 36 24 80 80 73 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING THA	8-97318-963-0	01	1	0404-0409	●	●
1	01.064 FAN; COOLING THA	8-97318-963-0	01	1	0410-0501		●
1	01.064 FAN; COOLING THA	8-97944-150-0	01	1	0410-0501			●
1	01.064 FAN; COOLING THA	8-97944-150-0	01	1	0502-0609			●	●
1	01.064 FAN; COOLING THA	8-97944-150-0	01	1	0610-			●	●	●
8	01.064 CLUTCH; COOLING FAN THA	8-97302-291-0	01	1	0404-0409	●	●
8	01.064 CLUTCH; COOLING FAN THA	8-97302-291-0	01	1	0410-0501		●
8	01.064 CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0410-0501			●
8	01.064 CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0502-0609			●	●
8	01.064 CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0610-			●	●	●
13	01.062 NUT; COOLING FAN 16.320 M6 FLANGE THA	8-97943-101-0	04	1	0410-0501			●
13	01.062 NUT; COOLING FAN 16.320 M6 FLANGE THA	8-97943-101-0	04	1	0502-0609			●	●
13	01.062 NUT; COOLING FAN 16.320 M6 FLANGE THA	8-97943-101-0	04	1	0610-0704			●	●	●
13	01.062 NUT; COOLING FAN 16.320 M6 FLANGE THA	8-98049-362-0	08	1	0705-0709			●	●	●
13	01.062 NUT; COOLING FAN 16.320 M6 FLANGE THA	8-98049-362-0	04	1	0710-			●	●	●
24	01.062 BOLT; FAN 00.685 M6X25 FLANGE THA	0-28650-625-0	04	1	0410-0501			●
24	01.062 BOLT; FAN 00.685 M6X25 FLANGE THA	0-28650-625-0	04	1	0502-0609			●	●
24	01.062 BOLT; FAN 00.685 M6X25 FLANGE THA	0-28650-625-0	04	1	0610-			●	●	●
36	01.066 BELT; COOLING FAN L=1027 THA	8-97910-219-0	01	1	0404-0501		●
36	01.066 BELT; COOLING FAN L=1025 BANDO THA	8-97943-022-0	01	1	0404-0409	●
36	01.066 BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0410-0501			●
36	01.066 BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0502-0609			●	●
36	01.066 BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0610-			●	●	●
36	01.066 BELT; COOLING FAN L=1025 MITSUBOSHI THA	8-97943-173-0	01	1	0404-0409	●
73	02.277 BOLT; GEN TO ADJ PLATE 01.060 M8X35 FLANGE THA	0-28650-835-0	01	1	0410-0501			●
73	02.277 BOLT; GEN TO ADJ PLATE 01.060 M8X35 FLANGE THA	0-28650-835-0	01	1	0502-0609			●	●
73	02.277 BOLT; GEN TO ADJ PLATE 01.060 M8X35 FLANGE THA	0-28650-835-0	01	1	0610-			●	●	●
80	02.317 PLATE; ADJ 02.277 (A) THA	8-97921-594-0	01	1	0404-0409	●	●
80	02.317 PLATE; ADJ 02.277 (A) THA	8-97921-594-0	01	1	0410-0501		●
80	02.317 PLATE; ADJ (B) THA	8-97322-592-0	01	1	0410-0501			●
80	02.317 PLATE; ADJ (B) THA	8-97322-592-0	01	1	0502-0609			●	●
80	02.317 PLATE; ADJ (B) THA	8-97322-592-1	01	1	0610-			●	●	●
80	02.317 PLATE; ADJ (C) THA	8-97944-144-0	01	1	0410-0501			●
80	02.317 PLATE; ADJ (C) THA	8-97944-144-0	01	1	0502-0609			●	●
80	02.317 PLATE; ADJ (C) THA	8-97944-144-1	01	1	0610-			●	●	●
96	02.317 BOLT; ADJ PLATE 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0404-0409	●	●
96	02.317 BOLT; ADJ PLATE 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0410-0501		●
96	02.317 BOLT; ADJ PLATE 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501			●
96	02.317 BOLT; ADJ PLATE 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0502-0609			●	●
96	02.317 BOLT; ADJ PLATE 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0610-			●	●	●
109	01.062 STUD; FAN CLU M6X18 L=27 THA	0-41010-618-0	04	1	0404-0409	●	●
109	01.062 STUD; FAN CLU M6X18 L=27 THA	0-41010-618-0	04	1	0410-0501		●
109	01.062 STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0410-0501			●
109	01.062 STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0502-0609			●	●
109	01.062 STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0610-1405			●	●	●
109	01.062 STUD; FAN CLU M6X20 L=31 THA	8-98256-636-0	04	1	1406-			●	●	●
