0-32 — WATER PIPING; ENGINE
(#73547) — 76 parça
Tümü
A - 4JA1-T ENG
B - 4JH1-T ENG
C - 4JJ1-TCS ENG
D - 4JK1-TCS ENG
E - 4JJ1-TCX ENG
◀

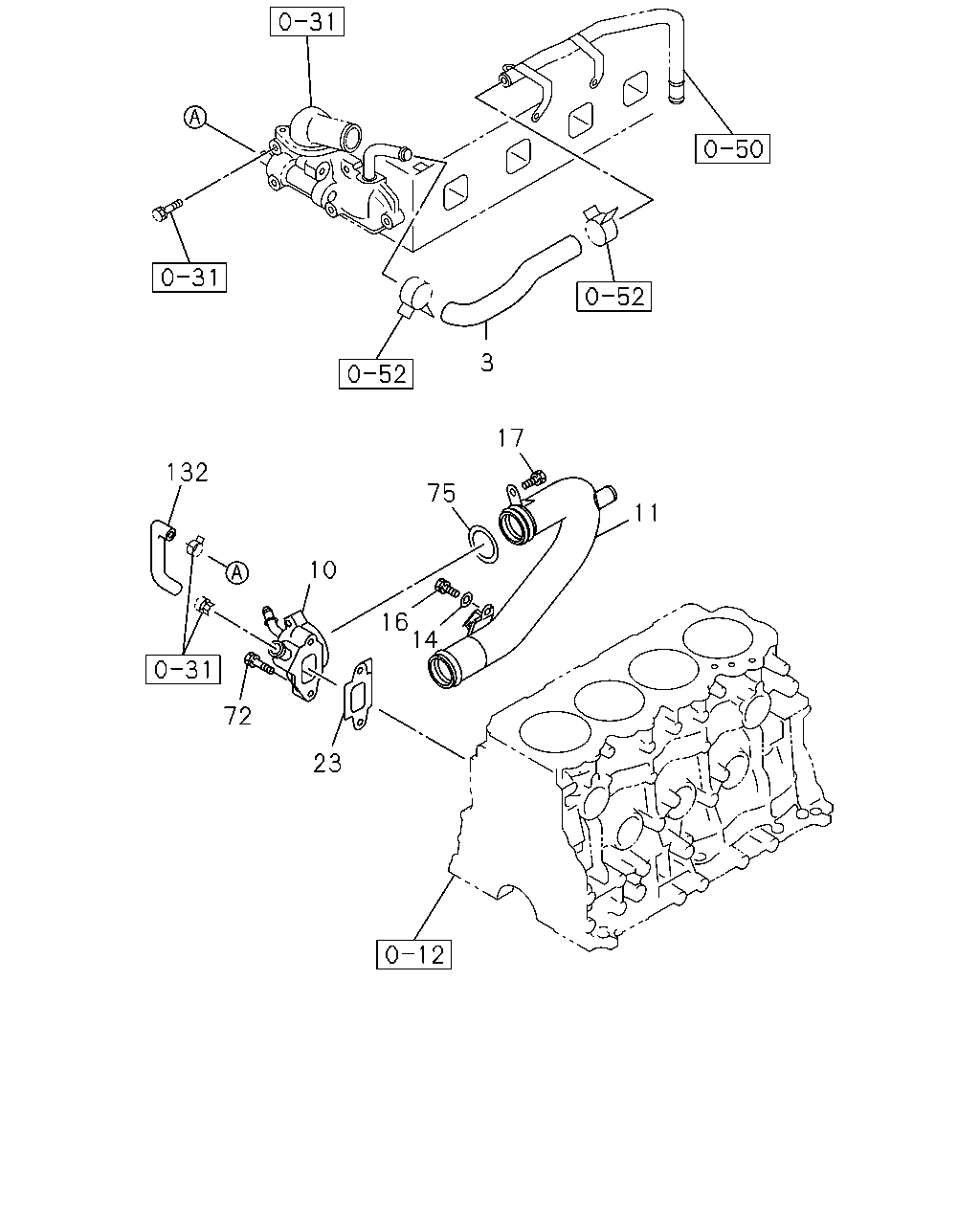

[032A] 4JA1-T,4JH1-T (25 parça)

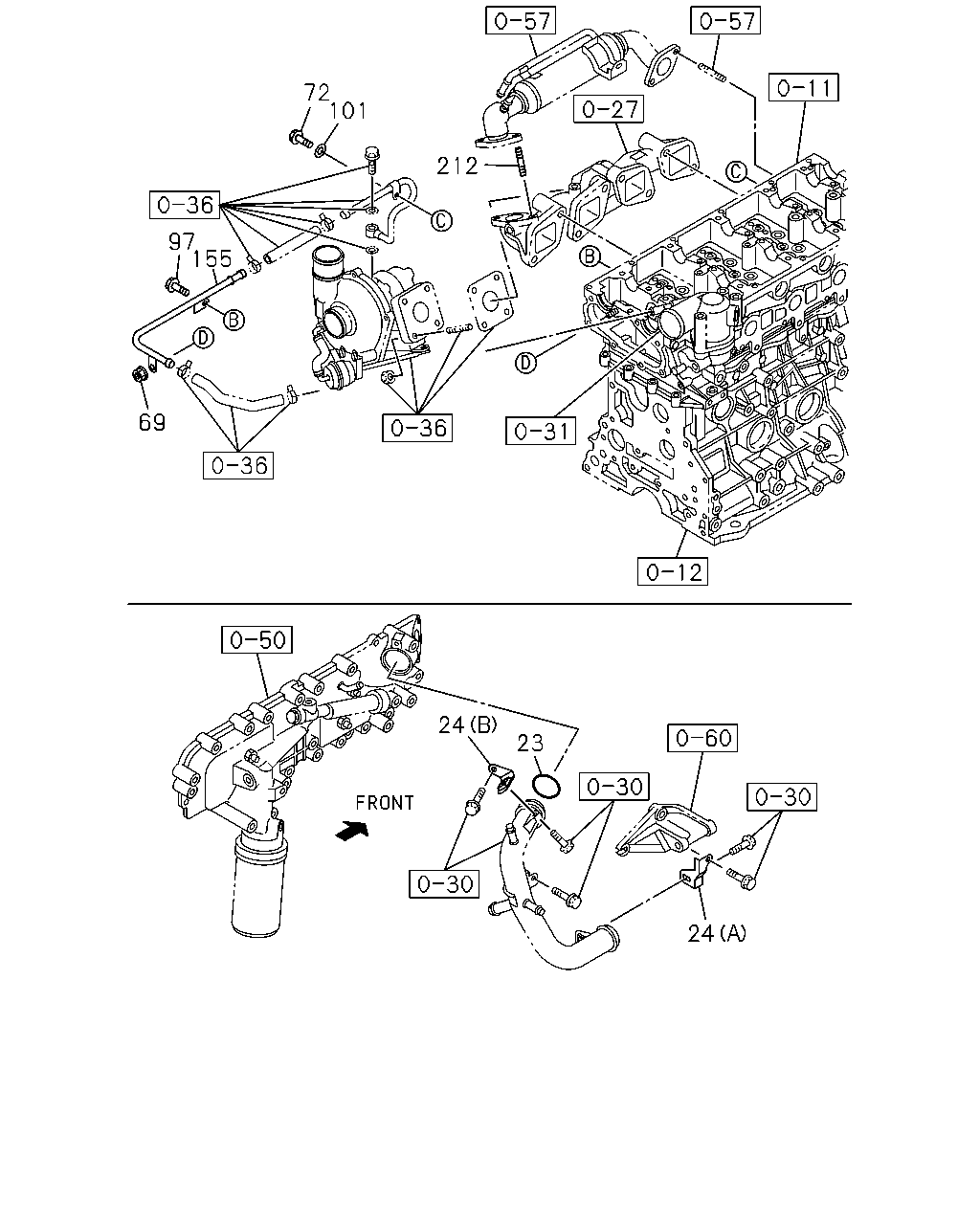

[032A] 4JJ1-TCS,4JK1 (30 parça)

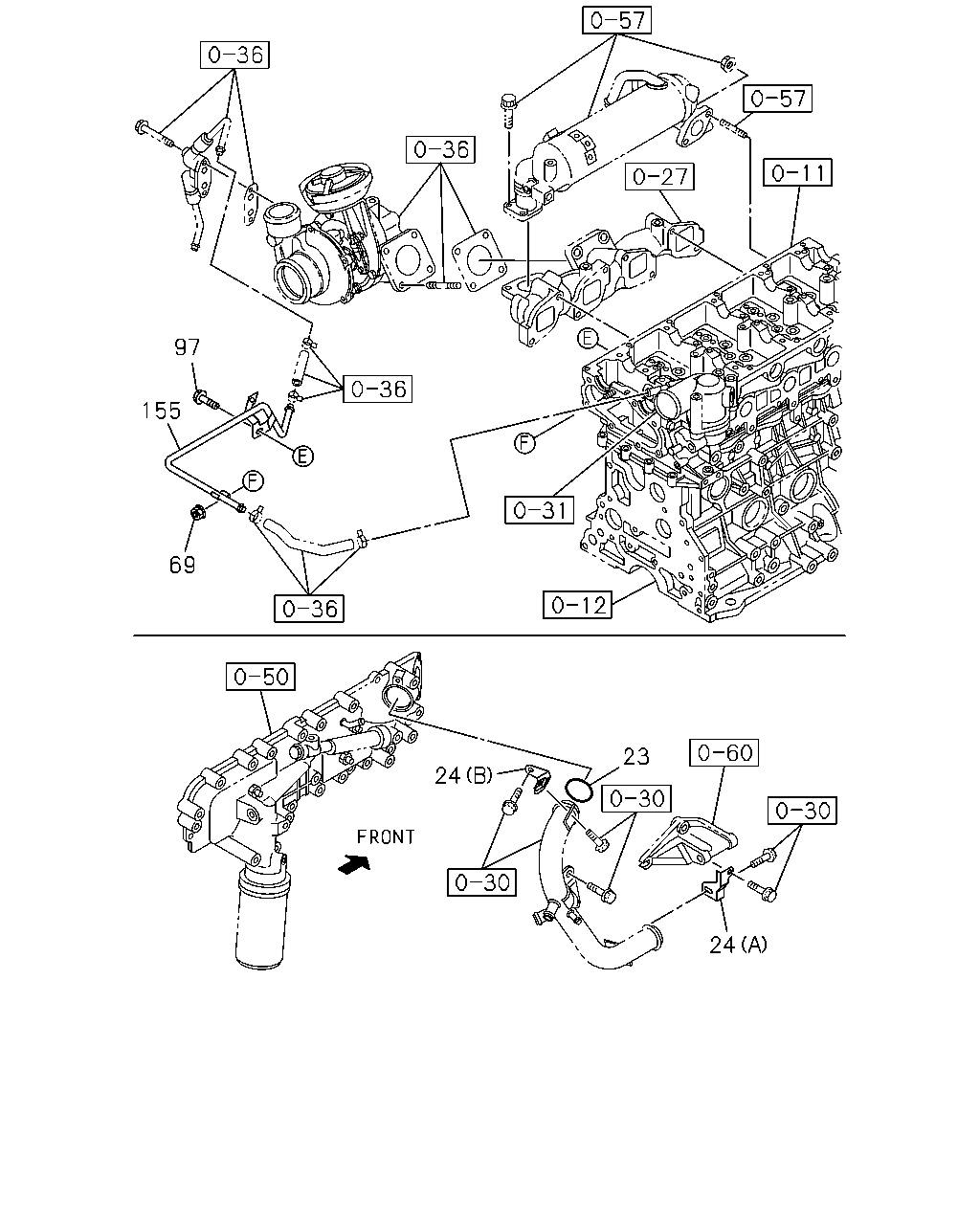

[032A] 4JJ1-TCX (21 parça)
▶
3
17
132
75
11
10
16
14
72
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
3
01.540 HOSE; WATER,OIL COOLER
THA
8-97942-765-0
01
1
0404-0501
●
3
01.540 HOSE; WATER,OIL COOLER
THA
8-97943-892-0
01
1
0404-0409
●
10
01.153 PIPE; SUCTION
THA
8-97910-590-0
01
1
0404-0501
●
10
01.153 PIPE; SUCTION
THA
8-97910-379-0
01
1
0404-0409
●
11
01.097 PIPE; INL,WATER PUMP
THA
8-97288-269-1
01
1
0404-0409
●
●
11
01.097 PIPE; INL,WATER PUMP
THA
8-97288-269-1
01
1
0410-0501
●
14
01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3
8-94174-537-0
01
1
0404-0409
●
●
14
01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3
8-94174-537-0
01
1
0410-0501
●
16
01.097 BOLT; INL PIPE
04.338 M8X20 FLANGE THA
0-28050-820-0
01
1
0404-0409
●
●
16
01.097 BOLT; INL PIPE
04.338 M8X20 FLANGE THA
0-28050-820-0
01
1
0410-0501
●
17
01.153 BOLT; SUCTION PIPE
04.338 M8X20 FLANGE THA
0-28050-820-0
01
1
0404-0409
●
●
17
01.153 BOLT; SUCTION PIPE
04.338 M8X20 FLANGE THA
0-28050-820-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0404-0409
●
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0502-0609
●
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0610-
●
●
●
72
00.206 BOLT; WATER PIPE
M8X50 W/LK WASHER THA
0-50540-850-0
02
1
0404-0409
●
●
72
00.206 BOLT; WATER PIPE
M8X50 W/LK WASHER THA
0-50540-850-0
02
1
0410-0501
●
72
00.206 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0410-0501
●
72
00.206 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0502-0609
●
●
75
01.097 GASKET; INL PIPE TO WATER PUMP
ID=35.2
9-09565-335-0
01
1
0404-0409
●
●
75
01.097 GASKET; INL PIPE TO WATER PUMP
ID=35.2
9-09565-335-0
01
1
0410-0501
●
132
01.153 HOSE; WATER PIPE
THA
8-97910-064-0
01
1
0404-0501
●
132
01.153 HOSE; WATER PIPE
THA
8-97910-065-0
01
1
0404-0409
●
72
101
212
97
155
69
24
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0404-0409
●
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0502-0609
●
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0610-
●
●
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-97375-053-1
01
1
0410-0501
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-97375-053-2
01
1
0502-1007
●
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-97375-053-2
01
1
1008-
●
●
●
24
01.166 BRACKET; WATER PIPE
(B) THA
8-97377-505-0
01
1
0410-0501
●
24
01.166 BRACKET; WATER PIPE
(B) THA
8-97377-505-0
01
1
0502-0609
●
●
24
01.166 BRACKET; WATER PIPE
(B) THA
8-97377-505-1
01
1
0610-
●
●
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-98039-450-0
01
1
0610-1007
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE THA
0-91180-206-0
01
1
0410-0501
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE THA
0-91180-206-0
01
1
0502-0609
●
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE THA
0-91180-206-0
01
1
0610-
●
●
●
72
00.206 BOLT; WATER PIPE
M8X50 W/LK WASHER THA
0-50540-850-0
02
1
0404-0409
●
●
72
00.206 BOLT; WATER PIPE
M8X50 W/LK WASHER THA
0-50540-850-0
02
1
0410-0501
●
72
00.206 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0410-0501
●
72
00.206 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0502-0609
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0410-0501
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0502-0609
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0610-
●
●
●
101
01.251 WASHER; PL,WATER PIPE
00.413 ID=6.4 THA
0-91610-606-0
01
1
0410-0501
●
101
01.251 WASHER; PL,WATER PIPE
00.413 ID=6.4 THA
0-91610-606-0
01
1
0502-0609
●
●
155
01.153 PIPE ASM; WATER
THA
8-97312-072-2
01
1
0410-0501
●
155
01.153 PIPE ASM; WATER
THA
8-97312-072-2
01
1
0502-0609
●
●
155
01.153 PIPE ASM; WATER
THA
8-98011-508-1
01
1
0610-
●
●
●
212
01.153 STUD; PIPE
03.342 M8X22 L=33
8-94257-319-0
03
1
0410-0501
●
212
01.153 STUD; PIPE
03.342 M8X22 L=33
8-94257-319-0
03
1
0502-0709
●
●
212
01.153 STUD; PIPE
03.601 M8X25 L=36 THA
8-97378-062-0
02
1
0610-0709
●
97
155
69
23
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0404-0409
●
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0410-0501
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0502-0609
●
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0610-
●
●
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-97375-053-1
01
1
0410-0501
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-97375-053-2
01
1
0502-1007
●
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-97375-053-2
01
1
1008-
●
●
●
24
01.166 BRACKET; WATER PIPE
(B) THA
8-97377-505-0
01
1
0410-0501
●
24
01.166 BRACKET; WATER PIPE
(B) THA
8-97377-505-0
01
1
0502-0609
●
●
24
01.166 BRACKET; WATER PIPE
(B) THA
8-97377-505-1
01
1
0610-
●
●
●
24
01.166 BRACKET; WATER PIPE
(A) THA
8-98039-450-0
01
1
0610-1007
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE THA
0-91180-206-0
01
1
0410-0501
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE THA
0-91180-206-0
01
1
0502-0609
●
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE THA
0-91180-206-0
01
1
0610-
●
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0410-0501
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0502-0609
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE THA
0-28050-612-0
01
1
0610-
●
●
●
155
01.153 PIPE ASM; WATER
THA
8-97312-072-2
01
1
0410-0501
●
155
01.153 PIPE ASM; WATER
THA
8-97312-072-2
01
1
0502-0609
●
●
155
01.153 PIPE ASM; WATER
THA
8-98011-508-1
01
1
0610-
●
●
●
