0-31 — THERMOSTAT AND HOUSING (#73546) — 73 parça

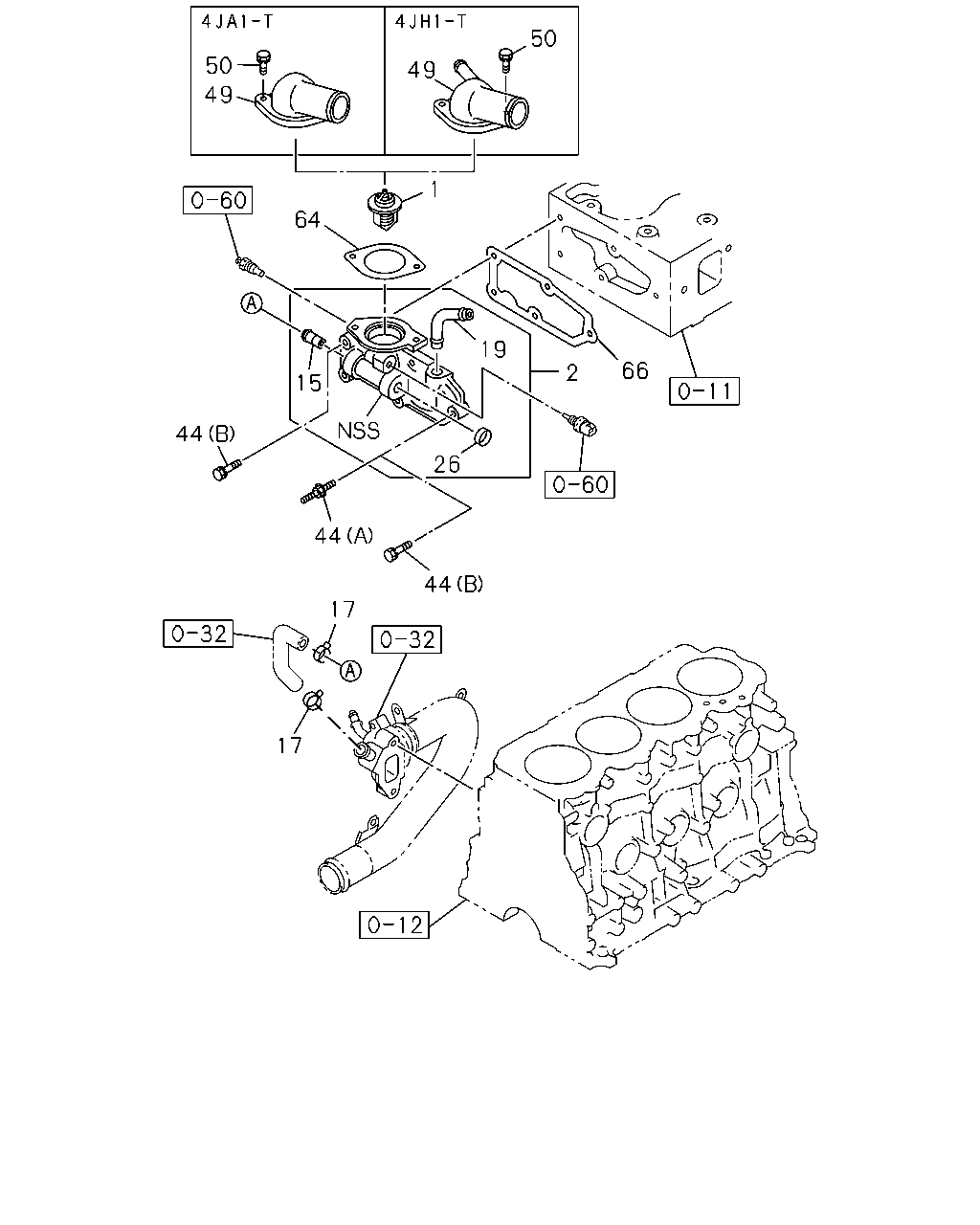

50 50 49 49 1 64 19 66 2 15 44 26 44 44 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0404-0409	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0410-0501		●
1	01.246 THERMOSTAT 85 CELSIUS	8-97312-158-0	01	1	0410-0501			●
1	01.246 THERMOSTAT 85 CELSIUS	8-97312-158-0	01	1	0502-0609			●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0610-			●	●	●
2	01.251 HOUSING; THERMOSTAT THA	8-97916-700-0	01	1	0404-0501		●
2	01.251 HOUSING; THERMOSTAT THA	8-97920-061-0	01	1	0404-0409	●
15	01.251 PIPE; BYPASS THA	8-97910-083-0	01	1	0404-0409	●	●
15	01.251 PIPE; BYPASS THA	8-97910-083-0	01	1	0410-0501		●
15	01.251 PIPE; BYPASS	8-97318-732-1	01	1	0410-0501			●
15	01.251 PIPE; BYPASS	8-97318-732-1	01	1	0502-0609			●	●
15	01.251 PIPE; BYPASS THA	8-97318-732-2	01	1	0610-			●	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0404-0409	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0410-0501		●
19	01.252 PIPE; HSG TO HTR THA	8-97910-082-0	01	1	0404-0409	●	●
19	01.252 PIPE; HSG TO HTR THA	8-97910-082-0	01	1	0410-0501		●
26	01.251 CUP; SEALING,VLV,VENTILATION 00.253 OD=18	5-11219-008-0	01	1	0404-0409	●	●
26	01.251 CUP; SEALING,VLV,VENTILATION 00.253 OD=18	5-11219-008-0	01	1	0410-0501		●
44	01.252 BOLT; HSG TO HD 4X2<TFB***> POWER STEERING<N40> 09.171 (B) M8X30 W/LK WASHER	0-50540-830-0	04	1	0404-0409	●	●
44	01.252 BOLT; HSG TO HD 4X2<TFB***> POWER STEERING<N40> 09.171 (B) M8X30 W/LK WASHER	0-50540-830-0	04	1	0410-0501		●
44	01.252 BOLT; HSG TO HD 4X2<TFB***> POWER STEERING<N40> (A) M8X28,M8X34 L=69	8-94479-011-1	01	1	0404-0409	●	●
44	01.252 BOLT; HSG TO HD 4X2<TFB***> POWER STEERING<N40> (A) M8X28,M8X34 L=69	8-94479-011-1	01	1	0410-0501		●
44	01.252 BOLT; HSG TO HD 4X2<TFB***> EXC. POWER STEERING<N40> 09.171 (B) M8X30 W/LK WASHER	0-50540-830-0	05	1	0404-0409	●	●
44	01.252 BOLT; HSG TO HD 4X2<TFB***> EXC. POWER STEERING<N40> 09.171 (B) M8X30 W/LK WASHER	0-50540-830-0	05	1	0410-0501		●
49	01.153 PIPE; WATER OUTLET THA	8-97288-271-2	01	1	0404-0501		●
49	01.153 PIPE; WATER OUTLET THA	8-97306-461-2	01	1	0404-0409	●
49	01.153 PIPE; WATER OUTLET THA	8-97355-456-4	01	1	0410-0501			●
49	01.153 PIPE; WATER OUTLET THA	8-97355-456-5	01	1	0502-0609			●	●
49	01.153 PIPE; WATER OUTLET THA	8-97355-456-7	01	1	0610-0809			●	●	●
49	01.153 PIPE; WATER OUTLET THA	8-98120-945-0	01	1	0810-			●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER THA	0-50640-830-0	02	1	0404-0409	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER THA	0-50640-830-0	02	1	0410-0501		●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	0410-0501			●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	0502-0609			●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	0610-			●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG THA	8-97943-088-0	01	1	0404-0409	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG THA	8-97943-088-0	01	1	0410-0501		●
66	01.252 GASKET; THERMOSTAT HSG	8-98114-587-0	01	1	0809-			●	●	●
66	01.252 GASKET; THERMOSTAT HSG THA	8-97920-513-1	01	1	0404-0409	●	●
66	01.252 GASKET; THERMOSTAT HSG THA	8-97920-513-1	01	1	0410-0501		●

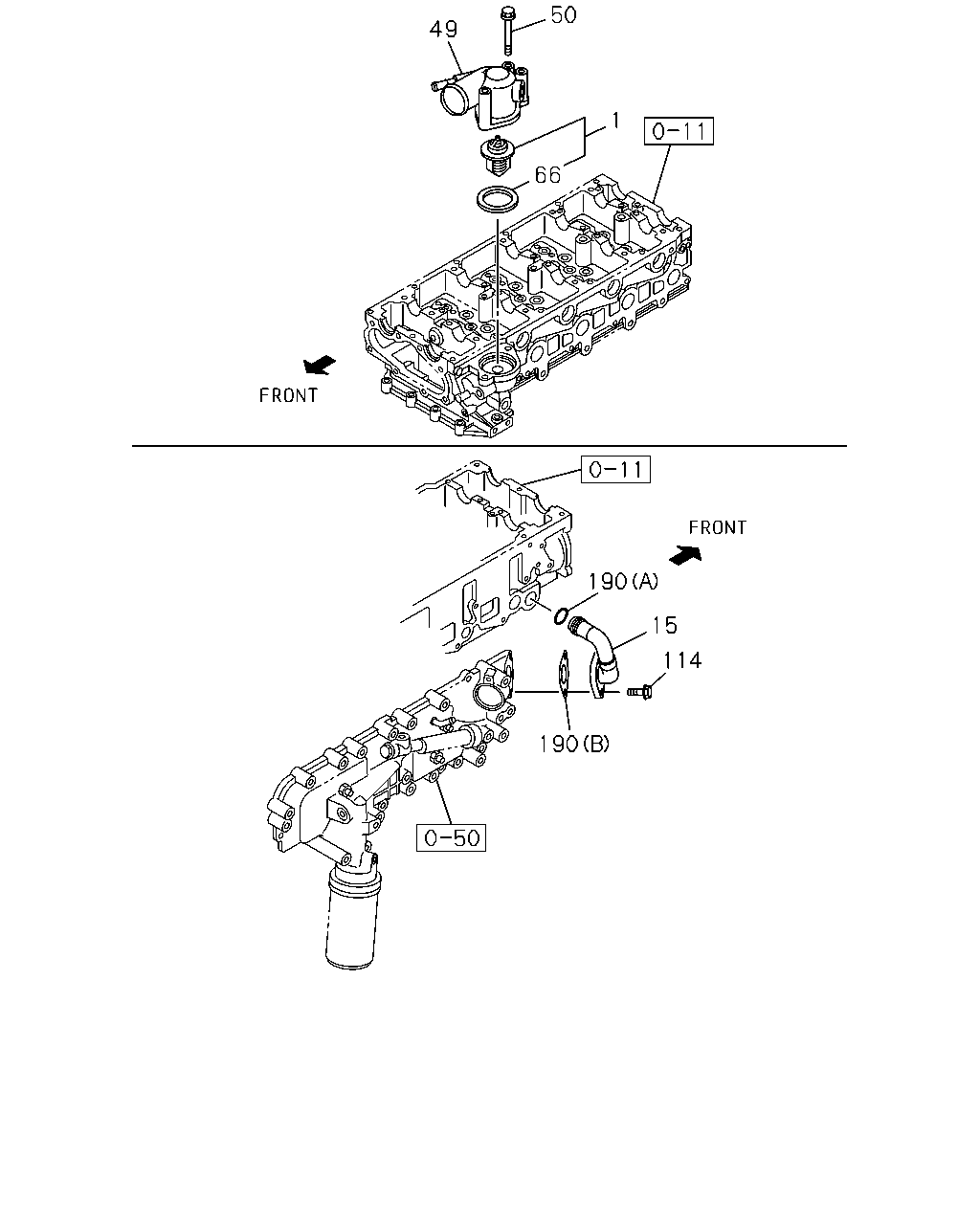

50 49 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0404-0409	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0410-0501		●
1	01.246 THERMOSTAT 85 CELSIUS	8-97312-158-0	01	1	0410-0501			●
1	01.246 THERMOSTAT 85 CELSIUS	8-97312-158-0	01	1	0502-0609			●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0610-			●	●	●
15	01.251 PIPE; BYPASS THA	8-97910-083-0	01	1	0404-0409	●	●
15	01.251 PIPE; BYPASS THA	8-97910-083-0	01	1	0410-0501		●
15	01.251 PIPE; BYPASS	8-97318-732-1	01	1	0410-0501			●
15	01.251 PIPE; BYPASS	8-97318-732-1	01	1	0502-0609			●	●
15	01.251 PIPE; BYPASS THA	8-97318-732-2	01	1	0610-			●	●	●
49	01.153 PIPE; WATER OUTLET THA	8-97288-271-2	01	1	0404-0501		●
49	01.153 PIPE; WATER OUTLET THA	8-97306-461-2	01	1	0404-0409	●
49	01.153 PIPE; WATER OUTLET THA	8-97355-456-4	01	1	0410-0501			●
49	01.153 PIPE; WATER OUTLET THA	8-97355-456-5	01	1	0502-0609			●	●
49	01.153 PIPE; WATER OUTLET THA	8-97355-456-7	01	1	0610-0809			●	●	●
49	01.153 PIPE; WATER OUTLET THA	8-98120-945-0	01	1	0810-			●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER THA	0-50640-830-0	02	1	0404-0409	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER THA	0-50640-830-0	02	1	0410-0501		●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	0410-0501			●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	0502-0609			●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	0610-			●	●	●
66	01.252 GASKET; THERMOSTAT HSG	8-98114-587-0	01	1	0809-			●	●	●
66	01.252 GASKET; THERMOSTAT HSG THA	8-97920-513-1	01	1	0404-0409	●	●
66	01.252 GASKET; THERMOSTAT HSG THA	8-97920-513-1	01	1	0410-0501		●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0410-0501			●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0502-0609			●	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE THA	0-28650-825-0	02	1	0610-			●	●	●
190	01.159 GASKET; BYPASS PIPE (A) THA	0-95690-226-0	01	1	0410-0501			●
190	01.159 GASKET; BYPASS PIPE (A) THA	0-95690-226-0	01	1	0502-0609			●	●
190	01.159 GASKET; BYPASS PIPE (A) THA	0-95690-226-0	01	1	0610-			●	●	●
190	01.159 GASKET; BYPASS PIPE (B) THA	8-97318-494-2	01	1	0410-0501			●
190	01.159 GASKET; BYPASS PIPE (B) THA	8-97318-494-2	01	1	0502-0609			●	●
190	01.159 GASKET; BYPASS PIPE (B) THA	8-97318-494-2	01	1	0610-			●	●	●
