0-25 — INLET MANIFOLD (#73542) — 178 parça

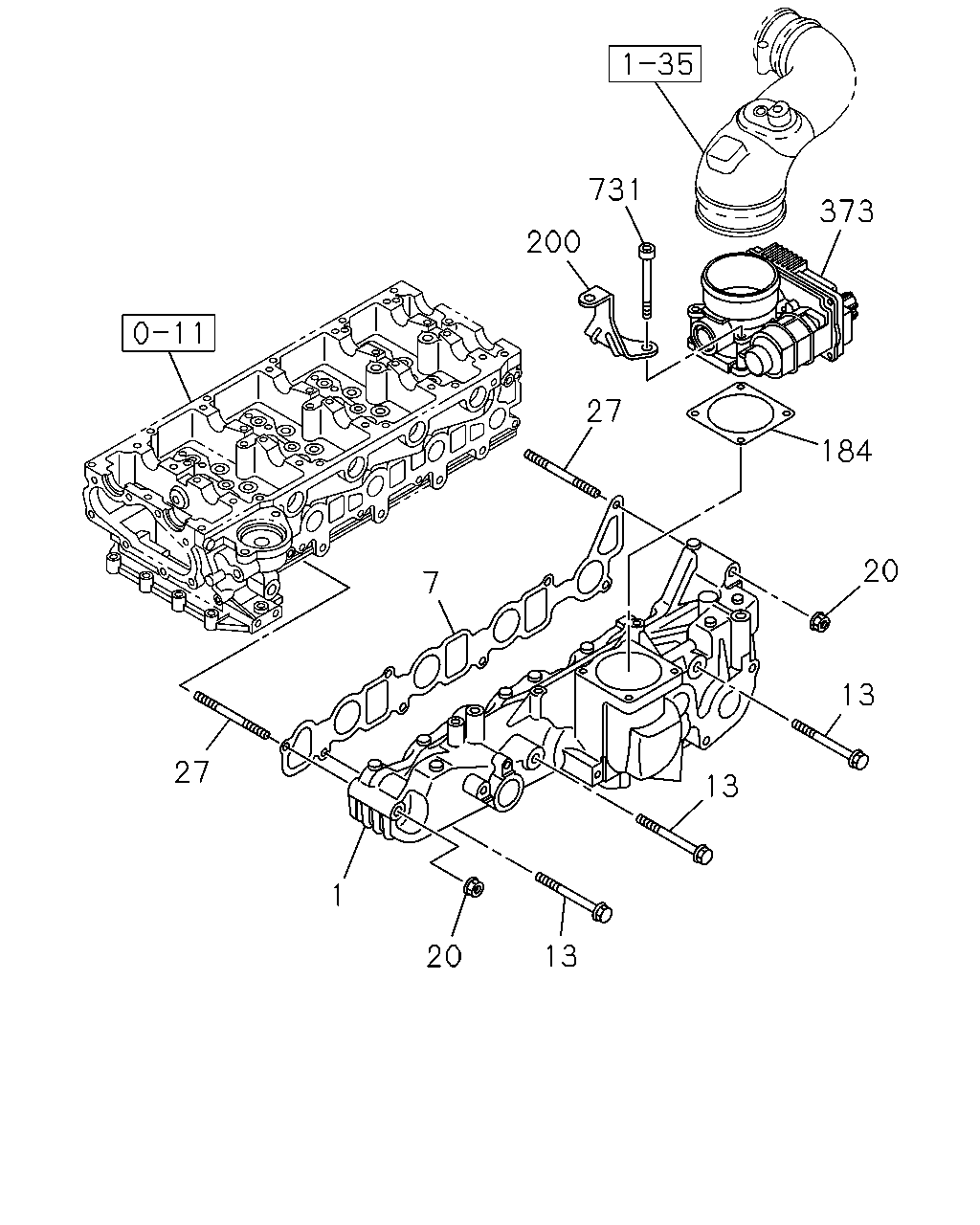

731 373 200 27 184 20 7 13 27 13 1 13 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL THA	8-97253-952-0	01	1	0404-0501	●
1	03.265 MANIFOLD; INL THA	8-97287-499-0	01	1	0404-0409		●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0410-0501			●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0502-			●	●
1	03.265 MANIFOLD; INL THA	8-98011-521-0	01	1	0610-					●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0404-0409	●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0410-0501	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0410-0501			●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0502-0609			●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-1	01	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0410-0501	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0410-0501	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0610-			●	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0404-0409	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0410-0501	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0410-0501			●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0502-0609			●	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0610-			●	●	●
184	03.275 GASKET; T/V THA	8-97942-730-0	02	1	0404-0409		●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0410-0501			●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0502-0609			●	●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0610-			●	●	●
200	03.407 BRACKET; AIR DUCT THA	8-98031-444-0	01	1	0610-					●
373	03.265 THROTTLE ASM; INT THA	8-97370-833-2	01	1	0410-0501			●
373	03.265 THROTTLE ASM; INT THA	8-97370-833-2	01	1	0502-0509			●	●
373	03.265 THROTTLE ASM; INT THA	8-97945-347-0	01	1	0510-0609			●	●
373	03.265 THROTTLE ASM; INT THA	8-97945-522-4	01	1	0610-			●	●	●
731	02.559 BOLT; THROTTLE ASM 04.686 M8X60 FLANGE THA	0-28050-860-0	02	1	0404-0409		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0410-0501			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0502-0609			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0610-			●	●	●

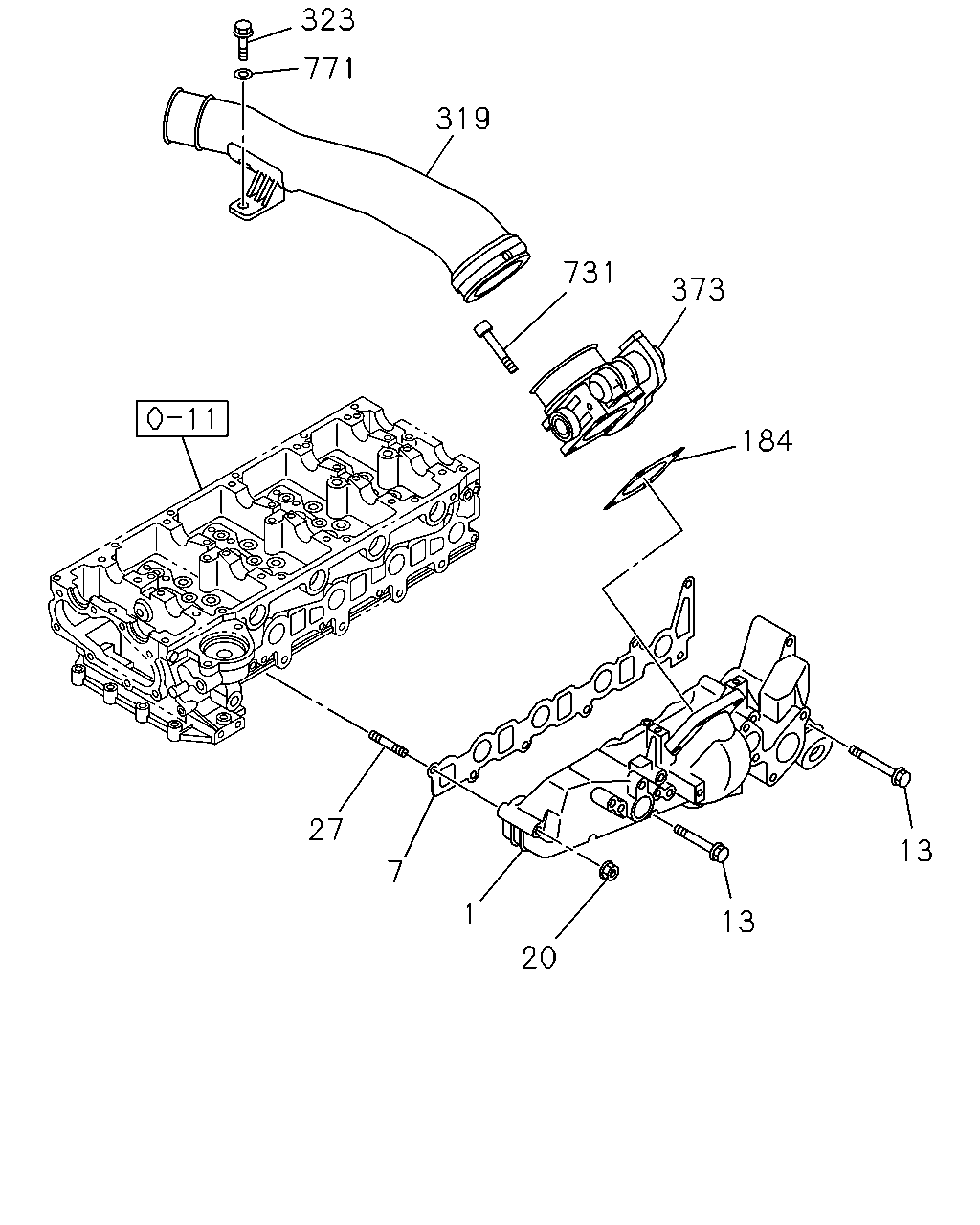

323 771 319 731 373 184 27 13 7 1 13 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL THA	8-97253-952-0	01	1	0404-0501	●
1	03.265 MANIFOLD; INL THA	8-97287-499-0	01	1	0404-0409		●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0410-0501			●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0502-			●	●
1	03.265 MANIFOLD; INL THA	8-98011-521-0	01	1	0610-					●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0404-0409	●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0410-0501	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0410-0501			●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0502-0609			●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-1	01	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0410-0501	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0410-0501	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0610-			●	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0404-0409	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0410-0501	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0410-0501			●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0502-0609			●	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0610-			●	●	●
184	03.275 GASKET; T/V THA	8-97942-730-0	02	1	0404-0409		●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0410-0501			●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0502-0609			●	●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0610-			●	●	●
319	03.341 DUCT; INL,TURBOCHARGER THA	8-97356-891-2	01	1	0410-0501			●
319	03.341 DUCT; INL,TURBOCHARGER THA	8-97356-891-2	01	1	0502-0602			●	●
319	03.341 DUCT; INL,TURBOCHARGER THA	8-97945-196-0	01	1	0603-1111			●	●
319	03.341 DUCT; INL,TURBOCHARGER THA	8-98209-860-0	01	1	1112-			●	●
323	03.275 BOLT; DUCT 04.338 M8X20 FLANGE THA	0-28050-820-0	02	1	0410-0501			●
323	03.275 BOLT; DUCT 04.338 M8X20 FLANGE THA	0-28050-820-0	02	1	0502-			●	●
373	03.265 THROTTLE ASM; INT THA	8-97370-833-2	01	1	0410-0501			●
373	03.265 THROTTLE ASM; INT THA	8-97370-833-2	01	1	0502-0509			●	●
373	03.265 THROTTLE ASM; INT THA	8-97945-347-0	01	1	0510-0609			●	●
373	03.265 THROTTLE ASM; INT THA	8-97945-522-4	01	1	0610-			●	●	●
731	02.559 BOLT; THROTTLE ASM 04.686 M8X60 FLANGE THA	0-28050-860-0	02	1	0404-0409		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0410-0501			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0502-0609			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0610-			●	●	●
771	03.417 WASHER; DUCT ID=8.4 OD=16 THA	0-91610-508-0	02	1	0410-0501			●
771	03.417 WASHER; DUCT ID=8.4 OD=16 THA	0-91610-508-0	02	1	0502-			●	●

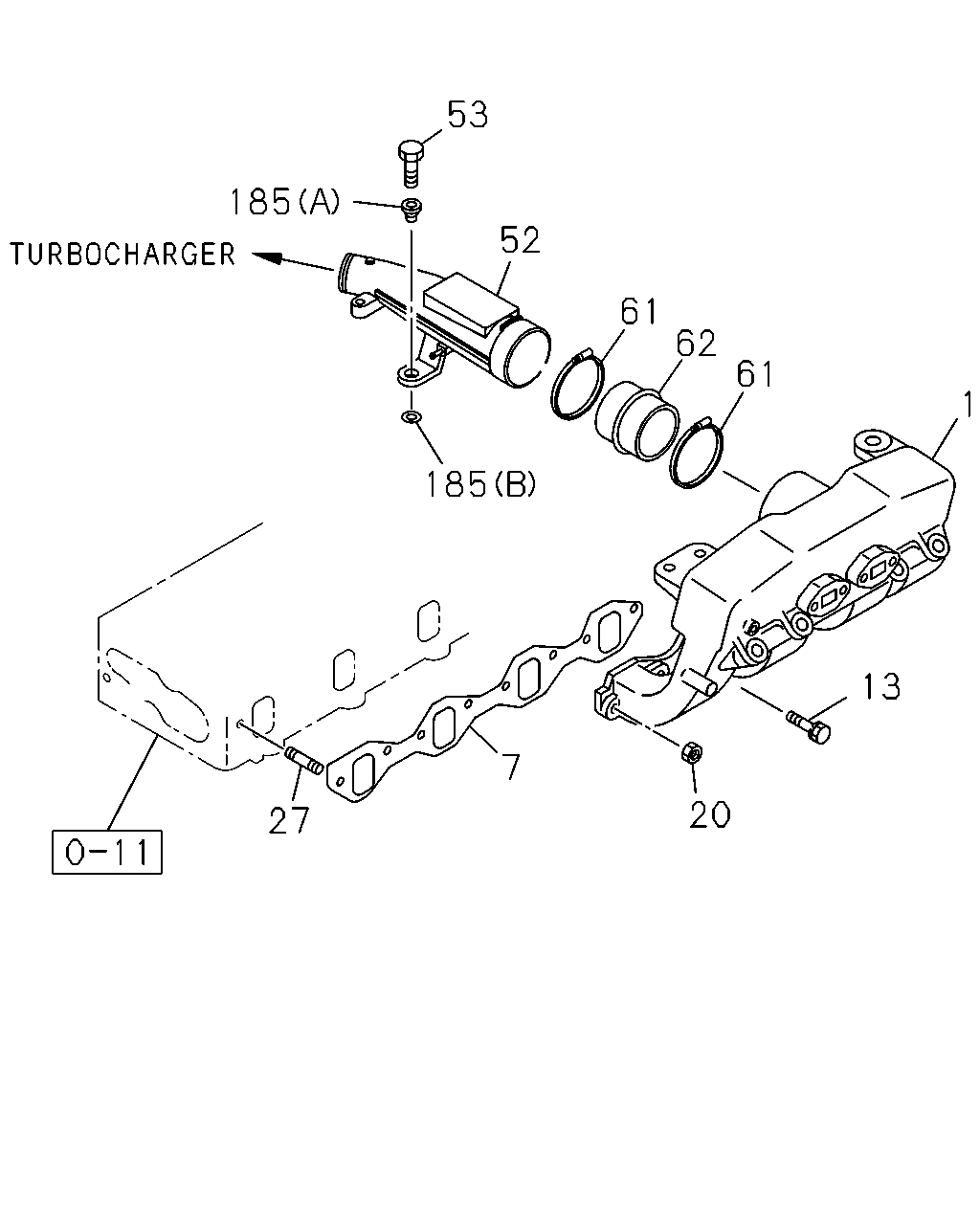

53 185 52 61 62 61 1 185 13 7 20 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL THA	8-97253-952-0	01	1	0404-0501	●
1	03.265 MANIFOLD; INL THA	8-97287-499-0	01	1	0404-0409		●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0410-0501			●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0502-			●	●
1	03.265 MANIFOLD; INL THA	8-98011-521-0	01	1	0610-					●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0404-0409	●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0410-0501	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0410-0501			●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0502-0609			●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-1	01	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0410-0501	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0410-0501	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0610-			●	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0404-0409	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0410-0501	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0410-0501			●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0502-0609			●	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0610-			●	●	●
52	01.097 PIPE; INL THA	8-97942-925-0	01	1	0404-0501	●
52	01.097 PIPE; INL THA	8-97942-926-0	01	1	0404-0409		●
53	03.602 BOLT; INL PIPE 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0404-0501	●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	0404-0501	●
62	03.265 HOSE; CONNECTOR	8-97137-018-1	01	1	0404-0405	●
62	03.265 HOSE; CONNECTOR	8-94386-164-1	01	1	0406-0501	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A) THA	8-97910-200-0	02	1	0404-0501	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B) ID=12 OD=24 T=4.5 THA	8-97912-693-1	02	1	0404-0501	●

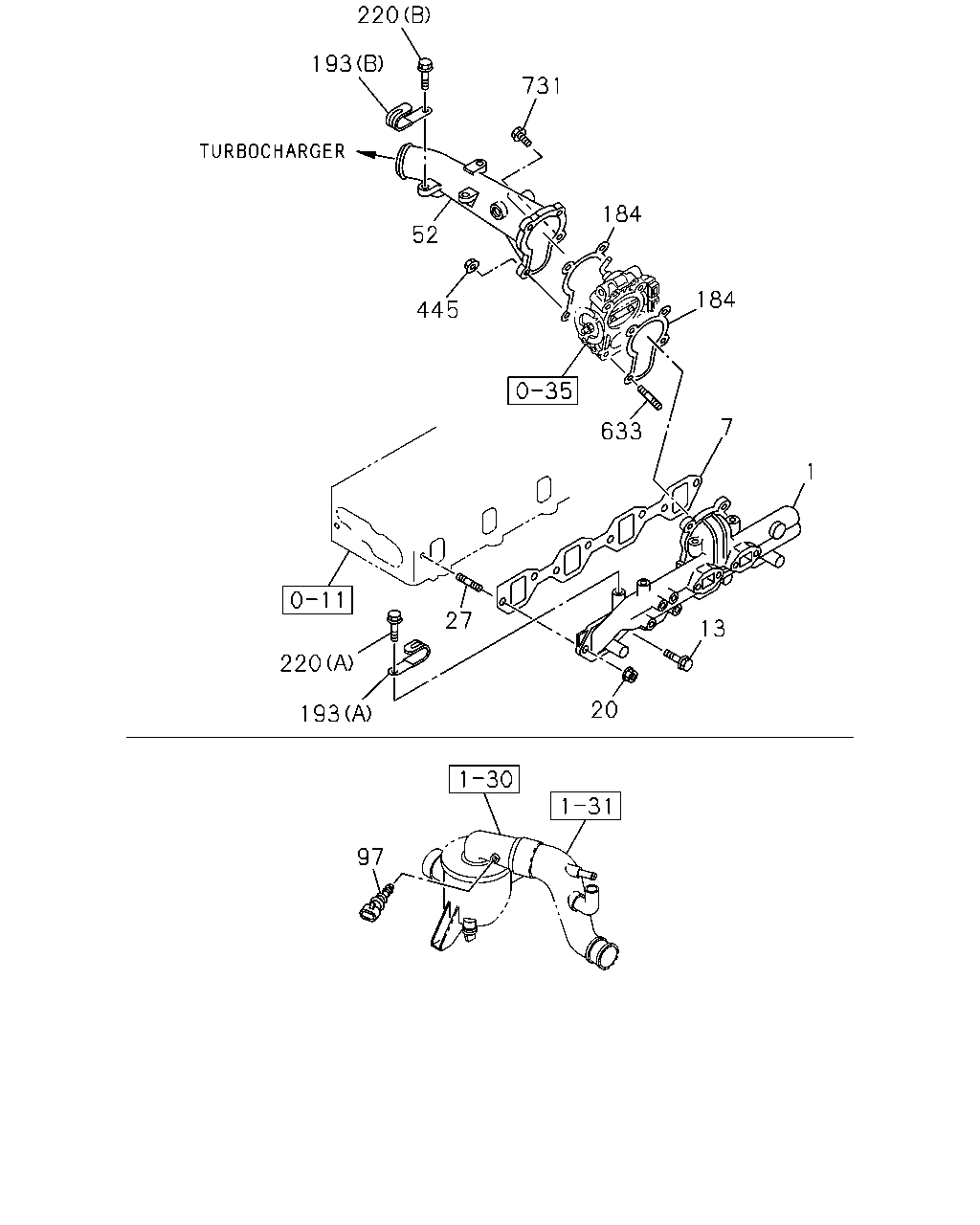

220 193 731 184 52 184 445 7 633 1 27 13 220 20 193 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL THA	8-97253-952-0	01	1	0404-0501	●
1	03.265 MANIFOLD; INL THA	8-97287-499-0	01	1	0404-0409		●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0410-0501			●
1	03.265 MANIFOLD; INL THA	8-97312-063-5	01	1	0502-			●	●
1	03.265 MANIFOLD; INL THA	8-98011-521-0	01	1	0610-					●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0404-0409	●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97920-514-1	01	1	0410-0501	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0410-0501			●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-0	01	1	0502-0609			●	●
7	03.270 GASKET; INL MANIF TO HD THA	8-97312-067-1	01	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF M8X25 FLANGE THA	0-28050-825-0	04	1	0410-0501	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0404-0409	●	●
13	03.275 BOLT; INL MANIF 00.206 M8X30 FLANGE THA	0-28050-830-0	02	1	0410-0501	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X110 FLANGE THA	0-28055-811-0	02	1	0610-			●	●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0410-0501			●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0502-0609			●	●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	0610-			●	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0404-0409	●	●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE THA	8-97943-102-0	02	1	0410-0501	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0404-0409	●	●
27	03.275 STUD; INL MANIF M8X25 L=37 THA	0-41010-825-0	02	1	0410-0501	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0410-0501			●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0502-0609			●	●
27	03.275 STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	0610-			●	●	●
52	01.097 PIPE; INL THA	8-97942-925-0	01	1	0404-0501	●
52	01.097 PIPE; INL THA	8-97942-926-0	01	1	0404-0409		●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE	8-12160-244-0	01	1	0404-0409		●
184	03.275 GASKET; T/V THA	8-97942-730-0	02	1	0404-0409		●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0410-0501			●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0502-0609			●	●
184	03.275 GASKET; T/V THA	8-97366-784-1	01	1	0610-			●	●	●
193	03.265 CLIP; VAC HOSE 01.152 (B) ID=18 L=44 THA	8-94225-185-0	01	1	0404-0409		●
193	03.265 CLIP; VAC HOSE 02.559 (A) ID=8.5 THA	8-97912-612-0	01	1	0404-0409		●
220	03.407 BOLT; CLIP,RUBBER HOSE 03.671 (A) M6X10 FLANGE THA	0-28050-610-0	01	1	0404-0409		●
220	03.407 BOLT; CLIP,RUBBER HOSE (B) M8X10 FLANGE THA	0-28050-810-0	01	1	0404-0409		●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0404-0409		●
633	03.275 STUD; THROTTLE BODY M8X55 L=71 THA	0-40210-855-0	02	1	0404-0409		●
731	02.559 BOLT; THROTTLE ASM 04.686 M8X60 FLANGE THA	0-28050-860-0	02	1	0404-0409		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0410-0501			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0502-0609			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
