◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#73541) — 107 parça

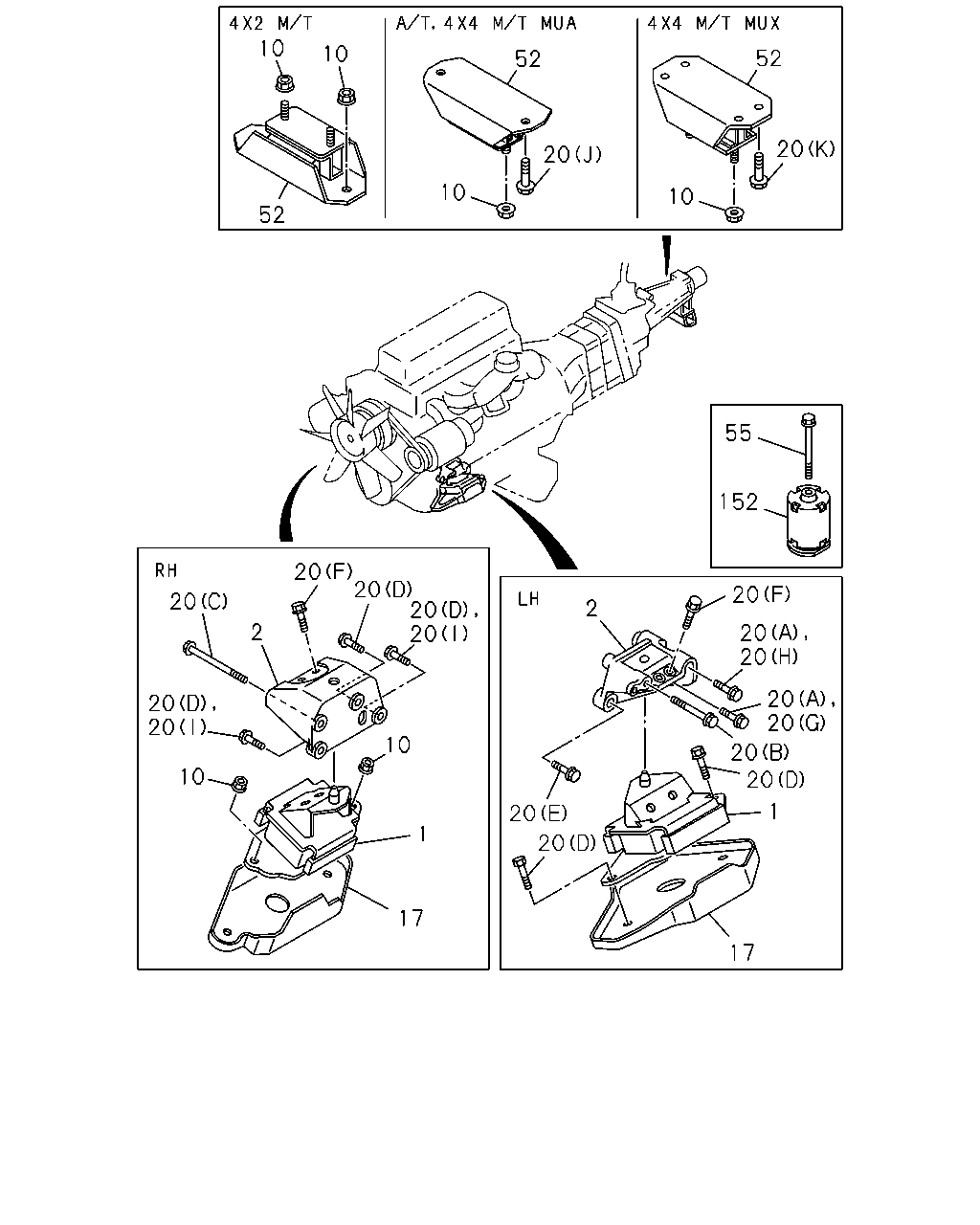

çizim 117912
10 10 52 52 20 20 10 10 52 55 152 20 20 20 20 20 20 2 2 20 20 20 20 20 20 10 20 20 10 1 20 1 20 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0404-0409 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0410-0501 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0502-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0610- ● ● ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97367-272-0 01 1 0404-0409 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97367-272-0 01 1 0410-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0410-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0502-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0610- ● ● ●
2 00.029 FOOT; ENG
THA 		8-97308-036-2 01 1 0404-0409 ● ●
2 00.029 FOOT; ENG
THA 		8-97308-036-2 01 1 0410-0501 ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0404-0409 ● ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0410-0501 ●
2 00.029 FOOT; ENG
THA 		8-97355-478-1 01 1 0410-0501 ●
2 00.029 FOOT; ENG
THA 		8-97355-478-1 01 1 0502-0609 ● ●
2 00.029 FOOT; ENG
THA 		8-97355-478-1 01 1 0610- ● ● ●
2 00.029 FOOT; ENG
THA 		8-97355-476-0 01 1 0410-0501 ●
2 00.029 FOOT; ENG
THA 		8-97355-476-0 01 1 0502-0609 ● ●
2 00.029 FOOT; ENG
THA 		8-97355-476-0 01 1 0610- ● ● ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0404-0409 ● ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0404-0409 ● ●
10 04.085 NUT; MTG RUBBER
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0404-0409 ● ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0410-0501 ● ●
10 04.085 NUT; MTG RUBBER
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0410-0501 ● ●
10 04.085 NUT; MTG RUBBER
4X2<TFB***> M10 FLANGE THA 		0-91180-210-0 02 1 0410-0501 ●
10 04.085 NUT; MTG RUBBER
SINGLE CAB<TF**S*> M10 FLANGE THA 		0-91180-210-0 02 1 0410-0501 ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0410-0501 ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0502-0609 ● ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0502-0609 ● ●
10 04.085 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0502-0609 ● ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0610- ● ● ●
10 04.085 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0610- ● ● ●
10 04.085 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0610- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97365-235-0 01 1 0404-0407 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0408-0409 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0410-0501 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0502-0609 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0610- ● ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97350-437-1 01 1 0404-0406 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0407-0409 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0410-0501 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0502-0609 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0410-0501 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0410-0501 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0410-0501 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0410-0501 ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0410-0501 ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0410-0501 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
01.652 (A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 0404-0409 ● ●
20 00.029 BOLT; ENG FOOT
01.652 (A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 0410-0501 ●
20 00.029 BOLT; ENG FOOT
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0404-0508 ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0404-0508 ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0509-0609 ● ●
20 00.029 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0509-0609 ● ●
20 00.029 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
A/T AISIN<RMD> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0410-0501 ●
20 00.029 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0410-0501 ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0410-0501 ●
20 00.029 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
03.613 (H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0410-0501 ●
20 00.029 BOLT; ENG FOOT
03.613 (H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0502-0609 ● ●
20 00.029 BOLT; ENG FOOT
03.613 (H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
M/T MUX 5 SPEED 5S<MZJ> 01.060 (K) M8X35 FLANGE THA 		0-28650-835-0 04 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0404-0408 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97371-778-0 01 1 0409-0409 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97371-778-0 01 1 0410-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97367-630-0 01 1 0404-0408 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97371-777-0 01 1 0409-0409 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97373-164-0 01 1 0410-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-98051-342-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0410-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0410-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0502-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0502-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-338-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98051-338-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97367-630-0 01 1 0410-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> ,A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-98051-336-0 01 1 0610- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-349-0 01 1 0610- ●
55 00.002 BOLT; BRKT,ENG MTG,RR
4X4 CREW CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> 09.008 M10X120 		8-97134-968-0 01 1 0410-0609 ●
55 00.002 BOLT; BRKT,ENG MTG,RR
4X4 CREW CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M10X120 		8-98051-536-0 01 1 0610- ● ●
152 00.027 DAMPER; DYNAMIC,ENG MTG
4X4 CREW CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0410-0609 ●
152 00.027 DAMPER; DYNAMIC,ENG MTG
4X4 CREW CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
