Sayfa 0-20 - Isuzu EPC

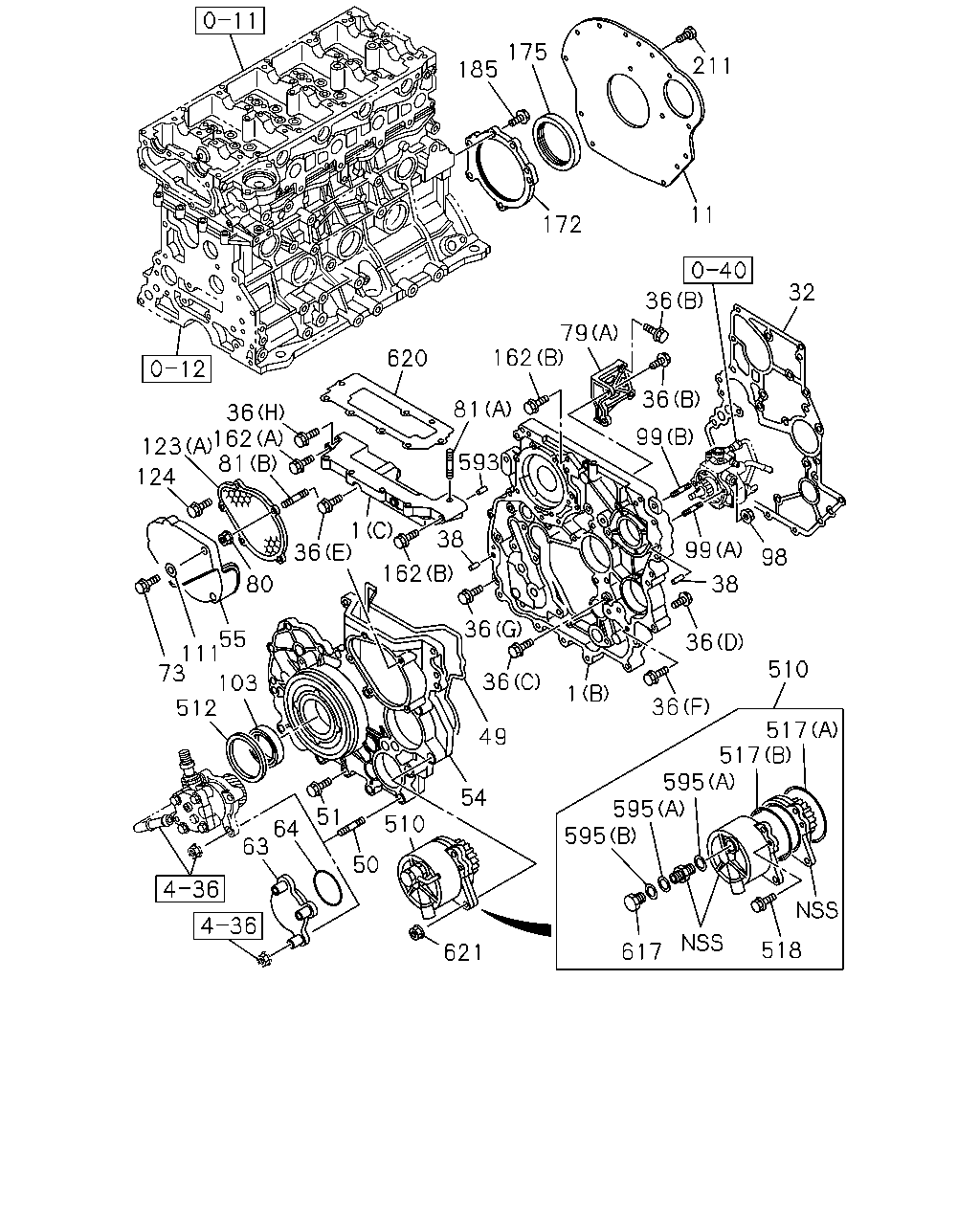

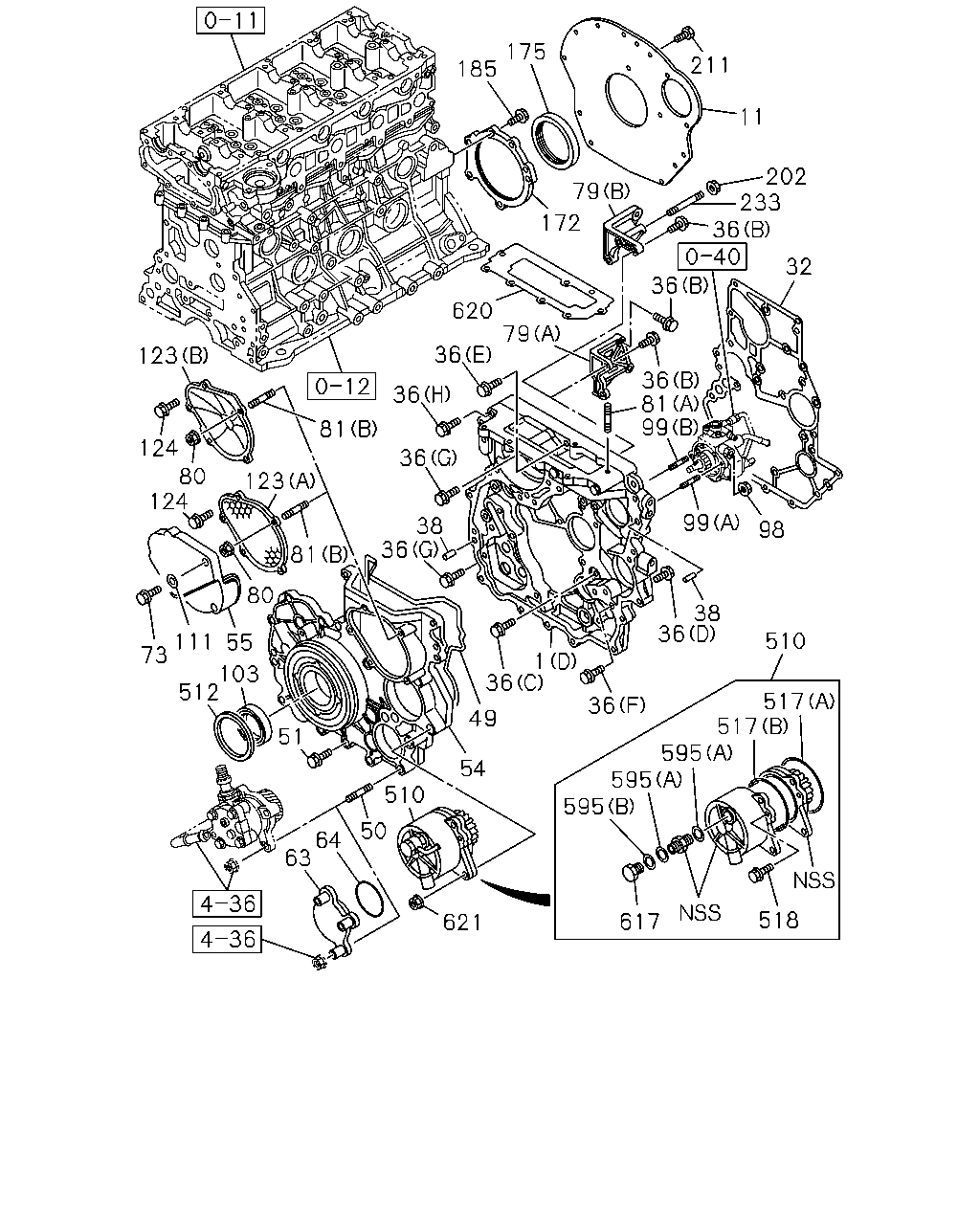

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#73540) — 478 parça

175 211 185 11 202 233 36 79 172 32 36 620 79 36 81 99 36 123 36 81 124 36 123 80 124 99 38 36 98 81 80 38 36 510 111 73 55 1 36 103 512 517 517 595 595 595 36 49 51 54 510 50 64 63 518 617 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.206 CASE; TIMING GEAR (A) THA	8-97306-429-1	01	1	0404-0409	●	●
1	00.206 CASE; TIMING GEAR (A) THA	8-97306-429-1	01	1	0410-0501		●
1	00.206 CASE; TIMING GEAR (B) THA	8-97367-310-3	01	1	0410-0501			●
1	00.206 CASE; TIMING GEAR (B) THA	8-97367-310-3	01	1	0502-0508			●	●
1	00.206 CASE; TIMING GEAR (C) THA	8-97367-311-1	01	1	0410-0501			●
1	00.206 CASE; TIMING GEAR (C) THA	8-97367-311-1	01	1	0502-0508			●	●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-0	01	1	0509-0602			●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-0	01	1	0603-0609			●	●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-1	01	1	0610-1007			●	●	●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0509-0602				●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0603-0609			●	●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0610-1007			●	●	●
1	00.206 CASE; TIMING GEAR (D) THA	8-98074-747-1	01	1	1008-			●	●	●
11	00.683 PLATE; RR,C/BL THA	8-97912-556-0	01	1	0404-0409	●	●
11	00.683 PLATE; RR,C/BL THA	8-97912-556-0	01	1	0410-0501		●
11	00.683 PLATE; RR,C/BL THA	8-97350-496-0	01	1	0410-0501			●
11	00.683 PLATE; RR,C/BL THA	8-97350-496-0	01	1	0502-0609			●	●
11	00.683 PLATE; RR,C/BL THA	8-98020-515-1	01	1	0610-			●	●
11	00.683 PLATE; RR,C/BL A/T AISIN<RMD> THA	8-98020-515-1	01	1	0610-					●
11	00.683 PLATE; RR,C/BL M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-507-2	01	1	0610-					●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97920-345-1	01	1	0404-0501		●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97920-346-1	01	1	0404-0409	●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0410-0501			●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0502-0609			●	●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0404-0409	●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0404-0409	●	●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0610-			●	●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0404-0409	●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0410-0501		●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0502-0609			●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0610-			●	●	●
49	00.206 GASKET; GEAR CASE TO COVER	8-97354-057-1	01	1	0410-0501			●
49	00.206 GASKET; GEAR CASE TO COVER	8-97354-057-1	01	1	0502-0511			●	●
49	00.206 GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0512-0609			●	●
49	00.206 GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0610-			●	●	●
50	00.206 STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0410-0501			●
50	00.206 STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0502-0609			●	●
50	00.206 STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0610-			●	●	●
51	00.206 BOLT; GEAR CASE COVER THA	8-97354-697-0	14	1	0410-0501			●
51	00.206 BOLT; GEAR CASE COVER THA	8-97354-697-0	14	1	0502-0609			●	●
51	00.206 BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0610-			●	●	●
54	00.206 COVER; GEAR CASE THA	8-97306-431-2	01	1	0404-0501		●
54	00.206 COVER; GEAR CASE THA	8-97306-430-2	01	1	0404-0409	●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0410-0501			●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0502-0609			●	●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0610-1201			●	●	●
54	00.206 COVER; GEAR CASE THA	8-98170-215-0	01	1	1202-			●	●	●
55	00.206 COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0410-0501			●
55	00.206 COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0502-0609			●	●
55	00.206 COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0610-1007			●	●	●
63	00.206 COVER; P/S 4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> EXC. POWER STEERING<N40> THA	8-97367-336-2	01	1	0410-0501			●
63	00.206 COVER; P/S EXC. POWER STEERING<N40> THA	8-97367-336-2	01	1	0502-0609			●	●
63	00.206 COVER; P/S 4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. POWER STEERING<N40> THA	8-97367-336-2	01	1	0610-				●
64	00.206 GASKET; COVER,P/S 4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0410-0501			●
64	00.206 GASKET; COVER,P/S EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0502-0609			●	●
64	00.206 GASKET; COVER,P/S 4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0610-				●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE THA	0-28050-616-0	05	1	0404-0409	●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE THA	0-28050-616-0	05	1	0410-0501		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0410-0501			●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0502-0609			●	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0610-1007			●	●	●
79	00.219 BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0410-0501			●
79	00.219 BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0502-0609			●	●
79	00.219 BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0610-1007			●	●	●
79	00.219 BRACKET; GEAR CASE COVER (B) THA	8-98107-106-0	01	1	1008-			●	●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0410-0501			●
80	00.206 NUT; COVER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0502-0609			●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0610-			●	●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0410-0501			●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0502-0609			●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0610-			●	●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	0410-0501			●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	0502-0609			●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	0610-			●	●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41 THA	8-97369-449-0	01	1	0410-0501			●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41 THA	8-97369-449-0	01	1	0502-0508			●	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48 THA	0-49140-830-0	01	1	0509-0609			●	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48 THA	0-49140-830-0	01	1	0610-1007			●	●	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	1008-			●	●	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56 THA	8-97369-450-0	01	1	0410-0501			●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56 THA	8-97369-450-0	01	1	0502-0508			●	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0509-0609			●	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0610-1007			●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97351-704-0	01	1	0404-0409	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97351-704-0	01	1	0410-0501		●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0410-0501			●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0502-0609			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0610-			●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0810-1007			●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0710-0809			●	●	●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0410-0501			●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0502-0609			●	●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0610-0705			●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0706-0709			●	●	●
123	00.206 COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0410-0501			●
123	00.206 COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0502-0609			●	●
123	00.206 COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0610-1007			●	●	●
123	00.206 COVER; TIMING,LWR (B) THA	8-98158-145-0	01	1	1008-			●	●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE THA	0-28050-616-0	03	1	0410-0501			●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE THA	0-28050-616-0	03	1	0502-0609			●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE THA	0-28050-616-0	03	1	0610-			●	●	●
172	00.137 RETAINER; CR/SHF THA	8-97379-826-0	01	1	0410-0501			●
172	00.137 RETAINER; CR/SHF THA	8-97379-826-0	01	1	0502-0609			●	●
172	00.137 RETAINER; CR/SHF THA	8-97379-826-0	01	1	0610-			●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0404-0409	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0410-0501		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0502-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0610-			●	●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	05	1	0410-0501			●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	05	1	0502-0609			●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	05	1	0610-			●	●	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE THA	0-91180-208-0	01	1	1008-			●	●	●
211	00.669 BOLT; HSG 00.683 M12X25 THA	8-97916-324-0	03	1	0410-0501			●
211	00.669 BOLT; HSG 00.683 M12X25 THA	8-97916-324-0	03	1	0502-0609			●	●
211	00.669 BOLT; HSG 00.683 M12X25 THA	8-97916-324-1	03	1	0610-			●	●	●
233	00.669 STUD; BRKT 03.275 M8X71 L=83 THA	8-97367-083-0	01	1	1008-			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-97312-081-3	01	1	0410-0501			●
510	04.895 PUMP ASM; VACUUM THA	8-97312-081-3	01	1	0502-0609			●	●
510	04.895 PUMP ASM; VACUUM THA	8-97312-081-5	01	1	0610-1004			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98162-749-0	01	1	1005-1009			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98178-027-2	01	1	1010-1302			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98211-157-0	01	1	1303-1312			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1401-			●	●	●
512	04.895 RUBBER; SPACE THA	8-97373-716-0	01	1	0410-0501			●
512	04.895 RUBBER; SPACE THA	8-97373-716-0	01	1	0502-0609			●	●
512	04.895 RUBBER; SPACE THA	8-97373-716-0	01	1	0610-			●	●	●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0410-0501			●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0502-0609			●	●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0610-			●	●	●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0410-0501			●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0502-0609			●	●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0610-1312			●	●	●
517	04.895 GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1401-			●	●	●
518	04.895 BOLT; VAC PUMP THA	8-97184-180-0	03	1	0410-0501			●
518	04.895 BOLT; VAC PUMP THA	8-97184-180-0	03	1	0502-0609			●	●
518	04.895 BOLT; VAC PUMP THA	8-97184-180-0	03	1	0610-			●	●	●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24 THA	5-19679-002-0	02	1	0410-0501			●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24 THA	5-19679-002-0	02	1	0502-0609			●	●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24 THA	5-19679-002-0	02	1	0610-			●	●	●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24 THA	5-19679-003-0	01	1	0410-0501			●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24 THA	5-19679-003-0	01	1	0502-0609			●	●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24 THA	5-19679-003-0	01	1	0610-			●	●	●
617	00.206 BOLT; CHECK VLV THA	8-97376-402-0	01	1	0410-0501			●
617	00.206 BOLT; CHECK VLV THA	8-97376-402-0	01	1	0502-0609			●	●
617	00.206 BOLT; CHECK VLV THA	8-97376-402-0	01	1	0610-			●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0410-0501			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0502-0609			●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0610-			●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0410-0501			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0502-0609			●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0610-			●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0410-0501			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0502-0609			●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0610-			●	●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0410-0501			●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0502-0609			●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0610-			●	●	●

15 11 32 36 175 36 33 38 1 60 60 65 57 69 58 60 56 69 54 72 71 60 68 73 60 65 103 57 58 58 65 57 72 71 68 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.206 CASE; TIMING GEAR (A) THA	8-97306-429-1	01	1	0404-0409	●	●
1	00.206 CASE; TIMING GEAR (A) THA	8-97306-429-1	01	1	0410-0501		●
1	00.206 CASE; TIMING GEAR (B) THA	8-97367-310-3	01	1	0410-0501			●
1	00.206 CASE; TIMING GEAR (B) THA	8-97367-310-3	01	1	0502-0508			●	●
1	00.206 CASE; TIMING GEAR (C) THA	8-97367-311-1	01	1	0410-0501			●
1	00.206 CASE; TIMING GEAR (C) THA	8-97367-311-1	01	1	0502-0508			●	●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-0	01	1	0509-0602			●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-0	01	1	0603-0609			●	●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-1	01	1	0610-1007			●	●	●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0509-0602				●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0603-0609			●	●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0610-1007			●	●	●
1	00.206 CASE; TIMING GEAR (D) THA	8-98074-747-1	01	1	1008-			●	●	●
11	00.683 PLATE; RR,C/BL THA	8-97912-556-0	01	1	0404-0409	●	●
11	00.683 PLATE; RR,C/BL THA	8-97912-556-0	01	1	0410-0501		●
11	00.683 PLATE; RR,C/BL THA	8-97350-496-0	01	1	0410-0501			●
11	00.683 PLATE; RR,C/BL THA	8-97350-496-0	01	1	0502-0609			●	●
11	00.683 PLATE; RR,C/BL THA	8-98020-515-1	01	1	0610-			●	●
11	00.683 PLATE; RR,C/BL A/T AISIN<RMD> THA	8-98020-515-1	01	1	0610-					●
11	00.683 PLATE; RR,C/BL M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-507-2	01	1	0610-					●
15	00.683 BOLT; RR PLATE TO C/BL M12X25 THA	8-97916-324-0	03	1	0404-0409	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25 THA	8-97916-324-0	03	1	0410-0501		●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97920-345-1	01	1	0404-0501		●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97920-346-1	01	1	0404-0409	●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0410-0501			●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0502-0609			●	●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0610-			●	●	●
33	00.207 GASKET; BRKT TO CASE THA	8-97912-581-0	01	1	0404-0409	●	●
33	00.207 GASKET; BRKT TO CASE THA	8-97912-581-0	01	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0404-0409	●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0404-0409	●	●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0610-			●	●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0404-0409	●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0410-0501		●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0502-0609			●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0610-			●	●	●
54	00.206 COVER; GEAR CASE THA	8-97306-431-2	01	1	0404-0501		●
54	00.206 COVER; GEAR CASE THA	8-97306-430-2	01	1	0404-0409	●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0410-0501			●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0502-0609			●	●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0610-1201			●	●	●
54	00.206 COVER; GEAR CASE THA	8-98170-215-0	01	1	1202-			●	●	●
56	00.207 GASKET; GEAR CASE TO COVER	8-97287-694-0	01	1	0404-0409	●	●
56	00.207 GASKET; GEAR CASE TO COVER	8-97287-694-0	01	1	0410-0501		●
57	00.206 COVER; TIMING CHECK HOLE THA	8-97912-582-0	03	1	0404-0409	●	●
57	00.206 COVER; TIMING CHECK HOLE THA	8-97912-582-0	03	1	0410-0501		●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE THA	0-28050-612-0	06	1	0404-0409	●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE THA	0-28050-612-0	06	1	0410-0501		●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE THA	0-28050-830-0	08	1	0404-0409	●	●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE THA	0-28050-830-0	08	1	0410-0501		●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER THA	0-50540-870-0	06	1	0404-0409	●	●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER THA	0-50540-870-0	06	1	0410-0501		●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET THA	0-58331-255-0	01	1	0404-0409	●	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET THA	0-58331-255-0	01	1	0410-0501		●
60	00.206 BOLT; COVER TO CASE (D) M8X58 FLANGE THA	8-97920-481-0	01	1	0404-0409	●	●
60	00.206 BOLT; COVER TO CASE (D) M8X58 FLANGE THA	8-97920-481-0	01	1	0410-0501		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE THA	8-97922-242-0	03	1	0404-0409	●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE THA	8-97922-242-0	03	1	0410-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (A) THA	8-97943-085-0	01	1	0404-0409	●	●
68	00.206 COVER ASM; GEAR CASE COVER (A) THA	8-97943-085-0	01	1	0410-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (B) THA	8-97943-086-0	01	1	0404-0409	●	●
68	00.206 COVER ASM; GEAR CASE COVER (B) THA	8-97943-086-0	01	1	0410-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (A) THA	8-97942-720-0	01	1	0404-0409	●	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A) THA	8-97942-720-0	01	1	0410-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (B) THA	8-97306-548-1	01	1	0404-0409	●	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B) THA	8-97306-548-1	01	1	0410-0501		●
71	00.206 RUBBER; MTG,COVER THA	8-97914-631-0	06	1	0404-0409	●	●
71	00.206 RUBBER; MTG,COVER THA	8-97914-631-0	06	1	0410-0501		●
72	00.206 BUSHING; SPACER,COVER TO COVER THA	8-97914-630-0	06	1	0404-0409	●	●
72	00.206 BUSHING; SPACER,COVER TO COVER THA	8-97914-630-0	06	1	0410-0501		●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE THA	0-28050-616-0	05	1	0404-0409	●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE THA	0-28050-616-0	05	1	0410-0501		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0410-0501			●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0502-0609			●	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0610-1007			●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97351-704-0	01	1	0404-0409	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97351-704-0	01	1	0410-0501		●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0410-0501			●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0502-0609			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0610-			●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0404-0409	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0410-0501		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0502-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0610-			●	●	●

175 211 185 11 172 32 36 79 162 620 36 81 593 36 162 81 99 123 124 38 1 36 99 98 162 38 80 36 55 111 73 36 510 36 103 512 1 36 57 517 595 595 595 49 54 51 510 64 63 50 518 617 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.206 CASE; TIMING GEAR (A) THA	8-97306-429-1	01	1	0404-0409	●	●
1	00.206 CASE; TIMING GEAR (A) THA	8-97306-429-1	01	1	0410-0501		●
1	00.206 CASE; TIMING GEAR (B) THA	8-97367-310-3	01	1	0410-0501			●
1	00.206 CASE; TIMING GEAR (B) THA	8-97367-310-3	01	1	0502-0508			●	●
1	00.206 CASE; TIMING GEAR (C) THA	8-97367-311-1	01	1	0410-0501			●
1	00.206 CASE; TIMING GEAR (C) THA	8-97367-311-1	01	1	0502-0508			●	●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-0	01	1	0509-0602			●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-0	01	1	0603-0609			●	●
1	00.206 CASE; TIMING GEAR (D) THAI ENGINEERING PRO THA	8-97945-261-1	01	1	0610-1007			●	●	●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0509-0602				●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0603-0609			●	●
1	00.206 CASE; TIMING GEAR (D) SW & SONS CO.,LTD. 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0610-1007			●	●	●
1	00.206 CASE; TIMING GEAR (D) THA	8-98074-747-1	01	1	1008-			●	●	●
11	00.683 PLATE; RR,C/BL THA	8-97912-556-0	01	1	0404-0409	●	●
11	00.683 PLATE; RR,C/BL THA	8-97912-556-0	01	1	0410-0501		●
11	00.683 PLATE; RR,C/BL THA	8-97350-496-0	01	1	0410-0501			●
11	00.683 PLATE; RR,C/BL THA	8-97350-496-0	01	1	0502-0609			●	●
11	00.683 PLATE; RR,C/BL THA	8-98020-515-1	01	1	0610-			●	●
11	00.683 PLATE; RR,C/BL A/T AISIN<RMD> THA	8-98020-515-1	01	1	0610-					●
11	00.683 PLATE; RR,C/BL M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-507-2	01	1	0610-					●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97920-345-1	01	1	0404-0501		●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97920-346-1	01	1	0404-0409	●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0410-0501			●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0502-0609			●	●
32	00.207 GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0404-0409	●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0404-0409	●	●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0410-0501		●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE THA	0-28050-820-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE THA	0-28050-835-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE THA	0-28050-860-0	01	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE THA	0-28650-825-0	15	1	0610-			●	●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0410-0501			●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0502-0609			●	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE THA	0-28650-830-0	03	1	0610-			●	●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0404-0409	●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0410-0501		●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0502-0609			●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0610-			●	●	●
49	00.206 GASKET; GEAR CASE TO COVER	8-97354-057-1	01	1	0410-0501			●
49	00.206 GASKET; GEAR CASE TO COVER	8-97354-057-1	01	1	0502-0511			●	●
49	00.206 GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0512-0609			●	●
49	00.206 GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0610-			●	●	●
50	00.206 STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0410-0501			●
50	00.206 STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0502-0609			●	●
50	00.206 STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0610-			●	●	●
51	00.206 BOLT; GEAR CASE COVER THA	8-97354-697-0	14	1	0410-0501			●
51	00.206 BOLT; GEAR CASE COVER THA	8-97354-697-0	14	1	0502-0609			●	●
51	00.206 BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0610-			●	●	●
54	00.206 COVER; GEAR CASE THA	8-97306-431-2	01	1	0404-0501		●
54	00.206 COVER; GEAR CASE THA	8-97306-430-2	01	1	0404-0409	●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0410-0501			●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0502-0609			●	●
54	00.206 COVER; GEAR CASE THA	8-97367-312-4	01	1	0610-1201			●	●	●
54	00.206 COVER; GEAR CASE THA	8-98170-215-0	01	1	1202-			●	●	●
55	00.206 COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0410-0501			●
55	00.206 COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0502-0609			●	●
55	00.206 COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0610-1007			●	●	●
57	00.206 COVER; TIMING CHECK HOLE THA	8-97912-582-0	03	1	0404-0409	●	●
57	00.206 COVER; TIMING CHECK HOLE THA	8-97912-582-0	03	1	0410-0501		●
63	00.206 COVER; P/S 4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> EXC. POWER STEERING<N40> THA	8-97367-336-2	01	1	0410-0501			●
63	00.206 COVER; P/S EXC. POWER STEERING<N40> THA	8-97367-336-2	01	1	0502-0609			●	●
63	00.206 COVER; P/S 4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. POWER STEERING<N40> THA	8-97367-336-2	01	1	0610-				●
64	00.206 GASKET; COVER,P/S 4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0410-0501			●
64	00.206 GASKET; COVER,P/S EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0502-0609			●	●
64	00.206 GASKET; COVER,P/S 4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0610-				●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE THA	0-28050-616-0	05	1	0404-0409	●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE THA	0-28050-616-0	05	1	0410-0501		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0410-0501			●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0502-0609			●	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE THA	0-28050-612-0	02	1	0610-1007			●	●	●
79	00.219 BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0410-0501			●
79	00.219 BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0502-0609			●	●
79	00.219 BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0610-1007			●	●	●
79	00.219 BRACKET; GEAR CASE COVER (B) THA	8-98107-106-0	01	1	1008-			●	●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0410-0501			●
80	00.206 NUT; COVER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0502-0609			●	●
80	00.206 NUT; COVER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0610-			●	●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0410-0501			●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0502-0609			●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0610-			●	●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	0410-0501			●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	0502-0609			●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	0610-			●	●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41 THA	8-97369-449-0	01	1	0410-0501			●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41 THA	8-97369-449-0	01	1	0502-0508			●	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48 THA	0-49140-830-0	01	1	0509-0609			●	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48 THA	0-49140-830-0	01	1	0610-1007			●	●	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48 THA	0-49140-830-0	02	1	1008-			●	●	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56 THA	8-97369-450-0	01	1	0410-0501			●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56 THA	8-97369-450-0	01	1	0502-0508			●	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0509-0609			●	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0610-1007			●	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97351-704-0	01	1	0404-0409	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT	8-97351-704-0	01	1	0410-0501		●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0410-0501			●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0502-0609			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0610-			●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0810-1007			●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0710-0809			●	●	●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0410-0501			●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0502-0609			●	●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0610-0705			●	●	●
111	00.206 WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0706-0709			●	●	●
123	00.206 COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0410-0501			●
123	00.206 COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0502-0609			●	●
123	00.206 COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0610-1007			●	●	●
123	00.206 COVER; TIMING,LWR (B) THA	8-98158-145-0	01	1	1008-			●	●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE THA	0-28050-616-0	03	1	0410-0501			●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE THA	0-28050-616-0	03	1	0502-0609			●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE THA	0-28050-616-0	03	1	0610-			●	●	●
162	00.206 BOLT; FRT PLATE 09.173 (A) M8X45 FLANGE THA	0-28050-845-0	01	1	0410-0501			●
162	00.206 BOLT; FRT PLATE 09.173 (A) M8X45 FLANGE THA	0-28050-845-0	01	1	0502-0508			●	●
162	00.206 BOLT; FRT PLATE (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0410-0501			●
162	00.206 BOLT; FRT PLATE (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0502-0508			●	●
172	00.137 RETAINER; CR/SHF THA	8-97379-826-0	01	1	0410-0501			●
172	00.137 RETAINER; CR/SHF THA	8-97379-826-0	01	1	0502-0609			●	●
172	00.137 RETAINER; CR/SHF THA	8-97379-826-0	01	1	0610-			●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0404-0409	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0410-0501		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0502-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ID=95 OD=118	8-97071-561-1	01	1	0610-			●	●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	05	1	0410-0501			●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	05	1	0502-0609			●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE THA	0-28650-825-0	05	1	0610-			●	●	●
211	00.669 BOLT; HSG 00.683 M12X25 THA	8-97916-324-0	03	1	0410-0501			●
211	00.669 BOLT; HSG 00.683 M12X25 THA	8-97916-324-0	03	1	0502-0609			●	●
211	00.669 BOLT; HSG 00.683 M12X25 THA	8-97916-324-1	03	1	0610-			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-97312-081-3	01	1	0410-0501			●
510	04.895 PUMP ASM; VACUUM THA	8-97312-081-3	01	1	0502-0609			●	●
510	04.895 PUMP ASM; VACUUM THA	8-97312-081-5	01	1	0610-1004			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98162-749-0	01	1	1005-1009			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98178-027-2	01	1	1010-1302			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98211-157-0	01	1	1303-1312			●	●	●
510	04.895 PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1401-			●	●	●
512	04.895 RUBBER; SPACE THA	8-97373-716-0	01	1	0410-0501			●
512	04.895 RUBBER; SPACE THA	8-97373-716-0	01	1	0502-0609			●	●
512	04.895 RUBBER; SPACE THA	8-97373-716-0	01	1	0610-			●	●	●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0410-0501			●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0502-0609			●	●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0610-			●	●	●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0410-0501			●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0502-0609			●	●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0610-1312			●	●	●
517	04.895 GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1401-			●	●	●
518	04.895 BOLT; VAC PUMP THA	8-97184-180-0	03	1	0410-0501			●
518	04.895 BOLT; VAC PUMP THA	8-97184-180-0	03	1	0502-0609			●	●
518	04.895 BOLT; VAC PUMP THA	8-97184-180-0	03	1	0610-			●	●	●
593	00.206 PIN; STRAIGHT 00.862 ID=6 L=12 THA	9-08160-612-0	02	1	0410-0501			●
593	00.206 PIN; STRAIGHT 00.862 ID=6 L=12 THA	9-08160-612-0	02	1	0502-0508			●	●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24 THA	5-19679-002-0	02	1	0410-0501			●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24 THA	5-19679-002-0	02	1	0502-0609			●	●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24 THA	5-19679-002-0	02	1	0610-			●	●	●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24 THA	5-19679-003-0	01	1	0410-0501			●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24 THA	5-19679-003-0	01	1	0502-0609			●	●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24 THA	5-19679-003-0	01	1	0610-			●	●	●
617	00.206 BOLT; CHECK VLV THA	8-97376-402-0	01	1	0410-0501			●
617	00.206 BOLT; CHECK VLV THA	8-97376-402-0	01	1	0502-0609			●	●
617	00.206 BOLT; CHECK VLV THA	8-97376-402-0	01	1	0610-			●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0410-0501			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0502-0609			●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0610-			●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0410-0501			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0502-0609			●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0610-			●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0410-0501			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0502-0609			●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0610-			●	●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0410-0501			●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0502-0609			●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE THA	0-91180-208-0	03	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
