Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#73538) — 314 parça

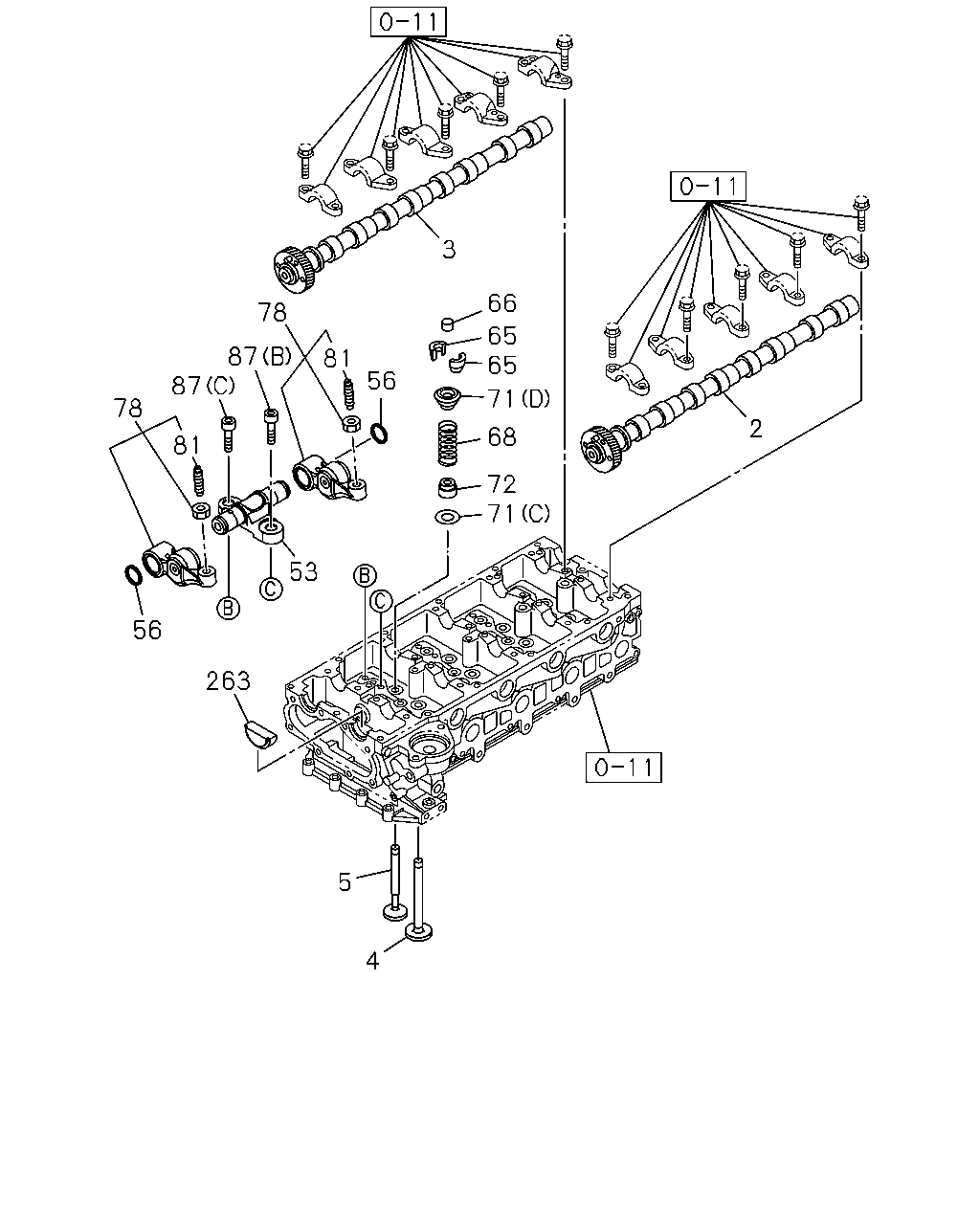

85 87 86 78 84 78 78 56 55 78 78 78 85 86 95 86 83 53 54 81 54 78 84 78 55 56 65 65 71 68 72 71 88 5 4 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	00.296 VALVE; INL THA	8-97940-024-0	04	1	0404-0501	●
4	00.296 VALVE; INL THA	8-97940-026-0	04	1	0404-0409		●
4	00.296 VALVE; INL THA	8-97309-675-1	08	1	0410-0501			●
4	00.296 VALVE; INL THA	8-97309-675-1	08	1	0502-0609			●	●
4	00.296 VALVE; INL THA	8-97309-675-1	08	1	0610-			●	●	●
5	00.297 VALVE; EXH THA	8-97940-025-0	04	1	0404-0501	●
5	00.297 VALVE; EXH THA	8-97940-027-0	04	1	0404-0409		●
5	00.297 VALVE; EXH THA	8-97309-677-1	08	1	0410-0501			●
5	00.297 VALVE; EXH THA	8-97309-677-1	08	1	0502-0609			●	●
5	00.297 VALVE; EXH THA	8-97309-677-1	08	1	0610-			●	●	●
53	00.353 SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0404-0409	●	●
53	00.353 SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0410-0501	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-1	04	1	0410-0501			●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-1	04	1	0502-0609			●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	0610-			●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-1	04	1	0410-0501			●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-1	04	1	0502-0609			●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	0610-			●	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23 THA	8-97915-840-0	06	1	0404-0409	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23 THA	8-97915-840-0	06	1	0410-0501	●
55	00.356 PLUG; ROCKER SHAFT END THA	8-97915-834-0	02	1	0404-0409	●	●
55	00.356 PLUG; ROCKER SHAFT END THA	8-97915-834-0	02	1	0410-0501	●
56	00.349 RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	0803-			●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0404-0409	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0410-0501	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0404-0409	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0410-0501	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0410-0501			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0502-0609			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0610-			●	●	●
68	00.303 SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0404-0409	●	●
68	00.303 SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0410-0501	●
68	00.303 SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0410-0501			●
68	00.303 SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0502-0609			●	●
68	00.303 SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0610-			●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0404-0409	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0410-0501	●
71	00.309 SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0404-0409	●	●
71	00.309 SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0410-0501	●
71	00.309 SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0410-0501			●
71	00.309 SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0502-0609			●	●
71	00.309 SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0610-			●	●	●
71	00.309 SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0410-0501			●
71	00.309 SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0502-0609			●	●
71	00.309 SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0610-			●	●	●
72	00.308 SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0404-0409	●	●
72	00.308 SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0410-0501	●
72	00.308 SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0410-0501			●
72	00.308 SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0502-0609			●	●
72	00.308 SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0610-			●	●	●
78	00.333 ARM; ROCKER THA	8-97915-831-0	08	1	0404-0409	●	●
78	00.333 ARM; ROCKER THA	8-97915-831-0	08	1	0410-0501	●
78	00.333 ARM; ROCKER	8-97364-808-2	16	1	0410-0501			●
78	00.333 ARM; ROCKER	8-97364-808-3	16	1	0502-0609			●	●
78	00.333 ARM; ROCKER	8-98029-537-6	16	1	0610-			●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1103-			●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0404-0409	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0410-0501	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0404-0409	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0410-0501	●
84	00.349 BRACKET; ROCKER SHAFT,INTER THA	8-97915-836-0	04	1	0404-0409	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER THA	8-97915-836-0	04	1	0410-0501	●
85	00.349 BOLT; BRKT (A) M10X60 L=82 THA	8-97915-839-0	02	1	0404-0409	●	●
85	00.349 BOLT; BRKT (A) M10X60 L=82 THA	8-97915-839-0	02	1	0410-0501	●
85	00.349 BOLT; BRKT (B) M10X60 L=104 THA	8-97915-841-0	01	1	0404-0409	●	●
85	00.349 BOLT; BRKT (B) M10X60 L=104 THA	8-97915-841-0	01	1	0410-0501	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0404-0409	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0410-0501	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0404-0409	●	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0410-0501	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0410-0501			●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0502-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0610-			●	●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0410-0501			●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0502-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0610-			●	●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	0404-0407	●
88	00.426 ROD; PUSH	8-97378-496-0	08	1	0408-0501	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0404-0409		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0404-0409	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0410-0501	●
95	00.376 SPRING; ROCKER SHAFT THA	8-97915-837-0	03	1	0404-0409	●	●
95	00.376 SPRING; ROCKER SHAFT THA	8-97915-837-0	03	1	0410-0501	●

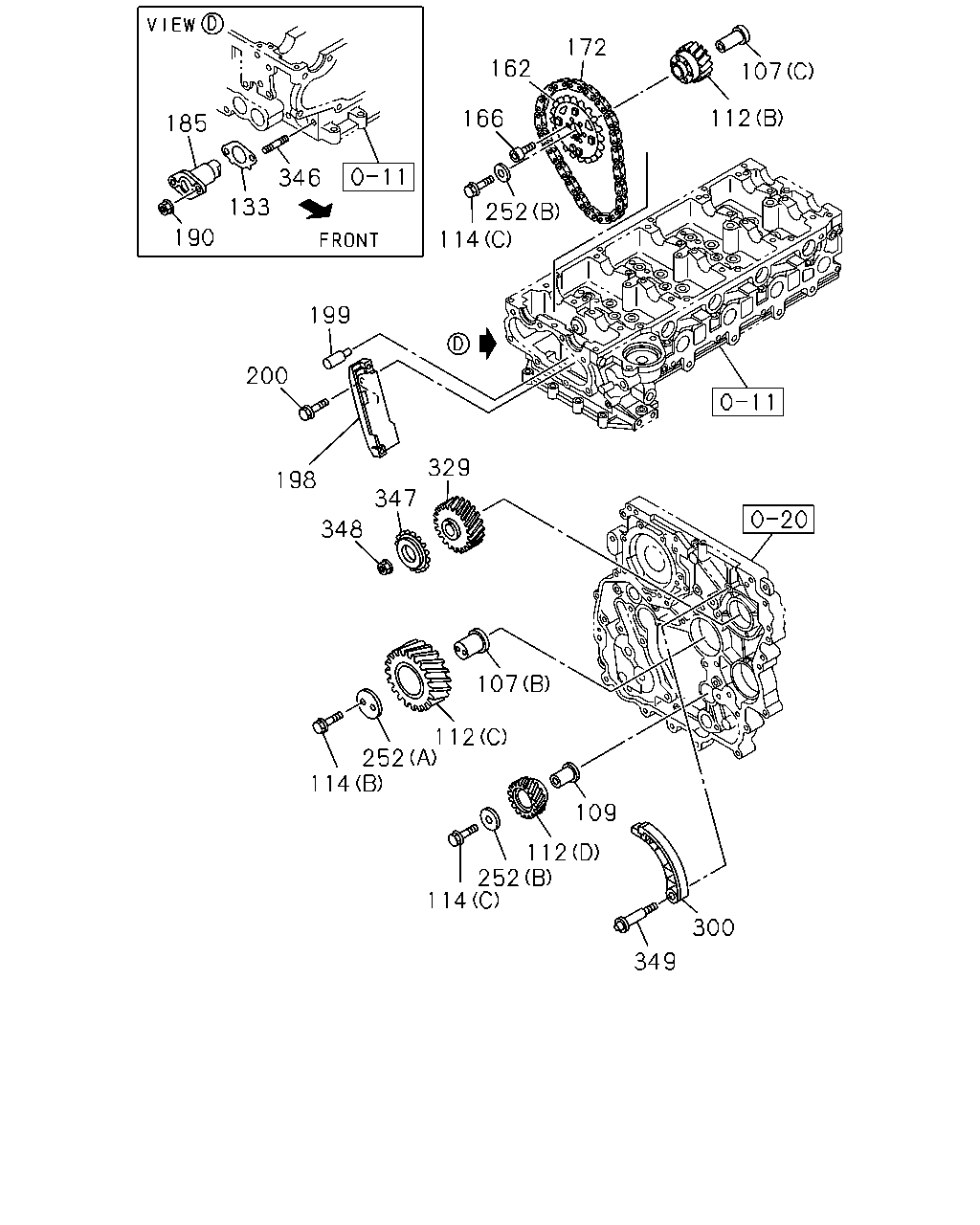

185 133 346 190 199 200 198 348 329 347 112 252 114 107 109 112 252 114 349 112 172 162 166 114 252 300 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
107	00.724 SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0404-0409	●	●
107	00.724 SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0410-0501	●
107	00.724 SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0410-0501			●
107	00.724 SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0502-0609			●	●
107	00.724 SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0610-			●	●	●
107	00.724 SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0410-0501			●
107	00.724 SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0502-0609			●	●
107	00.724 SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0610-			●	●	●
109	00.724 SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0404-0409	●	●
109	00.724 SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0410-0501	●
109	00.724 SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0410-0501			●
109	00.724 SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0502-0609			●	●
109	00.724 SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0610-			●	●	●
112	00.724 GEAR; IDLE (A) Z=43 THA	8-97942-752-1	01	1	0404-0409	●	●
112	00.724 GEAR; IDLE (A) Z=43 THA	8-97942-752-1	01	1	0410-0501	●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0410-0501			●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0502-0609			●	●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0610-0611			●	●	●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-98021-050-2	01	1	0612-			●	●	●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0410-0501			●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0502-0609			●	●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0610-0610			●	●	●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-98021-053-3	01	1	0611-			●	●	●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0410-0501			●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0502-0609			●	●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0610-0612			●	●	●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0701-			●	●	●
114	00.724 BOLT; IDLE GEAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0404-0409	●	●
114	00.724 BOLT; IDLE GEAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0410-0501	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0410-0501			●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0502-0609			●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0610-			●	●	●
114	00.724 BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0410-0501			●
114	00.724 BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0502-0609			●	●
114	00.724 BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0610-			●	●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) THA	8-97312-336-0	01	1	0410-0501			●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) THA	8-97312-336-0	01	1	0502-0609			●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) THA	8-97312-336-0	01	1	0610-			●	●	●
162	00.736 SPROCKET; IDLE	8-97312-331-0	01	1	0410-0501			●
162	00.736 SPROCKET; IDLE	8-97312-331-0	01	1	0502-0609			●	●
162	00.736 SPROCKET; IDLE THA	8-97312-331-1	01	1	0610-			●	●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0410-0501			●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0502-0609			●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0610-			●	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97312-325-0	01	1	0410-0501			●
172	00.724 CHAIN; TIMING,CM/SHF	8-97312-325-0	01	1	0502-0508			●	●
172	00.724 CHAIN; TIMING,CM/SHF THA	8-97945-067-0	01	1	0509-0609			●	●
172	00.724 CHAIN; TIMING,CM/SHF THA	8-97945-067-0	01	1	0610-0908			●	●	●
172	00.724 CHAIN; TIMING,CM/SHF THA	8-98119-279-1	01	1	0909-			●	●	●
185	00.724 TENSIONER; CHAIN	8-97312-329-0	01	1	0410-0501			●
185	00.724 TENSIONER; CHAIN	8-97312-329-1	01	1	0502-0508			●	●
185	00.724 TENSIONER; CHAIN THA	8-97945-068-1	01	1	0509-0609			●	●
185	00.724 TENSIONER; CHAIN THA	8-97945-068-1	01	1	0610-			●	●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0410-0501			●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0502-0609			●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE THA	0-91180-206-0	02	1	0610-			●	●	●
198	00.724 GUIDE; TIMING CHAIN	8-97312-326-1	01	1	0410-0501			●
198	00.724 GUIDE; TIMING CHAIN	8-97312-326-1	01	1	0502-0508			●	●
198	00.724 GUIDE; TIMING CHAIN THA	8-97945-069-0	01	1	0509-0609			●	●
198	00.724 GUIDE; TIMING CHAIN THA	8-97945-069-0	01	1	0610-1009			●	●	●
198	00.724 GUIDE; TIMING CHAIN THA	8-98173-188-0	01	1	1010-			●	●	●
199	00.724 JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0410-0501			●
199	00.724 JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0502-0609			●	●
199	00.724 JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0610-			●	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-0	02	1	0410-0501			●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-0	02	1	0502-0609			●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20 THA	1-09070-120-1	02	1	0610-			●	●	●
252	00.724 FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0410-0501			●
252	00.724 FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0502-0609			●	●
252	00.724 FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0610-			●	●	●
252	00.724 FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0410-0501			●
252	00.724 FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0502-0609			●	●
252	00.724 FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0610-			●	●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97312-327-1	01	1	0410-0501			●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97312-327-1	01	1	0502-0508			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN THA	8-97945-070-0	01	1	0509-0609			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN THA	8-97945-070-0	01	1	0610-0809			●	●	●
300	00.724 LEVER; TENSION,TIMING CHAIN THA	8-98119-278-1	01	1	0810-			●	●	●
329	00.724 GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0410-0501			●
329	00.724 GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0502-0609			●	●
329	00.724 GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0610-			●	●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27 THA	0-41010-618-0	02	1	0410-0501			●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27 THA	0-41010-618-0	02	1	0502-0609			●	●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27 THA	0-41010-618-0	02	1	0610-			●	●	●
347	00.429 SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0410-0501			●
347	00.429 SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0502-0609			●	●
347	00.429 SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0610-			●	●	●
348	00.429 NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0410-0501			●
348	00.429 NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0502-0609			●	●
348	00.429 NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0610-			●	●	●
349	00.429 PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0410-0501			●
349	00.429 PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0502-0609			●	●
349	00.429 PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0610-			●	●	●

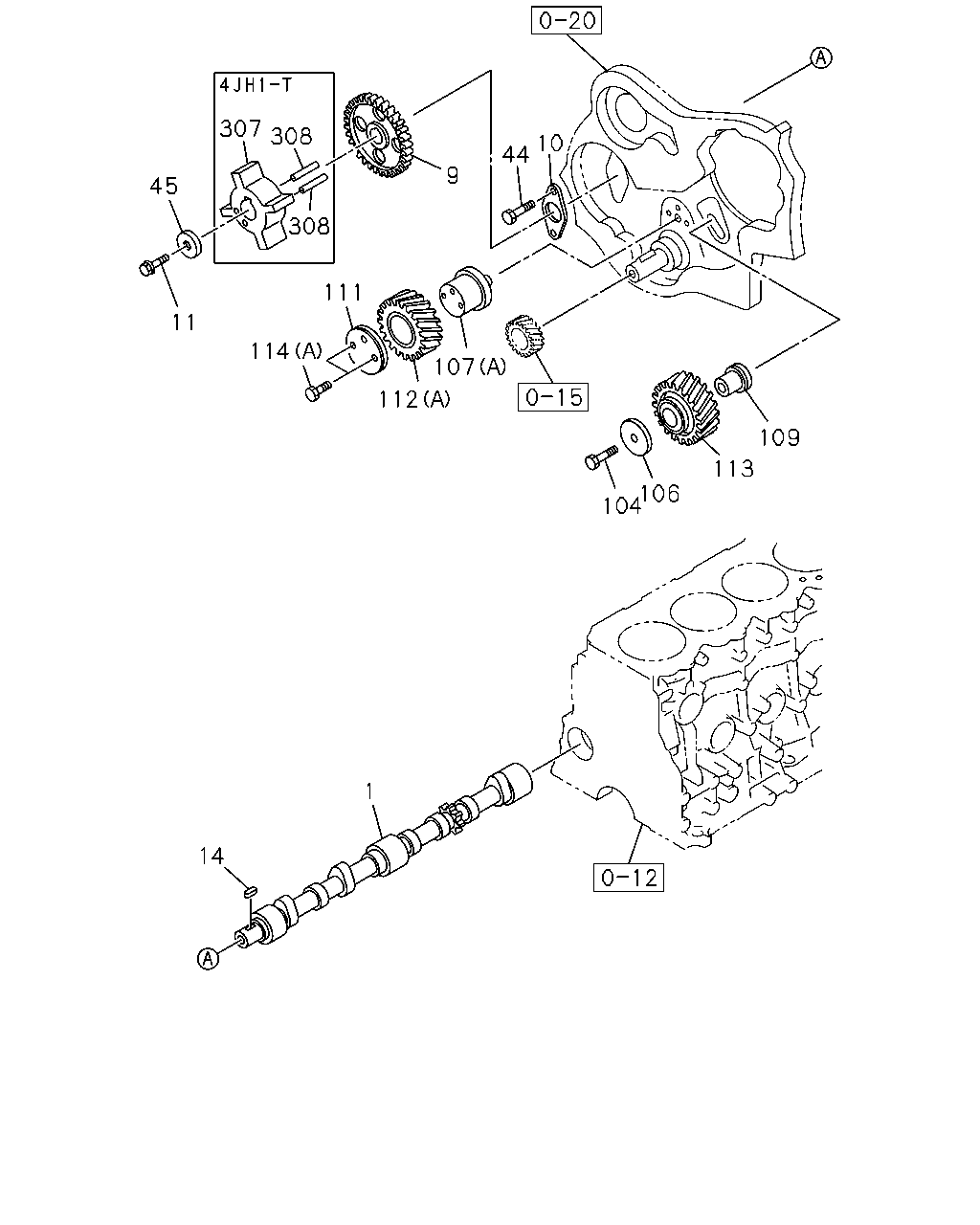

307 308 10 44 9 45 308 111 11 114 107 112 109 113 106 104 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.519 CAMSHAFT THA	8-97912-633-0	01	1	0404-0409	●	●
1	00.519 CAMSHAFT THA	8-97912-633-0	01	1	0410-0501	●
1	00.519 CAMSHAFT THA	8-97943-025-0	01	1	0502-0502	●
9	00.736 GEAR; CM/SHF Z=60 THA	8-97942-764-0	01	1	0404-0409	●	●
9	00.736 GEAR; CM/SHF Z=60 THA	8-97942-764-0	01	1	0410-0501	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0404-0409	●	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0410-0501	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0404-0409	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0410-0501	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0404-0409	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0410-0501	●
44	00.738 BOLT 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●
44	00.738 BOLT 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501	●
45	00.738 WASHER; GEAR CAM THA	8-97915-110-0	01	1	0404-0409	●	●
45	00.738 WASHER; GEAR CAM THA	8-97915-110-0	01	1	0410-0501	●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0404-0409	●	●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0410-0501	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36 THA	8-97918-881-0	01	1	0404-0409	●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36 THA	8-97918-881-0	01	1	0410-0501	●
107	00.724 SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0404-0409	●	●
107	00.724 SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0410-0501	●
107	00.724 SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0410-0501			●
107	00.724 SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0502-0609			●	●
107	00.724 SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0610-			●	●	●
107	00.724 SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0410-0501			●
107	00.724 SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0502-0609			●	●
107	00.724 SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0610-			●	●	●
109	00.724 SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0404-0409	●	●
109	00.724 SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0410-0501	●
109	00.724 SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0410-0501			●
109	00.724 SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0502-0609			●	●
109	00.724 SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0610-			●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR THA	8-97942-734-0	01	1	0404-0409	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR THA	8-97942-734-0	01	1	0410-0501	●
112	00.724 GEAR; IDLE (A) Z=43 THA	8-97942-752-1	01	1	0404-0409	●	●
112	00.724 GEAR; IDLE (A) Z=43 THA	8-97942-752-1	01	1	0410-0501	●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0410-0501			●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0502-0609			●	●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0610-0611			●	●	●
112	00.724 GEAR; IDLE (C) Z=80 THA	8-98021-050-2	01	1	0612-			●	●	●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0410-0501			●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0502-0609			●	●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0610-0610			●	●	●
112	00.724 GEAR; IDLE (B) Z=35 THA	8-98021-053-3	01	1	0611-			●	●	●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0410-0501			●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0502-0609			●	●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0610-0612			●	●	●
112	00.724 GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0701-			●	●	●
113	00.724 GEAR; IDLE THA	8-97942-755-1	01	1	0404-0409	●	●
113	00.724 GEAR; IDLE THA	8-97942-755-1	01	1	0410-0501	●
114	00.724 BOLT; IDLE GEAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0404-0409	●	●
114	00.724 BOLT; IDLE GEAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0410-0501	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0410-0501			●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0502-0609			●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0610-			●	●	●
114	00.724 BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0410-0501			●
114	00.724 BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0502-0609			●	●
114	00.724 BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0610-			●	●	●
307	02.361 ROTOR; CAM ANGLE SENSOR	8-97226-359-1	01	1	0404-0409		●
308	02.361 PIN; ROTOR OD=3 L=6	9-08160-306-0	02	1	0404-0409		●

11 11 3 66 78 65 65 87 87 81 56 71 78 2 68 81 72 71 53 56 263 11 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	00.519 CAMSHAFT; INL THA	8-97328-642-4	01	1	0410-0501			●
2	00.519 CAMSHAFT; INL THA	8-97328-642-6	01	1	0502-0609			●	●
2	00.519 CAMSHAFT; INL THA	8-97328-642-8	01	1	0610-			●	●	●
3	00.519 CAMSHAFT; EXH THA	8-97328-644-4	01	1	0410-0501			●
3	00.519 CAMSHAFT; EXH THA	8-97328-644-6	01	1	0502-0609			●	●
3	00.519 CAMSHAFT; EXH THA	8-97328-644-8	01	1	0610-			●	●	●
4	00.296 VALVE; INL THA	8-97940-024-0	04	1	0404-0501	●
4	00.296 VALVE; INL THA	8-97940-026-0	04	1	0404-0409		●
4	00.296 VALVE; INL THA	8-97309-675-1	08	1	0410-0501			●
4	00.296 VALVE; INL THA	8-97309-675-1	08	1	0502-0609			●	●
4	00.296 VALVE; INL THA	8-97309-675-1	08	1	0610-			●	●	●
5	00.297 VALVE; EXH THA	8-97940-025-0	04	1	0404-0501	●
5	00.297 VALVE; EXH THA	8-97940-027-0	04	1	0404-0409		●
5	00.297 VALVE; EXH THA	8-97309-677-1	08	1	0410-0501			●
5	00.297 VALVE; EXH THA	8-97309-677-1	08	1	0502-0609			●	●
5	00.297 VALVE; EXH THA	8-97309-677-1	08	1	0610-			●	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0404-0409	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0410-0501	●
53	00.353 SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0404-0409	●	●
53	00.353 SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0410-0501	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-1	04	1	0410-0501			●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-1	04	1	0502-0609			●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	0610-			●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-1	04	1	0410-0501			●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-1	04	1	0502-0609			●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	0610-			●	●	●
56	00.349 RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	0803-			●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0404-0409	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0410-0501	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0404-0409	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0410-0501	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0410-0501			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0502-0609			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0610-			●	●	●
66	00.303 CAP; VLV STEM END THA	8-97310-693-0	16	1	0410-0501			●
66	00.303 CAP; VLV STEM END THA	8-97310-693-0	16	1	0502-0608			●	●
66	00.303 CAP; VLV STEM END THA	8-98029-870-1	16	1	0609-0609			●	●
66	00.303 CAP; VLV STEM END THA	8-98029-870-1	16	1	0610-0910			●	●	●
66	00.303 CAP; VLV STEM END THA	8-98147-945-0	16	1	0911-			●	●	●
68	00.303 SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0404-0409	●	●
68	00.303 SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0410-0501	●
68	00.303 SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0410-0501			●
68	00.303 SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0502-0609			●	●
68	00.303 SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0610-			●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0404-0409	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0410-0501	●
71	00.309 SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0404-0409	●	●
71	00.309 SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0410-0501	●
71	00.309 SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0410-0501			●
71	00.309 SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0502-0609			●	●
71	00.309 SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0610-			●	●	●
71	00.309 SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0410-0501			●
71	00.309 SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0502-0609			●	●
71	00.309 SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0610-			●	●	●
72	00.308 SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0404-0409	●	●
72	00.308 SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0410-0501	●
72	00.308 SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0410-0501			●
72	00.308 SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0502-0609			●	●
72	00.308 SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0610-			●	●	●
78	00.333 ARM; ROCKER THA	8-97915-831-0	08	1	0404-0409	●	●
78	00.333 ARM; ROCKER THA	8-97915-831-0	08	1	0410-0501	●
78	00.333 ARM; ROCKER	8-97364-808-2	16	1	0410-0501			●
78	00.333 ARM; ROCKER	8-97364-808-3	16	1	0502-0609			●	●
78	00.333 ARM; ROCKER	8-98029-537-6	16	1	0610-			●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1103-			●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0404-0409	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0410-0501	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0404-0409	●	●
87	00.349 BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0410-0501	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0410-0501			●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0502-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0610-			●	●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0410-0501			●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0502-0609			●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0610-			●	●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEA D) THA	8-97947-079-0	04	1	0410-0501			●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEA D) THA	8-97947-079-0	04	1	0502-0609			●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEA D) THA	8-97947-079-0	04	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
