0-13 — OIL PAN AND LEVEL GAUGE (#73537) — 168 parça

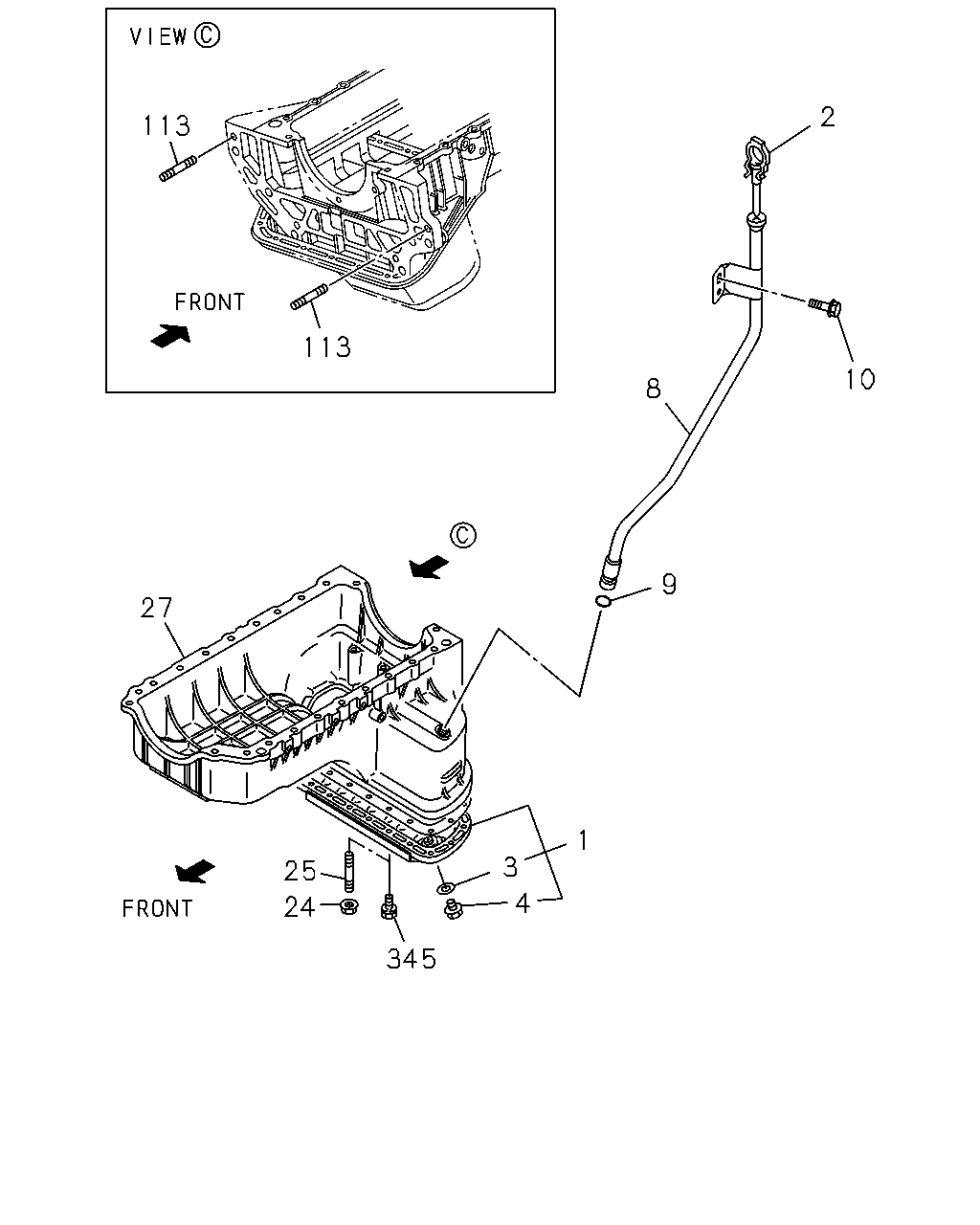

2 113 113 10 8 9 27 1 3 25 4 24 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL THA	8-97920-578-0	01	1	0404-0409	●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-97920-578-0	01	1	0404-0409		●
1	01.426 PAN ASM; OIL THA	8-97920-578-0	01	1	0410-0501	●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-97920-576-0	01	1	0404-0409		●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-97354-749-1	01	1	0410-0501			●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-97354-749-2	01	1	0502-0609			●	●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-98011-499-0	01	1	0610-1007			●	●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-98156-371-0	01	1	1008-			●	●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-97354-747-2	01	1	0410-0609			●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-98013-383-1	01	1	0610-1007			●	●	●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-98156-373-0	01	1	1008-			●	●	●
2	01.516 GAUGE; OIL LEVEL THA	8-97912-722-0	01	1	0404-0501	●
2	01.516 GAUGE; OIL LEVEL THA	8-97288-454-0	01	1	0404-0409		●
2	01.516 GAUGE; OIL LEVEL 4X2<TFB***> THA	8-97374-978-0	01	1	0410-0501			●
2	01.516 GAUGE; OIL LEVEL 4X2<TFB***> THA	8-97374-978-0	01	1	0502-0609			●	●
2	01.516 GAUGE; OIL LEVEL 4X2<TFB***> THA	8-98053-833-1	01	1	0610-			●	●
2	01.516 GAUGE; OIL LEVEL 4X4<TFS***> THA	8-97374-979-0	01	1	0410-0609			●
2	01.516 GAUGE; OIL LEVEL 4X4<TFS***> THA	8-98053-834-1	01	1	0610-			●	●	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 THA	8-97912-531-0	01	1	0404-0409	●	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 THA	8-97912-531-0	01	1	0410-0501	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 OD=24	8-94158-328-0	01	1	0410-0501			●
3	01.456 GASKET; DRAIN PLUG ID=14.2 OD=24	8-94158-328-0	01	1	0502-0609			●	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 OD=24	8-94158-328-0	01	1	0610-			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14 THA	8-97912-530-0	01	1	0404-0409	●	●
4	01.453 PLUG; DRAIN,OIL M14X14 THA	8-97912-530-0	01	1	0410-0501	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0410-0501			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0609			●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0610-			●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97910-172-3	01	1	0404-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97245-773-2	01	1	0404-0409		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97358-357-3	01	1	0410-0501			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97358-357-3	01	1	0502-0609			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98011-973-1	01	1	0610-			●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	02	1	0404-0409	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	02	1	0410-0501	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	01	1	0410-0501			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	01	1	0502-0609			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ID=11 OD=15.8 THA	8-98034-629-0	01	1	0610-			●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0404-0409	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0410-0501	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0404-0409	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0410-0501	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0404-0409	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0410-0501	●
25	01.453 STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	0410-0501			●
25	01.453 STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	0502-0609			●	●
25	01.453 STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	0610-			●	●	●
27	01.426 CRANKCASE THA	8-97920-000-0	01	1	0404-0409	●
27	01.426 CRANKCASE M/T MUA 5 SPEED 5G<RSP> THA	8-97920-000-0	01	1	0404-0409		●
27	01.426 CRANKCASE THA	8-97920-000-0	01	1	0410-0501	●
27	01.426 CRANKCASE A/T 4 SPEED-JATCO<RMK> THA	8-97920-001-0	01	1	0404-0409		●
27	01.426 CRANKCASE 4X2<TFB***> THA	8-97370-513-4	01	1	0410-0501			●
27	01.426 CRANKCASE 4X2<TFB***> THA	8-97370-513-4	01	1	0502-0609			●	●
27	01.426 CRANKCASE 4X2<TFB***> THA	8-98013-794-1	01	1	0610-			●	●
27	01.426 CRANKCASE 4X4<TFS***> THA	8-97370-514-3	01	1	0410-0609			●
27	01.426 CRANKCASE 4X4<TFS***> THA	8-97370-514-3	01	1	0610-			●	●
27	01.426 CRANKCASE A/T AISIN<RMD> THA	8-97370-514-3	01	1	0610-					●
27	01.426 CRANKCASE M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-498-2	01	1	0610-					●
113	01.453 PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0404-0409	●	●
113	01.453 PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0410-0501	●
113	01.453 PIN; STRAIGHT M/T MUX 5 SPEED 5S<MZJ> 08.939 OD=10 L=32 THA	9-08161-032-0	02	1	0610-					●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2<TFB***> 02.343 M8X12 FLANGE THA	0-28050-812-0	21	1	0410-0501			●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2<TFB***> 02.343 M8X12 FLANGE THA	0-28050-812-0	21	1	0502-			●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4<TFS***> 02.343 M8X12 FLANGE THA	0-28050-812-0	17	1	0410-0609			●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4<TFS***> 02.343 M8X12 FLANGE THA	0-28050-812-0	17	1	0610-			●	●	●

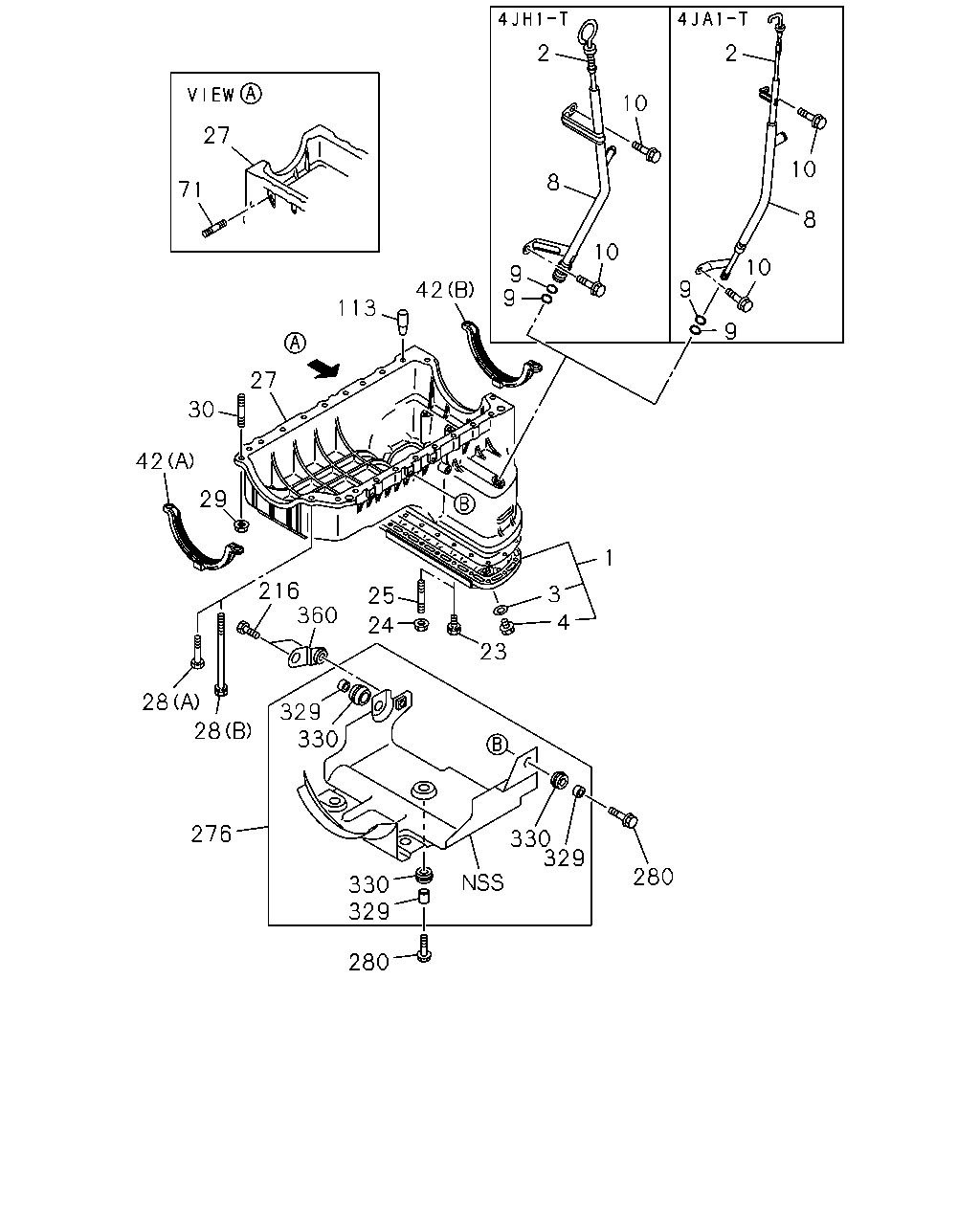

2 2 10 27 10 8 71 8 10 10 9 9 9 42 113 9 27 30 42 29 1 216 360 3 25 4 24 23 28 329 330 28 276 330 329 280 330 329 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL THA	8-97920-578-0	01	1	0404-0409	●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-97920-578-0	01	1	0404-0409		●
1	01.426 PAN ASM; OIL THA	8-97920-578-0	01	1	0410-0501	●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-97920-576-0	01	1	0404-0409		●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-97354-749-1	01	1	0410-0501			●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-97354-749-2	01	1	0502-0609			●	●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-98011-499-0	01	1	0610-1007			●	●
1	01.426 PAN ASM; OIL 4X2<TFB***> THA	8-98156-371-0	01	1	1008-			●	●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-97354-747-2	01	1	0410-0609			●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-98013-383-1	01	1	0610-1007			●	●	●
1	01.426 PAN ASM; OIL 4X4<TFS***> THA	8-98156-373-0	01	1	1008-			●	●	●
2	01.516 GAUGE; OIL LEVEL THA	8-97912-722-0	01	1	0404-0501	●
2	01.516 GAUGE; OIL LEVEL THA	8-97288-454-0	01	1	0404-0409		●
2	01.516 GAUGE; OIL LEVEL 4X2<TFB***> THA	8-97374-978-0	01	1	0410-0501			●
2	01.516 GAUGE; OIL LEVEL 4X2<TFB***> THA	8-97374-978-0	01	1	0502-0609			●	●
2	01.516 GAUGE; OIL LEVEL 4X2<TFB***> THA	8-98053-833-1	01	1	0610-			●	●
2	01.516 GAUGE; OIL LEVEL 4X4<TFS***> THA	8-97374-979-0	01	1	0410-0609			●
2	01.516 GAUGE; OIL LEVEL 4X4<TFS***> THA	8-98053-834-1	01	1	0610-			●	●	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 THA	8-97912-531-0	01	1	0404-0409	●	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 THA	8-97912-531-0	01	1	0410-0501	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 OD=24	8-94158-328-0	01	1	0410-0501			●
3	01.456 GASKET; DRAIN PLUG ID=14.2 OD=24	8-94158-328-0	01	1	0502-0609			●	●
3	01.456 GASKET; DRAIN PLUG ID=14.2 OD=24	8-94158-328-0	01	1	0610-			●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14 THA	8-97912-530-0	01	1	0404-0409	●	●
4	01.453 PLUG; DRAIN,OIL M14X14 THA	8-97912-530-0	01	1	0410-0501	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0410-0501			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0609			●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0610-			●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97910-172-3	01	1	0404-0501	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97245-773-2	01	1	0404-0409		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97358-357-3	01	1	0410-0501			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-97358-357-3	01	1	0502-0609			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98011-973-1	01	1	0610-			●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	02	1	0404-0409	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	02	1	0410-0501	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	01	1	0410-0501			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU 01.531 THA	8-97912-535-0	01	1	0502-0609			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ID=11 OD=15.8 THA	8-98034-629-0	01	1	0610-			●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0404-0409	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0410-0501	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0410-0501			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0502-0609			●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-			●	●	●
23	01.428 BOLT; OIL PAN M6X13 THA	8-97916-379-0	16	1	0404-0409	●	●
23	01.428 BOLT; OIL PAN M6X13 THA	8-97916-379-0	16	1	0410-0501	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0404-0409	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0410-0501	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0410-0501			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0502-0609			●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE THA	0-91180-208-0	02	1	0610-			●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0404-0409	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	0410-0501	●
25	01.453 STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	0410-0501			●
25	01.453 STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	0502-0609			●	●
25	01.453 STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	0610-			●	●	●
27	01.426 CRANKCASE THA	8-97920-000-0	01	1	0404-0409	●
27	01.426 CRANKCASE M/T MUA 5 SPEED 5G<RSP> THA	8-97920-000-0	01	1	0404-0409		●
27	01.426 CRANKCASE THA	8-97920-000-0	01	1	0410-0501	●
27	01.426 CRANKCASE A/T 4 SPEED-JATCO<RMK> THA	8-97920-001-0	01	1	0404-0409		●
27	01.426 CRANKCASE 4X2<TFB***> THA	8-97370-513-4	01	1	0410-0501			●
27	01.426 CRANKCASE 4X2<TFB***> THA	8-97370-513-4	01	1	0502-0609			●	●
27	01.426 CRANKCASE 4X2<TFB***> THA	8-98013-794-1	01	1	0610-			●	●
27	01.426 CRANKCASE 4X4<TFS***> THA	8-97370-514-3	01	1	0410-0609			●
27	01.426 CRANKCASE 4X4<TFS***> THA	8-97370-514-3	01	1	0610-			●	●
27	01.426 CRANKCASE A/T AISIN<RMD> THA	8-97370-514-3	01	1	0610-					●
27	01.426 CRANKCASE M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-498-2	01	1	0610-					●
28	01.780 BOLT; CRANKCASE TO C/BL (B) M8X120 FLANGE	0-28055-812-0	02	1	0404-0409	●	●
28	01.780 BOLT; CRANKCASE TO C/BL (B) M8X120 FLANGE	0-28055-812-0	02	1	0410-0501	●
28	01.780 BOLT; CRANKCASE TO C/BL 01.060 (A) M8X35 FLANGE THA	0-28650-835-0	18	1	0404-0409	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 01.060 (A) M8X35 FLANGE THA	0-28650-835-0	18	1	0410-0501	●
29	01.426 NUT; CRANKCASE 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0404-0409	●	●
29	01.426 NUT; CRANKCASE 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0410-0501	●
30	01.780 STUD; CRANKCASE M8X35 L=47 THA	0-41010-835-0	02	1	0404-0409	●	●
30	01.780 STUD; CRANKCASE M8X35 L=47 THA	0-41010-835-0	02	1	0410-0501	●
42	01.429 GASKET; CRANKCASE TO C/BL (A) FRONT	8-97120-933-0	01	1	0404-0409	●	●
42	01.429 GASKET; CRANKCASE TO C/BL (A) FRONT	8-97120-933-0	01	1	0410-0501	●
42	01.429 GASKET; CRANKCASE TO C/BL (B) REAR	8-97123-342-0	01	1	0404-0409	●	●
42	01.429 GASKET; CRANKCASE TO C/BL (B) REAR	8-97123-342-0	01	1	0410-0501	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30 THA	0-41010-818-0	02	1	0404-0409	●	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30 THA	0-41010-818-0	02	1	0410-0501	●
113	01.453 PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0404-0409	●	●
113	01.453 PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0410-0501	●
113	01.453 PIN; STRAIGHT M/T MUX 5 SPEED 5S<MZJ> 08.939 OD=10 L=32 THA	9-08161-032-0	02	1	0610-					●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE THA	0-28050-812-0	01	1	0404-0409	●	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501	●
216	01.429 BOLT; BRKT 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0404-0409	●	●
216	01.429 BOLT; BRKT 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0410-0501	●
276	01.516 COVER; CRANKCASE THA	8-97943-903-0	01	1	0404-0409	●	●
276	01.516 COVER; CRANKCASE THA	8-97943-903-0	01	1	0410-0501	●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0404-0409	●	●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0410-0501	●
329	01.516 GUIDE; COVER,CRANKCASE 00.034 THA	8-97916-668-0	03	1	0404-0409	●	●
329	01.516 GUIDE; COVER,CRANKCASE 00.034 THA	8-97916-668-0	03	1	0410-0501	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 THA	8-97916-666-1	03	1	0404-0409	●	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 THA	8-97916-666-1	03	1	0410-0501	●
360	01.750 BRACKET; CRANK CASE THA	8-97328-483-0	01	1	0404-0409	●	●
360	01.750 BRACKET; CRANK CASE THA	8-97328-483-0	01	1	0410-0501	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
