Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#73536) — 314 parça

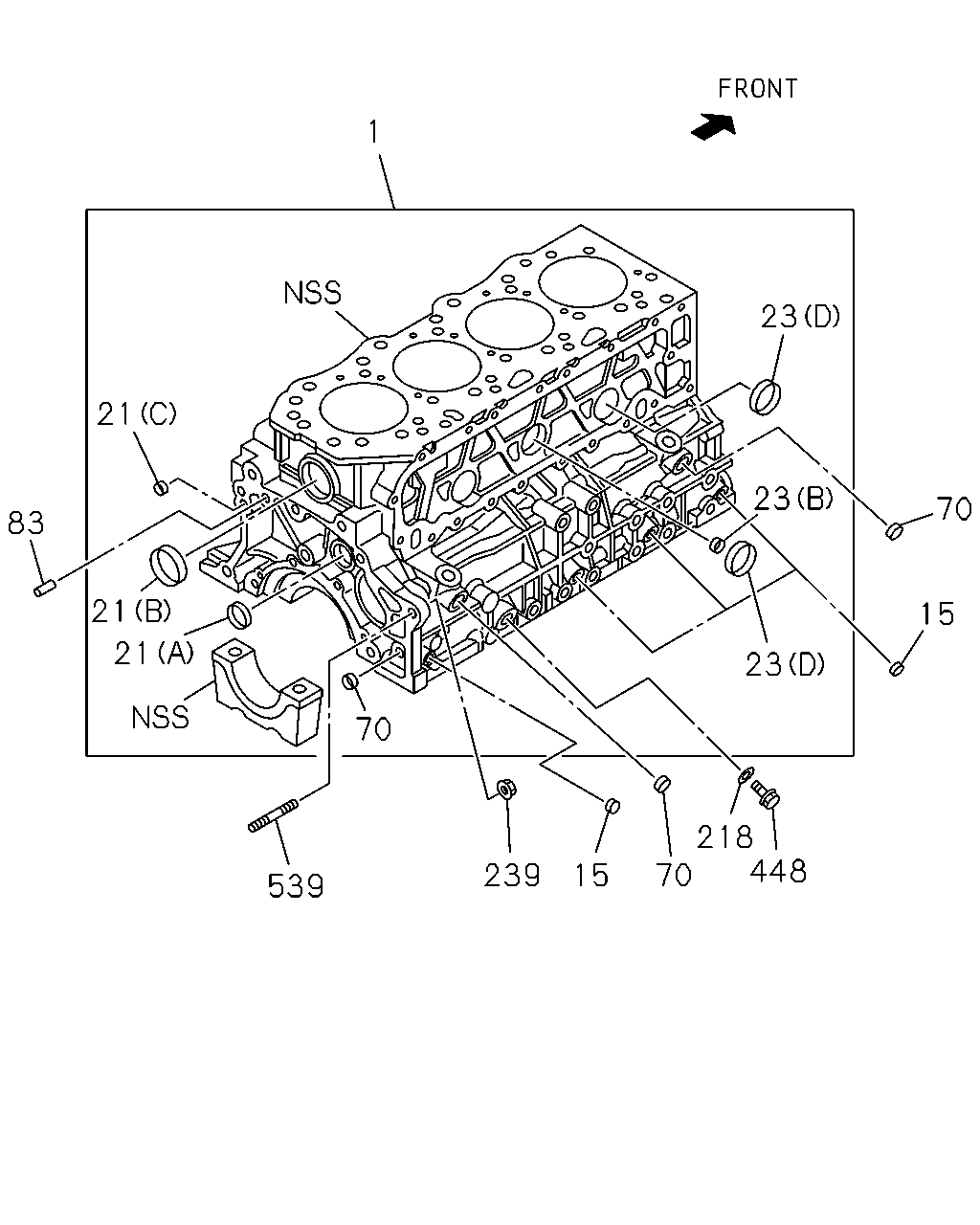

1 23 21 23 70 83 21 15 21 23 70 218 70 448 239 15 539

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL THA	8-97940-934-4	01	1	0404-0501	●
1	00.033 BLOCK ASM; CYL THA	8-97940-732-5	01	1	0404-0409		●
1	00.033 BLOCK ASM; CYL	8-97310-721-7	01	1	0410-0501			●
1	00.033 BLOCK ASM; CYL	8-97310-721-9	01	1	0502-0507			●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0508-0609			●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209			●	●	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302			●	●	●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-			●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0404-0409	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0410-0501	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0410-0501			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0502-0609			●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-			●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1008-			●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1008-			●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1008-			●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0410-0501	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0410-0501	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0404-0409	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0410-0501			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0502-0609			●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-1007			●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0404-0409	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0410-0501			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0502-0609			●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-1007			●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0410-0501			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0502-0609			●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-1	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-2	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0404-0409		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0610-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0610-1007			●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0404-0409	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0410-0501	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0410-0501			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0502-0609			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0610-			●	●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32 THA	9-08161-032-0	01	1	0410-0501			●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32 THA	9-08161-032-0	01	1	0502-0609			●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32 THA	9-08161-032-0	01	1	0610-			●	●
83	00.685 PIN; FLYWHEEL HSG A/T AISIN<RMD> 08.939 OD=10 L=32 THA	9-08161-032-0	01	1	0610-					●
218	01.531 GASKET; PLUG,C/BL SIDE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0410-0501			●
218	01.531 GASKET; PLUG,C/BL SIDE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0502-0609			●	●
218	01.531 GASKET; PLUG,C/BL SIDE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0610-			●	●	●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0410-0501			●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0502-0609			●	●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0610-1007			●	●
239	02.100 NUT; STUD,C/BL A/T AISIN<RMD> 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0610-1007					●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE THA	0-91180-110-0	01	1	1008-			●	●
239	02.100 NUT; STUD,C/BL A/T AISIN<RMD> 03.162 M10 FLANGE THA	0-91180-110-0	01	1	1008-					●
448	00.034 PLUG; C/BL THA	8-97379-656-0	01	1	0410-0501			●
448	00.034 PLUG; C/BL THA	8-97379-656-0	01	1	0502-0609			●	●
448	00.034 PLUG; C/BL THA	8-97379-656-1	01	1	0610-			●	●	●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5 THA	8-97371-842-1	01	1	0410-0501			●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5 THA	8-97371-842-1	01	1	0502-0609			●	●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5 THA	8-97371-842-1	01	1	0610-1007			●	●
539	01.428 STUD; REAMER A/T AISIN<RMD> 00.862 M10X40 L=75.5 THA	8-97371-842-1	01	1	0610-1007					●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5 THA	8-97371-842-1	01	1	1008-			●	●
539	01.428 STUD; REAMER A/T AISIN<RMD> 00.862 M10X40 L=75.5 THA	8-97371-842-1	01	1	1008-					●

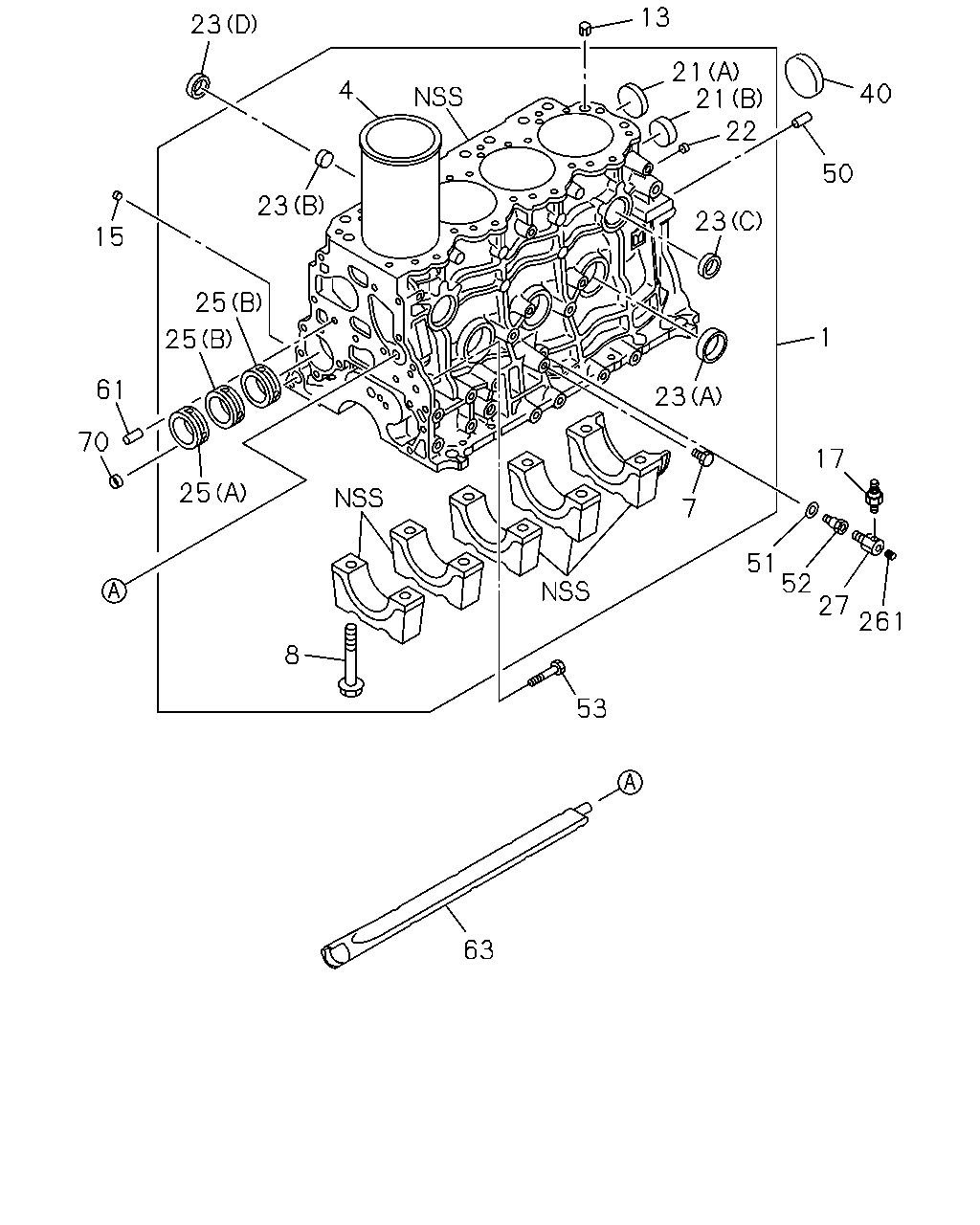

13 23 21 21 22 4 40 50 23 23 15 25 1 25 61 23 70 17 25 7 51 52 27 261 8 53 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL THA	8-97940-934-4	01	1	0404-0501	●
1	00.033 BLOCK ASM; CYL THA	8-97940-732-5	01	1	0404-0409		●
1	00.033 BLOCK ASM; CYL	8-97310-721-7	01	1	0410-0501			●
1	00.033 BLOCK ASM; CYL	8-97310-721-9	01	1	0502-0507			●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0508-0609			●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209			●	●	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302			●	●	●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-			●	●	●
4	00.030 LINER; C/BL OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	0404-0501	●
4	00.030 LINER; C/BL OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0404-0409		●
4	00.030 LINER; C/BL OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0404-0409		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0410-0501	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0404-0409	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0410-0501			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0502-0609			●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	1406-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	0404-0409	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	0410-0501	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0410-0501			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0502-0609			●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0610-			●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0404-0409	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0410-0501	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0502-0609			●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-			●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0404-0409	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0410-0501	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0410-0501			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0502-0609			●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-			●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0404-0409	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0410-0501	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1008-			●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1008-			●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1008-			●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0410-0501	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0410-0501	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0404-0409	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0410-0501			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0502-0609			●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-1007			●	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0404-0409	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0410-0501			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0502-0609			●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-1007			●	●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0410-0501			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0502-0609			●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-1007			●	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0404-0409	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-1	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-2	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0404-0409		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0610-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0610-1007			●	●	●
25	00.539 METAL; CM/SHF (A) THA	8-97942-173-1	01	1	0404-0409	●	●
25	00.539 METAL; CM/SHF (A) THA	8-97942-173-1	01	1	0410-0501	●
25	00.539 METAL; CM/SHF (B) THA	8-97942-174-1	02	1	0404-0409	●	●
25	00.539 METAL; CM/SHF (B) THA	8-97942-174-1	02	1	0410-0501	●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0404-0409	●	●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0410-0501	●		●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0502-0503			●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0504-0609			●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	0610-			●	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0404-0409	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0410-0501	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32 THA	9-08161-032-0	01	1	0404-0409	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32 THA	9-08161-032-0	01	1	0410-0501	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0404-0409	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0410-0501	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0502-0609			●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0610-			●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0404-0408	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0409-0409	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0410-0501	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0502-0609			●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0610-0703			●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-98084-434-0	01	1	0704-			●	●	●
53	00.862 BOLT; REAMER M10X52 THA	8-97916-382-0	01	1	0404-0409	●	●
53	00.862 BOLT; REAMER M10X52 THA	8-97916-382-0	01	1	0410-0501	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20 THA	9-08151-020-0	01	1	0404-0409	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20 THA	9-08151-020-0	01	1	0410-0501	●
61	00.206 PIN; STRAIGHT 01.453 L=31 THA	8-97920-964-1	02	1	0410-0501			●
61	00.206 PIN; STRAIGHT 01.453 L=31 THA	8-97920-964-1	02	1	0502-0609			●	●
61	00.206 PIN; STRAIGHT 01.453 L=31 THA	8-97920-964-1	02	1	0610-			●	●	●
63	01.153 DUCT; WATER,C/BL THA	8-97912-496-0	01	1	0404-0501	●
63	01.153 DUCT; WATER,C/BL THA	8-97920-058-0	01	1	0404-0409		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0404-0409	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0410-0501	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0410-0501			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0502-0609			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0610-			●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0404-0409	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0410-0501	●		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0502-0609			●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-			●	●	●

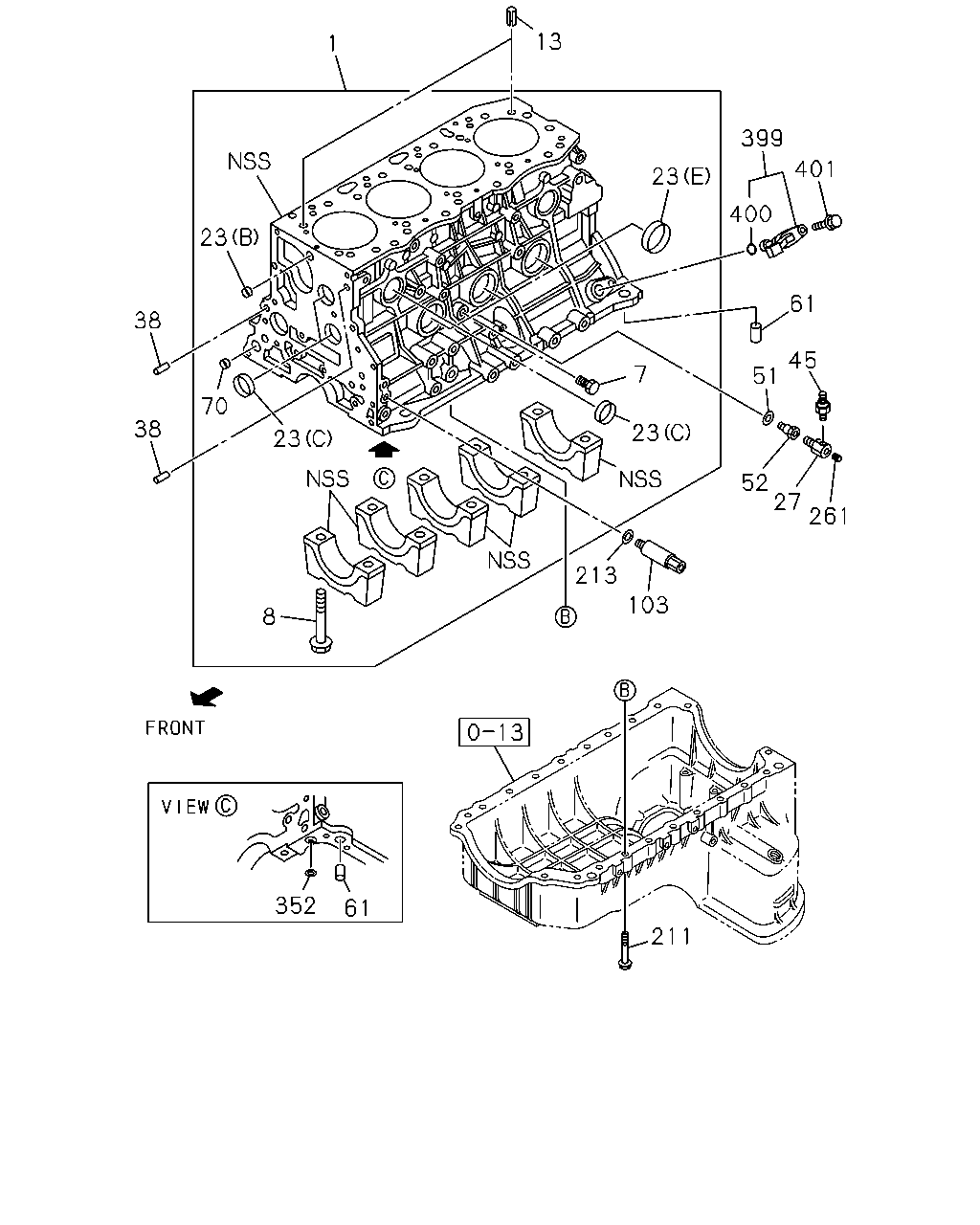

13 1 399 401 23 400 23 61 38 45 7 51 70 38 23 23 52 27 261 213 103 8 13 352 61 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL THA	8-97940-934-4	01	1	0404-0501	●
1	00.033 BLOCK ASM; CYL THA	8-97940-732-5	01	1	0404-0409		●
1	00.033 BLOCK ASM; CYL	8-97310-721-7	01	1	0410-0501			●
1	00.033 BLOCK ASM; CYL	8-97310-721-9	01	1	0502-0507			●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-0	01	1	0508-0609			●	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209			●	●	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302			●	●	●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-			●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0410-0501	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0404-0409	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0410-0501			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0502-0609			●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	1406-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	0404-0409	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	0410-0501	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0410-0501			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0502-0609			●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0610-			●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0404-0409	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0410-0501	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0502-0609			●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	1008-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-1	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-2	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0404-0409	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	0410-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	0404-0409		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0610-1007			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0610-			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0410-0501			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0502-0609			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=45	8-97036-550-1	03	1	0610-1007			●	●	●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0404-0409	●	●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0410-0501	●		●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0502-0503			●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0504-0609			●	●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	0610-			●	●	●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0410-0501			●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0502-0609			●	●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20 THA	9-08151-020-0	02	1	0610-			●	●	●
45	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0410-0501			●
45	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0502-0609			●	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0610-			●	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0404-0409	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0410-0501	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0502-0609			●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B THA	8-97912-498-0	01	1	0610-			●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0404-0408	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0409-0409	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0410-0501	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0502-0609			●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-97943-174-0	01	1	0610-0703			●	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B THA	8-98084-434-0	01	1	0704-			●	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20 THA	9-08151-020-0	01	1	0404-0409	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20 THA	9-08151-020-0	01	1	0410-0501	●
61	00.206 PIN; STRAIGHT 01.453 L=31 THA	8-97920-964-1	02	1	0410-0501			●
61	00.206 PIN; STRAIGHT 01.453 L=31 THA	8-97920-964-1	02	1	0502-0609			●	●
61	00.206 PIN; STRAIGHT 01.453 L=31 THA	8-97920-964-1	02	1	0610-			●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0404-0409	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0410-0501	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0410-0501			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0502-0609			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	06	1	0610-			●	●	●
103	01.531 NIPPLE; OIL FEED	8-97316-983-2	01	1	0410-0501			●
103	01.531 NIPPLE; OIL FEED	8-97316-983-3	01	1	0502-0609			●	●
103	01.531 NIPPLE; OIL FEED THA	8-97316-983-4	01	1	0610-1007			●	●	●
103	01.531 NIPPLE; OIL FEED THA	8-97316-983-4	01	1	1008-			●	●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE THA	0-28050-830-0	05	1	0410-0501			●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE THA	0-28050-830-0	05	1	0502-0609			●	●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE THA	0-28050-830-0	05	1	0610-			●	●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE THA	0-28650-825-0	14	1	0410-0501			●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE THA	0-28650-825-0	14	1	0502-0609			●	●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE THA	0-28650-825-0	14	1	0610-			●	●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE THA	0-28650-840-0	01	1	0410-0501			●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE THA	0-28650-840-0	01	1	0502-0609			●	●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE THA	0-28650-840-0	01	1	0610-			●	●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0410-0501			●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0502-0609			●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0610-1007			●	●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1008-			●	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0404-0409	●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0410-0501	●		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0502-0609			●	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-			●	●	●
352	01.429 GASKET; C/BL TO CRANKCASE THA	9-09566-116-0	01	1	0410-0501			●
352	01.429 GASKET; C/BL TO CRANKCASE THA	9-09566-116-0	01	1	0502-0609			●	●
352	01.429 GASKET; C/BL TO CRANKCASE THA	9-09566-116-0	01	1	0610-			●	●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0410-0501			●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0502-0609			●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0610-			●	●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0410-0501			●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0502-0609			●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0610-			●	●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE THA	0-28050-616-0	01	1	0410-0501			●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE THA	0-28050-616-0	01	1	0502-0609			●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE THA	0-28050-616-0	01	1	0610-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
