0-10 — CYLINDER HEAD COVER (#73534) — 138 parça

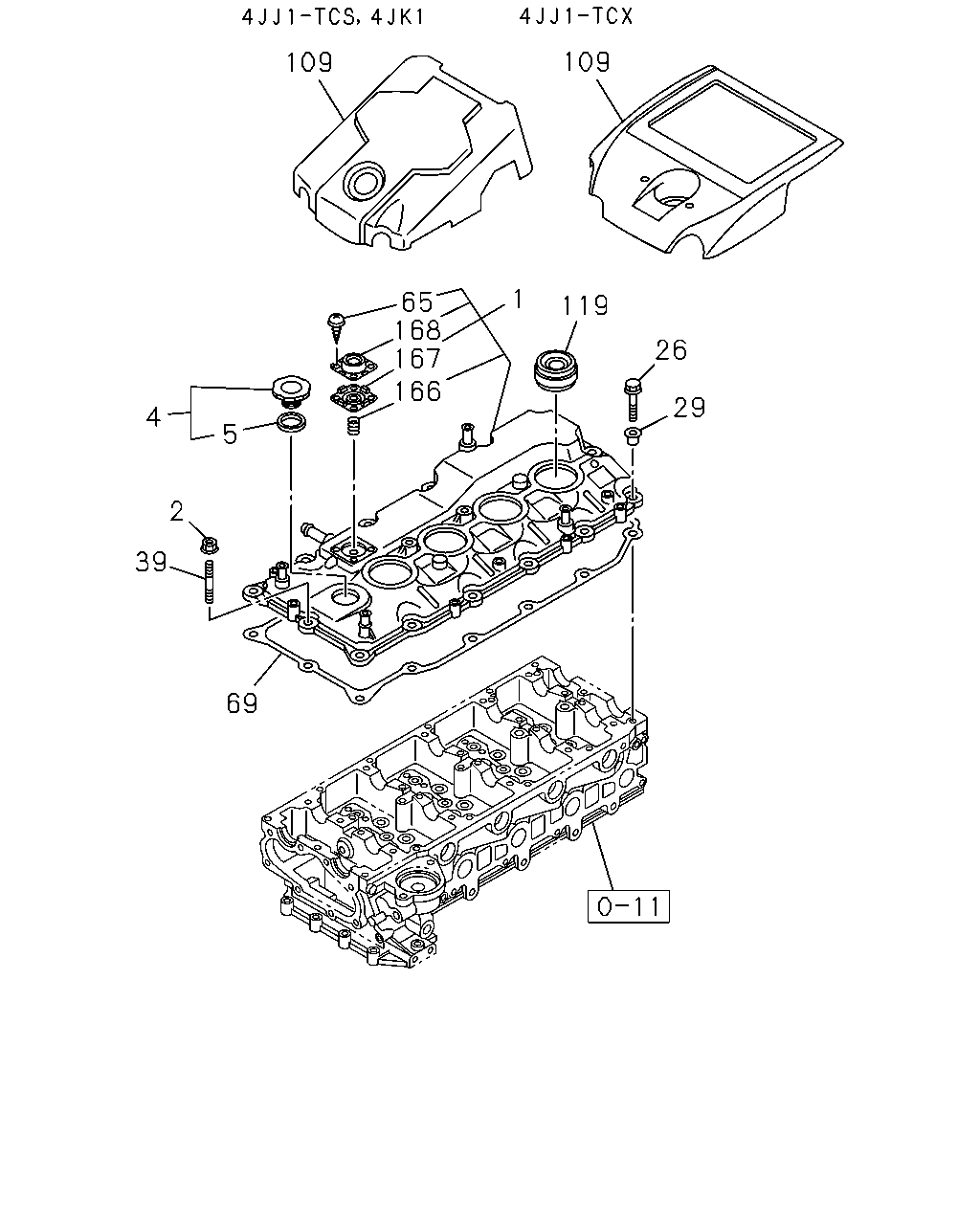

109 109 1 65 168 167 166 119 26 29 4 5 2 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD THA	8-97910-604-1	01	1	0404-0501	●
1	00.386 COVER; CYL HD THA	8-97943-017-0	01	1	0404-0409		●
1	00.386 COVER; CYL HD THA	8-97366-527-3	01	1	0410-0501			●
1	00.386 COVER; CYL HD THA	8-97366-527-4	01	1	0502-0609			●	●
1	00.386 COVER; CYL HD THA	8-98051-196-2	01	1	0610-1007			●	●	●
1	00.386 COVER; CYL HD THA	8-98156-392-0	01	1	1008-			●	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE THA	0-91180-206-0	01	1	0410-0501			●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE THA	0-91180-206-0	01	1	0502-0609			●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE THA	0-91180-206-0	01	1	0610-			●	●	●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0404-0409	●	●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0410-0501	●		●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0502-0609			●	●
4	01.758 CAP; OIL FILLER THA	8-98026-084-0	01	1	0610-			●	●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0404-0409	●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0410-0501	●		●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0502-0609			●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0610-			●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE THA	0-28650-630-0	13	1	0410-0501			●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE THA	0-28650-630-0	13	1	0502-0609			●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE THA	0-28650-630-0	13	1	0610-1007			●	●	●
26	08.900 BOLT; CYL HD COVER 00.685 M6X25 FLANGE THA	0-28650-625-0	13	1	1008-			●	●	●
29	00.413 RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0410-0501			●
29	00.413 RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0502-0609			●	●
29	00.413 RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0610-1007			●	●	●
39	00.413 STUD; COVER,HD M6X30 L=38 THA	8-97372-795-0	01	1	0410-0501			●
39	00.413 STUD; COVER,HD M6X30 L=38 THA	8-97372-795-0	01	1	0502-0508			●	●
39	00.413 STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0509-0609			●	●
39	00.413 STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0610-1007			●	●	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34 THA	0-41010-625-0	01	1	1008-			●	●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0410-0501			●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0502-0609			●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0610-			●	●	●
69	00.423 GASKET; HD TO COVER THA	8-97912-741-0	01	1	0404-0409	●	●
69	00.423 GASKET; HD TO COVER THA	8-97912-741-0	01	1	0410-0501	●
69	00.423 GASKET; HD TO COVER THA	8-97312-088-0	01	1	0410-0501			●
69	00.423 GASKET; HD TO COVER THA	8-97312-088-0	01	1	0502-0511			●	●
69	00.423 GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0609			●	●
69	00.423 GASKET; HD TO COVER THA	8-97945-338-0	01	1	0610-1007			●	●	●
69	00.423 GASKET; HD TO COVER THA	8-98156-394-0	01	1	1008-			●	●	●
109	00.386 COVER; ENG THA	8-97363-668-0	01	1	0404-0409		●
109	00.386 COVER; ENG	8-97371-405-2	01	1	0410-0602			●
109	00.386 COVER; ENG THA	8-98031-431-0	01	1	0603-			●
109	00.386 COVER; ENG THA	8-97371-406-2	01	1	0502-0602				●
109	00.386 COVER; ENG THA	8-98031-432-0	01	1	0603-				●
109	00.386 COVER; ENG THA	8-98061-177-0	01	1	0610-1006					●
109	00.386 COVER; ENG THA	8-98175-669-0	01	1	1007-					●
119	00.386 COVER; SEAL,NOZZLE THA	8-97317-168-1	04	1	0410-0501			●
119	00.386 COVER; SEAL,NOZZLE THA	8-97317-168-1	04	1	0502-0609			●	●
119	00.386 COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0610-			●	●	●
166	00.283 SPRING; VENTILATOR 00.423 THA	8-97365-998-0	01	1	0410-0501			●
166	00.283 SPRING; VENTILATOR 00.423 THA	8-97365-998-0	01	1	0502-0508			●	●
166	00.283 SPRING; VENTILATOR 00.423 THA	8-97365-998-0	01	1	0509-0609			●	●
166	00.283 SPRING; VENTILATOR 00.423 THA	8-97365-998-0	01	1	0610-			●	●	●
167	00.283 DIAPHRAGM; VENTILATOR 00.269 THA	8-97365-915-1	01	1	0410-0501			●
167	00.283 DIAPHRAGM; VENTILATOR 00.269 THA	8-97365-915-1	01	1	0502-0505			●	●
167	00.283 DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0506-0609			●	●
167	00.283 DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0610-			●	●	●
168	00.283 COVER; VENTILATOR 00.269 THA	8-97365-992-0	01	1	0410-0501			●
168	00.283 COVER; VENTILATOR 00.269 THA	8-97365-992-0	01	1	0502-0609			●	●
168	00.283 COVER; VENTILATOR 00.269 THA	8-97365-992-0	01	1	0610-			●	●	●

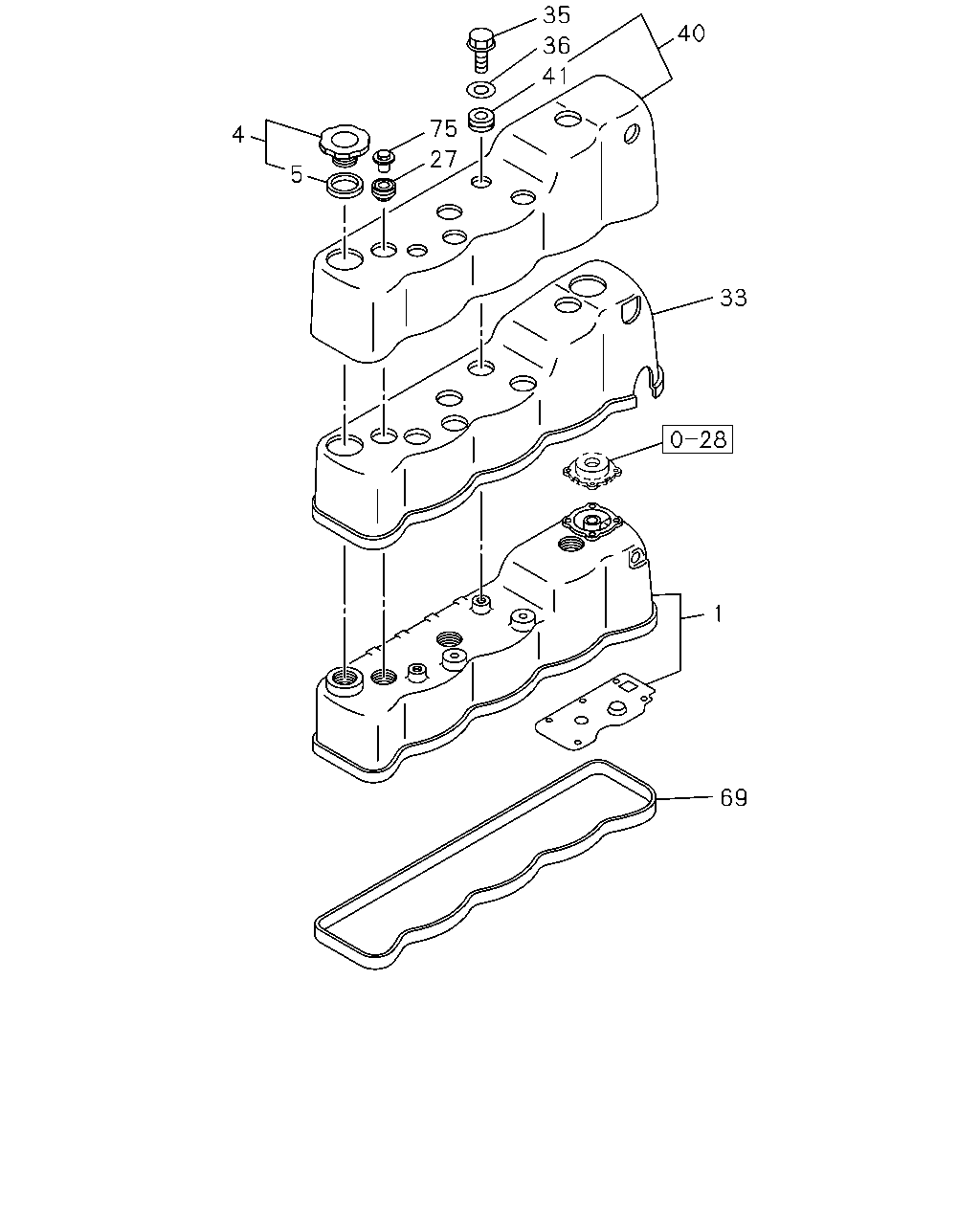

35 40 36 41 75 4 27 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD THA	8-97910-604-1	01	1	0404-0501	●
1	00.386 COVER; CYL HD THA	8-97943-017-0	01	1	0404-0409		●
1	00.386 COVER; CYL HD THA	8-97366-527-3	01	1	0410-0501			●
1	00.386 COVER; CYL HD THA	8-97366-527-4	01	1	0502-0609			●	●
1	00.386 COVER; CYL HD THA	8-98051-196-2	01	1	0610-1007			●	●	●
1	00.386 COVER; CYL HD THA	8-98156-392-0	01	1	1008-			●	●	●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0404-0409	●	●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0410-0501	●		●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0502-0609			●	●
4	01.758 CAP; OIL FILLER THA	8-98026-084-0	01	1	0610-			●	●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0404-0409	●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0410-0501	●		●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0502-0609			●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0610-			●	●	●
27	00.423 GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0404-0409	●	●
27	00.423 GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0410-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0404-0409	●	●
33	00.386 RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0410-0501	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0404-0409	●	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0410-0501	●
40	00.386 COVER THA	8-97911-573-2	01	1	0404-0501	●
40	00.386 COVER THA	8-97920-051-2	01	1	0404-0409		●
41	00.413 GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0410-0501	●
41	00.413 GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0404-0409	●	●
69	00.423 GASKET; HD TO COVER THA	8-97912-741-0	01	1	0404-0409	●	●
69	00.423 GASKET; HD TO COVER THA	8-97912-741-0	01	1	0410-0501	●
69	00.423 GASKET; HD TO COVER THA	8-97312-088-0	01	1	0410-0501			●
69	00.423 GASKET; HD TO COVER THA	8-97312-088-0	01	1	0502-0511			●	●
69	00.423 GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0609			●	●
69	00.423 GASKET; HD TO COVER THA	8-97945-338-0	01	1	0610-1007			●	●	●
69	00.423 GASKET; HD TO COVER THA	8-98156-394-0	01	1	1008-			●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0404-0409	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0410-0501	●

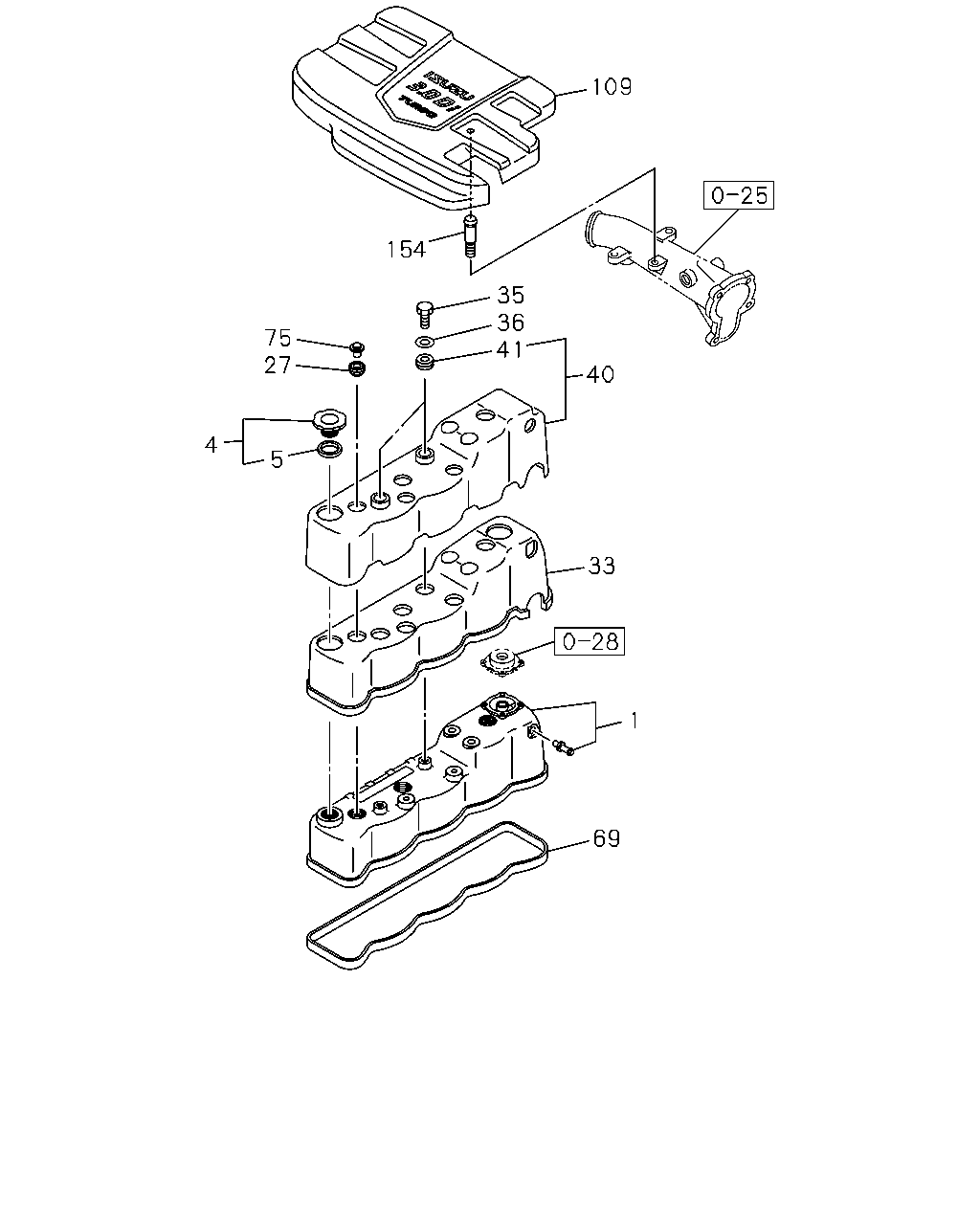

109 154 35 36 41 75 27 40 4 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD THA	8-97910-604-1	01	1	0404-0501	●
1	00.386 COVER; CYL HD THA	8-97943-017-0	01	1	0404-0409		●
1	00.386 COVER; CYL HD THA	8-97366-527-3	01	1	0410-0501			●
1	00.386 COVER; CYL HD THA	8-97366-527-4	01	1	0502-0609			●	●
1	00.386 COVER; CYL HD THA	8-98051-196-2	01	1	0610-1007			●	●	●
1	00.386 COVER; CYL HD THA	8-98156-392-0	01	1	1008-			●	●	●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0404-0409	●	●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0410-0501	●		●
4	01.758 CAP; OIL FILLER THA	8-97912-543-0	01	1	0502-0609			●	●
4	01.758 CAP; OIL FILLER THA	8-98026-084-0	01	1	0610-			●	●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0404-0409	●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0410-0501	●		●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0502-0609			●	●
5	01.758 GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0610-			●	●	●
27	00.423 GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0404-0409	●	●
27	00.423 GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0410-0501	●
33	00.386 RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0404-0409	●	●
33	00.386 RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0410-0501	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0501	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0404-0409	●	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0410-0501	●
40	00.386 COVER THA	8-97911-573-2	01	1	0404-0501	●
40	00.386 COVER THA	8-97920-051-2	01	1	0404-0409		●
41	00.413 GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0410-0501	●
41	00.413 GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0404-0409	●	●
69	00.423 GASKET; HD TO COVER THA	8-97912-741-0	01	1	0404-0409	●	●
69	00.423 GASKET; HD TO COVER THA	8-97912-741-0	01	1	0410-0501	●
69	00.423 GASKET; HD TO COVER THA	8-97312-088-0	01	1	0410-0501			●
69	00.423 GASKET; HD TO COVER THA	8-97312-088-0	01	1	0502-0511			●	●
69	00.423 GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0609			●	●
69	00.423 GASKET; HD TO COVER THA	8-97945-338-0	01	1	0610-1007			●	●	●
69	00.423 GASKET; HD TO COVER THA	8-98156-394-0	01	1	1008-			●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0404-0409	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0410-0501	●
109	00.386 COVER; ENG THA	8-97363-668-0	01	1	0404-0409		●
109	00.386 COVER; ENG	8-97371-405-2	01	1	0410-0602			●
109	00.386 COVER; ENG THA	8-98031-431-0	01	1	0603-			●
109	00.386 COVER; ENG THA	8-97371-406-2	01	1	0502-0602				●
109	00.386 COVER; ENG THA	8-98031-432-0	01	1	0603-				●
109	00.386 COVER; ENG THA	8-98061-177-0	01	1	0610-1006					●
109	00.386 COVER; ENG THA	8-98175-669-0	01	1	1007-					●
154	00.293 PIN; COVER	8-97172-106-0	04	1	0404-0409		●
