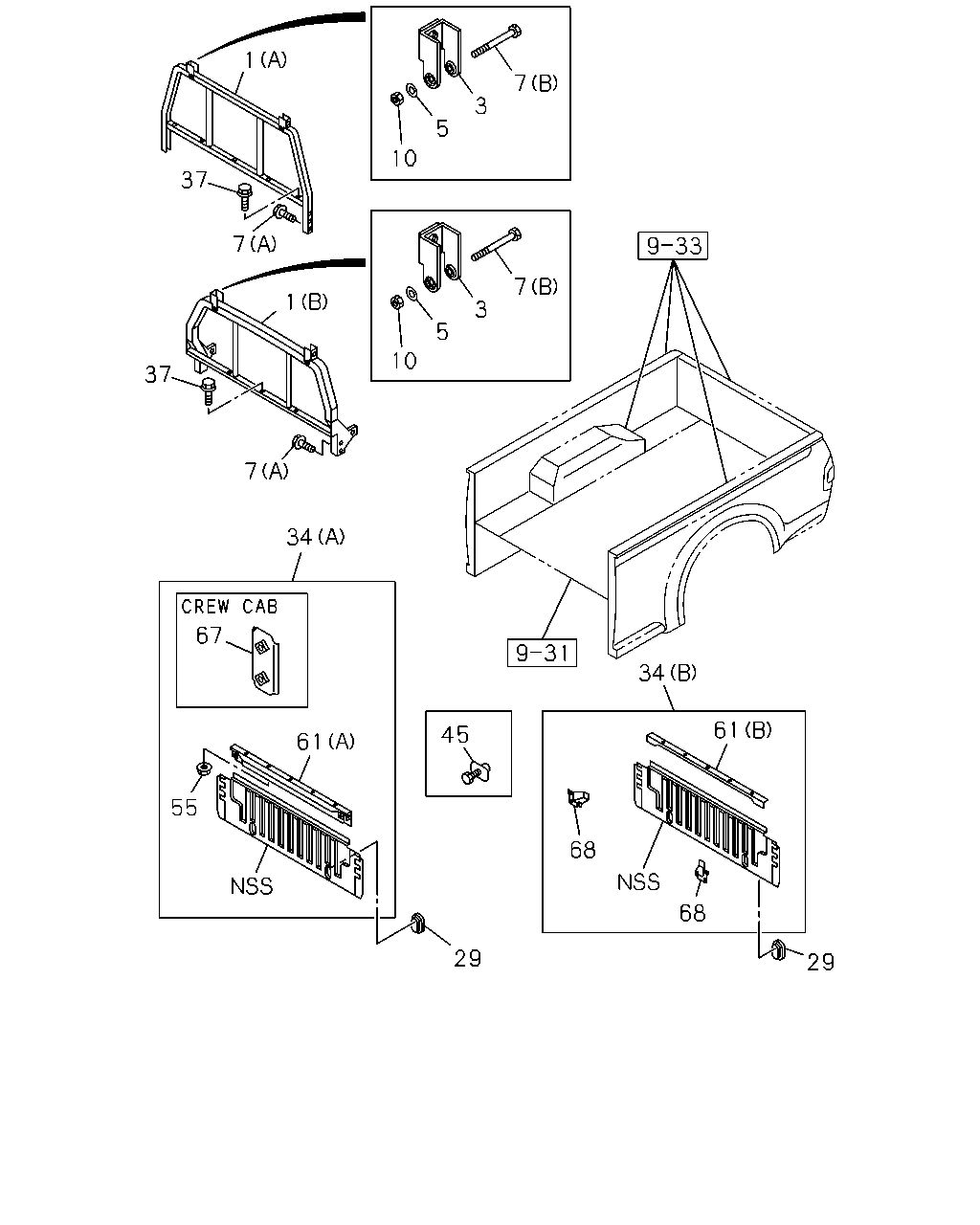

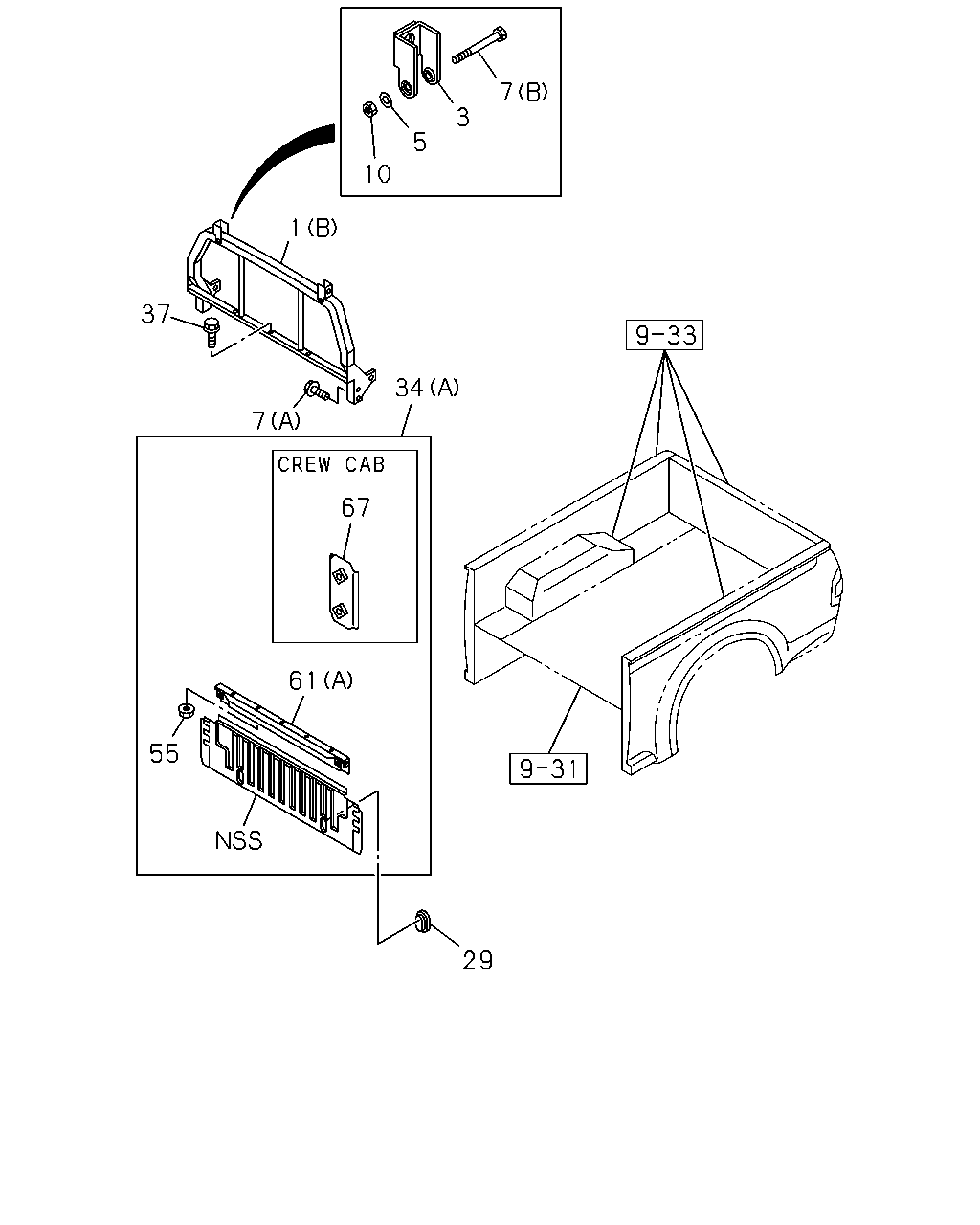

9-32 — REAR BODY; GUARD FRAME (#73530) — 64 parça

7 3 5 10 1 37 34 7 67 61 55 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97236-678-5	01	1	0307-	●	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97310-075-2	01	1	0307-			●	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97352-624-0	02	1	0307-	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-94481-019-0	02	1	0307-0612	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98056-308-0	02	1	0701-	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-94481-022-0	02	1	0307-0611	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-98056-129-0	02	1	0612-	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.269 (A) M8X16.5	1-09104-027-1	06	1	0307-0611	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0307-0611			●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-			●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 FLANGE	8-94481-428-0	02	1	0307-0611	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6	8-98056-127-0	02	1	0612-	●	●	●	●
29	17.455 COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63)	8-97918-416-0	02	1	0307-	●	●	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97236-254-3	01	1	0307-0309	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97369-723-1	01	1	0310-0402	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97369-723-1	01	1	0403-	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97327-407-0	01	1	0307-0309			●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97373-644-1	01	1	0310-			●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-93358-340-2	01	1	0307-0309			●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97369-727-1	01	1	0310-			●	●
37	17.455 BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0307-0601	●	●	●	●
37	17.455 BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE	0-28050-612-0	07	1	0602-	●	●	●	●
55	17.070 NUT; MEMBER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6	9-09114-086-0	05	1	0307-			●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) (B)	8-97252-308-1	01	1	0307-0402	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97252-308-2	01	1	0403-	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97326-371-0	01	1	0307-			●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97236-715-0	01	1	0307-			●	●
67	17.455 PLATE; RR BODY FRONT REAR BODY DBL WALL CTR PULL(E63)	8-93326-173-1	02	1	0307-			●	●

1 7 3 5 10 37 7 7 1 3 5 10 37 7 34 67 34 61 45 61 55 68 68 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97236-678-5	01	1	0307-	●	●
1	17.455 FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97310-075-2	01	1	0307-			●	●
3	17.447 STOPPER; GUARD FRAME,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97352-624-0	02	1	0307-	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-94481-019-0	02	1	0307-0612	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98056-308-0	02	1	0701-	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-94481-022-0	02	1	0307-0611	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45	8-98056-129-0	02	1	0612-	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.269 (A) M8X16.5	1-09104-027-1	06	1	0307-0611	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0307-0611			●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5	8-98058-001-0	06	1	0612-			●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 FLANGE	8-94481-428-0	02	1	0307-0611	●	●	●	●
10	17.447 NUT; GUARD FRAME STOPPER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6	8-98056-127-0	02	1	0612-	●	●	●	●
29	17.455 COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63)	8-97918-416-0	02	1	0307-	●	●	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97236-254-3	01	1	0307-0309	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-97369-723-1	01	1	0310-0402	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97369-723-1	01	1	0403-	●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97327-407-0	01	1	0307-0309			●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97373-644-1	01	1	0310-			●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-93358-340-2	01	1	0307-0309			●	●
34	17.455 PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97369-727-1	01	1	0310-			●	●
37	17.455 BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0307-0601	●	●	●	●
37	17.455 BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE	0-28050-612-0	07	1	0602-	●	●	●	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	14	1	1008-	●	●
45	08.131 RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL(E63) 08.154	8-94221-150-0	10	1	1008-			●	●
55	17.070 NUT; MEMBER REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6	9-09114-086-0	05	1	0307-			●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) (B)	8-97252-308-1	01	1	0307-0402	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B)	8-97252-308-2	01	1	0403-	●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97326-371-0	01	1	0307-			●	●
61	17.447 BAR ASM REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A)	8-97236-715-0	01	1	0307-			●	●
67	17.455 PLATE; RR BODY FRONT REAR BODY DBL WALL CTR PULL(E63)	8-93326-173-1	02	1	0307-			●	●
68	17.455 EXTENSION; FRONT,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97287-179-1	01	1	0307-0402	●	●
68	17.455 EXTENSION; FRONT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97287-179-1	01	1	0403-	●	●
68	17.455 EXTENSION; FRONT,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97287-178-1	01	1	0307-0402	●	●
68	17.455 EXTENSION; FRONT,RR BODY REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-97287-178-1	01	1	0403-	●	●
