1-35 — CHARGE AIR COOLER (#7353) — 82 parça

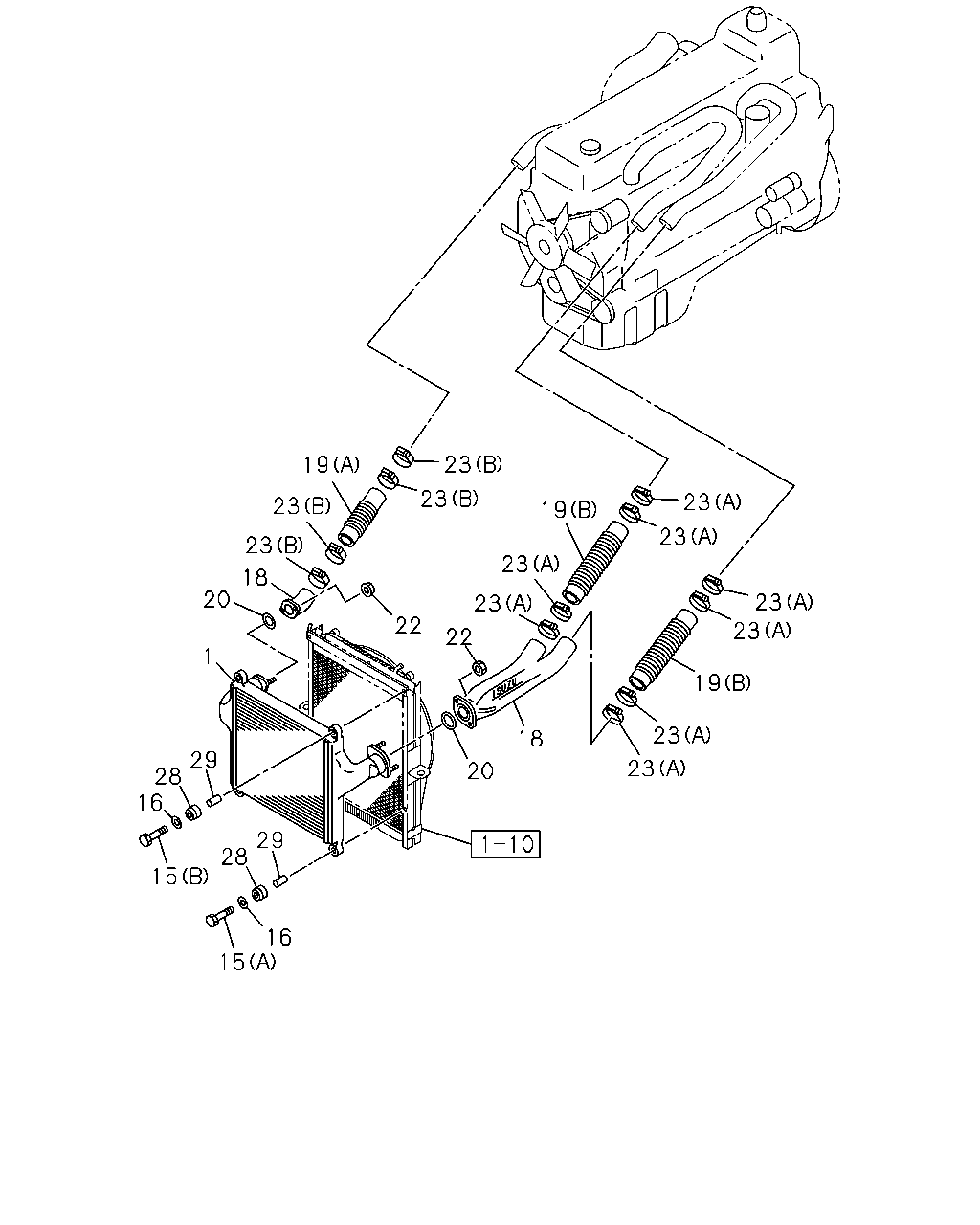

çizim 44239
23 19 23 23 23 19 23 23 23 18 20 23 23 22 23 22 1 19 23 18 29 28 16 23 20 29 28 15 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 9812-9901 ●
1 COOLER; CHARGE AIR 1-14431-047-0 01 1 9902- ● ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9902-9904 ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9905-9906 ● ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9907-9912 ●
1 COOLER; CHARGE AIR
CAB UP +110MM<TGG> 		1-14431-039-0 01 1 0001- ●
15 BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9812-9901 ●
15 BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE 		0-28080-835-0 04 1 9902-9904 ●
15 BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE 		0-28080-835-0 04 1 9905-9906 ● ●
15 BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE 		0-28080-835-0 04 1 9907-9912 ●
15 BOLT; CHARGE AIR COOLER
CAB UP +110MM<TGG> (A) M8X35 FLANGE 		0-28080-835-0 04 1 0001- ●
15 BOLT; CHARGE AIR COOLER
(B) M8X50 FLANGE 		0-28080-850-0 02 1 9812-9901 ●
15 BOLT; CHARGE AIR COOLER
(B) M8X50 FLANGE 		0-28080-850-0 02 1 9902- ● ●
15 BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9902- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 9812-9901 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9902-9904 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9905-9906 ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9907-9912 ●
16 WASHER; PL,CHARGE AIR COOLER
CAB UP +110MM<TGG> ID=10.5 OD=32 		9-09164-810-0 04 1 0001- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 9902- ● ●
18 ADAPTER 1-14112-491-1 01 1 9812-9901 ●
18 ADAPTER 1-14112-491-1 01 1 9902- ● ● ● ●
18 ADAPTER 1-14112-567-0 01 1 9812-9901 ●
18 ADAPTER 1-14112-567-0 01 1 9902-9904 ● ●
18 ADAPTER
EXC. CHILE EQUIPMENT(TDK) 		1-14112-567-0 01 1 9902-9904 ●
18 ADAPTER 1-14112-567-0 01 1 9905-9906 ● ● ●
18 ADAPTER
EXC. ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) 		1-14112-567-0 01 1 9905-9906 ●
18 ADAPTER 1-14112-567-0 01 1 9907-9909 ● ●
18 ADAPTER
EXC. ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) 		1-14112-567-0 01 1 9907-9909 ●
18 ADAPTER
EXC. TUNISIA EQUIPMENT(NGT) 		1-14112-567-0 01 1 9910-0004 ●
18 ADAPTER 1-14112-567-0 01 1 9910-0004 ●
18 ADAPTER
EXC. ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) 		1-14112-567-0 01 1 9910-0004 ●
18 ADAPTER
EXC. TUNISIA EQUIPMENT(NGT) 		1-14112-567-0 01 1 0005- ●
18 ADAPTER 1-14112-567-0 01 1 0005- ●
18 ADAPTER
CHILE EQUIPMENT(TDK) 		1-14112-719-0 01 1 9902-9904 ●
18 ADAPTER
ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) 		1-14112-719-0 01 1 9905-9909 ●
18 ADAPTER
TUNISIA EQUIPMENT(NGT) 		1-14112-719-0 01 1 9910-0004 ●
18 ADAPTER
ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) 		1-14112-719-0 01 1 9910-0004 ●
18 ADAPTER
TUNISIA EQUIPMENT(NGT) 		1-14112-719-0 01 1 0005- ●
18 ADAPTER 1-14112-719-0 01 1 0005- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9812-9901 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9902-9904 ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9905-9906 ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9907- ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9812-9901 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9902-9904 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. CHILE EQUIPMENT(TDK) (B) L=270 		1-09360-914-2 02 1 9902-9904 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9905-9906 ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) (B) L=270 		1-09360-914-2 02 1 9905-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9907-9909 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) (B) L=270 		1-09360-914-2 02 1 9907-9909 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. TUNISIA EQUIPMENT(NGT) (B) L=270 		1-09360-914-2 02 1 9910-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9910-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) (B) L=270 		1-09360-914-2 02 1 9910-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. TUNISIA EQUIPMENT(NGT) (B) L=270 		1-09360-914-2 02 1 0005- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 0005- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
CHILE EQUIPMENT(TDK) (B) 		1-09361-010-1 02 1 9902-9904 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) (B) 		1-09361-010-1 02 1 9905-9909 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
TUNISIA EQUIPMENT(NGT) (B) 		1-09361-010-1 02 1 9910-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
ARGENTINE EQUIPMENT(NBQ),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(TDK) (B) 		1-09361-010-1 02 1 9910-0004 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
TUNISIA EQUIPMENT(NGT) (B) 		1-09361-010-1 02 1 0005- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-010-1 02 1 0005- ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9812-9901 ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9902- ● ● ● ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9812-9901 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9902- ● ● ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9812-9901 ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9902- ● ● ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9812-9901 ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9902- ● ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9812-9901 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9902-9904 ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9905-9906 ● ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9907-9912 ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0001- ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
CAB UP +110MM<TGG> 		1-21467-015-1 04 1 0001- ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9812-9901 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9902-9904 ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9905-9906 ● ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9907-9912 ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0001- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
CAB UP +110MM<TGG> 		1-21469-100-0 04 1 0001- ●
