Isuzu WW
▶
PICKUP
▶
TFR
▶
50967 - TFR/TFS(EUROPE)-RHD
▶
9 - Tools
▶
9-31 - REAR BODY; FLOOR AND FENDER
▶
9-31 — REAR BODY; FLOOR AND FENDER
(#73529) — 23 parça
Tümü
A - TFB5SF
B - TFS5SF
C - TFB5WF
D - TFS5WF
◀

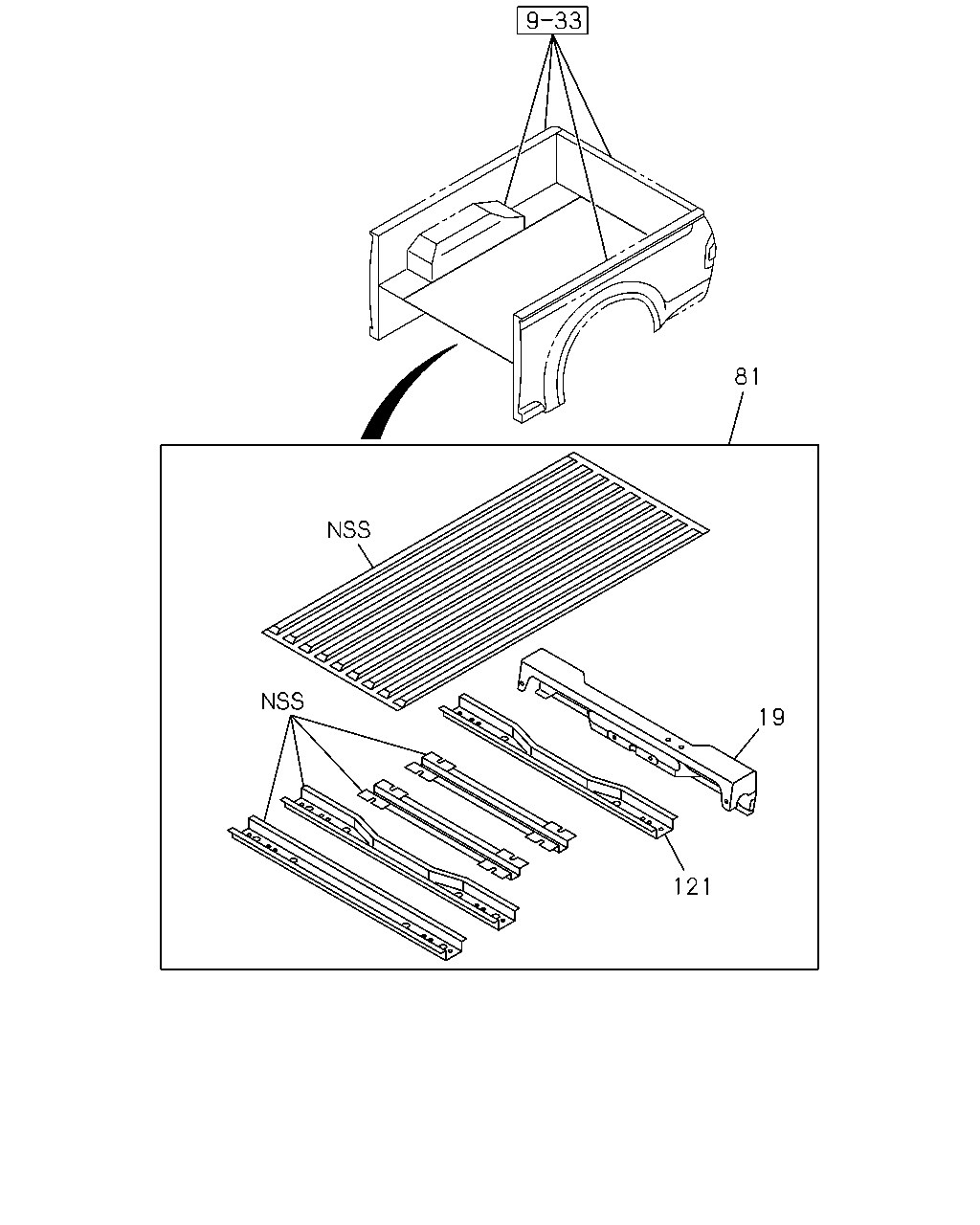

[931A] NO.2 (5 parça)
[931A] NO.3 (8 parça)
[931A] NO.1 (10 parça)
▶
81
19
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
19
17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-97251-570-7
01
1
0307-
●
●
19
17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-97236-648-7
01
1
0307-
●
●
81
17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-97236-639-5
01
1
0307-
●
●
81
17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-93333-729-7
01
1
0307-
●
●
121
17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63)
8-97236-647-2
01
1
0307-
●
●
●
●

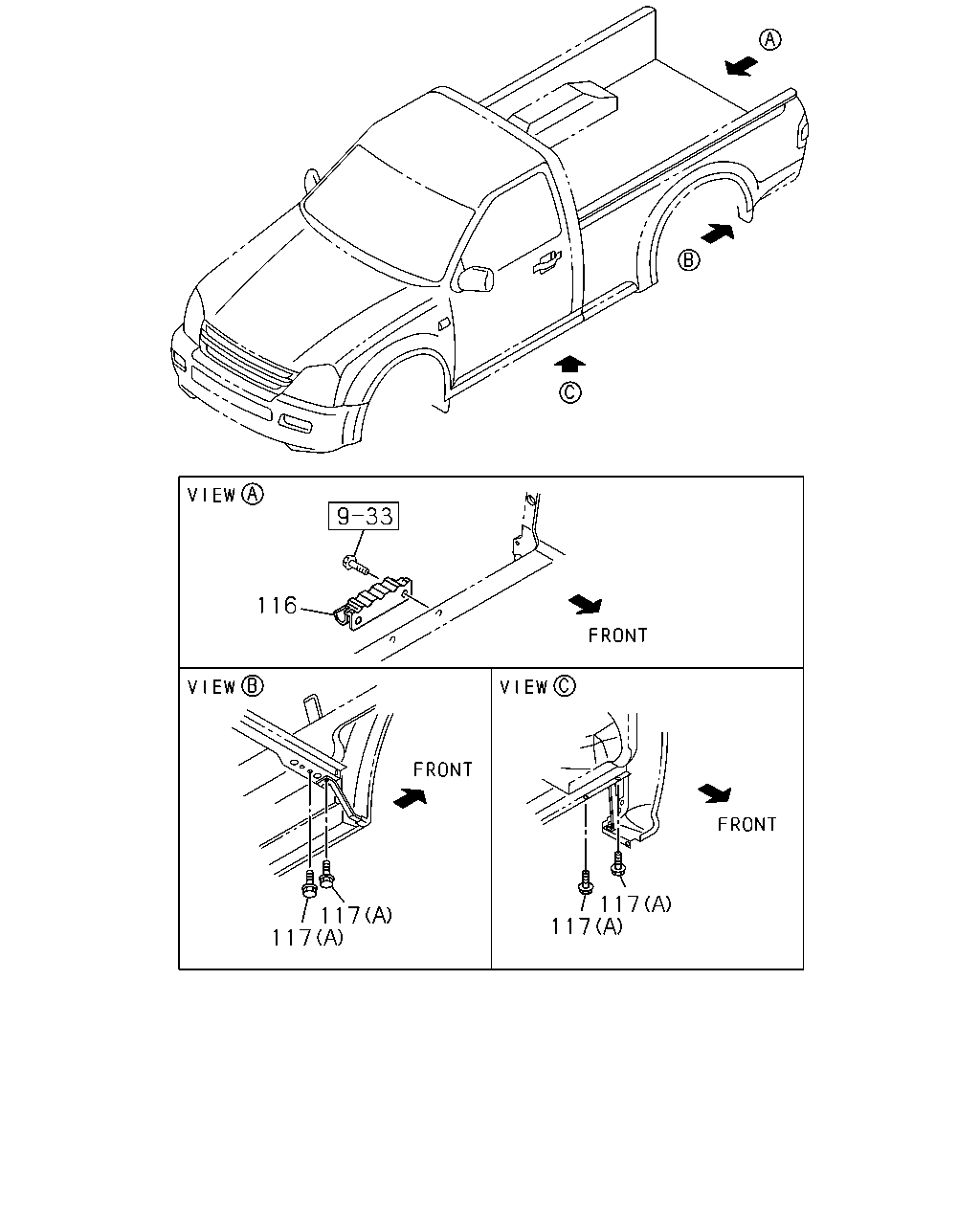

117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE
0-28680-825-0
04
1
0307-0511
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE
0-28680-825-0
04
1
0307-0511
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
0512-
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
0512-
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5
1-09104-027-1
04
1
0307-0611
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5
8-98058-001-0
04
1
0612-
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE
0-28680-825-0
02
1
0307-0511
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
0512-
●
●

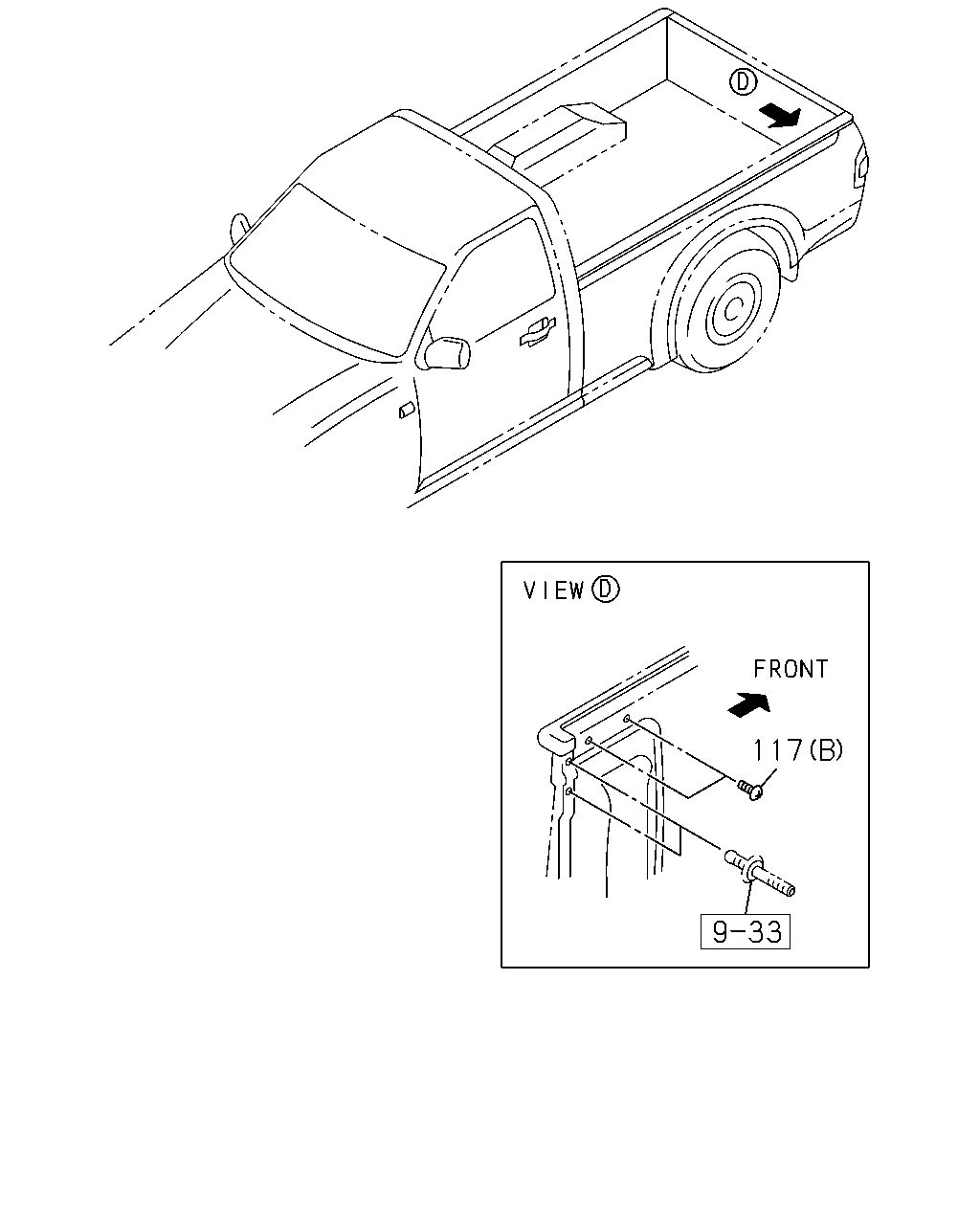

116
117
117
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
116
17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63)
8-97289-528-0
01
1
0307-0611
●
●
116
17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63)
8-98053-898-0
01
1
0612-
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE
0-28680-825-0
04
1
0307-0511
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE
0-28680-825-0
04
1
0307-0511
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
0512-
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
0512-
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5
1-09104-027-1
04
1
0307-0611
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5
8-98058-001-0
04
1
0612-
●
●
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE
0-28680-825-0
02
1
0307-0511
●
●
117
17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
0512-
●
●
