9-30 — REAR BODY ASM AND MOUNTING (#73528) — 50 parça

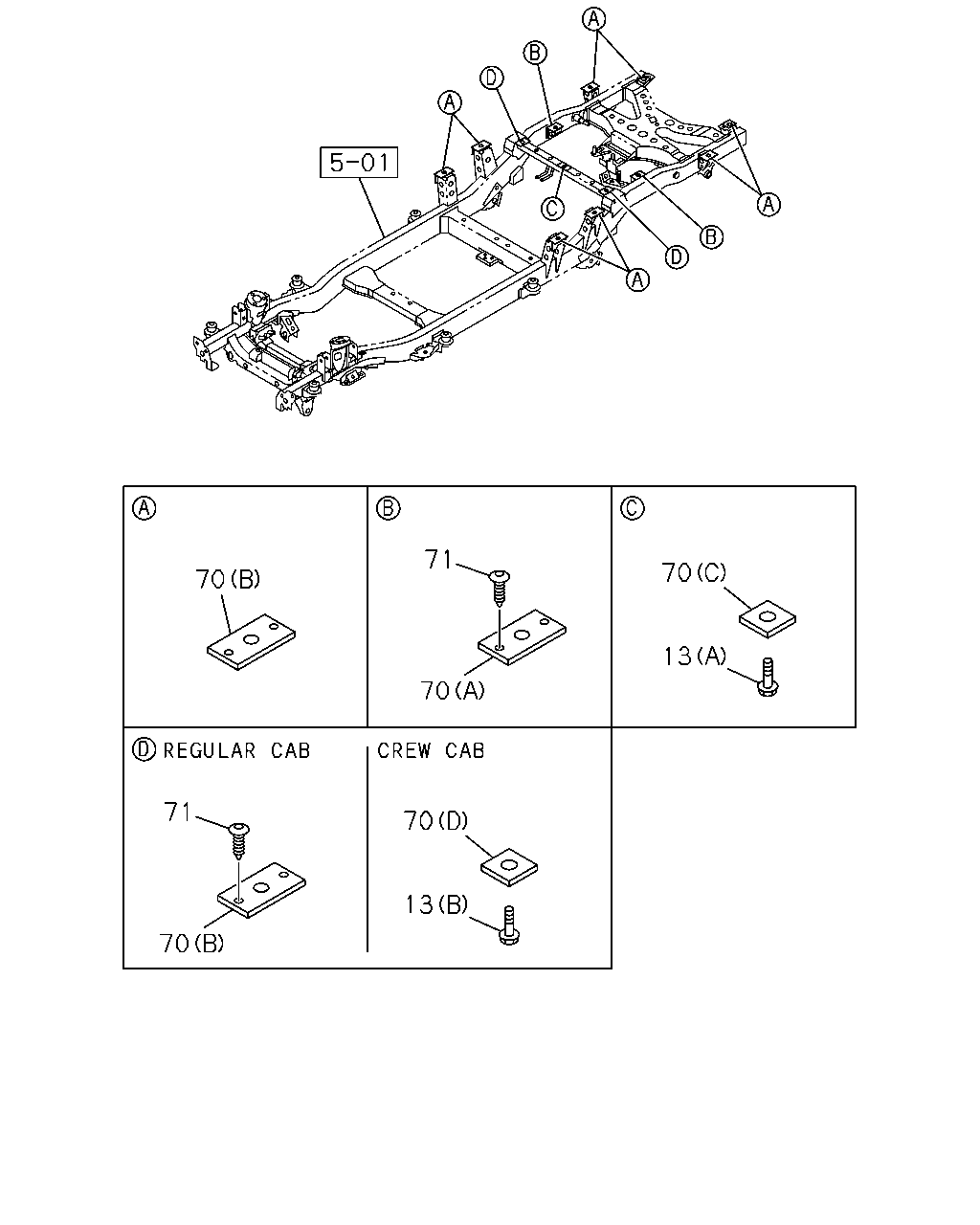

çizim 117438
71 70 70 13 70 71 70 13 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-97310-611-2 08 1 0307-0512 ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 08 1 0601- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-97310-611-2 04 1 0307-0512 ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0601- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X50 FLANGE 		8-97354-201-0 02 1 0307-0611 ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0612- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97367-344-0 02 1 0307-0709 ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 0710- ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97367-342-0 08 1 0307-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97367-343-0 03 1 0307-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-97367-341-0 02 1 0307-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97367-342-0 04 1 0307-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97367-343-0 01 1 0307-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0710- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0307- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 0307- ● ●

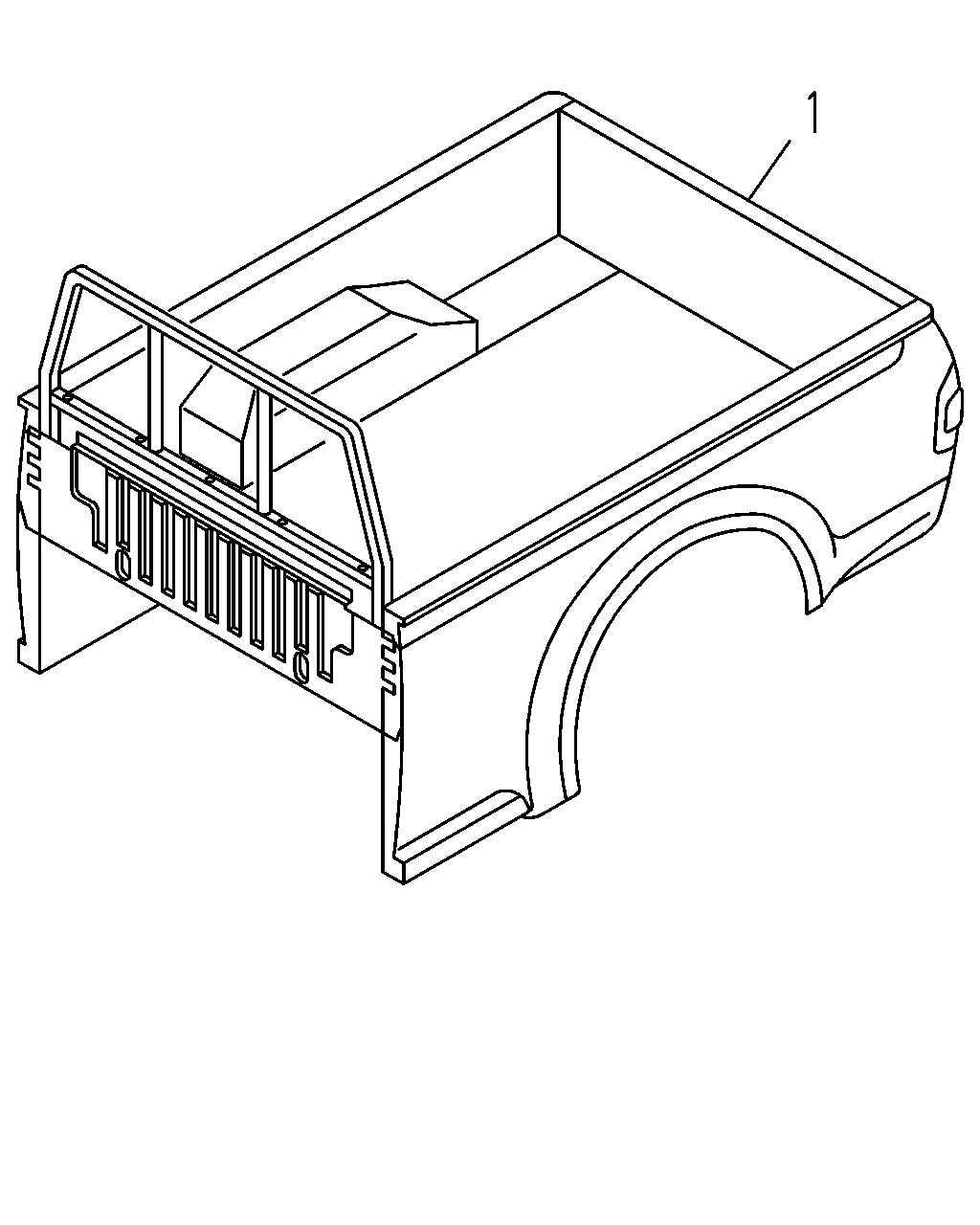

çizim 117470
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-614-0 01 1 0610- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-614-0 01 1 0610- ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-610-0 01 1 0610- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-610-0 01 1 0610- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74> 		8-98090-611-0 01 1 0610- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-606-0 01 1 0610- ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-98098-135-0 01 1 0710-0809 ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98098-135-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. BODY SIDE MOLDING(B84) 		8-98098-134-0 01 1 0710-0809 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84) 		8-98098-134-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-98098-137-0 01 1 0710-0809 ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98098-137-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. BODY SIDE MOLDING(B84) 		8-98098-136-0 01 1 0710-0809 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84) 		8-98098-136-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74> 		8-97359-917-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74> 		8-98098-135-0 01 1 0610-0708 ●
1 17.090 BODY ASM; REAR
GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84) 		8-97350-024-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84) 		8-98098-134-0 01 1 0610-0708 ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74> 		8-97359-937-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97359-930-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84) 		8-97359-936-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97359-928-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) 		8-97359-938-0 01 1 0307-0609 ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97359-931-0 01 1 0307-0609 ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97359-940-0 01 1 0307-0609 ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),GUARD FRAMEBAR CARGO TIE DOWN<V89> 		8-97359-935-0 01 1 0307-0609 ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) 		8-97359-918-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> BODY SIDE MOLDING(B84) GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) 		8-98098-137-0 01 1 0610-0708 ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97359-916-0 01 1 0307-0609 ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> GUARD FRAME BAR CARGO TIE DOWN<V89> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-98098-136-0 01 1 0610-0708 ●
