8-73 — BLOWER UNIT (#73522) — 29 parça

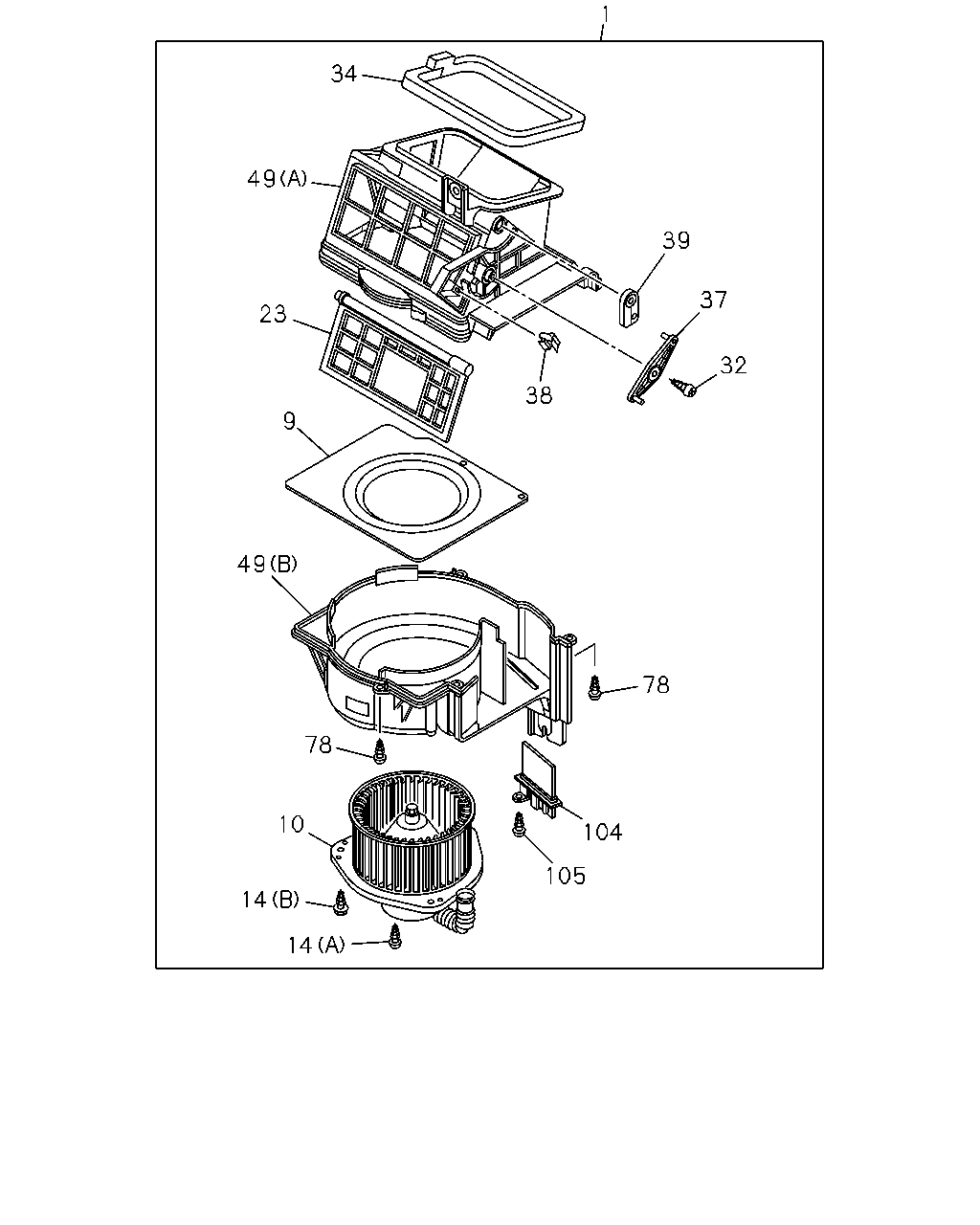

çizim 117449
1 34 49 39 37 23 32 38 9 49 78 78 10 104 105 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.855 BLOWER ASM 8-97234-549-1 01 1 0307-0308 ● ● ● ●
1 08.855 BLOWER ASM 8-97369-321-1 01 1 0309-0412 ● ● ● ●
1 08.855 BLOWER ASM 8-98000-785-0 01 1 0501-0609 ● ● ● ●
1 08.855 BLOWER ASM 8-98036-949-0 01 1 0610-0612 ● ● ● ●
1 08.855 BLOWER ASM 8-98070-130-0 01 1 0701- ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR 8-97321-265-0 01 1 0307-0612 ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR 8-98072-803-0 01 1 0701- ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97321-270-0 01 1 0307-0412 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98008-893-0 01 1 0501- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
09.211 (A) 		8-97321-165-0 01 1 0307-0612 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) 		8-98070-134-0 03 1 0701- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) 		8-97321-275-0 03 1 0307-0612 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(A) 		8-98070-135-0 01 1 0701- ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97321-266-1 01 1 0307-0609 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-98039-835-0 01 1 0610- ● ● ● ●
32 08.856 SCREW; LEVER 8-97321-276-0 01 1 0307-0612 ● ● ● ●
32 08.856 SCREW; LEVER 8-98070-136-0 01 1 0701- ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97321-269-0 01 1 0307- ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97321-268-0 01 1 0307- ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-97321-274-0 01 1 0307- ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97321-267-0 01 1 0307- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97321-263-0 01 1 0307- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97321-264-0 01 1 0307- ● ● ● ●
78 08.857 SCREW; CASE TO CASE
09.211 		8-97321-165-0 05 1 0307-0612 ● ● ● ●
78 08.857 SCREW; CASE TO CASE 8-98070-135-0 05 1 0701- ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-97321-273-0 01 1 0307-0609 ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-98049-394-0 01 1 0610- ● ● ● ●
105 08.855 SCREW; RESISTOR
09.211 		8-97321-165-0 02 1 0307-0612 ● ● ● ●
105 08.855 SCREW; RESISTOR
08.857 		8-98070-135-0 02 1 0701- ● ● ● ●
