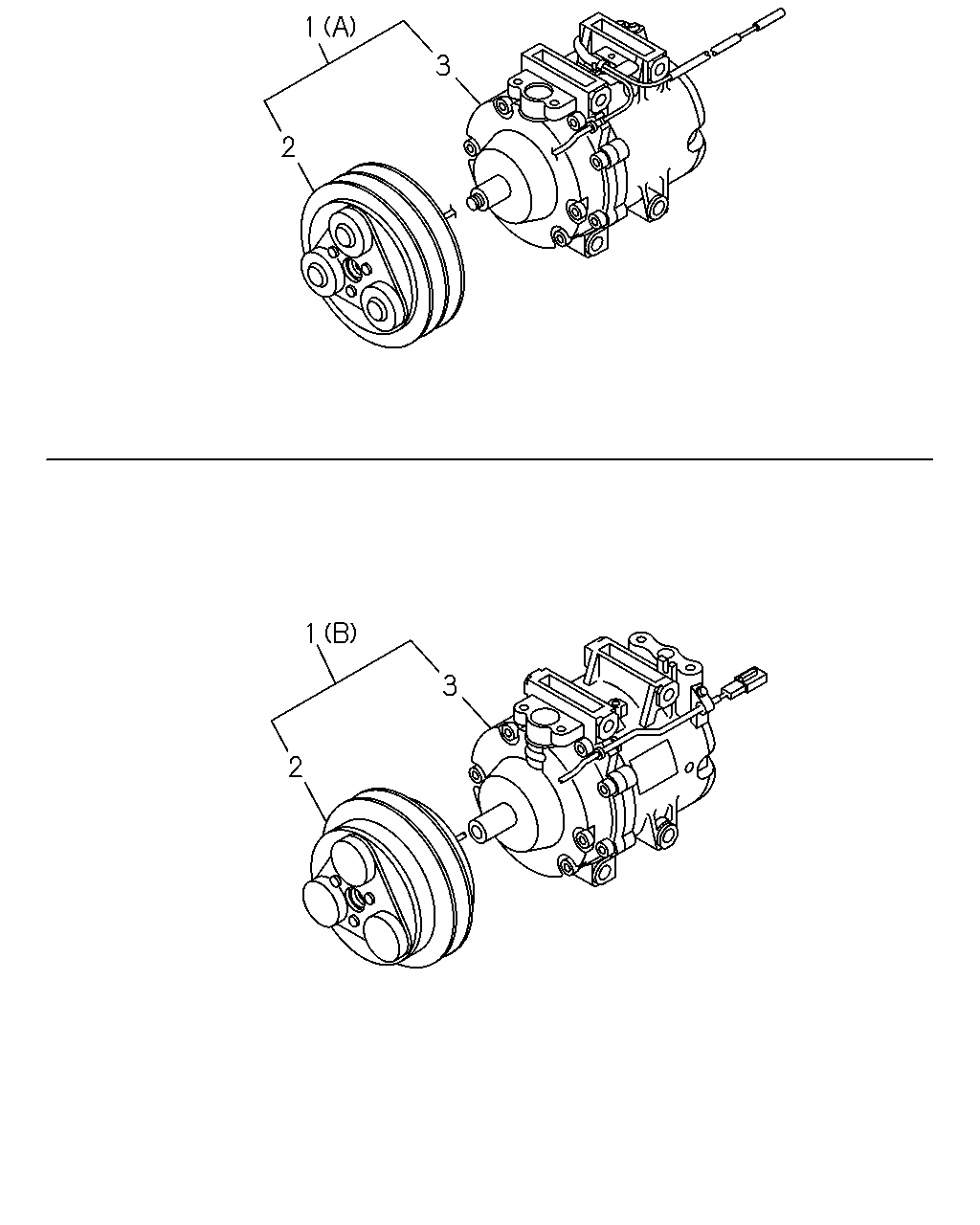

8-71 — COMPRESSOR; AIR CONDITIONING (#73521) — 19 parça

1 3 2 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97368-121-0	01	1	0307-0402	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97369-416-0	01	1	0403-0508	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97369-416-0	01	1	0509-0509	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98003-410-0	01	1	0510-0609	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98035-619-0	01	1	0610-0703	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98083-923-0	01	1	0704-1109	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98199-293-1	01	1	1110-	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97333-324-0	01	1	0307-0402	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97371-580-0	01	1	0403-0508	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97371-580-0	01	1	0509-0609	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97372-920-0	01	1	0610-1402	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98252-777-0	01	1	1403-	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97333-322-0	01	1	0307-0402	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97371-577-0	01	1	0403-0508	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97371-577-0	01	1	0509-0509	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-98024-458-0	01	1	0510-0609	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98070-190-0	01	1	0610-1109	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98204-876-0	01	1	1110-1402	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98258-534-0	01	1	1403-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
