◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#73520) — 111 parça

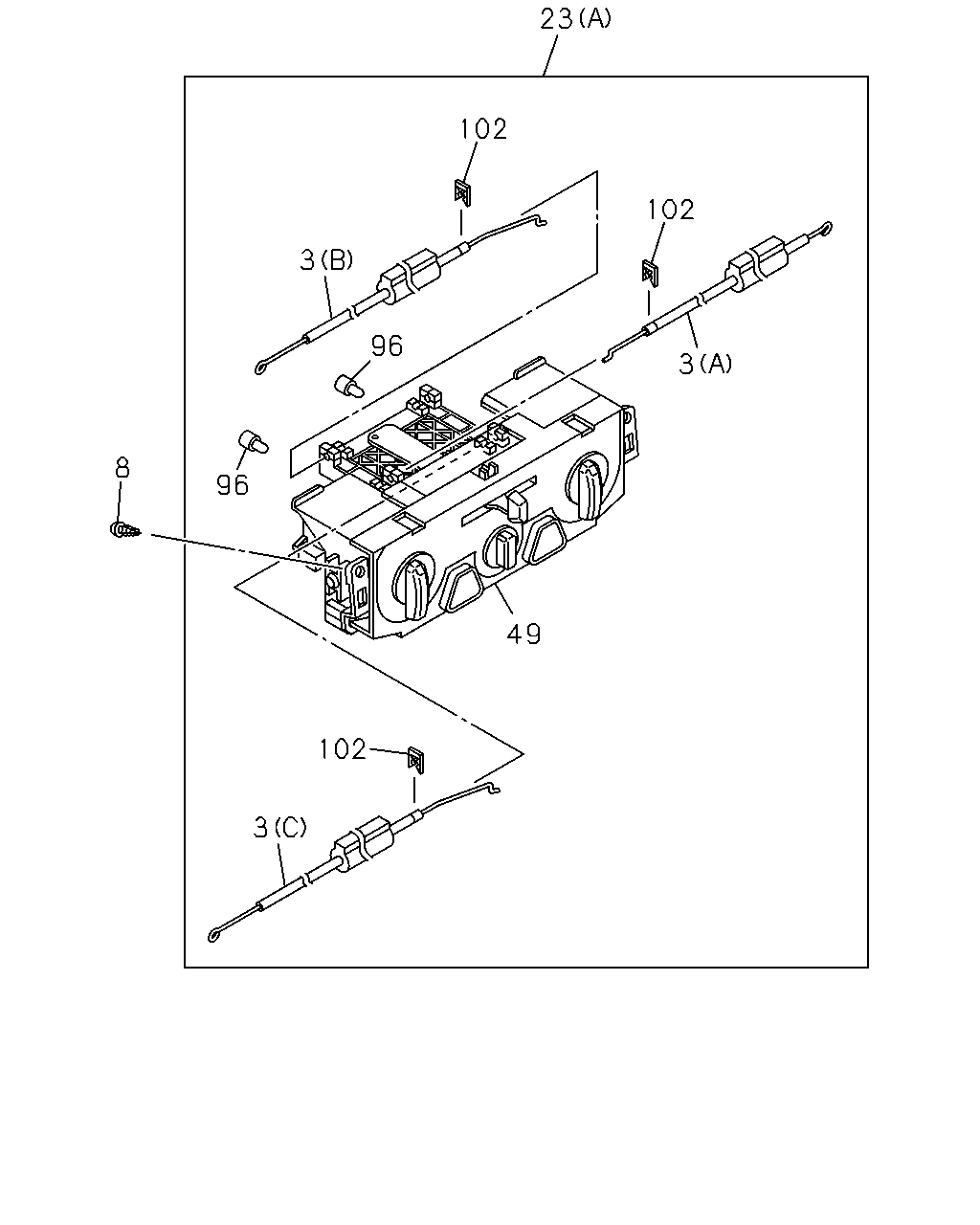

çizim 117434
23 102 102 3 96 3 8 96 49 102 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0307-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98029-143-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0307-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) TEMP 		8-98029-144-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) TEMP 		8-97350-293-0 01 1 0307-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-145-0 01 1 0610- ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0702 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-568-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-353-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-112-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-112-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-112-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-112-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-112-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98154-112-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98154-112-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-566-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-351-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98038-110-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-110-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-110-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98038-110-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-110-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98154-108-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98154-108-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-565-1 01 1 0307-0501 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-350-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98038-127-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98162-208-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-109-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98154-109-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98038-130-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-130-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98038-130-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98162-209-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-129-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98162-210-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-567-1 01 1 0307-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-352-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98038-128-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (B) 		8-98038-128-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98038-128-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98162-207-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-111-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98154-113-0 01 1 1004- ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-97350-285-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98013-435-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-97350-283-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98013-433-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-97350-282-0 01 1 0307-0501 ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98013-432-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-97350-284-0 01 1 0307-0501 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98013-434-0 01 1 0502-0609 ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0307-0501 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98029-142-0 02 1 0610-1003 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98159-721-0 02 1 1004- ● ● ● ●
102 08.852 RING; SNAP,CABLE 8-97321-480-0 03 1 0307-0609 ● ● ● ●

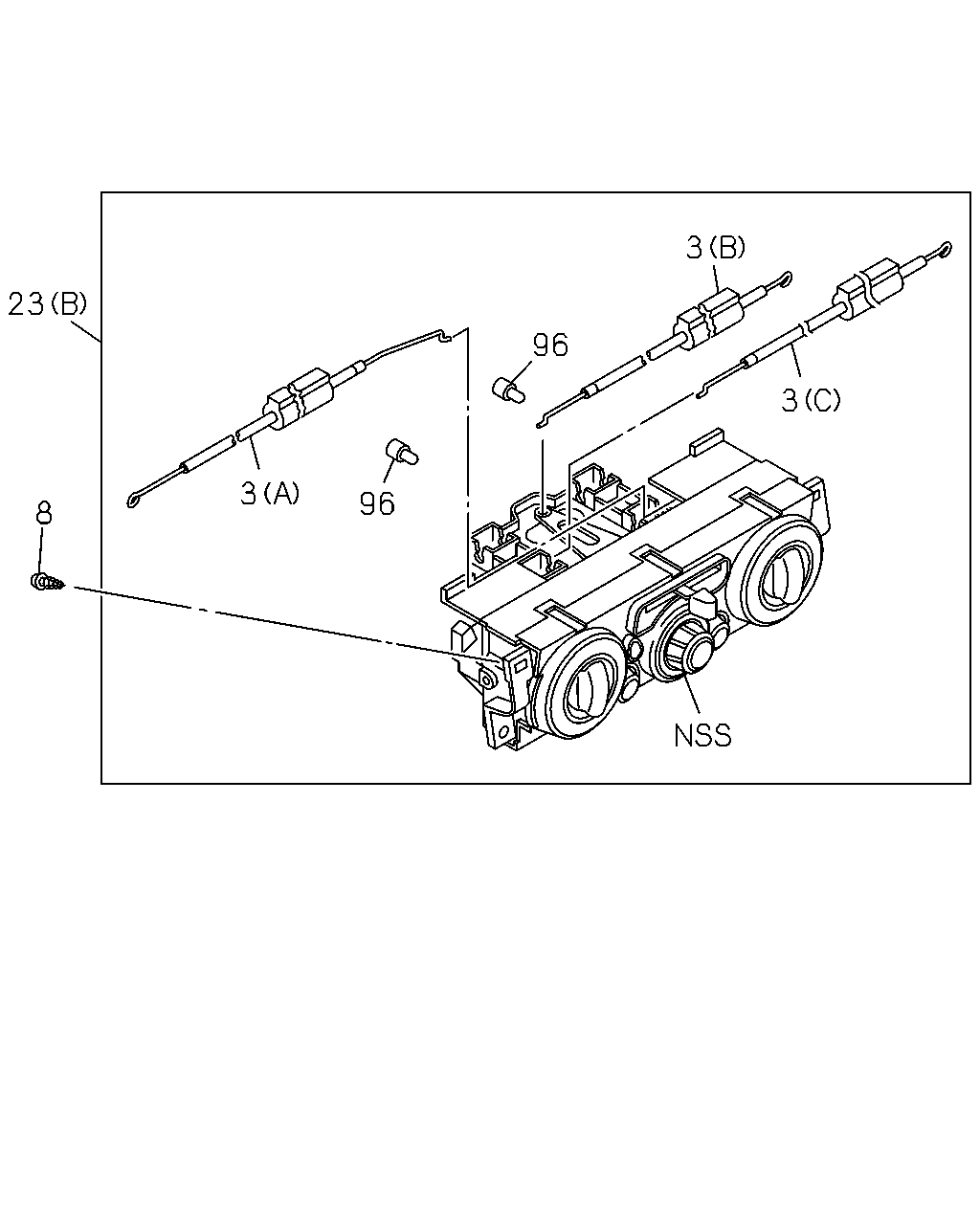

çizim 117735
3 23 96 3 3 96 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0307-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98029-143-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0307-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) TEMP 		8-98029-144-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) TEMP 		8-97350-293-0 01 1 0307-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-145-0 01 1 0610- ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0702 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-568-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-353-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-112-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-112-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-112-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-112-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-112-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98154-112-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98154-112-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-566-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-351-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98038-110-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-110-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-110-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98038-110-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98038-110-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98154-108-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98154-108-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-565-1 01 1 0307-0501 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-350-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98038-127-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98162-208-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-109-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98154-109-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98038-130-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-130-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98038-130-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98162-209-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98038-129-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98162-210-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-567-1 01 1 0307-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-352-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98038-128-0 01 1 0610-0709 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (B) 		8-98038-128-0 01 1 0610-0709 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98038-128-0 01 1 0710-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98162-207-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98038-111-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98154-113-0 01 1 1004- ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0307-0501 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98029-142-0 02 1 0610-1003 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98159-721-0 02 1 1004- ● ● ● ●
