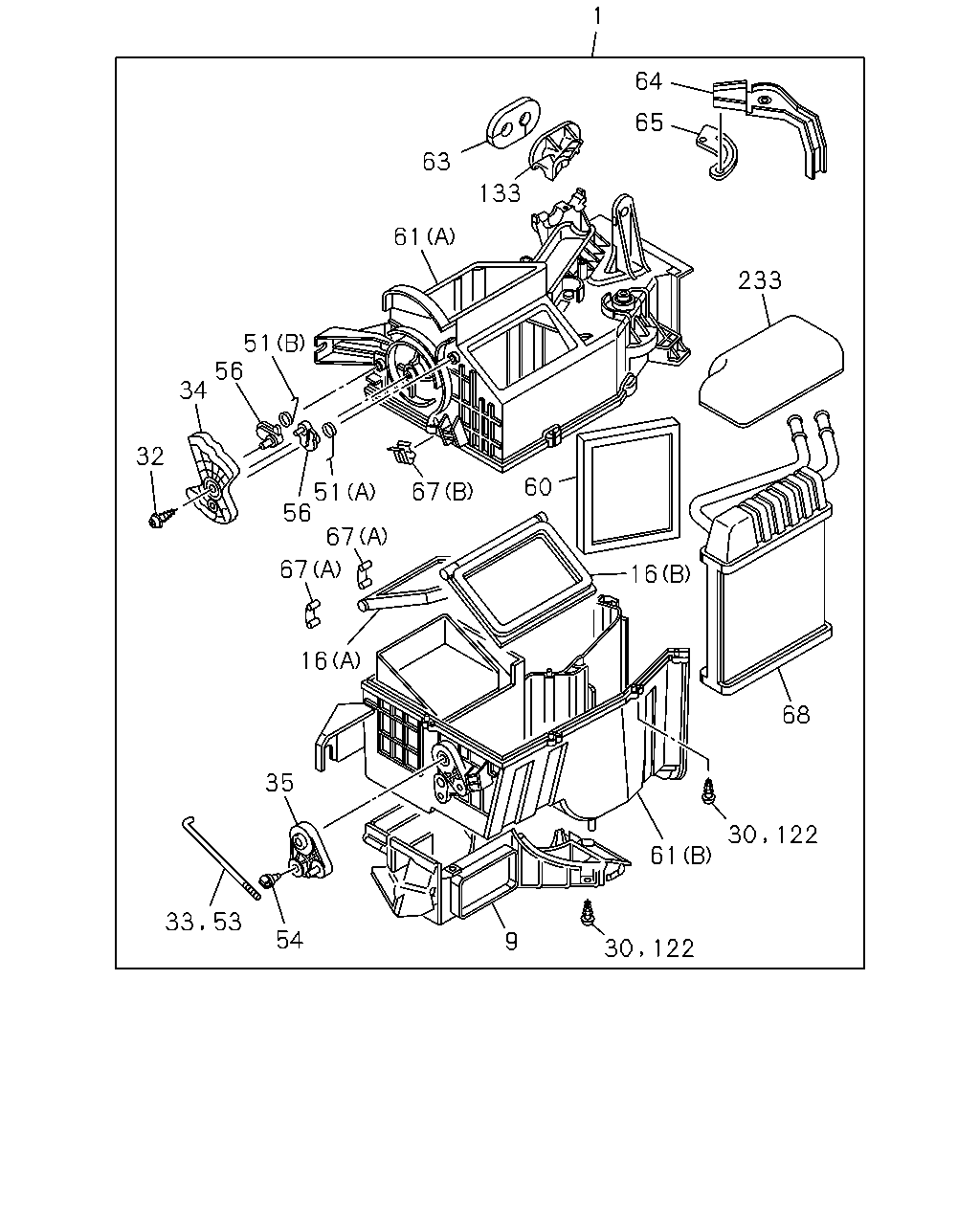

8-60 — HEATER UNIT; FRONT (#73519) — 101 parça
çizim 117444
1 64 65 63 133 61 233 51 56 34 32 60 67 51 56 67 67 16 16 68 35 61 54 9 30 122 30 122 33 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-97234-552-2 01 1 0307-0309 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97234-552-2 01 1 0307-0309 ● ●
1 08.845 HEATER UNIT 8-97234-552-2 01 1 0307-0309 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-97369-309-0 01 1 0310-0402 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97369-309-0 01 1 0310-0402 ● ●
1 08.845 HEATER UNIT 8-97369-309-0 01 1 0310-0402 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-97369-309-0 01 1 0403-0508 ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97369-309-0 01 1 0403-0508 ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-97369-309-0 01 1 0509-0612 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-97369-309-0 01 1 0509-0612 ● ●
1 08.845 HEATER UNIT 8-97369-309-0 01 1 0509-0612 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-98071-331-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-98071-331-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT 8-98071-331-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> 		8-98086-150-0 01 1 0710- ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> 		8-98086-150-0 01 1 0710- ● ●
1 08.845 HEATER UNIT 8-98086-150-0 01 1 0710- ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97307-354-2 01 1 0307-0309 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97307-354-2 01 1 0307-0309 ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0310-0402 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0310-0402 ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0403-0508 ● ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0403-0508 ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0509-0609 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0509-0609 ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97369-311-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98071-332-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-98071-332-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98086-151-0 01 1 0710- ●
1 08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-98086-151-0 01 1 0710- ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-97234-551-0 01 1 0307-0309 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-97369-308-0 01 1 0310-0609 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-97369-308-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> 		8-97369-308-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-98071-333-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> 		8-98071-333-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> 		8-98086-152-0 01 1 0710- ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> 		8-98086-152-0 01 1 0710- ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-97307-353-0 01 1 0307-0309 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-310-0 01 1 0310-0609 ● ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-97369-310-0 01 1 0610-0612 ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-98071-334-0 01 1 0701-0709 ●
1 08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> 		8-98086-153-0 01 1 0710- ●
9 08.854 DUCT; HTR UNIT 8-97321-338-0 01 1 0307- ● ●
9 08.854 DUCT; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-97321-338-0 01 1 0307- ● ●
9 08.854 DUCT; HTR UNIT
REAR HEATER DUCT<S8C> 		8-97364-987-0 01 1 0307- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
08.845 (B) 		8-97321-340-0 01 1 0307- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
(A) 		8-97321-342-0 01 1 0307- ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 08 1 0307-0612 ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.786 		8-98071-323-0 08 1 0701- ● ● ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0307-0402 ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 		8-97321-276-0 02 1 0307-0402 ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0403-0508 ● ● ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0509-0609 ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 		8-97321-276-0 02 1 0509-0609 ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0610-0612 ● ●
32 08.852 SCREW; HTR UNIT
08.856 		8-97321-276-0 02 1 0610-0612 ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.845 		8-98071-324-0 02 1 0701- ● ●
32 08.852 SCREW; HTR UNIT
08.845 		8-98071-324-0 02 1 0701- ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0307-0402 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0403-0508 ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0509-0609 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0610-0612 ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.845 		8-98071-324-0 03 1 0701- ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 08.866 		8-97321-345-0 01 1 0307-0309 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97321-343-0 01 1 0307- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-344-0 01 1 0307-0402 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-344-0 01 1 0403-0508 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-344-0 01 1 0509-0609 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-344-0 01 1 0610- ● ●
51 08.846 SPRING; HTR UNIT
(A) 		8-97321-368-0 01 1 0307- ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) 		8-97321-369-0 01 1 0307- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-345-0 01 1 0310-0402 ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-345-0 01 1 0403-0508 ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-345-0 01 1 0509-0609 ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-345-0 01 1 0610- ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0307-0402 ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0403-0508 ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0509-0609 ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0610- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0307- ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT 8-97333-330-0 01 1 0307- ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97333-326-0 01 1 0307- ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97333-327-0 01 1 0307- ● ● ● ●
63 08.856 LINING; HTR UNIT 8-97333-328-0 01 1 0307-0309 ● ● ● ●
63 08.856 LINING; HTR UNIT 8-97364-996-0 01 1 0310-0402 ● ● ● ●
63 08.856 LINING; HTR UNIT 8-97333-328-0 01 1 0403- ● ● ● ●
64 09.786 LEVER; MIX,DOOR 8-97333-332-0 01 1 0307-0612 ● ● ● ●
64 09.786 LEVER; MIX,DOOR 8-98072-806-0 01 1 0701- ● ● ● ●
65 09.786 LEVER; MIX,DOOR 8-97333-331-0 01 1 0307- ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 02 1 0307-0309 ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 01 1 0310-0709 ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.262 (A) 		8-98088-089-0 01 1 0710- ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) 		8-97321-274-0 02 1 0307- ● ● ● ●
68 08.854 CORE; HTR UNIT 8-97333-329-0 01 1 0307- ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 03 1 0307-0309 ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 02 1 0310-0612 ● ● ● ●
122 08.845 SCREW; DUCT
09.786 		8-98071-323-0 02 1 0701- ● ● ● ●
133 08.845 CLIP; PIPE 8-97321-366-0 01 1 0307- ● ● ● ●
233 08.845 COVER; CORE,HTR UNIT 8-97352-950-0 01 1 0307-0402 ● ● ● ●
