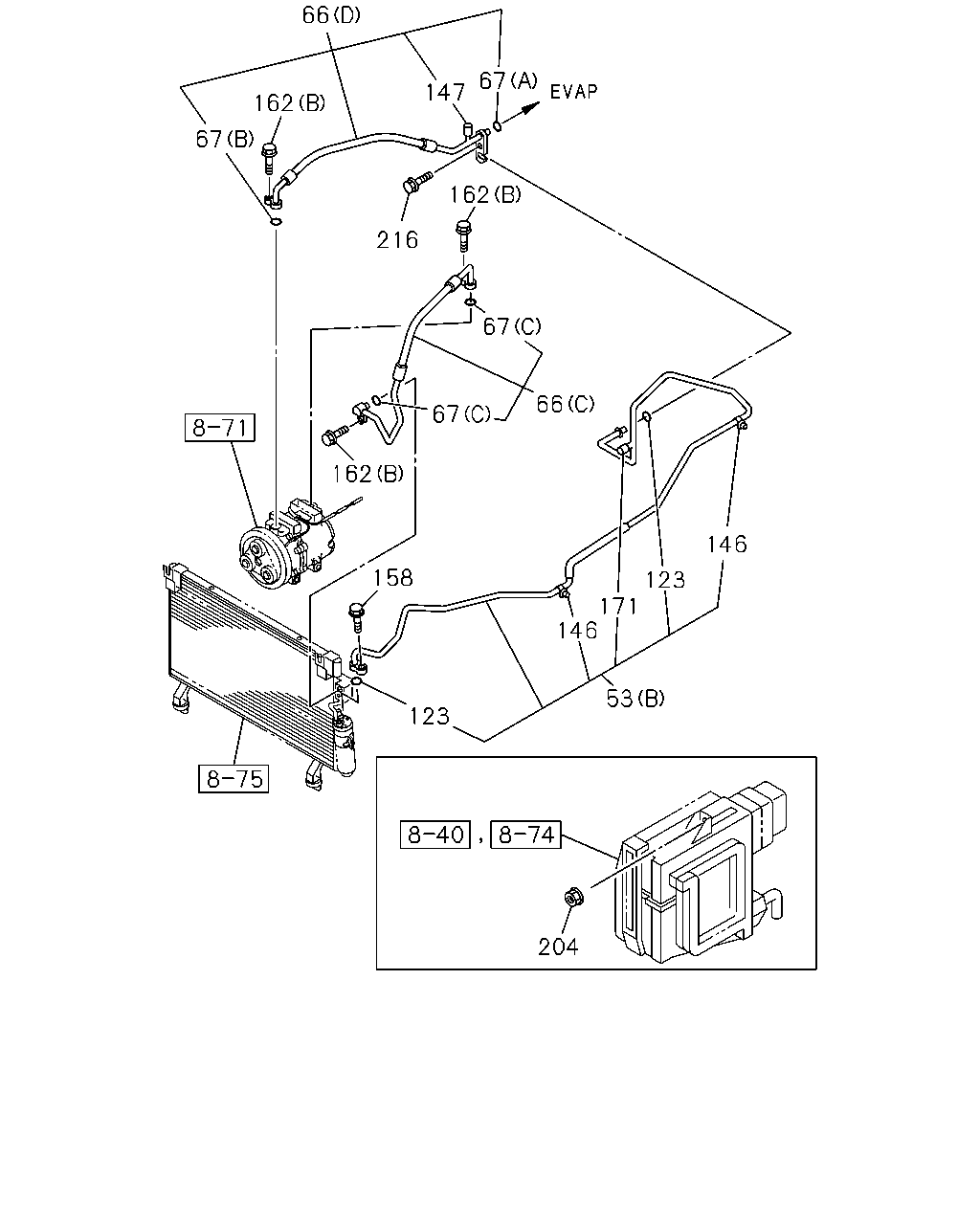

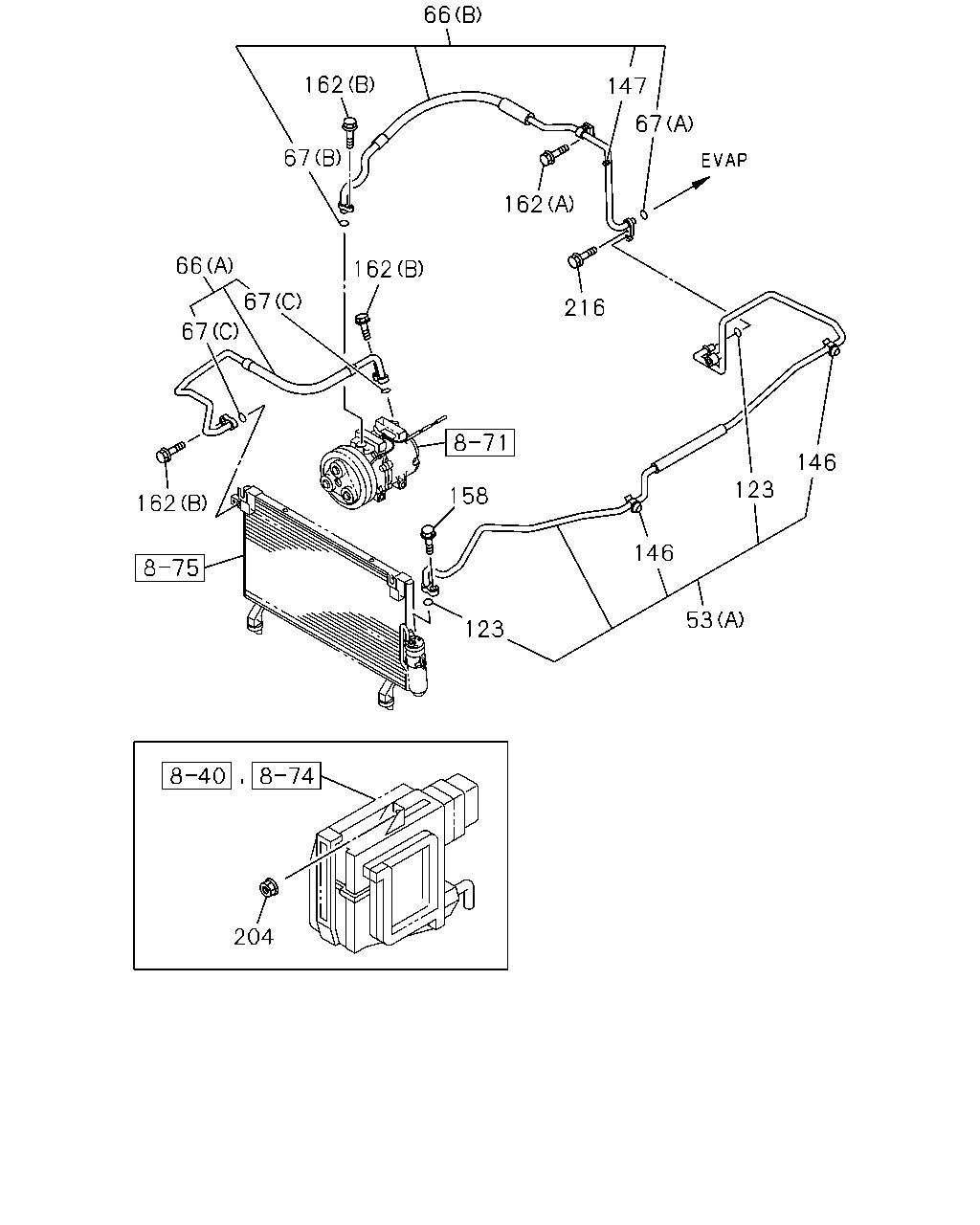

8-52 — PIPING; AIR CONDITIONING (#73518) — 108 parça

66 67 147 162 67 162 216 67 66 67 162 146 158 123 171 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97361-332-0	01	1	0307-0508	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97361-332-0	01	1	0509-0609	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97361-332-0	01	1	0509-0609			●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98049-891-0	01	1	0610-0709	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98049-891-0	01	1	0610-0709			●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98088-792-0	01	1	0710-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98088-792-0	01	1	0710-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-724-0	01	1	0307-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98002-537-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98007-108-1	01	1	0610-	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98007-108-1	01	1	0610-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97363-725-0	01	1	0307-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-523-0	01	1	0501-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-523-0	01	1	0509-0609	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-523-0	01	1	0509-0609			●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97363-903-0	01	1	0610-	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97363-903-0	01	1	0610-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0307-0508	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0509-0609	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0509-0609			●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0610-	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0610-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0307-0508	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0509-0609	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0509-0609			●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0610-	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0610-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0307-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0610-	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0610-			●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0307-0508	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0509-0609	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0509-0609			●	●
123	09.195 GASKET; RECEIVER PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-	●	●
123	09.195 GASKET; RECEIVER PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	0307-0508	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	0509-0609	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	0509-0609			●	●
146	09.196 CLIP; RECEIVER PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0610-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0610-			●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0501-0508	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0509-0609	●	●
147	09.242 CAP; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0509-0609			●	●
147	09.242 CAP; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0610-	●	●
147	09.242 CAP; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0610-			●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0307-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0307-0508	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0509-0609	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0509-0609			●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0307-	●	●	●	●
171	09.242 CAP; PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0610-	●	●
171	09.242 CAP; PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0610-			●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0307-0609	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0307-	●	●	●	●

66 162 147 67 67 162 66 162 67 216 67 146 123 158 162 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97361-332-0	01	1	0307-0508	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97361-332-0	01	1	0509-0609	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97361-332-0	01	1	0509-0609			●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98049-891-0	01	1	0610-0709	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98049-891-0	01	1	0610-0709			●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98088-792-0	01	1	0710-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98088-792-0	01	1	0710-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-724-0	01	1	0307-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98002-537-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98007-108-1	01	1	0610-	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98007-108-1	01	1	0610-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97363-725-0	01	1	0307-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-523-0	01	1	0501-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-523-0	01	1	0509-0609	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-523-0	01	1	0509-0609			●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97363-903-0	01	1	0610-	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97363-903-0	01	1	0610-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0307-0508	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0509-0609	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0509-0609			●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0610-	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0610-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0307-0508	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0509-0609	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0509-0609			●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0610-	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0610-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0307-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0610-	●	●
67	09.260 GASKET; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0610-			●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0307-0508	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0509-0609	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0509-0609			●	●
123	09.195 GASKET; RECEIVER PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-	●	●
123	09.195 GASKET; RECEIVER PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0610-			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	0307-0508	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	0509-0609	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	0509-0609			●	●
146	09.196 CLIP; RECEIVER PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0610-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0610-			●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0501-0508	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0509-0609	●	●
147	09.242 CAP; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0509-0609			●	●
147	09.242 CAP; FLEX HOSE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0610-	●	●
147	09.242 CAP; FLEX HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0610-			●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0307-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0307-0508	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0509-0609	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0509-0609			●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0307-	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0307-0609	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0307-	●	●	●	●
