Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#73513) — 133 parça

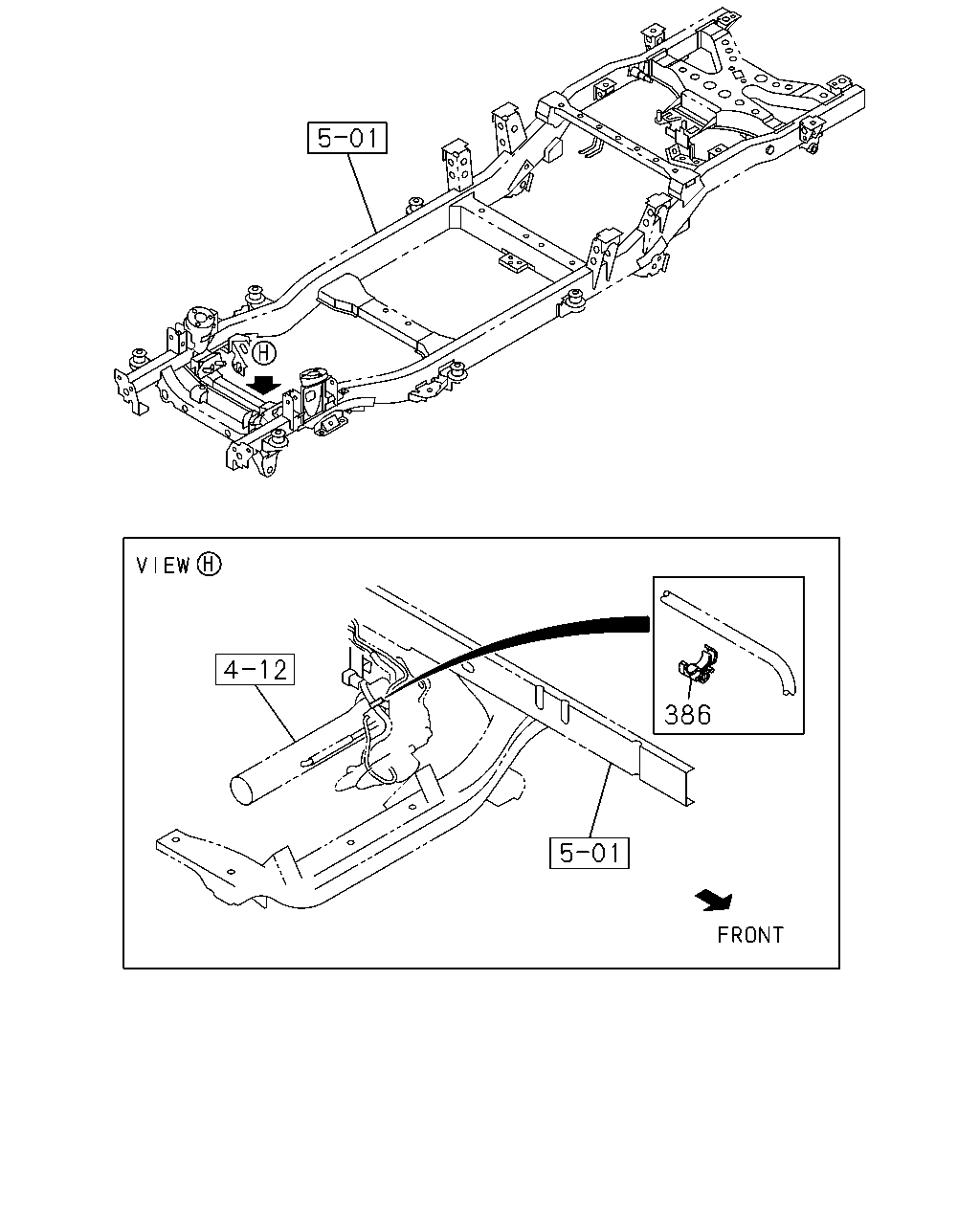

386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
386	02.559 CLIP; HARNESS SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0307-0508	●	●
386	02.559 CLIP; HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0509-0609	●	●
386	02.559 CLIP; HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=7-10	8-94472-578-0	01	1	0610-	●	●

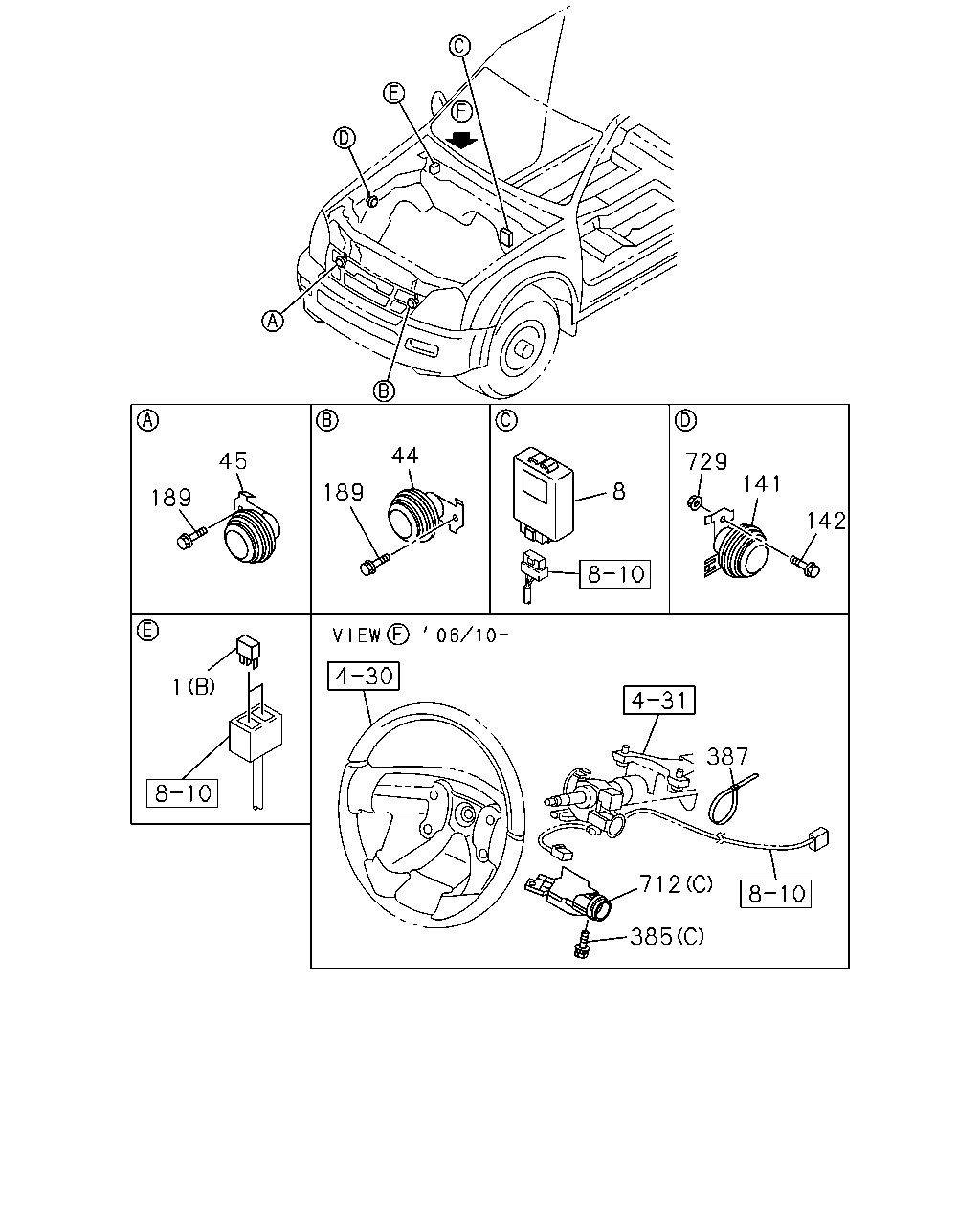

44 45 729 141 8 189 189 142 1 387 712 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-97912-779-0	01	1	0307-0510	●	●	●	●
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-98032-675-0	01	1	0511-1404	●	●	●	●
1	02.575 UNIT; FLASHER (A) DENSO	8-97202-225-1	01	1	1405-	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0509-0709	●	●	●	●
8	16.067 RELAY; WIPER 12V	8-97302-100-0	01	1	0307-0609	●	●	●	●
8	16.067 RELAY; WIPER 12V	8-97302-100-0	01	1	0610-0709			●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> 12V	8-97302-100-0	01	1	0610-0709	●	●		●
8	16.067 RELAY; WIPER 12V	8-97302-100-0	01	1	0710-	●		●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> 12V	8-97302-100-0	01	1	0710-		●		●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97237-046-0	01	1	0307-	●	●	●	●
45	02.810 HORN; LOW NOTE	8-97237-047-0	01	1	0307-	●	●	●	●
141	02.810 HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97237-044-0	01	1	0307-0409	●	●	●	●
141	02.810 HORN; ANTI THEFT 4JA1-TC ENG(L4Z) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97237-044-0	01	1	0410-0508			●	●
141	02.810 HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97237-044-0	01	1	0410-0508	●	●
141	02.810 HORN; ANTI THEFT 4JA1-TC ENG(L4Z) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97237-044-0	01	1	0509-0609			●	●
141	02.810 HORN; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97237-044-0	01	1	0509-0609	●	●
141	02.810 HORN; ANTI THEFT 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97375-253-0	01	1	0610-0709			●	●
141	02.810 HORN; ANTI THEFT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97375-253-0	01	1	0610-0709	●	●
141	02.810 HORN; ANTI THEFT 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97375-253-0	01	1	0710-				●
141	02.810 HORN; ANTI THEFT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97375-253-0	01	1	0710-		●
142	02.810 BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0307-0409	●	●	●	●
142	02.810 BOLT; HORN,ANTI THEFT 4JA1-TC ENG(L4Z) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0410-0508			●	●
142	02.810 BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0410-0508	●	●
142	02.810 BOLT; HORN,ANTI THEFT 4JA1-TC ENG(L4Z) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0509-0609			●	●
142	02.810 BOLT; HORN,ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0509-0609	●	●
189	02.812 BOLT; HORN DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0307-	●	●	●	●
189	02.812 BOLT; HORN EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0307-	●	●	●	●
385	03.670 BOLT; CONT UNIT 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0307-0508	●	●	●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609			●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609	●	●
385	03.670 BOLT; CONT UNIT 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0307-0508	●	●	●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z) 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606			●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606	●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0607-0609			●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0607-0609	●	●
385	03.670 BOLT; CONT UNIT 4JK1-TCX ENG(LR0) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0610-			●	●
385	03.670 BOLT; CONT UNIT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0610-	●	●
385	03.670 BOLT; CONT UNIT 16.085 (B) M5X16 TAPPING	9-09829-323-1	02	1	0307-0612	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●
387	02.363 CLIP; BAND L=140	8-97920-656-0	01	1	0307-	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 16.263 (A)	8-97234-671-0	01	1	0307-0408	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT (A)	8-97377-324-0	01	1	0409-0508	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z) (A)	8-97377-324-0	01	1	0509-0609			●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97377-324-0	01	1	0509-0609	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 06.500 (B)	8-97251-755-0	01	1	0307-0508	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z) 06.500 (B)	8-97251-755-0	01	1	0509-0609			●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.500 (B)	8-97251-755-0	01	1	0509-0609	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JK1-TCX ENG(LR0) (C)	8-98008-412-0	01	1	0610-			●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C)	8-98008-412-0	01	1	0610-	●	●
729	07.450 NUT; HORN,ANTI THEFT 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-0709			●	●
729	07.450 NUT; HORN,ANTI THEFT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-0709	●	●
729	07.450 NUT; HORN,ANTI THEFT 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-				●
729	07.450 NUT; HORN,ANTI THEFT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-		●

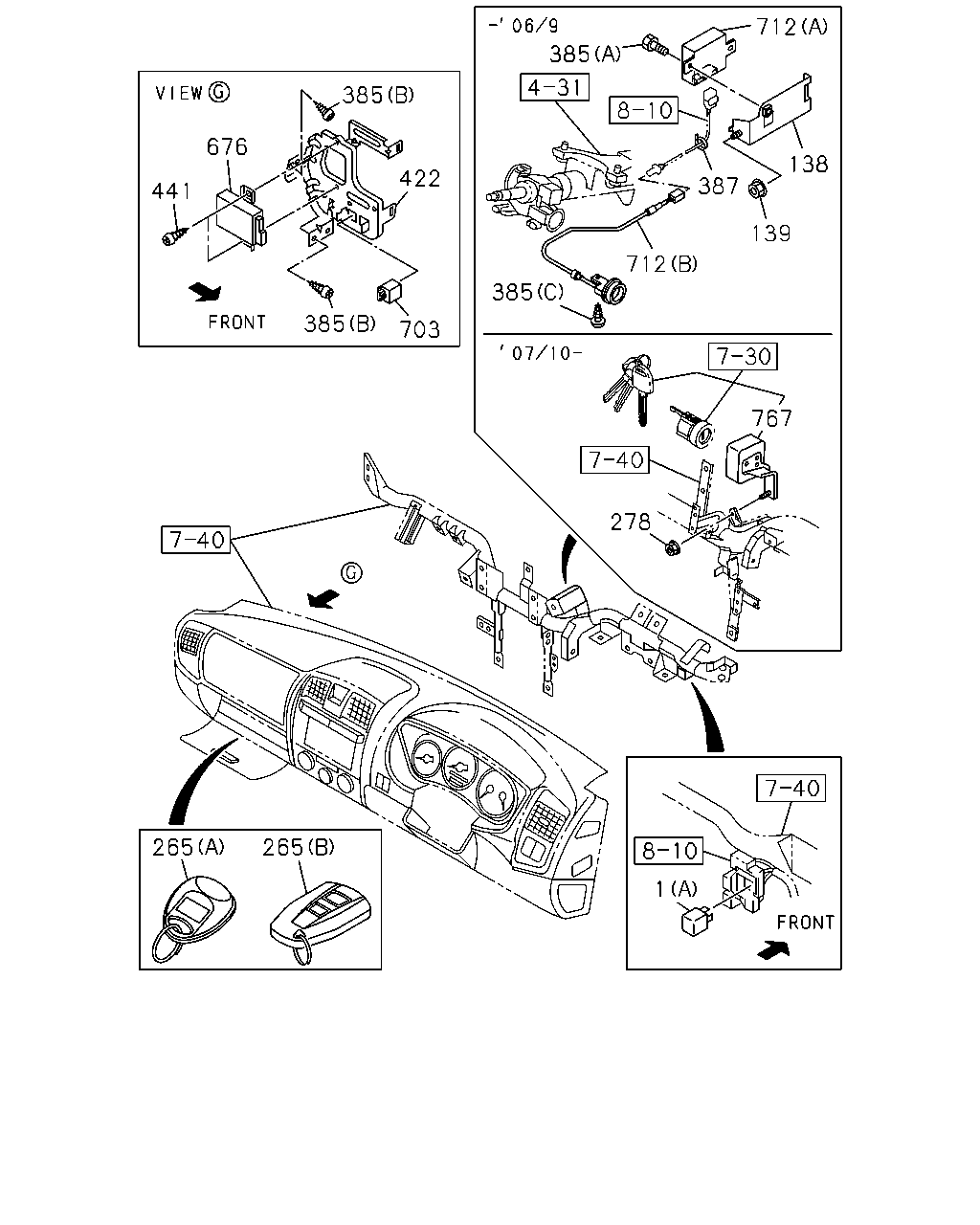

712 385 385 676 138 422 387 441 139 712 385 385 703 767 278 265 265 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-97912-779-0	01	1	0307-0510	●	●	●	●
1	02.575 UNIT; FLASHER (A) 12V DENSO	8-98032-675-0	01	1	0511-1404	●	●	●	●
1	02.575 UNIT; FLASHER (A) DENSO	8-97202-225-1	01	1	1405-	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 09.778 (B) 12V YAZAKI	8-97309-293-0	02	1	0406-0502	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0503-0508	●	●	●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON	8-98005-407-0	02	1	0509-0709	●	●	●	●
138	02.810 BRACKET; ANTI THEFT CONT	8-97357-768-0	01	1	0307-0508	●	●	●	●
138	02.810 BRACKET; ANTI THEFT CONT 4JA1-TC ENG(L4Z)	8-97357-768-0	01	1	0509-0609			●	●
138	02.810 BRACKET; ANTI THEFT CONT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97357-768-0	01	1	0509-0609	●	●
139	02.810 NUT; ANTI THEFT BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0307-0609	●	●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-90508-961-2	01	1	0307-0412	●	●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-97378-442-0	02	1	0501-0508	●	●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A)	8-97378-442-0	02	1	0509-0709	●	●	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B)	8-98000-035-0	02	1	0509-0709	●	●	●	●
278	03.415 NUT; CONT UNIT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-		●		●
385	03.670 BOLT; CONT UNIT 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0307-0508	●	●	●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609			●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0509-0609	●	●
385	03.670 BOLT; CONT UNIT 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0307-0508	●	●	●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z) 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606			●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606	●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0607-0609			●	●
385	03.670 BOLT; CONT UNIT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	0607-0609	●	●
385	03.670 BOLT; CONT UNIT 4JK1-TCX ENG(LR0) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0610-			●	●
385	03.670 BOLT; CONT UNIT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.510 (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0610-	●	●
385	03.670 BOLT; CONT UNIT 16.085 (B) M5X16 TAPPING	9-09829-323-1	02	1	0307-0612	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●
387	02.363 CLIP; BAND L=140	8-97920-656-0	01	1	0307-	●	●	●	●
422	03.415 BRACKET; CONT UNIT	8-97316-473-1	01	1	0307-0404	●	●	●	●
422	03.415 BRACKET; CONT UNIT	8-97381-410-0	01	1	0405-	●	●	●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0307-0702	●	●	●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0703-0709	●	●	●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0710-1003		●		●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1004-		●		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5>	8-97361-705-0	01	1	0307-0508	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97361-705-0	01	1	0509-0709	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98053-169-0	01	1	0710-		●		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98000-034-0	01	1	0509-0709	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>	8-98053-167-0	01	1	0710-		●		●
703	09.778 TIMER; DEFOGGER REAR DEFOGGER<C49> 12V	8-97301-600-0	01	1	0307-		●		●
712	03.670 CONTROL UNIT; ANTI THEFT 16.263 (A)	8-97234-671-0	01	1	0307-0408	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT (A)	8-97377-324-0	01	1	0409-0508	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z) (A)	8-97377-324-0	01	1	0509-0609			●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97377-324-0	01	1	0509-0609	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 06.500 (B)	8-97251-755-0	01	1	0307-0508	●	●	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z) 06.500 (B)	8-97251-755-0	01	1	0509-0609			●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.500 (B)	8-97251-755-0	01	1	0509-0609	●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JK1-TCX ENG(LR0) (C)	8-98008-412-0	01	1	0610-			●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C)	8-98008-412-0	01	1	0610-	●	●
767	07.450 RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5>	8-98053-170-2	01	1	0710-1004		●		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. LOCK END GATE<8CW>	8-98053-170-2	01	1	1005-		●		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> ISUZU BRAND<7WL> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98053-170-2	01	1	1005-		●		●

25 25 25 231 231 123 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	02.100 RELAY; TAIL LAMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI	8-98146-834-0	01	1	0911-	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0307-0609	●	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON	8-97125-441-1	01	1	0509-0910	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0710-0910	●	●	●	●
231	02.270 RELAY; HAZARD 09.778 12V YAZAKI	8-97309-293-0	02	1	0307-0508	●	●	●	●

25 551 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	02.100 RELAY; TAIL LAMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI	8-98146-834-0	01	1	0911-	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0307-0609	●	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON	8-97125-441-1	01	1	0509-0910	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI	8-97309-294-0	01	1	0710-0910	●	●	●	●
551	02.510 RELAY; TRANSMISSION 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●
551	02.510 RELAY; TRANSMISSION 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
