Sayfa 8-27 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶

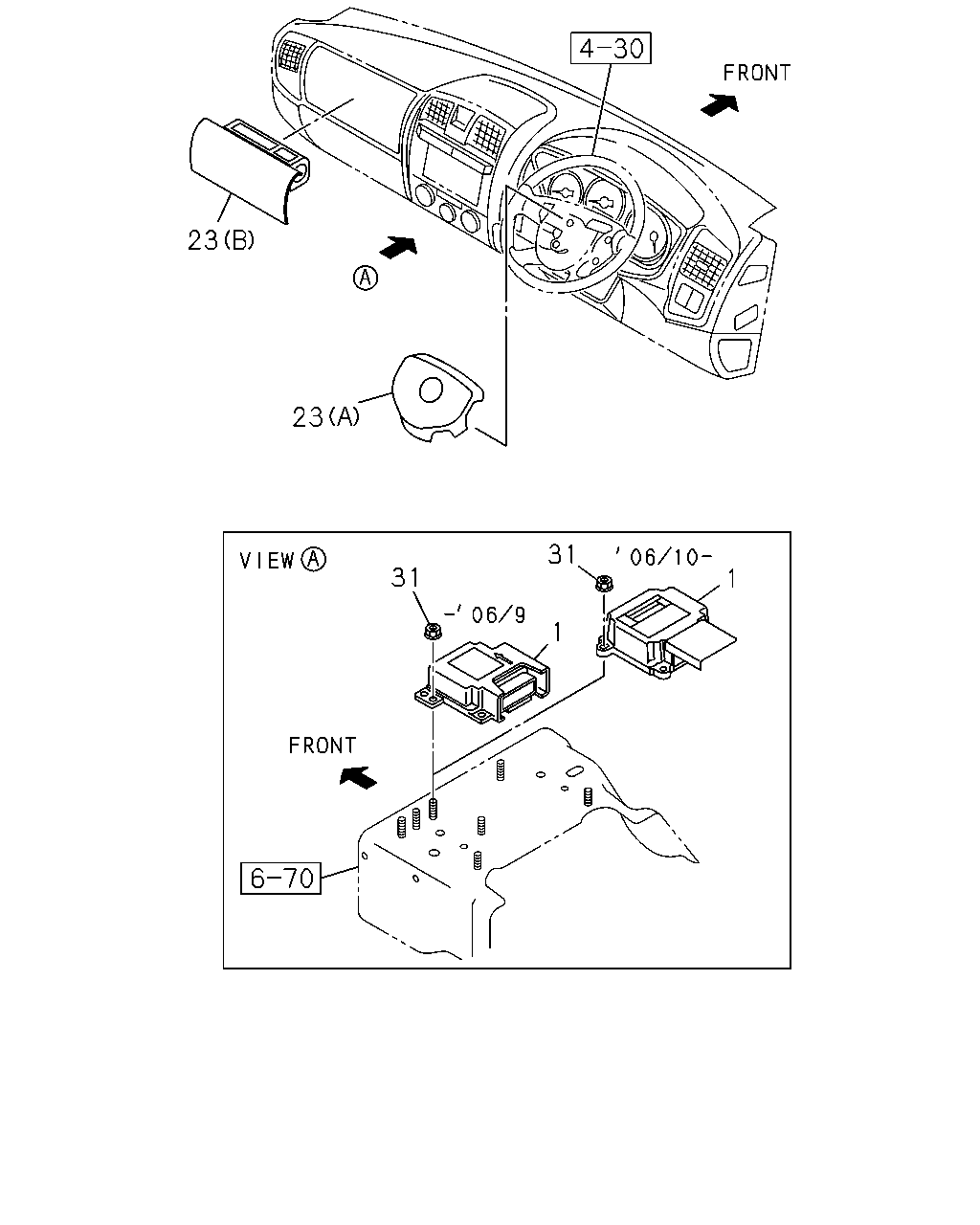

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#73512) — 46 parça

23 23 31 31 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-97360-409-0	01	1	0307-0508	●	●	●	●
1	02.559 CONTROL UNIT; SIR	8-97360-409-0	01	1	0509-0510	●	●	●	●
1	02.559 CONTROL UNIT; SIR	8-98032-628-0	01	1	0511-0609	●	●	●	●
1	02.559 CONTROL UNIT; SIR	8-98039-725-0	01	1	0610-0905	●	●	●	●
1	02.559 CONTROL UNIT; SIR	8-98122-211-0	01	1	0906-	●	●	●	●
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER(AJ3)	8-97360-408-0	01	1	0307-0508	●	●	●	●
23	02.559 AIR BAG UNIT (A) DARK GRAY	8-97396-931-0	01	1	0307-0309	●	●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97396-931-0	01	1	0307-0309			●	●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97396-931-0	01	1	0310-0312	●	●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY	8-97396-931-0	01	1	0310-0312			●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97396-931-0	01	1	0310-0312				●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97397-845-0	01	1	0401-0402	●	●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY	8-97397-845-0	01	1	0401-0402			●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97397-845-0	01	1	0401-0402				●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97397-845-0	01	1	0403-0609	●	●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> (A) DARK GRAY	8-97397-845-0	01	1	0403-0609			●	●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97408-898-0	01	1	0610-0709	●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-898-0	01	1	0610-0709		●	●	●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97408-898-0	01	1	0710-0904	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-898-0	01	1	0710-0904		●		●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97417-274-0	01	1	0905-0906	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97417-274-0	01	1	0905-0906		●		●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97418-298-0	01	1	0907-0910	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97418-298-0	01	1	0907-0910		●		●
23	02.559 AIR BAG UNIT ISUZU BRAND<7WL> (A) DARK GRAY	8-97418-298-0	01	1	0911-	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97418-298-0	01	1	0911-		●		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97396-840-0	01	1	0307-0508	●	●	●	●
23	02.559 AIR BAG UNIT (B) DARK GRAY	8-97396-840-1	01	1	0509-0609	●	●	●	●
23	02.559 AIR BAG UNIT (B) DARK GRAY	8-97408-903-0	01	1	0610-0610	●	●	●	●
23	02.559 AIR BAG UNIT (B) DARK GRAY	8-97408-901-1	01	1	0610-0910	●	●	●	●
23	02.559 AIR BAG UNIT (B) DARK GRAY	8-97408-901-1	01	1	0911-1007	●	●	●	●
23	02.559 AIR BAG UNIT (B) BLACK	8-97422-062-0	01	1	1008-	●	●	●	●
23	02.559 AIR BAG UNIT 4JA1-TC ENG(L4Z) AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>,ANTI THEFT SYSTEM SPARE TIRE<8CF> ,LOCK END GATE<8CW> (A) DARK GRAY	8-97396-932-0	01	1	0310-0312	●	●	●	●
23	02.559 AIR BAG UNIT 4JA1-TC ENG(L4Z) AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>,ANTI THEFT SYSTEM SPARE TIRE<8CF> ,LOCK END GATE<8CW> (A) DARK GRAY	8-97397-846-0	01	1	0401-0609	●	●	●	●
23	02.559 AIR BAG UNIT CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97408-900-0	01	1	0610-0709	●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-900-0	01	1	0610-0709		●	●	●
23	02.559 AIR BAG UNIT CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97408-900-0	01	1	0710-0904	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-900-0	01	1	0710-0904		●		●
23	02.559 AIR BAG UNIT CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97417-276-0	01	1	0905-0906	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97417-276-0	01	1	0905-0906		●		●
23	02.559 AIR BAG UNIT CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97418-296-0	01	1	0907-1003	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97418-296-0	01	1	0907-1003		●		●
23	02.559 AIR BAG UNIT CHEVROLET BRAND<RWE> (A) DARK GRAY	8-97418-296-0	01	1	1004-	●		●
23	02.559 AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97418-296-0	01	1	1004-		●		●
31	14.865 NUT 01.062 M6 FLANGE	0-91150-206-0	03	1	0307-0402	●	●	●	●
31	14.865 NUT 01.540 M6 FLANGE	0-91180-206-0	03	1	0403-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
