◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#73511) — 76 parça
çizim 117409
263 494 691
BalonParca AdiParca NoAdetTipApplied Date A B C D
263 04.115 BOLT; CONT UNIT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0307-0601 ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0602-0609 ● ●
494 04.115 COVER; ELEC BOX 8-97328-613-0 01 1 0307-0609 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97351-960-1 01 1 0307-0309 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97368-449-0 01 1 0310-0408 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97374-038-0 01 1 0409-0508 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97386-320-0 01 1 0509-0609 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0610- ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97369-965-0 01 1 0307-0412 ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97374-039-0 01 1 0501-0508 ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97386-321-0 01 1 0509-0609 ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0610- ● ●

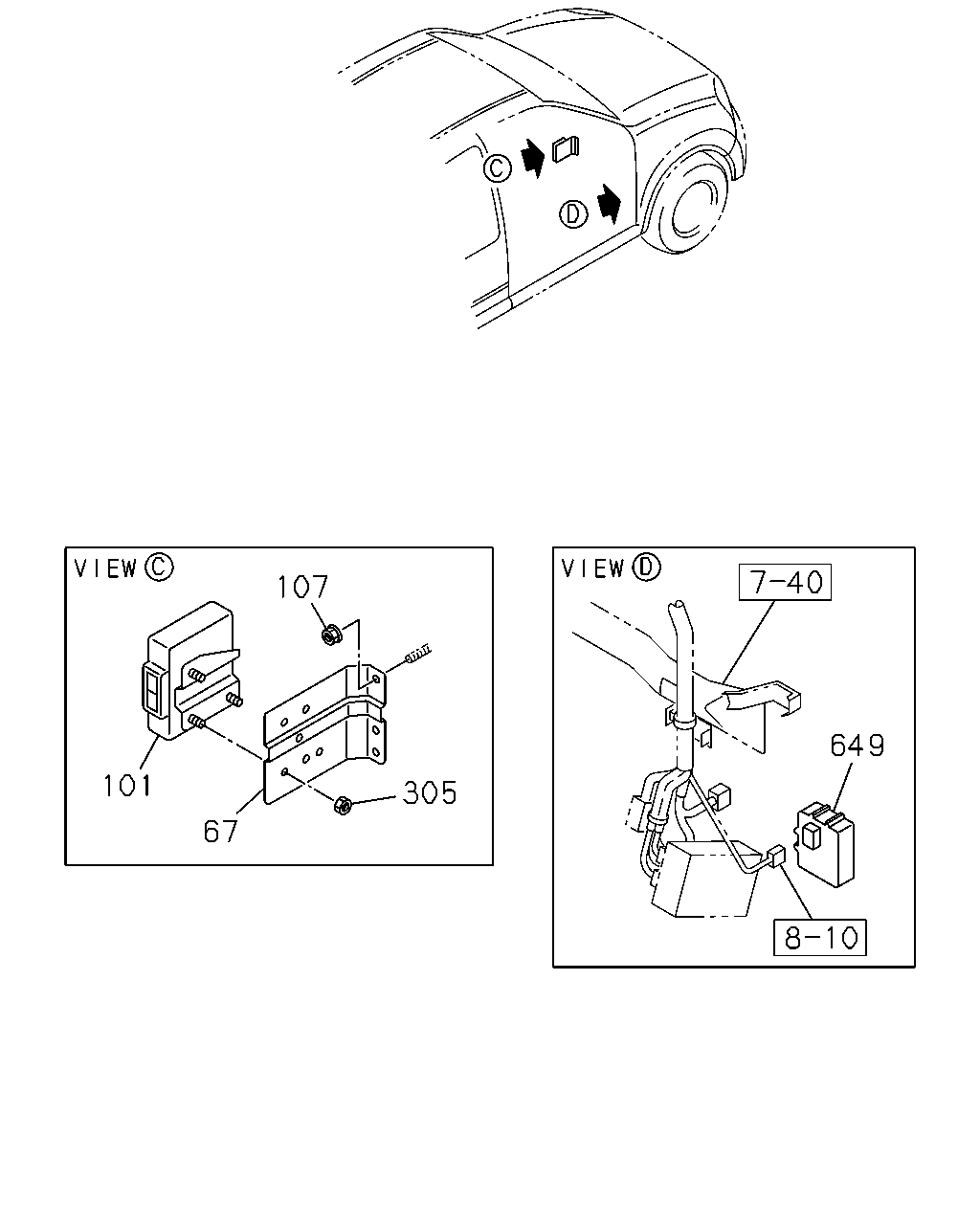

çizim 117416
107 649 101 305 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
67 03.887 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 		8-97306-829-0 01 1 0307-0609 ●
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD) 		8-97306-829-0 01 1 0610- ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO(RMK) 		8-97367-247-0 01 1 0307-0411 ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO(RMK) 		8-97372-890-0 01 1 0412-0609 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98043-640-0 01 1 0610- ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0307-0609 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0307-0609 ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ●
649 02.679 CONTROL UNIT; RR FOG LAMP 8-97362-213-0 01 1 0307- ● ● ● ●

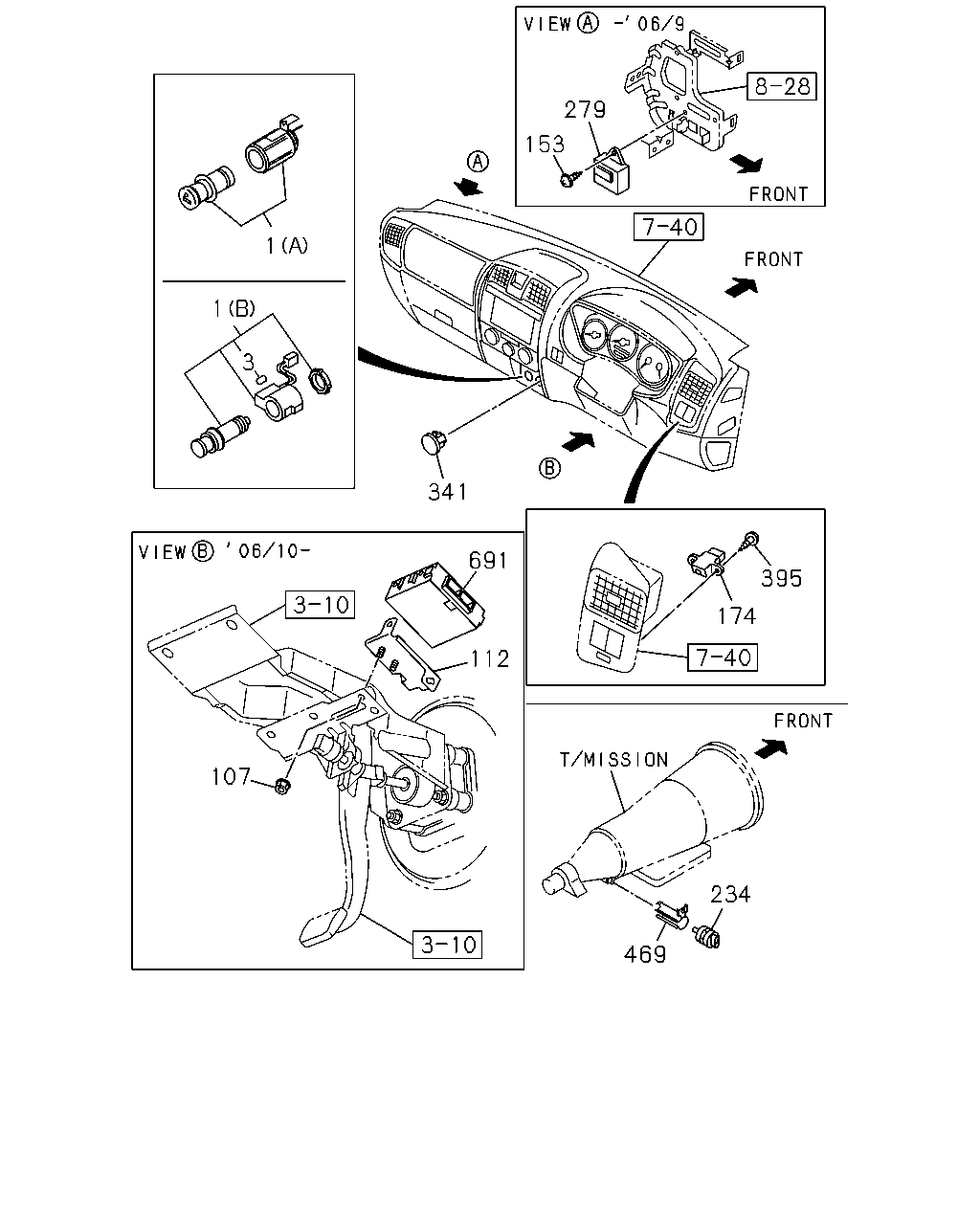

çizim 117450
279 153 1 1 3 341 691 395 174 112 107 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0307-0709 ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0710-0809 ● ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0710-0809 ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0810- ● ●
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0810- ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97329-641-0 01 1 0307-0609 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97329-641-0 01 1 0610-0709 ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97329-641-0 01 1 0710-1003 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT(RBD) (B) 		8-97302-229-0 01 1 1004- ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LT(RBD) 14V 1.4W 		8-97173-160-0 01 1 0307-0609 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LT(RBD) 14V 1.4W 		8-97173-160-0 01 1 0610-0709 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LT(RBD) 14V 1.4W 		8-97173-160-0 01 1 0710- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0307-0609 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ●
112 02.500 BRACKET; CONT UNIT 8-97945-256-0 01 1 0610- ● ●
153 16.085 BOLT; BUZZER FIX
M5X16 TAPPING 		9-09829-323-1 01 1 0307-0609 ● ● ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97248-972-0 01 1 0307-0709 ● ● ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97248-972-0 01 1 0710- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0307-0406 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0307-0406 ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0508 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0508 ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0509-0609 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0509-0609 ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1309 ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1309 ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1309 ●
234 03.682 SENSOR; VEHICLE SPD
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ●
279 16.081 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 0307-0609 ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 09.277 DARK GRAY 		8-97390-774-0 01 1 0307-0609 ● ● ● ●
341 04.115 COVER ASM
DARK GRAY 		8-97396-703-0 01 1 0610-0709 ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 0610-0709 ● ● ●
341 04.115 COVER ASM
DARK GRAY 		8-97396-703-0 01 1 0710- ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 0710- ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0612 ● ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0701-0709 ● ● ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0710-1004 ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5G(RSP) 		8-97168-308-0 01 1 0307-0609 ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) 		8-97168-308-0 01 1 0610-0809 ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) 		8-98119-901-0 01 1 0810- ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97351-960-1 01 1 0307-0309 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97368-449-0 01 1 0310-0408 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97374-038-0 01 1 0409-0508 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-97386-320-0 01 1 0509-0609 ● ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0610- ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97369-965-0 01 1 0307-0412 ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97374-039-0 01 1 0501-0508 ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-97386-321-0 01 1 0509-0609 ● ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0610- ● ●
