Sayfa 8-25 - Isuzu EPC

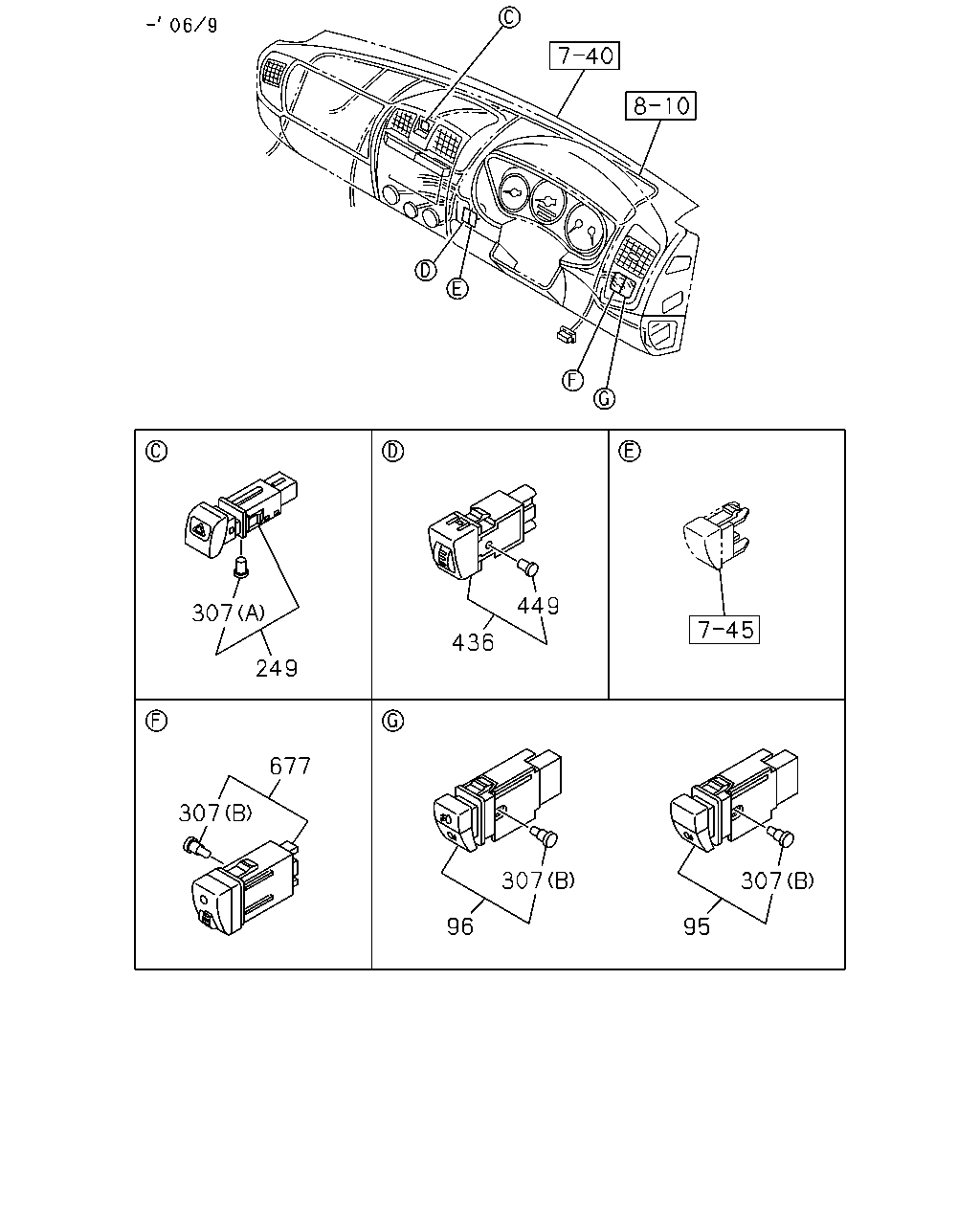

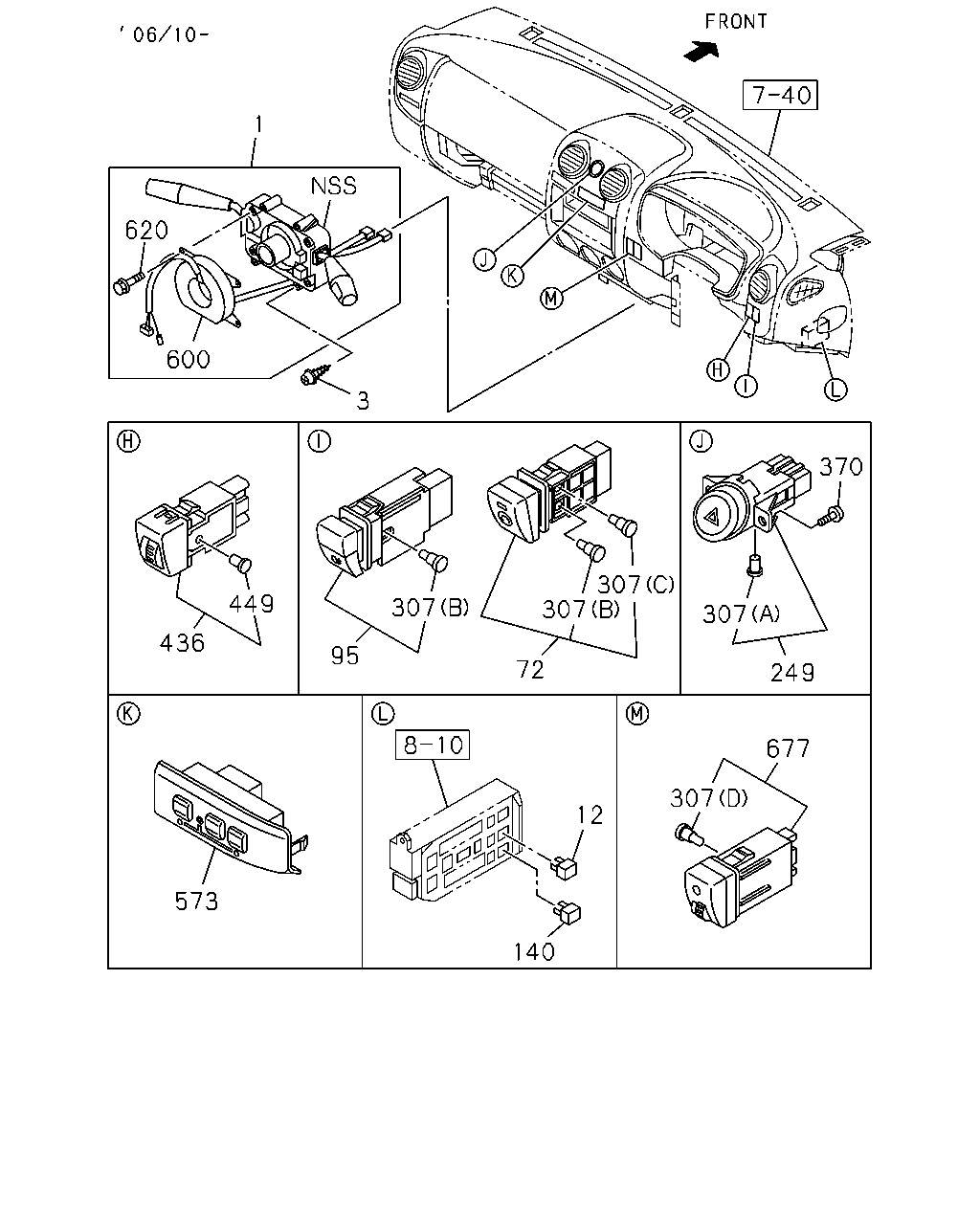

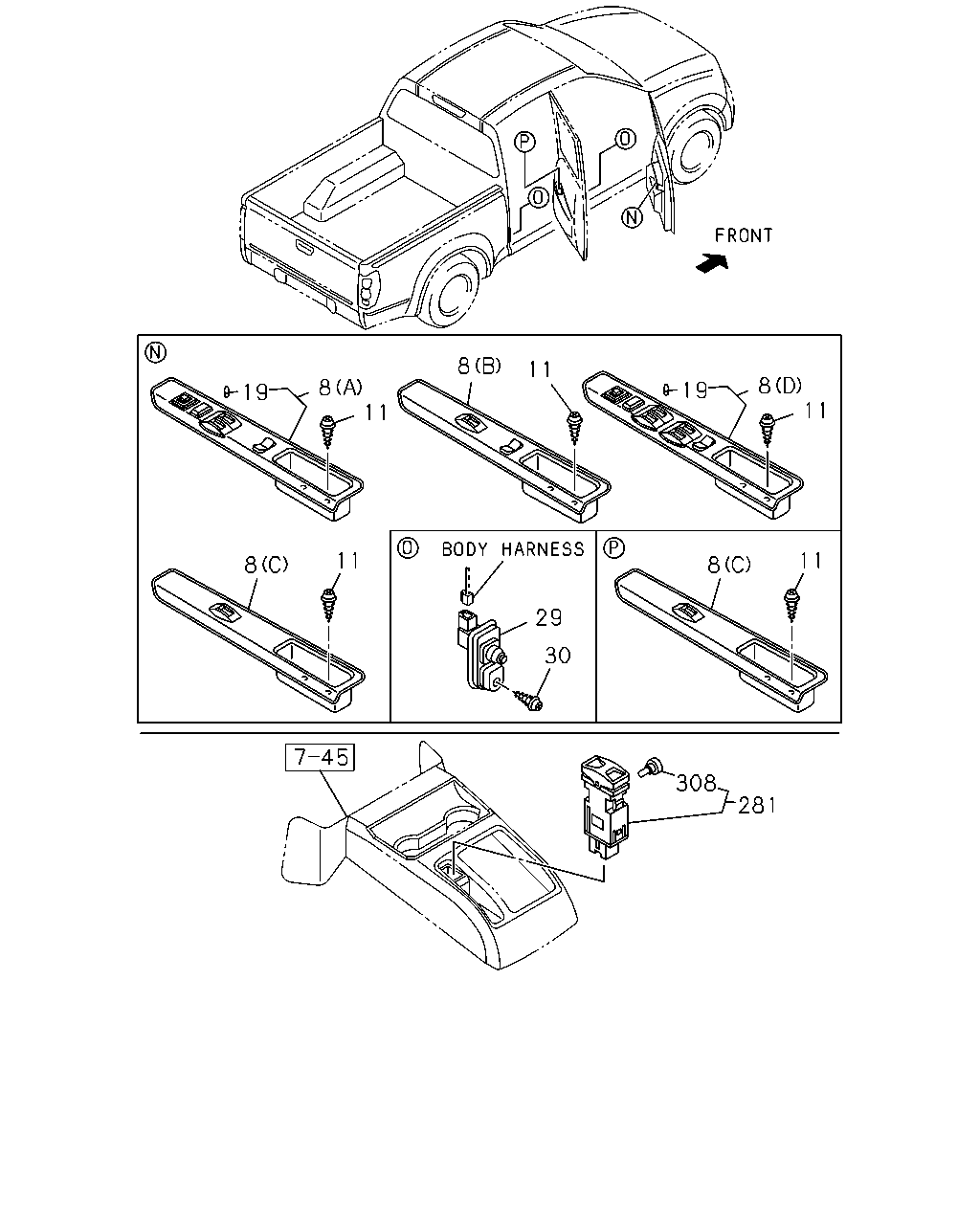

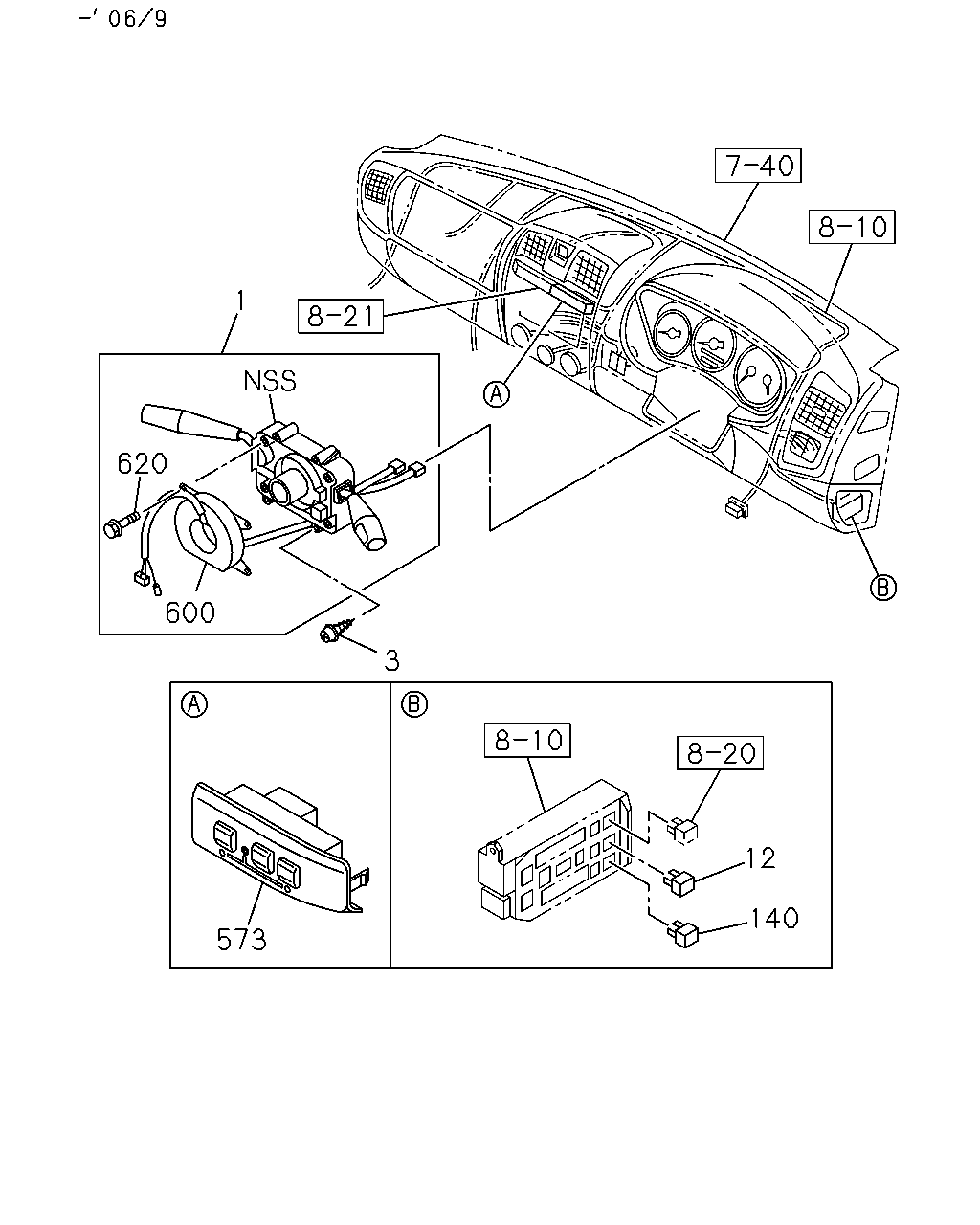

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#73510) — 305 parça

8 11 8 11 8 11 19 19 11 11 8 8 29 30 308 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0307-0408	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0307-0408		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0409-0508	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0409-0508		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0509-0609	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 13.263 (A) DRIVER DARK GRAY	8-97396-532-0	01	1	0509-0609		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97403-617-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) DRIVER DARK GRAY	8-97403-617-0	01	1	0610-0709		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97403-617-0	01	1	0710-1003	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY	8-97418-572-0	01	1	1004-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0307-0408	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0409-0508	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) PASSENGER DARK GRAY	8-97396-105-0	01	1	0409-0508		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97400-384-0	01	1	0509-0609	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-384-0	01	1	0509-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	0610-0709		●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	0710-1003	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	0710-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	1004-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97400-752-0	01	1	1004-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0307-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0307-0408				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0409-0508			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0409-0508				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0509-0609			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (D) DRIVER DARK GRAY	8-97396-534-0	01	1	0509-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97403-618-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (D) DRIVER DARK GRAY	8-97403-618-0	01	1	0610-0709				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> (D) DRIVER DARK GRAY	8-97403-618-0	01	1	0710-0809			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (D) DRIVER DARK GRAY	8-97403-618-0	01	1	0810-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (D) DRIVER DARK GRAY	8-97418-573-0	01	1	1004-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-410-0	01	1	0307-0408			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-410-0	01	1	0409-0502			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97392-410-0	01	1	0409-0502				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97400-390-0	01	1	0503-0609			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-390-0	01	1	0503-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-753-0	01	1	0610-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-753-0	01	1	1004-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-411-0	01	1	0307-0408			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97392-411-0	01	1	0409-0502			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97392-411-0	01	1	0409-0502				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY	8-97400-391-0	01	1	0503-0609			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-391-0	01	1	0503-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-754-0	01	1	0610-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY	8-97400-754-0	01	1	1004-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-533-0	01	1	0307-0408		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97396-533-0	01	1	0409-0508		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97400-742-0	01	1	0509-0609		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97403-627-0	01	1	0610-0709		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-741-0	01	1	0409-0508		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97400-743-0	01	1	0509-0609		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97403-628-0	01	1	0610-0709		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-740-0	01	1	0409-0508		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97400-740-0	01	1	0509-0609		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> (A) DRIVER LIGHT GRAY	8-97403-623-0	01	1	0610-0709		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (B) PASSENGER LIGHT GRAY	8-97396-102-0	01	1	0409-0508		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97400-385-0	01	1	0509-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-893-0	01	1	0610-0709		●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-893-0	01	1	0710-0910			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97403-893-0	01	1	0911-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER DARK GRAY	8-97396-535-0	01	1	0307-0408				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97396-535-0	01	1	0409-0508				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97400-745-0	01	1	0509-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97403-629-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97403-629-0	01	1	0610-0709				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97408-584-0	01	1	0710-0809			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97408-584-0	01	1	0810-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. INTERIOR SILVER BEZEL<BY9> (D) DRIVER DARK GRAY	8-97418-583-0	01	1	1004-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97298-473-0	01	1	0409-0502				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97400-392-0	01	1	0503-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-896-0	01	1	0610-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97298-474-0	01	1	0409-0502				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97400-394-0	01	1	0503-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY	8-97403-897-0	01	1	0610-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97400-380-0	01	1	0409-0508				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97400-746-0	01	1	0509-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97403-690-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97403-690-0	01	1	0610-0709				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> (D) DRIVER LIGHT GRAY	8-97408-582-0	01	1	0710-0809			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97408-582-0	01	1	0810-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97418-582-0	01	1	1004-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97400-744-0	01	1	0409-0508				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97400-744-0	01	1	0509-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0610-0709				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DL2> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0710-0809			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97403-624-0	01	1	0810-1003			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DNQ> (D) DRIVER LIGHT GRAY	8-97418-579-0	01	1	1004-			●	●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0307-	●	●	●	●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0307-			●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0307-0508	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0307-0508		●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0509-0709	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0710-0806	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DL2>	8-97327-881-0	01	1	0710-0806			●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0807-1003	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-98152-589-0	01	1	1004-	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0307-0508		●		●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0307-0307	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-			●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	04	1	0307-0307			●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0307-0307	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-	●	●	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-			●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	04	1	0307-0307			●	●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO(RMK) 16.283 DARK GRAY	8-97300-364-0	01	1	0307-0609				●
281	04.057 SWITCH; SELECT,TRANS CONT A/T AISIN(RMD) DARK GRAY	8-97396-692-0	01	1	0610-1003				●
281	04.057 SWITCH; SELECT,TRANS CONT A/T AISIN(RMD) DARK GRAY	8-97418-478-0	01	1	1004-				●
308	08.991 BULB; SELECT SW A/T 4 SPEED-JATCO(RMK) 14V 0.84W	8-97329-092-0	01	1	0307-0609				●
308	08.991 BULB; SELECT SW A/T AISIN(RMD) 14V 0.84W	8-97329-092-0	01	1	0610-1003				●
308	08.991 BULB; SELECT SW A/T AISIN(RMD) 14V 0.84W	8-98152-591-0	01	1	1004-				●

1 620 600 3 370 307 307 449 307 307 436 95 72 249 677 307 12 573 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.895 SWITCH; COMB	8-97360-695-0	01	1	0307-0609	●	●	●	●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0610-0709	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0610-0709			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0610-0709		●		●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0710-	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0710-			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0710-				●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0610-0709		●		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0710-				●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0307-0606	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0610-0710	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	02	1	0711-	●	●	●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0610-0709		●		●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0710-1003				●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97418-805-0	01	1	1004-				●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0307-0411	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-98000-500-0	01	1	0412-0609	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97403-904-0	01	1	0610-1003	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97418-510-0	01	1	1004-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-0710	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	02	1	0711-	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0307-0609	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709		●		●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003				●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-98152-588-0	01	1	1004-				●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0307-0609	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-97329-092-0	01	1	0610-1003	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-98159-550-0	01	1	1004-	●	●	●	●
307	08.991 BULB ASM; SW (A)	8-98057-959-0	01	1	0610-	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0610-0709		●		●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0710-				●
370	16.495 BOLT; SW 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0307-0609	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97403-901-0	01	1	0610-1003	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97418-806-0	01	1	1004-	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0307-1003	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97298-476-0	01	1	0307-0408		●		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0409-0609		●		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-0709		●		●
573	09.755 SWITCH; 4WD DARK GRAY	8-97407-364-0	01	1	0710-1003		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0710-1003				●
573	09.755 SWITCH; 4WD DARK GRAY	8-97418-809-0	01	1	1004-		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97418-809-0	01	1	1004-				●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0409-0609		●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-0709		●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0710-1003				●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97418-479-0	01	1	1004-				●
600	02.895 COIL ASM; SIR	8-97308-028-1	01	1	0307-0609	●	●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0610-0709	●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0610-0709		●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0710-	●	●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0710-			●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0307-0609	●	●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0610-0709	●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0610-0709		●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0710-	●	●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0710-			●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0307-0609	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97403-903-0	01	1	0610-1003	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97418-808-0	01	1	1004-	●	●	●	●

449 307 436 249 677 307 307 307 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-97313-981-0	01	1	0307-0411	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96>	8-98000-500-0	01	1	0412-0609	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97403-904-0	01	1	0610-1003	●	●	●	●
95	02.575 SWITCH; RR FOG LAMP EXC. FOG LAMP<T96> DARK GRAY	8-97418-510-0	01	1	1004-	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97313-982-0	01	1	0307-0411	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-98000-501-0	01	1	0412-0609	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> DARK GRAY	8-97403-902-0	01	1	0610-1003	●	●	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> DARK GRAY	8-97418-807-0	01	1	1004-	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0307-0609	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0307-0609	●	●	●	●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0610-0709		●		●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97327-317-0	01	1	0710-1003				●
307	08.991 BULB ASM; SW (B) 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-98152-588-0	01	1	1004-				●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0307-0609	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-97329-092-0	01	1	0610-1003	●	●	●	●
307	08.991 BULB ASM; SW (D) 14V 0.84W	8-98159-550-0	01	1	1004-	●	●	●	●
307	08.991 BULB ASM; SW (A)	8-98057-959-0	01	1	0610-	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0610-0709		●		●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.91W	8-97355-451-0	01	1	0710-				●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0307-0609	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97403-901-0	01	1	0610-1003	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97418-806-0	01	1	1004-	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0307-1003	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●
677	02.485 SWITCH; ILLUMINATION	8-97238-512-0	01	1	0307-0609	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97403-903-0	01	1	0610-1003	●	●	●	●
677	02.485 SWITCH; ILLUMINATION DARK GRAY	8-97418-808-0	01	1	1004-	●	●	●	●

1 620 600 3 12 140 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.895 SWITCH; COMB	8-97360-695-0	01	1	0307-0609	●	●	●	●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0610-0709	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0610-0709			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0610-0709		●		●
1	02.895 SWITCH; COMB	8-98007-721-0	01	1	0710-	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98007-721-0	01	1	0710-			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-98007-721-0	01	1	0710-				●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0610-0709		●		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-98007-729-0	01	1	0710-				●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0307-0606	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0610-0710	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	02	1	0711-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-0710	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	02	1	0711-	●	●	●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97298-476-0	01	1	0307-0408		●		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0409-0609		●		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-0709		●		●
573	09.755 SWITCH; 4WD DARK GRAY	8-97407-364-0	01	1	0710-1003		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0710-1003				●
573	09.755 SWITCH; 4WD DARK GRAY	8-97418-809-0	01	1	1004-		●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97418-809-0	01	1	1004-				●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0409-0609		●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-0709		●		●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0710-1003				●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97418-479-0	01	1	1004-				●
600	02.895 COIL ASM; SIR	8-97308-028-1	01	1	0307-0609	●	●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0610-0709	●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0610-0709		●	●	●
600	02.895 COIL ASM; SIR	8-98014-766-0	01	1	0710-	●	●
600	02.895 COIL ASM; SIR INTERMITTENT WIPER<C13>	8-98014-766-0	01	1	0710-			●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0307-0609	●	●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0610-0709	●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0610-0709		●	●	●
620	02.895 SCREW; COIL,COMB SW	8-97166-506-0	06	1	0710-	●	●
620	02.895 SCREW; COIL,COMB SW INTERMITTENT WIPER<C13>	8-97166-506-0	06	1	0710-			●	●

99 45 208 85 98 154 277 164 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0307-0508	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0403-0609	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	02	1	0307-0402	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0403-0609	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0307-	●	●	●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0610-	●	●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●

99 99 99 45 45 45 208 208 208 154 98 99 98 85 154 154 85 85 164 164 164 490 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0307-0609	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0307-0508	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	0509-0609	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0403-0609	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-0709	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	02	1	0307-0402	●	●	●	●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0403-0609	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0307-	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0307-0609	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
