◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#7351) — 125 parça

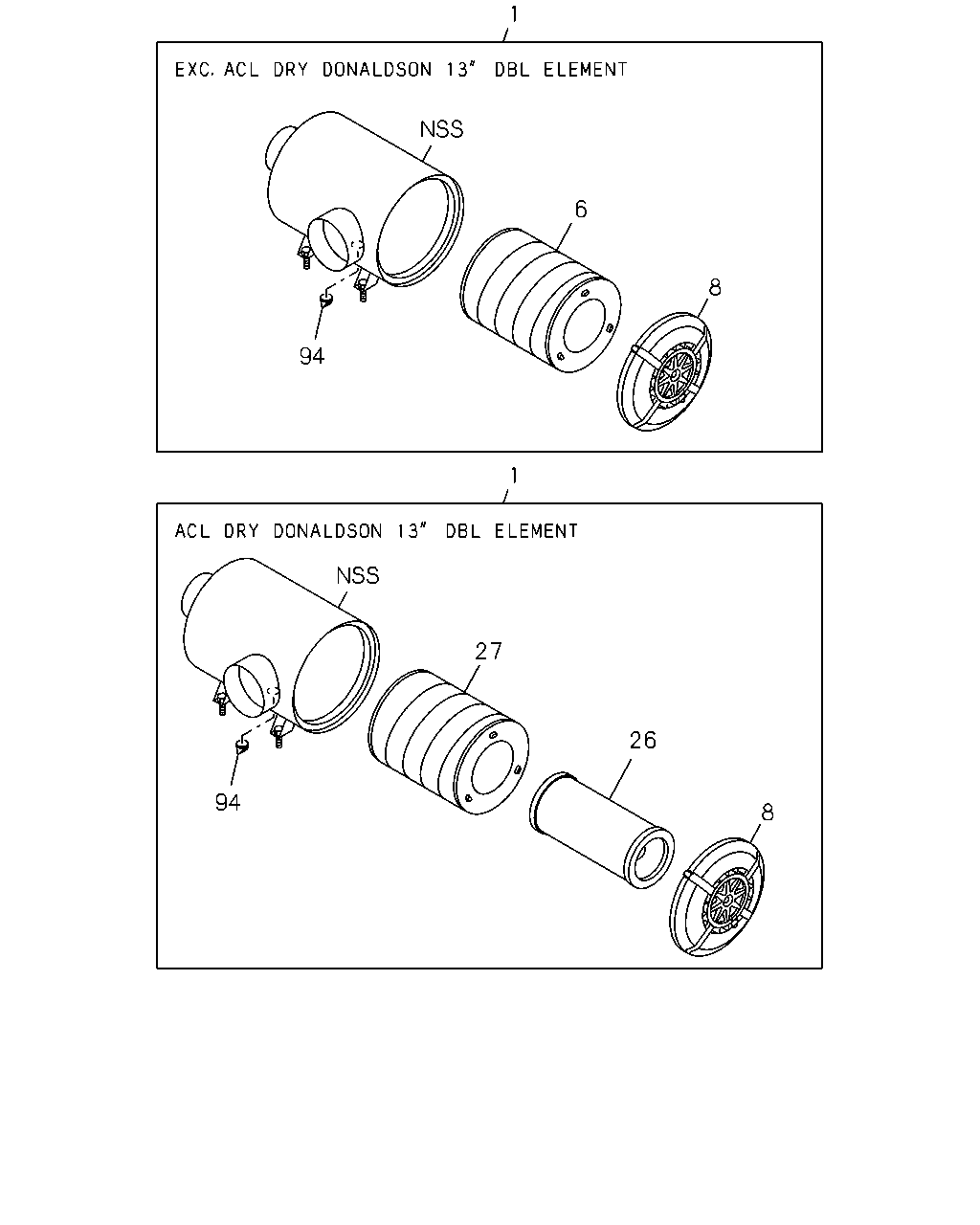

çizim 42275
1 6 8 94 1 27 26 94 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 9812-9901 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 9902- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 9812-9901 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 9902- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9907- ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9907- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9907- ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9812-9901 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9902- ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9902-9904 ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9905-9906 ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9907- ●
8 COVER ASM; ACL 1-14212-132-0 01 1 9812-9901 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 9902- ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9902-9904 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9905-9906 ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9907- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 9812-9901 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 9902- ● ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9902-9904 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9902-9904 ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9905-9906 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9905-9906 ● ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9907- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9907- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9812-9901 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9902- ● ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9902-9904 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9902-9904 ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9905-9906 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9905-9906 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9907- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9907- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9812-9901 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9902- ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9902-9904 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9905-9906 ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9907- ●

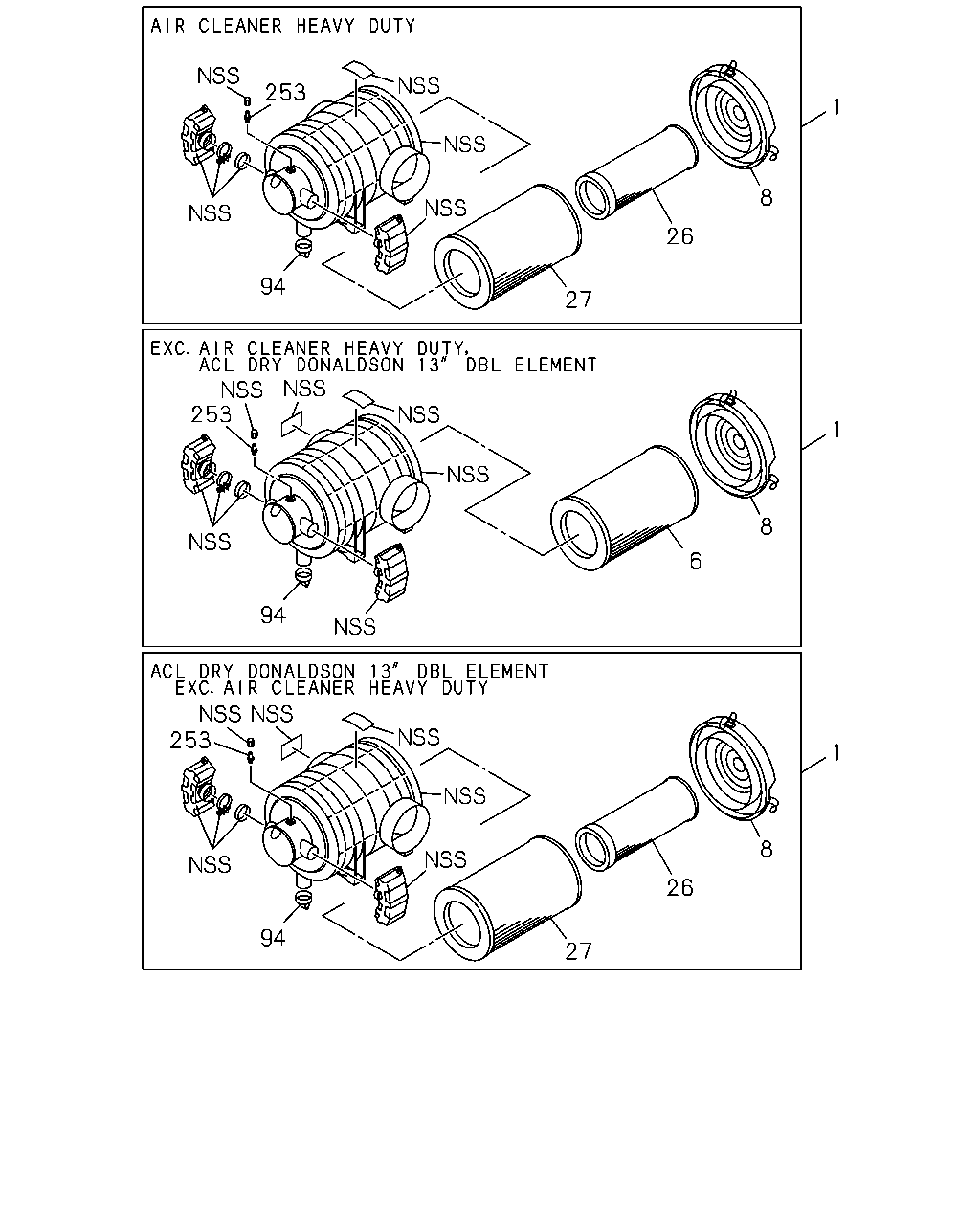

çizim 44240
253 1 8 26 94 27 253 1 8 6 94 253 1 8 26 94 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 9812-9901 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 9902- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 9812-9901 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 9902- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9907- ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9907- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9907- ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9812-9901 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9902- ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9902-9904 ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9905-9906 ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9907- ●
8 COVER ASM; ACL 1-14212-132-0 01 1 9812-9901 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 9902- ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9902-9904 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9905-9906 ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9907- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 9812-9901 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 9902- ● ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9902-9904 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9902-9904 ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9905-9906 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9905-9906 ● ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9907- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9907- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9812-9901 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 9902- ● ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9902-9904 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9902-9904 ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9905-9906 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9905-9906 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9907- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9907- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9812-9901 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9902- ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9902-9904 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9905-9906 ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9907- ●
253 NIPPLE 1-14219-252-0 01 1 9902-9904 ●
253 NIPPLE 1-14219-252-0 01 1 9905-9906 ● ●
253 NIPPLE 1-14219-252-0 01 1 9907- ●

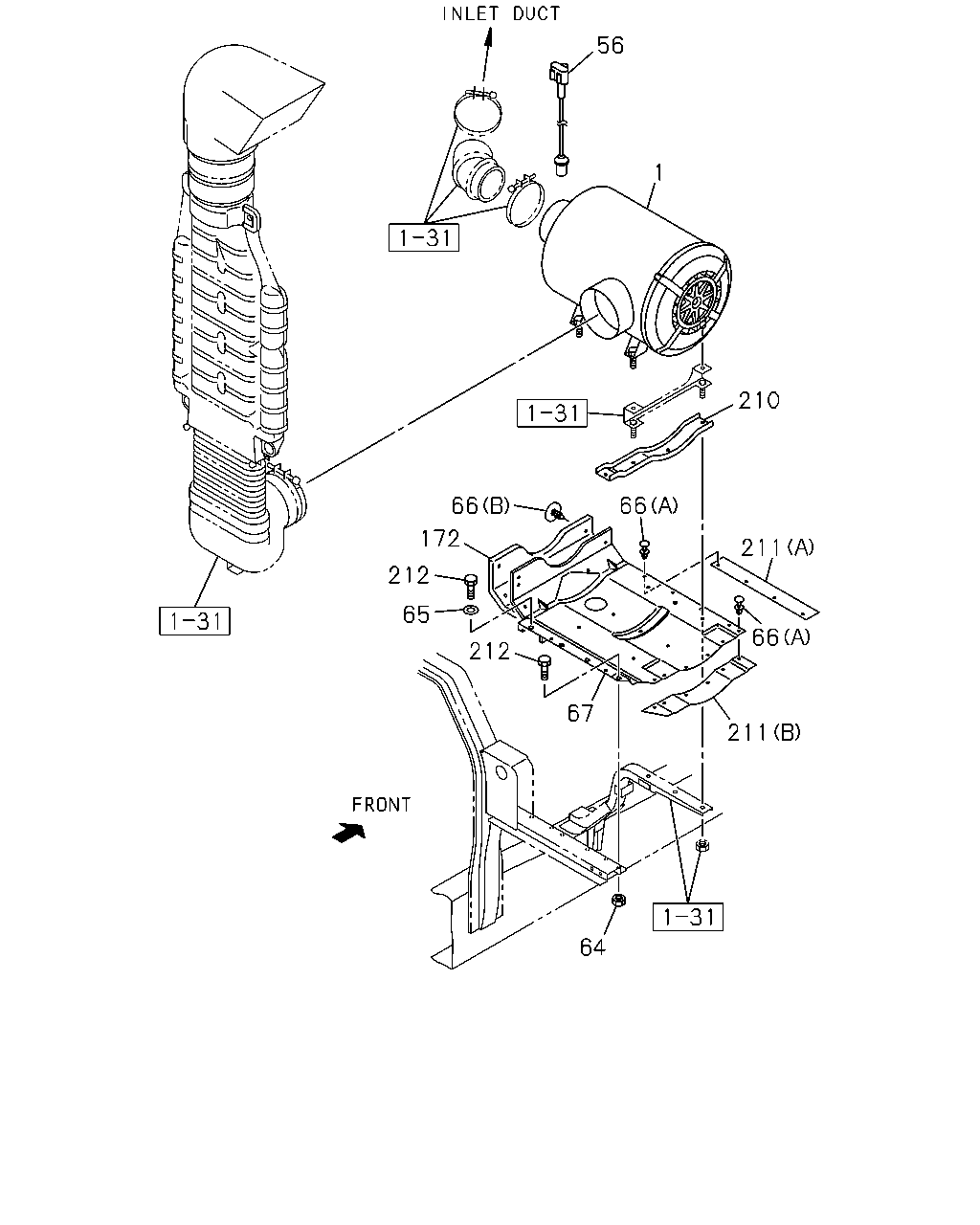

çizim 44667
56 1 210 66 66 172 211 212 212 65 66 67 211 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 9812-9901 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 9902- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 9812-9901 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 9902- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9907- ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9907- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9902-9904 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905-9906 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9907- ●
56 SWITCH; ACL 1-81530-016-0 01 1 9812- ● ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9812- ● ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9812- ● ● ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9812-9901 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9902- ● ● ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9812-9901 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9902- ● ● ● ●
67 COVER; ACL 1-53419-304-0 01 1 9812-9901 ●
67 COVER; ACL 1-53419-304-0 01 1 9902- ● ●
67 COVER; ACL 1-53419-281-3 01 1 9902-9904 ●
67 COVER; ACL 1-53419-281-3 01 1 9905-9906 ● ●
67 COVER; ACL 1-53419-281-3 01 1 9907- ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9812-9901 ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9902- ● ● ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9812-9901 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9902- ● ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9812-9901 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9902- ● ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9812-9901 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9902- ● ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9812- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
