Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#73507) — 234 parça

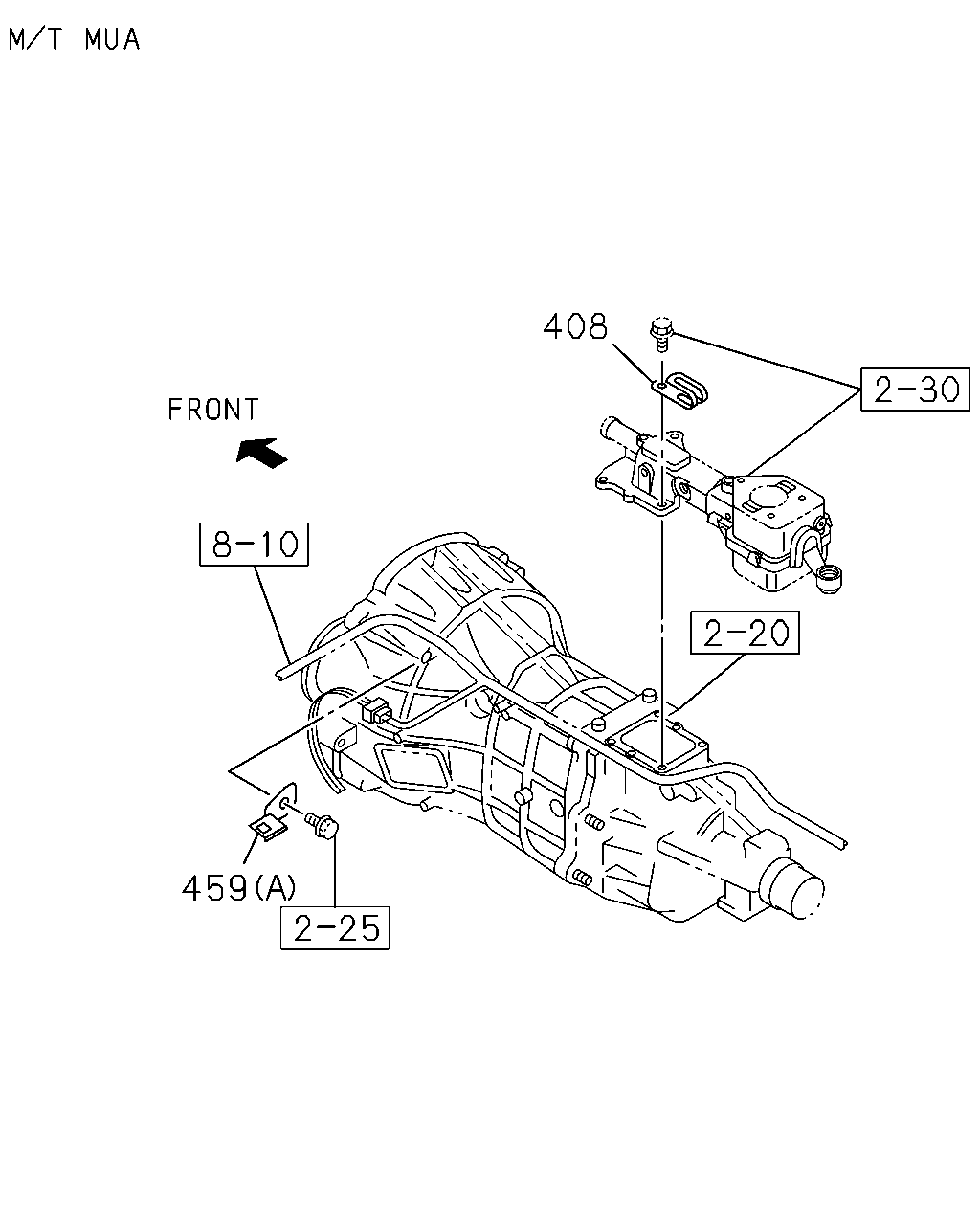

408 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G(RSP) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0307-0604	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G(RSP) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-0	04	1	0605-0609	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H(MWQ) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0610-	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0307-0508	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608			●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G(RSP) (A)	8-98050-882-0	01	1	0609-0609	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A)	8-98050-882-0	01	1	0610-	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C)	8-97382-804-0	01	1	0610-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D)	8-98035-740-0	01	1	0610-1007			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98035-740-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D)	8-98035-740-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-98035-741-0	01	1	0610-1007			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98035-741-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-98035-741-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (B)	8-98050-720-0	01	1	0610-				●

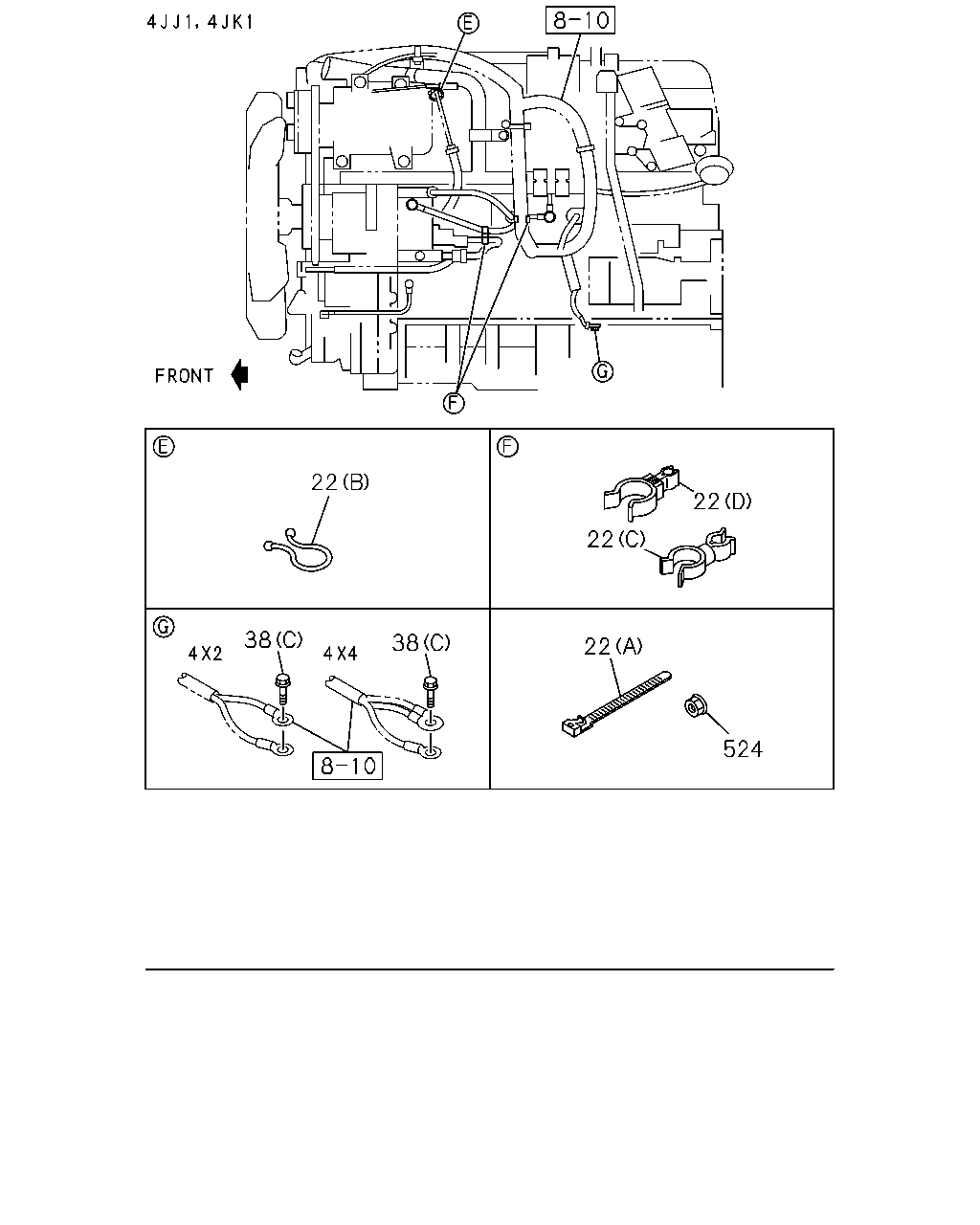

22 22 22 38 38 22 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.559 CLIP; ENG HARNESS 03.483 (C) ID=6 & 10	8-94154-844-0	01	1	0610-	●	●	●	●
22	02.559 CLIP; ENG HARNESS (D) ID=10 & 11	8-94438-996-0	01	1	0610-	●	●	●	●
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0307-0408	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0409-0508	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0509-0609	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0509-0609			●	●
22	02.559 CLIP; ENG HARNESS 02.363 (A) L=140	8-97920-656-0	01	1	0610-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) 09.663 (B) ID=15	1-09709-003-0	01	1	0610-0709	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) 09.663 (B) ID=15	1-09709-003-0	01	1	0710-	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (B) ID=15	1-09709-003-0	01	1	0710-			●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0402	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0403-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1402	●	●	●	●
524	02.559 NUT; HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1403-	●	●	●	●

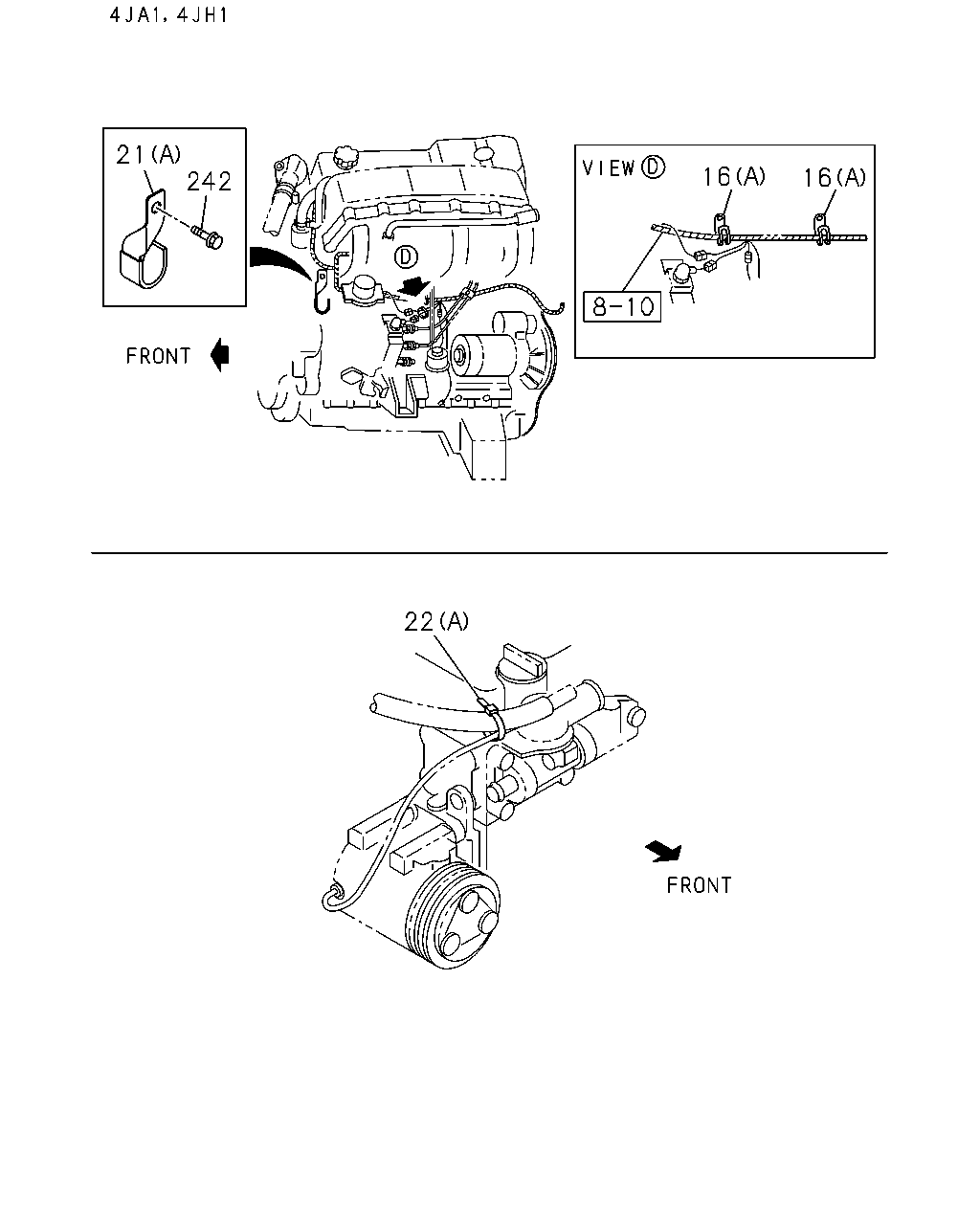

21 242 16 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS 02.313 (A) ID=18 L=44	8-97367-985-0	03	1	0307-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-0809	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-0809		●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0810-1007	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0810-1007		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	1008-		●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0509-1007	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0509-1007	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	05	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	02	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	04	1	0307-0709	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	04	1	0710-0809		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	04	1	0810-		●		●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z) (A)	8-97943-788-0	01	1	0307-0508	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97943-788-0	01	1	0307-0508			●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z) (A)	8-97943-788-0	01	1	0509-0609	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97943-788-0	01	1	0509-0609			●	●
21	02.483 BRACKET; ENG HARNESS (B)	8-97373-034-0	01	1	0610-0709	●	●	●	●
21	02.483 BRACKET; ENG HARNESS (B)	8-97373-034-0	01	1	0710-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (C) ID=6 & 10	8-94154-844-0	01	1	0610-	●	●	●	●
22	02.559 CLIP; ENG HARNESS (D) ID=10 & 11	8-94438-996-0	01	1	0610-	●	●	●	●
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0307-0408	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0409-0508	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0509-0609	●	●
22	02.559 CLIP; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140	8-97920-656-0	01	1	0509-0609			●	●
22	02.559 CLIP; ENG HARNESS 02.363 (A) L=140	8-97920-656-0	01	1	0610-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) 09.663 (B) ID=15	1-09709-003-0	01	1	0610-0709	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) 09.663 (B) ID=15	1-09709-003-0	01	1	0710-	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (B) ID=15	1-09709-003-0	01	1	0710-			●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0307-0508	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0307-0508			●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0509-0609	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0509-0609			●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-1007			●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-			●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-			●	●

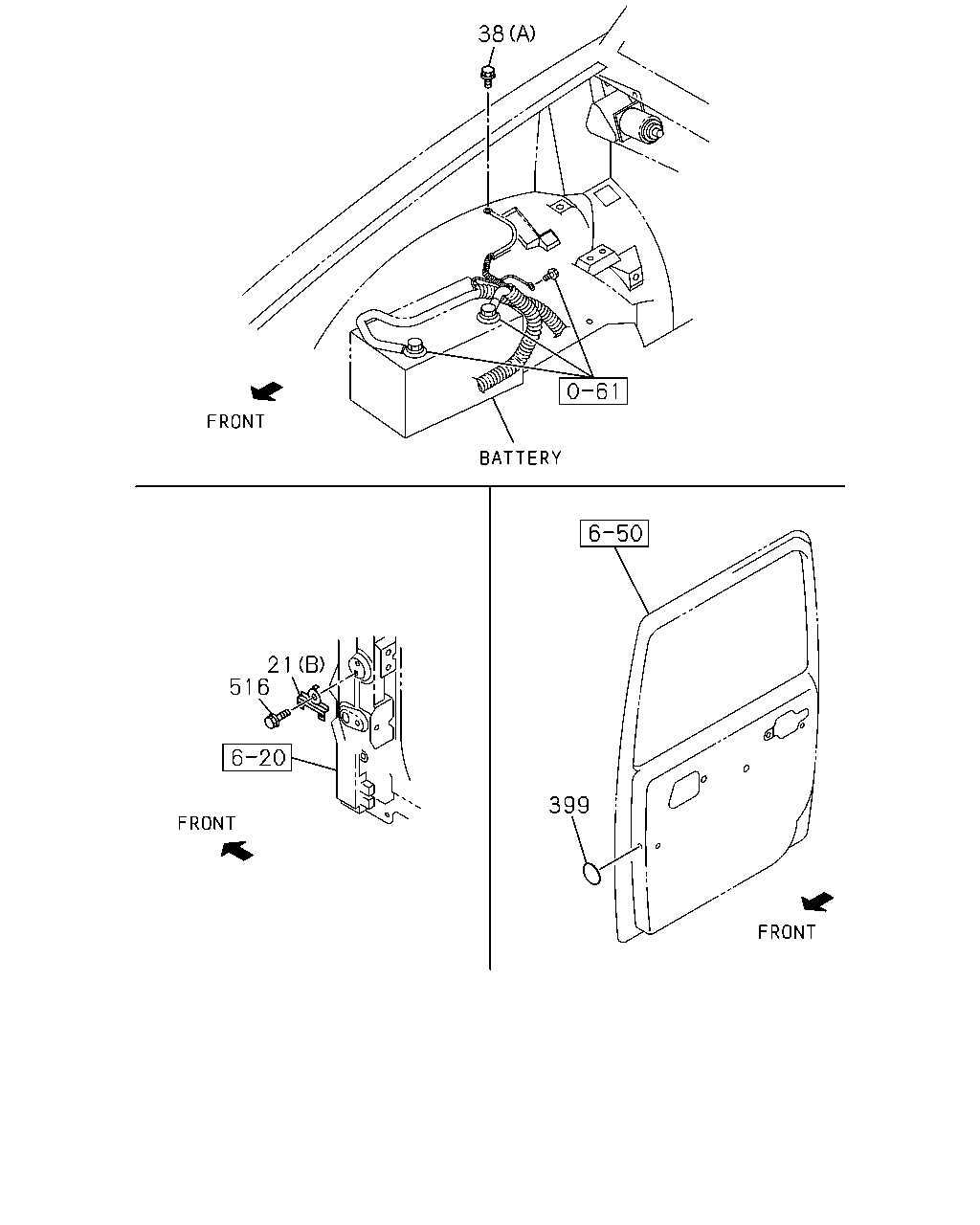

38 21 516 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z) (A)	8-97943-788-0	01	1	0307-0508	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97943-788-0	01	1	0307-0508			●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z) (A)	8-97943-788-0	01	1	0509-0609	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A)	8-97943-788-0	01	1	0509-0609			●	●
21	02.483 BRACKET; ENG HARNESS (B)	8-97373-034-0	01	1	0610-0709	●	●	●	●
21	02.483 BRACKET; ENG HARNESS (B)	8-97373-034-0	01	1	0710-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0402	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0403-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0307-0709		●		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR GRADE DX(RBA) EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYST EM BASE<UW5> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0710-		●		●
516	02.559 BOLT; HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0610-0709	●	●	●	●
516	02.559 BOLT; HARNESS 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●	●	●

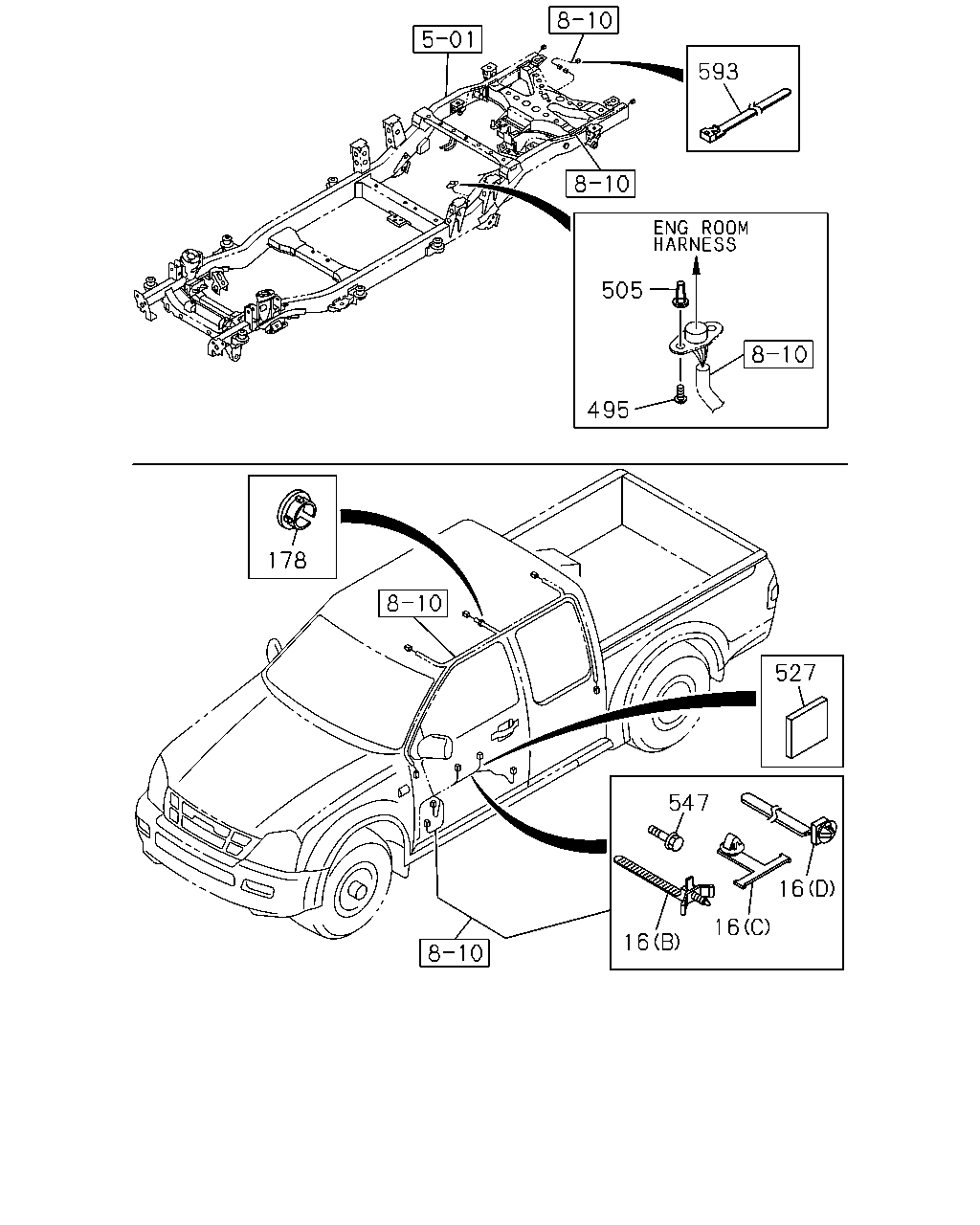

593 505 495 178 527 547 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS 02.313 (A) ID=18 L=44	8-97367-985-0	03	1	0307-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0509-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135	8-94473-399-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-0809	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0710-0809		●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0810-1007	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0810-1007		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	1008-		●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0509-1007	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135	8-94473-399-0	02	1	0509-1007	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	06	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	05	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	02	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155	8-97173-307-0	03	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0307-0508	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0509-0609	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0610-0709	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9	8-97128-114-0	01	1	0710-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	04	1	0307-0709	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	04	1	0710-0809		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155	8-97173-307-0	04	1	0810-		●		●
178	02.559 GROMMET; HARNESS 09.647	8-97027-381-0	01	1	0307-		●		●
495	00.685 BOLT; CABLE TO BODY 10.240 M5X14	8-94120-095-0	02	1	0307-	●	●	●	●
505	02.559 RETAINER; HARNESS 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	0307-	●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45	8-97304-372-0	01	1	0307-0508	●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> 70X45	8-97304-372-0	01	1	0509-0609	●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 70X45	8-97304-372-0	01	1	0509-0609			●	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> 70X45	8-97304-372-0	01	1	0610-0709	●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45	8-97304-372-0	01	1	0610-0709		●
527	02.559 TAPE; SOFT,CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 70X45	8-97304-372-0	01	1	0610-0709			●	●
547	02.559 BOLT M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0307-	●	●	●	●
593	02.559 CLIP REAR BODY DELETE(8HH) L=250	5-09707-030-1	01	1	0307-0609	●	●	●	●
593	02.559 CLIP REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6) L=250	5-09707-030-1	01	1	0610-	●	●	●	●

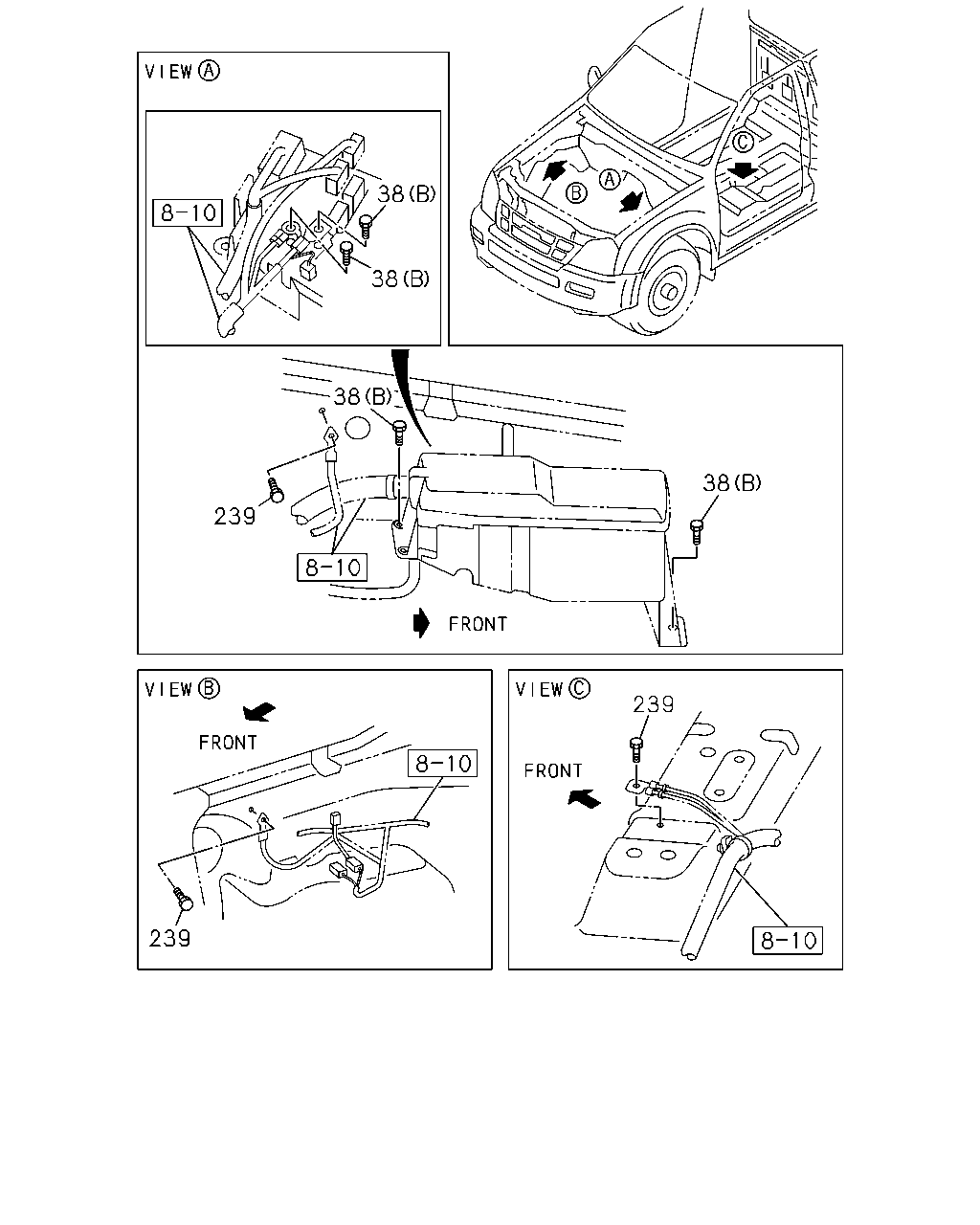

38 38 38 38 239 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	02.559 BOLT; CLIP,HARNESS 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0402	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0403-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	0307-	●	●	●	●

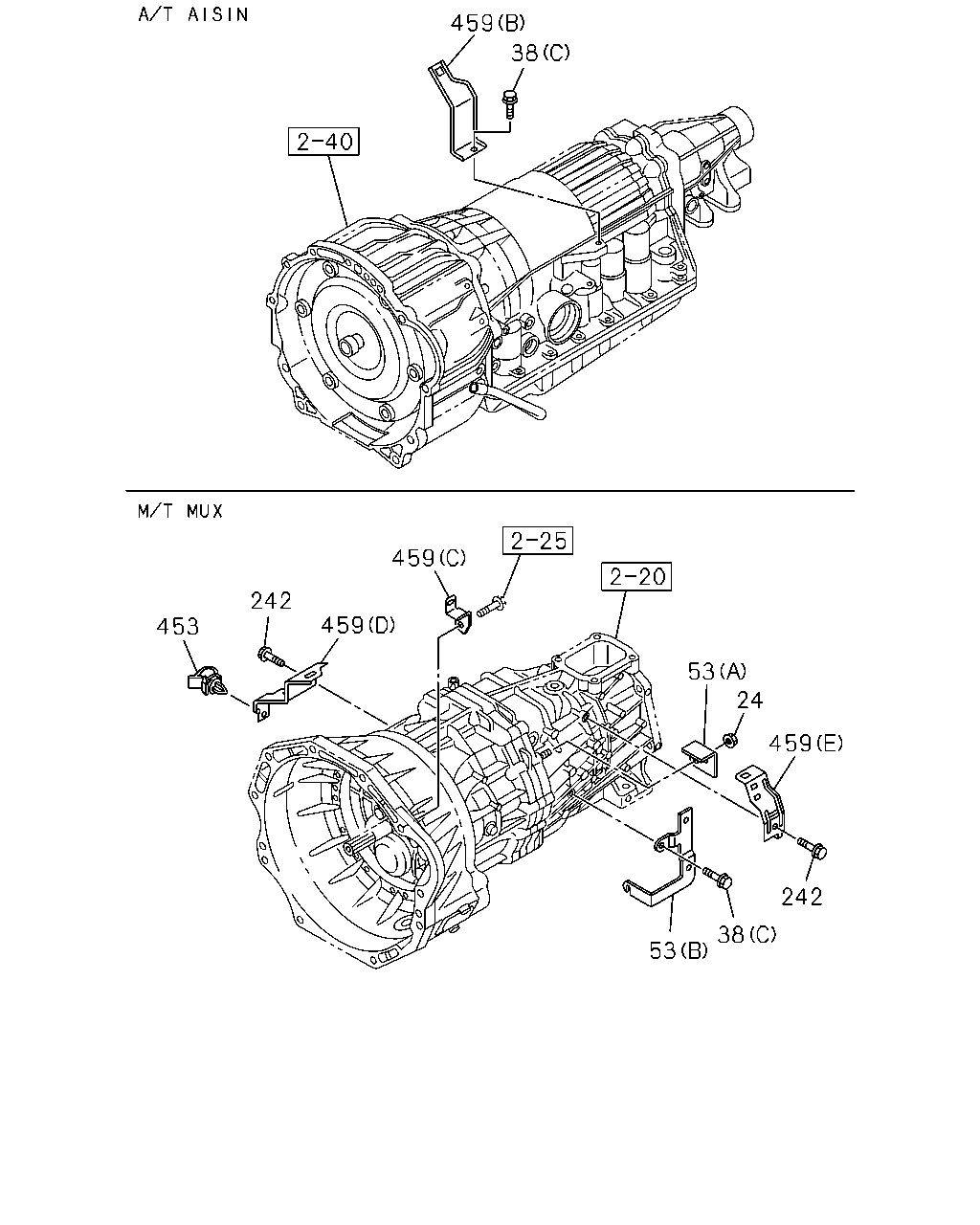

459 38 459 242 459 453 53 24 459 242 38 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	02.559 NUT; HARNESS M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE	0-91180-206-0	01	1	0610-			●	●
38	02.559 BOLT; CLIP,HARNESS 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0307-0402	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0403-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0307-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S(MZJ) (A)	8-97944-510-1	01	1	0610-			●	●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-511-1	01	1	0610-			●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0307-0508	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0307-0508			●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0509-0609	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0509-0609			●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-1007			●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-			●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-			●	●
453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5	5-09709-117-0	01	1	0610-1007			●	●
453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.342 ID=6.5	5-09709-117-0	01	1	1008-			●	●
453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5	5-09709-117-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0307-0508	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A)	8-94315-284-0	01	1	0509-0608			●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G(RSP) (A)	8-98050-882-0	01	1	0609-0609	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A)	8-98050-882-0	01	1	0610-	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C)	8-97382-804-0	01	1	0610-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D)	8-98035-740-0	01	1	0610-1007			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98035-740-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D)	8-98035-740-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-98035-741-0	01	1	0610-1007			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98035-741-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-98035-741-0	01	1	1008-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (B)	8-98050-720-0	01	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
