8-10 — WIRING HARNESS AND FUSE (#73506) — 596 parça

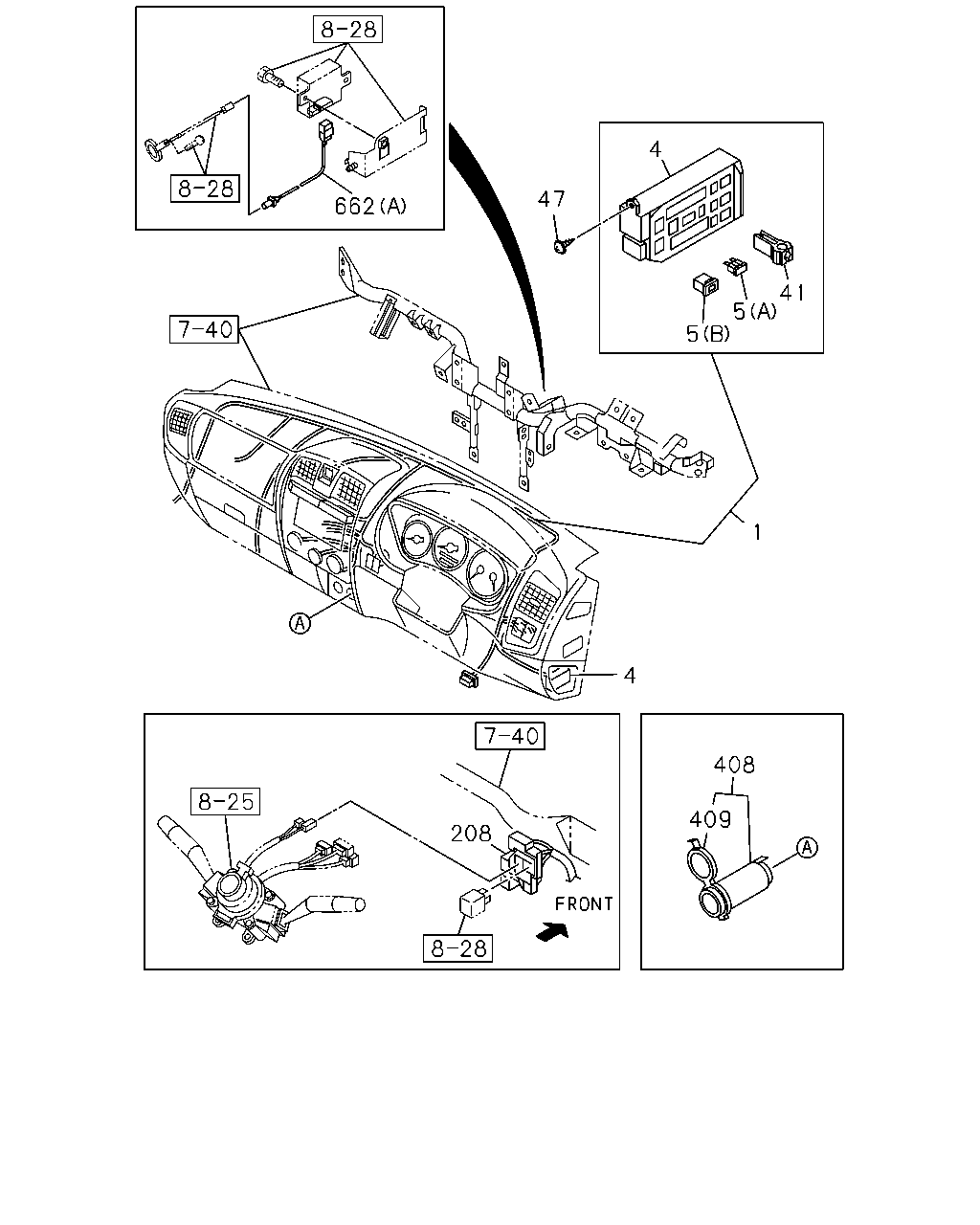

çizim 117398
4 47 662 41 5 5 1 4 408 409 208
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98164-336-0 01 1 1003- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-241-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-866-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-671-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-351-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98098-835-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-125-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-864-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-669-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-349-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98098-834-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97364-240-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-857-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-662-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-662-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-342-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-342-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-828-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-828-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-239-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-863-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-668-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-668-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-116-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-867-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-672-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-672-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-352-2 01 1 0710-0710 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-836-0 01 1 0711-1002 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98098-836-0 01 1 1003- ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-238-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-865-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-670-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-670-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97362-130-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-860-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-665-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-345-2 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98098-831-0 01 1 0711- ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97362-131-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-862-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-667-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-347-1 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-833-0 01 1 0711- ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-242-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-868-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-673-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-353-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-837-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-243-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-861-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-666-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-346-2 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98098-832-0 01 1 0711- ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97245-601-0 01 1 0307- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 10A MINI RED 		8-97062-022-0 AR 1 0307- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 15A MINI BLUE 		8-97062-023-0 AR 1 0307- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0307- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0307- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (B) 30A PINK 		8-97183-643-0 AR 1 0307- ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0307- ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 0307-0612 ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98061-685-0 01 1 0701-1004 ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98167-449-0 01 1 1005- ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97245-597-0 01 1 0307- ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0307-0609 ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0610-0709 ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0710- ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0307-0609 ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0610-0709 ● ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0710- ● ●
662 02.525 HARNESS; IMMOBILIZER
01.150 (A) 		8-97303-923-0 01 1 0307-0508 ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JA1-TC ENG(L4Z) 01.150 (A) 		8-97303-923-0 01 1 0509-0609 ● ●
662 02.525 HARNESS; IMMOBILIZER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.150 (A) 		8-97303-923-0 01 1 0509-0609 ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0) (B) 		8-98040-808-0 01 1 0610- ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-98040-808-0 01 1 0610- ● ●

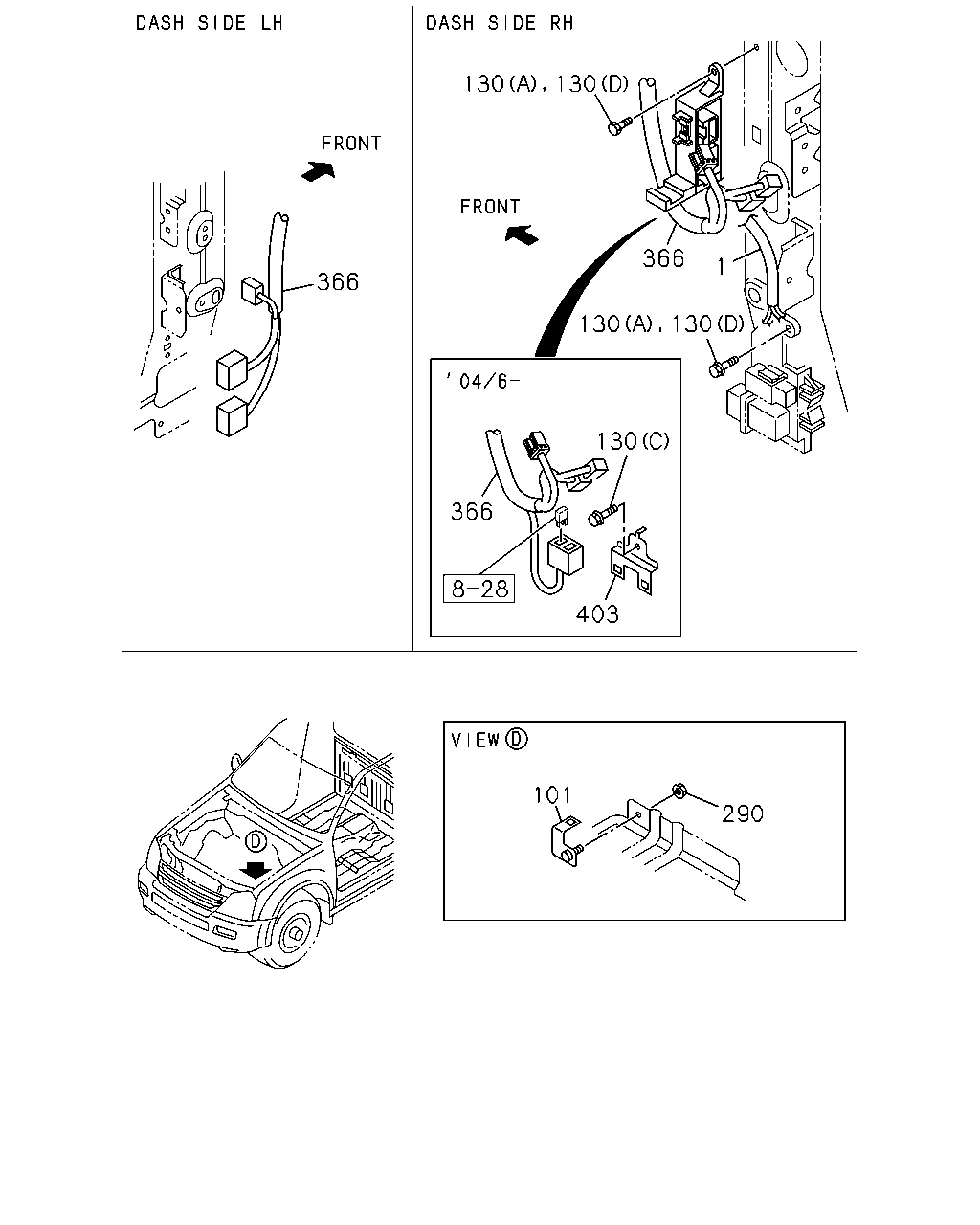

çizim 117400
130 130 366 1 366 130 130 130 366 403 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98164-336-0 01 1 1003- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-241-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-866-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-671-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-351-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98098-835-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-125-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-864-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-669-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-349-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98098-834-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97364-240-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-857-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-662-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-662-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-342-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-342-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-828-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-828-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-239-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-863-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-668-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-668-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-116-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-867-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-672-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-672-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-352-2 01 1 0710-0710 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-836-0 01 1 0711-1002 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98098-836-0 01 1 1003- ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-238-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-865-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-670-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-670-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97362-130-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-860-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-665-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-345-2 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98098-831-0 01 1 0711- ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97362-131-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-862-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-667-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-347-1 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-833-0 01 1 0711- ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-242-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-868-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-673-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-353-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-837-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-243-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-861-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-666-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-346-2 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98098-832-0 01 1 0711- ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-97250-352-1 01 1 0307-0508 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JA1-TC ENG(L4Z) 		8-97250-352-1 01 1 0509-0609 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97250-352-1 01 1 0509-0609 ● ●

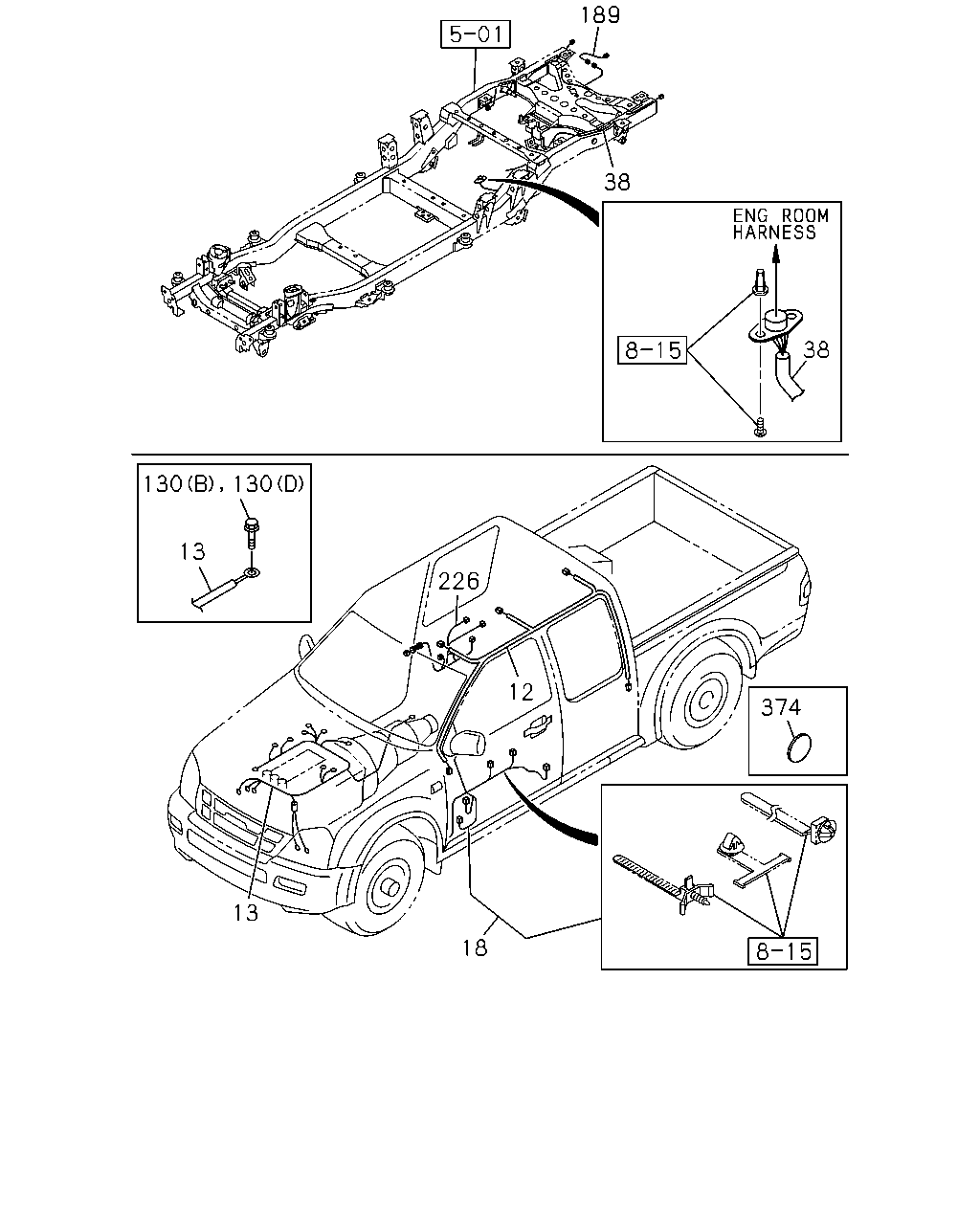

130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0307-0601 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0602-0609 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 02 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (D) M6X20 W/WASHER 		8-98056-282-0 01 1 0612- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0307-0609 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (D) M6X20 W/WASHER 		8-98056-282-0 02 1 0612- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 0406-0508 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JA1-TC ENG(L4Z) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 0509-0603 ● ●
130 02.559 BOLT; HARNESS EARTH
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 0509-0603 ● ●
290 02.483 NUT; BRKT
04.594 M6 FLANGE 		0-91150-106-0 01 1 0307-0508 ● ● ● ●
290 02.483 NUT; BRKT
4JA1-TC ENG(L4Z) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0509-0603 ● ●
290 02.483 NUT; BRKT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0509-0603 ● ●
290 02.483 NUT; BRKT
4JA1-TC ENG(L4Z) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ●
290 02.483 NUT; BRKT
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ●

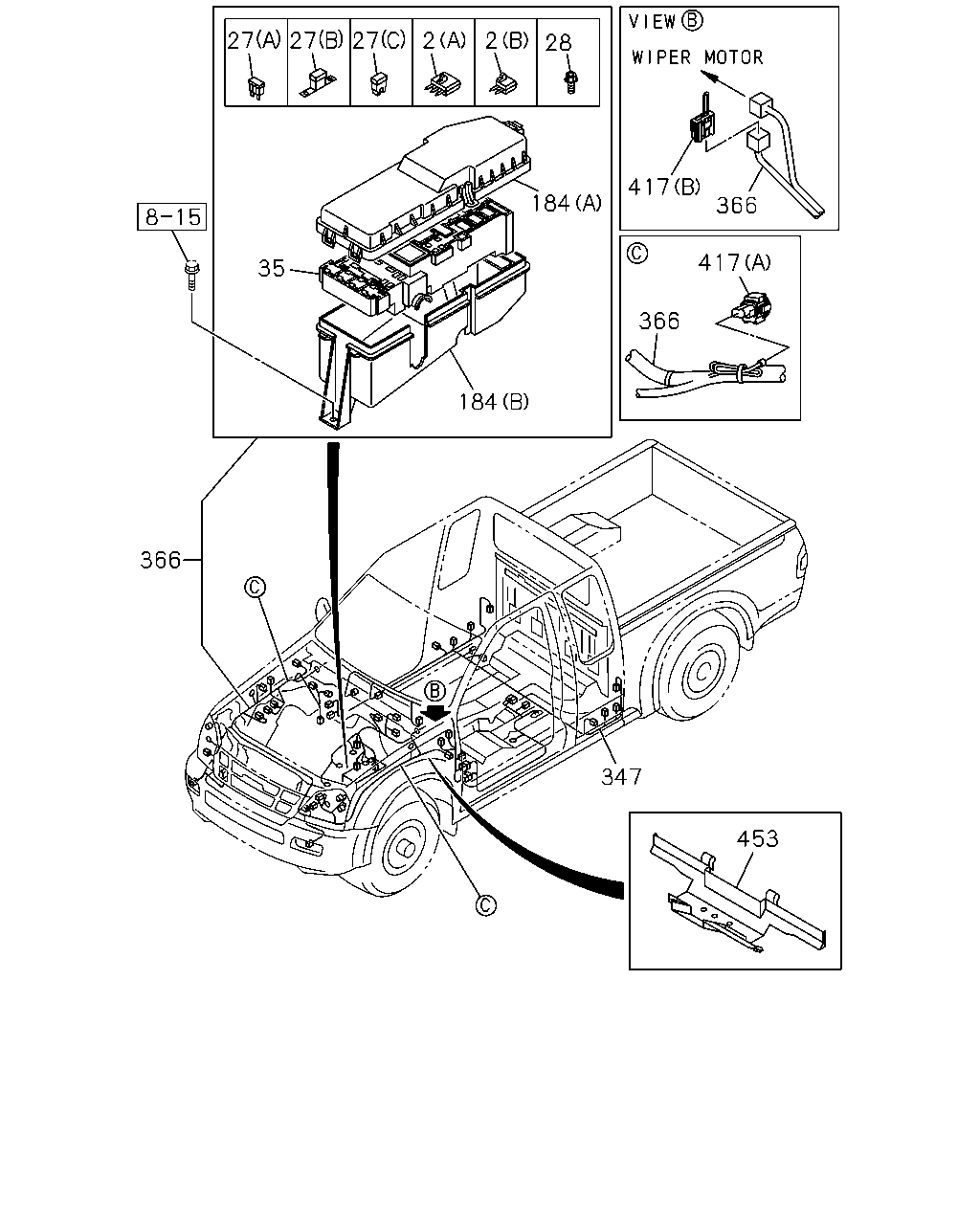

366 02.525 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-013-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-425-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-104-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-546-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-339-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-339-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-339-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-728-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-307-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-014-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-426-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-105-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-548-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-341-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-341-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-341-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-730-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-308-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-015-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-427-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-106-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-556-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-349-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-349-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-349-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-738-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-313-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-016-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-428-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-107-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-557-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-350-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-350-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-350-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-739-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-314-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-748-1 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-321-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-321-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-321-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-711-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-304-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-743-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-318-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-318-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-318-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-708-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-301-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-744-1 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-319-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-319-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-319-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-709-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-302-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-747-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-320-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-320-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-320-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-710-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-303-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-555-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-348-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-348-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-348-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-737-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-312-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-553-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-346-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-346-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-346-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-735-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-311-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-017-0 01 1 0307-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-429-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-108-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-552-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-345-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-345-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-345-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-734-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-310-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-018-0 01 1 0307-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-430-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-109-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-550-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-343-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-343-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-343-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-732-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-309-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-750-1 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-323-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-323-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-323-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-713-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-306-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-749-1 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-322-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-322-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-322-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-712-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-305-0 01 1 1102- ●
403 02.483 BRACKET; CONNECTOR,HARNESS 8-97373-034-0 01 1 0406-0508 ● ● ● ●
çizim 117401
27 27 27 2 2 28 417 184 366 417 35 366 184 366 347 453
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0307-0709 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0710- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0307-0508 ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0509-0809 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 02 1 0810- ● ● ● ●
27 08.965 FUSE UNIT
(B) 80A BLACK 		8-94388-305-1 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 0307- ● ● ● ●
27 08.965 FUSE UNIT
(B) 120A WHITE 		1-82516-028-1 AR 1 0610- ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0610- ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 AR 1 0710- ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0307- ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97251-395-0 01 1 0307- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 0307- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 0307- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97362-292-0 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY 8-98007-581-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97317-512-3 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98044-564-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-422-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97369-247-0 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98044-566-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-424-2 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97317-513-3 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98007-584-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97362-294-0 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97317-516-3 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97369-248-0 01 1 0307-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97317-517-4 01 1 0307-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-013-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-425-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-104-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-546-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-339-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-339-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-339-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-728-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-307-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-014-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-426-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-105-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-548-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-341-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-341-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-341-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-730-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-308-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-015-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-427-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-106-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-556-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-349-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-349-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-349-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-738-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-313-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-016-0 01 1 0307-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-428-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-107-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-557-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-350-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-350-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-350-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-739-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-314-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-748-1 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-321-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-321-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-321-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-711-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-304-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-743-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-318-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-318-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-318-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-708-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-301-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-744-1 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-319-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-319-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-319-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-709-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-302-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-747-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-320-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-320-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-320-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-710-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-303-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-555-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-348-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-348-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-348-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-737-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-312-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-553-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-346-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-346-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-346-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-735-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-311-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-017-0 01 1 0307-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-429-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-108-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-552-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-345-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-345-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-345-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-734-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-310-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-018-0 01 1 0307-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-430-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-109-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-550-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-343-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-343-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-343-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-732-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-309-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-750-1 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-323-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-323-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98067-323-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-713-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-306-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-749-1 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-322-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-322-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98067-322-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-712-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-305-0 01 1 1102- ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JK1-TCX ENG(LR0) EXC. INTERMITTENT WIPER<C13> (B) 		8-97327-713-0 01 1 0610-0709 ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. INTERMITTENT WIPER<C13> (B) 		8-97327-713-0 01 1 0610-0709 ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JK1-TCX ENG(LR0) EXC. INTERMITTENT WIPER<C13> (B) 		8-97327-713-0 01 1 0710- ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. INTERMITTENT WIPER<C13> (B) 		8-97327-713-0 01 1 0710- ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> (A) 		8-97385-263-0 02 1 0509-0609 ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> (A) 		8-97385-263-0 02 1 0610-0709 ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> (A) 		8-97385-263-0 02 1 0710-0809 ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> (A) 		8-97385-263-0 02 1 0810- ● ●
453 02.483 PROTECTOR; HARNESS 8-97327-532-0 01 1 0307-0609 ● ● ● ●
çizim 117439
189 38 38 130 130 13 226 12 374 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 02.480 HARNESS; ROOF 8-97353-916-0 01 1 0307-0508 ● ●
12 02.480 HARNESS; ROOF 8-97385-699-0 01 1 0509-0709 ●
12 02.480 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6> 		8-97385-699-0 01 1 0509-0709 ●
12 02.480 HARNESS; ROOF 8-97385-699-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>, ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97237-029-3 01 1 0307-0508 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97385-707-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-97385-707-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-98047-411-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-98047-411-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-98047-411-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-468-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97237-030-3 01 1 0307-0508 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97385-708-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-708-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-708-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-97384-921-0 01 1 0509-0709 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-930-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-930-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-97384-929-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98047-409-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98047-409-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0710- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC CONTROL<K20> 		8-98011-544-6 01 1 0801-0802 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. ELECTRONIC CONTROL<K20> 		8-98011-546-6 01 1 0801-0802 ●
13 02.525 HARNESS; ENG 8-97361-280-4 01 1 0307-0609 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98011-547-6 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-915-1 01 1 0710-0712 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98067-915-1 01 1 0801-0802 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-915-1 01 1 0803-1402 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-915-1 01 1 1403- ● ●
13 02.525 HARNESS; ENG
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-282-5 01 1 0307-0609 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98011-548-6 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-916-1 01 1 0710-0712 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98067-916-1 01 1 0801-0802 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-916-1 01 1 0803- ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97361-283-4 01 1 0307-0609 ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-544-6 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98067-912-1 01 1 0710-0712 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> 		8-98067-912-1 01 1 0801-0802 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98067-912-1 01 1 0803- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98011-546-6 01 1 0610-0709 ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98067-914-1 01 1 0710-0712 ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> 		8-98067-914-1 01 1 0801-0802 ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98067-914-1 01 1 0803- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97237-040-3 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-911-0 01 1 0509-0609 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-911-0 01 1 0509-0609 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> 		8-97384-911-0 01 1 0610-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DL2>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-488-0 01 1 0710-0809 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-488-0 01 1 0810- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97368-404-0 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-917-0 01 1 0509-0511 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-917-0 01 1 0509-0511 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98032-419-0 01 1 0512-0609 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98032-419-0 01 1 0512-0609 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98032-419-0 01 1 0610-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DL2>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-479-0 01 1 0710-0809 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING T URN SIGNAL<DNQ>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-479-0 01 1 0810- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97317-525-0 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-914-0 01 1 0509-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-489-0 01 1 0710-1007 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-403-0 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-909-0 01 1 0509-0511 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98032-414-0 01 1 0512-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-475-0 01 1 0710-1007 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97254-855-2 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-901-0 01 1 0509-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-474-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97237-042-2 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-897-0 01 1 0509-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-473-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97370-561-0 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-919-0 01 1 0509-0609 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 		8-97384-919-0 01 1 0509-0609 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 		8-97384-919-0 01 1 0610-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-477-1 01 1 0710-0809 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-477-1 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97370-560-0 01 1 0307-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-918-0 01 1 0509-0511 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 		8-97384-918-0 01 1 0509-0511 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98032-420-0 01 1 0512-0609 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 		8-98032-420-0 01 1 0512-0609 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. DOOR MIR ELEC DUAL FOLDING COLOR T URN SIGNAL<DF9> 		8-98032-420-0 01 1 0610-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-487-1 01 1 0710-0809 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-487-1 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-904-0 01 1 0610-0709 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-905-0 01 1 0509-0609 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-905-0 01 1 0610-0709 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-484-0 01 1 0710-0809 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-484-0 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-902-0 01 1 0509-0511 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98032-412-0 01 1 0512-0609 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98032-412-0 01 1 0610-0709 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DL2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-480-0 01 1 0710-0809 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-480-0 01 1 0810- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-908-0 01 1 0509-0609 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-908-0 01 1 0610-0709 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-903-0 01 1 0509-0511 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98032-413-0 01 1 0512-0609 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN S IGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98032-413-0 01 1 0610-0709 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97317-542-0 01 1 0307-0609 ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-585-0 01 1 0610-1101 ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-585-0 01 1 0610-1101 ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-297-0 01 1 1102- ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-297-0 01 1 1102- ● ●
38 02.480 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97317-543-0 01 1 0307-0609 ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-586-0 01 1 0610-1101 ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-586-0 01 1 0610-1101 ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-298-0 01 1 1102- ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-298-0 01 1 1102- ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0307-0601 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0602-0609 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 02 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (D) M6X20 W/WASHER 		8-98056-282-0 01 1 0612- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0307-0609 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (D) M6X20 W/WASHER 		8-98056-282-0 02 1 0612- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 0406-0508 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JA1-TC ENG(L4Z) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 0509-0603 ● ●
130 02.559 BOLT; HARNESS EARTH
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 09.171 (C) M6X16 FLANGE 		0-28450-616-0 01 1 0509-0603 ● ●
189 02.480 HARNESS; EXT 8-97250-356-0 01 1 0307-0609 ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6) 		8-97250-356-0 01 1 0610-0709 ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6) 		8-98085-269-0 01 1 0710- ● ● ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97323-417-2 02 1 0307-0709 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-410-1 02 1 0710-1007 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97355-878-0 02 1 0307-0709 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-411-2 02 1 0710- ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97302-156-2 02 1 0307-0709 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-408-1 02 1 0710- ● ●
226 02.480 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97302-186-2 02 1 0307-0609 ●
226 02.480 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97302-186-2 02 1 0610-0709 ● ●
226 02.480 HARNESS; RR DOOR
GRADE LT(RBD) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-409-1 02 1 0710- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0307-0709 ● ●
374 02.530 PLUG; HARNESS CONNECTOR
GRADE DX(RBA) EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYST EM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0710- ● ●
çizim 117716
1 662
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN S IGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98164-336-0 01 1 1003- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-241-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-866-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-671-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-351-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98098-835-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-125-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-864-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-669-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-349-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98098-834-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97364-240-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-857-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-662-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-662-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-342-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-342-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-828-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-828-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-239-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-863-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-668-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-668-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-116-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-867-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-672-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-672-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-352-2 01 1 0710-0710 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-836-0 01 1 0711-1002 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98098-836-0 01 1 1003- ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-238-0 01 1 0307-0508 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-865-0 01 1 0509-0609 ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-670-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE DX(RBA) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-670-0 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97362-130-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97384-860-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98048-665-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98053-345-2 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98098-831-0 01 1 0711- ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97362-131-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-862-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-667-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-347-1 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-833-0 01 1 0711- ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97364-242-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-868-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-673-0 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-353-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ) GRADE LT(RBD) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-837-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97364-243-0 01 1 0307-0508 ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97384-861-0 01 1 0509-0609 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98048-666-0 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98053-346-2 01 1 0710-0710 ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98098-832-0 01 1 0711- ●
662 02.525 HARNESS; IMMOBILIZER
01.150 (A) 		8-97303-923-0 01 1 0307-0508 ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JA1-TC ENG(L4Z) 01.150 (A) 		8-97303-923-0 01 1 0509-0609 ● ●
662 02.525 HARNESS; IMMOBILIZER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.150 (A) 		8-97303-923-0 01 1 0509-0609 ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0) (B) 		8-98040-808-0 01 1 0610- ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-98040-808-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
