◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#73504) — 254 parça

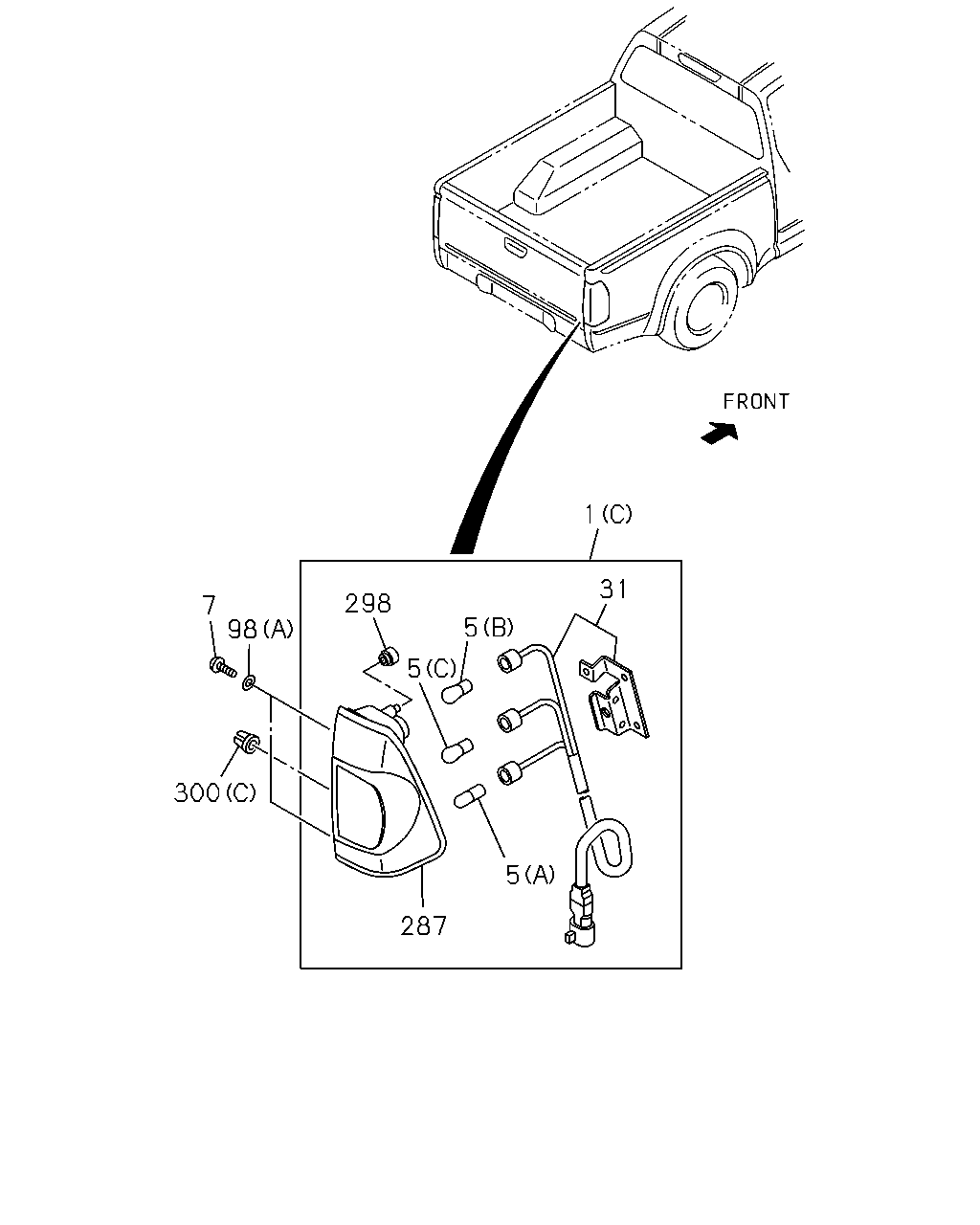

çizim 117386
1 31 298 7 5 98 5 300 5 287
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97364-115-0 01 1 0307-0307 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97368-095-0 01 1 0307-0508 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-360-0 01 1 0509-0609 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-360-0 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97364-114-0 01 1 0307-0307 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97368-094-0 01 1 0307-0508 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-359-0 01 1 0509-0609 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-359-0 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0307- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0307- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97375-607-2 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97375-606-2 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97374-666-2 01 1 0610-0802 ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98098-587-0 01 1 0803- ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97374-665-2 01 1 0610-0802 ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98098-586-0 01 1 0803- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0307-0609 ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (B) 12V 21/5W 		8-94125-959-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W 		8-94125-959-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W 		8-94124-074-0 02 1 0307-0609 ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W 		8-94124-074-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0307- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0307- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0610- ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0307-0606 ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0607- ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98012-764-0 01 1 0610- ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98012-765-0 01 1 0610- ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0307- ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0307- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-760-0 01 1 0610- ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-759-0 01 1 0610- ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-758-0 01 1 0610- ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-757-0 01 1 0610- ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 0610- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97305-675-0 02 1 0307-0609 ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97305-675-0 02 1 0610- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97305-676-0 02 1 0307-0609 ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97305-676-0 02 1 0610- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97372-854-0 02 1 0610- ● ●

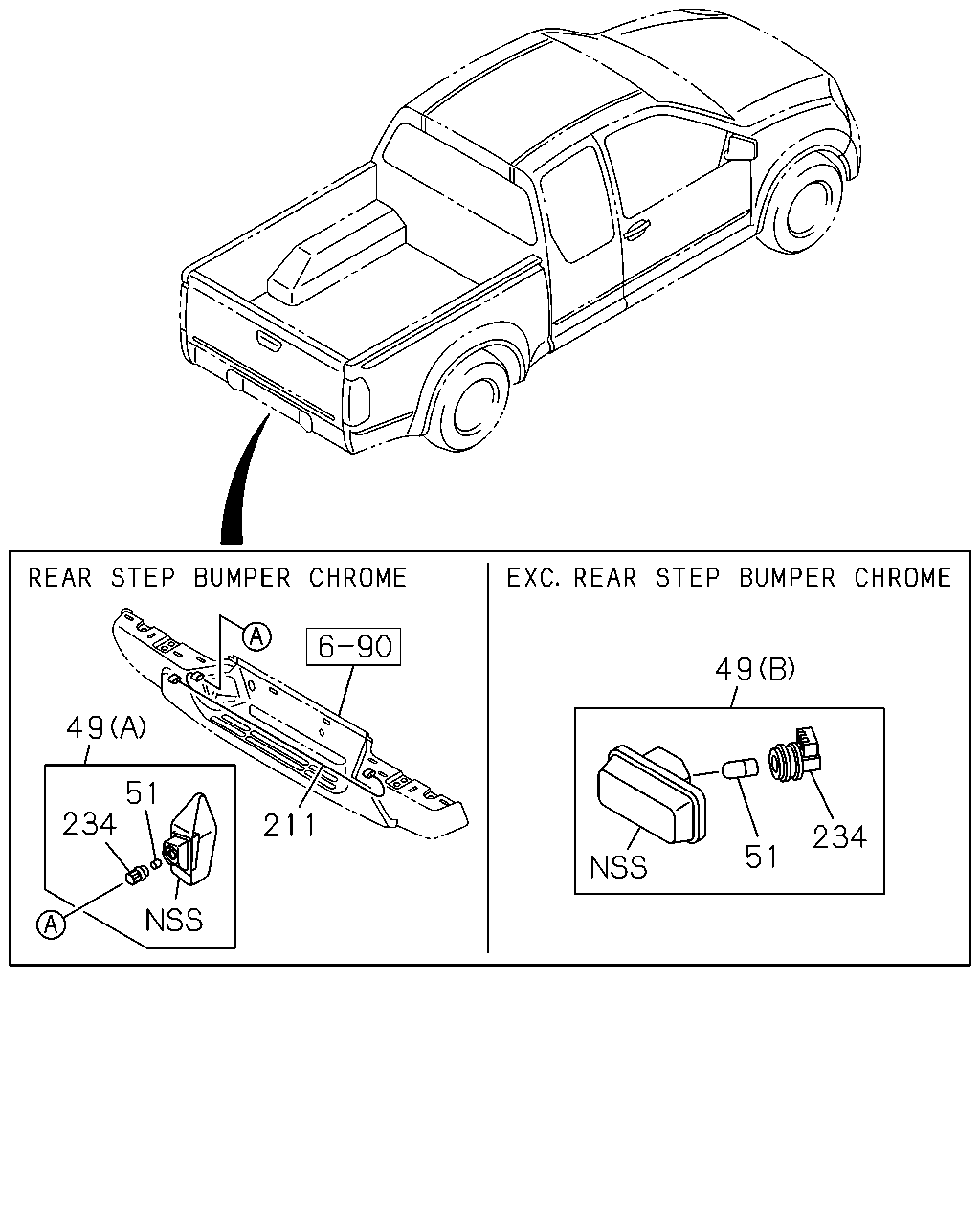

çizim 117390
49 49 51 234 211 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 02.700 LAMP; LICENSE PLATE
(B) 		8-97236-690-1 02 1 0307-0609 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER(VF6) (B) 		8-97236-690-1 02 1 0610-1306 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER(VF6) (B) 		8-98224-482-0 02 1 1307- ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6) (A) 		8-97357-808-0 01 1 0610-0612 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6) (A) 		8-98070-867-0 01 1 0701- ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6) (A) 		8-97357-807-0 01 1 0610-0612 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6) (A) 		8-98070-866-0 01 1 0701- ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 0307- ● ● ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER(VF6) 		8-98025-099-0 01 1 0610- ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 1-82119-148-0 02 1 0307-0609 ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER(VF6) 		1-82119-148-0 02 1 0610- ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6) 		8-97184-970-0 02 1 0610- ● ● ● ●

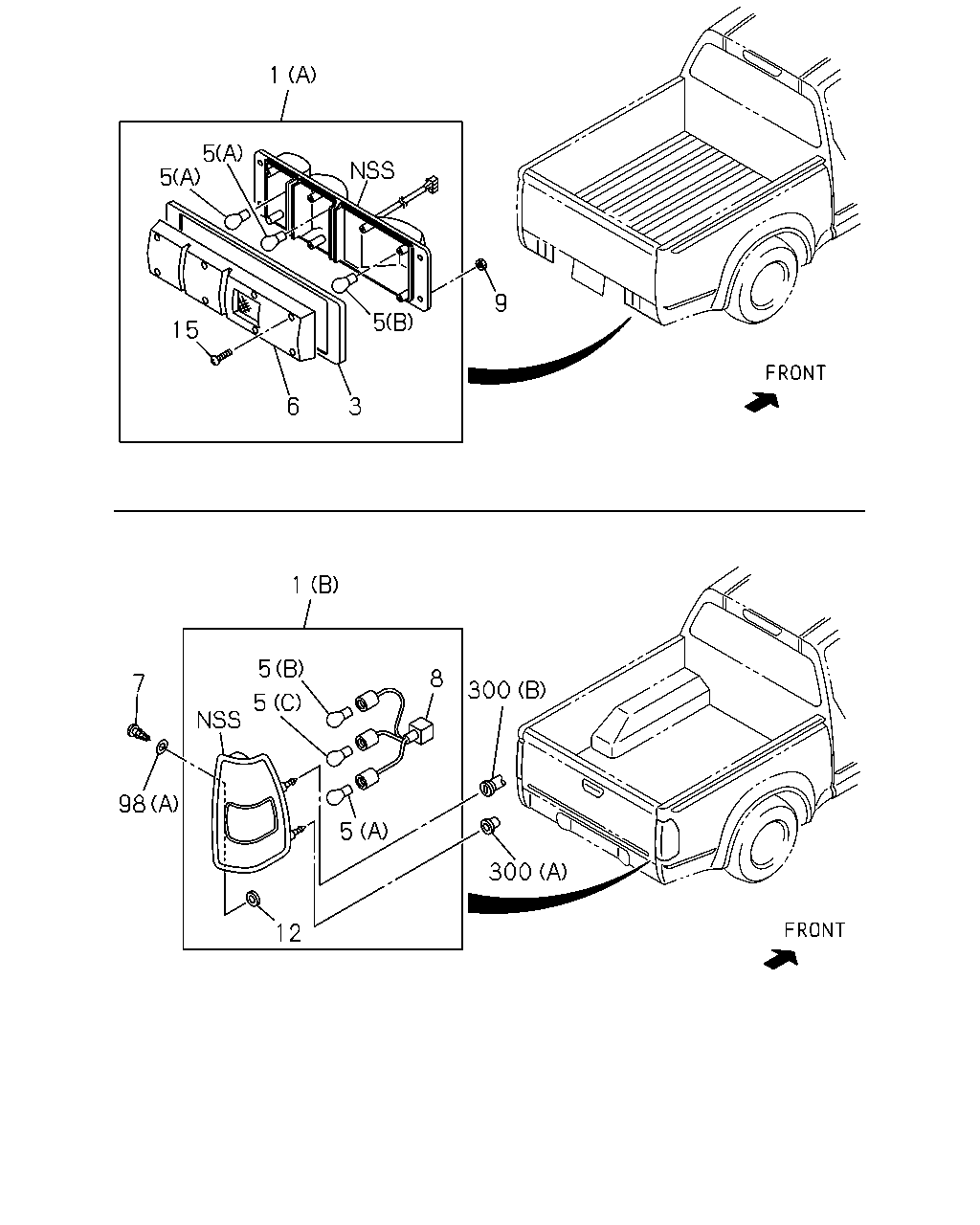

çizim 117392
1 5 5 9 5 15 6 3 1 5 8 7 300 5 98 5 300 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97364-115-0 01 1 0307-0307 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97368-095-0 01 1 0307-0508 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-360-0 01 1 0509-0609 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-360-0 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97364-114-0 01 1 0307-0307 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97368-094-0 01 1 0307-0508 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-359-0 01 1 0509-0609 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-359-0 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0307- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0307- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97375-607-2 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97375-606-2 01 1 0610- ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97374-666-2 01 1 0610-0802 ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98098-587-0 01 1 0803- ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97374-665-2 01 1 0610-0802 ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98098-586-0 01 1 0803- ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 0307- ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 0307- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0307-0609 ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (B) 12V 21/5W 		8-94125-959-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W 		8-94125-959-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W 		8-94124-074-0 02 1 0307-0609 ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W 		8-94124-074-0 02 1 0610- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0307- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0307- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0610- ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 0307- ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 0307- ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0307-0606 ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0607- ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97333-421-0 02 1 0307-0508 ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98023-361-0 02 1 0509-0609 ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98023-361-0 02 1 0610- ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) 09.744 M5 FLANGE 		5-09440-003-0 08 1 0307-0610 ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 0611- ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97349-413-0 04 1 0307-0508 ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0307- ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0307- ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0307- ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97305-675-0 02 1 0307-0609 ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97305-675-0 02 1 0610- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97305-676-0 02 1 0307-0609 ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97305-676-0 02 1 0610- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97372-854-0 02 1 0610- ● ●

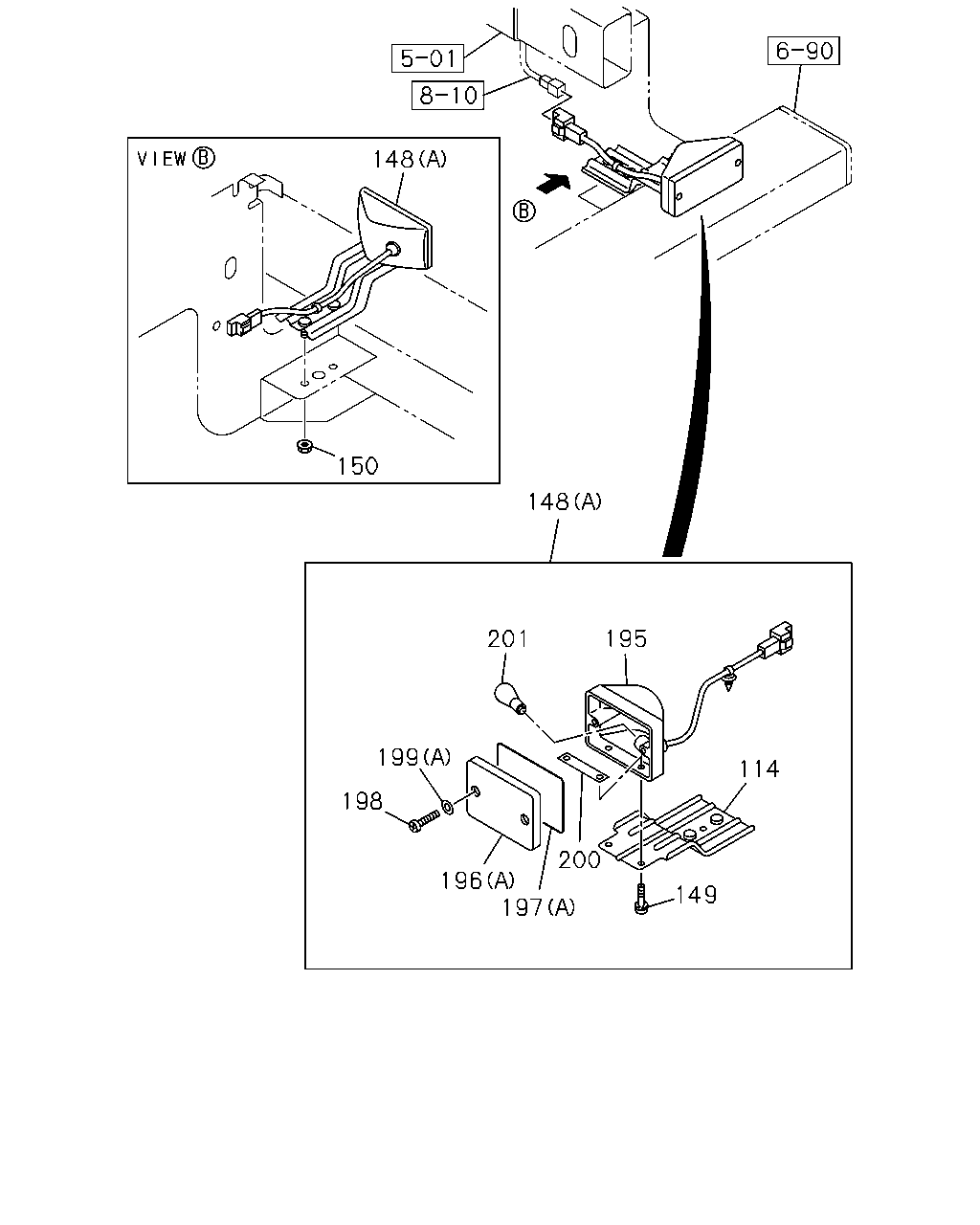

çizim 117394
148 150 148 201 195 199 114 198 200 196 197 149
BalonParca AdiParca NoAdetTipApplied Date A B C D
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-330-0 01 1 0307-0609 ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-330-0 01 1 0610- ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-345-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> (B) 		8-97369-345-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-98043-067-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (B) 		8-98043-067-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0610-1007 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97361-712-0 01 1 0307-0609 ● ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97361-712-0 01 1 0610- ● ●
148 02.679 LAMP ASM; RR FOG
REAR STEP BUMPER(VF6) (C) 		8-98030-197-1 01 1 0610- ● ● ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (C) 		8-97369-344-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (C) 		8-98043-066-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 0610-1007 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 1008- ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-327-0 02 1 0307-0609 ● ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-327-0 02 1 0610- ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0603 ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0603 ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97369-388-0 01 1 0307-0609 ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97369-388-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-331-0 01 1 0307-0609 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-331-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-448-0 01 1 0307-0609 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-448-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
(B) 		8-97369-448-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-324-0 01 1 0307-0609 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-324-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 02.769 (B) 		8-97369-451-0 01 1 0307-0609 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 02.769 (B) 		8-97369-451-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
02.769 (B) 		8-97369-451-0 01 1 0610- ● ●
198 02.688 SCREW; LENS TO BODY 0-71190-416-0 02 1 0307- ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-326-0 02 1 0307-0609 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-326-0 02 1 0610- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-446-0 02 1 0307-0609 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-446-0 02 1 0610- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
(B) 		8-97369-446-0 02 1 0610- ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-329-0 01 1 0307-0609 ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94336-329-0 01 1 0610- ● ●
201 08.991 BULB; RR FOG LAMP
12V 21W 		8-94124-074-0 01 1 0307- ● ● ● ●

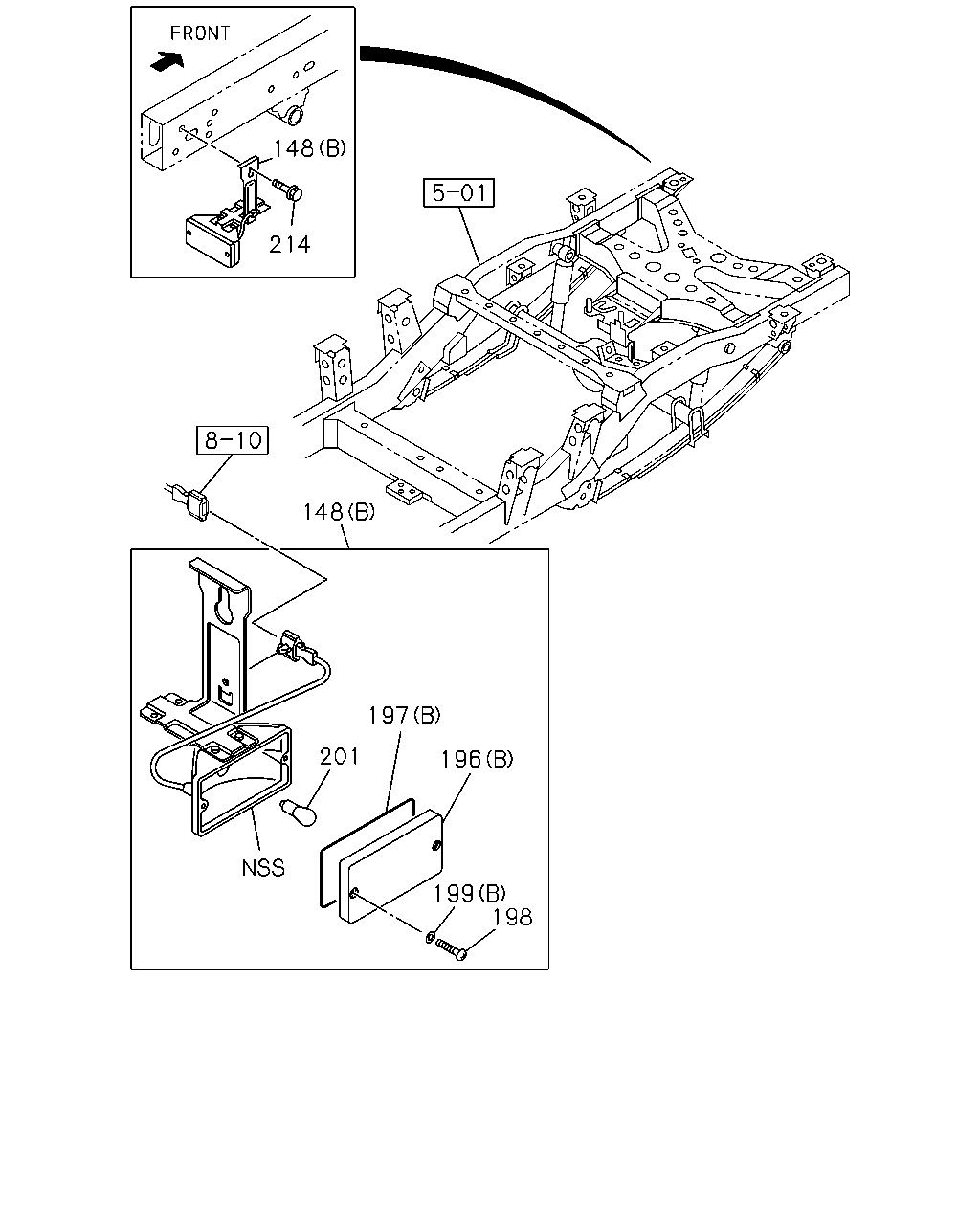

çizim 117411
148 214 148 197 201 196 199 198
BalonParca AdiParca NoAdetTipApplied Date A B C D
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-345-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> (B) 		8-97369-345-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-98043-067-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (B) 		8-98043-067-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0610-1007 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97361-712-0 01 1 0307-0609 ● ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97361-712-0 01 1 0610- ● ●
148 02.679 LAMP ASM; RR FOG
REAR STEP BUMPER(VF6) (C) 		8-98030-197-1 01 1 0610- ● ● ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (C) 		8-97369-344-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (C) 		8-98043-066-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 0610-1007 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 1008- ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-331-0 01 1 0307-0609 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-331-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-448-0 01 1 0307-0609 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-448-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
(B) 		8-97369-448-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-324-0 01 1 0307-0609 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-324-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 02.769 (B) 		8-97369-451-0 01 1 0307-0609 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 02.769 (B) 		8-97369-451-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
02.769 (B) 		8-97369-451-0 01 1 0610- ● ●
198 02.688 SCREW; LENS TO BODY 0-71190-416-0 02 1 0307- ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-326-0 02 1 0307-0609 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-326-0 02 1 0610- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-446-0 02 1 0307-0609 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-446-0 02 1 0610- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
(B) 		8-97369-446-0 02 1 0610- ● ●
201 08.991 BULB; RR FOG LAMP
12V 21W 		8-94124-074-0 01 1 0307- ● ● ● ●
214 02.679 BOLT; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0307-0605 ● ●
214 02.679 BOLT; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0307-0605 ● ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0606-0609 ● ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0606-0609 ● ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0610-1007 ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0610-1007 ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 0610-1007 ● ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 1008- ● ●
214 02.679 BOLT; RR FOG LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> 06.509 M12X30 FLANGE 		0-28661-230-0 01 1 1008- ● ●
214 02.679 BOLT; RR FOG LAMP
REAR STEP BUMPER(VF6) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0610- ● ● ● ●

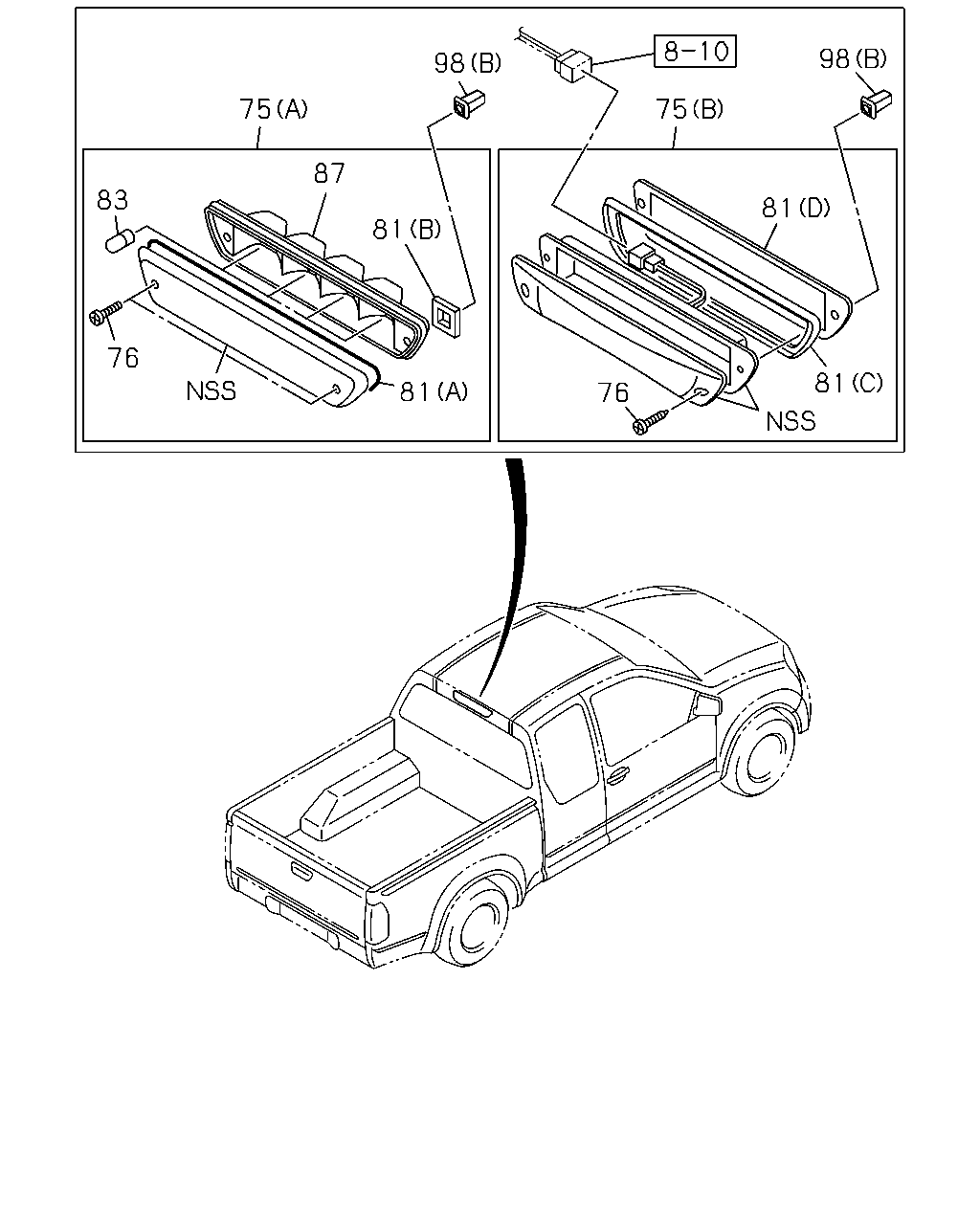

çizim 117415
98 98 75 75 87 83 81 81 76 81 81 76
BalonParca AdiParca NoAdetTipApplied Date A B C D
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
(A) 		8-97305-674-1 01 1 0307-0405 ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
(A) 		8-97381-629-0 01 1 0406-0709 ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
(B) 		8-98052-867-2 01 1 0710- ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-97333-426-0 02 1 0307-0709 ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-98095-145-0 02 1 0710- ● ● ● ●
81 02.694 GASKET; STOP LAMP
(A) 		8-97333-427-0 01 1 0307-0709 ● ● ● ●
81 02.694 GASKET; STOP LAMP
(C) 		8-98095-143-0 01 1 0710- ● ● ● ●
81 02.694 GASKET; STOP LAMP
(B) 		8-97333-428-0 01 1 0307-0709 ● ● ● ●
81 02.694 GASKET; STOP LAMP
(D) 		8-98095-144-0 01 1 0710- ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-97333-424-0 04 1 0307-0709 ● ● ● ●
87 02.694 SOCKET; STOP LAMP 8-97333-425-0 01 1 0307-0709 ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0307- ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0307- ● ● ● ●
çizim 117700
150 148 148 197 201 196 199 198
BalonParca AdiParca NoAdetTipApplied Date A B C D
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-345-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> (B) 		8-97369-345-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-98043-067-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (B) 		8-98043-067-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 0610-1007 ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6),RR U NDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
EXC. REAR STEP BUMPER(VF6),RR UNDERRUN PROTECTOR<6DY> (B) 		8-98043-067-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97361-712-0 01 1 0307-0609 ● ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97361-712-0 01 1 0610- ● ●
148 02.679 LAMP ASM; RR FOG
REAR STEP BUMPER(VF6) (C) 		8-98030-197-1 01 1 0610- ● ● ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (C) 		8-97369-344-0 01 1 0307-0603 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (C) 		8-98043-066-0 01 1 0604-0609 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 0610-1007 ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 0610-1007 ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 1008- ● ●
148 02.679 LAMP ASM; RR FOG
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) (C) 		8-98043-066-0 01 1 1008- ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0603 ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0307-0603 ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0604-0609 ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1),REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
150 02.664 NUT; RR FOG LAMP
RR UNDERRUN PROTECTOR<6DY> EXC. REAR STEP BUMPER(VF6) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-331-0 01 1 0307-0609 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-331-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-448-0 01 1 0307-0609 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-448-0 01 1 0610- ● ●
196 02.679 LENS; RR FOG LAMP
(B) 		8-97369-448-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-324-0 01 1 0307-0609 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-324-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 02.769 (B) 		8-97369-451-0 01 1 0307-0609 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) 02.769 (B) 		8-97369-451-0 01 1 0610- ● ●
197 02.679 GASKET; RR FOG LAMP
02.769 (B) 		8-97369-451-0 01 1 0610- ● ●
198 02.688 SCREW; LENS TO BODY 0-71190-416-0 02 1 0307- ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-326-0 02 1 0307-0609 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-94336-326-0 02 1 0610- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-446-0 02 1 0307-0609 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
EXC. REAR BUMPER BLACK(EY1),REAR BUMPERCHROME(VF1) (B) 		8-97369-446-0 02 1 0610- ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
(B) 		8-97369-446-0 02 1 0610- ● ●
201 08.991 BULB; RR FOG LAMP
12V 21W 		8-94124-074-0 01 1 0307- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
