◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#73502) — 167 parça

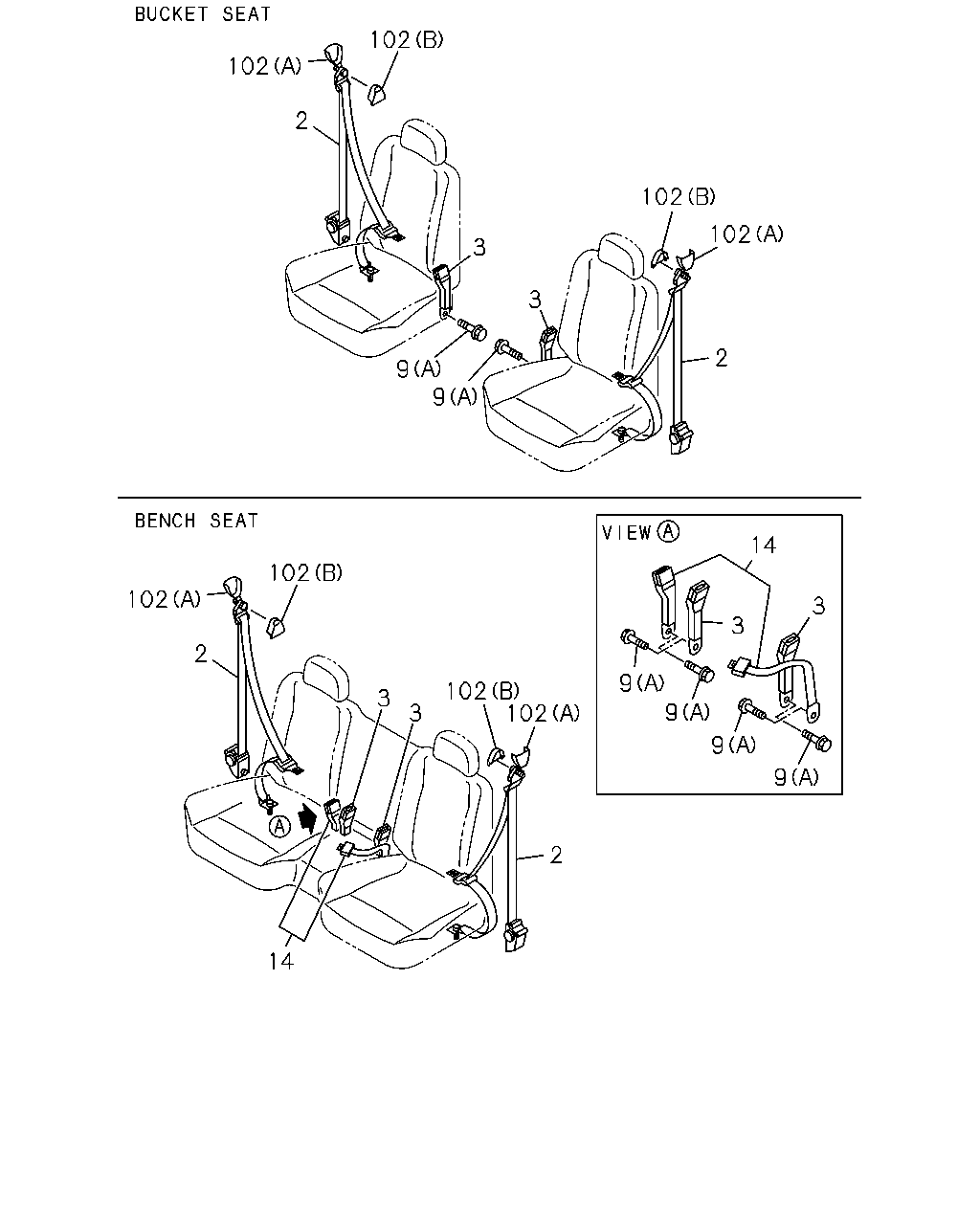

çizim 117385
102 102 2 102 102 3 3 2 9 9 14 102 102 3 3 2 9 9 102 102 3 3 9 9 2 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) DRIVER SEAT DARK GRAY 		8-97418-425-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) DRIVER SEAT DARK GRAY 		8-97424-043-0 01 1 1304- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) PASSENGER SEAT DARK GRAY 		8-97418-428-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) PASSENGER SEAT DARK GRAY 		8-97424-045-0 01 1 1304- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97294-002-5 01 1 0307-0402 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97294-002-5 01 1 0307-0402 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97399-422-1 01 1 0403-0609 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97399-422-1 01 1 0403-0609 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SEAT DARK GRAY 		8-97403-336-1 01 1 0610-0809 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SEAT DARK GRAY 		8-97413-190-0 01 1 0810-0811 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SEAT DARK GRAY 		8-97417-025-0 01 1 0812-1003 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SEAT DARK GRAY 		8-97417-025-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) PASSENGER SEAT DARK GRAY 		8-97417-025-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SEAT DARK GRAY 		8-97424-020-0 01 1 1304- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) PASSENGER SEAT DARK GRAY 		8-97424-020-0 01 1 1304- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SEAT DARK GRAY 		8-97407-845-0 01 1 0610-0809 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SEAT DARK GRAY 		8-97413-176-0 01 1 0810-0811 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SEAT DARK GRAY 		8-97417-018-0 01 1 0812-1003 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SEAT DARK GRAY 		8-97417-018-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DRIVER SEAT DARK GRAY 		8-97417-018-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SEAT DARK GRAY 		8-97424-019-0 01 1 1304- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DRIVER SEAT DARK GRAY 		8-97424-019-0 01 1 1304- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97408-866-0 01 1 0610-0808 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97408-866-0 01 1 0610-0808 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 0809-1003 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 0809-1003 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 1004- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 1004- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97408-867-0 01 1 0610-0808 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97408-867-0 01 1 0610-0808 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 0809-1003 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 0809-1003 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 1004- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 1004- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97396-200-0 01 1 0307-0307 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97398-498-0 01 1 0308-0609 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-868-0 01 1 0610-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0709 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809-1003 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 1004- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97396-201-0 01 1 0307-0307 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97398-499-0 01 1 0308-0609 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-869-0 01 1 0610-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-869-0 01 1 0610-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97408-869-0 01 1 0610-0709 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-869-0 01 1 0710-0808 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97416-329-1 01 1 0809- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-868-0 01 1 0610-0709 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0709 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97416-330-1 01 1 0809- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0307-0402 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT CLOTH<7FL> (A) 		8-97332-665-0 02 1 0307-0402 ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0403-0508 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT CLOTH<7FL> (A) 		8-97332-665-0 02 1 0403-0508 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0509-0609 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT CLOTH<7FL> (A) 		8-97332-665-0 02 1 0509-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (B) M12X35 FLANGE 		0-28691-235-0 02 1 0307-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (B) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97298-689-0 01 1 0307-0402 ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> SEAT CLOTH<7FL> DARK GRAY 		8-97298-689-0 01 1 0307-0402 ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97298-689-0 01 1 0403-0508 ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> SEAT CLOTH<7FL> DARK GRAY 		8-97298-689-0 01 1 0403-0508 ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97298-689-1 01 1 0509-0609 ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> SEAT CLOTH<7FL> DARK GRAY 		8-97298-689-1 01 1 0509-0609 ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0610-1003 ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0610-1003 ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1004- ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1004- ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●

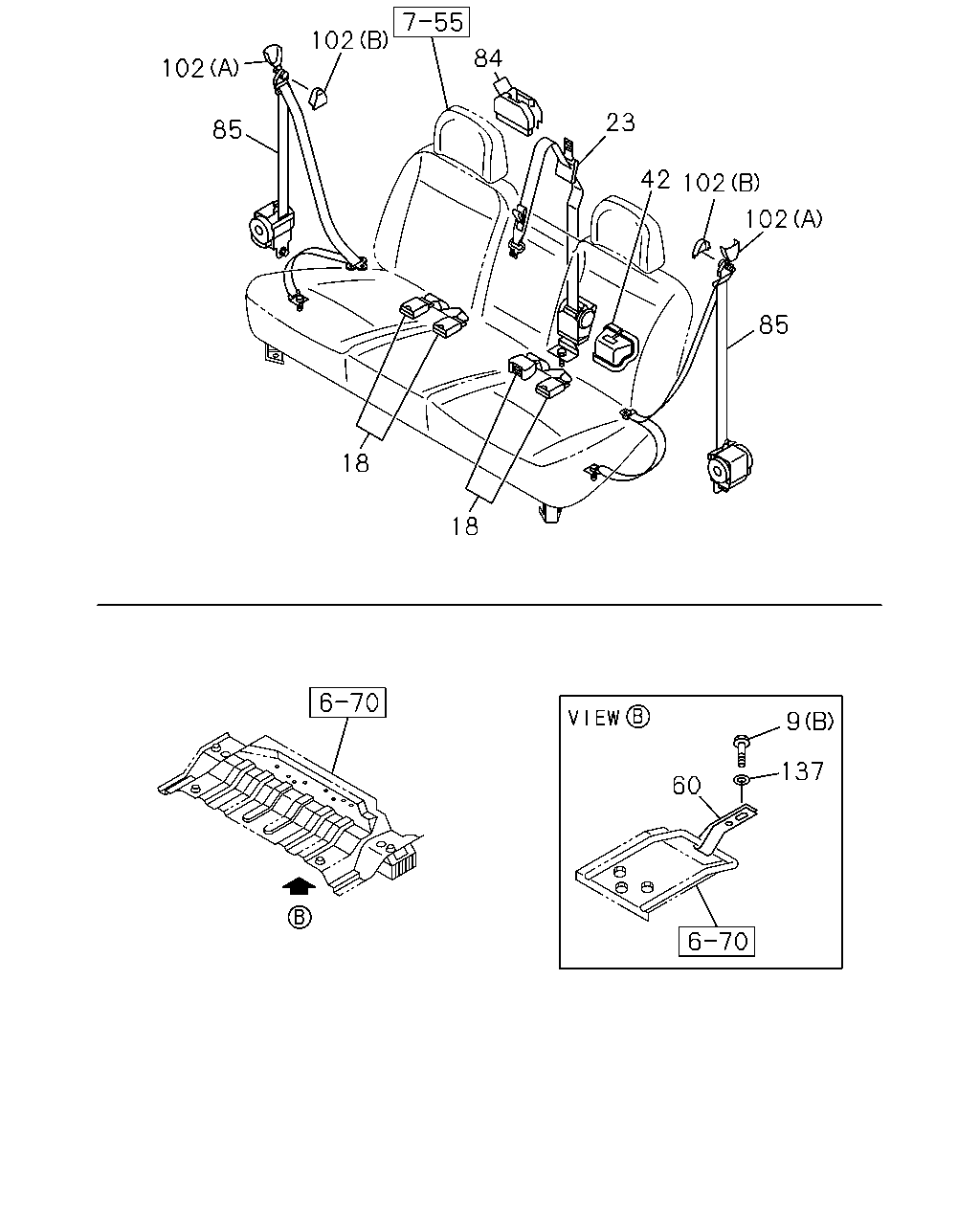

çizim 117387
102 84 102 23 85 42 102 102 85 18 18 9 137 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0307-0402 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT CLOTH<7FL> (A) 		8-97332-665-0 02 1 0307-0402 ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0403-0508 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT CLOTH<7FL> (A) 		8-97332-665-0 02 1 0403-0508 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0509-0609 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> SEAT CLOTH<7FL> (A) 		8-97332-665-0 02 1 0509-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (B) M12X35 FLANGE 		0-28691-235-0 02 1 0307-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (B) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97396-204-0 01 1 0307-0609 ● ●
18 16.714 BELT; SEAT,RR
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 0610-1003 ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-564-0 01 1 1004- ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 1004- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97298-691-0 01 1 0307-0609 ● ●
18 16.714 BELT; SEAT,RR
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 0610-1003 ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-563-0 01 1 1004- ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 1004- ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97396-202-1 01 1 0307-0609 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97406-885-1 01 1 0610-0809 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97413-171-0 01 1 0810-0811 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97417-021-0 01 1 0812-1003 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-021-0 01 1 1004-1303 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-022-0 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97293-970-1 01 1 0307-0609 ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0610-1003 ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-352-1 01 1 1004- ● ●
60 16.714 BRACKET; SHOULDER RETRACTOR 8-97324-174-1 01 1 0307- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97396-474-0 01 1 0307-0609 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97403-355-0 01 1 0610-1003 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-355-0 01 1 1004- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97424-025-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97294-003-4 02 1 0307-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97399-424-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97403-348-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-180-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-031-0 02 1 0812-1003 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-024-0 02 1 1304- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0307-0402 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0609 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0307-0402 ● ●
137 16.714 WASHER; PL,SEAT BELT
09.011 ID=12.5 OD=26 		9-09164-612-0 02 1 0307-0701 ● ●
137 16.714 WASHER; PL,SEAT BELT
02.812 ID=12.5 OD=26 		0-91610-612-0 02 1 0702- ● ●

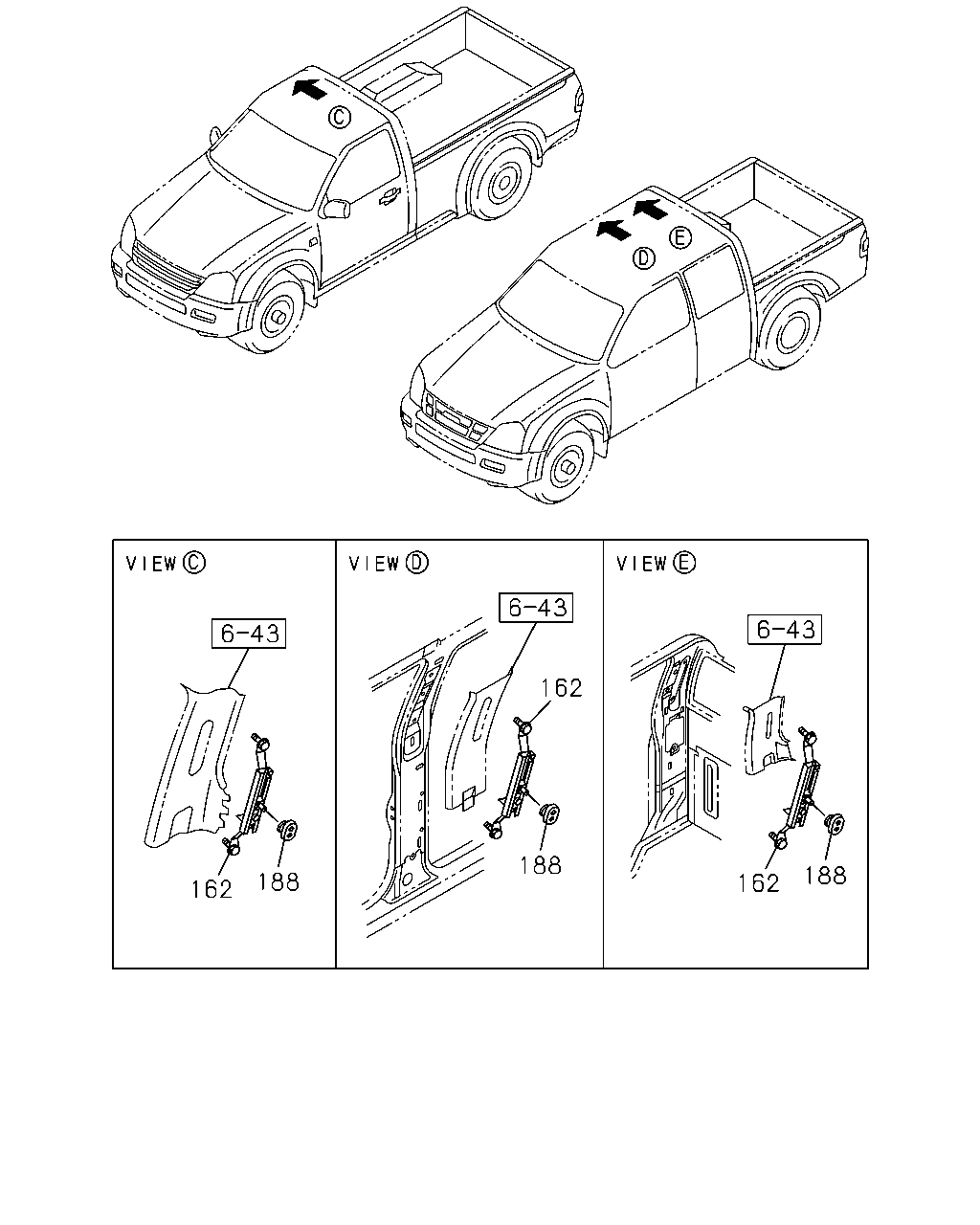

çizim 117396
162 188 188 188 162 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●

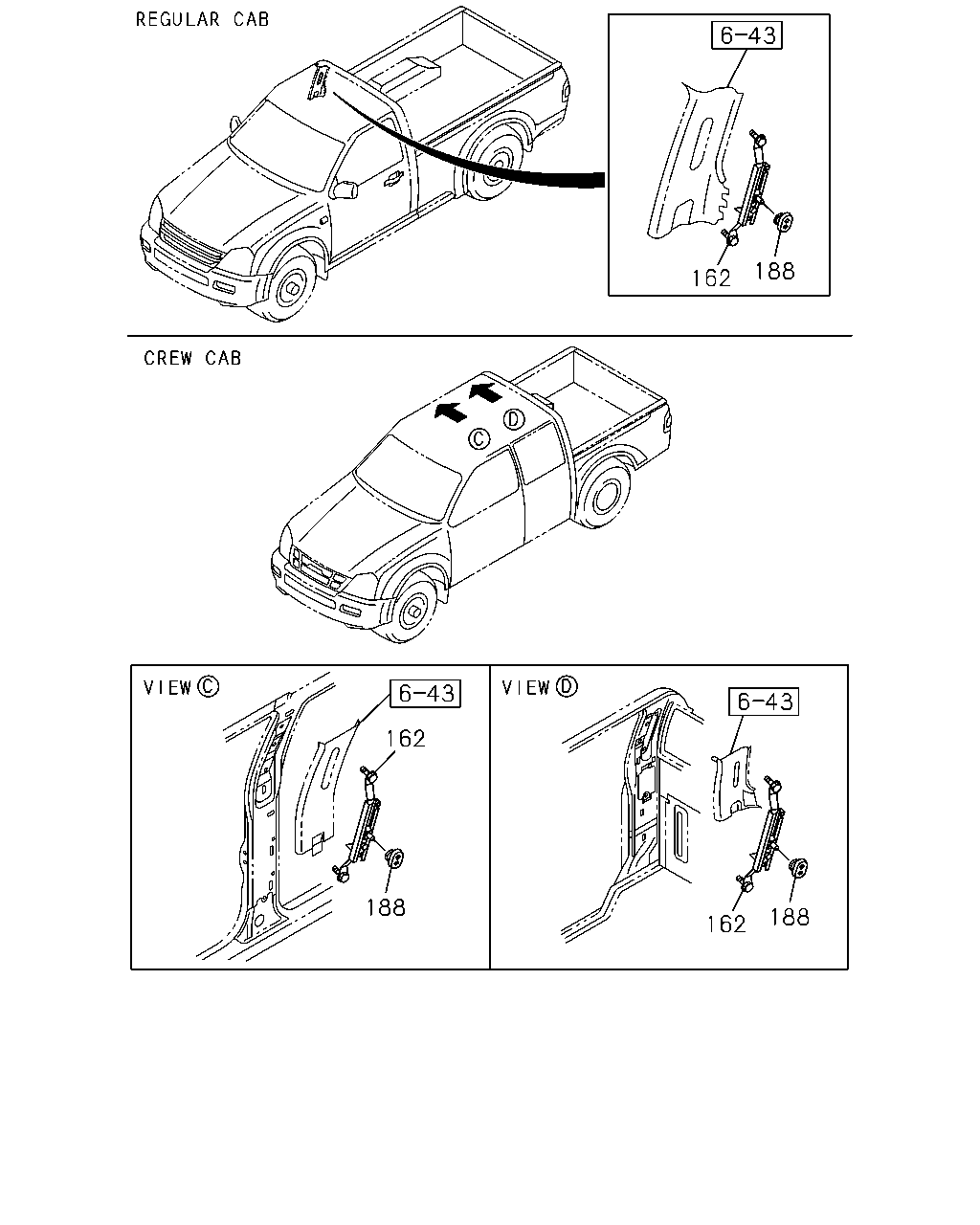

çizim 117397
188 162 162 188 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0307- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0307-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
