Sayfa 1-11 - Isuzu EPC

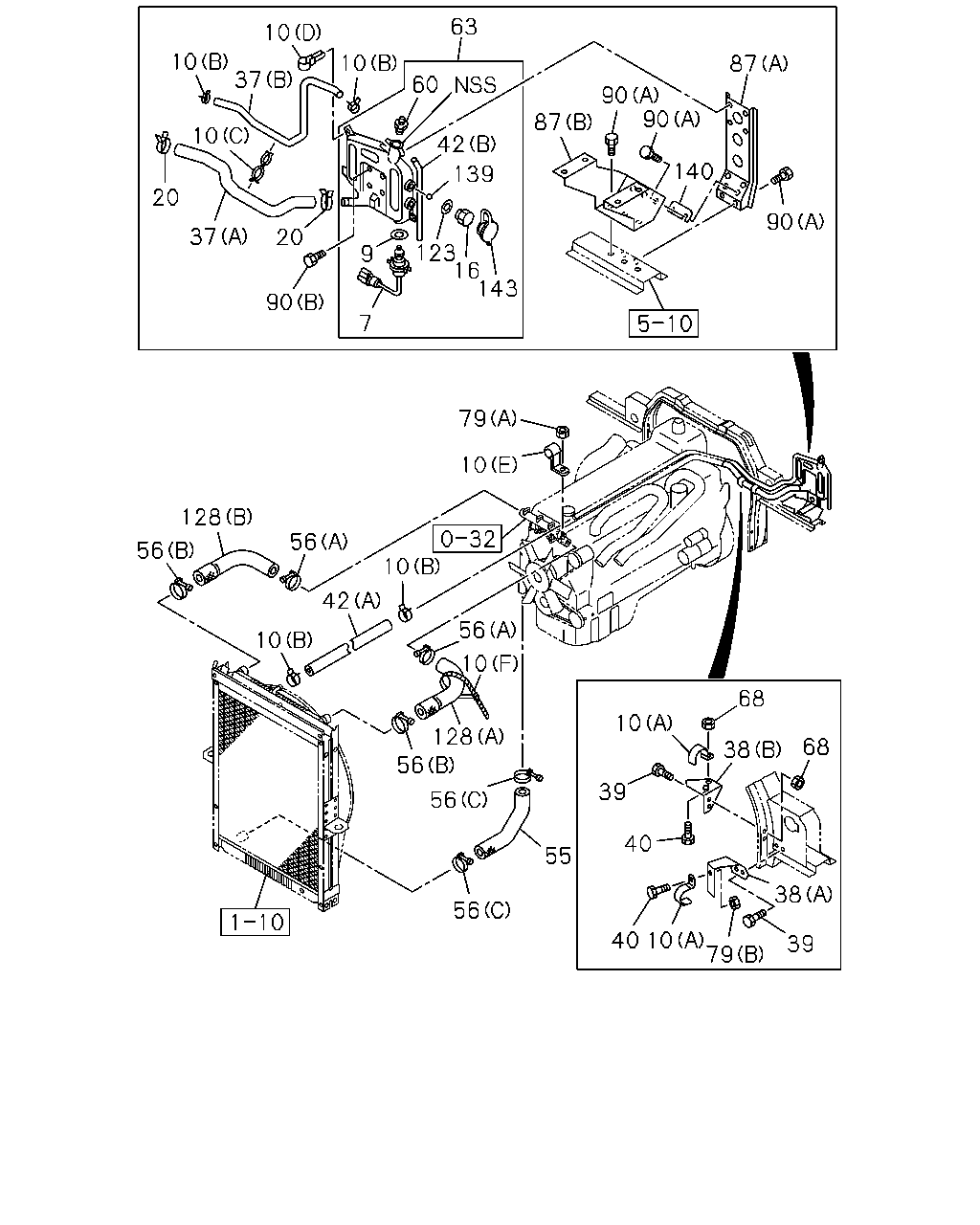

1-11 — RADIATOR HOSE AND SUB TANK (#7350) — 242 parça

10 63 10 60 10 37 87 90 87 10 90 42 139 140 20 90 37 20 9 123 143 16 90 7 79 10 56 55 42 56 10 10 56 10 40 128 10 79 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9812-0103	●	●	●	●
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0104-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (F) L=250	1-09707-126-0	01	1	0010-0010	●	●	●	●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0011-	●	●	●	●
10	CLIP; RUBBER HOSE (A) D=43	1-09700-703-0	02	1	9812-			●	●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) D=43	1-09700-703-0	02	1	9812-	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) D=43	1-09700-703-0	01	1	9812-	●
10	CLIP; RUBBER HOSE (A) D=43	1-09700-703-0	01	1	9812-		●
16	PLUG; TANK	1-21464-514-0	02	1	9812-	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9812-	●	●	●	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	9812-			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	9812-	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103		●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	9812-	●
37	HOSE; RUBBER (A)	1-21437-583-0	01	1	9812-		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9812-			●	●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	02	1	9812-	●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	9812-	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	9812-		●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●	●	●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●	●	●	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9812-	●	●	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9812-9901				●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9902-9904			●	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9905-9912			●	●
55	HOSE; WATER,RAD OUTLET RADIATOR HEAVY DUTY<V05>	1-21437-615-1	01	1	9905-9912	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0001-			●	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21437-615-1	01	1	0001-	●
55	HOSE; WATER,RAD OUTLET	1-21437-710-0	01	1	9902-9904	●
55	HOSE; WATER,RAD OUTLET EXC. RADIATOR HEAVY DUTY<V05>	1-21437-710-0	01	1	9905-9912	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21437-710-0	01	1	0001-	●
55	HOSE; WATER,RAD OUTLET	1-21437-448-2	01	1	9905-9906		●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (A) ID=57	1-09704-066-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (B) ID=63	1-09704-067-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	04	1	9905-9906		●
60	CAP; SUB TANK	1-21450-137-0	01	1	9812-	●	●	●	●
63	TANK ASM; SUB	1-21481-106-1	01	1	9812-0003	●	●	●	●
63	TANK ASM; SUB	1-21481-128-0	01	1	0004-0103	●	●	●	●
63	TANK ASM; SUB	1-21481-144-0	01	1	0104-	●	●	●	●
79	NUT; CLIP,HOSE (A) M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91150-210-0	01	1	9812-	●	●	●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	9812-	●	●	●	●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	9812-			●	●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (A)	1-21489-162-0	01	1	9812-	●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	9812-	●
87	BRACKET; SUB TANK (A)	1-21489-156-0	01	1	9812-		●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	9812-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9812-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	9812-	●	●	●	●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	9812-9901				●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	9902-9912	●		●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (A)	1-21437-617-0	01	1	0001-	●		●	●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	9812-9901				●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	9902-9912	●		●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (B)	1-21437-618-1	01	1	0001-	●		●	●
128	HOSE; WATER,RAD INL (C)	1-21437-495-1	01	1	9905-9906		●
139	FLOAT	1-21489-161-0	02	1	9812-	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	9812-	●	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	9812-	●	●	●	●

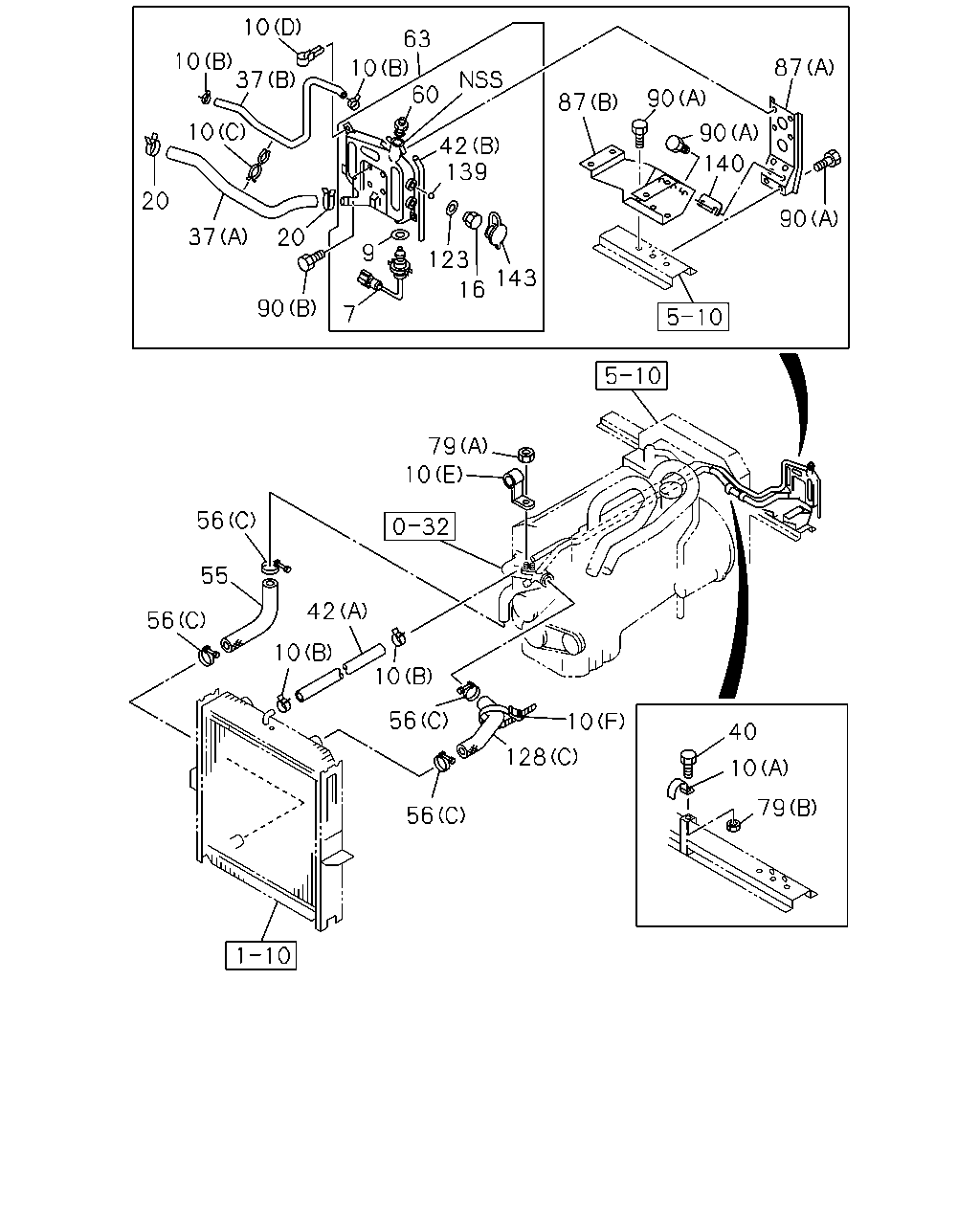

63 10 10 37 10 87 60 90 87 90 42 10 140 139 20 90 37 20 123 16 143 9 90 7 79 10 128 10 56 56 42 56 10 10 40 128 10 56 79 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9812-0103	●	●	●	●
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0104-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (F) L=250	1-09707-126-0	01	1	0010-0010	●	●	●	●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0011-	●	●	●	●
10	CLIP; RUBBER HOSE (A) D=43	1-09700-703-0	02	1	9812-			●	●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) D=43	1-09700-703-0	02	1	9812-	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) D=43	1-09700-703-0	01	1	9812-	●
10	CLIP; RUBBER HOSE (A) D=43	1-09700-703-0	01	1	9812-		●
16	PLUG; TANK	1-21464-514-0	02	1	9812-	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9812-	●	●	●	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	9812-			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	9812-	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103		●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	9812-	●
37	HOSE; RUBBER (A)	1-21437-583-0	01	1	9812-		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9812-			●	●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	02	1	9812-	●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	9812-	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	9812-		●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●	●	●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●	●	●	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9812-	●	●	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9812-9901				●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9902-9904			●	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9905-9912			●	●
55	HOSE; WATER,RAD OUTLET RADIATOR HEAVY DUTY<V05>	1-21437-615-1	01	1	9905-9912	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0001-			●	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21437-615-1	01	1	0001-	●
55	HOSE; WATER,RAD OUTLET	1-21437-710-0	01	1	9902-9904	●
55	HOSE; WATER,RAD OUTLET EXC. RADIATOR HEAVY DUTY<V05>	1-21437-710-0	01	1	9905-9912	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21437-710-0	01	1	0001-	●
55	HOSE; WATER,RAD OUTLET	1-21437-448-2	01	1	9905-9906		●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (A) ID=57	1-09704-066-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (B) ID=63	1-09704-067-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	04	1	9905-9906		●
60	CAP; SUB TANK	1-21450-137-0	01	1	9812-	●	●	●	●
63	TANK ASM; SUB	1-21481-106-1	01	1	9812-0003	●	●	●	●
63	TANK ASM; SUB	1-21481-128-0	01	1	0004-0103	●	●	●	●
63	TANK ASM; SUB	1-21481-144-0	01	1	0104-	●	●	●	●
79	NUT; CLIP,HOSE (A) M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91150-210-0	01	1	9812-	●	●	●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	9812-	●	●	●	●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	9812-			●	●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (A)	1-21489-162-0	01	1	9812-	●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	9812-	●
87	BRACKET; SUB TANK (A)	1-21489-156-0	01	1	9812-		●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	9812-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9812-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	9812-	●	●	●	●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	9812-9901				●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	9902-9912	●		●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (A)	1-21437-617-0	01	1	0001-	●		●	●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	9812-9901				●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	9902-9912	●		●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (B)	1-21437-618-1	01	1	0001-	●		●	●
128	HOSE; WATER,RAD INL (C)	1-21437-495-1	01	1	9905-9906		●
139	FLOAT	1-21489-161-0	02	1	9812-	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	9812-	●	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	9812-	●	●	●	●

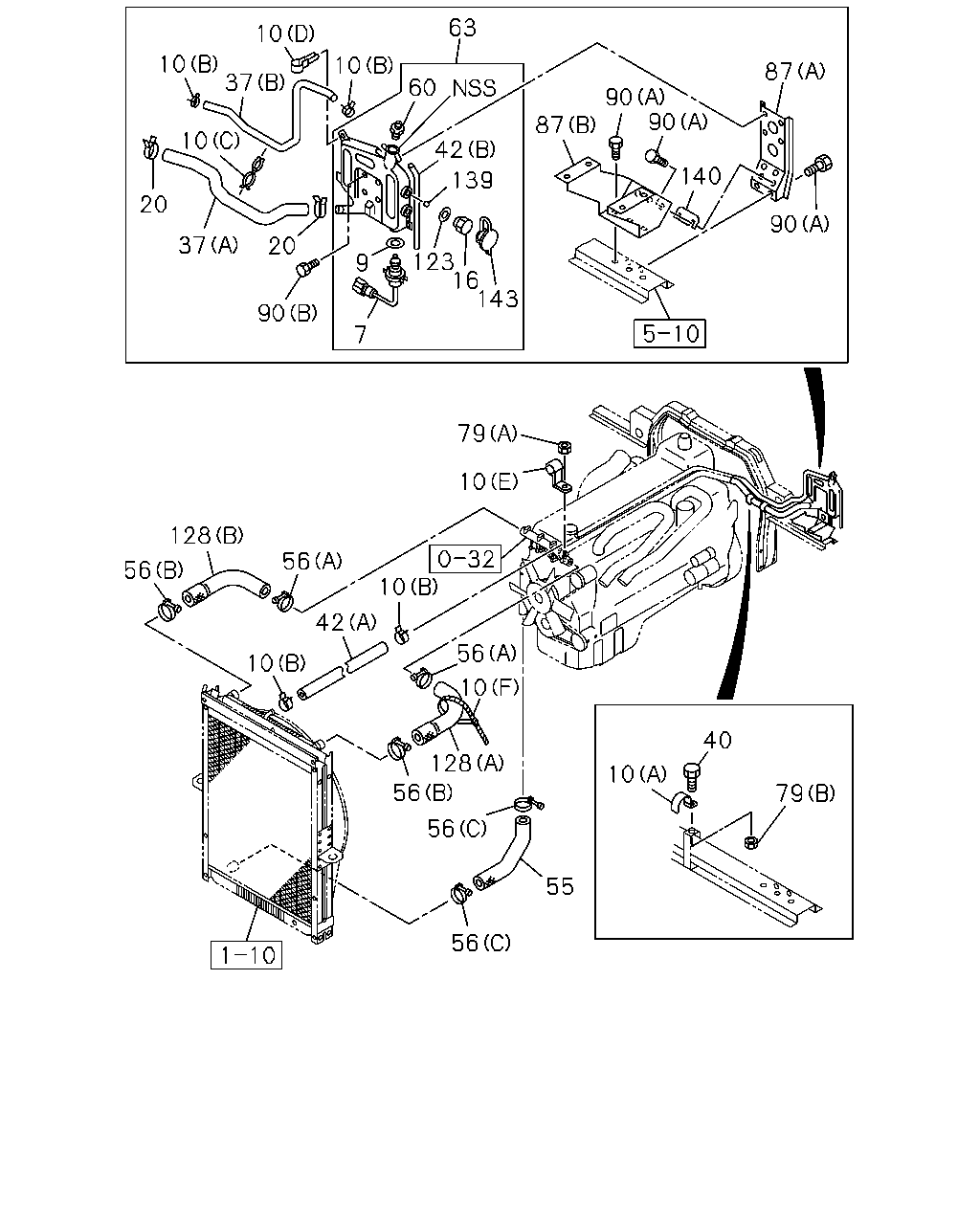

63 10 10 37 10 87 60 90 87 90 140 42 10 139 20 90 37 20 123 16 143 9 90 7 79 10 128 10 56 56 42 56 10 10 68 10 128 68 38 56 39 56 40 55 38 56 40 10 79 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9812-0103	●	●	●	●
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0104-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	9812-	●	●	●	●
10	CLIP; RUBBER HOSE (F) L=250	1-09707-126-0	01	1	0010-0010	●	●	●	●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0011-	●	●	●	●
10	CLIP; RUBBER HOSE (A) D=43	1-09700-703-0	02	1	9812-			●	●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) D=43	1-09700-703-0	02	1	9812-	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) D=43	1-09700-703-0	01	1	9812-	●
10	CLIP; RUBBER HOSE (A) D=43	1-09700-703-0	01	1	9812-		●
16	PLUG; TANK	1-21464-514-0	02	1	9812-	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9812-	●	●	●	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	9812-			●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	9812-	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103		●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0104-		●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	9812-	●
37	HOSE; RUBBER (A)	1-21437-583-0	01	1	9812-		●
38	BRACKET; RUBBER HOSE (A)	1-21489-158-2	01	1	9812-			●	●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (A)	1-21489-158-2	01	1	9812-	●
38	BRACKET; RUBBER HOSE (B)	1-21489-165-1	01	1	9812-			●	●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (B)	1-21489-165-1	01	1	9812-	●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	04	1	9812-			●	●
39	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	04	1	9812-	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9812-			●	●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	02	1	9812-	●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	9812-	●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	9812-		●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03259-300-0	01	1	9812-0103	●	●	●	●
42	HOSE; RUBBER (B) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0104-	●	●	●	●
42	HOSE; RUBBER (A) L=850	1-21489-154-0	01	1	9812-	●	●	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9812-9901				●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9902-9904			●	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	9905-9912			●	●
55	HOSE; WATER,RAD OUTLET RADIATOR HEAVY DUTY<V05>	1-21437-615-1	01	1	9905-9912	●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0001-			●	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05>	1-21437-615-1	01	1	0001-	●
55	HOSE; WATER,RAD OUTLET	1-21437-710-0	01	1	9902-9904	●
55	HOSE; WATER,RAD OUTLET EXC. RADIATOR HEAVY DUTY<V05>	1-21437-710-0	01	1	9905-9912	●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05>	1-21437-710-0	01	1	0001-	●
55	HOSE; WATER,RAD OUTLET	1-21437-448-2	01	1	9905-9906		●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (A) ID=57	1-09704-066-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (B) ID=63	1-09704-067-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9812-9901				●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	9902-9912	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	02	1	0001-	●		●	●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	04	1	9905-9906		●
60	CAP; SUB TANK	1-21450-137-0	01	1	9812-	●	●	●	●
63	TANK ASM; SUB	1-21481-106-1	01	1	9812-0003	●	●	●	●
63	TANK ASM; SUB	1-21481-128-0	01	1	0004-0103	●	●	●	●
63	TANK ASM; SUB	1-21481-144-0	01	1	0104-	●	●	●	●
68	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9812-			●	●
68	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	9812-	●
79	NUT; CLIP,HOSE (A) M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●	●
79	NUT; CLIP,HOSE (B) M10 FLANGE	0-91150-210-0	01	1	9812-	●	●	●	●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	9812-	●	●	●	●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	9812-			●	●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (A)	1-21489-162-0	01	1	9812-	●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	9812-	●
87	BRACKET; SUB TANK (A)	1-21489-156-0	01	1	9812-		●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	9812-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9812-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	9812-	●	●	●	●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	9812-9901				●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	9902-9912	●		●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (A)	1-21437-617-0	01	1	0001-	●		●	●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	9812-9901				●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	9902-9912	●		●	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (B)	1-21437-618-1	01	1	0001-	●		●	●
128	HOSE; WATER,RAD INL (C)	1-21437-495-1	01	1	9905-9906		●
139	FLOAT	1-21489-161-0	02	1	9812-	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	9812-	●	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	9812-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
