7-45 — CONSOLE BOX (#73499) — 654 parça

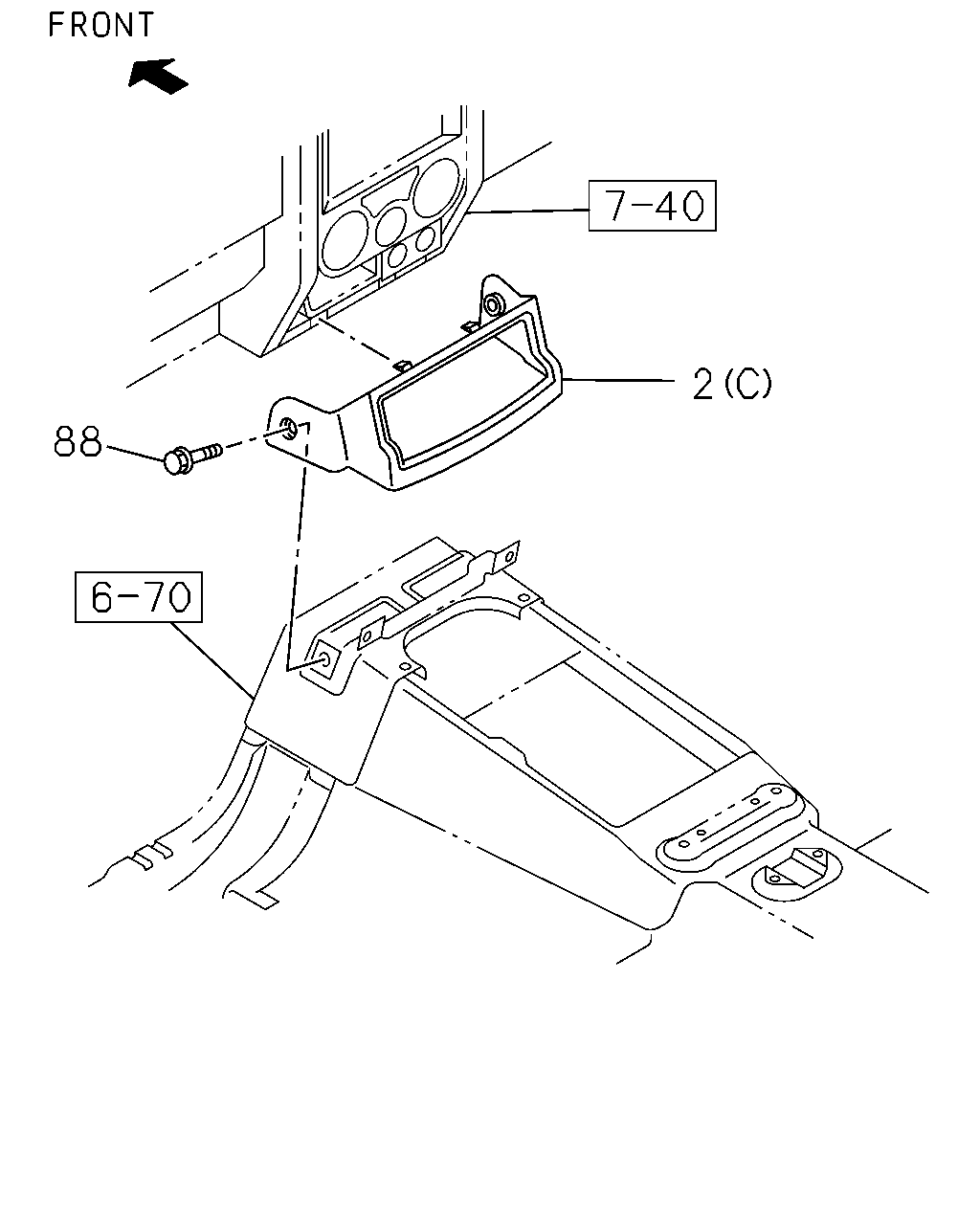

çizim 117380
2 88
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G(RSP) EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97293-887-1 01 1 0307-0609 ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-359-1 01 1 0610-1104 ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-764-0 01 1 1105- ● ● ● ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0610-0709 ● ● ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0710-1003 ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 1004-1104 ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) BLACK 		8-97422-689-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G(RSP) REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97391-535-0 01 1 0307-0609 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-342-0 01 1 0610-1003 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-342-0 01 1 1004-1104 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-767-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0610-1003 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 1004-1104 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-766-0 01 1 1105- ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0610-1003 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 1004-1104 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-761-0 01 1 1105- ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97391-534-0 01 1 0307-0609 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-1 01 1 0610-1003 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-2 01 1 1004- ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97293-884-1 01 1 0307-0609 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> (A) DARK GRAY 		8-97407-083-0 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) (A) DARK GRAY 		8-97407-083-0 01 1 0710-1003 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0710-1003 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) (A) DARK GRAY 		8-97407-083-1 01 1 1004- ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-1 01 1 1004- ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> 01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ● ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0701-0709 ● ● ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0710-1003 ● ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> M5X16 		8-98167-220-0 02 1 1004- ● ●

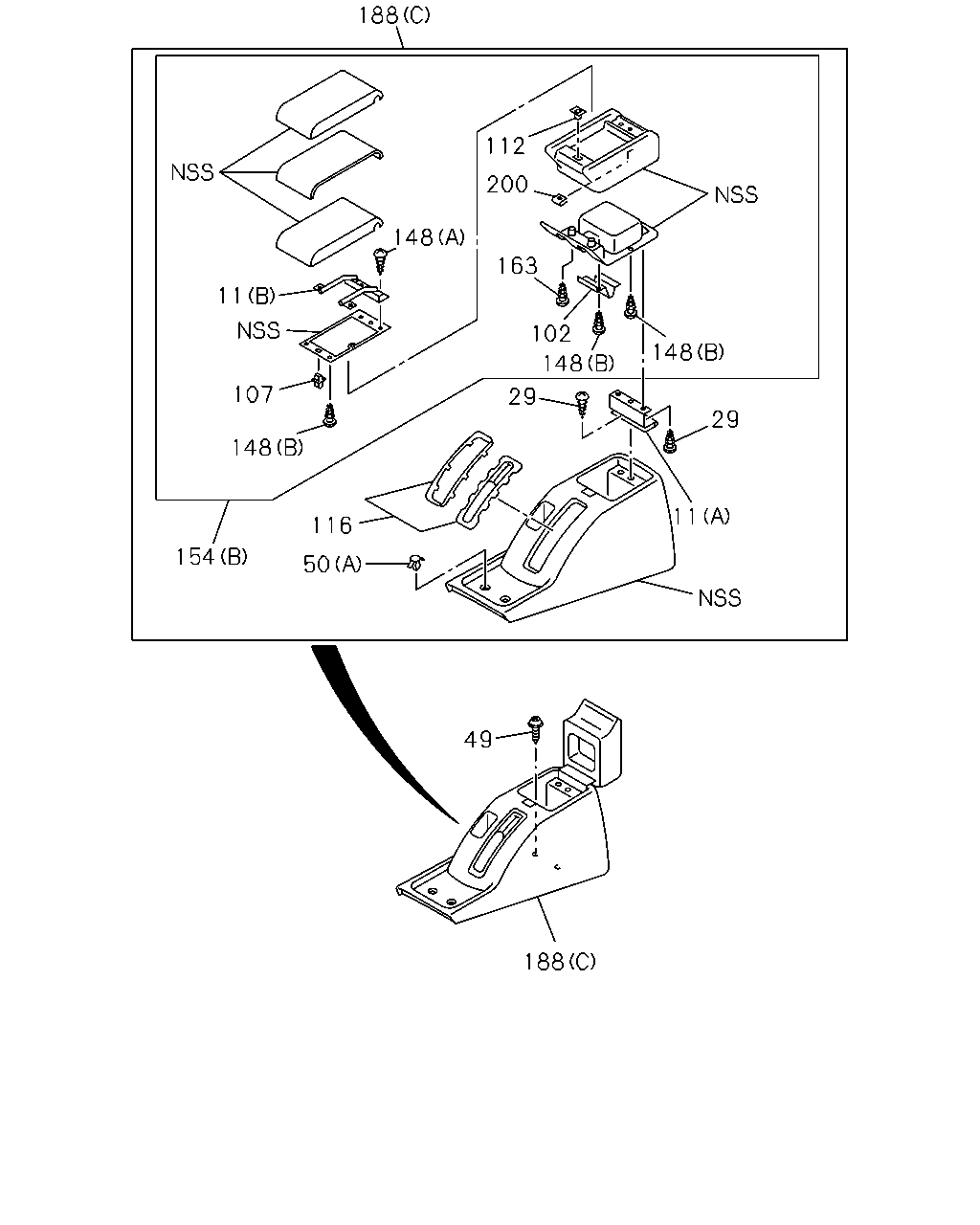

çizim 117381
188 112 200 148 163 11 102 148 148 107 29 29 148 11 116 154 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0610-0709 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0710- ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0307-0508 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) (A) 		8-97349-645-0 01 1 0509-0609 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0509-0609 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0610-0709 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0710- ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 06 1 0610-0612 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0701-0709 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0710- ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 06 1 0307-0311 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 11 1 0312-0402 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 06 1 0403-0411 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 05 1 0412-0508 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) 16.115 M5X16 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> 16.115 M5X16 		8-94279-312-0 05 1 0610-0612 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0307-0402 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0307-0402 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0403-0508 ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0509-0609 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0509-0609 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98167-220-0 02 1 1004- ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98167-220-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-650-0 01 1 0610-0709 ● ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-650-0 01 1 0710- ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0307-0508 ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) 		8-97349-644-0 01 1 0509-0609 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0509-0609 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0610-0709 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0710- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0307-0508 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) 		8-97349-643-0 01 1 0509-0609 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0509-0609 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0610-0709 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0710- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0307-0402 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0307-0402 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0307-0402 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0403-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0403-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0509-0609 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0509-0609 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0610-0709 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0710- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0710- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0307-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) (B) M4X14 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) M4X14 		8-97349-647-0 08 1 0610-0709 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-0 01 1 0610-0709 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-1 01 1 0710- ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97394-455-0 01 1 0307-0508 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) (A) DARK GRAY 		8-97394-455-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97394-455-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97403-968-0 01 1 0610-0709 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0307-0508 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) 		8-97349-682-0 02 1 0509-0609 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0509-0609 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0610-0709 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0710- ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97293-890-3 01 1 0307-0508 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97293-890-3 01 1 0509-0609 ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) (B) DARK GRAY 		8-97293-890-3 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0610-1003 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 1004-1104 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-771-0 01 1 1105- ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97403-365-0 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-1 01 1 0710- ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97403-361-1 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97409-183-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97395-405-0 01 1 0307-0508 ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) (A) DARK GRAY 		8-97395-405-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97395-405-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0610-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0710-1003 ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1004-1104 ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) BLACK 		8-97422-773-0 01 1 1105- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0610-0709 ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0710- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0307-0508 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> 		8-97349-642-0 06 1 0610-0709 ● ● ●
çizim 117382
188 154 200 163 107 112 148 29 29 11 116 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0610-0709 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0710- ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0307-0508 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) (A) 		8-97349-645-0 01 1 0509-0609 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0509-0609 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0610-0709 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0710- ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 06 1 0610-0612 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0701-0709 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0710- ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 06 1 0307-0311 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 11 1 0312-0402 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 06 1 0403-0411 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 05 1 0412-0508 ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) 16.115 M5X16 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 16.115 M5X16 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> 16.115 M5X16 		8-94279-312-0 05 1 0610-0612 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0307-0402 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0307-0402 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0403-0508 ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0509-0609 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0509-0609 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98167-220-0 02 1 1004- ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98167-220-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE

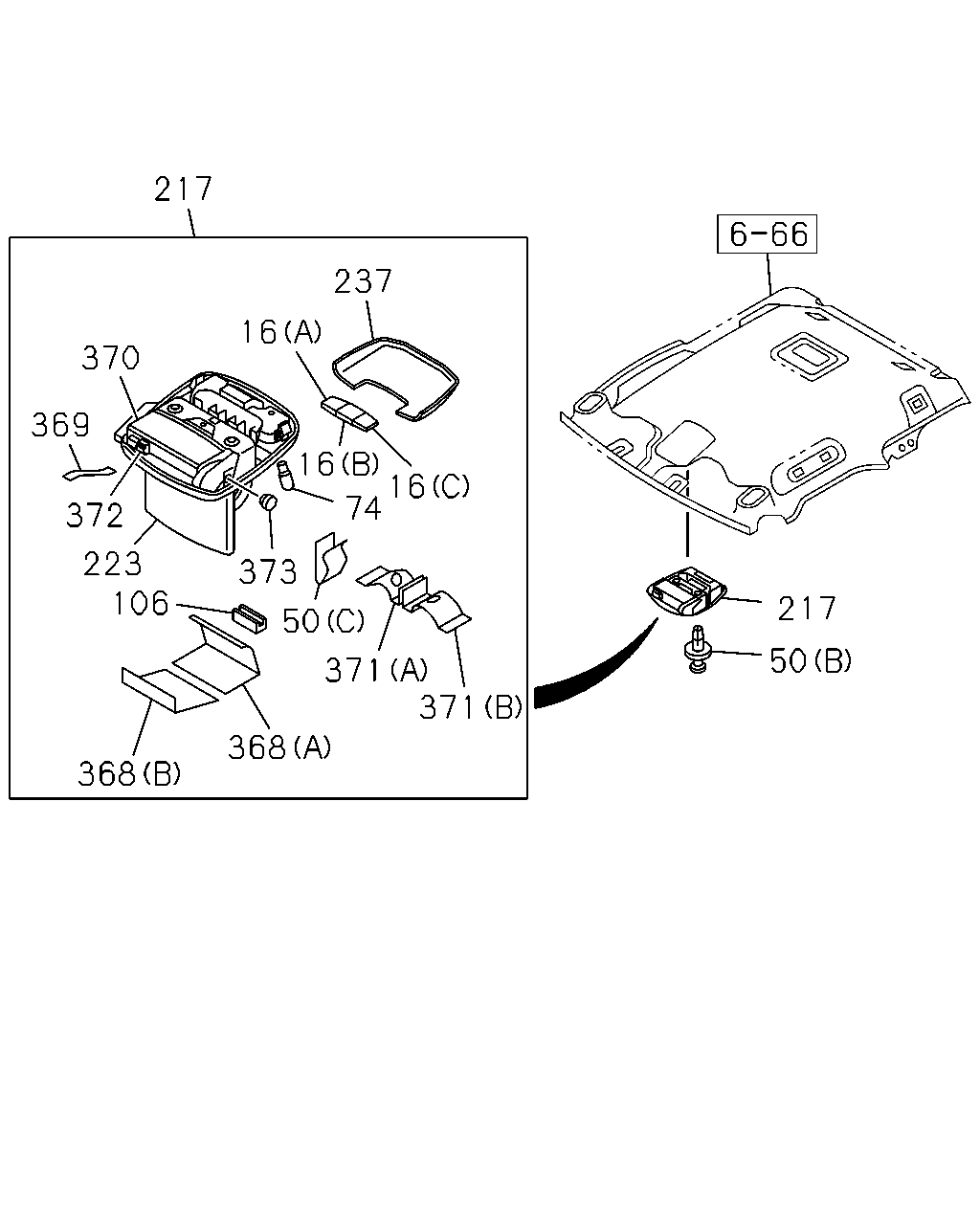

HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0307-0508 ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) 		8-97349-644-0 01 1 0509-0609 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0509-0609 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0610-0709 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0710- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0307-0508 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) 		8-97349-643-0 01 1 0509-0609 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0509-0609 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0610-0709 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0710- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0307-0402 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0307-0402 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0307-0402 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0403-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0403-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0509-0609 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0509-0609 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0610-0709 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0710- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0710- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0307-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) (B) M4X14 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) M4X14 		8-97349-647-0 08 1 0610-0709 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-0 01 1 0610-0709 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-1 01 1 0710- ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97394-455-0 01 1 0307-0508 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) (A) DARK GRAY 		8-97394-455-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97394-455-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97403-968-0 01 1 0610-0709 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0307-0508 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) 		8-97349-682-0 02 1 0509-0609 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0509-0609 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0610-0709 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0710- ● ●

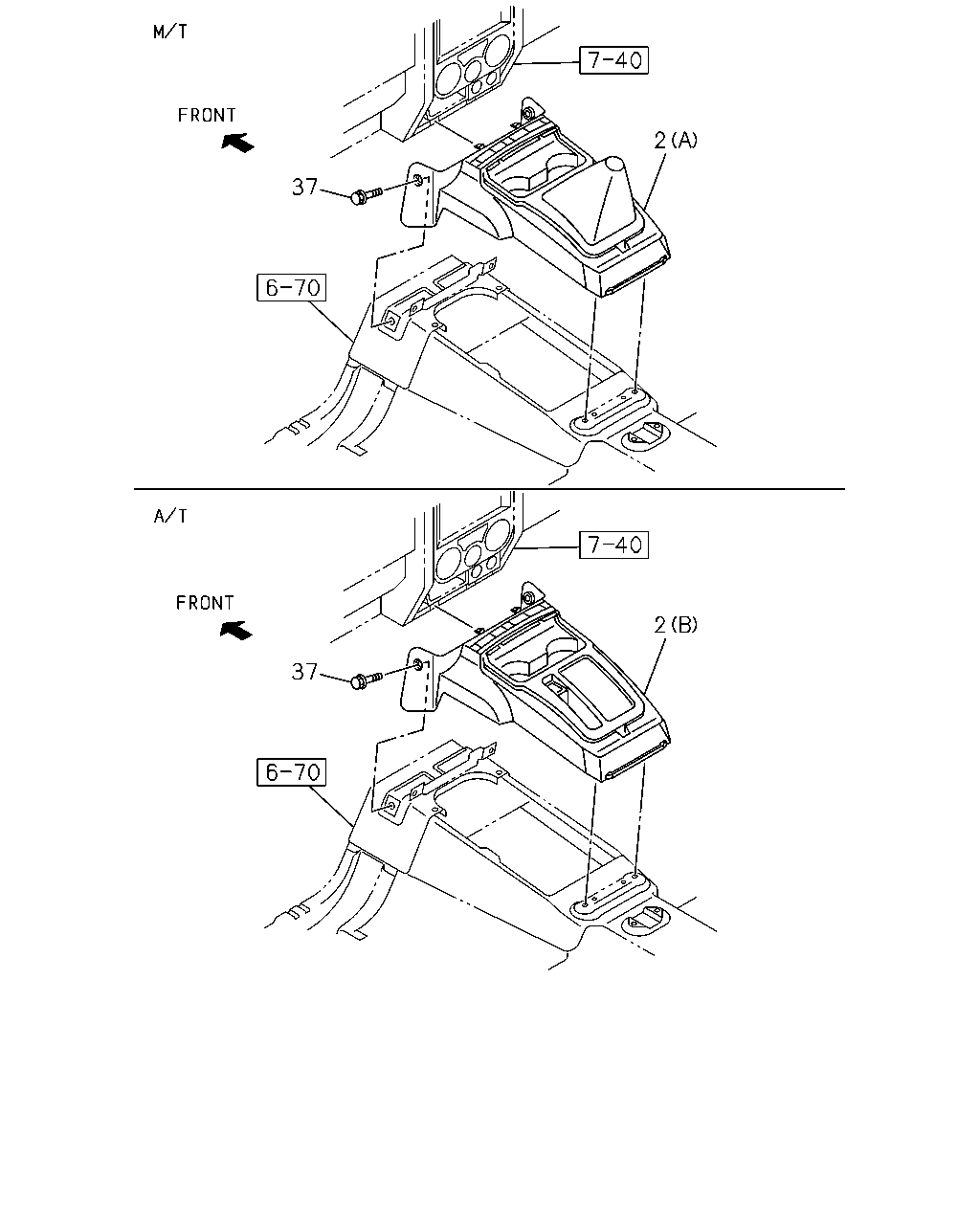

188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97293-890-3 01 1 0307-0508 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97293-890-3 01 1 0509-0609 ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) (B) DARK GRAY 		8-97293-890-3 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0610-1003 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 1004-1104 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-771-0 01 1 1105- ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97403-365-0 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-1 01 1 0710- ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97403-361-1 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97409-183-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97395-405-0 01 1 0307-0508 ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) (A) DARK GRAY 		8-97395-405-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97395-405-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0610-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0710-1003 ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1004-1104 ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) BLACK 		8-97422-773-0 01 1 1105- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0610-0709 ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0710- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0307-0508 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> 		8-97349-642-0 06 1 0610-0709 ● ● ●
çizim 117393
2 37 2 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G(RSP) EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97293-887-1 01 1 0307-0609 ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-359-1 01 1 0610-1104 ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-764-0 01 1 1105- ● ● ● ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0610-0709 ● ● ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0710-1003 ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 1004-1104 ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) BLACK 		8-97422-689-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G(RSP) REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97391-535-0 01 1 0307-0609 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-342-0 01 1 0610-1003 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-342-0 01 1 1004-1104 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-767-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0610-1003 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 1004-1104 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-766-0 01 1 1105- ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0610-1003 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 1004-1104 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-761-0 01 1 1105- ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97391-534-0 01 1 0307-0609 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-1 01 1 0610-1003 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-2 01 1 1004- ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO(RMK) EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97293-884-1 01 1 0307-0609 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> (A) DARK GRAY 		8-97407-083-0 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) (A) DARK GRAY 		8-97407-083-0 01 1 0710-1003 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0710-1003 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) (A) DARK GRAY 		8-97407-083-1 01 1 1004- ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-1 01 1 1004- ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0307-0609 ● ● ● ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> 01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0701-0709 ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0701-0709 ● ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0710-1003 ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0710-1003 ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98167-220-0 02 1 1004- ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98167-220-0 02 1 1004- ● ●
çizim 117453
188 116 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0307-0402 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0307-0402 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0403-0508 ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0509-0609 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0509-0609 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98167-220-0 02 1 1004- ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98167-220-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0307-0402 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0307-0402 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0307-0402 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0403-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0403-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0509-0609 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97394-454-0 01 1 0509-0609 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0610-0709 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) DARK GRAY 		8-97403-966-0 01 1 0710-0802 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0803-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) DARK GRAY 		8-97403-966-0 01 1 0810-0905 ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0906-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0911-1104 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97293-890-3 01 1 0307-0508 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97293-890-3 01 1 0509-0609 ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) (B) DARK GRAY 		8-97293-890-3 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0610-1003 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 1004-1104 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-771-0 01 1 1105- ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97403-365-0 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-1 01 1 0710- ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97403-361-1 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) DARK GRAY 		8-97409-183-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97395-405-0 01 1 0307-0508 ● ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) (A) DARK GRAY 		8-97395-405-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LT(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97395-405-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0610-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0710-1003 ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1004-1104 ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) BLACK 		8-97422-773-0 01 1 1105- ● ●
çizim 117718
217 237 16 370 369 16 16 74 372 223 106 373 217 50 50 371 371 368 368
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 16.650 KNOB ASM
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (A) BLACK 		8-97418-464-1 01 1 1004- ● ●
16 16.650 KNOB ASM
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-465-1 01 1 1004- ● ●
16 16.650 KNOB ASM
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (C) BLACK 		8-97418-486-1 01 1 1004- ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97401-422-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 0610-0709 ● ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 0710-1003 ● ●
16 16.650 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 1004- ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97401-426-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 0610-0709 ● ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 0710-1003 ● ●
16 16.650 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 1004- ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97401-429-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 0610-0709 ● ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 0710-1003 ● ●
16 16.650 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 1004- ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0307-0402 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0403-0508 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0509-0609 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0710-0802 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0803-0809 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) (A) 		8-97355-734-0 02 1 0810-0905 ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0906-0910 ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
GRADE LT(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0911- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 1004- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0610-0709 ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0710-1003 ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0509-0609 ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0610-0709 ● ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0710-1003 ● ●
74 08.991 BULB; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 1004- ● ●
106 16.650 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0509-0609 ● ●
106 16.650 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0610-0709 ● ● ●
106 16.650 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0710-1003 ● ●
106 16.650 LOCK; CONSOLE LID
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 1004- ● ●
217 16.745 CONSOLE; HEADER
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> BLACK 		8-97418-439-3 01 1 1004- ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97401-113-3 01 1 0509-0609 ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 0610-0709 ● ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 0710-1003 ● ●
217 16.745 CONSOLE; HEADER
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 1004- ● ●
223 16.650 LID; HEADER CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> BLACK 		8-97418-463-0 01 1 1004- ● ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97401-418-0 01 1 0509-0609 ● ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 0610-0709 ● ● ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 0710-1003 ● ●
223 16.650 LID; HEADER CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 1004- ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0509-0609 ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0610-0709 ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0710-1003 ● ●
237 16.650 LENS; HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 1004- ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0509-0609 ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0610-0709 ● ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0710-1003 ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 1004- ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0509-0609 ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0610-0709 ● ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0710-1003 ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 1004- ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0509-0609 ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0610-0709 ● ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0710-1003 ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 1004- ● ●
370 16.650 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0509-0609 ● ●
370 16.650 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0610-0709 ● ● ●
370 16.650 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0710-1003 ● ●
370 16.650 CASE; HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 1004- ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0509-0609 ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0610-0709 ● ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0710-1003 ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 1004- ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0509-0609 ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0610-0709 ● ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0710-1003 ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 1004- ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0509-0609 ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0610-0709 ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0710-1003 ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 1004- ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0509-0609 ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0610-0709 ● ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0710-1003 ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 1004- ● ●
çizim 117721
249 139 350 350 350 350 135
BalonParca AdiParca NoAdetTipApplied Date A B C D
135 16.650 BOX; CONSOLE,LWR
INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97403-313-0 01 1 0610-1003 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97403-313-0 01 1 1004- ● ●
135 16.650 BOX; CONSOLE,LWR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97403-313-0 01 1 1004- ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5) DARK GRAY 		8-97298-419-0 01 1 0307-0508 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) DARK GRAY 		8-97298-419-0 01 1 0509-0609 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97396-595-0 01 1 0610-0912 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97396-595-0 01 1 1001-1003 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97396-595-0 01 1 1004- ● ●
135 16.650 BOX; CONSOLE,LWR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97396-595-0 01 1 1004- ● ●
139 16.650 BOX; CONSOLE,UPR
GRADE DX(RBA) DIGITAL CLOCK<UE8> DARK GRAY 		8-97398-205-0 01 1 0307-0408 ● ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> DARK GRAY 		8-97398-205-0 01 1 0409-0609 ● ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> DARK GRAY 		8-97403-312-2 01 1 0610-1003 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97403-312-2 01 1 0610-1003 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> DARK GRAY 		8-97403-312-2 01 1 1004- ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97403-312-2 01 1 1004- ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97403-311-2 01 1 0610-1003 ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97403-311-2 01 1 1004- ●
249 16.674 COVER
DARK GRAY 		8-97293-913-0 03 1 0307-0609 ● ● ● ●
249 16.674 COVER
DARK GRAY 		8-97403-309-0 03 1 0610-1104 ● ● ● ●
249 16.674 COVER
BLACK 		8-97422-663-0 03 1 1105- ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97298-416-0 01 1 0307-0609 ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 0610-1003 ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 1004- ●
350 16.650 COVER; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 1004- ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97298-962-0 01 1 0307-0609 ● ● ● ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97396-598-0 01 1 0610-0709 ● ●
350 16.650 COVER; CONSOLE
EXC. AUTO CRUISE CONT<K30> (C) DARK GRAY 		8-97396-598-0 01 1 0610-0709 ● ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97396-598-0 01 1 0710-1003 ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUTO CRUISE CONT<K30> (C) DARK GRAY 		8-97396-598-0 01 1 0710-1003 ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97396-598-0 01 1 1004- ● ●
350 16.650 COVER; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97396-598-0 01 1 1004- ●
350 16.650 COVER; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUTO CRUISE CONT<K30> (C) DARK GRAY 		8-97396-598-0 01 1 1004- ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) DARK GRAY 		8-97394-236-1 01 1 0307-0609 ● ● ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) DARK GRAY 		8-97403-885-0 01 1 0610-1003 ● ● ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) DARK GRAY 		8-97403-885-0 01 1 1004- ● ●
350 16.650 COVER; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) DARK GRAY 		8-97403-885-0 01 1 1004- ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (A) DARK GRAY 		8-97298-421-0 01 1 0307-0609 ● ● ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 0610-1003 ● ● ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 1004- ● ●
350 16.650 COVER; CONSOLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
