Sayfa 7-42 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶

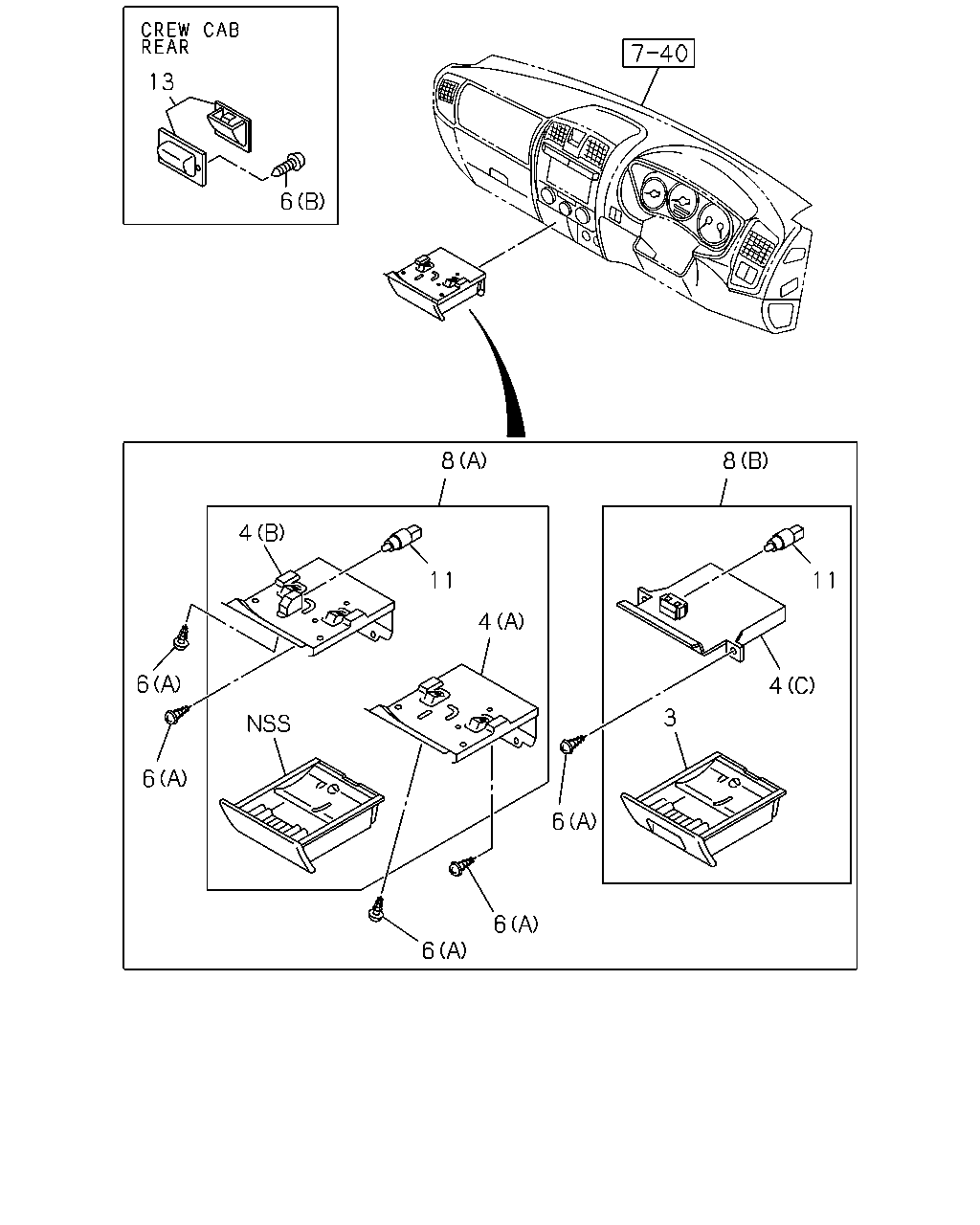

7-42 — ASH TRAY (#73497) — 44 parça

13 6 8 8 4 11 11 4 6 4 3 6 6 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	16.120 CASE ASM; ASH TRAY INNER DARK GRAY	8-97407-836-0	01	1	0610-0709	●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-836-0	01	1	0610-0709		●	●	●
3	16.120 CASE ASM; ASH TRAY INNER DARK GRAY	8-97407-836-0	01	1	0710-	●		●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-836-0	01	1	0710-		●		●
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-837-0	01	1	0610-0709		●	●	●
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-837-0	01	1	0710-1003		●		●
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR SILVER BEZEL<BY9> BLACK	8-97418-203-0	01	1	1004-		●		●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0307-0408	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0409-0609	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A)	8-97308-648-0	01	1	0409-0609			●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) (B)	8-97308-647-0	01	1	0307-0609			●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C)	8-98044-027-0	01	1	0610-1003	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C)	8-98044-027-0	01	1	1004-	●		●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C)	8-98044-027-0	01	1	1004-		●		●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C)	8-98044-027-0	01	1	1004-		●		●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0307-0609	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98061-685-0	02	1	0701-1003	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0307-0609		●		●
6	16.120 SCREW; ASH TRAY 16.742 (B) M4X16 TAPPING OVAL-HEAD	0-70540-416-0	04	1	0610-		●		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0307-0408	●	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0409-0609	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97293-901-0	01	1	0409-0609			●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (B) DARK GRAY	8-97403-296-0	01	1	0610-0809	●	●	●	●
8	16.120 TRAY ASM; ASH (B) DARK GRAY	8-97403-296-0	01	1	0810-1003	●		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97403-296-0	01	1	0810-1003		●		●
8	16.120 TRAY ASM; ASH (B) DARK GRAY	8-97403-296-0	01	1	1004-	●		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97403-296-0	01	1	1004-		●		●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) (A) DARK GRAY	8-97392-978-0	01	1	0307-0408			●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97392-978-0	01	1	0409-0609			●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97403-297-0	01	1	0610-0709		●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97403-297-0	01	1	0710-1003		●		●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97403-297-0	01	1	1004-		●		●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (A) LIGHT GRAY	8-97392-979-0	01	1	0409-0609			●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY	8-97403-299-0	01	1	0610-0709		●	●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY	8-97403-299-0	01	1	0710-1003		●		●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (B) BLACK	8-97418-182-0	01	1	1004-		●		●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0307-0609			●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0610-0709		●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0710-1003		●		●
11	08.991 BULB; ASH TRAY GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-97308-651-0	01	1	1004-		●		●
13	16.120 TRAY ASM; ASH,RR DARK GRAY	8-97393-945-1	02	1	0307-0609		●		●
13	16.120 TRAY ASM; ASH,RR DARK GRAY	8-97409-355-0	02	1	0610-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
