7-40 — INSTRUMENT PANEL AND BOX (#73496) — 263 parça

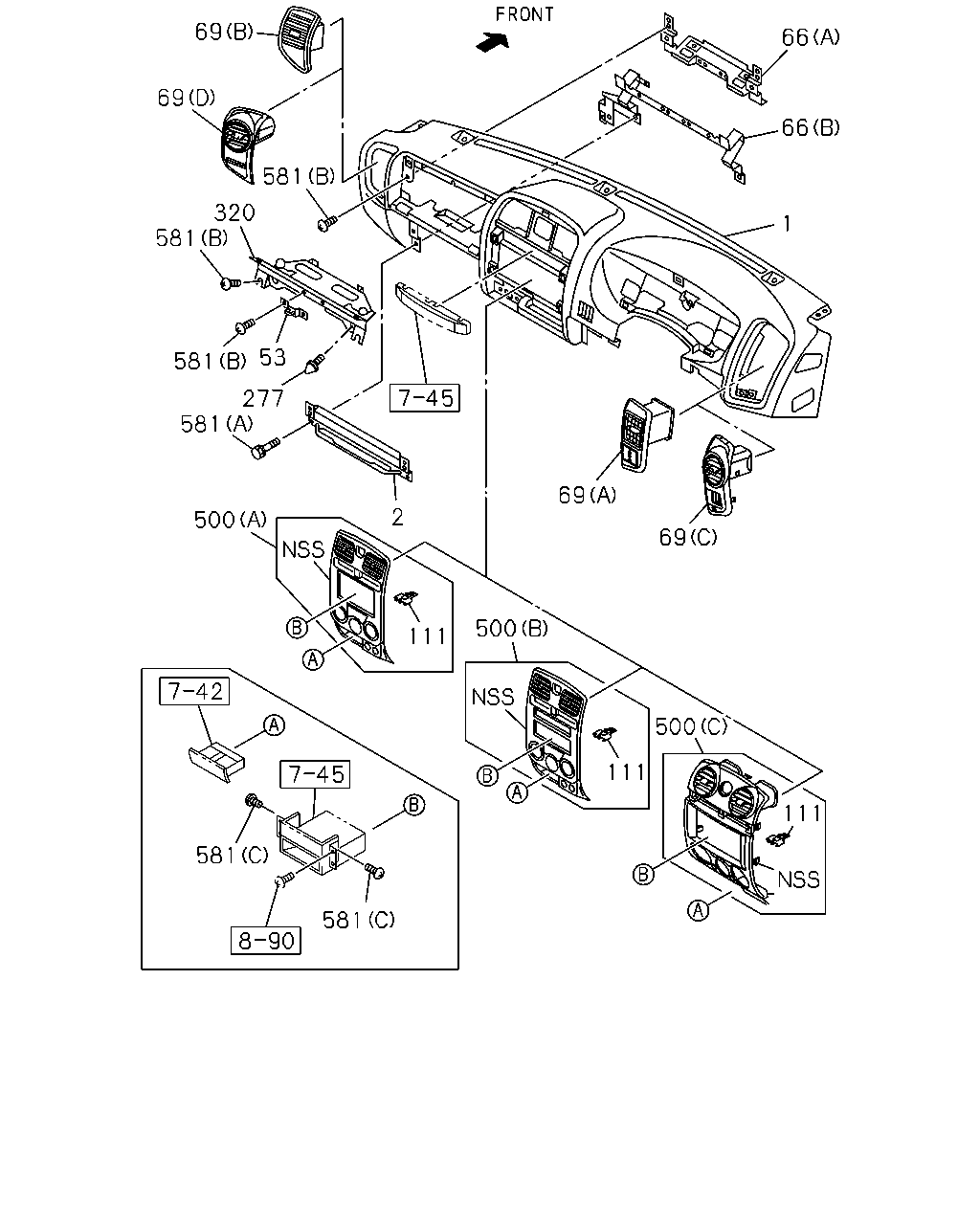

çizim 117383
69 66 69 66 581 320 581 1 53 581 277 581 69 2 500 69 500 111 500 111 111 581 581
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
DARK GRAY 		8-97299-326-0 01 1 0307-0609 ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-962-0 01 1 0610-0709 ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0610-0709 ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-962-0 01 1 0710-0912 ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0710-0912 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-962-0 01 1 1001-1003 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 1001-1003 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-962-0 01 1 1004-1103 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 1004-1103 ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0610-0709 ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0710-0912 ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) DARK GRAY 		8-97405-969-0 01 1 1001-1003 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) DARK GRAY 		8-97405-969-0 01 1 1004-1103 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-969-1 01 1 1104- ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0307-0912 ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97308-645-0 01 1 1001-1003 ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97308-645-0 01 1 1004- ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) 		8-97308-645-0 01 1 1004- ● ●
53 16.115 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0307-0912 ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97308-646-0 01 1 1001-1003 ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97308-646-0 01 1 1004- ● ●
53 16.115 STRIKER; GLOVE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) 		8-97308-646-0 01 1 1004- ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97308-643-0 01 1 0307-0912 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-97308-643-0 01 1 1001-1003 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) 		8-97308-643-0 01 1 1004- ● ●
66 16.085 REINFORCEMENT; INST PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (B) 		8-97308-643-0 01 1 1004- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0307-0508 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97308-641-0 01 1 0509-0912 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-97308-641-0 01 1 1001-1003 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-97308-641-0 01 1 1004- ● ●
66 16.085 REINFORCEMENT; INST PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (A) 		8-97308-641-0 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97396-253-0 01 1 0307-0609 ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(D) DARK GRAY 		8-97405-963-3 01 1 0610-0709 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-963-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(D) DARK GRAY 		8-97405-963-3 01 1 0710-0912 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-963-3 01 1 0710-0912 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) DARK GRAY 		8-97405-963-3 01 1 1001-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-963-3 01 1 1001-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (D) DARK GRAY 		8-97405-963-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY 		8-97405-963-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) DARK GRAY 		8-97396-251-0 01 1 0307-0609 ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) DARK GRAY 		8-97403-328-3 01 1 0610-0709 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-328-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-328-3 01 1 0710-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-328-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (A) DARK GRAY 		8-97396-252-0 01 1 0307-0609 ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) DARK GRAY 		8-97403-327-3 01 1 0610-0709 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) DARK GRAY 		8-97403-327-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY 		8-97403-327-3 01 1 0710-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) DARK GRAY 		8-97403-327-3 01 1 0710-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY 		8-97403-327-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) DARK GRAY 		8-97403-327-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY 		8-97405-970-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY 		8-97405-970-3 01 1 0710-0912 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (D) LIGHT GRAY 		8-97405-970-3 01 1 1001-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (D) BLACK 		8-97418-990-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) LIGHT GRAY 		8-97403-332-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) LIGHT GRAY 		8-97403-332-3 01 1 0710-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) BLACK 		8-97419-444-3 01 1 1004- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) LIGHT GRAY 		8-97403-331-3 01 1 0610-0709 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) LIGHT GRAY 		8-97403-331-3 01 1 0710-1003 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) BLACK 		8-97418-546-3 01 1 1004- ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
16.100 T=0.5 		8-97137-828-0 06 1 0307-0612 ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-98061-356-0 06 1 0701-0912 ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 1001-1003 ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 1004- ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) T=0.5 		8-98061-356-0 06 1 1004- ● ●
277 16.081 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0307-0912 ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97308-650-0 03 1 1001-1003 ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97308-650-0 03 1 1004- ● ●
277 16.081 RUBBER; STOPPER GLOVE LID
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) 		8-97308-650-0 03 1 1004- ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97299-328-1 01 1 0307-0609 ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-1 01 1 0610-0912 ● ● ● ●
320 16.081 COVER; GLOVE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-960-1 01 1 1001-1003 ● ● ● ●
320 16.081 COVER; GLOVE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-960-2 01 1 1004- ● ●
320 16.081 COVER; GLOVE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) DARK GRAY 		8-97405-960-2 01 1 1004- ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97391-529-1 01 1 0307-0408 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97391-529-1 01 1 0409-0609 ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97391-529-1 01 1 0409-0609 ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) DARK GRAY 		8-97403-318-4 01 1 0610-0612 ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-318-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) DARK GRAY 		8-97409-171-0 01 1 0701-0709 ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-171-0 01 1 0701-0709 ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) DARK GRAY 		8-97409-171-0 01 1 0710-1003 ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-171-0 01 1 0710-1003 ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) DARK GRAY 		8-97409-171-0 01 1 1004- ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-171-0 01 1 1004- ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-250-0 01 1 0307-0408 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-250-0 01 1 0409-0508 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0409-0508 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) (A) DARK GRAY 		8-97396-250-0 01 1 0509-0609 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97396-250-0 01 1 0509-0609 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) DARK GRAY 		8-97403-315-4 01 1 0610-0612 ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97403-315-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) DARK GRAY 		8-97409-173-0 01 1 0701-0709 ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 0701-0709 ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) DARK GRAY 		8-97409-173-0 01 1 0710-0912 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 0710-0912 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) DARK GRAY 		8-97409-173-0 01 1 1001-1003 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 1001-1003 ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) DARK GRAY 		8-97409-173-0 01 1 1004- ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY 		8-97409-173-0 01 1 1004- ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) LIGHT GRAY 		8-97401-257-0 01 1 0409-0609 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97403-317-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97409-172-0 01 1 0701-0709 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) LIGHT GRAY 		8-97409-172-0 01 1 0710-1003 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) BLACK 		8-97419-441-0 01 1 1004- ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5) (A) LIGHT GRAY 		8-97398-208-0 01 1 0409-0609 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97403-316-4 01 1 0610-0612 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 0701-0709 ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 0710-0912 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) LIGHT GRAY 		8-97409-174-0 01 1 1001-1003 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (C) BLACK 		8-97418-544-0 01 1 1004- ● ●
581 09.744 SCREW
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0307-0609 ● ● ● ●
581 09.744 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0610-0912 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) M6X20 W/WASHER 		8-98056-282-0 03 1 1001-1003 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) M6X20 W/WASHER 		8-98056-282-0 03 1 1004- ● ●
581 09.744 SCREW
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (A) M6X20 W/WASHER 		8-98056-282-0 03 1 1004- ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 13 1 0307-0411 ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER(AJ3) 16.115 (B) M5X16 		8-94279-312-0 15 1 0412-0508 ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16 		8-94279-312-0 11 1 0412-0508 ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 11 1 0509-0609 ● ● ● ●
581 09.744 SCREW
(B) M5X16 TAPPING 		8-98061-683-0 11 1 0610-0912 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) M5X16 TAPPING 		8-98061-683-0 11 1 1001-1003 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) M5X16 TAPPING 		8-98061-683-0 11 1 1004- ● ●
581 09.744 SCREW
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (B) M5X16 TAPPING 		8-98061-683-0 11 1 1004- ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0307-0508 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0307-0508 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0509-0609 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 02 1 0610-0612 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-0912 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0701-0912 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ●

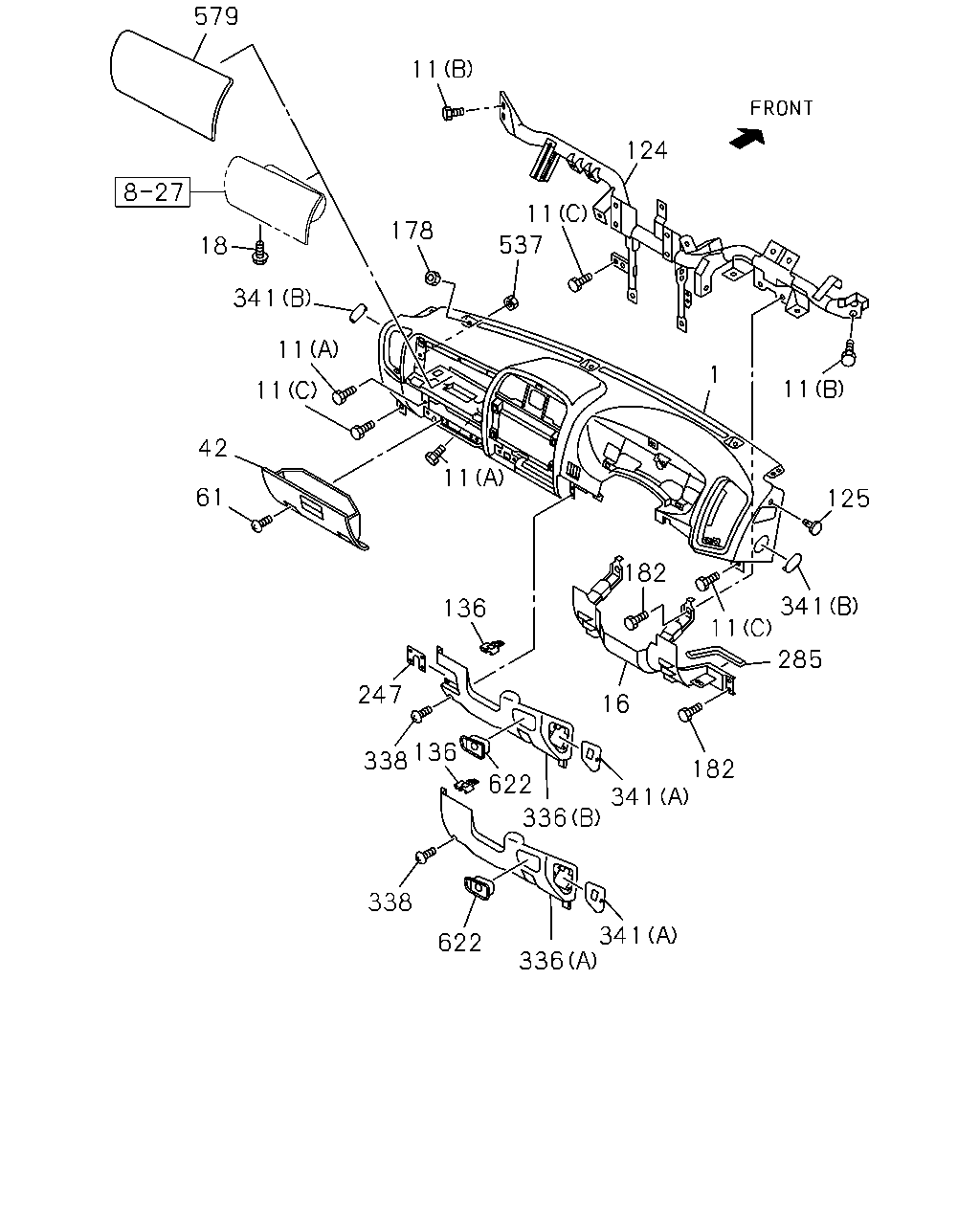

çizim 117388
579 11 124 11 178 537 18 341 11 1 11 11 42 11 61 125 182 341 11 136 285 247 16 136 338 182 622 341 336 338 341 622 336
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
DARK GRAY 		8-97299-326-0 01 1 0307-0609 ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-962-0 01 1 0610-0709 ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0610-0709 ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-962-0 01 1 0710-0912 ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0710-0912 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-962-0 01 1 1001-1003 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 1001-1003 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-962-0 01 1 1004-1103 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 1004-1103 ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0610-0709 ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0710-0912 ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) DARK GRAY 		8-97405-969-0 01 1 1001-1003 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) DARK GRAY 		8-97405-969-0 01 1 1004-1103 ● ●
1 16.080 PANEL; INST
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97405-969-1 01 1 1104- ● ● ● ●
11 16.090 BOLT; INST PNL
04.570 (B) M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0307-0609 ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 0610- ● ● ● ●
11 16.090 BOLT; INST PNL
01.287 (C) M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0307-0609 ● ● ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 04 1 0610- ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 06 1 0307-0508 ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 06 1 0509-0611 ● ● ● ●
11 16.090 BOLT; INST PNL
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 06 1 0612- ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER(AJ3) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 04 1 0307-0508 ● ● ● ●
16 16.085 BRACKET; INST PNL 8-97302-051-0 01 1 0307-0609 ● ● ● ●
16 16.085 BRACKET; INST PNL 8-98043-124-0 01 1 0610- ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0307-0508 ● ● ● ●
18 16.085 BOLT; BRKT
M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0509- ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 0807-1003 ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 0807-1003 ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 1004- ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 1004- ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 0807-1003 ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 1004- ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97396-878-0 01 1 0307-0404 ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97293-941-2 01 1 0405-0609 ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97403-321-2 01 1 0610-0612 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-321-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97409-179-0 01 1 0701-0709 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-179-0 01 1 0701-0709 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97409-179-0 01 1 0710-0806 ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-179-0 01 1 0710-0806 ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97403-323-2 01 1 0610-0612 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-181-0 01 1 0701-0709 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97409-181-0 01 1 0710-0806 ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0307-0612 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
09.744 M5X16 TAPPING 		8-98061-683-0 02 1 0701-1003 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1004- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-97362-194-0 01 1 0307-0402 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97362-194-0 01 1 0307-0402 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-97362-194-0 01 1 0403-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-067-0 01 1 0509-0609 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98023-067-0 01 1 0509-0609 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98023-086-0 01 1 0610-0809 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98023-086-0 01 1 0610-0809 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-191-0 01 1 0810- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98110-191-0 01 1 0810- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-193-0 01 1 0307-0402 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-193-0 01 1 0403-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-066-0 01 1 0509-0609 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-085-0 01 1 0610-0709 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKINGBRAKE FLOOR<7XW> 		8-98023-085-0 01 1 0710-0809 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKINGBRAKE FLOOR<7XW> 		8-98110-190-0 01 1 0810- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) PARKING BRAKE FLOOR<7XW> 		8-97362-195-0 01 1 0307-0402 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) 		8-97362-195-0 01 1 0307-0402 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) PARKING BRAKE FLOOR<7XW> 		8-97362-195-0 01 1 0403-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) PARKING BRAKE FLOOR<7XW> 		8-98023-068-0 01 1 0509-0609 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) 		8-98023-068-0 01 1 0509-0609 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98023-068-0 01 1 0610-0809 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 		8-98023-068-0 01 1 0610-0809 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 0810-0912 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 		8-98110-168-0 01 1 0810-0912 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JK1-TCX ENG(LR0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 1001- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 		8-98110-168-0 01 1 1001- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-196-0 01 1 0307-0402 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-196-0 01 1 0403-0508 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0509-0609 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0610-0709 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JK1-TCX ENG(LR0) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98023-069-0 01 1 0710-0809 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JK1-TCX ENG(LR0) RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0810-0912 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JK1-TCX ENG(LR0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1001- ● ●
125 16.085 CLIP; INST PANEL 8-97310-401-0 01 1 0307- ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 T=0.5 		8-97137-828-0 04 1 0307-0612 ● ● ● ●
136 16.085 CLIP; INST COVER
09.744 T=0.5 		8-98061-356-0 04 1 0701- ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 0307-0609 ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 M6 FLANGE 		8-98055-704-0 03 1 0610- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 0307-0611 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 0612- ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97393-916-0 01 1 0307-0402 ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97393-916-0 01 1 0403-0508 ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97393-916-0 01 1 0509-0609 ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 0610-1104 ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-831-0 01 1 1105- ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0307- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97393-913-0 01 1 0307-0402 ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) DARK GRAY 		8-97393-913-0 01 1 0307-0402 ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97393-913-0 01 1 0403-0609 ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 0610-1104 ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) BLACK 		8-97422-814-0 01 1 1105- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97393-912-0 01 1 0307-0402 ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97393-912-0 01 1 0403-0508 ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97393-912-0 01 1 0509-0609 ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 0610-1104 ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-822-0 01 1 1105- ● ●
338 16.081 SCREW; COVER
16.115 M5X16 		8-94279-312-0 01 1 0307-0612 ● ● ● ●
338 16.081 SCREW; COVER
09.744 M5X16 TAPPING 		8-98061-683-0 01 1 0701-1003 ● ● ● ●
338 16.081 SCREW; COVER
16.100 M5X16 TAPPING 		8-98167-214-0 01 1 1004- ● ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97393-914-0 01 1 0307-0609 ● ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97403-945-0 01 1 0610-1104 ● ● ● ●
341 16.110 LID; FUSE BOX
(A) BLACK 		8-97422-818-0 01 1 1105- ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-877-0 01 1 0307-0609 ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-0 01 1 0610-0912 ● ● ● ●
341 16.110 LID; FUSE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97408-049-0 01 1 1001-1003 ● ● ● ●
341 16.110 LID; FUSE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97408-049-1 01 1 1004- ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97408-049-1 01 1 1004- ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-876-0 01 1 0307-0609 ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-0 01 1 0610-0912 ● ● ● ●
341 16.110 LID; FUSE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97408-048-0 01 1 1001-1003 ● ● ● ●
341 16.110 LID; FUSE BOX
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97408-048-1 01 1 1004- ● ●
341 16.110 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DI N E SIZE AUDIO(7QL) (B) DARK GRAY 		8-97408-048-1 01 1 1004- ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 16.547 M6 W/DISHED WASHER 		8-97018-399-1 02 1 0307-0508 ● ● ● ●
537 16.085 NUT; BRKT
16.547 M6 W/DISHED WASHER 		8-97018-399-1 02 1 0509-0612 ● ● ● ●
537 16.085 NUT; BRKT
M6 W/DISHED WASHER 		8-98073-372-0 02 1 0701- ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER(AJ3) DARK GRAY 		8-97299-329-0 01 1 0307-0508 ● ● ● ●
622 16.100 BOX; IDLE CONT
DARK GRAY 		8-97393-915-0 01 1 0307-0609 ● ● ● ●
622 16.100 BOX; IDLE CONT
DARK GRAY 		8-97403-947-0 01 1 0610-1104 ● ● ● ●
622 16.100 BOX; IDLE CONT
BLACK 		8-97422-820-0 01 1 1105- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
